Instruction manual
Dishwasher
DI260110CN
DI260130CN
6HWXSVHF
(08@HPX`h)")*)2):
Ù
5HVHWVHF
1"1*121:1B1J1R1Z1b1j9"9*929:
Table of contents
Instruction manual
Intended use 4
Safety instructions 5
Before you switch ON the appliance 5
Delivery 5
Installation 5
In daily use 6
Damage 6
Disposal 6
Door lock 7
Environmental protection 8
Packaging 8
Old appliances 8
Getting to know your appliance 9
Control panel 9
Appliance interior 9
Info button 9
Time setting 9
Switching on the appliance for the first time 10
Settings 11
Water softening system / special salt 13
Water hardness table 13
Adjusting the water softening system 13
Using special salt 14
Detergent with a salt component 14
Switching off water softening system 14
Rinse aid 14
Setting amount of rinse aid 15
Switching off rinse aid refill indicator 15
Utensils 15
Not suitable 15
Glass and utensil damage 15
Loading the dishwasher 16
Upper basket 16
Lower basket 16
Cutlery basket 17
Cutlery drawer 17
Chopstick basket 18
Etagere 18
Folding spikes 18
Small items holder 19
Knife rack 19
Baking sheet spray head 19
Gastronorm insert 20
Unloading the dishwasher 20
Adjusting the height of the basket 20
Removing/installing cutlery drawer 21
Removing/installing upper basket 22
Removing/installing lower basket 22
en
Detergent 23
Adding detergent 24
Combination detergent 24
Overview of programmes 25
Programme selection 26
Information for test institutes 26
Additional functions 26
Power 26
Half load 26
Hygiene 26
Intensive 26
extraDry 26
Energy Save 26
Operating the appliance 27
Programme data 27
Changing the settings 27
AquaSensor 27
Time display 27
Sensor setting 27
extraDry 27
Eco forecast 27
Auto Power Off 28
EmotionLight 28
Front display 28
Remaining time projection 28
infoLight 28
Changing start programme 28
Tone volume 28
Button volume 28
Child-proof lock 28
Greeting 28
Factory setting 28
Switching the appliance on 29
Time preselection 29
Programme end 29
Switching off the appliance 29
Interrupting the programme 29
Terminating the programme 30
Changing the programme 30
Cleaning and maintenance 30
Overall condition of the machine 30
Special salt and rinse aid 30
Filters 31
Spray arms 31
Fault, what to do? 32
Error message 32
Waste water pump 32
Fault table 33
3
en Intended use
Customer service 39
Installation and connection 39
Contents of package 39
Safety instructions 39
Delivery 39
Technical specifications 40
Installation 40
Drainage connection 40
Drinking water connection 41
Warm water connection 41
Electrical connection 42
Removal 42
Transporting 42
Protection against frost (Emptying the appliance) 42
Intended use
Intended use
▯ This appliance is intended for use in the
home and the home environment.
▯ Use the dishwasher only in the household
and only for its designed purpose: for
washing domestic dishes.
4
Safety instructions en
Safety instructions
Safety instructions
Children from 8 years of age or people whose
physical, sensory or mental abilities or their
lack of experience or knowledge prevent them
from using the appliance safely must not use
this appliance without supervision or
instruction by a responsible person.
Before you switch ON the appliance
Please read the operating and installation
instructions carefully. They contain important
information on how to install, use and maintain
the appliance.
Retain all documents for subsequent use or for
the next owner.
Delivery
1. Check the packaging and dishwasher
immediately for damage caused in transit.
Do not switch on a damaged appliance, but
contact your supplier.
2. Please dispose of the packaging material in
an environmentally friendly manner.
3. Do not let children play with packaging and
its parts. There is a risk of suffocation from
collapsible boxes and film.
Installation
▯ Following installation, ensure that the back
of the dishwasher is not freely accessible
(protection against contact due to hot
surface).
▯ Install and connect the appliance according
to the installation and assembly
instructions.
▯ Prior to installation, disconnect the
dishwasher from the power supply.
▯ Ensure that the protective conductor system
of the domestic supply has been correctly
installed.
▯ The electrical connection conditions must
correspond with the specifications on the
dishwasher rating plate 9:.
▯ If the power cord of this appliance is
damaged, it must be replaced with a
particular power cord.
To prevent injury, the power cord may be
purchased from customer service only.
▯ If the dishwasher is installed in a high-sided
unit, the unit must be secured properly.
▯ If the dishwasher is installed below or above
other domestic appliances, follow the
information for installation in combination
with a dishwasher in the installation
instructions for the particular appliances.
▯ Also follow the installation instructions for
the dishwasher to ensure that all appliances
are operated safely.
▯ If there is no information or if the
installation instructions do not include the
appropriate information, contact the
manufacturer of these appliances to ensure
that the dishwasher can be installed above
or below these appliances.
▯ If you cannot obtain any information from
the manufacturer, you must not install the
dishwasher above or below these
appliances.
▯ If you install a microwave oven above the
dishwasher, the microwave oven may be
damaged.
5
en Safety instructions
▯ Install built-under or integratable appliances
only under continuous worktops which have
been screwed to adjacent cupboards to
ensure stability.
▯ Do not install the appliance near heat
sources (radiators, heat storage tanks,
cookers or other appliances which generate
heat) and do not install under a hob.
▯ After installing the appliance, ensure that
the plug is easily accessible. ~ "Electrical
connection" on page 42
▯ For some models:
The plastic housing on the water connection
contains an electric valve. The supply hose
contains electrical connection cables. Do
not cut through the supply hose. Do not
immerse the plastic housing in water.
In daily use
Read and observe the safety information and
instructions for use on the packaging for
cleaning and rinsing agents.
:Warning – Risk of injury!
▯ To prevent injuries, e.g. caused by
stumbling, open the dishwasher only briefly
in order to load and unload the dishwasher.
▯ Knives and other utensils with sharp points
must be placed with the points downwards
in the cutlery basket*1b or horizontally on
the knife shelf* or in the cutlery
drawer*1*.
▯ Do not lean or sit on the open door.
▯ In the case of free-standing appliances,
ensure that the baskets are not overloaded.
The appliance could tip.
▯ If the appliance is not in a cavity and a side
panel is accessible, the door hinge area
must be covered at the side for reasons of
safety (risk of injury). The covers are
available as optional accessories from
customer service or specialist outlets.
* depending on the features of your
dishwasher
Damage
▯ The appliance may be repaired and opened
up by a technician only. To do this,
disconnect the appliance from the power
supply. Pull out the mains plug or switch off
the fuse. Turn off the tap.
▯ If the appliance is damaged, especially the
control panel (cracks, holes, broken
buttons), or the door function is impaired,
stop operating the appliance. Pull out the
mains plug or switch off the fuse. Turn off
tap, call customer service.
Disposal
1. Make redundant appliances unusable to
prevent subsequent accidents.
2. Dispose of the appliance in an
environmentally friendly manner.
:Warning – Risk of explosion!
Do not add any solvents to the rinsing
compartment. Danger of explosion!
:Warning – Risk of scalding!
Open the door carefully when the programme
is still running. There is a risk of hot water
spraying out of the appliance.
6
Safety instructions en
:Warning – Risk to children!
▯ If fitted, use the childproof lock.
▯ Do not allow children to play with or operate
the appliance.
▯ Keep children away from detergents and
rinse aid. These may cause chemical burns
in the mouth, throat and eyes or
asphyxiation.
▯ Keep children away from open dishwasher.
There may be small parts in the dishwasher
which children could swallow and the water
inside the dishwasher is not drinking water
as it may contain detergent residue.
▯ Ensure that children do not place fingers in
the tablet collecting tray 1B. Small fingers
could become caught in the slots.
:Warning – Risk of suffocation!
Children may become locked in the
dishwasher and suffocate. Always completely
close the appliance door when leaving the
dishwasher.
Activate the child-proof lock (door lock) as follows:
1. Pull the catch of the child-proof lock
towards yourself (1).
2. Close the door (2).
The child-proof lock is activated.
▯ When opening and closing the door on an
eye-level appliance, ensure that children do
not become jammed or crushed between
the appliance door and the cupboard door
below.
▯ Children could become locked in the
appliance (danger of suffocation) or get into
another dangerous situation.
Redundant appliances: Pull out the mains
plug, sever and dispose of the power cord.
Destroy the door lock so that the door can
no longer be closed.
Childproof lock (door lock) *
Door lock
The child-proof lock (door lock) protects
children from potential hazards which the
dishwasher poses.
Open the door with activated child-proof lock (door lock) as follows:
1. Press the catch of the child-proof lock to
the right (1).
2. Open the door (2).
7
en Environmental protection
Deactivate the child-proof lock (door lock) as follows:
1. Press the catch of the child-proof lock to
the right (1).
2. Press the catch of the child-proof lock
backwards (2).
The childproof lock is deactivated.
* depending on the features of your
dishwasher
Environmental protection
Environmental protection
Both the packaging of new appliances and the old
appliances themselves contain valuable raw materials
and recyclable materials.
Please dispose of the individual parts separated
according to type.
Please ask your dealer or inquire at your local authority
about current means of disposal.
Packaging
All plastic parts of the appliance are identified with
internationally standardised abbreviations (e.g. PS
polystyrene). Therefore, plastic waste can be sorted out
when the appliance is being disposed of.
Please follow the safety instructions under “Delivery”
~ Page 5.
Old appliances
Please follow the safety instructions under “Disposal of
your appliance” ~ Page 6.
This appliance has been
identified in accordance with
the European Directive 2012/
19/EU on Waste Electrical and
Electronic Equipment (WEEE).
The directive provides a
framework for the collection
and recycling of old
appliances, which is valid
across the EU.
8
Getting to know your appliance en
Getting to know your appliance
Getting to know your appliance
Diagrams of the control panel and the interior of the
appliance can be found at the front of the manual.
Individual positions are referred to in the text.
Control panel
See Fig. ~ Page 2
( On/off switch
0 Programme buttons **
8 Info button {
@ Display window at top
H Rinse aid refill indicator
P Salt refill indicator
X Selection buttons
` Time preselection
h Additional functions **
)" START button
)* < > button
)2 Open door button
): Front display *
* depending on the features of your dishwasher
** number depending on the features of your
dishwasher
Info button {
Info button
The Info button { can be used to display additional
programme information.
1. Press the Info button {8.
2. Press the programme button.
Information on the selected programme is indicated
on the display window at the top @.
3. To leave, press Info button { 8.
Time setting
Time setting
When the appliance is switched on the for the first
time, the time starts at 12:00 o’clock.
Set the time as follows:
1. Open the door.
2. Switch on ON/OFF switch (.
3. Press Info button { 8 for 3 seconds until the
following text is indicated on the display window at
the top @:
Scroll with < >
Set with - +
Appliance interior
See Fig. ~ Page 2
1" Interior light *
1* Cutlery drawer *
12 Top basket
1: Upper spray arm
1B Tablet collecting tray
1J Lower spray arm
1R Dispenser for special salt
1Z Filters
1b Cutlery basket *
1j Bottom basket
9" Dispenser for rinse aid
9* Detergent dispenser
92 Lock for detergent dispenser
9: Rating plate
* depending on the features of your dishwasher
Leave with Setup 3 sec.
4. Keep pressing button > )* until the time setting is
indicated on the display window at the top @.
5. Make the setting with setting buttons + - X. If the
selection buttons + - X are held down, the set
values are changed in 10-minute steps.
6. Press and hold the Info button {8 for 3 seconds.
The chosen setting has now been stored.
Note: If the appliance was disconnected from the power supply for a prolonged period, the time starts at 12:00 o’clock. Set the time.
9
en Getting to know your appliance
Switching on the appliance for the first time
When the dishwasher is switched on for the first time,
you are taken directly to the settings for switching on
the appliance for the first time. The following text is
Change the setting as follows:
1. Keep pressing button > )* until the required setting
is displayed.
indicated on the display window at the top @:
2. Make the setting with setting buttons + - X.
Scroll with < >
Set with - +
Leave with Setup 3 sec.
3. Press and hold the Info button {8 for 3 seconds.
The chosen setting has now been stored.
The required settings for switching on the appliance for
the first time are listed in the table below.
Settings
Switching on the appliance for
Factory setting Infotext
by pressing Info button {
the first time
Language Deutsch Language selection.
Time format 24h 12h or 24h.
Time setting 12:00 Set the current time.
Water hardness °E 16 - 20 medium Setting water hardness. When using
Multitabs, select the lowest setting.
Rinse aid disp. Setting 5 Amount of rinse aid affects drying. When
using Multitabs, select setting 0.
Water connection * Cold water Connection to hot water (40-60°C) or cold
water (<40°C) possible.
* depending on the features of your dishwasher
--------
10
Settings
Getting to know your appliance en
The dishwasher has been preset with certain settings
for your convenience. You can change this factory
setting.
Change the setting as follows:
1. Open the door.
2. Switch on ON/OFF switch (.
3. Press Info button { 8 for 3 seconds until the
following text is indicated on the display window at
the top @:
Scroll with < >
Set with - +
Leave with Setup 3 sec.
4. Keep pressing button > )* until the required setting
is displayed.
5. Make the setting with setting buttons + - X.
6. Press and hold the Info button {8 for 3 seconds.
The chosen setting has now been stored.
You have the option of resetting all changed settings
back to the original factory settings.
Note: When you reset your dishwasher to the factory settings, you are taken directly to the settings for switching on the appliance for the first time.
Setting Factory setting Infotext
by pressing Info button {
Time setting 12:00 Set the current time.
Time format 24h 12h or 24h.
Time display Time Show end of programme with display "Finish
in" or "Finish at".
Language Deutsch Language selection.
Water hardness °E 16 - 20 medium Setting water hardness. When using
Multitabs, select the lowest setting.
Rinse aid disp. Level 5 Amount of rinse aid affects drying. When
using Multitabs, select setting 0.
Sensor setting Standard Adjustment of soiling detection for optimum
cleaning result.
Extra dry Off Improved drying for glasses and
plasticware.
Water connection * Cold water Connection to hot water (40-60°C) or cold
water (<40°C) possible.
Eco forecast Off Show the water and energy consumption.
Auto Power Off after 1 min. Appliance automatically switches off at end
of rinsing process.
Emotion Light * On Interior light.
Front display * On The front display can be selected.
Remaining time proj. * On While programme is running, status
information is projected onto floor.
Infolight * On Light is projected to signal an active
cleaning cycle.
Start programme Eco 50° C When switching on, the last selected
programme appears.
Tone volume * Level 2 Volume of signal at end of programme.
Button volume Level 2 Volume when using buttons.
* depending on the features of your dishwasher
11
en Getting to know your appliance
Setting Factory setting Infotext
by pressing Info button {
Child-proof lock * Off Activated child-proof lock impedes opening
of door.
Eco drying * On Door opens automatically at the end of the
programme.
Greeting On When switching on the appliance, the brand
logo can be deselected.
Factory setting Reset Resetting to the factory setting.
* depending on the features of your dishwasher
--------
12
Water softening system / special salt en
Water softening system / special salt
Water softening system / special salt
To ensure good rinsing results, the dishwasher
requires soft water, i.e. water which is low in lime,
otherwise limescale will be deposited on the utensils
and interior container. Tap water above 7° dH
(1.2 mmol/l) must be softened. The water is softened
with special salt (regeneration salt) in the water
softening system of the dishwasher. The setting and
therefore the required amount of salt depends on the
degree of hardness of your tap water (see following
water hardness table).
Water hardness table
:DWHU
KDUGQHVV
YDOXH(
Ȣ
Ȣ
+DUGQHVV
UDQJH
VRIW
VRIW
PPROO
Ȣ
Ȣ
6HWYDOXH
RQWKH
PDFKLQH
Adjusting the water softening system
The amount of salt dispensed can be set from 0 to 62°E.
Salt is not required at the set value 0-8.
Set the softening system as follows:
1. Ask your local water utility company for the water
hardness value of the tap water.
2. Required setting can be found in the water hardness
table.
3. Open the door.
4. Switch on ON/OFF switch (.
5. Press Info button { 8 for 3 seconds until the
following text is indicated on the display window at
the top @:
Scroll with < >
Set with - +
Leave with Setup 3 sec.
6. Keep pressing button > )* until the water hardness
is indicated on the display window at the top @.
Ȣ
Ȣ
Ȣ
Ȣ
Ȣ
Ȣ
PHGLXP
PHGLXP
PHGLXP
KDUG
KDUG
KDUG
Ȣ
Ȣ
Ȣ
Ȣ
Ȣ
Ȣ
7. Make the setting with setting buttons + - X.
8. Press and hold the Info button {8 for 3 seconds.
The chosen setting has now been stored.
13
en Rinse aid
Using special salt
As soon as the low salt indicator P is lit on the control
panel or is requested on the front display * ):, salt
should be topped up. Always refill with special salt
immediately before switching on the appliance. This
ensures that overrun special salt solution is immediately
washed out and does not corrode the rinsing tank.
Caution!
Detergent will destroy the water softening system! Never
pour detergent into the salt dispenser.

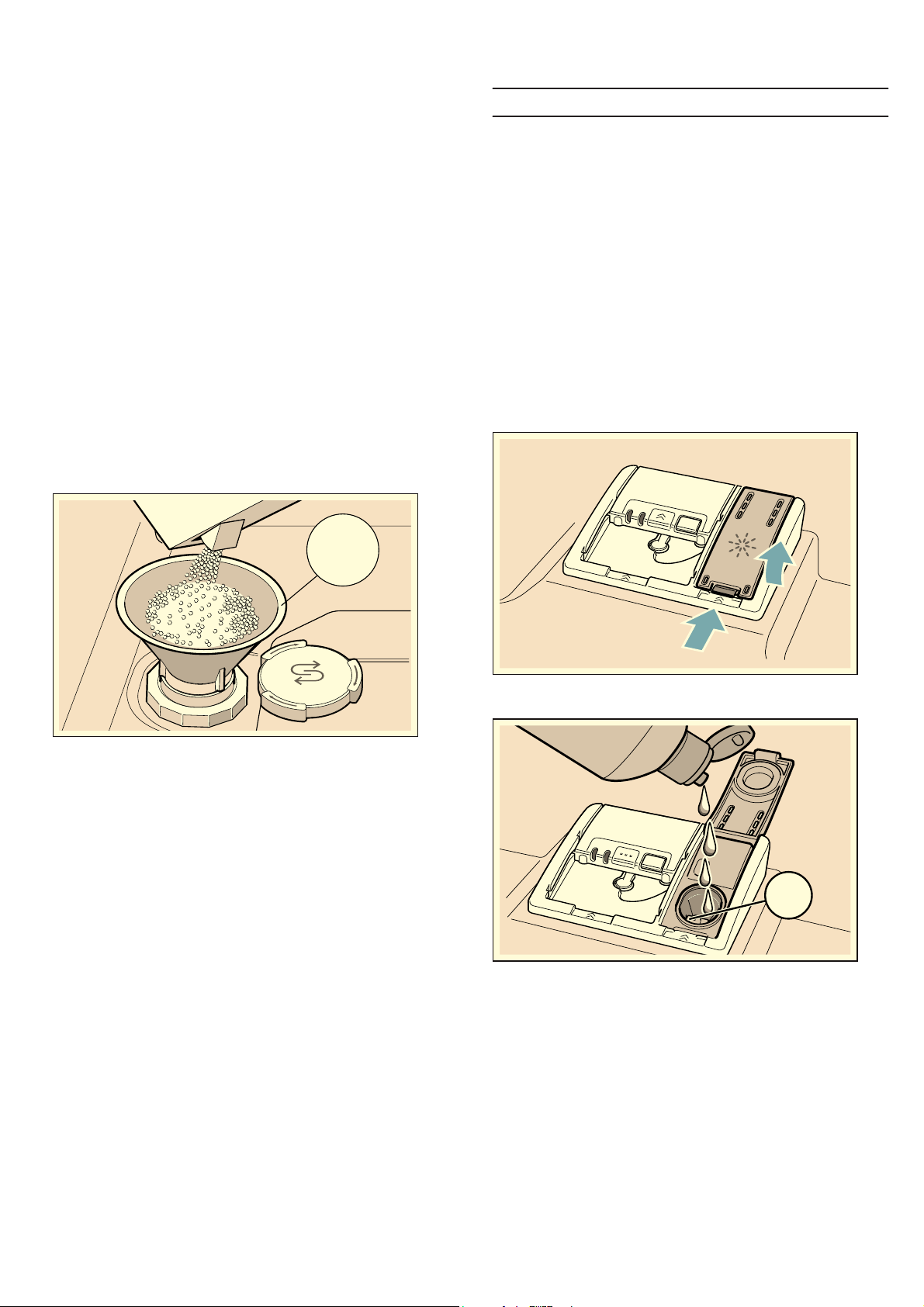

Top up the salt as follows:
1. Undo the screw plug on the dispenser 1R.
2. Fill the dispenser with water (required only when
switching on the appliance for the first time).
3. Add salt as illustrated (do not use table salt or tablets).
The water is displaced and runs out.
Rinse aid
Rinse aid
As soon as the low rinse-aid indicator H is lit on the
control panel or is requested on the front display * ):,
rinse-aid should be topped up. The rinse aid is required
for stain-free utensils and clear glasses. Use only rinse
aid for domestic dishwashers. Combined detergents
with rinse-aid component may be used up to a water
hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l)
only. If the water hardness is over 21° dH, rinse-aid
must be used.
* depending on the features of your dishwasher
Top up the rinse-aid as follows:
1. Open dispenser 9"; press lug on the lid (1) and lift
(2).
* depending on the features of your dishwasher
Using detergents with salt component
Detergent with a salt component
If combined detergents with a salt component
are used, special salt can usually be omitted up
to a water hardness of 21° dH (37° fH, 26° Clarke,
3.7 mmol/l). If the water hardness is over 21° dH, salt
must be used.
Switching off low salt indicator / water softening system
Switching off water softening system
If the use of combined detergents with a salt
component impairs the low salt indicator P on the
control panel or the text on the display window at the
top @ (enough salt for x rinse cycles), the displays
can be switched off.
2. Add rinse-aid up to the max. mark.
PD[
3. Close the lid.
Lid “clicks” into position.
4. Remove overflowed rinse aid with a cloth.
This prevents excessive frothing during the next rinse
cycle.
Proceed as described under “Setting water softening
system” and set the value to 0-8. The water softening
system and salt refill indicator are now switched off.
14
Loading...
