User manual

DF481500F

Dishwasher

aus

1 Safety ............................................4

1.1 General information....................4

1.2 Intended use...............................4

1.3 Restriction on user group...........4

1.4 Safe installation ..........................4

1.5 Safe use .....................................6

1.6 Damaged appliance...................8

1.7 Risk to children ..........................8

1.8 Safety systems ...........................9

2 Preventing material damage .....10

2.1 Safe installation ........................10

2.2 Safe use ...................................10

3 Childproof lock...........................10

3.1 Electric childproof lock.............11

4 Environmental protection and

saving energy.............................11

4.1 Disposing of packaging ...........11

4.2 Saving energy...........................11

4.3

Zeolith drying ......................11

4.4 AquaSensor..............................12

4.5 Sensors ....................................12

5 Installation and connection.......12

5.1 Scope of supply .......................12

5.2 Installing and connecting the

appliance..................................13

5.3 Drainage connection ................13

5.4 Drinking water connection .......13

5.5 Electrical connection ................13

6 Familiarising yourself with

your appliance............................15

6.1 Appliance .................................15

6.2 Controls ....................................17

9 Features......................................23

9.1 Top basket ...............................23

9.2 Bottom basket ..........................25

9.3 Cutlery basket ..........................26

9.4 Cutlery drawer ..........................26

9.5 Etagere .....................................28

9.6 Folding prongs .........................28

9.7 Baking sheet spray head .........29

9.8 Optional extra cleaning area ....29

9.9 Stemware basket......................30

9.10 Gastronorm container in-

sert..........................................32

9.11 Basket heights........................32

10 Before using for the

first time....................................32

10.1 Making settings for initial

start-up....................................32

11 Rinse aid system......................33

11.1 Rinse aid ................................33

11.2 Setting the amount of rinse

aid...........................................33

11.3 Switching the rinse aid sys-

tem off ....................................34

12 Detergent ..................................34

12.1 Suitable detergents ................34

12.2 Unsuitable detergents ............35

12.3 Information on detergents......35

12.4 Adding detergent ...................36

13 Tableware .................................37

13.1 Damage to glass and table-

ware........................................37

13.2 Arrange tableware..................38

13.3 Removing tableware...............39

7 Programmes ...............................19

7.1 Information for test institute......22

7.2

Personalisation function .......22

8 Additional functions ..................22

14 Basic operation ........................39

14.1 Opening appliance door ........39

14.2 Switching on the appliance....39

14.3 Setting a programme .............39

14.4 Setting additional functions....39

14.5 Setting timer programming ....40

aus

14.6 Starting the programme .........40

14.7 Interrupting programme .........40

14.8 Terminate programme............40

14.9 Display programme inform-

ation........................................40

14.10 Switching off appliance ........41

15 Basic settings...........................42

15.1 Overview of basic settings .....42

15.2 Changing basic settings.........44

15.3 Setting the time ......................44

16 HomeConnect .........................44

16.1 HomeConnect quick start .....45

16.2 HomeConnect settings..........45

16.3

Remote Start .......................45

16.4 Remote Diagnostics ..............46

16.5 Software update .....................46

16.6 Data protection.......................46

17 Cleaning and servicing ............46

17.1 Cleaning the tub.....................46

17.2 Cleaning products..................47

17.3 Tips on appliance care...........47

17.4

Machine Care .....................47

17.5 Filter system ...........................48

17.6 Cleaning spray arms ..............49

21 Technical specifications..........67

21.1 Information regarding Free

and Open Source Software....67

22 Declaration of Conformity .......67

18 Troubleshooting.......................51

18.1 Clean wastewater pump.........64

19 Transportation, storage and

disposal ....................................64

19.1 Removing the appliance ........64

19.2 Protect appliance from frost...65

19.3 Transporting the appliance ....65

19.4 Disposing of old appliance ....65

20 Customer Service.....................66

20.1 Product number (E-Nr.), production number (FD) and consecutive numbering

(Z-Nr.) .....................................66

20.2 AQUA-STOP guarantee..........66

aus Safety

1 Safety

Observe the following safety instructions.

1.1 General information

¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe

for future reference or for the next owner.

¡ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

¡ For cleaning household tableware. ¡ In private households and in enclosed spaces in a domestic en-

vironment.

¡ Up to an altitude of 2500 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safe installation

WARNING‒Risk of injury!

Improper installation may cause injury.

▶ When installing and connecting the appliance, follow the instruc-

tions in the manual and installation instructions.

Safety aus

WARNING‒Risk of electric shock!

Incorrect installation is dangerous.

▶ Connect and operate the appliance only in accordance with the

specifications on the rating plate.

▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur-

rent only via a properly installed socket with earthing.

▶ The protective conductor system of the domestic electrical in-

stallation must be properly installed.

▶ Never equip the appliance with an external switching device,

e.g. a timer or remote control.

▶ When the appliance is installed, the mains plug of the power

cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.

▶ When installing the appliance, check that the power cable is not

trapped or damaged. Cutting through the supply hose or immersing the Aqua-Stop valve in water is dangerous.

▶ Never immerse the plastic housing in water. The plastic housing

on the supply hose contains an electric valve.

▶ Never cut through the supply hose. The supply hose contains

electric power cables.

WARNING‒Risk of fire!

It is dangerous to use an extended power cord and non-approved adapters.

▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer.

aus Safety

WARNING‒Risk of injury!

Hinges move when opening and closing the appliance door and can cause injury.

▶ If built-under or integrable appliances are not in a cavity so that

one side is accessible, the hinge area must be covered at the

side. Covers are available from Customer Service or specialist

outlets.

WARNING‒Risk of tipping!

Improper installation may cause the appliance to tip up.

▶ Only install built-under or integrable appliances under a continu-

ous worktop that is securely connected to adjacent cabinets.

1.5 Safe use

WARNING‒Risk of serious harm to health!

Failure to comply with safety instructions and directions for use on packagings of detergent and rinse aid products may cause serious harm to health.

▶ Follow the safety instructions and directions for use on the

packagings of detergent and rinse aid products.

WARNING‒Risk of explosion!

Adding solvents to the interior of the appliance may cause explosions.

▶ Never add solvents to the interior of the appliance.

Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions.

▶ Never use highly caustic alkaline or highly acidic cleaning

agents, in particular commercial or industrial products, in con-

junction with aluminium parts (e.g. grease filters of extractor

hoods or aluminium pans), e.g. for the Machine Care pro-

gramme.

Safety aus

WARNING‒Risk of injury!

Leaving the appliance door open may result in injury.

▶ Only open the appliance door to load or unload tableware in or-

der to prevent accidents, e.g. through tripping.

▶ Do not sit or stand on the appliance door when open.

Knives and utensils with sharp points can cause injuries.

▶ Arrange knives and utensils with sharp points in the cutlery bas-

ket with the points downwards, on the knife shelf or in the cut-

lery drawer.

WARNING‒Risk of scalding!

If you open the appliance door while the programme is running, hot water may splash out of the appliance.

▶ Open the appliance door carefully if the programme is still run-

ning.

WARNING‒Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appli-

ance. If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with hot appliance

parts or heat sources.

▶ Never let the power cord come into contact with sharp points or

edges.

▶ Never kink, crush or modify the power cord.

WARNING‒Risk of burns!

The blow opening of the Zeolith container becomes hot and can cause burns.

▶ Never touch the blow opening of the Zeolith container.

aus Safety

1.6 Damaged appliance

WARNING‒Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always

unplug the appliance at the mains.

▶ If the appliance or the power cord is damaged, immediately un-

plug the power cord or switch off the fuse in the fuse box and

turn off the water tap.

▶ Call customer services. →Page66

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained

specialist staff.

▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re-

placed with a special connection cable, which is available from

the manufacturer or his Customer Service.

1.7 Risk to children

WARNING‒Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

▶ Keep packaging material away from children. ▶ Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

▶ Keep small parts away from children. ▶ Do not let children play with small parts.

Children may become trapped in the appliance and suffocate.

▶ Use the childproof lock if fitted. ▶ Never let children play with or operate the appliance.

Safety aus

WARNING‒Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

▶ With redundant appliances, unplug the power cord. Then cut

through the cord and damage the lock on the appliance door

beyond repair so that the appliance door will no longer close.

WARNING‒Risk of crushing!

With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath.

▶ Keep an eye on children when opening and closing the appli-

ance door.

WARNING‒Risk of chemical burns!

Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes.

▶ Keep children away from detergent and rinse aid products. ▶ Keep children away from the appliance when open. The water in

the interior of the dishwasher is not drinking water. It may con-

tain residues of detergents and rinse aid.

WARNING‒Risk of injury!

Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves.

▶ Keep children away from the appliance when open.

1.8 Safety systems

Protect children from possible hazards resulting from the appliance. The appliance is equipped with a Childproof lock →Page10.

aus Preventing

Preventing

2 Preventing material

damage

Preventing

2.1 Safe installation

ATTENTION!

Improper installation of the appliance may cause damage.

▶ If the dishwasher is installed above

or below other domestic appli-

ances, follow the information on in-

stallation in combination with a

dishwasher in the installation in-

structions for the individual appli-

ances.

▶ If there is no information or if the

installation instructions do not in-

clude the relevant information, con-

tact the manufacturer of these ap-

pliances to check that the dish-

washer can be installed above or

below these appliances.

▶ If no information is available from

the manufacturer, the dishwasher

should not be installed above or

below such appliances.

▶ To ensure the safe operation of all

domestic appliances, continue fol-

lowing the installation instructions

for the dishwasher.

▶ Do not install the dishwasher un-

der a hob.

▶ Do not install the dishwasher near

heat sources, e.g. radiators, heat

storage tanks, ovens or other ap-

pliances that generate heat. Modified or damaged water hoses may result in material damage and damage to the appliance.

▶ Never kink, crush, modify or cut

through water hoses.

▶ Only use the water hoses supplied

with the appliance or genuine

spare hoses.

▶ Never re-use water hoses that

have been used before.

If the water pressure is too high or too low, the appliance may not be able to operate properly.

▶ Make sure that the water pressure

in the water supply system is min. 50kPa (0.5bar) and max. 1000kPa (10bar).

▶ If the water pressure exceeds the

maximum value specified, a pressure-reducing valve must be installed between the drinking water connection and the hose set of the appliance.

2.2 Safe use

ATTENTION!

Escaping water vapour can damage fitted units.

▶ When the programme ends, leave

the appliance to cool down for a

while before opening the door. Unsuitable cleaning agents may damage the appliance.

▶ Do not use a steam cleaner. ▶ So as not to scratch the finish on

the appliance, do not use sponges

with a rough surface or abrasive

cleaning agents.

▶ To prevent corrosion, do not use

sponge cloths on dishwashers with

a stainless steel front or rinse such

cloths thoroughly several times be-

fore using them for the first time.

3 Childproof lock

The childproof lock lets you protect children from possible hazards resulting from the appliance. The appliance is equipped with an electrical childproof lock.

Environmental protection and saving energy aus

3.1 Electric childproof lock

The electric childproof lock makes it more difficult to open the appliance door. You can activate or deactivate the electric childproof lock in the Basic settings →Page42.

WARNING

Risk of suffocation!

Children may become trapped in the appliance and thus suffocate.

▶ Activate the electric childproof lock

and close the appliance door.

→"Opening appliance door",

Page39

4 Environmental protec-

tion and saving energy

4.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

▶ Sort the individual components by

type and dispose of them separately.

4.2 Saving energy

If you follow these instructions, your appliance will use less electricity and less water.

Use the Eco 45° programme.

The Eco 45° programme is energy-efficient and environmentally friendly. →"Programmes", Page19

Change the sensor setting to the default.

Consumption is reduced.

→"Sensors", Page12

Zeolith drying automatically helps to save energy.

→"Zeolith drying ", Page11

4.3 Zeolith drying

The appliance features a Zeolith container. Zeolith drying lets you save energy. Zeolite is a mineral that can store moisture and heat energy and then release them again. During dishwashing heat energy is used to heat up the washing water and dry the mineral. During the drying phase moisture from the interior of the dishwasher is stored in the mineral and heat energy is released. The heat energy is blown out into the interior of the dishwasher with dry air. This speeds up and improves drying. Zeolith drying therefore saves a great deal of energy.

Tip:To avoid impairing Zeolith drying performance, do not position tableware parts directly in front of the intake opening or the blow opening of the Zeolith container. Do not position heat-sensitive tableware parts directly in front of the blow opening of the Zeolith container. →"Appliance", Page15

aus Installation and connection

4.4 AquaSensor

The AquaSensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water. You can save water with the AquaSensor. Use of the AquaSensor depends on the programme. If the soiling level is high, the rinsing water is drained off and replaced with fresh water. If the soiling level is lower, the rinsing water is used in the next wash cycle, so reducing water consumption by 3-6 litres. In the automatic programmes the temperature and run time are additionally adjusted to the level of soiling.

4.5 Sensors

The sensors adjust the programme sequence and strength in the automatic programmes depending on the level and type of soiling. The sensor has different sensitivity settings that can be changed in the basic settings. →"Changing basic settings",

Page44

Sensor setting

Standard Optimum setting for

Sensitive Adjusts the pro-

Description

a mixed load and heavily soiled tableware. Saves both energy and water.

gramme strength for effective removal of food remnants even with low soiling levels. Energy and water consumption are adjusted accordingly.

Sensor setting

Very sensitive Adjusts the pro-

Description

gramme strength for difficult conditions of use, e.g. stubborn dried-on food remnants. Recommended setting when using organic or ecological detergents containing low levels of active agents. Energy and water consumption are adjusted accordingly.

5 Installation and con-

nection

To ensure proper operation, connect the appliance to the power and water supply correctly. Observe the specified criteria and the installation instructions.

5.1 Scope of supply

After unpacking all parts, check for any damage in transit and completeness of the delivery. If you have any complaints, contact the dealer who sold you the appliance or our Customer Service.

Note:The appliance has been tested at the factory to check it is in working order. It is possible that water has left marks on the appliance. These marks will disappear after the first wash cycle.

The delivery consists of the following:

¡ Dishwasher ¡ Operating instructions ¡ Installation Instructions ¡ Further information documents

Installation and connection aus

¡ Installation material ¡ Steam guard plate ¡ Mains cable

5.2 Installing and connecting the appliance

You can position your built-under or integrable appliance in a fitted kitchen between wooden and plastic walls. If you subsequently install your dishwasher as a free-standing appliance, you must stop it from tipping over, e.g. by screwing it to the wall or installing it under a continuous worktop that is securely connected to adjacent cabinets.

1. Follow the safety instructions.

→Page4

2. Follow the instructions for electrical

connection.

3. Check the Scope of supply and

the condition of the appliance.

4. Consult the installation instructions

for the installation dimensions required.

5. Make the appliance level using the

height-adjustable feet. Make sure that the appliance is

standing on the floor securely.

6. Install the drainage connection.

→Page13

7. Install the drinking water connec-

tion. →Page13

8. Connect the appliance to the

power supply.

5.3 Drainage connection

Connect your appliance to drainage connection so dirty water is discharged via the wash cycle.

Installing the drainage connection

1. Consult the installation instructions

supplied for the steps required here.

2. Connect the wastewater hose to

the outlet connection of the siphon using the enclosed parts.

3. When doing so, check that the

wastewater hose is not kinked, crushed or twisted.

4. Also check that there is no cover

in the drainage system preventing the wastewater from being discharged.

5.4 Drinking water connection

Connect your appliance to a drinking water connection.

Installing the drinking water connection

Note

¡ If you are replacing the appliance,

you must use a new water supply hose.

1. Consult the installation instructions

supplied for the steps required here.

2. Connect the appliance to the drink-

ing water connection using the enclosed parts.

Observe the Technical data.

3. When doing so, check that the

drinking water connection is not kinked, crushed or twisted.

5.5 Electrical connection

Connect your appliance to the power supply.

Connecting the appliance to the electricity supply

Notes

¡ Follow the Safety instructions

→Page4.

¡ Please note that the water safety

system is only functional if there is a power supply.

aus Installation and connection

1. Insert the non-heating appliance

plug of the power cable into the appliance.

2. Insert the mains plug of the appli-

ance into a nearby socket. The connection data for the appli-

ance can be found on the rating plate.

3. Check that the mains plug is inser-

ted properly.

Familiarising yourself with your appliance aus

6 Familiarising yourself with your appliance

6.1 Appliance

You can find an overview of the parts of your appliance here.

Rating plate Rating plate with E number and FD num-

ber →Page66. The data you need for Customer Service

Depending on the appliance specifications

→Page66.

aus Familiarising yourself with your appliance

Detergent dispenser

Bottom basket

Filter system

Lower spray arm The lower spray arm washes the table-

Top basket

EmotionLight Interior lighting of the appliance.

Cutlery drawer

Cutlery shelf

Tablet collecting tray During the wash cycle tablets automatic-

Intake opening of the Zeolith container

Upper spray arm The upper spray arm washes the table-

Blow opening of the Zeolith container

Cutlery basket

Detergent →Page34 is added to the detergent dispenser.

Bottom basket →Page25

Filter system →Page48

ware in the bottom basket. If the tableware has not been washed properly, clean the spray arms. →"Cleaning spray arms", Page49

Top basket →Page23

→"Overview of basic settings", Page42 Cutlery drawer →Page26

Cutlery shelf →Page28

ally fall out of the detergent dispenser into the tablet collecting tray where they can fully dissolve.

The intake opening is required for Zeolith drying →Page11.

ware in the top basket. If the tableware has not been washed properly, clean the spray arms. →"Cleaning spray arms", Page49

The blow opening is required for Zeolith drying →Page11.

Cutlery basket →Page26

Dispenser for rinse aid Add rinse aid to the dispenser for rinse

aid.

Depending on the appliance specifications

→"Rinse aid system", Page33

Familiarising yourself with your appliance aus

1 2 3 4 5 6 7 8 9

101112131415

6.2 Controls

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions.

ON/OFF button and reset button

Programme buttons Programmes

Info button If you press , the display shows in-

Rinse aid refill indicator Rinse aid system

Display Remote Start

Depending on the appliance specifications

Switching on the appliance →Page39 Switching off the appliance →Page41 Terminating the programme →Page40

formation about selected programmes, basic settings and additional functions. If you press for approx. 3 seconds, you can open the menu. →"Changing basic settings",

Page44

→"Adding rinse aid", Page33 If you have activated the function and

are controlling the appliance via the HomeConnect app, the display lights up on the appliance.

aus Familiarising yourself with your appliance

WLAN display

Timer programming Setting timer programming

Remote Start

Programme buttons and additional functions

Start button

 buttons You can use these buttons to scroll

Setting buttons Changing the basic settings

Door handle

Display

Display The display shows information about

Depending on the appliance specifications

Home Connect →Page44

→Page40 →"Remote Start ", Page45

Programmes Additional functions →Page22

Starting the programme →Page40

between the basic settings. →"Changing basic settings",

Page44

→Page44 Open the appliance door. →Page39

The display shows information about programmes, basic settings or additional functions. You can change the basic settings via the display and the setting buttons. →"Changing basic settings",

Page44

programmes, basic settings or additional functions. You can change the basic settings via the display and the setting buttons. →"Changing basic settings",

Page44

7 Programmes

Programmes aus

You can find an overview of the programmes that can be selected here. Different programmes, which can be found on the control panel of your appliance, are available depending on the appliance configuration. The running time may vary depending on the programme selected. The running time depends on the water temperature, the quantity of tableware, the level of soiling and the Ad-

Programme Consumption val-

ues

1) Duration in hrs:mins

2) Energy consumption in kWh

3) Water consumption in litres

¡ 1) 2:25-2:30

Intensive 70°

¡ 2) 1,150-

1,250

¡ 3) 10,5-13,5

ditional function →Page22 selected. The running time will change if the rinse aid system is switched off or rinse aid needs to be added. The programme data is based on values measured in the laboratory according to AS/NZS 2007. Different influencing factors such as water temperature or pipe pressure may result in deviations.

Use Programme se-

quence

Tableware:

¡ Pots and pans,

non-fragile tableware and cutlery

Level of soiling:

¡ Stubborn

burned or dried-on food remnants containing starch and protein

Intensive:

¡ Pre-Rinse ¡ Cleaning 70°C ¡ Intermediate

rinse

¡ Final rinse

50°C

¡ Dry

aus Programmes

Programme Consumption val-

ues

1) Duration in hrs:mins

2) Energy consumption in kWh

3) Water consumption in litres

¡ 1) 1:40-1:55

Auto 35-45°C

¡ 2) 0,780-

0,850

¡ 3) 11,0-13,6

¡ 1) 1:55-3:00

Auto 45-65°

¡ 2) 0,990-

1,280

¡ 3) 7,6-15,4

¡ 1) 2:10 -2:30

Auto 65-75°

¡ 2) 1,050 -

1,300

¡ 3) 9,5 -13,5

Use Programme se-

quence

Tableware:

¡ Delicate table-

ware, cutlery, temperaturesensitive plastics, glasses and

Sensor-controlled:

¡ Optimised by

sensors depending on the soiling level of the washing wa-

ter stemware in the stemware basket

Level of soiling:

¡ Lightly adhering

fresh food remnants

Tableware:

¡ Mixed table-

ware and cutlery

Level of soiling:

¡ Common

household food

Sensor-controlled:

¡ Optimised by

sensors de-

pending on the

soiling level of

the washing wa-

ter remnants lightly

dried on

Tableware:

¡ Pots and pans,

non-fragile tableware and cutlery

Level of soiling:

¡ Stubborn

Sensor-controlled:

¡ Optimised by

sensors de-

pending on the

soiling level of

the washing wa-

ter burned or

dried-on food remnants containing starch and protein

Programmes aus

Programme Consumption val-

ues

1) Duration in hrs:mins

2) Energy consumption in kWh

3) Water consumption in litres

¡ 1) 3:10

Eco 45°

¡ 2) 0,580 ¡ 3) 11,5

¡ 1) 4:00

NightProgram

¡ 2) 0,800 ¡ 3) 10,5

¡ 1) 0:35

Quick Wash 45°C

¡ 2) 0,710 ¡ 3) 10,5

¡ 1) 2:10

Machine Care

¡ 2) 1,350 ¡ 3) 15,0

¡ 1) 0:15-0:15

Personalisation function

¡ 2) 0,050-

0,050

¡ 3) 4,0-4,0

Use Programme se-

quence

Tableware:

¡ Mixed table-

ware and cutlery

Level of soiling:

¡ Normally soiled

load

Most economical programme:

¡ Pre-Rinse ¡ Cleaning 45°C ¡ Intermediate

rinse

¡ Final rinse

35°C

¡ Drying

Tableware:

¡ Mixed table-

ware and cutlery

Level of soiling:

¡ Common

household food remnants lightly

Reduced noise:

¡ Pre-Rinse ¡ Cleaning 50°C ¡ Intermediate

rinse

¡ Final rinse

35°C

¡ Dry

dried on

Tableware:

¡ Delicate table-

ware, cutlery, temperaturesensitive plastics and

Time-optimised:

¡ Cleaning 45°C ¡ Intermediate

rinse

¡ Final rinse

50°C glasses

Level of soiling:

¡ Lightly adhering

fresh food remnants

Use only if appliance is unloaded.

Machine Care 70°C

- -

aus Additional functions

7.1 Information for test institute

Test institutes can request the conditions for comparison tests, e.g. according to AS/NZS2007, by sending an e-mail to dishwasher@test-appliances.com. These are the conditions for conducting the tests, however not the results or consumption values. The product number (E-Nr.) and the production number (FD) are required here. They can be found on the rating plate on the appliance door. Open ajar using a block of approximately 100mm upon completion of dry test.

7.2 Personalisation function

You can save a combination of a programme and an additional function to the button. You can save the program via the Home Connect app or on the appliance. The pre-rinse program is saved to this button at the factory. Pre-rinse is suitable for all types of tableware. The tableware undergoes intermediate cleaning via cold rinsing.

Tip:You can use the Home Connect app to download additional programmes and save them to the button.

Saving Personalisation function on the appliance

1. Open the appliance door.

2. Press ⁠.

3. Press the right programme button.

4. Press the button for the relevant

additional function. →"Additional functions", Page22

5. Press for 3 seconds.

a The selected programme and the

additional function will flash.

a flashes. a The programme and the additional

function are saved.

Tip:To reset the programme, either use the Home Connect app or reset your appliance back to the factory settings. →"Overview of basic settings",

Page42

8 Additional functions

You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration.

Additional function

Power

Use

¡ The run time is

shortened by 15% to 75% depending on the rinse programme.

¡ The additional

function can be activated before the start of the programme and at any time when the programme is running.

¡ Energy and water

consumption are increased.

Depending on the appliance specifications

Features aus

Additional function

Hygiene

Intensive

ExtraDry

Use

¡ To ensure a

higher hygiene status for the appliance and tableware, the temperature is raised and maintained for an extra-long period.

¡ Especially suitable

for cleaning chopping boards or baby bottles.

¡ Continuous use of

this function increases the hygiene status.

¡ This will increase

the run time and energy consumption.

¡ Switch on with

mixed loads containing tableware with different soiling levels, e.g. place very soiled pots and pans in the bottom basket and normally soiled tableware in the upper basket.

¡ The spray pres-

sure in the bottom basket is increased and the maximum programme temperature held longer. This will increase the run time and energy consumption.

¡ For a better drying

result the final rinse temperature

Additional function

Use

is increased and the drying phase extended.

¡ Especially suitable

for drying plastic parts.

¡ There is a slight

increase in energy consumption and the run time is extended.

9 Features

You can find an overview of the possible features of your appliance and how to use them here. These features depend on the model of your appliance.

9.1 Top basket

Arrange cups, glasses and small items of tableware in the top basket.

Adjusting top basket with side levers

To wash large items of tableware in the baskets, adjust the shelf position of the top basket.

1. Pull out the top basket.

aus Features

2. To prevent the basket from sud-

denly dropping down, hold the side of the basket by the top edge.

3. Press in the levers on the right and

left on the outside of the basket.

4. Raise or lower the basket evenly to

the right level.

2. Lift the basket forwards out of the

catches ⁠.

3. Lower the basket and pull out.

4. Slide the guide rails into the appli-

ance.

Check that the basket is level on both sides.

5. Release the levers.

a The basket clicks into position.

6. Slide the basket back in.

Removing the top basket

1. Pull the top basket right out ⁠.

Installing the top basket

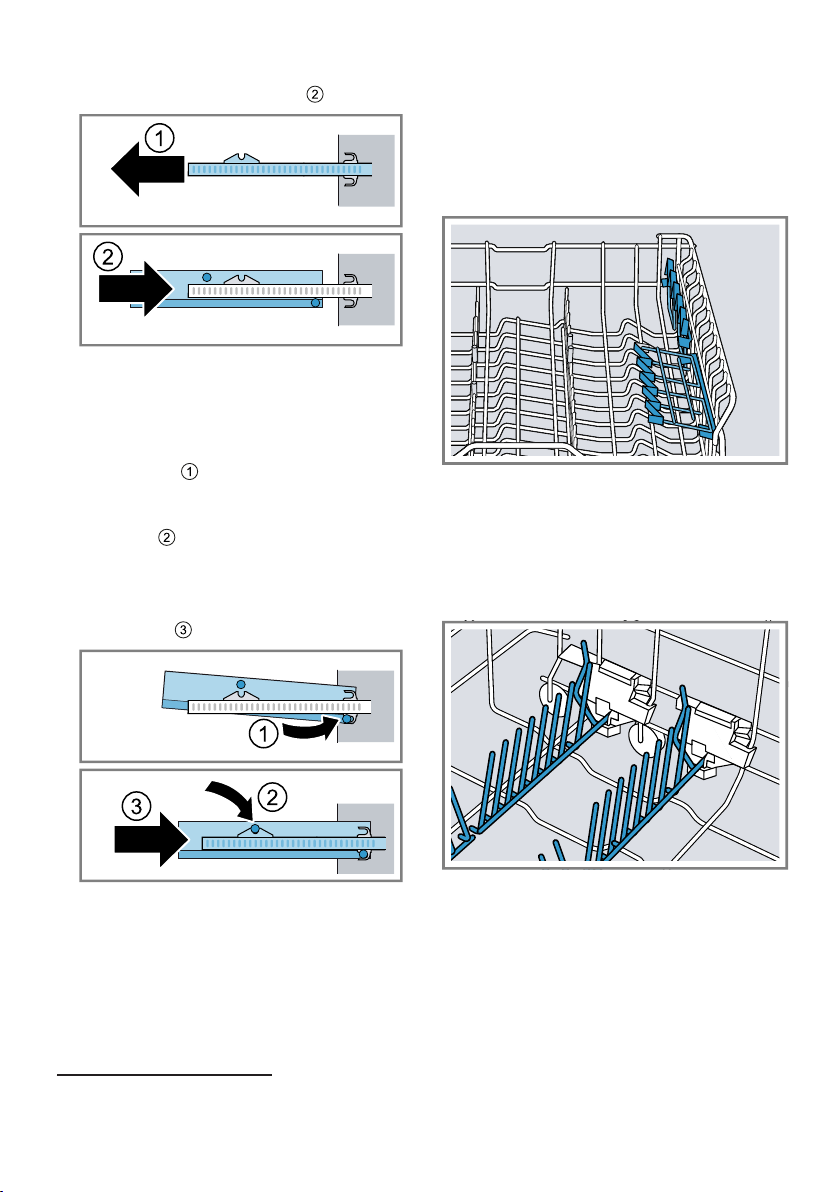

1. Pull the guide rails of the top bas-

ket out of the appliance ⁠.

2. Insert the top basket ⁠.

Observe the position of the detent pins.

3. Lift the basket slightly and guide

the rear detent pins into the rear locking hooks of the guide rails ⁠.

4. Lower the basket and press the

front detent pins into the notches

⁠.

a The basket clicks into position.

5. Slide the basket back into the ap-

pliance ⁠.

9.2 Bottom basket

Arrange pans and plates in the bottom basket.

Features aus

Large plates up to a diameter of 34cm can be arranged in the bottom basket as shown.

Cutlery basket

Depending on the appliance specifications

Removing the bottom basket

1. Pull the bottom basket right out.

2. Lift the basket out of the front hold-

ers and pull forwards slightly.

aus Features

3. Lift the basket out of the rear hold-

ers.

4. Slide the guide rails into the appli-

ance.

Installing the bottom basket

1. Pull the guide rails of the bottom

basket out of the appliance.

2. Insert the bottom basket into the

rear holders and slide back slightly

⁠.

3. Lower the basket and insert into

the front holders ⁠.

4. Slide the basket back into the ap-

pliance.

9.3 Cutlery basket

9.4 Cutlery drawer

Arrange cutlery in the cutlery drawer.

Arrange cutlery with the points and sharp edges downwards. You can reorganise the cutlery drawer to make more space for longer/wider items of cutlery.

Reorganising cutlery drawer

You can fold down the side shelves and front prongs to make more space for longer/wider items of cutlery.

1. To fold down a side shelf, push the

lever forwards and fold down the side shelf ⁠.

Arrange cutlery in the cutlery basket, always without sorting it and with the sharp points downwards.

Features aus

2. To fold down the front prongs,

push the lever forwards and fold down the prongs ⁠.

Tip

If you want to return the cutlery drawer to the original position, fold the side shelf back up until it clicks into position.

2. Lift the cutlery drawer forwards out

of the catches ⁠.

3. Lower the cutlery drawer and pull

out.

Removing cutlery drawer

1. Pull the cutlery drawer right out ⁠.

4. Slide the guide rails into the appli-

ance.

Installing cutlery drawer

1. Pull the guide rails of the cutlery

drawer out of the appliance ⁠.

aus Features

2. Insert the cutlery drawer ⁠.

Observe the position of the detent pins.

3. Lift the cutlery drawer slightly and

guide the lower detent pins into the lower locking hooks of the guide rails ⁠.

4. Lower the cutlery drawer and

press the front detent pins into the notches ⁠.

a The cutlery drawer clicks into posi-

tion.

5. Slide the cutlery drawer into the

appliance ⁠.

9.5 Etagere

Use the cutlery shelf and space underneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery.

If you do not need the cutlery shelf, you can fold it up.

9.6 Folding prongs

Use the folding prongs to position tableware securely, e.g. plates.

Depending on the appliance specifications

You can fold the prongs down to position pans, bowls and glasses

better.

Folding down prongs

If you do not need the prongs, fold them down.

Features aus

1. Push the lever forwards and fold

down the prongs ⁠.

2. To use the prongs again, fold them

back up.

a The prongs audibly click into posi-

tion.

9.7 Baking sheet spray head

Use the baking sheet spray head to clean large items of tableware, e.g. trays, grilles and plates.

Remove top basket. →Page24

2. Insert the baking sheet spray head

in the holder and turn to the right ⁠.

a The baking sheet spray head

clicks into position.

Removing baking sheet spray head

If you no longer require the baking sheet spray head, remove it from the appliance.

1. Turn the baking sheet spray head

anticlockwise and remove from the holder.

2. Insert the top basket in the appli-

ance. →Page24

Arrange max. 2baking sheets and 2grilles as shown to ensure that the spray jet can reach all parts.

Note:Check that the appliance is always operated with the top basket or the baking sheet spray head.

Inserting baking sheet spray head

Use the baking sheet spray head instead of the top basket to clean large trays, grilles and plates.

9.8 Optional extra cleaning area

Use the Optional extra cleaning area in the top basket to clean all types of glasses gently yet thoroughly.

aus Features

Selecting Optional extra cleaning area

Note:If you operate your appliance

with the Optional extra cleaning area switched on, consumption will increase.

1. Pull out the top basket.

2. Set the slider to ON or OFF.

3. Push in the top basket.

Cleaning Optional extra cleaning area

Limescale and soiling from the dishwashing water can block the nozzles.

Note:Always operate the appliance with the Optional extra cleaning area fitted.

1. Pull out the top basket.

2. Pull the tab on the Optional extra

cleaning area up and forwards

⁠.

4. Clean under running water.

5. Place the Optional extra cleaning

area in the top basket and lock in position ⁠.

Check that the mounts are in the correct position.

a The Optional extra cleaning area

audibly clicks into position ⁠.

6. Push in the top basket.

9.9 Stemware basket

Use the stemware basket to ensure perfect dishwashing results for your stemware.

3. Set the slider to ON.

Loading stemware basket

You can place up to 4 stemware baskets in the bottom basket at the same time.

Features aus

Requirements

¡ The top basket is set to setting 1. ¡ The prongs in the bottom basket

are folded down. →"Folding down prongs", Page28

1. Pull up the rotating fixing arms

and turn anticlockwise .

2. Place the stemware with the open-

ing facing down on the shelf. You can load stemware with the

following dimensions in the stemware basket.

Dimensions Max. size

Height 245 mm Opening dia-

105 mm

meter Stem diameter approx. 8-9 mm

3. Position the stem in the lower fix-

ing arm ⁠.

4. Turn the rotating fixing arm clock-

wise and push down ⁠.

a The fixing arm clicks into position. a The stemware is securely posi-

tioned in the stemware basket.

5. Lift the stemware basket by the

handle and place in the bottom basket.

To stop the stemware falling out, make sure the stemware basket cannot tip over. →"Arrange tableware", Page38

Unloading stemware basket

Note:Observe the information on

how to unload tableware. →"Removing tableware", Page39

1. Take the stemware basket by the

handle out of the bottom basket.

2. Pull up the rotating fixing arms

and turn anticlockwise ⁠.

3. Take the stemware out of the

stemware basket ⁠.

aus first time

9.10 Gastronorm container insert

Use the standardised Gastronorm container insert to position large flat items securely, e.g. Gastronorm containers or dishes.

9.11 Basket heights

Set the baskets at the right height.

Appliance height 86.5cm with cutlery basket

Level Top basket Bottom basket

1 max. ø 24 cm 2 max. ø 26.5 cm 30.5 cm 3 max. ø 29 cm 28 cm

Appliance height 86.5cm with cutlery drawer

33 cm/34 cm →Page25

Level Top basket Bottom basket

1 max. ø 18 cm

33 cm/34 cm →Page25

2 max. ø 20.5 cm 30.5 cm 3 max. ø 23 cm 28 cm

first time

10 Before using for the

first time

10.1 Making settings for initial start-up

Tip:Connect your appliance to a mo-

bile device. You can conveniently change all settings via the

Requirement:The appliance has been installed and connected. →Page12

Add rinse aid. →Page33

2. Switch on the appliance.

→Page39

a The display shows the settings for

initial start-up.

3. Press repeatedly until the display

shows the required setting.

HomeConnect app. →"HomeConnect quick start",

Page45

Rinse aid system aus

max

Tip:If you select Initial start-up HomeConnect here, make further settings using the HomeConnect app on your mobile device.

You can change the settings for initial start-up and other Basic settings →Page42 on the appliance at any time or use the HomeConnect app on your mobile device.

4. Press or repeatedly until the

display shows the right value. You can change several settings.

5. To save the settings, press for

approx. 3seconds.

Add detergent →Page34.

7. Start the Programme with the

highest cleaning temperature →Page19 without tableware.

To remove any marks from water or other residues, we recommend you operate the appliance without tableware before using it for the first time.

1. Press the catch on the lid of the

dispenser for rinse aid and lift ⁠.

2. Add rinse aid up to the max mark.

11 Rinse aid system

11.1 Rinse aid

For optimum drying results, use rinse aid. Only use rinse aid for domestic dishwashers.

Adding rinse aid

If the display shows "Please add rinse aid. ", add rinse aid. Only use rinse aid for domestic dishwashers.

3. If rinse aid spills out, remove it

from the tub. Spilled rinse aid can cause ex-

cessive frothing during the wash cycle.

4. Close the lid of the dispenser for

rinse aid.

a The lid clicks into position.

11.2 Setting the amount of rinse aid

If there are streaks or water marks on tableware, change the amount of rinse aid.

1. Press ⁠.

2. To open the basic settings, press

for approx. 3seconds.

aus Detergent

3. Press repeatedly until the display

shows "Rinse aid dispenser".

4. Press or repeatedly until the

right amount of rinse aid has been set.

– A low setting adds less rinse aid

during the wash cycle and reduces streaking on tableware.

– A higher setting adds more

rinse aid during the wash cycle, reduces water marks and improves the drying result.

5. To save the settings, press for

approx. 3seconds.

11.3 Switching the rinse aid system off

If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid component, you can switch the rinse aid system off.

Tip:The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid.

1. Press ⁠.

2. To open the basic settings, press

for approx. 3seconds.

3. Press repeatedly until the display

shows "Rinse aid dispenser".

4. Press or repeatedly until the

display shows 0.

5. To save the settings, press for

approx. 3seconds.

a The rinse aid system is switched

off and the rinse aid refill indicator is deactivated.

12 Detergent

12.1 Suitable detergents

Only use detergents that are suitable for dishwashers. Both separate and combined detergents are suitable. For optimum washing and drying results, use separate detergent together with Rinse aid →Page33. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygenbased bleaching agents are generally used to remove coloured stains, e.g. tea or ketchup.

Note:Follow the manufacturer's instructions for each detergent.

Detergent Description

Tabs Tabs are suitable

for all cleaning functions and do not need to be measured out. With shorter Programmes →Page19 tabs sometimes do not dissolve entirely and leave residues of detergent. This may impair the cleaning effect.

Powder detergent

Powder detergent is recommended for shorter Programmes →Page19. The dosage can be adjusted to the level of soiling.

Detergent aus

Detergent Description

Liquid detergent Liquid detergent

works faster and is recommended for shorter Programmes →Page19 without PreRinse. Sometimes liquid detergent may leak out despite the detergent dispenser being closed. This is not a fault and is non-critical if you remember the following:

¡ Only choose a

programme without PreRinse.

¡ Do not select

timer programming for starting the programme.

The dosage can be adjusted to the level of soiling.

Tip:Suitable detergents are available online via our website or from Customer Service →Page66.

Combined detergents

Besides conventional separate detergents, a number of products are available with additional functions. These products not only contain detergent, but also rinse aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5in1,...), additional components such as glass protection or stainless steel cleaner.

Note:Follow the manufacturer's instructions for each detergent.

If you are using combined detergent, the washing programme is adjusted automatically to ensure the best possible washing and drying result.

12.2 Unsuitable detergents

Do not use detergent which could cause damage to the appliance or present a risk to health.

Detergent Description

Hand washing-up liquid

Detergent containing chlorine

Hand washing-up liquid can cause increased frothing and damage the appliance.

Chlorine residue on tableware may present a risk to health.

Separate detergents

Separate detergents are products that do not contain components other than detergent, e.g. powder or liquid detergent. With powder and liquid detergent the dosage can be individually adjusted to the level of soiling of the tableware. For better washing and drying results, please also use Rinse aid →Page33.

12.3 Information on detergents

Follow the instructions on detergents in everyday use.

¡ Detergents marked as "organic" or

"ecological" (environmentally friendly) generally contain lower levels of active agents or completely dispense with certain substances. The cleaning effect may be restricted here.

aus Detergent

15 ml

25 ml

50 ml

¡ Set the rinse aid system to the

separate or combined detergent in use.

¡ Follow the manufacturer's instruc-

tions for each detergent.

¡ To prevent sticking, only touch de-

tergents in a water-soluble pouch with dry hands and only ever place them in a dry detergent dispenser.

¡ Even if the rinse aid refill indicator

lights up, washing programmes will still run properly with combined detergents.

¡ The function of rinse aid is limited

with combined detergents. You will generally get better results using rinse aid.

¡ Use tablets with a special drying

performance.

12.4 Adding detergent

1. To open the detergent dispenser,

press the locking latch.

2. Add the detergent to the dry deter-

gent dispenser.

If you are using tablets, one is enough. Insert the tablets in a horizontal position. If you are using powder or liquid detergent, follow the manufacturer's instructions and quantities for dosage in the detergent dispenser. 20ml–25ml detergent is sufficient for normal soiling. If tableware is only lightly soiled, slightly less than the amount of detergent specified is usually sufficient.

Tableware aus

3. Close the lid of the detergent dis-

penser.

a The lid clicks into position. a The detergent dispenser will open

automatically at the optimum time during the programme. Powder or liquid detergent will spread around the washing tank and dissolve there. Tablets will fall into the tablet collecting tray and dissolve in the right dosage. In order to ensure that tablets can dissolve evenly, do not place any other objects in the tablet collecting tray.

Tip:If you use powder detergent and select a program with pre-rinse, you can also add a little detergent to the interior door of the appliance.

13 Tableware

Only clean tableware that is suitable for dishwashers.

Note:Decorated glassware and parts made of aluminium or silver may fade or discolour with dishwashing. Delicate types of glass may turn cloudy after a few washing cycles.

13.1 Damage to glass and tableware

Only put glasses and china in the dishwasher if it is marked as dishwasher-safe by the manufacturer. Avoid damage to glass and tableware.

Cause Recommenda-

tion

The following tableware is not dishwasher-safe:

¡ Items of cut-

lery and tableware made from wood

¡ Decorated

glassware, antique and hand-crafted tableware

¡ Plastic parts

not resistant to heat

¡ Tableware

made from copper or tin

¡ Tableware

soiled with ash, wax, lubricating grease or paint

¡ Very small

items of tableware

The chemical composition of detergent causes damage.

Only put tableware in the dishwasher if it is marked as dishwasher-safe by the manufacturer.

Use a detergent marked by the manufacturer as gentle on tableware.

aus Tableware

Cause Recommenda-

tion

Highly caustic alkaline or highly acidic cleaning solutions, in particular commercial or industrial cleaners, are not safe to use in the dishwasher with aluminium.

If you are using highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial cleaning agents, do not put aluminium parts in the dishwasher interior.

The water temperature of the programme is too high.

Select a programme with lower temperatures. After the programme has ended, take glassware and cutlery out of the appliance without delay.

13.2 Arrange tableware

Arrange tableware correctly to optimise the dishwashing result and prevent damage to both the appliance and tableware.

Tips

¡ Using the appliance allows you to

save energy and water compared to washing-up by hand.

¡ See our website for examples of

how to load your appliance efficiently, free of charge.

¡ To save energy and water, load

the machine with the number of place settings specified (standard load with tableware and cutlery).

¡ For better washing and drying res-

ults, position items with curves or recesses at an angle so water can run off.

1. Remove large remnants of food

from tableware. To save resources, do not pre-

rinse tableware under running water.

2. Observe the following when arran-

ging tableware: – Put heavily soiled tableware in

the bottom basket, e.g. pans. The more powerful the spray jet, the better the dishwashing result will be.

– To prevent damage to table-

ware, arrange it so it is stable and cannot tip over.

– To prevent injury, arrange cut-

lery with the points and sharp edges facing down.

– Position containers with the

openings facing down so no water can collect in them.

– Do not block the spray arms -

make sure that they can turn freely.

– Do not place small parts in the

tablet collecting tray and do not block it with tableware so as not to obstruct the lid of the detergent dispenser.

13.3 Removing tableware

WARNING

Risk of injury!

Hot tableware can cause burns to the skin. When hot, tableware is sensitive to shock, may crack and can result in injury.

▶ When the programme has ended,

do not empty the appliance until the tableware has cooled down for a while.

1. To prevent water dripping on the

tableware, unload it starting at the bottom and working up.

2. Check the washing tank and ac-

cessories for soiling and clean if necessary. →"Cleaning and servicing",

Page46

operation

14 Basic operation

operation

14.1 Opening appliance door

1. If the electric childproof lock is not

activated, press on the upper middle section of the appliance door.

operation aus

2. If the electric childproof lock is ac-

tivated, press on the upper middle section of the appliance door twice with a short interval in between.

a The appliance door will open auto-

matically.

14.2 Switching on the appliance

▶ Press ⁠.

The standard program is set by default. If you do not perform any actions on the appliance for 10 minutes, the appliance will automatically switch off.

14.3 Setting a programme

To adjust the wash cycle to the soiling level of the tableware, select a suitable programme.

▶ Press the right programme button.

a The programme is set and the pro-

gramme button flashes.

14.4 Setting additional functions

You can set additional functions to complete the washing programme selected.

Note:The additional functions which can be used depend on the programme selected.

▶ Press the button for the relevant

additional function. →"Additional functions", Page22

a The additional function is set and

the additional function button flashes.

aus operation

14.5 Setting timer programming

You can delay the start of the programme by up to 24hours.

1. Press ⁠.

2. Press or repeatedly until the

display shows the right time. Depending on the setting of the

time display, the end of the programme is shown on the display by "Finish in" (e.g. 3h25min) or "Finish at" (e.g. 15:20hours). You can change this setting in the Basic settings →Page42.

3. To activate timer programming,

press ⁠.

Note:To deactivate timer programming, press for approx. 4seconds.

14.6 Starting the programme

▶ Press .

a The programme has ended when

the display shows "Finished!".

Notes

¡ If you want to add more tableware

while the appliance is running, do not use the tablet collecting tray as a handle for the top basket. You might touch the partially dissolved tablet.

¡ You can only change a pro-

gramme when running if you cancel it. →"Terminate programme",

Page40

¡ The appliance switches off auto-

matically 1minute after the end of the programme to save energy. If you open the appliance door immediately after the programme has ended, the appliance will switch off after 4 seconds.

Tip:To assist the drying, we recommend that the door will be partially opened after the cycle.

14.7 Interrupting programme

Note:When you open the appliance

door once the appliance has heated up, leave the door slightly ajar for a few minutes and then close it. This will help prevent excess pressure building up in the appliance and stop the appliance door bursting open.

1. Open the appliance door carefully.

2. Press ⁠.

a The programme is saved and the

appliance switches off.

3. Press to resume the pro-

gramme.

4. Close the appliance door.

14.8 Terminate programme

To end a programme early or to switch from a programme that has already started, you will need to cancel it first.

1. Open the appliance door.

2. Press for approx.

4seconds.

3. Close the appliance door.

a All displays light up. a As soon as the displays are off,

the display shows "Programme was terminated." and then "Finished!".

a The programme is cancelled and

ends after approx. 1minute.

14.9 Display programme information

You can show information about programmes and additional functions on the display.

1. Press ⁠.

2. Press the programme button or an

additional function.

14.10 Switching off appliance

1. Please note the information on

Safe use →Page10.

2. Press .

Tip:If you press during the wash

cycle, the programme currently running will be interrupted. When you switch the appliance back on, the programme continues automatically.

operation aus

aus Basic settings

15 Basic settings

You can configure the basic settings for your appliance to meet your needs.

15.1 Overview of basic settings

The basic settings depend on the features of your appliance.

Basic setting Selection Description

Time setting 00:00 - 24:00 Set the current time.

The setting depends on the time format selected.

Time format 12 h

Time display In hours

Sprache/Language

Rinse aid dispenser

Sensor setting Standard

24 h

Time

See selection on the appliance.

0 - 6

Sensitive Very sensitive

Extra Dry on

Factory setting (may vary according to model)

off

Set the time format.

Set the time display for the end of the programme. "Finish in" shows the remaining time the programme has to run, e.g. 3h25min. "Finish at" shows the time when the programme will end, e.g. 15:20hours.

Select the menu language.

Set or switch off the amount of rinse aid to be dispensed. →"Setting the amount of rinse aid",

Page33

Set the water sensor for identifying soiling. →"Sensors", Page12

Switch "Extra Dry" on or off for each operation. The temperature is increased during the final rinse for a better drying result. This may increase the running time slightly. Please take care with delicate tableware.

Basic settings aus

Basic setting Selection Description

Water connection Cold water

Hot water

Set cold water or hot water connection. Only set the appliance to hot water if this can be prepared with little energy and a suitable installation is available, e.g. solar heating system with circulation line. The water temperature should be at least 40°C and max. 60°C.

Eco forecast on

off

Switch EcoCheck on or off. When selecting the programme, the average water consumption and energy consumption is briefly shown on the display.

Emotion Light off

On via main switch On on opening door

Status Light on

off

Switch the interior lighting of the appliance on or off. When the appliance door is opened, the interior lighting switches off automatically after 10 minutes.

Switch"Status Light" on or off. While the programme is running, a strip of light appears on the left-hand side of the appliance. If the appliance door is not completely closed, the strip of light will flash. The programme has ended when the strip of light is no longer visible on the left-hand side.

Start programme Eco 45°

Prog. last selected

Tone volume Scale with multiple

levels.

Set a default programme for when the appliance is switched on.

Set the signal volume at the end of the programme. Level 0 switches the signal tones off.

Button volume Scale with multiple

levels

Set the button volume during operation. Level 0 switches the button tones off.

Child-proof lock on

off

WLAN on

off

Switch the Electric childproof lock →Page11 on or off.

Switch the wireless network connection on or off. The basic setting "WLAN" is only available once the appliance is connected to the HomeConnect app. →"HomeConnect ", Page44

Factory setting (may vary according to model)

aus HomeConnect

Basic setting Selection Description

Remote Start off

Manual Permanent

Activate or deactivate →"Remote Start ", Page45. This basic setting is not available until after you have connected the device with the HomeConnect app. →"HomeConnect ", Page44

off

Switch display of the brand name logo on or off when the appliance is

Greeting on

switched on.

Factory setting Reset Restore changed settings to the fact-

ory settings. The settings for initial start-up must be configured.

Factory setting (may vary according to model)

15.2 Changing basic settings

1. Open the appliance door.

2. Press ⁠.

3. To open the basic settings, press

for approx. 3seconds.

4. Press repeatedly until the display

shows the required setting.

5. Press or repeatedly until the

display shows the right value. You can change several settings.

6. To save the settings, press for

approx. 3seconds.

7. Close the appliance door.

15.3 Setting the time

1. To open the basic settings, press

for approx. 3seconds.

2. Press repeatedly until the display

shows "Time setting".

3. Press or repeatedly until the

display shows the required time. Holding down and will

change the set values in 10-minute steps.

4. To save the settings, press for

approx. 3seconds.

HomeConnect

16 HomeConnect

HomeConnect

This appliance is network-capable. Connect your appliance to a mobile device to control its functions via the HomeConnect app. The HomeConnect services are not available in every country. The availability of the HomeConnect function depends on the availability of HomeConnect services in your country. You can find information about this at: www.home-connect.com. To be able to use HomeConnect, you must first set up the connection to the WLAN home network (Wi-Fi1) and to the HomeConnect app.

¡ →"Connecting the appliance to

WLAN home network (Wi-Fi)", Page45

The HomeConnect app guides you through the entire login process. Follow the instructions in the HomeConnect app to configure the settings.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

HomeConnect aus

Tips

¡ Please consult the documents sup-

plied by HomeConnect.

¡ Please also follow the instructions

in the HomeConnect app.

Note:Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the HomeConnect app. →"Safety", Page4

16.1 HomeConnect quick start

Connect your appliance to a mobile device quickly and easily.

Installing app

1. Install the HomeConnect app on

your mobile device.

2. Start the app and set up access

for HomeConnect. The HomeConnect app guides

you through the entire login process.

Connecting the appliance to WLAN home network (Wi-Fi)

Requirements

¡ HomeConnect app is installed on

your mobile device.

¡ Wi-Fi on the router is activated. ¡ The appliance receives signals

from the WLAN home network (WiFi) at its installation location.

1. With the help of the HomeConnect

App scan the QR code.

2. Follow the instructions in the

HomeConnect app.

16.2 HomeConnect settings

Adapt HomeConnect to your needs. You can find the HomeConnect settings in the basic settings for your appliance. Which settings the display shows will depend on whether HomeConnect has been set up and whether the appliance is connected to your home network.

16.3 Remote Start

You can use the HomeConnect app to start the appliance with your mobile device.

Tip:If you select "Permanent" in the Basic settings →Page44 of this function, the function is permanently activated and you can start your appliance with a mobile device at any time.

Activating Remote Start

When you have selected "Manual" in the basic settings of this function, activate the function on your appliance.

Requirements

¡ The appliance is connected to your

WLAN home network.

¡ The appliance is connected to the

HomeConnect app.

¡ "Manual" is selected in the Basic

settings →Page44 of this function.

¡ A programme is selected.

aus Cleaning and servicing

▶ Press ⁠.

If you open the appliance door, the function is automatically deactivated.

a button lights up.

Tip:To deactivate the function, press

⁠.

16.4 Remote Diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the HomeConnect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Tip:For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

16.5 Software update

You can use this function to update the software of your appliance, e.g. for optimisation, troubleshooting or safety-relevant updating. The HomeConnect app informs you about available software updates.

16.6 Data protection

Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the HomeConnect server (initial registration):

¡ Unique appliance identification

(consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed).

¡ Security certificate of the Wi-Fi

communication module (to ensure a secure data connection).

¡ The current software and hardware

version of your appliance.

¡ Status of any previous reset to

factory settings.

This initial registration prepares the HomeConnect functions for use and is only required when you want to use the HomeConnect functions for the first time.

Note:Please note that the HomeConnect functions can only be utilised with the HomeConnect app. Information on data protection can be retrieved in the HomeConnect app.

17 Cleaning and servi-

cing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

17.1 Cleaning the tub

WARNING

Risk of harm to health!

Using detergents containing chlorine may result in harm to health.

▶ Never use detergents containing

chlorine.

1. Remove any coarse soiling in the

interior with a damp cloth.

2. Add detergent to the detergent dis-

penser.

3. Select the programme with the

highest temperature.

4. Start the programme without table-

ware. →Page40

Cleaning and servicing aus

17.2 Cleaning products

Only use suitable cleaning products to clean your appliance. →"Safe use", Page10

17.3 Tips on appliance care

Follow the tips on appliance care to make sure your appliance functions properly at all times.

Action Benefit

Wipe the door seals, the front of the dishwasher and the control panel regularly

This ensures the parts of the appliance will remain clean and hygienic.

17.4 Machine Care

Deposits, e.g. from remnants of food and limescale, can cause your appliance to malfunction. To avoid such faults and reduce odours, we recommend cleaning your appliance at regular intervals. Machine Care combined with machine care products and machine cleaners is the right programme for the care of your appliance.

Action Benefit

using a damp cloth and washing-up liquid.

If the appliance is not going to be used for a while, leave the door slightly ajar.

Note:You can get our tested and approved Dishwasher Care and Machine Cleaner for Dishwashers online at https://www.gaggenau.com/ global/store or from customer service.

Machine Care is a programme which removes various deposits in one washing cycle. Cleaning takes place in two phases:

This will prevent unpleasant odours.

Phase Removal of Detergent Placement

1 Grease and limes-

cale

2 Food remnants and

deposits

To ensure optimum cleaning performance, the programme doses the detergents independently of each another during the relevant cleaning phase. Correct placement of the detergents is necessary here.

Liquid machine care product or machine descaler in powder form.

Machine cleaner Detergent dispenser

Run Machine Care without tableware if the indicator for Machine Care lights up on the control panel or if advised to do so by the display. The indicator will go out after you have run Machine Care. If your appliance does

Appliance interior, e.g. bottle hung in the cutlery basket or powder in the interior.

aus Cleaning and servicing

not have a reminder function, we recommend performing Machine Care every 2months.

RunningMachine Care

Notes

¡ Run the Machine Care programme

without any tableware in the dishwasher.

¡ Only use machine care products

and machine cleaners specially designed for dishwashers.

¡ Make sure that there are no alu-

minium parts, e.g. extractor hood grease filters or aluminium pans, in the interior of the appliance.

¡ If you have not run Machine Care

after 3 washing cycles, the indicator for Machine Care will go out automatically.

¡ For optimum cleaning perform-

ance, ensure the correct placement of cleaners.

¡ Follow the safety instructions given

on the packagings of the machine care products and machine cleaners.

¡ Activate the Optional extra clean-

ing area →Page30.

1. Remove any coarse soiling in the

interior with a damp cloth.

2. Clean the filters.

3. Place the machine care product in

the appliance interior. Only use machine care products

specially designed for dishwashers.

4. Pour the machine cleaner into the

detergent dispenser until it is filled completely.

Do not place any additional machine cleaner in the appliance interior.

5. Press ⁠.

6. Press ⁠.

a Machine Care is run.

a Once the programme has ended,

the indicator for Machine Care goes out.

17.5 Filter system

The filter system removes coarse soiling from the dishwashing cycle.

Micro filter

Fine filter

Coarse filter

Cleaning filters

Soiling in the dishwashing water may block the filters.

1. After each wash check the filters

for residue.

2. Turn the coarse filter anticlockwise

and remove the filter system ⁠.

‒ Check that no foreign objects

fall into the sump.

Cleaning and servicing aus

3. Pull down the micro filter to re-

move.

4. Press the locking catches to-

gether and lift the coarse filter out

⁠.

7. Insert the filter system into the ap-

pliance and turn the coarse filter clockwise.

‒ Make sure that the arrow mark-

ings match up.

17.6 Cleaning spray arms

Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly.

1. Unscrew the upper spray arm

and pull down to remove ⁠.

5. Clean the filter elements under run-

ning water. Carefully clean the rim of dirt

between the coarse and the fine filter.

6. Re-assemble the filter system.

Make sure that the locking catches on the coarse filter click into position.

aus Cleaning and servicing

2. Pull up the lower spray arm to re-

move.

3. Check the outlet nozzles on the

spray arms for blockages under running water and remove any foreign bodies.

4. Insert the lower spray arm.

a The spray arm clicks into position.

5. Insert the upper spray arm and

screw it firmly in place.

Troubleshooting aus

18 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist

staff.

▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced with a

special connection cable, which is available from the manufacturer or his Customer Service.

Fault Cause and troubleshooting

Appliance door opens accidently.

Appliance door does not open.

Automatic door opening activated accidently.

▶ To prevent the appliance door opening accidentally,

activate the childproof lock.

Childproof lock is activated.

▶ Press the top of the door in the middle twice in

quick succession.

Door is not correctly adjusted.

▶ Adjust the appliance door as described in the in-

stallation instructions.

Appliance has no power.

▶ Check the mains plug and fuses.

1. Position the emergency release supplied on the top

right and left of the cabinet panel.

2. Open the appliance door by pulling lightly.

Appliance door and door seal are soiled.

▶ Clean the appliance door and door seal with a

damp cloth and a little washing-up liquid.

aus Troubleshooting

Fault Cause and troubleshooting

Appliance door does not open.

Appliance door opens too wide when activated.

Automatic door opening is not in home position.

▶ Wait one second after closing the appliance door.

Door is not correctly adjusted.

▶ Adjust the appliance door as described in the in-

stallation instructions.

Fault Cause and troubleshooting

E:2060 lights up. Appliance has detected calcified heating element.

1. Descale the appliance.

2. Operate the appliance with the water softening

system.

E:2130 lights up. Intake opening of Zeolith container is covered by

items of tableware.

▶ Re-arrange the tableware in the appliance so the In-

take opening of the Zeolith container →Page15 is no longer obstructed.

E:3000 lights up. Water protection system is activated.

1. Turn off the water tap.

Call Customer Service →Page66.

E:3100 lights up. Water protection system is activated.

1. Turn off the water tap.

Call Customer Service →Page66.

E:3200 or indicator for water supply lights up.

Supply hose is kinked.

▶ Install the supply hose without kinks.

Water tap is turned off.

▶ Turn on the water tap.

Water tap is jammed or furred up.

▶ Turn on the water tap.

The flow rate must be at least 10 l/min when the water supply is open.

The filters in the water connection of the supply or AquaStop hose are blocked.

1. Switch off the appliance.

2. Pull out the mains plug.

3. Turn off the water tap.

4. Unscrew the water connection.

Depending on the appliance specifications

Troubleshooting aus

Fault Cause and troubleshooting

E:3200 or indicator

5. Remove the filter from the supply hose

for water supply lights up.

6. Clean the filter.

7. Re-insert the filter in the supply hose.

8. Screw the water connection back on.

9. Check the water connection for leaks.

10.Restore the power supply.

11.Switch the appliance on.

E:3400 lights up. Water is continuously running into the appliance.

1. Turn off the water tap.

Call Customer Service →Page66.

E:6103 lights up. Water is not drained.

Wastewater hose is blocked or kinked.

1. Reposition the wastewater hose without kinks.

2. Remove residues.

Siphon connection is still sealed.

▶ Check the connection to the siphon and open if ne-

cessary.

Cover of the wastewater pump is loose.

▶ Secure the cover of the Wastewater pump

→Page64 so it clicks into position.

E:6102 lights up. Wastewater pump is blocked.

▶ Clean the wastewater pump.

→"Clean wastewater pump", Page64

Cover of the wastewater pump is loose

▶ Secure the cover of the Wastewater pump

→Page64 so it clicks into position.

E:9001 lights up. Mains voltage is too low.

This is not a fault on the appliance.

1. Contact an electrician.

2. Have the mains voltage and electrical installation

checked by an electrician.

aus Troubleshooting

Fault Cause and troubleshooting

E:9240 lights up. Filters are soiled or blocked.

▶ Clean the filters.

→"Cleaning filters", Page48

A different error code appears in the display window.

E:0100 to E:9010

A technical fault is present.

1. Press .

2. Unplug the appliance or switch off the fuse.

3. Wait at least 2minutes.

4. Insert the mains plug of the appliance in a socket

or switch on the fuse.

5. Switch the appliance on.

6. If the problem occurs again:

‒ Press ⁠. ‒ Turn off the water tap. ‒ Pull out the mains plug. ‒ Contact Customer Service →Page66 and give

the error code.

Fault Cause and troubleshooting

Tableware is not dry. No rinse aid used or dosage set too low.

Add Rinse aid →Page33.

2. Set the amount of rinse aid to be dispensed.

→"Setting the amount of rinse aid", Page33

Programme or programme option has no drying phase, or the drying phase is too brief.

▶ Select a programme with drying, e.g. intensive,

strong or ECO programme. Some option buttons decrease the drying result, e.g

varioSpeed.

Water collects in recesses of the tableware or cutlery.

▶ Position tableware at an angle where possible.

The combined detergent used has a poor drying performance.

Troubleshooting aus

Fault Cause and troubleshooting

Tableware is not dry. 1. Use rinse aid to improve drying performance.

2. Use a different combined detergent with a better

drying performance.

Extra Dry not activated to improve drying performance.

▶

Activate Extra Dry →Page42.

Tableware removed too early or drying process not yet ended.

1. Wait until the programme ends.

2. Only remove tableware 30minutes after the pro-

gramme has ended.

Rinse aid used has a limited drying performance.

▶ Use a name-brand rinse aid.

Eco products may have limited effectiveness.

Plastic tableware is not dry.

Not a fault. As plastic does not store heat so well, it also does not dry as well.

▶ No remedial action possible.

Cutlery is not dry. Cutlery not arranged properly in the cutlery basket or

cutlery drawer. Droplets can form on the cutlery contact points.

1. Arrange cutlery individually where possible.

→Page38

2. Avoid points of contact.

Appliance interior still wet after wash cycle.

Not a fault. The condensation drying principle causes water droplets in the tub – they are indeed desirable here. The moisture in the air condenses on the inside walls, runs off and is pumped out. No action required.

Remnants of food on tableware.

Tableware is placed too close together or basket is overfilled.

1. Arrange tableware with sufficient space in between.

The spray jets must reach the surfaces of the tableware.

2. Avoid points of contact.

Spray arm rotation of the lower spray arm is blocked.

▶ Arrange tableware so that it does not obstruct

spray arm rotation.

Spray arm nozzles are blocked.

▶

Clean the Spray arms →Page49.

Filters are soiled.

aus Troubleshooting

Fault Cause and troubleshooting

Remnants of food on tableware.

▶ Clean the filters.

→"Cleaning filters", Page48

Filters are inserted incorrectly and/or not engaged.

1. Insert the filters properly.

→"Filter system", Page48

2. Engage the filters.

Washing programme selected too weak.

▶ Select a more intensive washing programme. ▶ Adjust the sensitivity of the sensors.

→"Sensors", Page12

Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

▶ Only remove large remnants of food and do not

prerinse tableware.

▶ Adjust the sensitivity of the sensors.

→"Sensors", Page12

Tall narrow receptacles in corner areas are not rinsed adequately.

▶ Do not position tall narrow receptacles at too great

an angle or in corner areas.

Top baskets on right and left are not set to same height.

▶ Set the top baskets on the left and right to the

same level.

Detergent residue in the appliance

Lid of the detergent dispenser is blocked by items of tableware parts and will not open.

1. Arrange tableware in the top basket tableware so

the tab collecting tray is not obstructed by tableware. →"Arrange tableware", Page38

Items of tableware are blocking the dispenser lid.

2. Do not place tableware or fragrance dispensers in

the tablet collecting tray.

The lid of the detergent dispenser is blocked by the tab and will not open.

▶ Position the tab in the detergent dispenser cross-

wise, not vertically.

Tabs are used in the quick or short programme. Dissolving time of the tab is not attained.

Fault Cause and troubleshooting

Detergent residue in the appliance

▶ Select a more intensive Programme or use Powder

detergent.

Washing effect and dissolving performance are reduced after a prolonged storage time or detergent is very lumpy.

▶

Change your detergent →Page34.

Water marks on plastic parts.

Due to laws of physics droplet formation on plastic surfaces is unavoidable. After drying water marks are visible.

▶ Select a more intensive programme. ▶ Position tableware at an angle.

→"Arrange tableware", Page38

▶ Use rinse aid.

→"Rinse aid", Page33

Wipeable or water-soluble coatings are present inside the appliance or on the door.

Stubborn white coatings are present on tableware, inside the appliance or the door.

Detergent substances are deposited there. These coatings cannot generally be removed with chemicals.

▶

Change your detergent →Page34.

▶ Clean the appliance mechanically.

Detergent substances are deposited there. These coatings cannot generally be removed with chemicals.

▶

Change your detergent →Page34.

▶ Clean the appliance mechanically.

Too little detergent is being used.

▶ Increase the amount of detergent used or change

Detergent →Page34.

Washing programme selected too weak.

▶ Select a more intensive washing programme. ▶ Adjust the sensitivity of the sensors.

→"Sensors", Page12

Tea residue or lipstick marks on tableware.

Washing temperature is too low.

▶ Select a programme with a higher washing temper-

ature.

Too little detergent is being used or is unsuitable.

▶

Use a suitable Detergent →Page34 and follow the manufacturer's instructions for the amount to be used.

Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

Troubleshooting aus

aus Troubleshooting

Fault Cause and troubleshooting

Tea residue or lipstick marks on tableware.

▶ Only remove large remnants of food and do not

prerinse tableware.

▶ Adjust the sensitivity of the sensors.

→"Sensors", Page12

Coloured coatings (blue, yellow, brown) that are difficult or impossible to remove are present inside the appliance or on stainless steel tableware.

The formation of films is due to substances contained in vegetables (cabbage, celery, potatoes, noodles, etc.) or tap water (manganese).

▶ Clean the appliance.

You can remove deposits with Mechanical cleaning →Page46 or a machine cleaning product. It may not always be possible to completely remove deposits but they are harmless to health.

The formation of films is due to metal components on silver or aluminium tableware.

▶ Clean the appliance.

You can remove deposits with Mechanical cleaning →Page46 or a machine cleaning product. It may not always be possible to completely remove deposits but they are harmless to health.

Plastic parts inside the appliance are discoloured.

Plastic parts inside the appliance may become discoloured during the life of the dishwasher.

▶ Discolouration can come about and will not impair

functioning of the appliance.

Plastic parts are discoloured.

Washing temperature is too low.

▶ Select a programme with a higher washing temper-

ature.

Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

▶ Only remove large remnants of food and do not

prerinse tableware.

▶ Adjust the sensitivity of the sensors.

→"Sensors", Page12

Removable streaks are present on glasses, glassware with a metallic appearance and cutlery.

Amount of rinse aid to be dispensed is set too high.

▶ Set the rinse aid system to a lower setting.

No rinse aid has been added.

▶

→"Adding rinse aid", Page33

Detergent residue is present in the final rinse. Lid of the detergent dispenser is blocked by tableware items and will not open fully.

Troubleshooting aus

Fault Cause and troubleshooting

Removable streaks are present on glasses, glassware with a metallic appearance and cutlery.

1. Arrange tableware in the top basket tableware so

the tab collecting tray is not obstructed by tableware. →"Arrange tableware", Page38

Items of tableware are blocking the dispenser lid.

2. Do not place tableware or fragrance dispensers in

the tablet collecting tray.

Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

▶ Only remove large remnants of food and do not

prerinse tableware.

▶ Adjust the sensitivity of the sensors.

→"Sensors", Page12

Irreversible clouding of glassware.

Glasses are not dishwasher-proof, only suitable for dishwashers.

▶ Use dishwasher-proof glasses.

Glasses are usually only suitable for use in a dishwasher, i.e. long-term wear or long-term changes must be expected.

▶ Avoid a lengthy steam phase (standing time after

wash cycle ends).

▶ Use a programme with a lower temperature. ▶ Use detergent with a glass protection component.

Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades

are often more severely affected.

▶ Use rust-resistant tableware.

Cutlery may also rust if washed together with rusting items.

▶ Do not wash rusting items.

Detergent residue is present in the detergent dispenser or the tablet collecting tray.

Spray arms were blocked by tableware so detergent was not rinsed out.

▶ Check that the spray arms are not blocked and can

rotate freely.

Detergent dispenser was damp when detergent was added.

▶ Only add detergent to a detergent dispenser when

dry.

aus Troubleshooting

Fault Cause and troubleshooting

Excessive formation of foam occurs.

Hand washing-up liquid is present in dispenser for rinse aid.

▶ Immediately add rinse aid to the dispenser.

→"Adding rinse aid", Page33

Rinse aid has been spilled.

▶ Remove the rinse aid with a cloth.

Detergent or appliance care product used causes excessive foaming.

▶ Change the brand of detergent.

Fault Cause and troubleshooting

Connection to home network is not established.

WLAN display is flashing.

WLAN on router is not active.

▶ Check the wireless network connection of your

router.

Connection to home network is not available.

▶ Activate the wireless network connection on your

router.

Home Connect cannot be implemented correctly.

Home Connect set incorrectly.

▶ Please consult the documents supplied for

HomeConnect.

Technical fault is present.

▶ Please consult the information about support in the

documents supplied for HomeConnect.

Fault Cause and troubleshooting

Refill indicator for rinse aid lights up.

Insufficient rinse aid.

Add Rinse aid →Page33.

2. Set the amount of rinse aid to be dispensed.

→"Setting the amount of rinse aid", Page33

Refill indicator for rinse aid does not

Rinse aid system is switched off.

▶ Set the amount of rinse aid to be dispensed.

light up.

Fault Cause and troubleshooting

Water is left in the appliance at the end of the programme.

Filter system or area under the filters is blocked.

Clean the Filters →Page48.

Clean the Wastewater pump →Page64.

Programme has not yet ended.

▶ Wait until the programme ends or cancel the pro-

gramme with Reset.

Fault Cause and troubleshooting

Water is left in the ap-

▶

→"Terminate programme", Page40

pliance at the end of the programme.

Appliance cannot be switched on or operated.

Appliance does not start.

Software update is taking place.

▶ Wait until the software update has finished.

Appliance functions have failed.

1. Pull out the mains plug or switch off the fuse.

2. Wait at least 2minutes.

3. Connect the appliance to the power supply.

4. Switch the appliance on.

The mains fuse has tripped.

▶ Check the relevant fuse.

Mains cable is not inserted.

1. Check whether the socket works.

2. Check whether the mains cable is properly inserted

in the socket and on the rear of the appliance.

Appliance door is not closed properly.

▶ Close the appliance door.

Programme starts automatically.

Appliance stops during the programme or cuts out.

You did not wait until programme ended.

▶

→"Terminate programme", Page40

Appliance door is not closed properly.

▶ Close the appliance door.

Power and/or water supply has been interrupted.

1. Check the power supply.

2. Check the water supply.

Top basket is pressing against inner door and preventing appliance door from being closed securely.

▶ Check whether the rear panel of the appliance is

being pressed in by a socket or hose holder that has not been removed.

▶ Arrange the tableware so that no parts project bey-

ond the basket and prevent the appliance door from closing properly.

Troubleshooting aus

aus Troubleshooting

Fault Cause and troubleshooting

All LEDs lit up or flashing.

Electronics have detected a fault.

1. Press the main switch button for approx.

4seconds. →"Controls", Page17

The appliance is reset and restarted.

2. If the problem occurs again:

‒ Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in

the fuse box.

‒ Wait at least 2minutes. ‒ Switch on the fuse in the fuse box or insert the

mains plug.

‒ Switch the appliance on.

3. If the problem occurs again:

‒ Contact customer service.

→"Customer Service", Page66

Fault Cause and troubleshooting

Appliance door cannot be closed.

Door lock has been activated.

▶ Close the appliance door with greater force.

Door cannot be closed due to installation method.

▶ Check whether the appliance has been installed

properly. When closed, the appliance door, its decor or at-

tached parts should not knock against adjacent cabinets or the worktop.

Automatic door opening is not in home position.

▶ Wait for a second after opening the appliance door.

Lid on the detergent dispenser cannot be closed.

Detergent dispenser or lid are blocked by sticky detergent residue.

▶ Remove detergent residue.

Fault Cause and troubleshooting

Filling valves making knocking noises.

Caused by the domestic installation. No appliance fault present. Does not affect functioning of the appliance.

▶ Can only be remedied in the domestic installation.

Knocking or rattling noise.

Spray arm is striking tableware.

▶ Arrange tableware so that the spray arms do not

strike tableware.

Fault Cause and troubleshooting

Knocking or rattling noise.

With a small load the water jets directly strike against the tub.

▶ Distribute the tableware evenly. ▶ Load the appliance with more tableware.

Light items of tableware move about during the wash cycle.

▶ Position light items of tableware securely.

Troubleshooting aus

aus Transportation, storage and disposal

18.1 Clean wastewater pump

Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned.

WARNING

Risk of injury!

Sharp and pointed objects or fragments of glass may block the waste water pump and cause injury.

▶ Remove any foreign bodies care-

fully.

1. Disconnect the appliance from the

power supply.

2. Remove the top and bottom bas-

ket.

3. Remove the filter system.

4. Scoop out any water.

Use a sponge if necessary.

5. Prise off the pump cover using a

spoon and grip it by the crosspiece.

8. Insert the pump cover and press

down ⁠.

a The pump cover clicks into posi-

tion.

9. Install the filter system.

10.Insert the top and bottom basket.

19 Transportation, stor-

age and disposal

You can find out here how to prepare your appliance for transportation and storage. You will also find out how to dispose of old appliances.

6. Lift the pump cover inwards at an

angle and remove.

a You can now reach the impeller

with your hand.

7. Remove any remnants of food and

foreign bodies in the area of the impeller.

19.1 Removing the appliance

1. Disconnect the appliance from the

mains power supply.

2. Turn off the water tap.

3. Detach the drainage connection.

4. Detach the drinking water connec-

tion.

5. Loosen any screws fastening the

appliance to cabinet parts.

6. Remove the base panel if fitted.

7. Pull the appliance out carefully,

along with the hose behind it.

Transportation, storage and disposal aus

19.2 Protect appliance from frost

If there is a risk of frost where the appliance will be standing, e.g. in a holiday home, empty the appliance completely.

▶ Empty the appliance.

→"Transporting the appliance", Page65

19.3 Transporting the appliance

To avoid damage to the appliance, empty it before transporting.

Note:Always transport the dishwasher upright to prevent residual water getting into the machine's controls and damaging the appliance.

1. Remove tableware from the appli-

ance.

2. Secure loose parts.

3. Switch on the appliance.

→Page39

4. Select the programme with the

highest temperature.

Start the programme. →Page40

6. To drain the appliance, terminate

the programme after approx. 4minutes. →"Terminate programme",

Page40

7. Switch off the appliance.

→Page41

8. Turn off the water tap.

9. To empty the residual water out of

the appliance, detach the supply hose and let the water drain out.

19.4 Disposing of old appliance

Valuable raw materials can be reused by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

▶ With redundant appliances, unplug

the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.

1. Unplug the appliance from the

mains.

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner. Information about current disposal

methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

aus Customer Service

20 Customer Service

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

20.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. The rating plate is located inside the appliance door. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

from water damage, the appliance must be connected to the power supply.

¡ The liability guarantee is valid for

the service life of the appliance.

¡ A claim can only be made under

the guarantee if the appliance has been correctly installed and connected with Aqua-Stop according to our instructions; this also includes correctly fitting the AquaStop extension (genuine accessory). Our guarantee does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap.

¡ If your appliance is fitted with

Aqua-Stop, you can in principle leave your appliance unattended during operation and the tap turned on afterwards. The tap only needs to be turned off if you are away from home for a long period, e.g. on holiday for several weeks.

20.2 AQUA-STOP guarantee

In addition to warranty claims against the seller under the purchase agreement and in addition to our manufacturer's warranty, we offer compensation under the following conditions.

¡ If our Aqua-Stop system is defect-

ive and causes water damage, we will make good the damage for private users. To ensure protection

Technical specifications aus

21 Technical specifications

Weight Max.: 60kg Voltage 220-240V, 50Hz or 60Hz Power rating 2000 - 2400W Fuse 10A Water pressure ¡ min. 50kPa (0.5bar)

¡ max. 1000kPa (10bar)

Inlet rate Min. 10l/min Water temperature Cold water.

Hot water max.: 60°C

Capacity 14place settings

21.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software. The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your HomeConnect app: "Profile -> Legal information -> Licence Information". You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany. The source code will be made available to you on request.

Please send your request to ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany. Subject: „OSSREQUEST“ The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

22 Declaration of Con-

formity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the basic requirements and other relevant provisions of Directive 2014/53/ EU. A detailed RED Declaration of Conformity can be found online at www.gaggenau.com among the additional documents on the product page for your appliance.

Depending on the appliance specifications

aus Declaration of Conformity

2.4 GHz band (2400–2483.5MHz): Max. 100mW 5 GHz band (5150–5350MHz + 5470–5725MHz): Max. 100mW

BE BG CZ DK DE EE IE EL ES FR HR IT CY LI LV LT LU HU MT NL AT PL PT RO SI SK FI SE NO CH TR IS UK (NI)

5GHz WLAN (Wi-Fi): For indoor use only.

AL BA MD ME MK RS UK UA 5GHz WLAN (Wi-Fi): For indoor use only.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34 81739 München, GERMANY www.gaggenau.com

*9001720255*

9001720255 aus 020323

Gaggenau DF481500F Instructions for Use

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

1 Safety

1.1 General information

1.2 Intended use

1.3 Restriction on user group

1.4 Safe installation

1.5 Safe use

1.6 Damaged appliance

1.7 Risk to children

1.8 Safety systems

2.1 Safe installation

2.2 Safe use

3 Childproof lock

Environmental protection and saving energy aus

3.1 Electric childproof lock

4.1 Disposing of packaging

4.2 Saving energy

4.3 Zeolith drying

aus Installation and connection

4.4 AquaSensor

4.5 Sensors

5.1 Scope of supply

5.2 Installing and connecting the appliance

5.3 Drainage connection

Installing the drainage connection

Installing the drinking water connection

5.5 Electrical connection

Connecting the appliance to the electricity supply

6 Familiarising yourself with your appliance

6.1 Appliance

6.2 Controls

7 Programmes

7.2 Personalisation function

Saving Personalisation function on the appliance

8 Additional functions

9 Features

9.1 Top basket

Adjusting top basket with side levers

Removing the top basket

Installing the top basket

9.2 Bottom basket

Removing the bottom basket

Installing the bottom basket

9.3 Cutlery basket

9.4 Cutlery drawer

Reorganising cutlery drawer

Removing cutlery drawer

Installing cutlery drawer

9.5 Etagere

9.6 Folding prongs

Folding down prongs

9.7 Baking sheet spray head

Removing baking sheet spray head

Inserting baking sheet spray head

9.8 Optional extra cleaning area

Selecting Optional extra cleaning area

Cleaning Optional extra cleaning area

9.9 Stemware basket

Loading stemware basket

Unloading stemware basket

9.10 Gastronorm container insert

9.11 Basket heights

11 Rinse aid system

11.1 Rinse aid

Adding rinse aid

11.2 Setting the amount of rinse aid

11.3 Switching the rinse aid system off

12 Detergent

12.1 Suitable detergents

Combined detergents

12.2 Unsuitable detergents

Separate detergents

12.4 Adding detergent

13 Tableware

13.1 Damage to glass and tableware

13.2 Arrange tableware
