Gaggenau
en-us User manual
DF480700
Dishwasher
en-us
Table of contents
1 IMPORTANT SAFETY INSTRUCTIONS.....................4
1.1 Safety definitions........................................................4
1.2 General information....................................................4
1.3 Intended use ..............................................................4
1.4 Restrictive Use...........................................................4
1.5 Grounding instructions ...............................................4
1.6 Safe use.....................................................................4
1.7 Risk to children ..........................................................5
1.8 State of California Proposition 65 Warnings ...............5
1.9 Safety systems...........................................................6
2 Preventing material damage .....................................7
3 Childproof lock...........................................................7
3.1 Electric childproof lock ...............................................7
4 Environmental protection and energy-saving .........7
4.1 Saving energy ............................................................7
4.2
Zeolith drying ........................................................7
4.3 AquaSensor ...............................................................7
4.4 Sensors......................................................................7
5 Familiarizing yourself with your appliance ..............9
5.1 Appliance ...................................................................9
5.2 Controls ...................................................................10
6 Dishwasher Cycles ..................................................12
6.1 Energy Guide ...........................................................13
6.2
Personalization function ........................................13
7 Options .....................................................................13
8 Features....................................................................14
8.1 Upper rack ...............................................................14
8.2 Lower rack ...............................................................15
8.3 Silverware Basket ....................................................16
8.4 Silverware drawer ....................................................16
8.5 Cup shelf..................................................................18
8.6 Flip tines ..................................................................18
8.7 Baking sheet spray head..........................................19
8.8 Optional extra cleaning area ....................................19
8.9 Stemware basket .....................................................20
8.10 Rack heights ..........................................................21
12.4 Adding Detergent.....................................................24
12.5 Detergent table ........................................................25
13 Dishware...................................................................25
13.1 Damage to glass and dishware................................25
13.2 Loading dishware.....................................................25
13.3 Removing dishware .................................................26
13.4 Loading patterns ......................................................26
14 Basic Operation .......................................................27
14.1 Protection against unintentional operation ...............27
14.2 Opening the appliance door .....................................27
14.3 Switching on the appliance ......................................27
14.4 Setting a cycle .........................................................27
14.5 Setting options .........................................................28
14.6 Setting the electronic delay time ..............................28
14.7 Starting the wash cycle ............................................28
14.8 Interrupting the wash cycle ......................................28
14.9 Terminating the wash cycle......................................28
14.10 Displaying wash cycle information .........................28
14.11 Switching off the appliance ....................................28
15 Basic settings ..........................................................29
15.1 Overview of the basic settings .................................29
15.2 Changing the basic settings .....................................30
15.3 Setting the time........................................................30
16 HomeConnect™ .....................................................30
16.1 HomeConnect™ quick start ....................................30
16.2 HomeConnect™ settings ........................................30
16.3
Remote start ........................................................31
16.4 Remote Diagnostics ................................................31
16.5 Software update.......................................................31
16.6 Data Protection ........................................................31
17 Cleaning and maintenance .....................................31
17.1 Cleaning the tub.......................................................31
17.2 Cleaning agent.........................................................31
17.3 Tips on appliance care.............................................31
17.4
Machine Care ......................................................32
17.5 Filter system ............................................................32
17.6 Cleaning the spray arms ..........................................33
9 Before using for the first time .................................21
9.1 Initial use..................................................................21
10 Water softening system.........................................22
10.1 Overview of water hardness settings......................22
10.2 Setting the water softening system.........................22
10.3 Special Dishwasher Salt ........................................22
10.4 Switching off the water softening system................23
11 Rinse aid system....................................................23
11.1 Rinse aid................................................................23
11.2 Setting the amount of rinse aid...............................23
11.3 Switching the rinse aid system off ..........................23
12 Detergent ................................................................24
12.1 The correct detergents ...........................................24
12.2 Incompatible detergents.........................................24
12.3 Information on Detergent .......................................24
2
18 Troubleshooting ......................................................34
19 Transportation, storage and disposal ....................41
19.1 Removing the appliance ..........................................41
19.2 Vacation and Storage ..............................................41
19.3 Transporting the appliance ......................................41
19.4 Disposal of your old appliance .................................41
20 Customer service.....................................................41
20.1 Model number (E-Nr.), production number (FD)
and consecutive numbering (Z-Nr.)..........................42
20.2 AquaStop® Pledge ..................................................42
21 Technical specifications .........................................43
21.1 Information regarding Free and Open Source
Software ..................................................................43
22 Statement of Limited Product Warranty.................43
22.1 What this Warranty Covers & Who it Applies to .......43
22.2 How Long the Warranty Lasts ................................43
22.3 Extended Warranty ................................................43
22.4 Repair/Replace as Your Exclusive Remedy ...........44
22.5 Out of Warranty Product ........................................44
22.6 Warranty Exclusions ..............................................44
22.7 Obtaining Warranty Service - GG...........................45
en-us
3
en-us
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury
to persons. When using kitchen appliances, basic safety
precautions must be followed including those in the following pages.
1.1 Safety definitions
Here you can find explanations of the safety signal words
used in this manual.
WARNING
This indicates that death or serious injuries may occur as
a result of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may occur
as a result of non-observance of this warning.
NOTICE:
This indicates that damage to the appliance or property
may occur as a result of non-compliance with this advisory.
Note:This alerts you to important information and/or tips.
1.2 General information
To reduce the risk of fire, electrical shock, or serious injury, observe the following.
¡ This appliance is provided with installation instructions
and this use and care manual. Read and understand all
instructions before using the appliance.
¡ Keep the manual and the product information in a safe
place for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in
transit.
¡ Severe product damage and/or injury could result from
the use of unqualified service technicians or non-original parts. All repairs must be performed by an authorized service provider using only original equipment factory replacement parts.
¡ NSF/ANSI 184 Certified residential dishwashers are not
intended for licensed food establishments.
1.3 Intended use
Only use this appliance:
¡ for cleaning household dishware.
¡ In private households and in enclosed spaces in a resi-
dential environment.
¡ Up to an altitude of max. 8,200ft (2500m) above sea
level.
1.4 Restrictive Use
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person responsible for their
safety.
1.5 Grounding instructions
This appliance must be grounded to a metal, permanent
wiring system or an equipment grounding conductor must
be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the dishwasher.
See the Installation Instructions included with this dishwasher for more information on electrical requirements.
WARNING
Improper connection of the equipment grounding conductor can result in risk of electric shock.
▶
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped
with a cord having an equipment-grounding conductor.
Check with an authorized electrician or service representative if you are in doubt whether the appliance is
properly grounded.
1.6 Safe use
Follow these safety instructions when using the appliance.
WARNING
To reduce the risk of serious injury, observe the following.
▶
Read all instructions before using this dishwasher.
▶
Use this dishwasher only for its intended function,
which is the washing of household dishware and
kitchenware rated as dishwasher safe.
▶
Only use detergents or rinsing agents recommended
for use in a dishwasher, and keep them out of the reach
of children.
▶
Do not abuse, sit or stand on the door or dish racks of
the dishwasher.
4
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
en-us
WARNING
Under certain conditions, hydrogen gas may be produced
in a hot water system that has not been used for two
weeks or more. Hydrogen gas is explosive.
▶
Before using a dishwasher that is connected to a hot
water system that has been unused for two weeks or
longer, turn on all hot water faucets and let the water
flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this
time.
WARNING
To avoid risk of electric shock, observe the following.
▶
Only use the appliance in enclosed residential space
according to the installation manual.
▶
Never expose the appliance to intense heat or humidity.
▶
Do not use any steam cleaners or high-pressure cleaners to clean this appliance. If not followed, excess moisture can accumulate.
WARNING
The blow opening of the Zeolith container becomes hot
and can cause burns.
▶
Never touch the blow opening of the Zeolith container.
WARNING
To avoid risk of injury, when loading items to be washed,
observe the following.
▶
Locate sharp items so they are not likely to damage the
door seal.
▶
Load knives and other sharp utensils with their handles
up to reduce the risk of cut-type injuries.
▶
Do not wash plastic items unless they are marked
"dishwasher safe" or the equivalent. For plastic items
not so marked, check the manufacturer's recommendations.
▶
Do not operate your dishwasher unless all enclosure
panels are in place.
▶
Do not tamper with or override controls and interlocks.
WARNING
For safe care and operation of your appliance, observe
the following.
▶
Follow the safety instructions and directions for use on
the detergent and rinse aid product labels.
▶
Do not use harsh chemicals such as bleach-based
products to clean your dishwasher. Some bleach-based
products can damage your dishwasher and may
present health hazards!
▶
Always use caution when opening the door during or
following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have
stopped and steam has subsided.
▶
To avoid floor damage and possible mold growth, do
not allow wet areas to remain around or under the dishwasher.
NOTICE:
Water and power shut off
▶
It is highly recommended for the end user to become
familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming
power supply. See the installation instructions or contact your installer for more information.
1.7 Risk to children
Follow these safety instructions if there are children in
your home.
WARNING
To reduce risk of injury to children, observe the following.
▶
Do not allow children to play in or on the dishwasher.
▶
When children become old enough to operate the appliance, it is the responsibility of the parents/legal
guardians to ensure the children are instructed in safe
practices by qualified persons.
▶
Remove the dishwasher door to the washing compartment when removing an old dishwasher for service or
discarding.
1.8 State of California Proposition 65 Warnings
This product may contain a chemical known to the State
of California, which can cause cancer or reproductive
harm. Therefore, the packaging of your product may bear
the following label as required by California:
5
en-us
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
1.9 Safety systems
Protect children from possible hazards resulting from the
appliance.
The appliance is equipped with a Childproof lock
→
Page7
.
6
Preventing material damage en-us
Preventing material damage
2 Preventing material damage
Preventing material damage
NOTICE:
Harsh chemicals such as bleach-based products can damage your dishwasher.
▶
Do not use harsh chemicals such as bleach-based
products to clean your dishwasher.
Unsuitable cleaning products may damage the appliance.
▶
Do not use a steam cleaner.
▶
So as not to scratch the finish on the appliance, do not
use sponges with a rough surface or abrasive cleaning
agents.
▶
To prevent corrosion, do not use cellulose sponge
cloths on dishwashers with a stainless steel front or
rinse the cloths thoroughly several times before using
them for the first time.
Escaping water vapor can damage cabinetry.
▶
When the program ends, let the appliance cool down a
bit before opening the door.
Protect your appliance from the elements.
▶
Protect against freezing to avoid possible damage to
the fill valve. Damage caused by freezing is not covered
by the warranty.
Special salt for dishwashers can damage the tub due to
corrosion.
▶
To make sure that any special salt that escapes is
washed out of the tub, add the special salt to the dis-
penser for special salt immediately before the program
starts.
Detergent may damage the water softening system.
▶
Only fill the dispenser of the water softening system
with special dishwasher salt.
Childproof lock
3 Childproof lock
Childproof lock
The childproof lock lets you protect children from possible
hazards resulting from the appliance.
The appliance is equipped with an electric childproof lock.
3.1 Electric childproof lock
The electric childproof lock makes it more difficult to open
the appliance door.
You can activate or deactivate the electric childproof lock
in the Basic settings →
WARNING
Children could lock themselves in the appliance and suffocate.
▶
Activate the electric childproof lock and close the appli-
ance door.
→
"Opening the appliance door", Page27
Page29
.
Environmental protection and energy-saving
4 Environmental protection and en-
ergy-saving
Environmental protection and energy-saving
4.1 Saving energy
If you follow these instructions, your appliance will use
less power and water.
Use the Eco program.
a
The Eco program is energy-efficient and environmentally friendly.
→
"Dishwasher Cycles", Page12
Change the sensor setting to the default.
a
Consumption is reduced.
→
"Sensors", Page7
Zeolith drying automatically helps to save energy.
a
→
"Zeolith drying ", Page7
4.2 Zeolith drying
The appliance features a Zeolith container. Zeolith drying
lets you save energy.
Zeolite is a mineral that can store moisture and energy
and then release them again.
During dishwashing energy is used to heat up the washing
water and dry the mineral.
During the drying phase, moisture from the interior of the
dishwasher is stored in the mineral and heat is released.
The heat is blown out into the interior of the dishwasher
with dry air. This speeds up and improves drying.
Zeolith drying therefore saves a great deal of energy.
Note:To avoid impairing Zeolith drying performance, do
not position dishware parts directly in front of the intake
opening or the blow opening of the Zeolith container.
Do not position heat-sensitive dishware parts directly in
front of the blow opening of the Zeolith container.
→
"Appliance", Page9
4.3 AquaSensor
The AquaSensor is an optical measuring device (light barrier) which measures the turbidity of the washing water.
You can save water with the AquaSensor.
The operation of the AquaSensor depends on the selected
cycle. If the soiling level is high, the washing water is
drained off and replaced with fresh water. If the soiling
level is lower, the washing water is used in the next wash
cycle, so reducing water consumption by 3-6 liters. In the
Auto cycles the temperature and run time are additionally
adjusted to the level of soiling.
4.4 Sensors
The sensors adjust the cycle sequence and strength in the
Auto cycles depending on the level and type of soiling.
The sensor has different sensitivity levels that can be
changed in the basic settings.
→
"Changing the basic settings", Page30
7
en-us Environmental protection and energy-saving
Sensor setting Description
Standard Optimal setting for mixed loads
and heavily soiled dishware.
Saves both energy and water.
Sensitive Adjusts the program strength for
effective removal of food remnants even with low soiling levels.
Energy and water consumption
are adjusted accordingly.
Very sensitive Adjusts the program strength for
difficult conditions of use, e.g.
stubborn dried-on food remnants.
Recommended setting when using organic or ecological detergents containing low levels of active agents. Energy and water
consumption are adjusted accordingly.
8
Familiarizing yourself with your appliance
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
1
2
3
4
5 Familiarizing yourself with your appliance
Familiarizing yourself with your appliance
5.1 Appliance
Here you can find an overview of the parts of your appliance.
Familiarizing yourself with your appliance en-us
Rating plate
Detergent dispenser Detergent is added to the detergent dispenser.
Lower rack
Filter system
1
Depending on the appliance specifications
Rating plate with E number and FD number →
You will need this data to contact Customer service →
Lower rack →
Filter system →
Page15
Page32
Page42
.
Page41
.
9
en-us Familiarizing yourself with your appliance
5
6
7
8
9
10
11
12
13
14
15
16
1 2 3 4 5 6 7 8 9 10
111213141516
Dispenser for special salt Special salt is added to the dispenser for special salt.
Lower spray arm The lower spray arm washes the dishware in the lower rack.
Upper rack Upper rack
EmotionLight Interior lighting of the appliance.
Silverware drawer
Cup shelf
Detergent tab collecting tray During the wash cycle, detergent tabs automatically drop out of
Intake opening of the Zeolith container
Upper spray arm The upper spray arm washes the dishware in the upper rack.
Blow opening of the Zeolith container
1
→
"Water softening system", Page22
If the dishware has not been washed properly, clean the spray
arms.
→
"Cleaning the spray arms", Page33
→
"Overview of the basic settings", Page29
Silverware drawer →
Cup shelf →
the detergent dispenser into the tab collecting tray, where they
can dissolve fully.
The intake opening is required for Zeolith drying →
If the dishware has not been washed properly, clean the spray
arms.
→
"Cleaning the spray arms", Page33
The blow opening is required for Zeolith drying →
Page18
Page16
Page7
Page7
.
.
Silverware basket Silverware basket
Dispenser for rinse aid Rinse aid is added to the dispenser for rinse aid.
→
"Rinse aid system", Page23
1
Depending on the appliance specifications
5.2 Controls
You can use the control panel to configure all functions of your appliance and to obtain information about the operating
status.
With some buttons you can perform different functions.
10
Familiarizing yourself with your appliance en-us
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ON/OFF button and reset button
Cycle buttons Cycles
Info button If you press , the display shows information about se-
Rinse aid refill indicator
Special salt refill indicator
Display Remote Start
WLAN display
Electronic delay time
Remote Start
Cycle buttons and options Cycles
Start button
buttons You can use these buttons to scroll between the basic set-
Setting buttons
Door opener
Display
Display The display shows information about cycles, basic settings
1
Depending on the appliance specifications
1
1
1
Switching on the appliance →
Switching off the appliance
Terminating the wash cycle →
lected cycles, basic settings and additional options.
If you press for approx. 3 seconds, you can open the
menu.
→
"Changing the basic settings", Page30
Rinse aid system →
Water softening system →
If you have activated the function and are controlling the
appliance via the HomeConnect™ app, the display lights
up on the appliance.
Home Connect →
Setting the electronic delay time →
Options
Starting the wash cycle →
tings.
→
"Changing the basic settings", Page30
Changing the basic settings →
Open the appliance door. →
The display shows information about cycles, basic settings
or additional options. You can change the basic settings via
the display and the setting buttons.
→
"Changing the basic settings", Page30
or additional options. You can change the basic settings via
the display and the setting buttons.
→
"Changing the basic settings", Page30
Page23
Page30
Page27
Page28
Page22
Page28
Page28
Page30
Page27
11
en-us Dishwasher Cycles
Dishwasher Cycles
6 Dishwasher Cycles
Dishwasher Cycles
Below is an overview of the different cycles available on your dishwasher.
The running time may vary depending on the cycle selected. The running time depends on the water temperature, the
quantity of dishware, the level of dirt and the option selected. The running time will change if the rinse aid system is
switched off or rinse aid needs to be added. The consumption values relate to normal conditions and a water hardness of
16 - 20 °E. Different influencing factors such as water temperature or pipe pressure may result in deviations.
Cycle Purpose Cycle sequence Usage
1) Hour/min.
2) Electrical/kWH
3) Water/gal
Auto 150-160°F Dishware:
¡ Washing pots and pans,
non-fragile dishware and silverware
Level of soiling:
¡ Removing stubborn burned
or dried on food remnants
containing starch and protein.
Auto 127-140°F Dishware:
¡ Cleaning mixed dishware
and silverware.
Level of soiling:
¡ Removing common house-
hold food remnants lightly
dried-on.
Dishware:
Eco
¡ Cleaning mixed dishware
and silverware.
Level of soiling:
¡ Removing common house-
hold food remnants lightly
dried-on.
Auto 113-122°F Dishware:
¡ Cleaning delicate dishware,
silverware, temperature-sensitive plastics, glasses and
stemware in the stemware
holder.
Level of soiling:
¡ Removing common house-
hold food remnants lightly
dried-on.
Dishware:
Glasscare
¡ Cleaning temperature sensi-
tive dishes, silverware, and
glasses.
Level of soiling:
¡ Removing lightly adhered
fresh food remnants.
Dishware:
Wash and Dry
¡ Cleaning mixed dishware
and silverware.
Level of soiling:
¡ Removing common house-
hold food remnants lightly
dried-on.
Intensive
¡ Pre-Rinse
¡ Cleaning 151 °F – 160 °F
¡ Intermediate rinse
¡ Final rinse 151 °F
¡ Drying
Sensor controlled:
¡ Optimized by sensors depending on
the soiling of the rinsing water.
Most economical cycle:
¡ Pre-Rinse
¡ Cleaning 113 °F – 146 °F
¡ Intermediate rinse
¡ Final rinse 136 °F
¡ Drying
Particularly gentle:
¡ Pre-Rinse
¡ Cleaning 113 °F - 122 °F
¡ Intermediate rinse
¡ Final rinse 122 °F
¡ Drying
Particularly gentle and improved drying:
¡ Pre-rinse
¡ Cleaning 122 °F
¡ Intermediate rinse
¡ Final rinse 140°F/60°C
¡ Shine and Dry
Time-optimized:
¡ Cleaning 122 °F
¡ Intermediate rinse
¡ Final rinse 158 °F
¡ Drying
¡ 1) 2:00-2:15
¡ 2) 1.100-1.200
¡ 3) 4.9-6.4
¡ 1) 1:45-2:15
¡ 2) 0.720-0.800
¡ 3) 3.4-5.4
Note:The displayed cycle
time indicates an average
value.
¡ 1) 2:10-2:20
¡ 2) 0.770-0.880
¡ 3) 2.4-5.6
¡ 1) 1:25 -1:35
¡ 2) 0.570 -0.580
¡ 3) 2.5 -3.9
¡ 1) 1:20
¡ 2) 0.680
¡ 3) 3.5
¡ 1) 1:00
¡ 2) 0.940
¡ 3) 3.8
12
Cycle Purpose Cycle sequence Usage
1) Hour/min.
2) Electrical/kWH
3) Water/gal
Quick Wash
Dishware:
¡ Cleaning delicate dishware,
silverware, temperature-sensitive plastics and glasses.
Time-optimized:
¡ Cleaning 113 °F
¡ Intermediate rinse
¡ Final rinse 124 °F
¡ 1) 0:30
¡ 2) 0.400
¡ 3) 2.7
Level of soiling:
¡ Removing lightly adhering
fresh food remnants.
Machine Care
Only when using unloaded appliance.
Machine Care 162 °F ¡ 1) 2:00
¡ 2) 1.100
¡ 3) 2.5
- - ¡ 1) 0:09-0:09
Personalization
function
¡ 2) 0.050-0.050
¡ 3) 1.2-1.2
Options en-us
6.1 Energy Guide
The Energy Guide label was based on the Normal soil
sensing cycle.
The unit was tested without any rinse aid (liquid) in the
rinse aid dispenser. A single dose of detergent was inserted into the detergent dispenser, with no detergent being used in the prewash. The unit was not subjected to
truncated testing per the definitions in the test procedure.
We recommend that dish loads such as the one in the energy certification test have the rack position set in the
highest position. Recommended for daily, regular or typical use to completely wash a full load of normally soiled
dishes.
6.2 Personalization function
With this function, you can save a combination of a Cycle
and an Option.
You can save the selected Cycle and Option combination
via the Home Connect app or on the appliance.
The pre-rinse cycle is pre-programmed to this button and
is fine for all types of dishware. The dishware is rinsed
with cold water.
Tip:You can use the Home Connect app to download additional Cycles and Options and save them.
Save Personalization function on the appliance.
1. Press .
2. Press the right cycle button.
3. Press the button for the relevant options.
4. Press Personalization Function button for 3 seconds.
a The selected cycle and option will flash.
a The Personalization Function button flashes.
a The program combination is saved.
Tip:To reset the cycle, either use the Home Connect app
or reset your appliance back to the factory settings.
→
"Overview of the basic settings", Page29
1
Options
7 Options
Options
You can find an overview of the options that can be selected here. Different options, which can be found on the
control panel of your appliance, are available depending
on the appliance configuration.
Option Use
Patented technology thoroughly
Extra Dry with Zeolite
Sanitize
Intensive
Power
dries dishes and plastics such as
baby bottles and food storage containers. Natural minerals transform
moisture into heat up to 176F/80C to
get dishes, even plastics, 60% drier.
Extends drying time.
¡ To ensure a higher hygiene status
for the appliance and dishware,
the temperature is increased and
maintained for an extra-long period.
¡ Especially suitable for cleaning
chopping boards or baby bottles.
¡ Continuous use of this option im-
proves the hygiene status.
¡ This will increase the run time and
energy consumption.
¡ Switch on with mixed loads con-
taining dishware with different
soiling levels, e.g. place very
soiled pots and pans in the lower
rack and normally soiled dishware
in the upper rack.
¡ The spray pressure in the lower
rack is increased and the maximum program temperature held
longer. This will increase the run
time and energy consumption.
¡ The run time is shortened by 15%
to 75% depending on the wash
cycle.
¡ An option can be added to the cy-
cle before it starts or at any time
when the cycle is running.
1
Depending on the appliance specifications
13
en-us Features
1
2
Option Use
¡ Energy and water consumption
are increased.
Features
8 Features
Features
You can find an overview of the possible features of your
appliance and how to use them here.
These features depend on your appliance model.
8.1 Upper rack
Arrange cups and glasses in the upper rack.
4. Raise or lower the rack evenly to the right level.
→
"Rack heights", Page21
Check that the rack is level on both sides.
5. Slide the rack in.
Removing the upper rack
1. Pull the upper rack right out .
2. Lift the rack forward out of the catches .
Adjusting upper rack with the side levers
To wash large items in the racks, adjust the shelf height of
the upper rack.
1. Pull out the upper rack.
2. To prevent the rack from suddenly dropping down, hold
the side of the rack by the top edge.
3. Press in the right- and left-hand levers on the outside of
the rack.
The rack can then slip down slightly.
3. Lower the rack and pull out.
14
4. Slide the guide rails into the appliance.
Features en-us
1
2
1
2
3
a
Installing the upper rack
1. Pull the guide rails of the upper rack out of the appli-
ance .
2. Insert the upper rack .
Note the position of the detent pins.
3. Lift the rack slightly and guide the rear detent pins into
the rear locking hooks of the guide rails .
4. Lower the rack and press the front detent pins into the
notches .
a The rack clicks into position.
5. Slide the rack into the appliance .
8.2 Lower rack
Arrange pans and plates in the lower rack.
Silverware basket
1
1
Depending on the appliance specifications
Large plates up to a diameter of 12inches can be arranged in the lower rack as shown.
Removing the lower rack
1. Pull the lower rack right out.
15
en-us Features
1
2
2. Lift the rack out of the front holders and pull forward
slightly.
3. Lift the rack out of the rear holders.
4. Slide the guide rails into the appliance.
Installing the lower rack
1. Pull the guide rails of the lower rack out of the appli-
ance.
2. Insert the lower rack into the rear holders and slide back
slightly .
3. Lower the rack and insert into the front holders .
4. Slide the rack into the appliance.
8.3 Silverware Basket
8.4 Silverware drawer
Arrange silverware in the silverware drawer.
Arrange silverware with the points and sharp edges down.
You can reorganize the silverware drawer to make more
space for longer or wider utensils.
Reorganizing the silverware drawer
You can fold down the side shelves and front tines to
make more space for longer/wider items of silverware.
1. To fold down a side shelf, push the lever forward and
fold down the side shelf .
Arrange the silverware in the silverware basket, ensuring
that the items are not nestled together and with the sharp
points down.
WARNING
The sharp points and edges of knives and other sharp
utensils can cause serious injury.
▶
Load knives and other sharp utensils with edges down.
Do not allow children to handle or play near knives and
sharp utensils
16
Features en-us
1
2
3
2. To fold down the front tines, push the lever forward and
fold down the tines .
Tip
If you want to return the silverware drawer to its original
position, fold the side shelf back up until it clicks into position.
3. Lower the silverware drawer and pull out.
4. Slide the guide rails into the appliance.
Installing the silverware drawer
1. Pull the guide rails of the silverware drawer out of the
appliance .
2. Insert the silverware drawer .
Removing the silverware drawer
1. Pull the silverware drawer right out .
2. Lift the silverware drawer forward out of the catches .
Note the position of the detent pins.
3. Lift the silverware drawer slightly and guide the lower
detent pins into the lower locking hooks of the guide
rails .
4. Lower the silverware drawer and press the front detent
pins into the notches .
a The silverware drawer clicks into position.
17
en-us Features
1
2
5. Slide the silverware drawer into the appliance .
8.5 Cup shelf
Use the cup shelf and the space underneath for small
cups and glasses or for large items of silverware, e.g.
cooking spoons or serving cutlery.
8.6 Flip tines
Use the flip tines to position dishware securely, e.g. plates.
You can fold the tines down to arrange pans, bowls and
glasses better.
Folding down the tines
If you do not need the tines, fold them down.
1. Push the lever forward and fold down the tines .
1
1
If you do not need the cup shelf, you can fold it up.
1
Depending on the appliance specifications
18
2. To use the tines again, fold them back up.
a The tines click into position.
Features en-us
8.7 Baking sheet spray head
Use the baking sheet spray head to clean large items of
dishware, e.g. trays, racks and plates.
Arrange max. 2baking sheets and 2racks as shown to
ensure that the spray jet can reach all parts.
Note:Check that the appliance is always operated with
the upper rack or the baking sheet spray head.
Inserting the baking sheet spray head
Use the baking sheet spray head instead of the upper rack
to clean large trays, racks and plates.
1.
Remove the upper rack. →
2. Insert the baking sheet spray head in the holder and
turn to the right .
Page14
8.8 Optional extra cleaning area
Use the Optional extra cleaning area in the upper rack to
clean all types of glasses gently yet thoroughly.
Selecting Optional extra cleaning area
Note:If you operate your appliance with the Optional extra
cleaning area switched on, consumption will increase.
1. Pull out the upper rack.
2. Set the slider to ON or OFF.
a The baking sheet spray head clicks into position.
Removing the baking sheet spray head
If you no longer require the baking sheet spray head, remove it from the appliance.
1. Turn the baking sheet spray head to the left and remove
from the holder.
2.
Insert the upper rack in the appliance. →
Page15
3. Slide in the upper rack.
Cleaning Optional extra cleaning area
Limescale and soiling from the washing water can block
the nozzles.
Note:Always operate the appliance with the Optional extra cleaning area fitted.
1. Pull out the upper rack.
19
en-us Features
2. Pull the tab on the Optional extra cleaning area up
and forward .
3. Set the slider to ON.
4. Clean under running water.
5. Place the Optional extra cleaning area in the upper rack
and lock in position .
8.9 Stemware basket
Use the stemware basket to ensure perfect dishwashing
results for your stemware.
Loading the stemware basket
You can place up to 4 stemware baskets in the lower rack
at the same time.
Requirements
¡ The upper rack is set to level 1.
¡ The tines in the lower rack are folded down.
→
"Folding down the tines1", Page18
1. Pull up the rotating fixing arms and turn counterclock-
wise .
Check that the mounts are in the correct position.
a The Optional extra cleaning area clicks into position .
6. Slide in the upper rack.
1
Depending on the appliance specifications
2. Place the stemware with the opening facing down on
the shelf.
You can load stemware with the following dimensions in
the stemware basket.
Dimensions Max. size
Height 9.5"
Opening diameter 4"
Stem diameter approx. .35"
3. Position the stem in the lower fixing arm .
20
Before using for the first time en-us
4. Turn the rotating fixing arm clockwise and push down
.
a The fixing arm clicks into position.
a The stemware is securely positioned in the stemware
basket.
5. Lift the stemware basket by the handle and place in the
lower rack.
To stop the stemware falling out, make sure the
stemware basket cannot tip over.
→
"Loading dishware", Page25
Unloading the stemware basket
Note:Observe the information on how to unload dishware.
→
"Removing dishware", Page26
1. Take the stemware basket by the handle out of the
lower rack.
2. Pull up the rotating fixing arms and turn counterclock-
wise .
3. Take the stemware out of the stemware basket .
8.10 Rack heights
Set the racks at the right height.
Appliance height 32 inches with silverware basket
Level Upper rack Lower rack
1 max. ø 8.5" 12"
2 max. ø 9.5" 11"
3 max. ø 10.5" 10"
Appliance height 32 inches with silverware drawer
Level Upper rack Lower rack
1 max. ø 6" 12"
2 max. ø 7" 11"
3 max. ø 8" 10"
Before using for the first time
9 Before using for the first time
Before using for the first time
Apply the settings for the first use.
9.1 Initial use
Before the first use, or after a factory reset, you will need
to configure the settings.
Tip:Connect your appliance to a mobile device. You can
conveniently change all settings using the HomeConnect™ app.
→
"HomeConnect™ quick start", Page30
Requirement:The appliance has been installed and connected.
1. Add special salt.
2.
Add rinse aid. →
Page23
3. Switch on the appliance.
a The display shows the settings for initial use.
4. Press repeatedly until the display shows the required
setting.
Note:If you select HomeConnect™ with the setting Ini-
tial use , make further settings using the HomeConnect™ app on your mobile device.
You can change the settings for initial use and other Basic settings →
Page29
on the appliance at any time or
using the HomeConnect™ app on your mobile device.
5. Press or repeatedly until the display shows the
right value.
You can change one or more settings.
6. To save the settings, press for approx. 3seconds.
7. Add detergent.
21
en-us Water softening system
a
8. Start the Program with the highest cleaning temperature
without dishware.
To remove any marks from water or other residues, we
recommend you operate the appliance without dishware
before using it for the first time.
Water softening system
10 Water softening system
Water softening system
Hard water leaves limescale on dishware as well as the
washing tank, and parts of the appliance may become
blocked.
To ensure good dishwashing results, you can treat the water with special salt and the water softening system. To
avoid damage to the appliance, water with a hardness
above 9°E must be softened.
10.1 Overview of water hardness settings
You can find an overview of the water hardness values that can be selected here.
You can find out how hard your water is from your local water company or by using a water hardness tester.
Water hardness °E Hardness range mmol/l Setting value
0 - 8 soft 0 - 1.1 0 - 8
9 - 10 soft 1.2 - 1.4 9 - 10
11 - 12 medium 1.5 - 1.8 11 - 12
13 - 15 medium 1.9 - 2.1 13 - 15
16 - 20 medium 2.2 - 2.9 16 - 20
21 - 26 hard 3.0 - 3.7 21 - 26
27 - 38 hard 3.8 - 5.4 27 - 38
39 - 62 hard 5.5 - 8.9 39 - 62
Note:Set the water hardness determined on your appliance.
→
"Setting the water softening system", Page22
With a water hardness of 0 - 8°E you can dispense with
special salt for dishwashers and switch off the water softening system.
→
"Switching off the water softening system", Page23
10.2 Setting the water softening system
Set the water hardness on your appliance.
1. Determine the water hardness and the appropriate set-
ting value.
→
"Overview of water hardness settings", Page22
2. Press .
3. To open the basic settings, press for approx. 3sec-
onds.
4. Press repeatedly until the display shows "Water hard-
ness".
5. Press or repeatedly until the right water hardness
has been set.
The value 0 - 8 is set at the factory.
6. To save the settings, press for approx. 3seconds.
10.3 Special Dishwasher Salt
NOTICE:
Detergent may damage the water softening system.
▶
Only fill the dispenser of the water softening system
with special dishwasher salt.
Special salt for dishwashers can damage the tub due to
corrosion.
▶
To make sure that any special salt that escapes is
washed out of the tub, add the special salt to the dis-
penser for special salt immediately before the program
starts.
1. Unscrew the lid of the salt dispenser and remove.
2. Before the first use: Fill the dispenser full with water.
3. Note:Only use special salt specified for dishwashers.
Do not use salt tablets.
Do not use table salt.
Add the special dishwasher salt to the dispenser.
You can use special dishwasher salt to soften the water.
Adding dishwasher salt
If the salt refill indicator lights up, add special dishwasher
salt to the dispenser for salt just before the cycle starts.
The amount of special dishwasher salt required depends
on the water hardness. The higher the water hardness, the
greater the amount of salt required.
22
Funnel
Fill the dispenser completely with the salt. The water in
the dispenser is displaced and forced out.
4. Place the lid back on the dispenser and turn to close.
Rinse aid system en-us
1
2
max
10.4 Switching off the water softening system
If you do not need to use the water softening system, e.g.
you already have a whole house water softening system,
you can turn the system off.
Note
To avoid damage to the appliance, only switch off the
water softening system in the following cases:
¡ The water hardness is max. 26°E and you are using
combined detergents with salt replacement substances.
According to manufacturers, combined detergents with
salt replacement substances can generally only be used
up to a water hardness of 26°E without adding special
salt.
¡ The water hardness is 0 - 8°E. You can omit special
salt.
1. Press .
2. To open the basic settings, press for approx. 3sec-
onds.
3. Press repeatedly until the display shows "Water hard-
ness".
4. Press or repeatedly until the display shows 0 - 8.
5. To save the settings, press for approx. 3seconds.
a The water softening system is switched off and the salt
refill indicator is deactivated.
Rinse aid system
11 Rinse aid system
Rinse aid system
You can use the rinse aid system and rinse aid to get dishware and glasses rinsed perfectly without spots.
11.1 Rinse aid
For optimum drying results, use rinse aid.
Only use rinse aid intended for household dishwashers.
Adding rinse aid
If the display shows "Please add rinse aid. ", add rinse aid.
Only use rinse aid intended for household dishwashers.

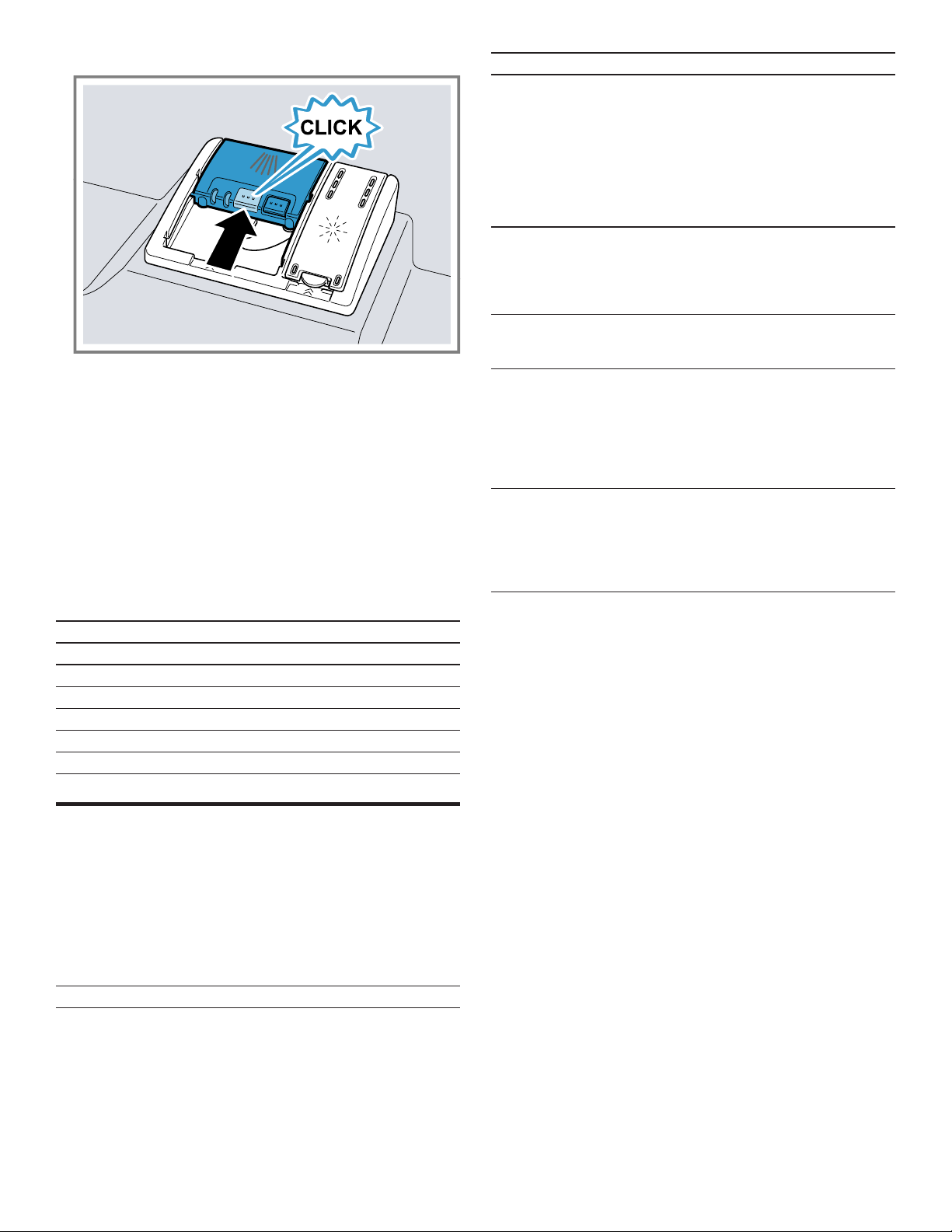

1. Press the catch on the lid of the dispenser for rinse aid
and lift .
2. Add rinse aid up to the max mark.
3. If rinse aid spills out, remove it from the tub.
Spilled rinse aid can cause excessive frothing during
the wash cycle.
4. Close the lid of the dispenser for rinse aid.
a The lid clicks into position.
11.2 Setting the amount of rinse aid
If there are streaks or water spots on dishware, change
the amount of rinse aid.
1. Press .
2. To open the basic settings, press for approx. 3sec-
onds.
3. Press repeatedly until the display shows "Rinse aid
disp.".
4. Press or repeatedly until the right amount of rinse
aid has been set.
– A low setting adds less rinse aid during the wash cy-
cle and reduces streaking on dishware.
– A higher setting adds more rinse aid during the wash
cycle, reduces water spots and improves the drying
result.
5. To save the settings, press for approx. 3seconds.
11.3 Switching the rinse aid system off
If you choose not to use rinse aid, you can turn the rinse
aid system off.
Tip:Rinse aid within a combination detergent has limited
effectiveness. You will generally get better results using a
separate rinse aid.
1. Press .
2. To open the basic settings, press for approx. 3sec-
onds.
3. Press repeatedly until the display shows "Rinse aid
disp.".
4. Press or repeatedly until the display shows 0.
5. To save the settings, press for approx. 3seconds.
a The rinse aid system is switched off and the rinse aid
refill indicator is deactivated.
23
en-us Detergent
3 tbsp (45 ml)
1.75 tbsp
(25 ml)
1 tbsp (15 ml)
Detergent
12 Detergent
Detergent
Find out which detergents are suitable for your appliance.
12.1 The correct detergents
Only use detergents that are made for dishwashers, either
basic or combination detergents.
For the best washing and drying results, use a separate
detergent, then add Special salt and Rinse aid →
separately.
Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and
remove protein. Oxygen-based bleaching agents are generally used to remove colored stains, e.g. tea or ketchup.
Note:Follow the manufacturer's instructions for each detergent.
Detergent Description
Tabs Tabs are perfect for all cleaning
functions and do not need to be
measured out.
However, with shorter Cycles
→
Page12
sometimes tabs do not
dissolve entirely and leave residues
of detergent. This may reduce its effectiveness.
Powder detergent Powder detergent is recommended
for shorter cycles. The dosage can
be adjusted to the level of soiling.
Liquid detergent Liquid detergent works faster and is
recommended for shorter cycles
without a pre-rinse.
Sometimes liquid detergent may
leak out despite the detergent dispenser being closed. This is not a
problem, just remember the following:
¡ Only choose a cycle without Pre-
Rinse.
¡ Do not use the Delay Start option.
The dosage can be adjusted to the
level of soiling.
12.2 Incompatible detergents
Do not use a detergent which is not designated for dishwasher use or contains chlorine.
Detergent Description
Liquid hand soap Liquid hand soap can
cause increased frothing
and damage the appliance.
Detergent containing chlorine
12.3 Information on Detergent
Follow the instructions on detergents in everyday use.
¡ Detergents marked as "ecological" (environmentally
friendly) generally contain lower levels of active agents
or none at all. The cleaning effect may be reduced.
¡ Adjust the rinse aid and the water softening system set-
tings in accordance with the detergent or combination
detergent in use.
This may leave chlorine
residue on dishware.
Page23
¡ According to manufacturers, combination detergents
with salt replacement substances can only be used up
to a certain water hardness, usually 26 °E, without
adding special salt. For the best washing and drying results we recommend using special salt from a water
hardness of 17 °E.
¡ Any rinse aid component of a combination detergent
has limited effectiveness. You will have better results
using a separate rinse aid.
¡ To prevent sticking, only touch detergents in a water-
soluble pouch with dry hands and only ever place them
in a dry detergent dispenser.
¡ Even if the rinse aid and special salt refill indicators light
up, the wash cycles will run properly with combination
detergents.
¡ Use tablets with enhanced drying results.
12.4 Adding Detergent
1. To open the detergent dispenser, press the locking
latch.
2. Add the detergent to the dry detergent dispenser.
If you are using tablets, one is enough. Insert the tablets
in a horizontal position.
If you are using powder or liquid detergent, follow the
manufacturer's instructions and quantities for dosage in
the detergent dispenser.
1.5 to 1.75 Tbsp (20 ml – 25 ml) detergent is sufficient
for normal soiling. If dishware is only lightly soiled,
slightly less than the amount of detergent specified is
usually sufficient.
24
Dishware en-us
3. Close the lid of the detergent dispenser.
a The lid clicks into position.
a The detergent dispenser will open automatically at the
optimum time during the cycle. Powder or liquid detergent will spread around the washing tank and dissolve
there. Tablets will fall into the tablet collecting tray and
dissolve in the right dosage. In order to ensure that
tablets can dissolve evenly, do not place any other objects in the tablet collecting tray.
Tip:If you use powder detergent and select a cycle with
pre-rinse, you can also add a little detergent to the interior
door of the appliance.
12.5 Detergent table
Detergent amount guidelines
Auto 127-140°F 1.75 Tbsp (25 ml) or 1 tab
Auto 113-122°F 1 Tbsp (15 ml)
Eco 1.75 Tbsp (25 ml) or 1 tab
Glasscare 1 Tbsp (15 ml)
Auto 150-160°F 3 Tbsp (45 ml) or 1 tab
Wash and Dry 1 Tbsp (15 ml)
Quick Wash 1 Tbsp (15 ml)
Dishware
13 Dishware
Dishware
Only wash dishware that is suitable for dishwashers.
Note:Decorated glassware and parts made of aluminum
or silver may fade or discolor with dishwashing. Delicate
types of glass may turn cloudy after a few wash cycles.
Cause Recommendation
¡ Plastic dishware not re-
sistant to heat
¡ Dishware made from
copper or tin
¡ Dishware soiled with
ash, wax, lubricating
grease or paint
¡ Very small items of dish-
ware
Glass and dishware is not
suitable for dishwashers.
Only put glasses and china
in the dishwasher if it is
marked as suitable for dishwashers by the manufacturer.
The chemical composition
of the detergent causes
damage.
Highly caustic alkaline or
highly acidic cleaning
agents, in particular commercial or industrial cleaning agents, are not suitable
for dishwashers in conjunction with aluminum.
The water temperature of
the program is too high.
Use a detergent marked as
kind to dishware by the
manufacturer.
If you are using highly
caustic alkaline or highly
acidic cleaning agents, in
particular commercial or industrial cleaning agents, do
not put aluminum parts inside the dishwasher.
Select a program with lower
temperatures.
After the cycle has ended,
take glassware and silverware out of the appliance
without delay.
13.2 Loading dishware
Arrange dishware correctly to optimize the dishwashing result and prevent damage to both dishware and the appliance.
NOTICE:
Avoid dishwasher damage
▶
Do not load the dishwasher with paper products, plastic
bags, packing materials or anything other than normal,
dishwasher safe dishware and kitchenware.
Tips
¡ Using the appliance allows you to save energy and wa-
ter compared to washing-up by hand.
¡ See our website for examples of how to load your appli-
ance efficiently, free of charge.
¡ To save energy and water, load the machine with the
number of place settings specified.
13.1 Damage to glass and dishware
Avoid damage to glass and dishware.
Cause Recommendation
The following dishware is
not suitable for dishwashers:
¡ Items of silverware and
dishware made from
wood
¡ Decorated glassware,
antique and hand-crafted
dishware
Only put dishware in the
dishwasher if it is marked
as suitable for dishwashers
by the manufacturer.
25
en-us Dishware
¡ For better washing and drying results, position items
with curves or recesses at an angle so water can run
off.
1. Remove large remnants of food from dishware.
To save resources, do not pre-rinse dishware under
running water.
2. Observe the following when arranging dishware:
– Put heavily soiled dishware in the lower rack, e.g.
pans. The more powerful spray jet ensures that the
dishwashing result will be better.
– To avoid damage to dishware, arrange it so it is sta-
ble and cannot tip over.
– To avoid injury, arrange silverware with the points
and sharp edges down.
– Position containers with the openings facing down so
no water can collect in them.
– Do not block the spray arms - make sure that they
can turn freely.
– Do not place small parts in the collecting tray and do
not block it with dishware so as not to obstruct the lid
of the detergent dispenser.
1. To prevent water dripping onto dishware, unload it start-
ing at the bottom and working up.
2. Check the washing tank and accessories for soiling and
clean if necessary.
→
"Cleaning and maintenance", Page31

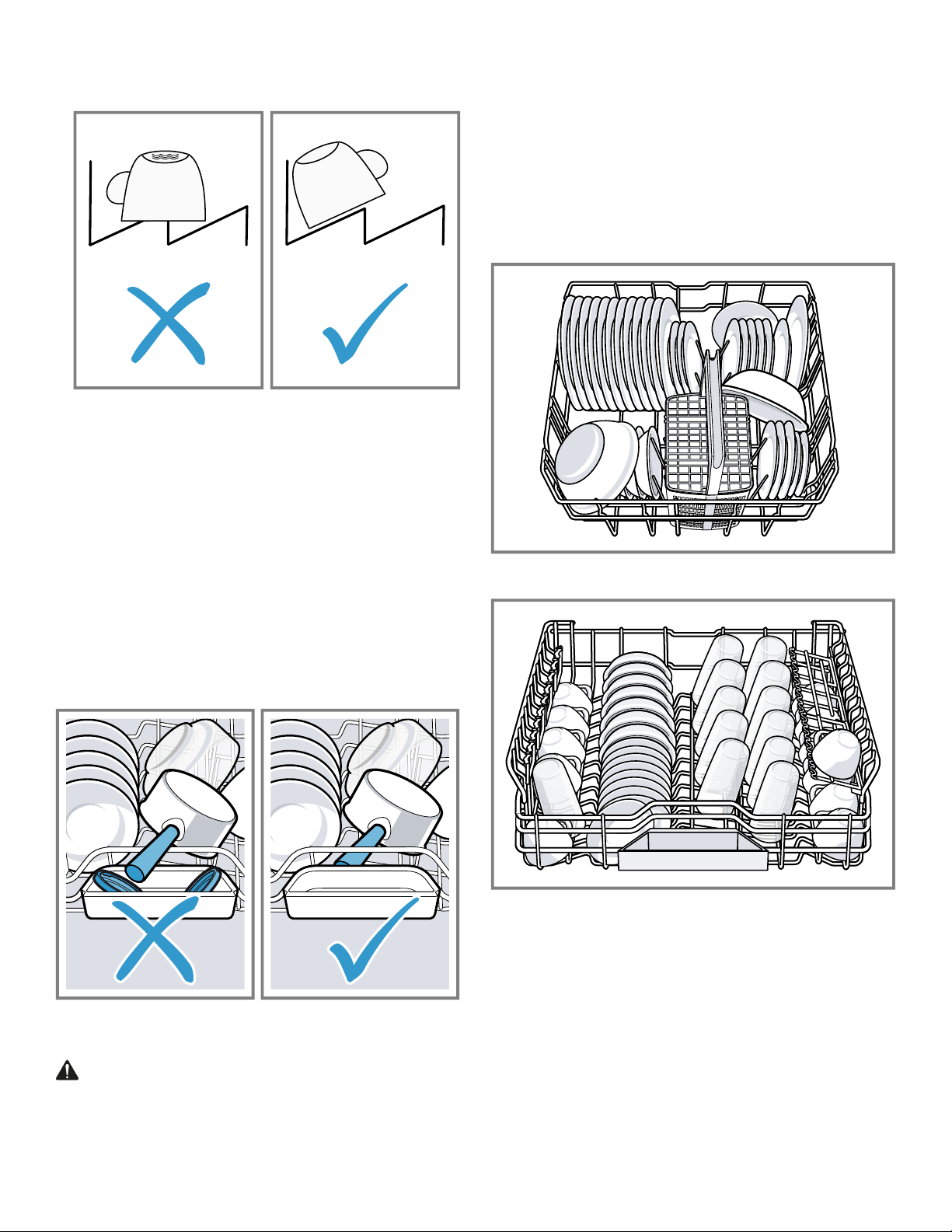

13.4 Loading patterns
Recommended loading patterns.
12 place settings:
Lower rack
Upper rack
13.3 Removing dishware
CAUTION
Dishes can be very hot immediately after the cycle ends.
▶
Open the door slightly and allow dishes to cool for a few
minutes before unloading.
26

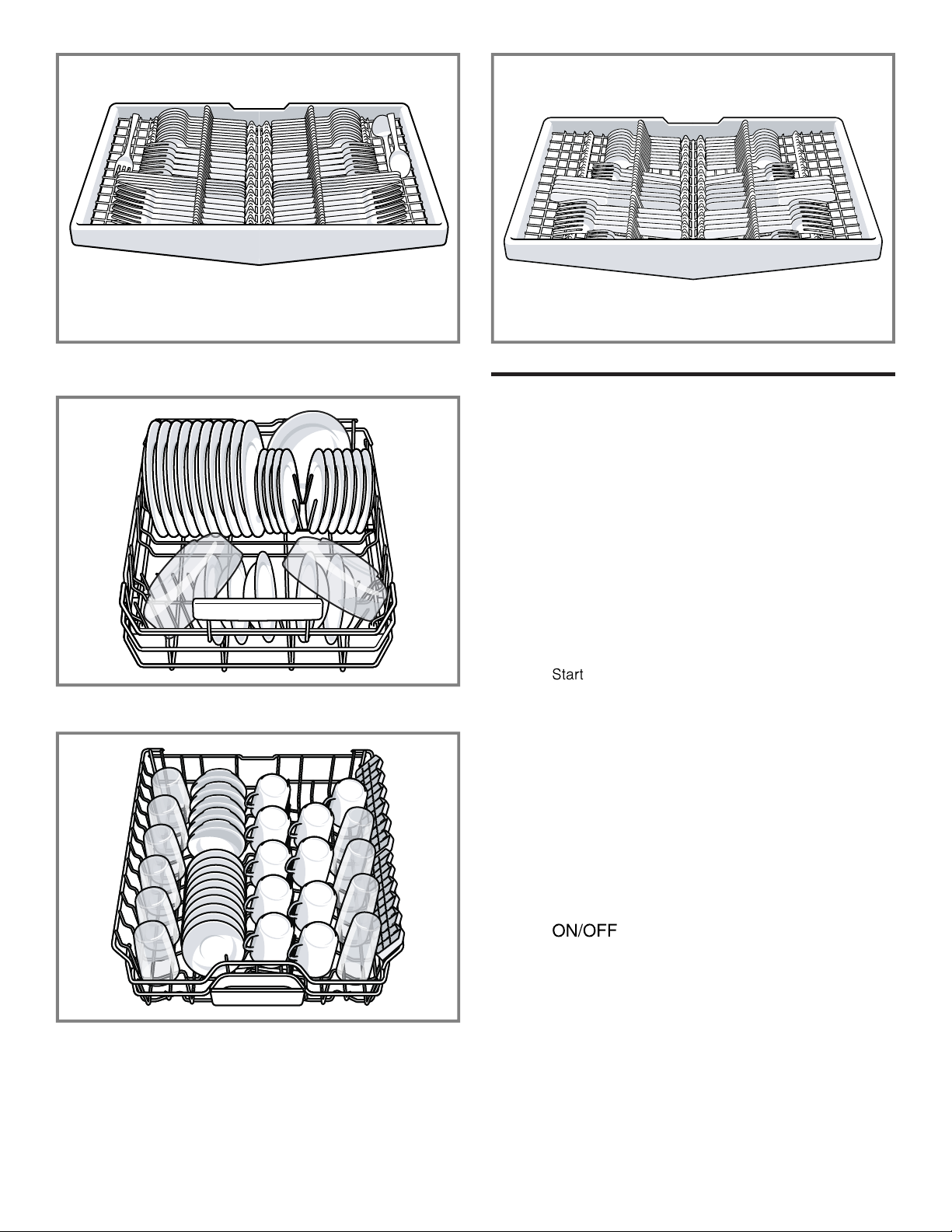

Third rack
Basic Operation en-us
Additional loading patterns for 10 place settings:
Lower rack
Upper rack
Basic Operation
14 Basic Operation
Basic Operation
14.1 Protection against unintentional operation
Your appliance is equipped with a function that helps to
prevent unintentional operation, e.g. by children. After
starting the appliance, the door has to be closed within 4
seconds, otherwise the operation will be paused.
Note:This function cannot be deactivated.
Requirements
¡ Pressing Start to begin a wash cycle
¡ Setting Delay time and pressing Start
¡ Opening the door while Delay time is active
¡ Opening the door during a wash cycle.
1. Press .
2. Close the door.
a The wash cycle will resume.
14.2 Opening the appliance door
1. If the electric childproof lock is not activated, press on
the upper middle section of the appliance door.
2. If the electric childproof lock is activated, press on the
upper middle section of the appliance door twice with a
short interval in between.
a The appliance door will open automatically.
Third rack
14.3 Switching on the appliance
▶
Press .
The standard program is set by default.
If you do not perform any actions on the appliance for
10 minutes, it will automatically switch off.
14.4 Setting a cycle
To adjust the wash cycle to the soiling level of the dishware, select a suitable cycle.
▶
Press the right cycle button.
a The cycle is set and the cycle button flashes.
27
en-us Basic Operation
14.5 Setting options
You can set options to complete the chosen cycle.
Note:The available options depend on which cycle is se-
lected.
▶
Press the button for the relevant option.
a The option is set and the option button flashes.
14.6 Setting the electronic delay time
You can delay the start of the wash cycle by up to
24hours.
1. Press .
2. Press or repeatedly until the display shows the
right time.
Depending on the setting of the time display, the end of
the program is shown on the display either with "Finish
in" (e.g. 3h25min) or "Finish at" (e.g. 3:20pm). You can
change this setting in the Basic settings →
3. To activate the electronic delay time, press .
Page29
.
Note:To deactivate the electronic delay time, press
for approx. 4seconds.
14.7 Starting the wash cycle
▶
Press .
a The wash cycle has ended when the display shows
"Finished!".
Notes
¡ If you want to add more dishware while the appliance is
running, do not use the collecting tray as a handle for
the upper rack. You might touch the partially dissolved
tablet.
¡ You can only change a cycle in progress if you can can-
cel it first.
→
"Terminating the wash cycle", Page28
¡ To save energy, the appliance switches off automati-
cally 10minutes after the end of the wash cycle. If you
open the appliance door immediately after the wash cycle has ended, the appliance will switch off after 4 seconds.
14.10 Displaying wash cycle information
You can show information about cycles and options on the
display.
1. Press .
2. Press the cycle button or an option.
14.11 Switching off the appliance
CAUTION
To avoid risk of injury, always use caution when opening
the door during or following a wash cycle as hot water or
steam may escape.
▶
Do not fully open the door until water noises have
stopped and steam has subsided.
1. Please note the information on Preventing Material
Damage.
2. Press On/Off.
14.8 Interrupting the wash cycle
1. Press On/Off.
The program is saved and the appliance switches off.
2. Press On/Off.
3. Press to resume the wash cycle.
14.9 Terminating the wash cycle
To end a cycle early or to switch from one that has already
started, you will need to cancel it first.
▶
Press for approx. 4seconds.
a All displays light up.
a As soon as the displays are off, the display shows "Pro-
gramme was terminated." and then "Finished!".
a The cycle is cancelled and ends after approx. 1minute.
28
Basic settings en-us
Basic settings
15 Basic settings
Basic settings
You can configure your appliance to meet your needs.
15.1 Overview of the basic settings
The basic settings depend on the features of your appliance.
Basic setting Selection Description
Time setting 00:00 - 24:00 Set the current time.
The setting depends on the time format selected.
Time format 12 h
Time display In hours
24 h
Time
1
1
Sprache/Language See selection on the appli-
ance.
Water hardness 0 - 62
Rinse aid disp. 0 - 6
Sensor setting Standard
0 - 8
1
5
1
1
Sensitive
Very sensitive
Extra Dry on
Eco forecast on
Emotion Light™ off
1
off
1
off
On via main switch
1
On when opening door
Remaining time proj. on
1
off
Start program Auto 127-140°F
1
Prog. last selected
Tone volume Scale with multiple levels. Set the signal volume at the end of a wash cycle.
Button volume Scale with multiple levels Set the button volume during operation.
Child-proof lock on
off
1
WLAN on
off
Remote Start off
Manual
Permanent
1
Factory setting (may vary according to model)
Set the time format.
Set the time display for the end of the wash cycle.
"Finish in" shows the remaining time the wash cycle still
has to run, e.g. 3h25min.
"Finish at" shows the time when the wash cycle will end,
e.g. 3:20pm.
Select the menu language.
Set the water hardness.
→
"Overview of water hardness settings", Page22
Set or switch off the amount of rinse aid to be dispensed.
→
"Setting the amount of rinse aid", Page23
Set the water sensor for identifying soiling.
→
"Sensors", Page7
Switch "Extra Dry" on or off for each operation.
The temperature is increased during the final rinse for a
better drying result. This may increase the run time slightly.
Please take care with delicate dishware.
Switch EcoCheck on or off.
When selecting the wash cycle, the average water and energy consumption is briefly shown on the display.
Switch the interior lighting of the appliance on or off.
When the appliance door is opened, the interior lighting
switches off automatically after 10 minutes.
Switch "Remaining time proj." on or off.
While the cycle is running, status information is projected
onto the floor below the appliance door, e.g. the remaining
run time. If the base panel is pulled forward or if the appliance is installed at eye level with the cabinet front fitted
flush, the display is not visible.
Set a default program for when the appliance is switched
on.
Level 0 switches the signal tones off.
Level 0 switches the button tones off.
Switch the Electric childproof lock →
Page7
on or off.
Switch the wireless network connection on or off.
The basic setting "WLAN" is not available until you have
connected the appliance with the HomeConnect™ app.
→
"HomeConnect™ ", Page30
Activate or deactivate .
The basic setting is not available until you have connected
the appliance with the HomeConnect™ app.
→
"HomeConnect™ ", Page30
29
en-us HomeConnect™
Basic setting Selection Description
off
1
Switch display of the brand name logo on or off when the
appliance is switched on.
Greeting on
Factory setting Reset Restore changed settings to the factory settings.
The settings for initial use must be configured.
1
Factory setting (may vary according to model)
15.2 Changing the basic settings
1. Press .
2. To open the basic settings, press for approx. 3sec-
onds.
3. Press repeatedly until the display shows the required
setting.
4. Press or repeatedly until the display shows the
right value.
You can change one or more settings.
5. To save the settings, press for approx. 3seconds.
15.3 Setting the time
1. To open the basic settings, press for approx. 3sec-
onds.
2. Press repeatedly until the display shows "Time set-
ting".
3. Press or repeatedly until the display shows the re-
quired time.
Holding down and will change the set values in 10-
minute steps.
4. To save the settings, press for approx. 3seconds.
HomeConnect™
16 HomeConnect™
HomeConnect™
This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via
the HomeConnect™ app.
HomeConnect™ services are not available in every country. Availability of the HomeConnect™ function depends
on the availability of HomeConnect™ services in your
country. You can find information on this at: www.homeconnect.com.
To be able to use HomeConnect™, you must first set up
the connection to the WLAN home network (Wi-Fi 1) and to
the HomeConnect™ app.
¡ →
"Connecting appliance to the WLAN home network
(Wi-Fi)", Page30
The HomeConnect™ app will guide you through the entire registration process. Follow the instructions in the
HomeConnect™ app to make the settings.
Tips
¡ Please consult the HomeConnect™ documents sup-
plied.
¡ Please also note the information in the HomeCon-
nect™ app.
Note:Please also note the safety information in this instruction manual and ensure that it is also observed when
operating the appliance using the HomeConnect™ app.
16.1 HomeConnect™ quick start
Connect your appliance to a mobile device quickly and
easily.
Installing the app
1. Install the HomeConnect™ app on your mobile device.
2. Start the app and set up access for HomeConnect™.
The HomeConnect™ app will guide you through the
entire registration process.
Connecting appliance to the WLAN home network (Wi-Fi)
Requirements
¡ HomeConnect™ app is installed on your mobile device.
¡ Wi-Fi is activated on the router.
¡ The appliance receives signals from the WLAN home
network (Wi-Fi) at its installation location.
1. Scan the QR code using the HomeConnect™ app.
2. Follow the instructions in the HomeConnect™ app.
16.2 HomeConnect™ settings
Adapt HomeConnect™ to your needs.
You can find the HomeConnect™ settings in the basic
settings for your appliance. Which settings the display
shows will depend on whether HomeConnect™ has been
set up and whether the appliance is connected to your
home network.
1
Wi-Fi is a registered trade mark of the Wi-Fi Alliance.
30
Cleaning and maintenance en-us
16.3 Remote start
You can use the HomeConnect™ app to start the appliance with your mobile device.
Tip:If you select Remote start →
Page29
"Permanent"
with the basic setting, the remote start function will be permanently activated and you can start your appliance with a
mobile device at any time.
Activating remote start
If you have selected remote start "Manual" with the basic
setting, you can activate the remote start function on your
appliance.
Requirements
¡ The appliance is connected to your WLAN home net-
work.
¡ The appliance is connected to the HomeConnect™
app.
¡ With the basic setting Remote start →
Page29
, "Man-
ual" is selected.
¡ A program is selected.
▶
Press .
If you open the appliance door, remote start is automati-
cally deactivated.
a The remote start button flashes.
Tip:To deactivate remote start, press .
16.4 Remote Diagnostics
The Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the HomeConnect™ server and if
Remote Diagnostics is available in the country where you
are using the appliance.
Tip:Further information and details about the availability
of Remote Diagnostics in your country can be found in the
Service/Support section of your local website: www.homeconnect.com
16.5 Software update
You can use this function to update the software of your
appliance, e.g. for optimization, troubleshooting or safetyrelevant updates.
The HomeConnect™ app informs you about available
software updates.
16.6 Data Protection
Please see the information on data protection.
The first time your appliance is registered on a home
network connected to the Internet, your appliance will
transmit the following types of data to the
HomeConnect™ server (initial registration):
¡ Unique appliance identification (consisting of appliance
codes as well as the MAC address of the installed Wi-Fi
communication module).
¡ Security certificate of the Wi-Fi communication module
(to ensure a secure data connection).
¡ The current software and hardware version of your ap-
pliance.
¡ Status of any previous reset to factory settings.
This initial registration prepares the HomeConnect™
functions for use and is only required when you want to
use the HomeConnect™ functions for the first time.
Note:Please note that the HomeConnect™ functions can
be utilized only with the HomeConnect™ app. Information
on data protection can be called up in the HomeConnect™ app.
Cleaning and maintenance
17 Cleaning and maintenance
Cleaning and maintenance
To keep your appliance working efficiently for a long time,
it is important to clean and maintain it carefully.
17.1 Cleaning the tub
WARNING
Using detergents containing chlorine may result in harm to
health.
▶
Never use detergents containing chlorine.
1. Remove any heavy soiling in the interior with a damp
cloth.
2. Add detergent to the detergent dispenser.
3. Select the program with the highest temperature.
4.
Start the program without dishware. →
17.2 Cleaning agent
Only use suitable cleaning agents to clean your appliance.
17.3 Tips on appliance care
Follow the tips on appliance care to make sure your appliance functions properly at all times.
Action Benefit
Regularly wipe the door
seals, the front of the dishwasher and the control
panel using a damp cloth
and dishwashing liquid.
If the appliance is not going
to be used for a while,
leave the door slightly ajar.
This ensures the parts of
the appliance will remain
clean and hygienic.
This will prevent unpleasant
odors.
Page28
31
en-us Cleaning and maintenance
1
2
3
1
2
3
17.4 Machine Care
Deposits, e.g. from food remnants and limescale, can
cause your appliance to malfunction. To avoid these problems and reduce odors, we recommend cleaning your appliance at regular intervals.
Machine Care combined with machine cleaning products
will provide the right care for your appliance.
Phase Removal of Cleaner Placement
1 Grease and limescale Liquid machine care product or
machine descaler in powder form.
2 Food remnants and deposits Machine cleaner Detergent dispenser
To ensure optimal cleaning performance, the program
doses the cleaners independently of each another during
the relevant cleaning phase. Therefore, it's important to
place the cleaners correctly.
Run Machine Care without dishware if the indicator for
Machine Care lights up on the control panel or if advised
to do so by the display. The indicator will go out after you
have run Machine Care. If your appliance does not have a
reminder function, we recommend performing Machine
Care every 2months.
RunMachine Care
Run the Machine Care program if the indicator for Machine Care lights up on the control panel or if advised to
do so by the display.
Notes
¡ Run the Machine Care program without any dishes in
the dishwasher.
¡ Only use machine care products and machine cleaners
specially designed for dishwashers.
¡ Make sure that there are no aluminum items, e.g. vent
hood grease filters or aluminum pans, in the interior of
the appliance.
¡ If you have not run Machine Care after 3 wash cycles,
the indicator for Machine Care will go out automatically.
¡ For optimal cleaning performance, ensure the correct
placement of cleaners.
¡ Follow the safety instructions given on the packagings
of the machine care products and machine cleaners.
¡
Activate the Optional extra cleaning area →
1. Remove any heavy soiling in the interior with a damp
cloth.
2. Clean the filters.
3. Place the machine care product in the appliance inte-
rior.
Only use machine care products specially designed for
dishwashers.
4. Pour the machine cleaner into the detergent dispenser
until it is filled completely.
Do not place any additional machine cleaner in the ap-
pliance interior.
5. Press .
6. Press .
a Machine Care is run.
a Once the wash cycle has ended, the indicator for Ma-
chine Care goes out.
Page19
.
Note:You can buy our tested and approved Dishwasher
Care and Machine Cleaner for Dishwashers online at
https://www.gaggenau.com/global/store or from customer
service.
Machine Care is a program which removes various deposits in one wash cycle. Cleaning takes place in two
phases:
Appliance interior, e.g. bottle hung
in the silverware basket or powder
in the interior.
17.5 Filter system
The filter system removes coarse soiling from the dishwashing cycle.
Micro filter
Fine filter
Coarse filter
Cleaning filters
Soiling in the dishwashing water may block the filters.
1. Check the filters for residue after each wash.
32
Cleaning and maintenance en-us
1
2
1
2
1
2
2. Turn the coarse filter anticlockwise and remove the
filter system .
‒ Make sure that no foreign objects fall into the sump.
3. Pull down the micro filter to remove.
7. Insert the filter system into the appliance and turn the
coarse filter clockwise.
Make sure that the arrow markings match up.
17.6 Cleaning the spray arms
Limescale and soiling in the dishwashing water may block
the nozzles and bearings on the spray arms. Clean the
spray arms regularly.
1. Unscrew the upper spray arm and pull down to re-
move .
4. Press the locking catches together and lift the coarse
filter out .
2. Pull up the lower spray arm to remove.
3. Check the outlet nozzles on the spray arms for block-
ages under running water and remove any foreign objects.
4. Insert the lower spray arm.
a The spray arm clicks into position.
5. Insert the upper spray arm and screw firmly in place.
5. Clean the filter elements under running water.
Carefully clean the rim of dirt between the coarse and
fine filter.
6. Reassemble the filter system.
Make sure that the locking catches on the coarse filter
click into position.
33
en-us Troubleshooting
Troubleshooting
18 Troubleshooting
Troubleshooting
You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs.
Issue Cause and troubleshooting
Appliance door does not open. Childproof lock is activated.
▶
Press the top of the door in the middle twice in quick succession.
Door is not correctly adjusted.
▶
Adjust the appliance door as described in the installation instructions.
Appliance has no power.
▶
Check the mains plug and fuses.

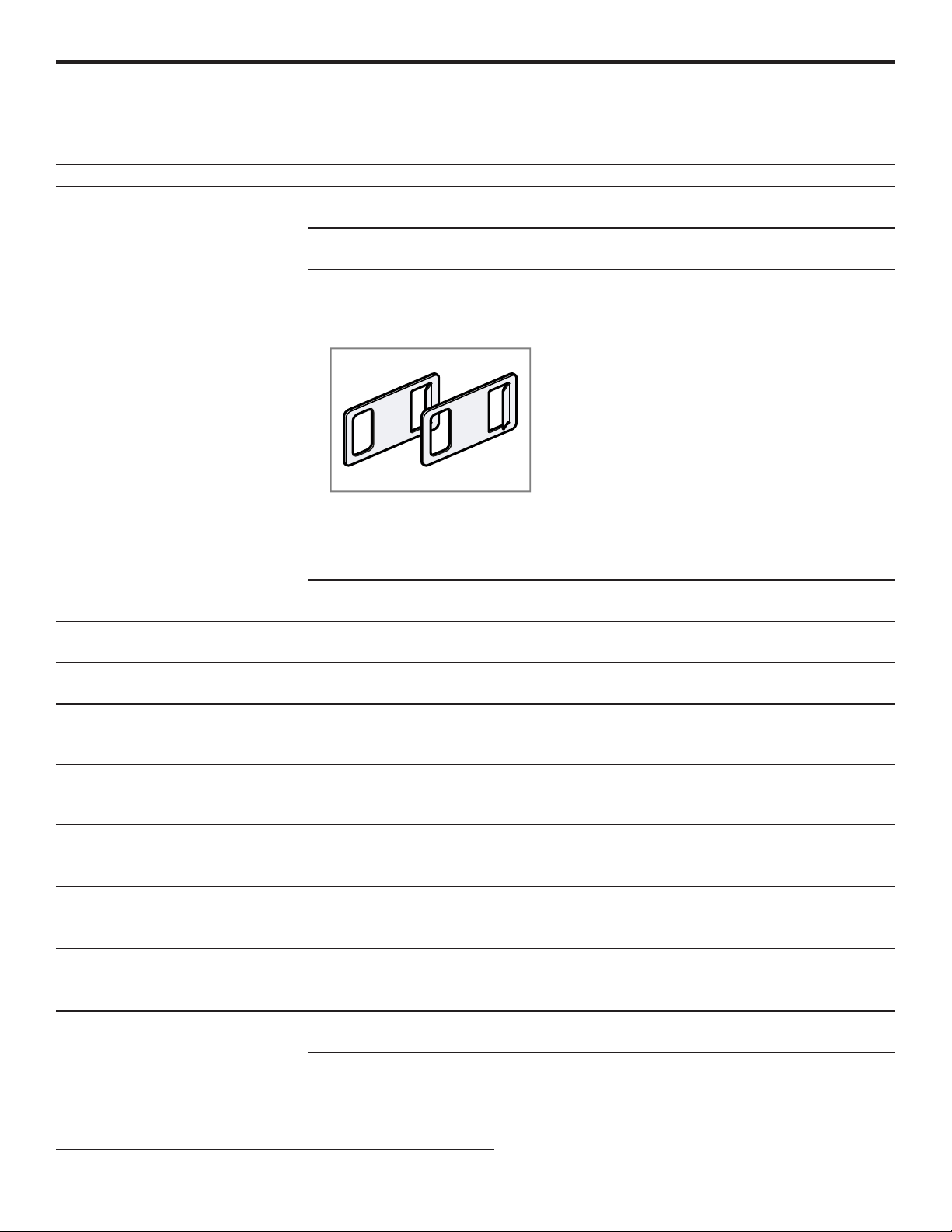

1. Position the emergency release supplied on the top right and left of the cabinet
panel.
2. Open the appliance door by pulling lightly.
Appliance door and door seal are dirty.
▶
Clean the appliance door and door seal with a damp cloth and a little dishwashing liquid.
Automatic door opening is not in home position.
▶
Wait one second after closing the appliance door.
Appliance door opens too wide
when activated.
Door is not correctly adjusted.
▶
Adjust the appliance door as described in the installation instructions.
Appliance door opens accidently. Automatic door opening activated accidently.
▶
To prevent the appliance door opening accidentally, activate the childproof lock.
E:2130 lights up. Intake opening of Zeolith container is covered by items of dishware.
▶
Rearrange the dishware in the appliance so the Intake opening of the Zeolith
container →
Page9
is no longer obstructed.
E:2060 lights up. Appliance has detected that the heating element is calcified.
1. Descale the appliance.
2. Operate the appliance with the Water softening system.
1
E:3000 lights up. Water protection system is activated.
1. Turn off the water faucet.
2.
Call customer service →
Page41
.
E:3100 lights up. Water protection system is activated.
1. Turn off the water faucet.
2.
Call customer service →
Page41
.
E:3400 lights up. Water is continuously running into the appliance.
1. Turn off the water faucet.
2.
E:3200 or indicator for water supply lights up.
Call customer service →
Inlet hose is kinked.
▶
Install the inlet hose without kinks.
Page41
.
Water faucet is turned off.
▶
Turn on the faucet.
Water faucet is clogged or calcified.
▶
Turn on the faucet.
1
Depending on the appliance specifications
34
Issue Cause and troubleshooting
E:3200 or indicator for water supply lights up.
The flow rate must be at least 10 l/min when the water supply is open.
Filters in the water connection of the supply or AquaStop hose are blocked.
1. Switch off the appliance.
2. Pull out the power cord plug.
3. Turn off the water faucet.
4. Unscrew the water connection.
5. Remove the filter from the supply hose.
6. Clean the filter.
7. Reinsert the filter in the supply hose.
8. Screw the water connection back on.
9. Check the water connection for leaks.
10.Restore the power supply.
11.Switch the appliance on.
E:9240 lights up. Filters are soiled or blocked.
▶
Clean the filters.
→
"Cleaning filters", Page32
E:6103 lights up. Water is not
draining.
Wastewater hose is blocked or kinked.
1. Reposition the wastewater hose without kinks.
2. Remove residues.
Siphon connection is still sealed.
▶
Check the connection to the siphon and open if necessary.
Cover of wastewater pump is loose.
▶
Secure the cover of the Wastewater pump →
E:6102 lights up. Wastewater pump is blocked.
▶
Clean the wastewater pump.
→
"Clean wastewater pump", Page40
Cover of wastewater pump is loose.
▶
Secure the cover of the Wastewater pump →
E:9001 lights up. Power voltage is too low.
There is no problem with the appliance.
1. Call an electrician.
2. Have the power voltage and electrical installation checked by an electrician.
A different error code appears in
the display window.
E:0100 to E:9010
There is a technical issue.
1. Press .
2. Pull out the power cord plug of the appliance or switch off the breaker.
3. Wait at least 2minutes.
4. Insert the power cord plug of the appliance in a power outlet or switch on the
breaker.
5. Switch the appliance on.
6. If the problem occurs again:
‒ Press .
‒ Turn off the water faucet.
‒ Pull out the power cord plug.
‒ Contact customer service →
Page41
Dishware is not dry. No rinse aid used or dosage set too low.
1.
Add Rinse aid →
2. Set the amount of rinse aid to be dispensed.
→
"Setting the amount of rinse aid", Page23
Page23
.
Troubleshooting en-us
Page40
Page40
so it clicks into position.
so it clicks into position.
and give the error code.
35
en-us Troubleshooting
Issue Cause and troubleshooting
Dishware is not dry. Cycle or cycle option has no drying phase, or drying phase is too short.
▶
Select a wash cycle with drying. →
Page12
Some option buttons decrease the drying result.

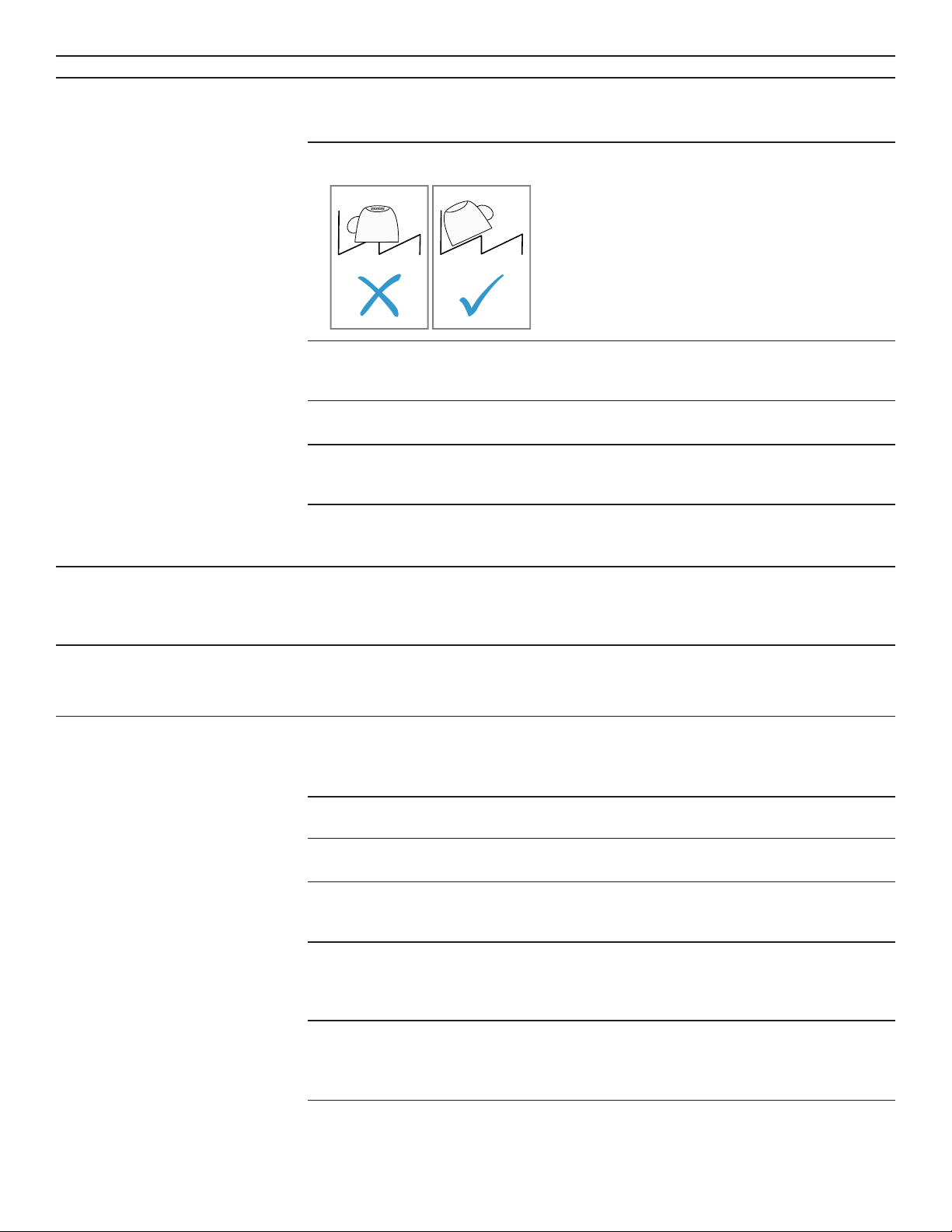

Water collects in recesses of dishware or silverware.
▶
Position dishware at an angle where possible.
The combined detergent used has a poor drying performance.
1. Use rinse aid to improve drying performance.
2. Use a different combined detergent with a better drying performance.
Extra Dry not activated to improve drying performance.
▶
Activate Extra Dry →
Page29
.
Dishware removed too early or drying process not yet ended.
1. Wait until the program ends.
2. Only remove dishware 30minutes after the program has ended.
Rinse aid used has a limited drying performance.
▶
Use a name-brand rinse aid.
Eco products may have limited effectiveness.
Silverware is not dry. Silverware not arranged properly in the silverware basket or silverware drawer.
Droplets can form on the contact points of silverware.
1.
Appliance interior still wet after
wash cycle.
Arrange silverware individually where possible. →
2. Avoid points of contact.
Not an error. Condensation drying creates water droplets in the tub. This is normal.
Moisture in the air condenses on the inside walls of the appliance, runs off, and is
Page25
pumped out.
No action required.
Food remnants on dishware. Dishware was placed too close together or rack is overfilled.
1. Arrange dishware with sufficient space in between.
The spray jets must reach the surfaces of the dishware.
2. Avoid points of contact.
Spray arm rotation is blocked.
▶
Arrange dishware so it does not obstruct spray arm rotation.
Spray arm nozzles are blocked.
▶
Clean the Spray arms →
Page33
.
Filters are dirty.
▶
Clean the filters.
→
"Cleaning filters", Page32
Filters are inserted incorrectly and/or not engaged.
1. Insert the filters properly.
→
"Filter system", Page32
2. Twist filters into place.
Selected wash cycle is too light.
▶
Select a more intensive cycle.
▶
Adjust the sensitivity of the sensors.
→
"Sensors", Page7
Dishware has been precleaned too intensively. Then the sensors choose a lighter
cycle. Stubborn remnants cannot be entirely removed.
▶
Only remove large remnants of food and do not pre-rinse dishware.
36
Troubleshooting en-us
Issue Cause and troubleshooting
Food remnants on dishware.
▶
Adjust the sensitivity of the sensors.
→
"Sensors", Page7
Tall narrow containers in corner areas are not rinsed out adequately.
▶
Do not position tall narrow containers at too great an angle or in corner areas.
Upper rack on right and left not set to same height.
▶
Set the upper rack on the right and left to the same height.
Detergent residue in the appliance Lid of the detergent dispenser is blocked by items of dishware and will not open.
1. Arrange dishware in the upper rack so the tab collecting tray is not obstructed by
dishware.
→
"Loading dishware", Page25
Items of dishware are blocking the dispenser lid.
2. Do not place dishware or fragrance dispensers in the tab collecting tray.
The lid of the detergent dispenser is blocked by the tab and will not open.
▶
Position the tab in the detergent dispenser crosswise, not vertically.
Tabs are used in the quick or short cycle. There is not enough time for the tab to
dissolve.
▶
Select a more intensive Wash cycle or use Powder detergent.
Detergent may lose its cleaning or dissolving ability after being stored a long time,
or the detergent is clumped together.
▶
Change your Detergent.
Water spots on plastic parts. Droplet formation on plastic surfaces is unavoidable due to the laws of physics. Wa-
ter spots are visible after drying.
▶
Select a more intensive program.
▶
Position dishware at an angle.
→
"Loading dishware", Page25
▶
Use rinse aid.
→
"Rinse aid", Page23
▶
Set the water softening system higher.
Wipeable or water-soluble coatings
inside the appliance or on the
door.
There is detergent residue. These coatings cannot generally be removed with
chemicals.
▶
Change your Detergent.
▶
Scrub the appliance by hand.
White coating is deposited inside the appliance.
1. Adjust the water softening system correctly.
In most cases you will need to increase the setting.
2. If necessary, change your detergent.
Special salt dispenser is not screwed tight.
▶
Screw the special salt dispenser tight.
There are stubborn white coatings
on the dishware, inside the appliance or on the door.
There is detergent residue. These coatings cannot generally be removed with
chemicals.
▶
Change your Detergent.
▶
Scrub the appliance by hand.
The hardness range is set incorrectly, or the water hardness is greater than 62°E
(8.9mmol/l).
▶
Set the Water softening system to the water hardness or add special salt.
3in1/organic/eco detergent is not effective enough.
▶
Set the Water softening system to the water hardness and use separate detergents (name brand, special salt, rinse aid).
Too little detergent is being used.
▶
Increase the amount of detergent used or change Detergent .
Selected wash cycle is too light.
▶
Select a more intensive cycle.
▶
Adjust the sensitivity of the sensors.
→
"Sensors", Page7
37
en-us Troubleshooting
Issue Cause and troubleshooting
Tea residue or lipstick marks on
dishware.
Dishwashing temperature is too low.
▶
Select a program with a higher dishwashing temperature.
Too little detergent is being used or is unsuitable.
▶
Use a suitable Detergent and follow the manufacturer's instructions for the
amount to be used.
Dishware has been precleaned too intensively. Then the sensors choose a lighter
cycle. Stubborn remnants cannot be entirely removed.
▶
Only remove large remnants of food and do not pre-rinse dishware.
▶
Adjust the sensitivity of the sensors.
→
"Sensors", Page7
There are colored coatings (blue,
yellow, brown) inside the appliance
or on stainless steel dishware that
are difficult or impossible to remove.
The formation of films is due to substances contained in vegetables (cabbage, celery, potatoes, noodles, etc.) or tap water (manganese).
▶
Clean the appliance.
You can remove coatings with Mechanical cleaning →
cleaning product. It may not always be possible to completely remove coatings
but they are harmless to health.
The formation of films is due to metal components on silver or aluminum dishware.
▶
Clean the appliance.
You can remove coatings with Mechanical cleaning →
cleaning product. It may not always be possible to completely remove coatings
but they are harmless to health.
There are colored deposits (yellow,
orange, brown) that are ey to remove inside the appliance (mainly
at the bottom).
The formation of films is due to ingredients of food remnants and tap water
(limescale), "soaplike".
1. Check the setting of the water softening system.
2. Add special salt.
3. If you are using combined detergents (tabs), activate the water softening system.
Follow the information on detergents.
Plastic parts inside the appliance
are discolored.
Plastic parts inside the appliance may become discolored over the life of the dishwasher.
▶
Discoloration may come about and will not impair functioning of the appliance.
Plastic parts are discolored. Dishwashing temperature is too low.
▶
Select a program with a higher dishwashing temperature.
Dishware has been precleaned too intensively. The sensors then choose a weaker
program. Stubborn soiling cannot be entirely removed.
▶
Only remove large remnants of food and do not prerinse dishware.
▶
Adjust the sensitivity of the sensors.
→
"Sensors", Page7
There are removable streaks on
glasses, glassware with a metallic
appearance and silverware.
Amount of rinse aid to be dispensed is set too high.
▶
Set the rinse aid system to a lower setting.
No rinse aid has been added.
▶
→
"Adding rinse aid", Page23
There is detergent residue in the final rinse. Lid of detergent dispenser is blocked by
dishware and will not open fully.
1. Arrange dishware in the upper rack so the tab collecting tray is not obstructed by
dishware.
→
"Loading dishware", Page25
Items of dishware are blocking the dispenser lid.
2. Do not place dishware or fragrance dispensers in the tab collecting tray.
Dishware has been precleaned too intensively. Then the sensors choose a lighter
cycle. Stubborn remnants cannot be entirely removed.
▶
Only remove large remnants of food and do not pre-rinse dishware.
▶
Adjust the sensitivity of the sensors.
→
"Sensors", Page7
Page31
Page31
or a machine
or a machine
38
Troubleshooting en-us
Issue Cause and troubleshooting
Irreversible clouding of glassware. Glasses are not dishwasher-proof, only suitable for dishwashers.
▶
Use dishwasher-proof glasses.
Glasses are usually only suitable for cleaning in a dishwasher, i.e. long-term
wear or long-term changes must be expected.
▶
Avoid a lengthy steam phase (standing time after wash cycle ends).
▶
Use a program with a lower temperature.
▶
Set the softening system to the water hardness.
▶
Use detergent with a glass protection component.
Detergent residue is present in the
detergent dispenser or the tab collecting tray.
Excessive formation of foam occurs.
Spray arms were blocked by dishware so detergent was not rinsed out.
▶
Check that the spray arms are not blocked and can rotate freely.
Detergent dispenser was damp when detergent was added.
▶
Only add detergent to the detergent dispenser when dry.
Hand soap got in the rinse aid dispenser.
▶
Immediately add rinse aid to the dispenser.
→
"Adding rinse aid", Page23
Rinse aid has been spilled.
▶
Remove the rinse aid with a cloth.
Detergent or machine care product used causes excessive foaming.
▶
Change the brand of detergent.
Connection to home network is not
established.
WLAN on router is not active.
▶
Check the wireless network connection of your router.
WLAN display is flashing. Connection to home network is not available.
▶
Activate the wireless network connection on your router.
Home Connect cannot be implemented correctly.
Home Connect set incorrectly.
▶
Please consult the documents supplied for HomeConnect.
There is a technical error.
▶
Please consult the information on support in the documents supplied for
HomeConnect.
Special salt refill indicator lights up. Insufficient special salt.
▶
Add Special salt.
Sensor does not detect special salt tablets.
▶
Do not use special salt tablets.
Refill indicator for special salt does
not light up.
Refill indicator for rinse aid lights
up.
Refill indicator for rinse aid does
not light up.
Water is left in the appliance at the
end of the program.
Water softening system is switched off.
▶
Adjust water softening system
No rinse aid.
1.
Add Rinse aid →
2. Set the amount of rinse aid to be dispensed.
→
"Setting the amount of rinse aid", Page23
Page23
.
Rinse aid system is switched off.
▶
Set the amount of rinse aid.
Filter system or area under the filters is blocked.
1.
Clean the Filters →
2.
Clean the Wastewater pump →
Page32
.
Page40
.
Program has not yet ended.
▶
Wait until the program ends or terminate the program with Reset.
▶
→
"Terminating the wash cycle", Page28
Appliance cannot be switched on
or operated.
Software update is taking place.
▶
Wait until the software update has finished.
Appliance functions have failed.
1. Pull out the power cord plug or switch off the breaker.
2. Wait at least 2minutes.
3. Connect the appliance to the power supply.
4. Switch the appliance on.
39
en-us Troubleshooting
Issue Cause and troubleshooting
Appliance does not start. The breaker has tripped.
▶
Check the relevant breaker.
Power cord is not inserted.
1. Check whether the power outlet is working.
2. Check whether the power cord plug is properly inserted in the power outlet and
on the rear of the appliance.
Appliance door is not closed properly.
▶
Close the appliance door.
Wash cycle starts up automatically.
Appliance stops during the cycle or
cuts out.
You did not wait until the cycle ended.
▶
→
"Terminating the wash cycle", Page28
Appliance door is not closed properly.
▶
Close the appliance door.
Power and/or water supply has been interrupted.
1. Check the power supply.
2. Check the water supply.
Upper rack is pressing against inner door and preventing appliance door from being
closed securely.
▶
Check whether the rear panel of the appliance is being pressed in by a power
outlet or a hose holder that has not been removed.
▶
Arrange the dishware so that no parts project beyond the rack and prevent the
appliance door from closing properly.
Appliance door cannot be closed. Door lock has been activated.
▶
Close the appliance door with greater force.
Door cannot be closed due to installation method.
▶
Check whether the appliance has been installed properly.
When closed, the appliance door, its decor or attached parts should not knock
against adjacent cabinets or the worktop.
Automatic door opening is not in home position.
▶
Wait for a second after opening the appliance door.
Lid on the detergent dispenser
cannot be closed.
Filling valves making knocking
noises.
Detergent dispenser or lid are blocked by sticky detergent residue.
▶
Remove detergent residue.
Caused by the domestic installation. No fault present in the appliance. Does not affect functioning of the appliance.
▶
Can only be remedied in the home installation.
Knocking or rattling noise. Spray arm is striking dishes.
▶
Arrange dishware so the spray arms do not strike dishware.
With a small load the water jets directly strike against the tub.
▶
Distribute the dishware evenly.
▶
Load the appliance with more dishware.
Light items of dishware move about during the wash cycle.
▶
Position light items of dishware securely.
18.1 Clean wastewater pump
Large food remnants or foreign objects can block the
wastewater pump. As soon as the dishwashing water no
longer drains properly, the wastewater pump must be
cleaned.
CAUTION
There may be some sharp debris, such as glass fragments, blocking the wastewater pump.
▶
Use caution when removing parts for cleaning.
1. Disconnect the appliance from the power supply.
2. Remove the upper and lower rack.
3. Remove the filter system.
40
4. Scoop out any water.
Use a sponge if necessary.
Transportation, storage and disposal en-us
1
2
5. Prise off the pump cover using a spoon and grip it by
the crosspiece.
6. Lift the pump cover inwards at an angle and remove.
7. Remove any food remnants or foreign objects in the
area of the impeller.
8. Insert the pump cover and press down .
19.2 Vacation and Storage
NOTICE:
Preparing your unit for vacation
▶
Before leaving for vacation during warmer weather, besides turning off the main valve, also turn off water supply at the nearest point to the dishwasher. During colder
weather, please follow the instructions for winterizing
your unit below.
Winteriznig your unit
▶
If your dishwasher will be unused for an extended period of time in a location that experiences freezing temperatures (vacation home or through a vacation period),
have your dishwasher winterized by an authorized professional service.
19.3 Transporting the appliance
To avoid damage to the appliance, empty it before transporting.
Note:Always transport the dishwasher upright to prevent
residual water getting into the machine's controls and
damaging the appliance.
1. Remove dishware from the appliance.
2. Secure loose parts.
3.
Switch on the appliance. →
4. Select the program with the highest temperature.
5.
Start the wash cycle. →
6. To drain the appliance, terminate the wash cycle after
approx. 4minutes.
→
"Terminating the wash cycle", Page28
7. Switch off the appliance.
8. Turn off the water faucet.
9. To empty the residual water out of the appliance, de-
tach the supply hose and let the water drain out.
Page27
Page28
a The pump cover clicks into position.
9. Install the filter system.
10.Insert the upper and lower rack.
Transportation, storage and disposal
19 Transportation, storage and dis-
posal
Transportation, storage and disposal
Here you will find out how to prepare your appliance for
transportation and storage. You will also find out how to
dispose of old appliances.
19.1 Removing the appliance
1. Disconnect the appliance from the power supply.
2. Turn off the water faucet.
3. Detach the drain connection.
4. Detach the drinking water connection.
5. Loosen any screws fastening the appliance to cabinet
parts.
6. Remove the base panel if fitted.
7. Pull the appliance out carefully, along with the hose be-
hind it.
19.4 Disposal of your old appliance
Environmentally sound disposal allows valuable raw materials to be recycled.
WARNING
Avoid a risk of entrapment upon disposal.
▶
Unplug the appliance from the power outlet.
▶
Cut the power cord and remove the door upon discarding the appliance.
▶
Check your local area for large appliance recycling programs.
Customer service
20 Customer service
Customer service
If you have any questions, are unable to eliminate an issue in the appliance yourself, or the appliance needs to be
repaired, please contact our Customer Service.
We will work to find an appropriate solution for you thereby
avoiding unnecessary visits by a service provider.
With any warranty repair, we will make sure your appliance is repaired by a trained authorized service provider
using genuine replacement parts. We use only genuine replacement parts for all repairs.
Detailed information on the warranty period and terms of
warranty can be found in the Statement of Limited Product
Warranty, from your retailer, or on our website.
41
en-us Customer service
If you contact the Customer Service, you will require the
model number (E-Nr.), the production number (FD) and
the consecutive numbering (Z-Nr.) of your appliance.
USA:
1-877-442-4436
www.gaggenau.com
www.gaggenau.com/zz/store
CA:
1-877-442-4436
www.gaggenau.com
www.gaggenau.ca
For assistance with connecting to HomeConnect™, you
can also view instructions here:
www.home-connect.com/us/en/help-support/set-up
20.1 Model number (E-Nr.), production num-
ber (FD) and consecutive numbering (ZNr.)
You can find the model number (E-Nr.), the production
number (FD) and the consecutive numbering (Z-Nr.) on
the appliance's rating plate.
The rating plate is located inside the appliance door.
Making a note of your appliance's details and the Customer Service telephone number will enable you to find
them again quickly.
20.2 AquaStop® Pledge
In addition to the standard warranty provided by BSH,
BSH will also compensate customers for damage caused
by a specific fault in the AquaStop system giving rise to a
valid warranty claim. Compensation will be provided under
the following conditions:
¡ If water damage is caused by a defect in materials or
workmanship in the AquaStop system, BSH will compensate customers reasonable and verifiable damages.
¡ A condition of all warranty claims is the appliance with
AquaStop must have been installed and connected correctly in accordance with all instructions; this also includes a properly installed AquaStop extension (genuine accessories). The warranty does not cover defective feed lines or fittings leading to the AquaStop connection at the tap.
42
Technical specifications
21 Technical specifications
Technical specifications
Facts and figures for your appliance can be found here.
Weight Max.: 60kg
Voltage 120V, 50Hz or 60Hz
Power rating 1440W
Fuse 12A
Water pressure ¡ Min. 7.25 psi (50 kPa)
¡ Max. 145 psi (1000 kPa)
Inlet rate Min. 2.6gal/min
Water temperature Cold water.
Hot water max.: 140°F/ (60°C)
Load capacity 13place settings
Technical specifications en-us
21.1 Information regarding Free and Open
Source Software
This product includes software components that are licensed by the copyright holders as free software or open
source software.
The applicable license information is stored on your home
appliance. You can also access the applicable license information via your Home Connect App: "Profile -> Legal information -> License Information". You can download the
license information on the brand product website (search
for your appliance model on the product website and
check additional documents). Alternatively, you can send
a request to ossrequest@bshg.com or to BSH Hausgeräte
GmbH GmbH, Carl-Wery-Str. 34, D-81739 München, Germany.
The source code will be made available to you on request.
To file a request, please email to ossrequest@bshg.com
or send a written request to BSH Hausgeräte GmbH, CarlWery-Str. 34, D-81739 München, Germany.
Reference: "OSSREQUEST"
The cost of performing your request will be charged to
you. This offer is valid three years from the date of purchase or at least as long as we offer support and spare
parts for the respective appliance.
Statement of Limited Product Warranty
22 Statement of Limited Product War-
ranty
Statement of Limited Product Warranty
22.1 What this Warranty Covers & Who it Ap-
plies to
The limited warranty provided by BSH Home Appliances
(“BSH“) in this Statement of Limited Product Warranty applies only to the BSH appliance sold to you (“Product“),
provided that the Product was purchased:
¡ For your normal, household (non-commercial) use, and
has in fact at all times only been used for normal household purposes.
¡ New at retail (not a display, "as is", or previously re-
turned model), and not for resale, or commercial use.
¡ Within the United States or Canada, and has at all times
remained within the country of original purchase.
The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home
use during the term of the warranty.
Please make sure to return your registration card; while
not necessary to effectuate warranty coverage, it is the
best way for BSH to notify you in the unlikely event of a
safety notice or product recall.
22.2 How Long the Warranty Lasts
BSH warrants that the Product is free from defects in materials and workmanship for a period of three hundred
sixty-five (365) days from the date of the original purchase. The foregoing timeline begins to run upon the date
of the original purchase, and shall not be stalled, tolled,
extended, or suspended, for any reason whatsoever. This
Product is also warranted to be free from cosmetic defects
in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other
damage to the finish) of the Product, for a period of thirty
(30) days from the date of purchase or closing date for
new construction. This cosmetic warranty excludes slight
color variations due to inherent differences in painted and
porcelain parts, as well as differences caused by kitchen
lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As
Is”, or “B” stock appliances.
22.3 Extended Warranty
BSH also provides these additional limited warranties:
¡ 5 year limited warranty on electronics: BSH will repair or
replace any BSH microprocessor or printed circuit board
if it proves to be defective in materials or workmanship
(excludes labor charges).
¡ 5 year limited warranty on dish racks: BSH will replace
the upper or lower dish rack (excluding rack components), if the rack proves defective in materials or workmanship (excludes labor charges).
¡ Lifetime warranty against stainless steel rust through:
BSH will repair or replace your dishwasher with the
same model or a current model that is substantially
equivalent or better in functionality, if the inner liner
should rust through (excludes labor charges).
¡ BSH will repair or replace the stainless steel door if the
door should rust through (excludes labor charges).
43
en-us Statement of Limited Product Warranty
22.4 Repair/Replace as Your Exclusive Rem-
edy
During this warranty period, BSH or one of its authorized
service providers will repair your Product without charge to
you (subject to certain limitations stated herein) if your
Product proves to have been manufactured with a defect
in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then
BSH will replace your Product (upgraded models may be
available to you, in BSH’s sole discretion, for an additional
charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or
design than the original part. All removed parts and components shall become the property of BSH at its sole option. All replaced and/or repaired parts shall assume the
identity of the original part for purposes of this warranty
and this warranty shall not be extended with respect to
such parts. BSH's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using
a BSH authorized service provider during normal business
hours. For safety and property damage concerns, BSH
highly recommends that you do not attempt to repair the
Product yourself, or use a non-authorized service provider;
BSH will have no responsibility or liability for repairs or
work performed by a non-authorized service provider. Authorized service providers are those persons or companies
that have been specially trained on BSH products, and
who possess, in BSH's opinion, a superior reputation for
customer service and technical ability (note that they are
independent entities and are not agents, partners, affiliates or representatives of BSH). Notwithstanding the foregoing, BSH will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more
than 100 miles from an authorized service provider) or is
reasonably inaccessible, hazardous, threatening, or
treacherous locale, surroundings, or environment; in any
such event, if you request, BSH would still pay for labor
and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the
service company, assuming they agree to make the service call.
22.5 Out of Warranty Product
BSH is under no obligation, at law or otherwise, to provide
you with any concessions, including repairs, prorates, or
Product replacement, once this warranty has expired.
22.6 Warranty Exclusions
The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following:
¡ Use of the Product in anything other than its normal,
customary and intended manner (including without limitation, any form of commercial use, use or storage of an
indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
¡ Any party's willful misconduct, negligence, misuse,
abuse, accidents, neglect, improper operation, failure to
maintain, improper or negligent installation, tampering,
failure to follow operating instructions, mishandling,
unauthorized service (including selfperformed "fixing" or
exploration of the appliance's internal workings).
¡ Adjustment, alteration or modification of any kind.
¡ A failure to comply with any applicable state, local, city,
or county electrical, plumbing and/or building codes,
regulations, or laws, including failure to install the product in strict conformity with local fire and building codes
and regulations.
¡ Ordinary wear and tear, spills of food, liquid, grease ac-
cumulations, or other substances that accumulate on,
in, or around the Product.
¡ Any external, elemental and/or environmental forces
and factors, including without limitation, rain, wind,
sand, floods, fires, mud slides, freezing temperatures,
excessive moisture or extended exposure to humidity,
lightning, power surges, structural failures surrounding
the appliance, and acts of God.
¡ Service calls to correct the installation of your Product,
to instruct you how to use your Product, to replace
house fuses or correct house wiring or plumbing.
¡ Removal and replacement of trim or decorative panels
that interfere with servicing the Product.
¡ Damage or defects caused by labor or parts installed by
any non-authorized service provider, unless approved
by BSH before service is performed.
In no event shall BSH have any liability or responsibility
whatsoever for damage to surrounding property, including
cabinetry, floors, ceilings, and other structures or objects
around the Product. Also excluded from this warranty are
Products, on which the serial numbers have been altered,
defaced, or removed; service visits to teach you how to
use the Product, or visits where there is nothing wrong
with the Product; correction of installation problems (you
are solely responsible for any structure and setting for the
Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls,
floors, shelving, etc.); and resetting of breakers or fuses
TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY
SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES
IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESS OR IMPLIED. ANY WARRANTY
IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS
EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER
BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE
DAMAGES, LOSSES, OR EXPENSES, INCLUDING
WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING
EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH
ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BSH,
OR OTHERWISE. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
No attempt to alter, modify or amend this warranty shall be
effective unless authorized in writing by an officer of BSH.
44
22.7 Obtaining Warranty Service - GG
To obtain warranty service for your product, you should
contact Gaggenau Customer Support at 1-877-442-4436
to schedule a repair.
Statement of Limited Product Warranty en-us
45
Wi-Fi® Module
FCC/IC
Statements
The Home Connect module is a communication
device designed to provide communication between
appliances and smart devices.
This module is integrated at the factory, under direct control of B/S/H Home
Appliances Corporation, and is not user serviceable or upgradable.
At least 20cm separation distance should be maintained from device to user.
FCC COMPLIANCE STATEMENT
CAUTION: Changes or modifications not expressly approved could void your authority to use
this equipment.
This device complies with Part 15 of the FCC Rules. Operation to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
INDUSTRY CANADA STATEMENT
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
La bande 5 150-5 250 MHz est réservés uniquement pour une utilisation à l'intérieur afin de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
Model: SMB
FCC ID: 2AHES-SMB
IC: 21152-SMB
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
USA
www.gaggenau.com
1-877-442-4436
© 2021 BSH Home Appliances Corporation
*9001630054*
9001630054 en-us (010305) 650 P5
Loading...
