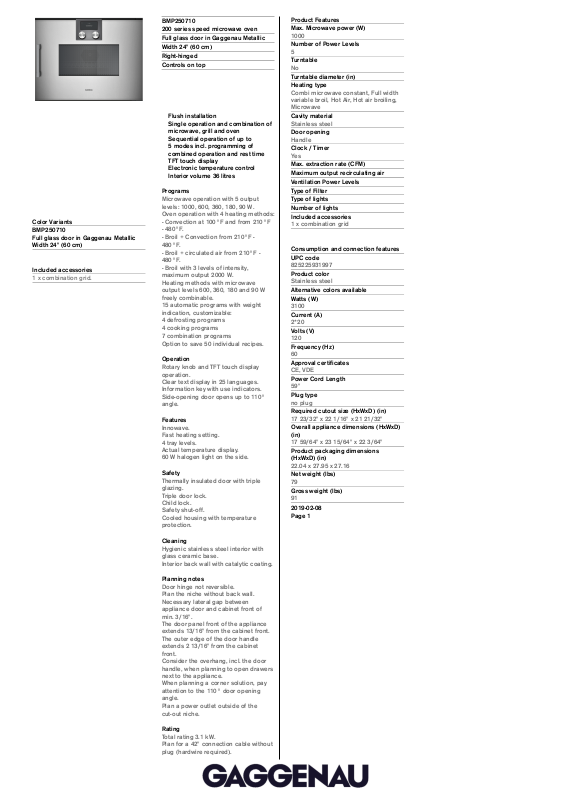

Gaggenau BMP250710 Specification Sheet

Color Variants BMP250710

Full glass door in Gaggenau Metallic Width 24" (60 cm)

Included accessories

1 x combination grid.

Product Features Max. Microwave power (W)

1000

Number of Power Levels

Turntable

Turntable diameter (in) Heating type

Combi microwave constant, Full width variable broil, Hot Air, Hot air broiling, Microwave

Cavity material

Stainless steel

Door opening

Handle

Clock / Timer

Yes

Max. extraction rate (CFM) Maximum output recirculating air Ventilation Power Levels Type of Filter Type of lights Number of lights Included accessories

1 x combination grid

Consumption and connection features UPC code

825225931997

Product color

Stainless steel

Alternative colors available Watts (W)

3100

Current (A)

2*20

Volts (V)

120

Frequency (Hz)

Approval certificates

CE, VDE

Power Cord Length

59"

Plug type

no plug

Required cutout size (HxWxD) (in)

17 23/32" x 22 1/16" x 21 21/32"

Overall appliance dimensions (HxWxD) (in)

17 59/64" x 23 15/64" x 22 3/64"

Product packaging dimensions (HxWxD) (in)

22.04 x 27.95 x 27.16

Net weight (lbs)

Gross weight (lbs)

2019-02-08 Page 1

BMP250710 200 series speed microwave oven

Full glass door in Gaggenau Metallic Width 24" (60 cm) Right-hinged Controls on top

Flush installation Single operation and combination of microwave, grill and oven Sequential operation of up to 5 modes incl. programming of combined operation and rest time TFT touch display Electronic temperature control Interior volume 36 litres

Programs

Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W. Oven operation with 4 heating methods:

- Convection at 100°F and from 210°F

- 480°F.

- Broil + Convection from 210°F 480°F.

- Broil + circulated air from 210°F 480°F.

- Broil with 3 levels of intensity, maximum output 2000 W. Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable. 15 automatic programs with weight indication, customizable: 4 defrosting programs 4 cooking programs 7 combination programs Option to save 50 individual recipes.

Operation

Rotary knob and TFT touch display operation. Clear text display in 25 languages. Information key with use indicators. Side-opening door opens up to 110° angle.

Features

Innowave. Fast heating setting. 4 tray levels. Actual temperature display. 60 W halogen light on the side.

Safety

Thermally insulated door with triple glazing. Triple door lock. Child lock. Safety shut-off. Cooled housing with temperature protection.

Cleaning

Hygienic stainless steel interior with glass ceramic base. Interior back wall with catalytic coating.

Planning notes

Door hinge not reversible. Plan the niche without back wall. Necessary lateral gap between appliance door and cabinet front of min. 3/16". The door panel front of the appliance extends 13/16" from the cabinet front. The outer edge of the door handle extends 2 13/16" from the cabinet front. Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance. When planning a corner solution, pay attention to the 110° door opening angle. Plan a power outlet outside of the cut-out niche.

Rating

Total rating 3.1 kW. Plan for a 42" connection cable without plug (hardwire required).

BMP250710 200 series speed microwave oven

Full glass door in Gaggenau Metallic Width 24" (60 cm) Right-hinged Controls on top

2019-02-08 Page 2
