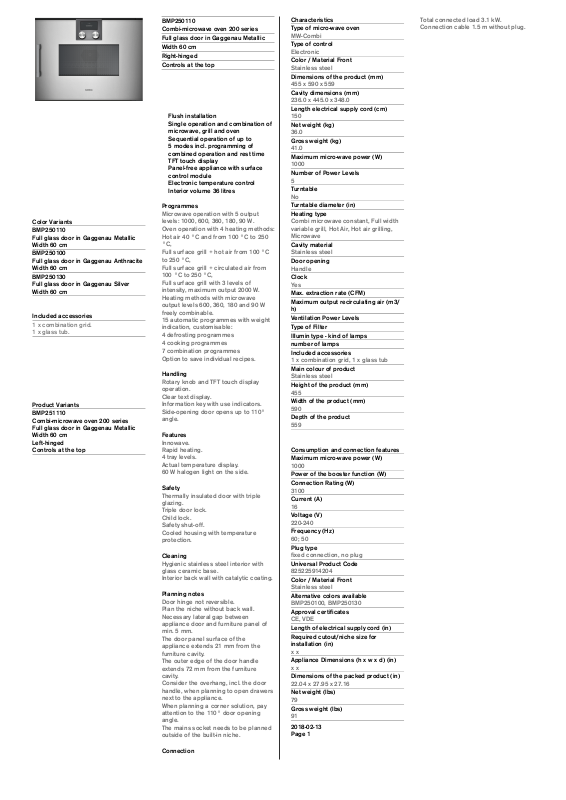

Gaggenau BMP250-110 Specifications Sheet

Color Variants BMP250110

Full glass door in Gaggenau Metallic Width 60 cm

BMP250100 Full glass door in Gaggenau Anthracite Width 60 cm

BMP250130 Full glass door in Gaggenau Silver Width 60 cm

Included accessories

1 x combination grid. 1 x glass tub.

Product Variants BMP251110

Combi-microwave oven 200 series Full glass door in Gaggenau Metallic Width 60 cm Left-hinged Controls at the top

Characteristics Type of micro-wave oven

MW-Combi

Type of control

Electronic

Color / Material Front

Stainless steel

Dimensions of the product (mm)

455 x 590 x 559

Cavity dimensions (mm)

236.0 x 445.0 x 348.0

Length electrical supply cord (cm)

150

Net weight (kg)

36.0

Gross weight (kg)

41.0

Maximum micro-wave power (W)

1000

Number of Power Levels

Turntable

Turntable diameter (in) Heating type

Combi microwave constant, Full width variable grill, Hot Air, Hot air grilling, Microwave

Cavity material

Stainless steel

Door opening

Handle

Clock

Yes

Max. extraction rate (CFM) Maximum output recirculating air (m3/

h) Ventilation Power Levels Type of Filter Illumin type - kind of lamps number of lamps Included accessories

1 x combination grid, 1 x glass tub

Main colour of product

Stainless steel

Height of the product (mm)

455

Width of the product (mm)

590

Depth of the product

559

Consumption and connection features Maximum micro-wave power (W)

1000

Power of the booster function (W) Connection Rating (W)

3100

Current (A)

Voltage (V)

220-240

Frequency (Hz)

60; 50

Plug type

fixed connection, no plug

Universal Product Code

825225914204

Color / Material Front

Stainless steel

Alternative colors available

BMP250100, BMP250130

Approval certificates

CE, VDE

Length of electrical supply cord (in) Required cutout/niche size for

installation (in)

x x

Appliance Dimensions (h x w x d) (in)

x x

Dimensions of the packed product (in)

22.04 x 27.95 x 27.16

Net weight (lbs)

Gross weight (lbs)

2018-02-13 Page 1

BMP250110 Combi-microwave oven 200 series

Full glass door in Gaggenau Metallic Width 60 cm Right-hinged Controls at the top

Flush installation Single operation and combination of microwave, grill and oven Sequential operation of up to 5 modes incl. programming of combined operation and rest time TFT touch display Panel-free appliance with surface control module Electronic temperature control Interior volume 36 litres

Programmes

Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W. Oven operation with 4 heating methods: Hot air 40 °C and from 100 °C to 250 °C, Full surface grill + hot air from 100 °C to 250 °C, Full surface grill + circulated air from 100 °C to 250 °C, Full surface grill with 3 levels of intensity, maximum output 2000 W. Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable. 15 automatic programmes with weight indication, customisable: 4 defrosting programmes 4 cooking programmes 7 combination programmes Option to save individual recipes.

Handling

Rotary knob and TFT touch display operation. Clear text display. Information key with use indicators. Side-opening door opens up to 110° angle.

Features

Innowave. Rapid heating. 4 tray levels. Actual temperature display. 60 W halogen light on the side.

Safety

Thermally insulated door with triple glazing. Triple door lock. Child lock. Safety shut-off. Cooled housing with temperature protection.

Cleaning

Hygienic stainless steel interior with glass ceramic base. Interior back wall with catalytic coating.

Planning notes

Door hinge not reversible. Plan the niche without back wall. Necessary lateral gap between appliance door and furniture panel of min. 5 mm. The door panel surface of the appliance extends 21 mm from the furniture cavity. The outer edge of the door handle extends 72 mm from the furniture cavity. Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance. When planning a corner solution, pay attention to the 110° door opening angle. The mains socket needs to be planned outside of the built-in niche.

Connection

Total connected load 3.1 kW. Connection cable 1.5 m without plug.

BMP250110 Combi-microwave oven 200 series

Full glass door in Gaggenau Metallic Width 60 cm Right-hinged Controls at the top

2018-02-13 Page 2
