G4S Technology S874 User Manual

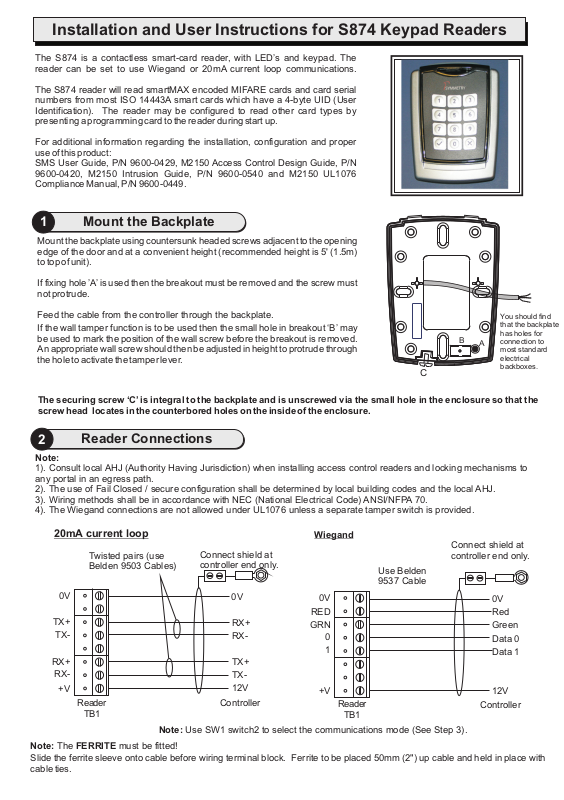

Installation and User Instructions for S874 Keypad Readers
The S874 is a
reader can be set to use Wiegand or
The S874 reader will read smartMAX encoded MIFARE cards and card serial
numbers from most ISO 14443A smart cards which have a 4-byte UID (User
Identification). The reader may be configured to read other card types by
presenting a programming card to the reader during start up.
For additional information regarding the installation, configuration and proper
use of this product:
SMS User Guide, P/N 9600-0429, M2150 Access Control Design Guide, P/N
9600-0420, M2150 Intrusion Guide, P/N 9600-0540 and M2150 UL1076
Compliance Manual, P/N 9600-0449.
1
Mount the backplate using countersunk headed screws adjacent to the opening
edge of the door and at a convenient height (recommended height is 5' (1.5m)
to top of unit).
If fixing hole ’A’ is used then the breakout must be removed and the screw must
not protrude.
Feed the cable from the controller through the backplate.
If the wall tamper function is to be used then the small hole in breakout ‘B’ may
be used to mark the position of the wall screw before the breakout is removed.
An appropriate wall screw should then be adjusted in height to protrude through
the hole to activate the tamper lever.
The securing screw ‘C’ is integral to the backplate and is unscrewed via the small hole in the enclosure so that the
screw head locates in the counterbored holes on the inside of the enclosure.
2
Note:
1). Consult local AHJ (Authority Having Jurisdiction) when installing access control readers and locking mechanisms to
any portal in an egress path.
2). The use of Fail Closed / secure configuration shall be determined by local building codes and the local AHJ.
3). Wiring methods shall be in accordance with NEC (National Electrical Code) ANSI/NFPA 70.
4). The Wiegand connections are not allowed under UL1076 unless a separate tamper switch is provided.
contactless smart-card reader, with LED’s and keypad. The
20mA current loop communications.
Mount the Backplate
Reader Connections
You should find
that the backplate
A
has holes for
connection to
most standard
electrical
backboxes.
B
C
20mA current loop
Twisted pairs (use
Belden 9503 Cables)
0V
TX+
TX-
RX+
RX-
+V
Reader
TB1
Note: Use SW1 switch2 to select the communications mode (See Step 3).
Note: The FERRITE must be fitted!
Slide the ferrite sleeve onto cable before wiring terminal block. Ferrite to be placed 50mm (2") up cable and held in place with
cable ties.
Connect shield at
controller end only.
0V
RX+
RX-
TX+
TX12V
Controller
Wiegand
0V
RED
GRN
0
1
+V
Reader
TB1
Use Belden
9537 Cable
Connect shield at
controller end only.
0V
Red
Green
Data 0
Data 1
12V
Controller
3
Switch Settings
Set SW1 switch2 (COM) to W for Wiegand communications, or C for 20mA current loop communications. Set SW1 switch1
F/B - Keypad audio feedback) to 1 for sound on, or 0 for sound off.
4
Present the card face-on to the reader until you hear a"bleep". Cards can be presented in rapid succession; there is no need, for
example, to wait for "GREEN LED’s" to disappear before presenting another.
If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the O key, entering your
card number, then pressing the P key.
GREEN – The lock is released and you may open the door.
RED – You do not have access rights to gain entry, or the reader did not read your card properly (in this case, present it again).
YELLOW – Enter your PIN. If you make a mistake, the RED LED’s are momentarily displayed, followed by YELLOW LED’s,
to prompt you to try again.
Please refer to M2150 Intrusion Guide, 9600-0540 for IDS Arm / Disarm procedure.
Using the Reader
LED Status Indicator
9600-0596. Installation and User Instructions for S874 Keypad
Readers, Issue 1.0x2 12th March 2012. G4S Technology, 2012.
FCC Notice: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Any unauthorized modification to this device may void the authority of
the user to operate it. All trademarks acknowledged.
©
Specifications
Input voltage: 9-14Vdc.
Input current: 120mA @ nom. 12Vdc.
Operating temperature: 14 to 131°F (-10 to 55°C)
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: 4" (100mm).
Approvals:EN302291, EN301489
