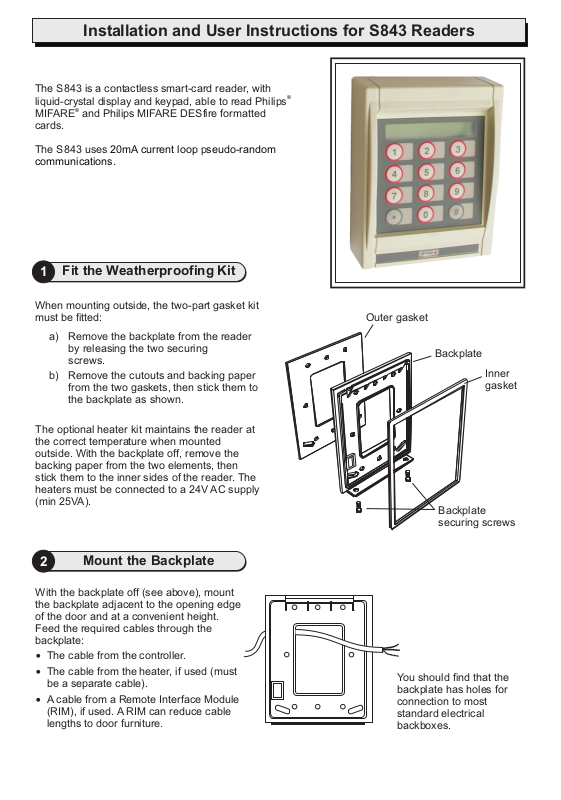

G4S Technology S843 Users manual
Installation and User Instructions for S843 Readers
The S843 is a
liquid-crystal display and keypad, able to read Philips
MIFARE and Philips MIFARE DESfire formatted
.
cards
The
S843 uses p
communications
Fit the Weatherproofing Kit
1
When mounting outside, the two-part gasket kit
must be fitted:
a) Remove the backplate from the reader
b) Remove the cutouts and backing paper
The optional heater kit maintains the reader at
the correct temperature when mounted
outside. With the backplate off, remove the
backing paper from the two elements, then
stick them to the inner sides of the reader. The
heaters must be connected to a 24V AC supply
(min 25VA).
contactless smart-card reader, with
®
20mA current loop seudo-random
.
by releasing the two securing
screws.
from the two gaskets, then stick them to
the backplate as shown.
®
Outer gasket
Backplate
Inner
gasket
Backplate
securing screws
2
With the backplate off (see above), mount
the backplate adjacent to the opening edge
of the door and at a convenient height.
Feed the required cables through the
backplate:
!
!
!
Mount the Backplate
The cable from the controller.
The cable from the heater, if used (must
be a separate cable).
A cable from a Remote Interface Module
(RIM), if used. A RIM can reduce cable
lengths to door furniture.
You should find that the
backplate has holes for
connection to most
standard electrical
backboxes.
3
Check the Reader Links
Ensure no jumpers are fitted across LK3 (NODE TERM), LK4 (HGU TERM) and LK2 (TEST). If a jumper
is provided, park it across one pin only. LK1 (USER FB) - set to 1 for sound on and 0 for sound off.
4
Controller
connections
(20mA current
loop)
2
5
Present the card face-on to the reader until you hear a "bleep". Cards can be presented in rapid
succession; there is no need to wait for UNLOCKED" to efore presenting another." disappear b
If the reader has been enabled for user-code mode at the controller, you can gain access by pressing
the # key, entering your card number, then pressing the * key.
Reader Connections
12V
0V
TX-
TX+
RX-
RX+
Connect shield at controller
end only (attach to case).
Using the Reader
About the Reader Messages
READY
UNLOCKED
ACCESS DENIED
& LOCKED
ENTER PIN
Flashing or
steady
S843 Reader
+V
RX-
RX+
I/0
TX-
TX+
- (not used)
Twisted pairs (use
Belden 9503 cable)
The reader is waiting for a valid card to be presented.
When UNLOCKED is displayed, the lock is released and you
may open the door.
These messages are displayed if you do not have access rights
to gain entry, or if the reader did not read your card properly (in
this case, present it again).
If the ENTER PIN message is displayed, enter your PIN. If you
make a mistake, the message INCORRECT PIN is momentarily
displayed, followed by ENTER PIN, to prompt you to try again.
These auxiliary indicators can be configured to operate in
conjunction with conditional commands.
}
0V
The I/O terminal is
for connection to a
RIM (see the RIM
Instructions).
On completion, resecure the reader to
the backplate.
If you are using the reader with
a Hand Geometry Unit (HGU),
connect the HGU to PL1.
9600-0340. Installation and User Instructions for S843
Readers, Issue 1.0x2 7th October 2003. AMAG Technology
Ltd, 2003.
