G4S Technology S823 User Manual

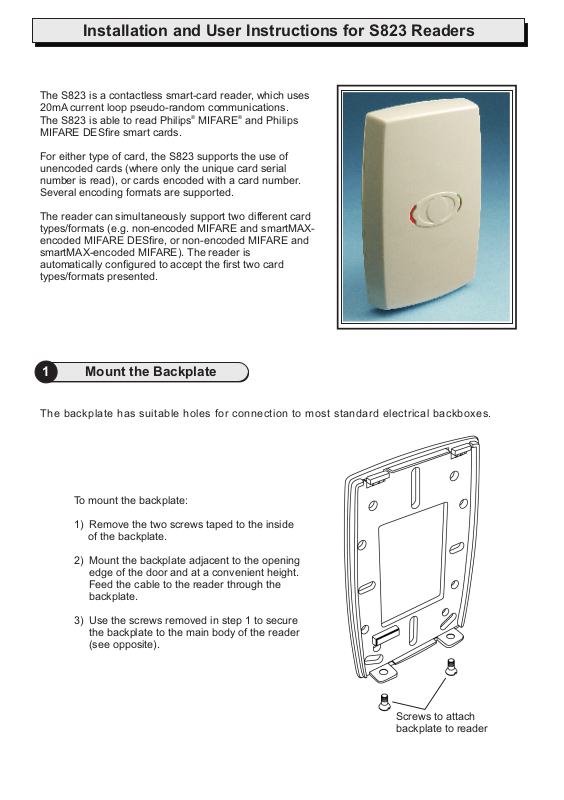

Installation and User Instructions for S823 Readers

The S823 is a
20mA current loop seudo-random communications
The S823 is able to read Philips MIFARE and Philips
MIFARE DESfire smart cards.

For either type of card, the S823 supports the use of
unencoded cards (where only the unique card serial
number is read), or cards encoded with a card number.
Several encoding formats are supported.

The reader can simultaneously support two different card
types/formats (e.g. non-encoded MIFARE and smartMAX­encoded MIFARE DESfire, or non-encoded MIFARE and
smartMAX-encoded MIFARE). The reader is
automatically configured to accept the first two card
types/formats presented.

1

The ba ckp late h as sui tab le holes for co nne cti on to mos t s tan dar d e lec tri cal ba ckb oxe s.

contactless smart-card reader, which uses

p .

® ®

Mount the Backplate

To mount the backplate:

1) Remove the two screws taped to the inside
of the backplate.

2) Mount the backplate adjacent to the opening
edge of the door and at a convenient height.
Feed the cable to the reader through the
backplate.

3) Use the screws removed in step 1 to secure
the backplate to the main body of the reader
(see opposite).

Screws to attach
backplate to reader

2

Reader Connections

20mA Current Loop Reader Connections

Red

Black

Green

Orange

White

Blue

Note: the brown
wire is not used

Reader

Controller connections
(20mA reader port)

Connect shield at
controller end only
(attach to case)

3

Reader Configuration

12V

0V

Rx+

Rx-

Tx+

Tx-

If the reader needs to read both MIFARE and MIFARE DESfire cards, make sure that one of each card
is presented to the reader immediately after the reader has been installed and the cards have been
encoded in the Admin/Card Holders screen of the SMS software. The reader supports the first two card
formats presented. If the two cards are the same type, only one format is supported.

4

Using the Reader

Present the proximity card face-on to the reader until you hear a "bleep". The maximum read range is
typically 0.4" (10mm). If the green indicator is lit, the card has been accepted and the door is unlocked.
If the red indicator is lit, either the card has not been accepted, or you do not have access through the
door. If the red and green indicators flash alternatively, please wait.

Note: cards can be presented in rapid succession - there is no need to wait for the green or red LED to
extinguish before presenting another card.

9600-0407. Installation and User Instructions for S823 Readers,

Issue 1.0.1 8th December 2009. G4S Technology 2009.
FCC Notice: This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.

Any unauthorized modification to this device may void the
authority of the user to operate it.

All trademarks acknowledged. Philips and MIFARE are registered
trademarks of Philips Electronics N.V.

©

Specifications

Input: 130mA max @ 10.6-12.7Vdc.
Operating temperature: -13 to 158 F (-25 to 70 C).

° °
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: 0.4" (10mm).
Approvals: EN50133, R&TTE, IP656.
