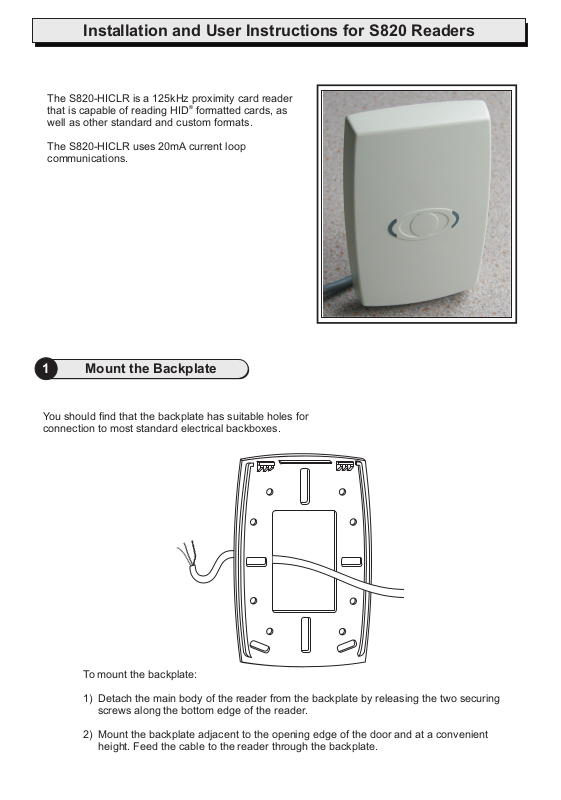

G4S Technology S820 User Manual

Installation and User Instructions for S820 Readers

The S820-HICLR is a 125kHz proximity card reader
that is capable of reading HID formatted cards, as
well as other standard and custom formats.

The S820-HICLR uses 20mA current loop
communications.

1

You should find that the backplate has suitable holes for
connection to most standard electrical backboxes.

Mount the Backplate

®

2

To mount the backplate:

1) Detach the main body of the reader from the backplate by releasing the two securing
screws along the bottom edge of the reader.

2) Mount the backplate adjacent to the opening edge of the door and at a convenient
height. Feed the cable to the reader through the backplate.

2

Reader Connections

20mA Current Loop Reader Connections

Twisted pairs (use
Belden 9503 cable)

12V 12V

0V
Controller connections
(20mA reader port)

Rx+ Tx+

Rx-

Tx+

Tx-

Connect screen at
controller end only
(attach to case)

3

Using the Reader

Present the proximity card face-on to the reader until you hear a "bleep". The maximum read range
is typically 4" ( 10cm). If the green indicator is lit, the card has been accepted and the door is
unlocked. If the red indicator is lit, either the card has not been accepted, or you do not have
access through the door.

Red

Black

Green

Orange

White

Blue

0V

Tx-

Rx+

Rx-

Reader

cards can be presented in rapid succession - there is no need to wait for the green or red

Note:

LED to extinguish before presenting another card.

9600-0303. Installation and User Instructions for S820

Readers, Issue 1.0x1 22nd May 2003. AMAG
Technology, 2003.

FCC Notice: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.

Any unauthorised modification to this device may void the
authority of the user to operate it.

All trademarks acknowledged.
HID is a registered trademark of HID Corporation.

©

Specifications

Input voltage: 9-14V.
Input current: 100mA.
Operating temperature: -4 to 150 F (-20 to 70 C)

°°

without heater.
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: 4" (10cm).
Approvals: EN50133, R&TTE, IP656.
