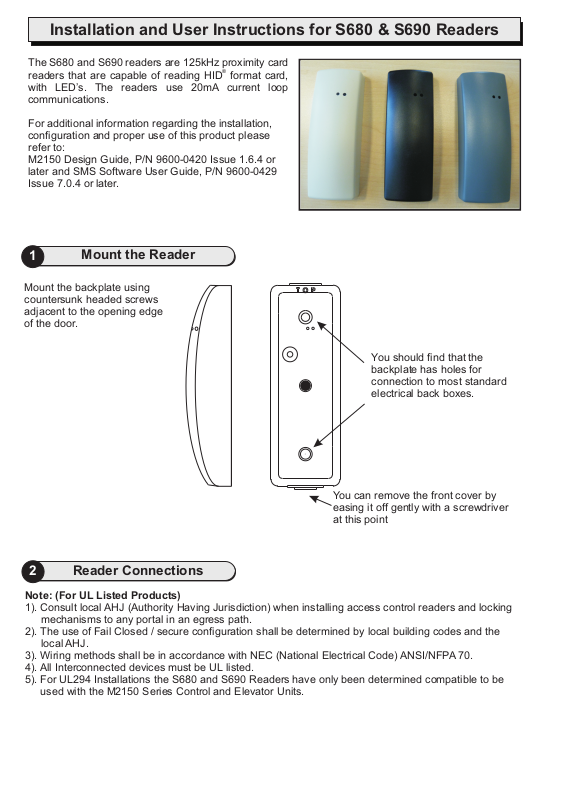

G4S Technology S680A User Manual
Installation and User Instructions for S680 & S690 Readers
The S680 and S690 readers are
readers that are capable of reading HID format card,
with LED’s. The readers use
communications.
For additional information regarding the installation,
configuration and proper use of this product please
refer to:
M2150 Design Guide, P/N 9600-0420 Issue 1.6.4 or
later and SMS Software User Guide, P/N 9600-0429
Issue 7.0.4 or later.
1
Mount the backplate using
countersunk headed screws
adjacent to the opening edge
of the door.
Mount the Reader
125kHz proximity card
®
20mA current loop
You should find that the
backplate has holes for
connection to most standard
electrical back boxes.
You can remove the front cover by
easing it off gently with a screwdriver
at this point
2
Note: (For UL Listed Products)
1). Consult local AHJ (Authority Having Jurisdiction) when installing access control readers and locking
2). The use of Fail Closed / secure configuration shall be determined by local building codes and the
3). Wiring methods shall be in accordance with NEC (National Electrical Code) ANSI/NFPA 70.
4). All Interconnected devices must be UL listed.
5). For UL294 Installations the S680 and S690 Readers have only been determined compatible to be
Reader Connections
mechanisms to any portal in an egress path.
local AHJ.
used with the M2150 Series Control and Elevator Units.
Reader Connections contd.
3
20mA current loop
Shielded Belden 9537 7x24 awg cable UL Listed style 2464 (DUZX) cable.
Red
12V
Black
0V
Green
TX+
Orange
TX-
RX+
Blue
RX-
Note:
Brown wire not used
680/690 Reader
Controller
Connect shield at
12V
0V
RX+
RX-
TX+
TX-
White
Maximum distance 150m
controller end only.
4
Using / Testing the Reader
Present the card face-on to the reader until you hear a "bleep". The reader is now working correctly. Cards can
be presented in rapid succession; there is no need, for example, to wait for "GREEN LED’s" to disappear before
presenting another.
When faulted, the reader can not accept a card read. Check wiring for faults or replace reader.
LED Status Indicator
GREEN – The lock is released and you may open the door.
RED – You do not have access rights to gain entry, or the reader did not read your card properly (in this case,
present it again).
9600-0199. Installation and User Instructions for S680/690 Readers,
Issue 2.0x1 5th November 2013. G4S Technology, 2013.
FCC Notice: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Any unauthorized modification to this device may void the authority of
the user to operate it. All trademarks acknowledged.
©
Specifications
Input voltage: 12Vdc.
Input current: 100mA Max.
Operating temperature: -13 to 158°F (-25 to 70°C)
Operating humidity: 90%, non-condensing.
Maximum read range: 4" (100mm).
Approvals: EN300330, EN301489
