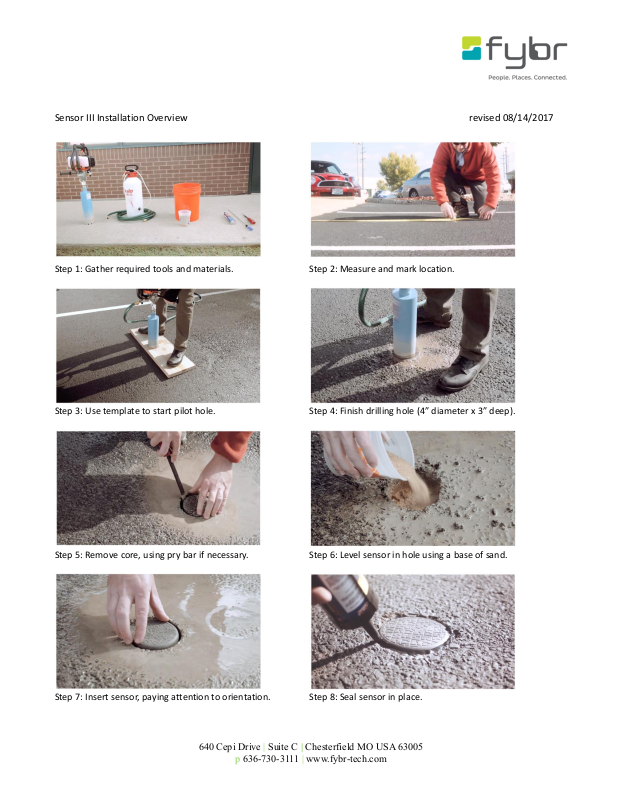

Sensor III Installation Overview revised 08/14/2017
Step 1: Gather required tools and materials.
Step 2: Measure and mark location.
Step 3: Use template to start pilot hole.
Step 4: Finish drilling hole (4” diameter x 3” deep).
Step 5: Remove core, using pry bar if necessary.
Step 6: Level sensor in hole using a base of sand.
Step 7: Insert sensor, paying attention to orientation.
Step 8: Seal sensor in place.
FCC/INDUSTRY CANADA NOTICE
Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Fybr might cause harmful interference and void
the FCC authorization to operate this product.
This device complies with Part 15 of the FCC Rules and Innovation, Science and Economic Development Canada licenseexempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful
interference. and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This product complies with FCC OET Bulletin 65 & Innovation, Science and Economic Development Canada’s RSS-102
radiation exposure limits set forth for an uncontrolled environment.
Cet appareil est conforme à des règlements Innovation, Sciences et Développement économique Canada exempts de licence
standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) Ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un
fonctionnement indésirable.
Ce produit est conforme aux limites d’expositions aux rayonnements de nies pour un environnement non controle du
Bulletin 65 FCC OET et RSS-102 Industry Canada.
