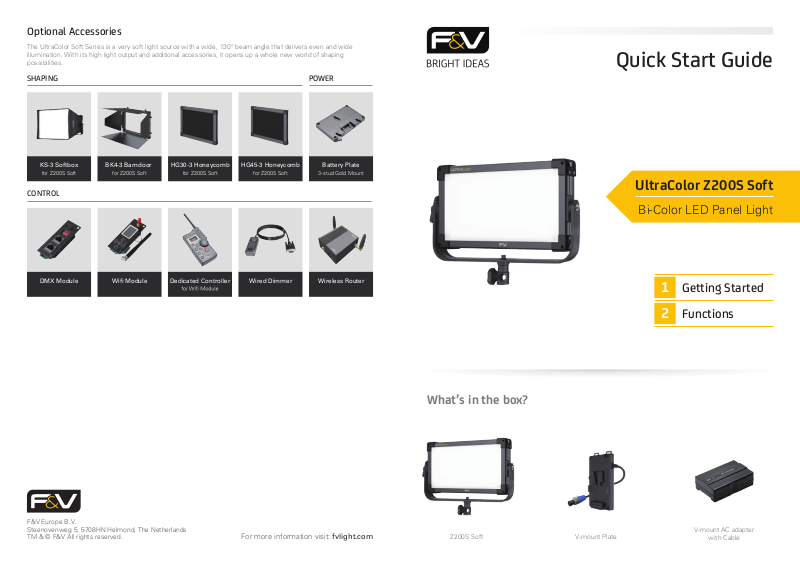

Page 1
Optional Accessories
The UltraColor Soft Series is a very soft light source with a wide, 130° beam angle that delivers even and wide
illumination. With its high light output and additional accessories, it opens up a whole new world of shaping
possibilities.
SHAPING POWER
Quick Start Guide
KS-3 Softbox BK4-3 Barndoor
for Z200S Softfor Z200S Soft for Z200S Soft
CONTROL
DMX Module Wi Module Dedicated Controller Wired Dimmer
HG30-3 Honeycomb
HG45-3 Honeycomb
for Z200S Soft
Battery Plate
3-stud Gold Mount
Wireless Router
What’s in the box?
UltraColor Z200S Soft
Bi-Color LED Panel Light
1
Getting Started
2
Functions
F&V Europe B.V.
Steenovenweg 5, 5708HN Helmond, The Netherlands
TM & © F&V All rights reserved.
For more information visit: fvlight.com
Z200S Soft
V-mount Plate
V-mount AC adapter
with Cable
Page 2
1 2Getting Started Functions
Mount
1
16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin)
Intensi
Knob
16mm/28mm
Combo Pin
1
Adjust the Intensity
Power
2
Two power options
1
V-mount Li-ion battery
2
V-mount AC adapter
3
Let’s do this!
Turn the light ON
Use <Intensity> knob to adjust the intensity
2
Adjust the Color Temperature
Use <Color Temperature> knob to adjust the color temperature
Temperature
ty
1
2
Wired Dimmer
Interface
Color
Knob
V-mount Li-ion Battery
2
10 -18 V
V-mount AC adapter
100 - 240 V
3
POWER
ON/OFF
