For more information visit: fvlight.com
F&V Europe B.V.
Steenovenweg 5, 5708HN Helmond, The Netherlands
TM & © F&V All rights reserved.

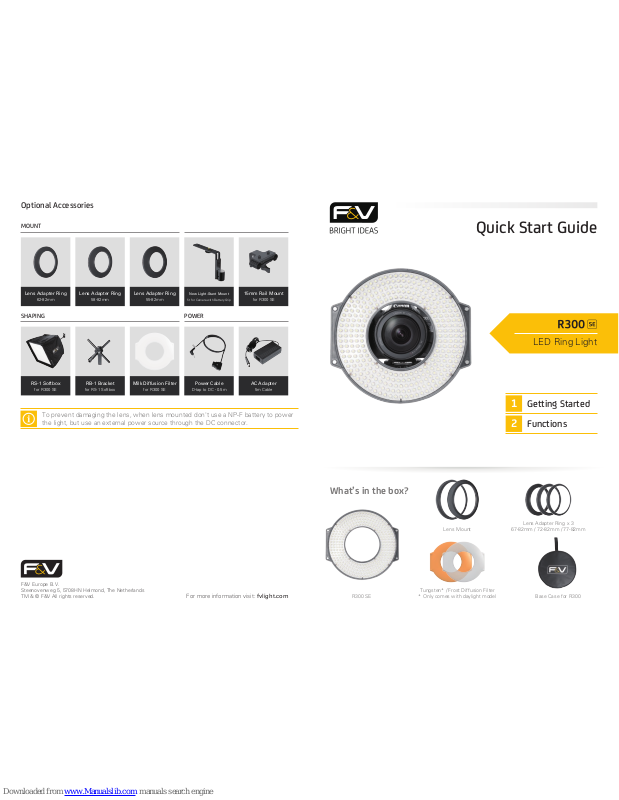

Quick Start Guide
What’s in the box?
Optional Accessories
Getting Started
Functions
R300 SE
Lens Mount
To prevent damaging the lens, when lens mounted don't use a NP-F battery to power
the light, but use an external power source through the DC connector.
67-82mm / 72-82mm / 77-82mm
Lens Adapter Ring x 3
LED Ring Light
Tungsten* / Frost Diffusion Filter
* Only comes with daylight model
Base Case for R300
RS-1 Softbox
15mm Rail Mount
New Light-Stant Mount
SHAPING POWER
MOUNT
for R300 SE
Lens Adapter Ring
62-82mm
Lens Adapter Ring
58-82mm
Lens Adapter Ring
55-82mm
RB-1 Bracket
for RS-1 Softbox
Milk Diffusion Filter
for R300 SE
Power Cable
D-tap to DC - 0.5m
AC Adapter
5m Cable
t for Camera with Battery Grip for R300 SE
Page 2
1 2Getting Started Functions
1
3
POWER
ON/OFF
Adjust the Intensity
1
Use <Intensity> knob to adjust the intensity
* Adjust the Color Temperature (only the bi-color version)
2
Use <Color Temperature> knob to adjust the color temperature
Intensi
Knob
1
ty
2
Color
Temperature
Knob
Intensi
Knob
1
R300 R300S
10-18 V
DC 2.5Φ
Mount On The LensFixed Lens Mount Fixed Lens Mount
Mounting
Lens Adapter Ring
Power
2
Two power options
NP-F Li-ion battery
DC Φ2.5 10-18V
1
2
3
<I> when powering through DC Jack
<II> when using NP-F batteries
Turn the light ON
Let’s do this!
1
7.2 V
NP-F Li-ion
Battery
2
