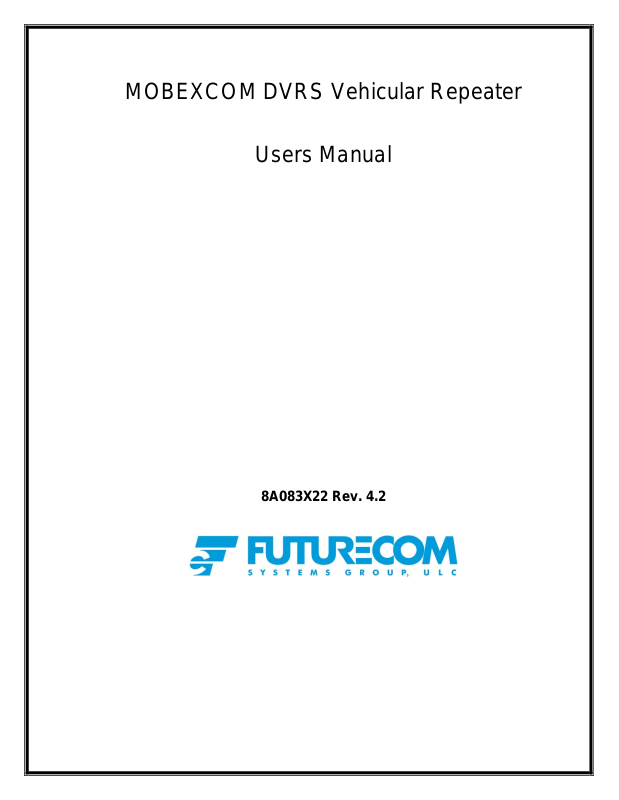

Futurecom Systems Group ULC DVRS800 User Manual

MOBEXCOM DVRS Vehicular Repeater

Users Manual

8A083X22 Rev. 4.2

Vehicular Repeater System

1. TABLE OF CONTENTS

Section Page

1. TABLE OF CONTENTS ..................................................................................................... 2

Notes, Attentions, Important ................................................................................................... 3

REPEATER MODES ................................................................................................................................... 7

CONTROL HEAD ......................................................................................................................................... 8

REPEATER RADIO UNIT ........................................................................................................................... 9

MOBILE RADIO UNIT ................................................................................................................................. 9

3. OPERATION ...................................................................................................................... 10

CONTROL HEAD ....................................................................................................................................... 10

APPENDIX 1 ............................................................................................................................... 13

Futurecom Systems Group ULC. 8A083X22 Rev 4_2E.docxDOC Rev. Preliminary Page 2

Notes, Attentions, Important

Throughout this manual, you will see Notes, and Attentions, Important
Their meaning is as follows:

NOTE

A clarifying statement that expands on the text that follows.

IMPORTANT

An important statement that should be considered and / or implemented in order to
achieve adequate equipment operation.

ATTENTION!

An instruction that must be followed in insure compliance with the appropriate standards or
proper equipment operations.

Vehicular Repeater System

Futurecom Systems Group ULC. 8A083X22 Rev 4_2E.docxDOC Rev. Preliminary Page 3

Vehicular Repeater System

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.

ATTENTION!

Changes or modifications not expressly approved by Futurecom Systems Group, ULC could void the user’s
authority to operate the equipment.

RF EXPOSURE

ATTENTION!

To satisfy FCC/ISED RF exposure requirements for mobile transmitting devices, refer to Futurecom

8F083X03 (FCC) or 8F083X05 (ISED) RF Safety Booklet for TX – RX duty cycle and a separation distance
between the antenna of this device and persons during operation. To ensure compliance, operations at closer
than this distance is not allowed.

RADIO OPERATOR

Futurecom requires the MOBEXCOM DVRS Repeater operator to ensure FCC Requirements for Radio

Frequency Exposure are met. The minimum distance between all possible personnel and an omnidirectional
antenna must be as specified in Futurecom 8F083X03 or 8F083X05 RF Safety Booklet.

FAILURE TO OBSERVE THE MPE DISTANCE EXCLUSION AREA AROUND THE ANTENNA MAY EXPOSE
PERSONS WITHIN THIS AREA TO RF ENERGY ABOVE THE FCC/ISED EXPOSURE LIMIT FOR
BYSTANDERS (GENERAL POPULATION). IT IS THE RESPONSIBILITY OF THE REPEATER OPERATOR TO

ENSURE THAT MPE LIMITS ARE OBSERVED AT ALL TIMES DURING REPEATER TRANSMISSIONS. THE
REPEATER OPERATOR MUST ENSURE AT ALL TIMES THAT NO PERSON COMES WITHIN MPE
DISTANCE FROM THE ANTENNA.

ATTENTION!

The MOBEXCOM DVRS Repeater is intended for use in occupational / controlled conditions, where users
have full knowledge of the operator exposure and can exercise control over the operator exposure to meet
FCC/ISED limits. This radio is NOT authorized for general population, consumer, or any other use.

Futurecom Systems Group ULC. 8A083X22 Rev 4_2E.docxDOC Rev. Preliminary Page 4

ANTENNA INSTALLATION

ATTENTION!

To satisfy FCC/ISED RF exposure requirements for mobile transmitting devices, refer to Futurecom
8F083X03 (FCC) or 8F083X05 (ISED) RF Safety Booklet for the approved frequency bands, antenna types

and antenna installation restrictions and requirements.

IMPORTANT

Refer to Futurecom 8F083X03 or 8F083X05 RF Safety Booklet for antenna installation instructions and
proper installation locations diagram.

FCC Label

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received,
including interference that may cause undesired
operation.

RF Exposure Label

Vehicular Repeater System

RF EXPOSURE LABEL INSTALLATION LOCATION

IMPORTANT

The RF Exposure Label should be affixed in the vehicle beside the mobile radio control head. The label
should be in the direct view of the Repeater operator. The label is supplied with the MOBEXCOM DVRS

Repeater.
