VRX1000
P25 VEHICLE RADIO EXTENDER
User’s Guide
8A087X02 R3 February 2016
NOTES
8A087X02 R3
VRX1000
User’s Guide
February 2016 Page 2 of 92
8A087X02 R3
VRX1000
User’s Guide
Contents
Contents ........................................................................................................................ 3
Foreword ........................................................................................................................ 8
Manual Revisions ........................................................................................................ 8
Firmware ..................................................................................................................... 9
Computer Software Copyrights .................................................................................... 9
Document Copyrights .................................................................................................. 9
Disclaimer ................................................................................................................... 9
Trademarks ............................................................................................................... 10
Commercial Warranty and Service ............................................................................ 11
Notations Used in This Manual .................................................................................. 12
Declaration of Conformity .......................................................................................... 13
RF Energy Exposure Compliance, Awareness and Control Information and
Operational Instructions ................................................................ ............................. 14
RF Exposure Label .................................................................................................... 15
FCC Label ................................................................................................................. 15
Installation Requirements for Compliance with Radio Frequency (RF) Energy
Exposure Safety Standards ........................................................................................ 16
Introduction ................................................................................................................. 17
Identifying Your VRX1000 Model ............................................................................... 18
Frequency Band of Operation ............................................................................................... 18
Cross-Band ........................................................................................................................... 18
In-Band.................................................................................................................................. 19
Band Locking ........................................................................................................................ 20
VRX1000 Operation Basics ......................................................................................... 21
PSU Features Supported by VRX1000 on Motorola Infrastructure ............................ 22
‘VRX1000 Enabled’ PSU Features Supported on Non-Motorola Infrastructure .......... 23
Powering up the VRX1000 ........................................................................................ 24
Turning ON the VRX1000 .......................................................................................... 24
Activating the VRX1000 via the Control Head ...................................................................... 24
Automatic VRX1000 Activation (AVRA) ................................................................................ 25
Remote Activation of the VRX1000 ...................................................................................... 26
Turning OFF the VRX1000 ........................................................................................ 28
Deactivating the VRX1000 via the MSU Control Head ......................................................... 28
February 2016 Page 3 of 92
8A087X02 R3
VRX1000
User’s Guide
Deactivating the VRX1000 via Call Alert sent by Dispatch ................................................... 28
Automatic VRX1000 Deactivation ......................................................................................... 29
VRX1000 Status Display ........................................................................................... 30
‘DVRS/VRX1000 Enabled’ PSUs .............................................................................. 31
VRX1000 Status Tones ............................................................................................. 32
VRX1000 Status Tones - MSU Speaker ............................................................................... 32
VRX1000 Status Tones - PSU .............................................................................................. 33
‘DVRS/VRX1000 Enabled’ Mobile Radio TGs / Channels ......................................... 35
‘DVRS/VRX1000 Disabled’ Mobile Radio TGs / Channels ......................................... 35
In Car Monitor (ICM) .................................................................................................. 36
Primary / Secondary Operation Basics ...................................................................... 37
Permanent Primary Activation .............................................................................................. 39
Permanent Primary Deactivation .......................................................................................... 39
Legacy Mobexcom II Voting Compatibility Mode .................................................................. 39
VRX1000 Voting Compatibility Modes .................................................................................. 39
VRX1000 Modes of Operation ................................................................................... 40
OFF Mode ............................................................................................................................. 40
SYSTEM Mode ..................................................................................................................... 40
LOCAL Mode ........................................................................................................................ 41
Selecting VRX1000 Mode ......................................................................................... 42
Selecting VRX1000 Mode from the Control Head ................................................................ 42
Strapped VRX1000 Mode ..................................................................................................... 42
Selecting VRX1000 Channel ..................................................................................... 42
Independent VRX1000 Channel Change ............................................................................. 42
Strapped VRX1000 Channel Change ................................................................................... 42
MSU Scan ................................................................................................................. 44
Supported MSU Scan Types ................................................................................................ 44
VRX1000 Enabled / Disabled Rules while MSU Scan is enabled ........................................ 44
Outbound Calls (received by MSU from the FNE) with MSU Scan Enabled ........................ 44
Inbound Calls (received by VRX1000 from PSU) with MSU Scan Enabled ......................... 44
Unsupported PSU Features....................................................................................... 45
P25 Digital Mode Operation ........................................................................................ 46
PSU Affiliation ........................................................................................................... 47
Group Calls ............................................................................................................... 47
MSU Priorities ........................................................................................................... 47
PSU Proxy Request Priorities .................................................................................... 47
Signaling Request Interactions with Voice and Signaling Proxy ................................. 48
Voice Request Interaction with Signaling and Voice Proxy ........................................ 49
MSU Voice and Signaling Proxy Interactions ............................................................. 50
Talk Group Proxing ................................................................................................... 50
Talk Group Translation .............................................................................................. 50
February 2016 Page 4 of 92
8A087X02 R3
VRX1000
User’s Guide
Private Calls .............................................................................................................. 51
PSU Talk Permit Tones ............................................................................................. 51
Status Broadcast ....................................................................................................... 52
Local Mode Indication................................................................................................ 52
Radio Check / Inhibit ................................................................................................. 52
P25 Trunking OTAR .................................................................................................. 52
Patch ................................ ......................................................................................... 53
Dynamic Regrouping ................................................................................................. 54
Phone Interconnect ................................................................................................... 54
Adaptive Power Control ............................................................................................. 54
Digital Audio Buffering ............................................................................................... 54
P25 Encryption .......................................................................................................... 55
Remote VRX1000 Activation and Steering by PSU Call Alert (Page) ........................ 56
Emergency in Digital Mode ........................................................................................ 58
Emergency Alarm ................................................................................................................. 58
Emergency Call ..................................................................................................................... 59
Emergency Revert through VRX1000 .................................................................................. 59
Emergency Revert through PSU .......................................................................................... 59
Emergency operation during TG Translation ........................................................................ 59
Fireground (FG) Signaling ......................................................................................... 60
PSU IV&D ................................................................................................................. 60
PSU Location Reporting GPS .................................................................................... 60
PSU Call Alert ........................................................................................................... 60
PSU Message ........................................................................................................... 60
PSU Status Update and Status Request ................................................................... 60
Automatic PSU Revert to Talk Around (TA) ............................................................... 61
PSU Group Services ................................................................................................. 61
Group Text ............................................................................................................................ 61
Group Alias Update ............................................................................................................... 62
Digital Mode – P25 Conventional Support ................................................................. 63
P25 Digital VRX1000 Mode with P25 Conventional Mode Selected on MSU ...................... 63
P25 Digital VRX1000 Mode (Generic P25 PSUs) with P25 Trunked (FDMA) Mode Selected
on MSU ................................................................................................................................. 64
Digital Mode – P25 Enhanced Trunking Features Support ........................................ 65
P25 Digital VRX1000 Mode with P25 Conventional Mode Selected on MSU ...................... 65
P25 Digital VRX1000 Mode with P25 Trunked (FDMA) Mode Selected on MSU ................ 66
Forced Analog Mode ................................................................................................... 67
Forced Analog Mode – Summary of Features ........................................................... 68
Forced Analog VRX1000 Mode with P25 Trunking TDMA Mode Selected on MSU............ 68
February 2016 Page 5 of 92
8A087X02 R3
VRX1000
User’s Guide
Forced Analog VRX1000 Mode with 3600 Trunking Mode Selected on MSU ..................... 69
Forced Analog VRX1000 Mode with Conventional Analog Mode Selected on MSU ........... 70
Analog Mode Operation .............................................................................................. 71
VRX1000 Channel Setup for Analog Mode ................................................................ 71
Group Calls ............................................................................................................... 71
Emergency in Analog Mode....................................................................................... 72
Emergency Alarm ................................................................................................................. 72
Emergency Call ..................................................................................................................... 72
Emergency Revert ................................................................................................................ 73
Analog Audio Buffering .............................................................................................. 73
Tactical Public Safety (TPS) ...................................................................................... 73
Fireground (FG) Signaling ......................................................................................... 73
Remote VRX1000 Activation via DTMF ..................................................................... 74
P25 Encryption in Analog Mode ................................................................................ 74
Leading & Trailing Tones ........................................................................................... 74
Mobile Mode Steering via PL/DPL ............................................................................. 75
Steering and Emergency ...................................................................................................... 75
MSU Operating on TDMA (P25, Phase 2) ................................................................. 75
Analog Mode – Summary of Features ....................................................................... 76
Analog VRX1000 Mode with P25 Trunking Mode (FDMA) Selected on MSU ..................... 76
Analog VRX1000 Mode with P25 Conventional Mode Selected on MSU ............................ 77
Analog VRX1000 Mode with Conventional Analog Mode Selected on MSU ....................... 78
Analog VRX1000 Mode with 3600 Baud Analog or Digital Trunking Mode Selected on MSU
.............................................................................................................................................. 79
Analog VRX1000 Mode with P25 Phase II (TDMA) Trunking Mode Selected on MSU ....... 80
Mixed VRX1000 Mode ................................................................................................. 81
Special Features Support ........................................................................................... 82
TPS Signaling ........................................................................................................... 82
Troubleshooting .......................................................................................................... 83
Appendix 1 – VRX1000 Specifications - Preliminary ................................................ 84
Contact Information .................................................................................................... 86
Glossary ....................................................................................................................... 87
Index ............................................................................................................................ 90
February 2016 Page 6 of 92
8A087X02 R3
VRX1000
User’s Guide
List of Tables
Table 1 Minimum Lateral Distance from Antenna – VRX1000 ....................................... 15
Table 2 VRX1000 vs Infrastructure Compatibility .......................................................... 17
Table 3 VRX1000 Features vs Type of PSU ................................................................. 22
Table 4 VRX1000 Enabled PSU Features Support on Non-Motorola Infrastructure ...... 23
Table 5 AVRA Functionality ........................................................................................... 25
Table 6 VRX1000 Status Display Messages / Icons ...................................................... 30
Table 7 DVRS/VRX1000 Enabled PSU Models ............................................................. 31
Table 8 VRX1000 Status Tones (MSU Speaker) ........................................................... 32
Table 9 P25 DVRS/VRS1000 Enabled PSUs – DVRS/VRX1000 Specific Tones .......... 33
Table 10 Analog PSU - VRX1000 Specific Tones ......................................................... 34
Table 11 Primary VRX1000 Definitions ......................................................................... 38
Table 12 VRX1000 Voting Compatibility ................................................................ ........ 39
Table 13 OFF Mode Operation ...................................................................................... 40
Table 14 SYSTEM Mode Operation .............................................................................. 40
Table 15 LOCAL Mode Operation ................................................................................. 41
Table 16 MSU Proxy Request Priorities ........................................................................ 47
Table 17 PSU Proxy Request Priorities ......................................................................... 47
Table 18 Signaling Request Interaction with Signaling Proxy ........................................ 48
Table 19 Signaling Request Interaction with Voice Proxy .............................................. 48
Table 20 Voice Request Interactions with Signaling Proxy ............................................ 49
Table 21 Voice Proxy Interaction with Voice Proxy ........................................................ 49
Table 22 Inbound P25 Encryption Rules ....................................................................... 55
Table 23 Outbound P25 Encryption Rules ..................................................................... 55
Table 24 MSU MIC PTT P25 Encryption Rules ............................................................. 55
Table 25 Typical Remote Steering Scenarios ................................................................ 57
List of Figures

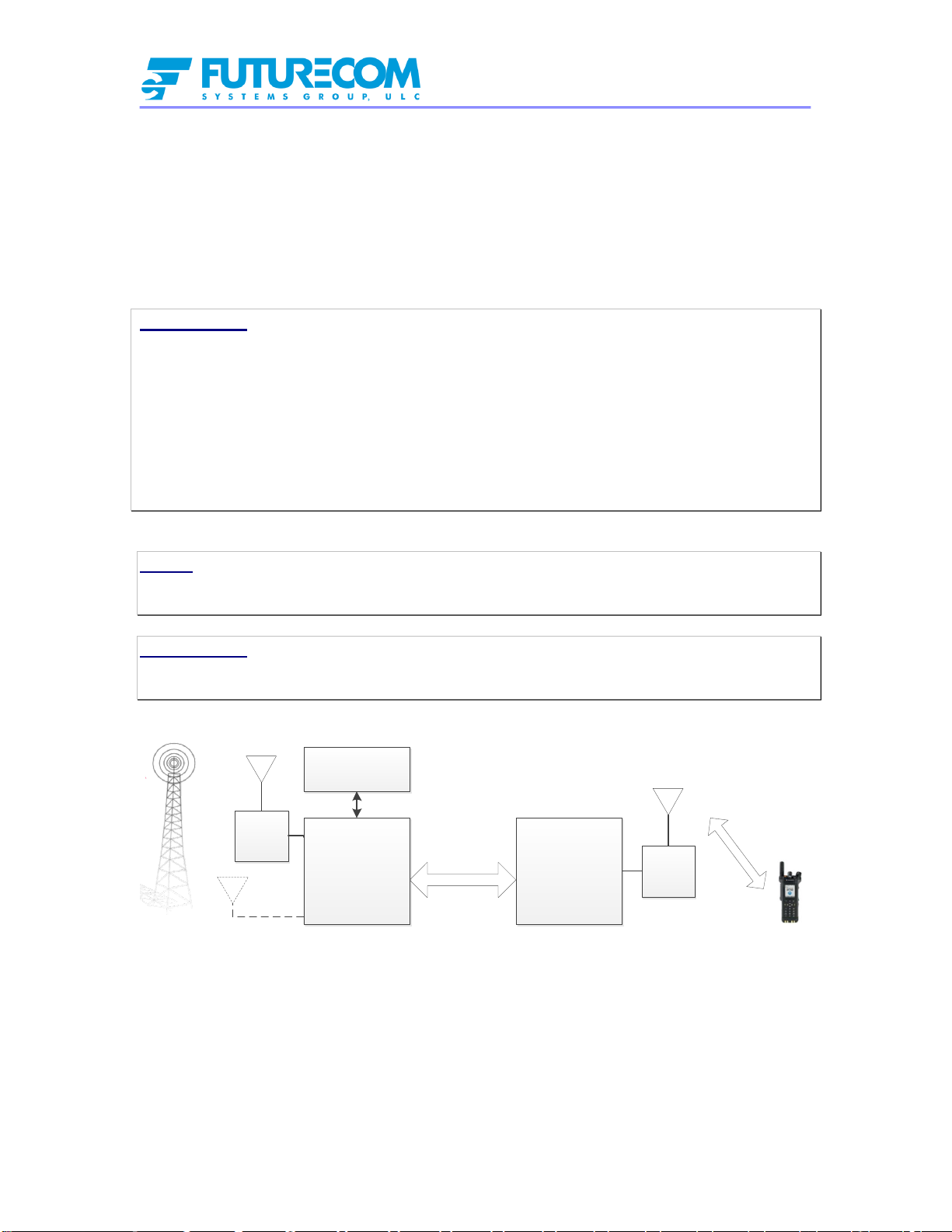

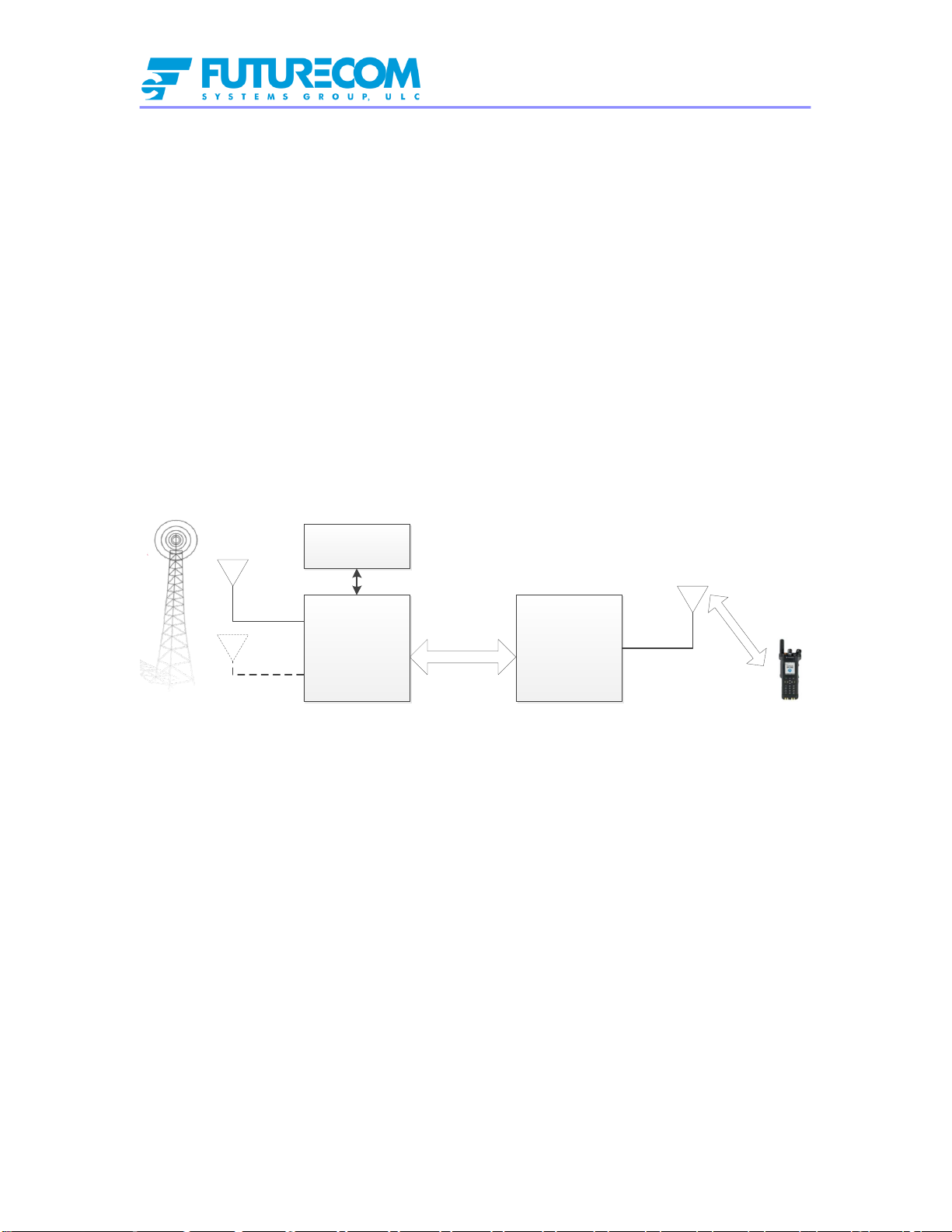

Figure 1 Cross-Band VRX1000 - Conceptual Diagram .................................................. 18
Figure 2 In-Band VRX1000 - Conceptual Diagram ........................................................ 19
February 2016 Page 7 of 92
8A087X02 R3
Mobile Radio Model
Firmware Requirements
Notes
APX2500
R14.50.00 or later
Requires option GA00631
APX4500
APX5500
APX6500
APX7500
NOTE:
Mobile Radio must be configured as Remote Mount in order to be compatible with the
VRX1000.
Rev #
Date
By
Notes & References
0
November 11, 2014
KG
Original Release
1
July 22, 2015
KG
Firmware R1.20/SR7.15.5 Update
2
October 15, 2015
KG
Firmware R1.21/Q4 2015 SER Update
3
February 12, 2016
KG
Firmware R1.22/Q1 2016 SER Update
VRX1000
User’s Guide
Foreword
The Vehicular Radio Extender (VRX1000) is designed to be seamlessly interfaced to the
following Motorola Solutions Mobile Radios:
This manual provides User guidelines for the Futurecom VRX1000 that is
interfaced to one of the above remote mount Mobile radios with a corresponding
compatible control head.
For details on the VRX1000 Installation and programming guidelines, please refer to the
VRX1000 Installation and Programming Guide 8M087X01.
For details on the Motorola Solutions Mobile Radio operation, please refer to the
applicable Manuals available from Motorola Solutions.
Manual Revisions
February 2016 Page 8 of 92
8A087X02 R3
VRX1000
User’s Guide
Firmware
The VRX1000 Operation described in this Document requires the following
Firmware:
APX2500/APX4500/APX6500/APX7500 - firmware release: Host R14.50.00 or later.
APX Mobile Radios operating as the host mobile for the VRX1000 require subscriber
option GA00631 for operation.
APX2000/APX4000/APX6000/APX7000/APX8000 – firmware release R14.50.00 or
later.
APX Portable Radios operating through a DVR/VRX1000, utilizing the DVR/VRX1000
Enabled digital feature set require subscriber option QA00631.
APX Control Head - firmware release R20.00.00 or later.
VRX1000 must be loaded with application firmware 4C083X11 R01.22 or later.
Tweaker Programming software version 1.06 or later.
Computer Software Copyrights
The products described in this manual include copyrighted Futurecom computer
programs stored in semiconductor memories or other media. Laws in the United States,
Canada and other countries preserve for Futurecom certain exclusive rights for
copyrighted computer programs, including but not limited to, the exclusive right to copy
or reproduce in any form the copyrighted computer programs. Any copyrighted computer
program contained in the Futurecom products described in this manual may not be
copied, reproduced, modified, reverse-engineered, or distributed in any manner without
the express written permission of Futurecom. The purchase of Futurecom products shall
not be deemed to grant either directly or by implication, estoppels, or otherwise, any
license under the copyrights, patents or patent applications of Futurecom, except for the
normal non-exclusive license to use that arises by operation of law in the sale of a
product.
Document Copyrights
No part of this manual may be reproduced, distributed or transmitted in any form or by
any means, for any purpose without written permission of Futurecom.
Disclaimer
The information in this document is carefully examined and is believed to be entirely
reliable. However, no responsibility is assumed for inaccuracies.
Futurecom Systems Group, ULC. reserves the right to make changes to any products
herein to improve reliability, function or design. Futurecom does not assume any liability
arising out of the application or use of any product or circuit described herein.
February 2016 Page 9 of 92
8A087X02 R3
VRX1000
User’s Guide
Trademarks
MOTOROLA SOLUTIONS, ASTRO, XTLTM2500, XTLTM5000, XTSTM1500, XTSTM2500,
XTSTM5000, APXTM2000, APXTM4000, APXTM2500, APXTM4500, APXTM6000,
APXTM7000, APXTM8000, APXTM6500, APXTM7500, MDC1200 are trademarks of
Motorola Solutions Inc.
February 2016 Page 10 of 92
8A087X02 R3
VRX1000
User’s Guide
Commercial Warranty and Service
Futurecom Systems Group, ULC. warrants to the original purchaser all standard
products sold by Futurecom Systems Group, ULC. to be free of defects in material and
workmanship for one (1) year from the date of shipment from Futurecom Systems Group
ULC.
Futurecom’s warranty hereunder DOES NOT cover the following :
(i) Defects or damage resulting from use of the product in other than its normal
and customary manner.
(ii) Defects or damage from improper installation, testing, operation, or
maintenance.
(iii) Defects or damage due to alterations, modifications or adjustments carried
out by the Buyer without Futurecom’s explicit approval.
(iv) Defects or damage from misuse, accident, water or neglect.
(v) Freight costs to the repair depot.
(vi) Scratches or other cosmetic damage to the product surfaces that does not
affect the operation of the product.
(vii) Normal wear and tear.
The warranty set forth herein is conditioned upon proper storage, installation, use and
maintenance in accordance with applicable written recommendation of Futurecom. The
warranty furnished hereunder does not extend to damage to items purchased hereunder
resulting in whole or in part from the use of components, accessories, parts of supplies
not furnished by Futurecom Systems Group, ULC.
Futurecom’s sole obligation shall be to repair or replace, at Futurecom’s option, any
defective component or item and pay transportation expenses for such replacement at
no charge to Buyer who shall provide labor for the removal of the defective component
or item and installation of its replacement at no charge to Futurecom. Buyer shall bear
all risk of loss or damage to returned goods while in transit. In the event no defect or
breach of warranty is discovered by Futurecom upon receipt of any returned item, the
item will be returned to Buyer at Buyer’s expense and Buyer will reimburse Futurecom
for the transportation charges, labor and associated charges incurred in testing the
allegedly defective item.
Except as expressly provided herein, Futurecom makes no warranty of any kind,
expressed or implied, with respect to any goods, parts and service provided by
Futurecom including, but not limited to, the implied warranties or merchantability and
fitness for a particular purpose. The sole and exclusive remedy for breach of any
warranty is limited to the remedies provided in the paragraph above. Futurecom shall
not in any event be liable for any other damages arising out of or in connection with
furnishing of goods, parts or service hereunder, or the performance, use of, or inability to
use any goods, parts or service, or otherwise, whether based on contract, tort or any
other legal theory.
To exercise this warranty, please contact Futurecom’s Administration Department in
Concord, Ontario, Canada at 1-800 701 9180 to obtain a return material authorization
(RMA) and shipping instructions. No product will be accepted for return without an RMA.
The repair of a product by Futurecom pursuant to this warranty is warranted for the
balance of the original warranty period, or at least 90 days from date of shipment to
Buyer of the repaired product.
February 2016 Page 11 of 92
8A087X02 R3
VRX1000
User’s Guide
Notations Used in This Manual
The following notations are used throughout this document:
NOTE:
A clarifying statement that expands on the text that follows.
IMPORTANT!
An important statement that should be considered and / or implemented in order
to achieve adequate equipment operation.
ATTENTION!
An instruction that must be followed to insure compliance with the appropriate
standards or proper equipment operations.
February 2016 Page 12 of 92
8A087X02 R3
VRX1000
User’s Guide
Declaration of Conformity
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
FCC LABELS:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC SECTION 15.105 INFORMATION TO THE USER:
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
February 2016 Page 13 of 92
8A087X02 R3
VRX1000
User’s Guide
RF Energy Exposure Compliance, Awareness and
Control Information and Operational Instructions
ATTENTION!
Changes or modifications not expressly approved by Futurecom Systems Group,
ULC. could void the User’s authority to operate the equipment. To satisfy FCC/IC
RF exposure requirements for mobile transmitting devices, the minimum
separation distances specified in Table 1 should be maintained. To ensure
compliance, operations at closer than this distance is not allowed.
ATTENTION!
Futurecom requires the P25 VRX1000 operator to ensure FCC Requirements for
Radio Frequency Exposure are met. The minimum distance between all possible
personnel and the body of the VRX1000 equipped vehicle is specified in the “RF
Safety” booklet. Failure to observe the Maximum Permissible Exposure (MPE)
distance exclusion area around the antenna may expose persons within this area
to RF energy above the FCC exposure limit for bystanders (general population). It
is the responsibility of the repeater operator to ensure MPE limits are observed at
all times during repeater transmissions. The repeater operator must ensure at all
times that no person comes within MPE distance from the vehicle body.
USA Users: Do not use the VRX1000 in the frequency band 406.0 – 406.1MHz. This
frequency band is reserved for distress beacons.
ATTENTION!
This radio is intended for use in occupational / controlled conditions, where users
have full knowledge of their exposure and can exercise control over their
exposure to meet FCC limits. This radio device is NOT authorized for general
population, consumer, or any other use.
It is the responsibility of the VRX1000 Operator to ensure that Maximum
Permissible Exposure (MPE) limits are observed at all times during repeater
transmissions. If this vehicular repeater is used in combination with a separate
mobile radio transmitter, the Repeater operator must ensure at all times that no
person comes within the MPE distance from the vehicle body to ensure
compliance with the FCC’s/IC’s RF energy exposure limits for the general
population.
The minimum lateral distance between all possible personnel and the body of the
VRX1000 equipped vehicle must be as specified in Table 1.
Failure to observe the MPE distance exclusion area around the antenna may
expose persons within this area to RF energy above the FCC exposure limit for
bystanders (general population).
February 2016 Page 14 of 92
8A087X02 R3
VRX1000 (3W)
Minimum Lateral Distance from Antenna
VHF
67.0cm (26.4 inches) (up to 100% Tx duty cycle)
UHF 380-512MHz
40.0cm (15.75 inches) (up to 100% Tx duty cycle)
700MHz
28.3cm (11.1 inches) (up to 100% Tx duty cycle)
800MHz
26.8cm (10.6 inches) (up to 100% Tx duty cycle)
including interference that may cause undesired
2) This device must accept any interference received,
1) This device may not cause harmful interference, and
Operation is subject to the following two conditions:
This device complies with Part 15 of the FCC Rules.
operation.
VRX1000
User’s Guide
Table 1 Minimum Lateral Distance from Antenna – VRX1000
50% Tx duty cycle is defined as Push To Talk (PTT), 50% Talk - 50% Listen.
100% Tx duty cycle is defined as Push To Talk (PTT), 100% Talk
IMPORTANT
The maximum allowed gain of the λ/4 Omni-directional antenna for the VRX1000 is Unity
(0dBd).
RF Exposure Label
The RF Exposure Label should be affixed in the vehicle beside the mobile radio
control head. The label should be in the direct view of the Repeater operator. The
label is supplied with the VRX1000.
FCC Label
February 2016 Page 15 of 92
8A087X02 R3
VRX1000
User’s Guide
Installation Requirements for Compliance with
Radio Frequency (RF) Energy Exposure Safety
Standards
ATTENTION!
To ensure compliance with RF Energy Safety Standards:
Install only Futurecom / Motorola Solutions approved antennas and accessories and
set conducted power into the VRX1000 antenna equal to or lower than the approved
power levels – refer to Table 1.
February 2016 Page 16 of 92
8A087X02 R3
FIXED NETWORK TYPE / MOBILE RADIO MODE
Portable
Radio Type /
Mode
Conventional
Analog incl.
Mixed Receive
Conventional
P25 incl.
Mixed Receive
3600 Analog /
Digital
Trunking
9600 P25
Trunking
FDMA
9600 P25
Trunking
TDMA
Conventional
Analog
YES
A
YES
A/M
YES
A
YES
A/M
YES
A
Generic P25
Conventional
NO
YES
D/FA/M
NO
YES
D/M
NO
P25
Conventional
‘DVRS
Enabled’
YES
FA
YES
D/FA/M
YES
FA
YES
D/FA/M
YES
FA
VRX1000
User’s Guide
Introduction
The VRX1000 is a simplex radio coverage extender, which is interfaced to a compatible
remote mount Motorola Solutions Mobile Radio and enables Portable Subscriber Units
(PSU) to be used in areas where only Mobile Subscriber Unit (MSU) coverage is
available and PSU coverage is either intermittent or completely absent.
Installed in the trunk of a car, fire truck, armored vehicle, ambulance, the VRX1000
extends radio communications to the PSU users who are outside of the vehicle, inside a
nearby building or in any marginal portable radio coverage areas. The VRX1000 extends
voice (analog, P25 clear or P25 encrypted) communications and supports key trunking
system features. The VRX1000 can be configured to provide various advanced options
to the users.
Table 2 provides information on the VRX1000 infrastructure compatibility options.
Table 2 VRX1000 vs Infrastructure Compatibility
VRX Channel Types:
A = Analog, D = Digital, M = Mixed, FA = Forced Analog (see Part II of this manual)
February 2016 Page 17 of 92
8A087X02 R3
VRX1000
APX4500
APX6500
APX7500
MASP / XCMP
CONTROL HEAD
& ACCESSORIES
TX=RX=F1
CONVENTIONAL P25
OR
CONVENTIONAL ANALOG
VRX1000
User’s Guide
Identifying Your VRX1000 Model
Frequency Band of Operation
Depending on the frequency band of operation of the APX Mobile Subscriber Unit (MSU)
and VRX1000, the VRX1000 models are classified as follows:
In-Band – when the MSU and VRX1000 operate in the same frequency band.
Cross-Band – when the MSU and VRX1000 operate in two different frequency
bands.
Cross-Band
Cross-Band VRX1000 models do not include any filters on the MSU side since the MSU
and VRX1000 are not intended to simultaneously operate in the same frequency band.
In single band MSU configurations the MSU and VRX1000 operate in different frequency
bands.
In dual band MSU configuration either the MSU & VRX1000 operate in 3 different
frequency bands or one of the MSU frequency bands is locked out when VRX operation
is enabled as shown on Figure 1.
Figure 1 Cross-Band VRX1000 - Conceptual Diagram
February 2016 Page 18 of 92
8A087X02 R3
VRX1000
APX4500
APX6500
APX7500
MASP / XCMP
CONTROL HEAD
& ACCESSORIES
TX=RX=F1
CONVENTIONAL P25
OR
CONVENTIONAL ANALOG
IN-BAND
FILTER
(No RF
SW)
IN-BAND
FILTER
VRX1000
User’s Guide
In-Band
The in-band VRX1000 models are equipped with two sets of filters, which are required in
order to ensure interference-free operation when both the MSU and VRX1000 are
transmitting and receiving simultaneously in the same frequency band. The VRX1000
filter provides 40 dB isolation on the Mobile radio transmit / receive frequencies. The
filter installed at the output of the MSU is designed to provide 40 dB isolation on the
VRX1000 TX/RX Frequency Range.
IMPORTANT!
The above filter isolation must be complemented by 30dB minimum antenna
isolation (between the VRX1000 and Mobile Radio antennas) in order to ensure
interference-free operation. It is recommended that the MSU in-band antenna is
mounted on the roof top of the vehicle while the VRX antenna is mounted on the
trunk. Each VRX1000 is shipped equipped with custom filters tuned to the
specified frequency bands – note the frequency range specified on the filter
labels. Programming the VRX / MSU radio to operate on frequencies outside of the
original specified bands may result in intermittent or complete loss of
communications. Frequency changes may require filter retuning or replacement.
NOTE:
The VRX1000 and MSU require two or three (in the case of dual band MSU) separate
antennas.
IMPORTANT!
The In-Band filters connected to the APX MSU can handle up to 50 Watts MSU TX
power and have typical insertion loss of 1.5dB.
Figure 2 In-Band VRX1000 - Conceptual Diagram
February 2016 Page 19 of 92
8A087X02 R3
VRX1000
User’s Guide
Band Locking
Two in-band sets of filters – one placed at the MSU Antenna port and another placed at
the VRX1000 Antenna port, are required when both the MSU and VRX1000 are
configured to operate in the same frequency band. The frequency specific in-band filters
are required in order to prevent interference when the VRX1000 is receiving & MSU is
transmitting and vice versa.
When the in-band filter is not present, the Band Lock feature must be enabled (by using
the Tweaker programming software) in order to prevent VRX1000 operation on MSU
channels that are explicitly using the same frequency band as the VRX1000. On MSU
channels where the frequency band is not explicitly known such as in multi-site trunking
systems, the MSU will be prevented from using frequencies in the same band while the
VRX1000 is active (i.e. in SYSTEM or LOCAL mode). In this case the MSU will no
longer allow roaming to sites using the locked out band. If the MSU is currently on a
trunking site that uses the locked out band, the MSU will roam to another site. If no other
sites are available, the MSU will enter Out Of Range state. When the VRX1000 is
inactive (OFF mode), the MSU frequency band is unlocked.
In the case of a single band MSU (such as the APX4500 and APX6500), in-band
VRX1000 applications always require in-band filters and the Band Locking feature must
be disabled.
For MSU conventional channels where the band is known and fixed, the VRX1000
restricts access to channels using the locked out frequency band.
If Band locking is enabled in the VRX1000 and SCAN is enabled in the MSU, the MSU
will skip over any channels in the scan list that are configured to operate in the same
frequency band as the VRX1000.
IMPORTANT!
A 700MHz VRX1000 interfaced to APX MSU operating on 800MHz as well as an
800MHz VRX1000 interfaced to APX MSU operating on 700MHz are considered InBand applications and either In-Band filters must be provided or band locking
must be enabled (if the MSU is dual band and VRX operation can be supported on
the non 700/800MHz band).
The above is also valid for any of the UHF Bands – if the MSU operates on any of
the UHF ranges, an UHF VRX interfaced to it will require in-band filters to be
installed or band locking to be enabled.
February 2016 Page 20 of 92
8A087X02 R3
VRX1000
User’s Guide
VRX1000 Operation Basics
The operation of the VRX1000 is determined by the following:
Firmware, Tier Options and programming settings of the VRX1000 (VRX1000
personality).
Firmware options and programming settings of the MSU that is interfaced to the
VRX1000.
Configuration capabilities and programmed settings of the radio system.
Type and programming settings of the portable radios used for communications
through the VRX1000.
IMPORTANT!
Depending on the selected personality settings and configuration capabilities of
the complete radio system infrastructure, the features / options described
throughout this document may or may not be applicable to the specific VRX1000
operation.
February 2016 Page 21 of 92
8A087X02 R3
PSU FEATURE SUPPORT BY
VRX1000
DVRS/VRX
Enabled PSU
[Note 5]
Generic
P25 PSU
Analog PSU
Registration / Deregistration
Yes
Yes [Note 1]
Yes [Note 3]
Talk Group Proxying / Translation
Yes
Yes
No
Group Calls
Yes
Yes
Yes
Private Calls
Yes
No
No
Announcement Group
No
No
No
Phone Interconnect
No
No
No
Patch
Yes
No
No
Dynamic Regrouping
Yes
No
No
Selector Lock / Unlock
No
No
No
Emergency Call / Alarm
Yes
Yes
Yes
Emergency ID Pass through
Yes
Yes
Yes [Note 2]
PSU Hot Mic
Yes [Note 4]
No
No
PSU Emergency Revert
Yes
Yes
Yes
P25 Encryption
Yes
Yes
No
Call Alert Page
Yes
Yes
No
System Status Broadcast (Failsoft,
Out Of Range, Site Trunking)
Yes
No
No
Local Mode Indication
Yes
No
No
Adaptive Power Control
Programmable
Yes [Note 6]
No
PSU Revert to Talk Around when
no VRX1000 present
Yes
No
No
Talk Permit Tones (generated by
PSU)
Yes
No
No
Leading / Trailing Tones (sent over
the air)
No
No
Yes
Radio Check / Radio Inhibit
Yes
Yes
No
P25 Trunking OTAR
Yes
No
No
PSU GPS
Yes
No
No
PSU SCAN
No
No
No
PSU Group Services
Yes [Note 7]
No
No
Remote VRX Activation by PSU
Yes (Call Alert)
Yes (Call Alert)
Yes (DTMF)
Remote VRX Activation by PSU
Emergency Alarm
Yes
Yes
Yes
(MDC1200)
VRX1000
User’s Guide
PSU Features Supported by VRX1000 on Motorola Infrastructure
When the PSU user is out of system radio coverage, the PSU can be switched to a
dedicated VRX1000 channel so that the PSU can communicate via the VRX1000. The
features available to the PSU user depend on the PSU type, programming and selected
mode. The table below specifies what features are supported by the different PSU types.
Table 3 VRX1000 Features vs Type of PSU
Note 1 When selecting a VRX1000 Mode on the Generic P25 PSU, it registers upon first Group Call.
Generic PSU is deregistered after a preprogrammed timer counting the period of inactivity expires.
Note 2 Supported only with MDC1200 capable portables. Emergency Alert ID Pass through only supported.
Note 3 Analog PSU is registered on the P25 system with its MDC1200 ID.
Note 4 Requires firmware R12.00.13 or later if using XTS and R07.00.05 or later if using APX ‘DVRS/VRX
Enabled’ PSU.
Note 5 The PSU models that can be programmed as DVRS/VRX Enabled are described in Table 7.
Note 6: Motorola Solutions XTS or APX series PSUs in non DVRS/VRX Enabled mode.
Note 7: Group Services only supported on APX PSUs (R14.50.00 or later on PSU/MSU).
February 2016 Page 22 of 92
8A087X02 R3
‘VRX1000 ENABLED’ PSU FEATURE SUPPORT
HARRIS
P25 Trunked FDMA
CASSIDIAN
P25 Trunked FDMA
PSU Registration / Deregistration
Yes
Yes
PSU Talk Group Proxying / Translation
Yes
Yes
In Car Monitor
Yes
Yes
MSU MIC PTT with VRX1000 ON
Yes
Yes
PSU Group Calls
Yes
Yes
PSU Private Call II *
Yes
Yes
PSU Emergency Call / Alarm
Yes
Yes
PSU Emergency ID Pass Through
Yes
Yes
PSU Hot Mic
Yes
Yes
PSU P25 Encryption
Yes
Yes
PSU Call Alert Page
Yes
Yes
Out Of Range / Site Trunking indication on PSU
Yes
Yes
VRX1000 OOR indication on PSU
Yes
Yes
FNE NO COMMS indication through DVRS
Yes
Yes
VRX1000 Local Mode Indication on PSU
Yes
Yes
Talk Permit Tones (generated by PSU)
Yes
Yes
PSU Radio Check / Radio Inhibit
Yes
Yes
PSU P25 Trunking OTAR
Yes - Limited
Yes
PSU Adaptive Power Control
Yes
Yes
PSU Phone Interconnect
No
No
PSU Patch & Simulselect
Yes
Yes
PSU Dynamic Regrouping
Not Supported
Not Supported
Automatic Revert to TA when no VRX1000
Yes
Yes
PSU GPS
Yes
Yes
Remote VRX1000 Activation by PSU Call Alert
Page to VRX1000 ID
Yes
Yes
Remote VRX1000 Activation by PSU
Emergency Alarm Retries
Yes
Yes
PSU Status / Message
Yes
Yes
Remote MSU Channel Steering via PSU Call
Alert Page to VRX1000 ID
Yes
Yes
Data
Not Supported
Not Supported
PSU OTAP
Not Supported
Not Supported
MSU Votescan
Not Supported
Not Supported
Limited Features support on P25 TDMA FNE
Yes
(Group Voice, PTT-ID
and Emerg Alarm/Call)
Not Supported
VRX1000
User’s Guide
‘VRX1000 Enabled’ PSU Features Supported on Non-Motorola
Infrastructure
Table 4 VRX1000 Enabled PSU Features Support on Non-Motorola Infrastructure
*PC II support only; Enhanced Private Calls are only supported on Motorola infrastructure.
February 2016 Page 23 of 92
8A087X02 R3
VRX1000
User’s Guide
Powering up the VRX1000
The VRX1000 powers up together with the MSU. The power up mode and channel are
programmable. Depending on the programmed personality, the VRX1000 can power up
in one of the following states:
VRX1000 Disabled mode, last selected VRX1000 channel
OFF mode
SYSTEM mode, last selected VRX1000 channel
SYSTEM mode, preprogrammed VRX1000 channel
LOCAL mode, last selected VRX1000 channel
LOCAL mode, preprogrammed VRX1000 channel
If the VRX1000 powers up on a ‘strapped’ mobile radio channel, the VRX1000
will be steered according to the Talk Group selected on the MSU. The steering
may involve both VRX1000 channel and mode change.
Turning ON the VRX1000
When the MSU is powered up, the VRX1000 can be activated by one or more of the
methods described in the following section.
The VRX1000 is ON when SYSTEM (or optionally LOCAL) mode of operation is
selected.
The VRX1000 is OFF when OFF mode is selected.
The VRX1000 is disabled when a “VRX1000 Disabled” Mode / Channel is
selected on the APX MSU or if the currently selected VRX1000 and MSU modes
are incompatible (such as TDMA MSU mode and P25 Digital VRX1000 channel).
NOTE:
The VRX1000 can only be activated when a compatible “VRX1000 Enabled” mode /
channel is selected on the APX MSU.
Activating the VRX1000 via the Control Head
Ensure the MSU is powered up and a VRX1000 Enabled TG / channel is selected on the
control head.
To activate the VRX1000:
Press the DVRS menu item to enter the ‘DVR/VRX1000 Control Mode’.
Once in the ‘DVR/VRX1000 Control Mode’ screen, press the MODE button to
toggle the available VRX1000 modes until the desired mode is selected.
Press the SEL button or wait the preprogrammed time until the ‘DVR/VRX1000
control Mode’ screen times out. The last selected VRX1000 mode becomes
effective.
Long press of the DVRS menu item can be programmed to turn the VRX1000
ON/OFF.
Pressing the DVRS button allows the user to enter the ‘DVR / VRX1000 Control Mode’
and to select the desired VRX1000 mode and channel.
February 2016 Page 24 of 92
8A087X02 R3
AVRA Configuration
(as programmed in
VRX1000)
System Mode
Allowed
VIP Input
Current
VRX1000
Mode
New VRX1000
mode
Activation / Deactivation
True
Asserted
OFF
SYSTEM
Activation / Deactivation
False
Asserted
OFF
LOCAL
Activation / Deactivation
True
Asserted
LOCAL
SYSTEM
Activation / Deactivation
False
Asserted
LOCAL
LOCAL
Activation / Deactivation
True
Asserted
SYSTEM
SYSTEM
Activation / Deactivation
True/False
De-asserted
ANY
OFF
Activation Only
True
Asserted
OFF
SYSTEM
Activation Only
False
Asserted
OFF
LOCAL
Activation Only
True
Asserted
LOCAL
SYSTEM
Activation Only
False
Asserted
LOCAL
LOCAL
Activation Only
True
Asserted
SYSTEM
SYSTEM
Activation Only
True/False
De-asserted
ANY
NO CHANGE
Toggle
True
Asserted
OFF
SYSTEM
Toggle
False
Asserted
OFF
LOCAL
Toggle
True/False
Asserted
LOCAL
OFF
Toggle
True
Asserted
SYSTEM
OFF
Toggle
True/False
De-asserted
ANY
NO CHANGE
VRX1000
User’s Guide
Automatic VRX1000 Activation (AVRA)
The VRX1000 can be activated automatically (switched from OFF or LOCAL to SYSTEM
Mode) if one of the VIP inputs on the MSU control head is wired to the desired trigger
source – portable charger switch or door switch or custom manual switch.
When AVRA is enabled in the VRX1000, the user still has the option of manually
changing the VRX1000 mode from the MSU control head or remotely.
The AVRA feature depends on the VRX1000 programming as shown below:
Table 5 AVRA Functionality
February 2016 Page 25 of 92
8A087X02 R3
VRX1000
User’s Guide
Remote Activation of the VRX1000
Via Call Alert (Page) to VRX1000
NOTE:
This feature requires the use of a P25 PSU and implies Digital or Forced Analog
VRX1000 mode of operation.
To remotely activate a VRX1000, the PSU user can send a Call Alert (Page) with the ID
of the specific VRX1000.
Upon receipt of a Call Alert (Page) from the PSU the VRX1000 will:
Switch from OFF or LOCAL mode to SYSTEM mode (unless it is already in the
SYSTEM mode). If the selected VRX1000 / MSU channel is programmed as
LOCAL only, the VRX1000 will switch from OFF to LOCAL mode.
Switch to Primary status and force any other Primary VRX1000 to become a
Secondary unless there is a Permanent Primary (on the same VRX1000
channel) already present in the same area.
Force the MSU to revert to a TG selected on the PSU (if programmed).
Via PSU Emergency Alarm
The VRX1000 switches from OFF to SYSTEM mode after a programmable number of
Emergency Alarm attempts sent by a PSU are successfully received by the VRX1000
and are not serviced by another (Primary) VRX1000.
Via PSU DTMF Tones
To remotely activate a VRX1000 (analog mode), the PSU user can send a
preprogrammed DTMF sequence, which can be received by VRX1000 in the PSU radio
coverage area.
Upon receipt of the preprogrammed DTMF sequence from the PSU the VRX1000 will:
Switch from OFF or LOCAL mode to SYSTEM mode.
Switch to Primary status unless there is already a Primary / Permanent Primary
VRX1000 (on the same VRX1000 channel) already present in the same area.
DTMF activation is supported on analog or mixed mode VRX1000 channels only.
February 2016 Page 26 of 92
8A087X02 R3
DVR MODE
STATUS VALUE
OFF
1
LOCAL
2
SYSTEM
3
VRX1000
User’s Guide
Via System / Dispatcher Call Alert Page to MSU
Dispatcher can send a Call Alert (Page) to a specific MSU ID, which in turn causes
VRX1000 mode change in the following order: OFF-SYS-LOC-OFF.
The MSU can be programmed to support one of the following configurations:
a. Call Alert / Remote Activation Disabled – the MSU does not respond to any Call
Alert requests
b. Call Alert Enabled – the MSU responds to Call Alerts addressed to its ID and
does NOT initiate VRX1000 mode change
c. Remote Activation Enabled – the MSU will acknowledge Call Alerts addressed to
its ID and will initiate VRX1000 mode change provided the source ID of the Call
Alert is programmed in the “VRX1000 Remote Activation IDs” table.
If “Generate Status on DVR Mode Change” is enabled for a given VRX1000 Profile (in
the APX MSU) , the MSU will send back a mode change status to indicate the current
VRX1000 mode (OFF, SYSTEM, LOCAL). Only the dispatcher console can interpret
those status messages:
Dispatcher can’t force a Non-Primary VRX1000 to become a Primary and can’t activate
a VRX1000 when a ‘VR Disabled’ mode is selected on the control head.
February 2016 Page 27 of 92
8A087X02 R3
DVR MODE
STATUS VALUE
OFF
1
LOCAL
2
SYSTEM
3
VRX1000
User’s Guide
Turning OFF the VRX1000
Deactivating the VRX1000 via the MSU Control Head
To deactivate the DVR via the MSU control head:
Press the DVRS button to enter the ‘DVR/ VRX1000 Control Mode’, then press
the MODE button until VR OFF is displayed and either press the SEL button or
wait for the screen timeout (6 seconds).
OR
Select a ‘DVR Disabled’ TG / Mode / Zone on the MSU
OR
Power down the MSU if radio operation is no longer required.
Deactivating the VRX1000 via Call Alert sent by Dispatch
Dispatcher can send a Call Alert (Page) to a specific MSU ID, which in turn causes
VRX1000 mode change in the following order: OFF-SYS-LOC-OFF.
The MSU can be programmed to support one of the following configurations:
a. Call Alert / Remote Activation Disabled – the MSU does not respond to any Call
Alert requests
b. Call Alert Enabled – the MSU responds to Call Alerts addressed to its ID and
does NOT initiate VRX1000 mode change
c. Remote Activation Enabled – the MSU will acknowledge Call Alerts addressed to
its ID and will initiate VRX1000 mode change provided the source ID of the Call
Alert is programmed in the “DVR Remote Activation IDs” table.
If “Generate Status on DVR Mode Change” is enabled for a given DVRS/VRX1000
Profile (in the APX MSU) , the MSU will send back a mode change status to indicate the
current VRX1000 mode (OFF, SYSTEM, LOCAL). Only the dispatcher console can
interpret those status messages:
February 2016 Page 28 of 92
8A087X02 R3
VRX1000
User’s Guide
Automatic VRX1000 Deactivation
AVRA
If the VRX1000 is in the SYSTEM or LOCAL Mode and the AVRA VIP input is deasserted, the VRX1000 can be programmed to automatically switch to OFF Mode as
described in Table 5. If the VRX1000 is in the OFF Mode, de-asserting the AVRA VIP
will not result in any change. The method of de-asserting the AVRA VIP depends on the
actual installed AVRA trigger. For example, if the selected AVRA trigger is the Portable
Charger Switch, de-asserting the AVRA VIP input is equivalent to placing the PSU back
in the charger.
Inactivity Timer
If programmed, the VRX1000 can switch automatically to OFF mode upon expiration of
its Inactivity Timer (programmable from 0 to 180 minutes). The timer is restarted every
time the VRX1000 detects PSU activity.
February 2016 Page 29 of 92
8A087X02 R3
O5 DISPLAY ICON /
MESSAGE
DVRS STATUS DESCRIPTION
Steady
VRX1000 is in a Primary State
Steady
Primary VRX1000 Receiving
Steady
Primary VRX1000 Transmitting
Flashing
VRX1000 is in a Secondary State
Flashing
Secondary VRX1000 Receiving
Steady
VRX1000 is in a Permanent Primary State
Flashing
VRX1000 is in a Permanent Primary on Standby (there is
another Permanent Primary already present in the area)
Flashing
Permanent Primary on Standby Receiving
Steady
Permanent Primary Receiving
Steady
Permanent Primary Transmitting
VR SERVICE
VRX1000 is in Service Mode (during re-flashing of the
firmware).
VR ERROR
VRX1000 detected error. Display toggles between VR
ERROR and the actual error code / number.
VR IN RESET
VRX1000 is being reset
VR DISABLED
VRX1000 Disabled on selected MSU TG / Mode
V R
V R
V R
V R
VRX1000
User’s Guide
VRX1000 Status Display
The following MSU control head display Icons / messages relate to the VRX1000
operation:
Table 6 VRX1000 Status Display Messages / Icons
February 2016 Page 30 of 92
8A087X02 R3
PSU Models that can be
‘VRX1000/DVRS Enabled’
PSU Firmware Revision Required
XTS1500
XTS2500
XTS5000
R9.00.00 and higher
Note: It is highly recommended to always use the latest
released PSU firmware to ensure all fixes and new features
are included.
APX4000
APX6000
APX7000
APX8000
R7.00.05 and higher
APX8000 - R14.50.00 and higher
Note: It is highly recommended to always use the latest
released PSU firmware to ensure all fixes and new features
are included.
APX portable radios operating through a DVR,
utilizing the enhanced DVR digital feature set
require subscriber option QA00631.
VRX1000
User’s Guide
‘DVRS/VRX1000 Enabled’ PSUs
The following Portable Radios have firmware that allows enhanced communications with
the DVR / VRX1000 and support of an extended list of features.
Table 7 DVRS/VRX1000 Enabled PSU Models
All other P25 capable PSU models or the above models with either older firmware
versions or when not programmed as ‘DVRS/VRX Enabled’, can only be programmed as
‘P25 Generic’ since they are not capable of enhanced communications with the
VRX1000.
IMPORTANT!
The VRX1000 must have Option TT05953AA in order to be able to use with
VRX/DVRS Enabled portable radios.
February 2016 Page 31 of 92
8A087X02 R3
TONE TYPE
TONE NAME
DVRS STATUS
Short high-pitched tone
‘DVRS’ Button Press
Indicates a valid DVRS (VRX)
Button press during
DVRS/VRX1000 Selection Mode.
Short low-pitched tone
VRX1000 Invalid
Option
Indicates Invalid VRX1000
selection (for example when
pressing the PM button when PM
option is disabled).
Long high-pitched tone
VRX1000 Control
Timeout
Indicates the end of VRX1000
Control Mode session. The last
VRX1000 settings (VRX1000
channel, mode, Permanent
Primary status) selected by the
user and displayed on the MSU
control head become active.
Chirping Sound
Permanent Primary
ON/OFF
Indicates Permanent Primary
ON/OFF.
Two short low-pitched
tones
50% Transmit Duty
Cycle
Indicates that the VRX1000 and
Mobile radio transmitters have
been keyed up more than 50% of
the time over the past 30 minutes
and any nearby bystanders may
be getting excessive RF radiation.
The users must immediately limit
their talk time to comply with FCC
rules.
Single high-pitched tone
every few seconds (5-255
sec. programmable)
VRX1000 Active
Indicates the VRX1000 is either in
SYSTEM or LOCAL mode
(programmable). The ‘VRX1000
Active’ tones are heard in both
Primary and Secondary VRX1000
modes.
VRX1000
User’s Guide
VRX1000 Status Tones
VRX1000 Status Tones - MSU Speaker
The following VRX1000 specific tones will be heard in the MSU speaker under the
circumstances described below:
Table 8 VRX1000 Status Tones (MSU Speaker)
February 2016 Page 32 of 92
8A087X02 R3
TONE TYPE
TONE NAME
DESCRIPTION
Series of short
beeps
Go Ahead System
(clear)
VRX1000 system mode talk permit tone,
clear voice
Series of short
beeps
Go Ahead System
(secure)
VRX1000 system mode talk permit tone,
encrypted (secure) voice
Series of short
beeps
Go Ahead Local
(clear)
VRX1000 local mode talk permit tone, clear
voice
Series of short
beeps
Go Ahead Local
(secure)
VRX1000 local mode talk permit tone,
encrypted (secure) voice
Low pitched tone
every 30 seconds
Low Car Battery
Sent by the VRX1000 when the car battery
voltage is below the programmed threshold
Series of short
beeps
Queued Call
Call has been queued, waiting for system
grant
Two short beeps
No Activity Timer
Expiration
Warning tones sent to alert the PSU users
that the VRX1000 will switch from SYS/LOC
to OFF. Sent every minute for the last 5
minutes prior to the switching.
Three beeps
VRX1000 Active
Tones sent upon VRX1000 activation (SYS
or LOC mode).
VRX1000
User’s Guide
VRX1000 Status Tones - PSU
P25 ‘DVRS/VRX1000 Enabled’ PSU
The following tones are available (if programmed) in the P25 “DVRS/VRX1000 Enabled”
PSUs:
Table 9 P25 DVRS/VRS1000 Enabled PSUs – DVRS/VRX1000 Specific Tones
Generic P25 PSUs
‘Low Car Battery’, ‘No Activity Timer Expiration’ and ‘VRX1000 Active’ tones (as
described in Table 9 above) are supported.
February 2016 Page 33 of 92
8A087X02 R3
TONE TYPE
TONE NAME
DESCRIPTION
Beep
Encrypted Call
Sent to local analog PSUs when the MSU is
receiving encrypted call. The beeps are sent until
the encrypted call ends.
Three Short
Beeps
Long Low pitched
tone
Leading Go
Ahead
Leading Deny
Leading tones sent by the VRX1000 over the air
upon receipt of system grant. Requires the LPSU
user to do ‘double PTT’ in order to get a channel
and release the PTT to be able to receive the
Leading Tones.
Single highpitched tone
Longer Low
pitched tone
Trailing
Successful
System Access
Trailing
Unsuccessful
System Access
Trailing Tones sent by VRX1000 in analog mode
to conventional analog PSUs at the end of PSU
transmission. If the transmission was
unsuccessful the PSU User will know that he /
she needs to repeat the message if they want to
reach the system. Lack of Trailing tones would
indicate that the PSU user is outside of the
VRX1000 range.
Single Low
pitched tone
every 30 seconds
Low Battery
The Low Battery tones are sent to the local
portables every 30 seconds when the battery
voltage drops below the programmed threshold.
Single Low
pitched tone
Trailing Access Denied
Indicates system was busy and the portable radio
call was only repeated locally.
Programmable or
default (3 short
beeps)
Emergency
ACK
If programmed, emergency ACK tones are sent
by the VRX1000 when processing MDC1200
emergency issued by a PSU.
Two short beeps
No Activity
Timer
Expiration
Warning tones sent to alert the PSU users that
the VRX1000 will switch from SYS/LOC to OFF.
Sent every minute for the last 5 minutes prior to
the switching.
Programmable
number of tones,
tone duration and
frequencies.
VRX1000
Activation
If programmed, VRX1000 generated tones are
sent to the PSUs every time the DVR is activated
i.e. switched to LOCAL or SYSTEM Mode.
VRX1000
User’s Guide
Conventional Analog PSUs
The VRX1000 in analog mode can be configured to send the following tones to the
analog PSUs:
Table 10 Analog PSU - VRX1000 Specific Tones
NOTE:
All PSUs which are in the analog mode VRX1000 radio coverage area and switched to
the VRX1000 channel will hear the VRX1000 status tones since those are transmitted
over the air (on the same frequency with PL/DPL) and are NOT generated by the
portable radios.
February 2016 Page 34 of 92
8A087X02 R3
VRX1000
User’s Guide
‘DVRS/VRX1000 Enabled’ Mobile Radio TGs / Channels
VRX1000 operation may be enabled (by the VRX1000 and MSU programming) on
selected mobile radio Talk Groups / channels and disabled on others.
When the user selects a DVRS/ VRX1000 Enabled TG / channel on the MSU control
head, the VRX1000 operation is enabled in the following manner:
The VRX1000 automatically enters the pre-programmed VRX1000
mode/channel associated (‘Strapped’) with the selected MSU TG / channel if
VRX1000 strapping is programmed in the VRX1000.
OR
The user may change the VRX1000 mode / channel (if ‘strapping’ is not
enabled) by pressing the assigned DVRS/VRX1000 button and entering the
‘DVR/ VRX1000 control mode’.
The VRX1000 can be activated and used to repeat messages between the
system users of the TG/channel selected on the MSU and the PSU users on the
selected VRX1000 channel.
If enabled in the VRX1000 personality, ‘VRX1000 Enabled’ tones will be heard
every few seconds (5-255 sec. programmable) in the MSU speaker, regardless
of the Primary / Secondary status.
‘DVRS/VRX1000 Disabled’ Mobile Radio TGs / Channels
VRX1000 operation may be enabled on selected mobile radio Talk Groups / channels
and disabled on others.
When the user selects a “DVRS/VRX1000 Disabled” TG / channel on the control head:
Pressing the DVRS/VRX1000 button results in a VRX1000 Invalid Option Tone
(single low-pitched tone).
VRX1000 operation is prohibited i.e. all VRX1000 functions are disabled.
Call Alert Page from the local PSU, sent on the last used VRX1000 channel, can
steer the MSU to a ‘VR Enabled’ mode if programmed accordingly.
February 2016 Page 35 of 92
8A087X02 R3
VRX1000
User’s Guide
In Car Monitor (ICM)
The ICM feature allows the MSU to monitor PSU Voice traffic and is configurable in the
MSU codeplug as follows:
ICM is enabled / disabled globally in the MSU via the ‘ICM Allowed’ Field
If ‘ICM Allowed’ is programmed in the MSU then ICM operation is further
configured on a per MSU channel basis via the ‘ICM Allowed’ codeplug field.
ICM functionality is further configured to be triggered by either Hang Up Box
(HUB) on / off transitions OR via menu item / button on the MSU control head or
keypad microphone.
When ICM functionality is configured to be triggered via HUB on/off then ‘ICM Selected’
operation takes place when the MSU microphone is placed on HUB, ‘ICM All’ operation
will take place when the MSU microphone is taken off HUB.
For details on how to program the ICM functionality and options in the MSU, please refer
to the corresponding Motorola Solutions Documentation.
When the MSU is operating on a Trunking FNE with ICM enabled the following
configurations are available:
‘ICM Selected’ – the MSU speaker unmutes to PSU audio matching its selected
TG ID (digital VRX channel) or all qualified analog PSU audio (analog VRX
channel).
‘ICM All’ – the MSU speaker unmutes to all PSU audio regardless of the TG ID
(digital VRX channel) or all analog PSU audio (analog VRX channel).
When the MSU is operating on a Conventional FNE with ICM enabled the following
configurations are available:
‘ICM Selected’ and MSU configured for Selective Squelch – the MSU speaker
will unmute only to PSU audio matching its selected TG (digital VRX channels) or
qualified analog audio (analog VRX channels)
‘ICM Selected’ and MSU configured for Normal Squelch – the MSU speaker will
unmute to any PSU TG audio (digital VRX channels) or qualified analog PSU
audio (analog VRX channels).
‘ICM All’ – the MSU speaker unmutes to all PSU audio
February 2016 Page 36 of 92
8A087X02 R3
VRX1000
User’s Guide
Primary / Secondary Operation Basics
The VRX1000 has a built-in simulcast prevention mechanism, which prevents more than
one VRX1000 to transmit on the same frequency, at the same time, in the same
location.
NOTE:
The algorithm is intended to operate in stationary, same scene scenarios only. It cannot
be applied to moving vehicles. Moving vehicles must either have the VRX1000
switched OFF or ‘VR Disabled’ MSU mode selected.
The VRX1000 units are capable of communicating with each other and negotiating
which VRX1000 is a Primary, i.e. elected to transmit, and which VRX1000s are
Secondary for as long as there is a Primary.
The simulcast prevention algorithm has two phases:
Primary / Secondary Phase
Busy Lockout Phase
During the ‘Primary / Secondary’ phase, the VRX1000 units exchange P25 messages.
When a VRX1000 is activated (switched to System or Local mode), it sends a query –
“Is there a Primary?” If it receives a Primary (or Permanent Primary) ‘Heart Beat’, then
the VRX1000 assumes Secondary state. If no Primary Heart Beat is received, the
VRX1000 becomes the Primary and starts sending ‘Primary Heart Beats’ notifying other
VRX1000s of its status.
The ‘Secondary’ VRX1000s monitor any VRX1000-related activity while in a Standby
mode and execute Primary/Secondary checks periodically.
The ‘Primary’ VRX1000 services any communication requests in the area and
‘communicates’ its status to the other VRX1000s periodically.
The Busy Lockout phase serves as an added protection by forcing the Primary VRX1000
to check for any activity on its Tx frequency prior to transmitting.
The Primary / Secondary Status of a VRX1000 is re-evaluated every time one of the
following takes place:
Change of VRX1000 channel frequency
Change of VRX1000 mode
Remote activation of another VRX1000
Selecting a VRX1000 Disabled TG / Channel on the MSU
Powering down a VRX1000
Detected presence or absence of another Primary
User enforced Permanent Primary status
February 2016 Page 37 of 92
8A087X02 R3
PRIMARY
STANDBY
PERMANENT
PRIMARY
DEFINITION
An active VRX1000
which has won the
voting selection and
has been selected to
repeat Local PSU or
System
communications.
An active VRX1000
which was voted off
and forced to stay on
stand-by, without
repeating for as long
as the elected Primary
VRX1000 is servicing
the communication
needs in the area.
An active VRX1000,
which is forced by the
user or programmed to
act as a Primary. The
Permanent Primary
forces all other
VRX1000s in the area
to assume Secondary
status. If more than
one Permanent
Primary is available in
the same area, it will
go through higher level
voting to elect one
winning Permanent
Primary.
SELECTION
Transparent to the
user selection via
VRX1000 voting
algorithm.
Transparent to the
user selection via
VRX1000 voting
algorithm.
Press the DVRS
button on the MSU CH
to enter the ‘DVR/VRX
Control Menu’, then
press the PM button to
toggle Permanent
Primary Status ON
and OFF if such
selection is enabled in
the VRX1000
personality.
DISPLAY
Steady
Flashing
Steady
V R
V R
V R
VRX1000
User’s Guide
Table 11 Primary VRX1000 Definitions
NOTE:
As an option, an external light may be placed on the top of the vehicle, which can be
used to indicate which VRX1000 is the currently selected Primary.
February 2016 Page 38 of 92
8A087X02 R3
Voting
Compatibility
VRX1000
DVRS
AVE (Analog Interface
to APX MSU)
Non VRS-
750
VRS-750
Mode (future)
Simplex
Mode
Non VRS-
750
VRS-750
Mode
VRX1000
Non VRS-750
YES
NO
YES
YES
NO
VRX1000
VRS-750 Mode
NO
YES
NO
NO
YES
DVRS
Simplex Mode
YES
NO
YES
YES
NO
AVE
Non VRS-750
YES
NO
YES
YES
NO
AVE
VRS-750 Mode
NO
YES
NO
NO
YES
VRX1000
User’s Guide
Permanent Primary Activation
If programmed, a VRX1000 can be forced to be a Permanent Primary from the MSU CH.
NOTE:
If another Permanent Primary is already present, the newly activated Permanent Primary
VRX1000 will force the “old” Permanent Primary to assume Permanent Primary ‘On
Standby’ Status. If the Permanent Primary leaves the scene, the Permanent Primary
‘On Standby’ takes over. If several users try to simultaneously activate several
VRX1000 units as Permanent Primaries, the VRX1000s will go through voting to ensure
only one Permanent Primary is selected and all other VRX1000s are forced to become
Permanent Primary ‘On Standby’.
Permanent Primary Deactivation
The Permanent Primary status of a VRX1000 can be switched off from the MSU CH.
Legacy Mobexcom II Voting Compatibility Mode
The voting compatibility mode is applicable to analog VRX1000 mode only. If Legacy
Mobexcom II Voting Compatibility mode is enabled in the VRX1000, its voting algorithm
is compatible with the legacy analog only Mobexcom II VRs. Enabling this feature allows
seamless replacement of old style VRs with the new VRX1000 by supporting the
deployment of both types of units in the same fleet during the transition period.
VRX1000 Voting Compatibility Modes
Table 12 VRX1000 Voting Compatibility
February 2016 Page 39 of 92
8A087X02 R3
ACTIVITY
OFF MODE ACTION
Control Head Display
VR OFF <VRX1000 CH Name>
DVRS Button Press
Short high-pitched tone.
Control Mode is accessible.
MSU Receiving from System
VRX1000 does not repeat audio received by
MSU.
MSU Speaker Audio present.
MSU User PTTs the MSU
Microphone
MSU Keys up. VRX1000 does not key up.
PSU Activity on selected VRX1000
channel
No MSU repeat, no ICM.
ACTIVITY
SYSTEM MODE ACTION
Control Head Display
VR SYS <VRX CH Name>
VRX1000 Active Tones
If programmed, a short high-pitched
‘VRX1000 Enabled’ tone is repeated every few
seconds (5-255 sec. programmable) in the
MSU Speaker regardless of the Primary /
Secondary Status of the VRX1000.
DVRS Button Press
Short high-pitched tone.
DVR Control Mode is accessible.
MSU User PTTs the MSU
Microphone
MSU keys up. VRX1000 does not key up.
MSU Receiving from System
VRX1000 repeats audio received by MSU to
PSU Users of the selected VRX1000 Channel.
MSU Speaker Audio is present.
PSU Activity on VRX1000 channel
MSU repeats the PSU call to the System. MSU
Speaker Audio is present if In-Car Monitor is
enabled in the MSU.
VRX1000
User’s Guide
VRX1000 Modes of Operation
When a “DVRS/VRX1000 Enabled” TG / Channel is selected on the APX MSU control
head, the VRX1000 can be switched to one of the following modes – OFF, LOCAL or
SYSTEM.
OFF Mode
Table 13 OFF Mode Operation
SYSTEM Mode
Table 14 SYSTEM Mode Operation
February 2016 Page 40 of 92
LOCAL Mode
ACTIVITY
LOCAL MODE ACTION
Control Head Display
VR LOC <VRX1000 CH Name>
VRX1000 Active Tones
If programmed, a short high-pitched ‘VRX1000
Enabled’ tone is repeated every few seconds
(5-255 sec. programmable) in the MSU Speaker
regardless of the Primary / Secondary Status
of the DVR.
DVRS Button Press
Short high-pitched tone.
VRX1000 Control Mode is accessible.
MSU Receiving from System
VRX1000 may be programmed to repeat audio
received by MSU to the PSU Users over the
VRX1000 Channel. MSU Speaker Audio is
present.
MSU User PTTs the MSU
Microphone
MSU only or VRX only keys up as
programmed.
[Note: The MSU and VRX programming must be
correctly matched to allow either the MSU or the
VRX to transmit when the MSU PTT Microphone
is pressed as described in the VRX1000
Programming Guide in order to prevent undesired
loss of communications.
PSU Activity on VRX1000
channel
MSU Speaker Audio is present if In-Car
Monitor is enabled in the MSU.
8A087X02 R3
VRX1000
User’s Guide
Table 15 LOCAL Mode Operation
NOTE:
Due to FCC Exposure licensing limitations, when the User PTTs the MSU Microphone,
only one of the transmitters is allowed to be keyed up (VRX or MSU) as described in
Table 14 and Table 15.
February 2016 Page 41 of 92
8A087X02 R3
VRX1000
User’s Guide
Selecting VRX1000 Mode
When a ‘DVRS/VRX Enabled’ TG / channel is selected on the MSU, the user may enter
the ‘DVRS/VRX Control Mode’ by pressing the DVRS button on the control head and
change the VRX1000 mode / channel / status as described below:
Selecting VRX1000 Mode from the Control Head
To change the VRX1000 mode:
Press the DVRS button and observe the MSU enter the ‘DVR/VRX Control
Mode’.
Press the MODE button to toggle the VRX1000 mode until the desired selection
appears on the top line of the control mode display.
Once the desired mode is displayed press the SEL button or simple wait for the
control mode to timeout (the last selected VRX1000 Mode is in effect).
Strapped VRX1000 Mode
The VRX1000 mode and channel may be programmed to be ‘Strapped’ to the specific
MSU TG/Channel.
In this case, selecting a specific MSU TG / channel on the control head would
automatically force the VRX1000 to revert to a pre-programmed mode and/or channel.
For example, selecting a VRX1000 Enabled TG named ‘DISPATCH’ on the MSU may
automatically force the VRX1000 to switch to Channel 1, SYSTEM Mode. If enabled in
the specific VRX1000 personality programming, the VRX1000 user can still toggle the
VRX1000 mode by pressing the DVRS button and entering the ‘DVR/VRX Control
Mode’. If mode change by the user is prohibited in the specific VRX1000 personality, the
user can only select between the ‘Strapped’ (either LOCAL or SYSTEM) and OFF
VRX1000 modes from the ‘DV/VRXR Control Mode’ menu.
Selecting VRX1000 Channel
When a ‘DVRS Enabled’ TG / Channel is selected on the MSU, the user may enter the
‘DVRS/VRX Control Mode’ by pressing the assigned DVRS button on the MSU control
head and then change the VRX1000 mode / channel / status as described below:
Independent VRX1000 Channel Change
To change the VRX1000 channel:
Press the DVRS button and observe the display changing to the ‘DVR/VRX
Control Mode’ screen with the top line displaying the currently selected VRX1000
mode and channel.
Use the MSU control head navigation keys to scroll through the available
VRX1000 channels. Once the desired VRX1000 channel is selected, press the
SEL button or wait until the control mode times out.
Strapped VRX1000 Channel Change
The VRX1000 mode and channel may be programmed to be strapped to the specific
MSU TG/channel. In this case, selecting a specific MSU TG / channel would
automatically force the VRX1000 to revert to a given VRX1000 channel and/or mode.
For example, selecting a VRX1000 Enabled TG named ‘DISPATCH’ on the MSU CH
may automatically force the VRX1000 to switch to Channel 1, SYSTEM Mode.
February 2016 Page 42 of 92
8A087X02 R3
VRX1000
User’s Guide
When strapping is enabled, and the VRX1000 channel follows the MSU TG/mode
selection, the user may still be allowed (if enabled by the VRX1000 programmed
personality) to change the VRX1000 channel by pressing the Control Head DVRS button
and then the navigation keys.
NOTE:
Depending on the specific VRX1000 personality programming, the VRX channel
selection may be restricted to a short list of allowed VRX channels (or no channel
selection options at all). If Channel Strapping is enabled then the VRX1000 will always
land on the specified Strapped VRX channel first even when more than one channel is
on its allowed channels list.
February 2016 Page 43 of 92
8A087X02 R3
VRX1000
User’s Guide
MSU Scan
Supported MSU Scan Types
The MSU Scan feature is allowed while the VRX1000 is active (System or Local Mode) if
the MSU Scan type is configured as one of the following:
Conventional Scan
Mixed Conventional Voting Scan
Legacy Voting Scan
When the VRX1000 is activated (System or Local Mode), the MSU scan feature is NOT
allowed if the MSU Scan type is configured in the selected MSU personality as one of
the following:
Multi-System Scan
Priority Monitor Scan
VRX1000 Enabled / Disabled Rules while MSU Scan is enabled
The Selected VRX1000 channel settings are used across all MSU scan channels except
when the VRX1000 operation is Disabled for the given MSU channel.
If the VRX1000 selected channel is Digital and the MSU scans to an analog channel, the
VRX1000 will become temporarily disabled.
If the Selected MSU channel is programmed as VRX1000 Disabled, the VRX1000
operation will remain disabled even if the MSU scans to a channel which is VRX1000
Enabled.
The VRX1000 will become temporarily disabled if the MSU lands on a channel that is
programmed as VRX1000 Disabled. In this scenario the VRX1000 will not handle
Outbound calls received by the MSU but will still repeat Inbound PSU calls by reverting
the MSU to its selected channel.
Outbound Calls (received by MSU from the FNE) with MSU Scan Enabled
If the MSU is configured to only unmute to a specific TG ID or NAC, only the audio
containing the specified TG ID or NAC will be proxied by the VRX1000 to the PSU.
Individual call signaling (Page, Call Alert, Message, Radio inhibit etc) originating from a
secondary (not the MSU selected) channel is not proxied by the VRX1000 to the PSU.
Emergency Alarm / Call originating from a secondary channel are supported through the
VRX1000.
Inbound Calls (received by VRX1000 from PSU) with MSU Scan Enabled
MSU Talkback and Designated TX are not supported when a PSU makes a call through
the VRX1000 while the MSU has SCAN enabled. The MSU always moves back from the
landed to the selected channel when the PSU initiates a call through the VRX1000.
Talkback and Designated TX are supported only for MSU initiated calls.
February 2016 Page 44 of 92
8A087X02 R3
VRX1000
User’s Guide
Unsupported PSU Features
The following PSU features are not presently supported by the VRX1000 or DVRS/VRX
Enabled PSUs:
Evac Tone
Hearclear
DTMF Hot Keypad
Securenet
Soft ID
QCII
Singletone
Conventional OTAR
Authentication Demand packets
Over-the-Air-Channel Reassignment (OTACR)
Over-the-Air Channel Steering (OTACS)
Over-the-Air-Programming (OTAP)
PSU Scan
PSU Reprogram request / Selector Lock
PSU Smart PTT
PSU Announcement Group operation
PSU Phase II P25 conventional operation
NOTE:
The unsupported PSU features list provided above may NOT include ALL unsupported
features. Please contact Motorola Solutions for specific feature support information.
NOTE:
Due to FCC Exposure licensing limitations, when the User PTTs the MSU Microphone,
only one of the transmitters is allowed to be keyed up (VRX or MSU) as described in
Table 14 and Table 15.
February 2016 Page 45 of 92
8A087X02 R3
VRX1000
User’s Guide
P25 Digital Mode Operation
This chapter provides details on the VRX1000 Digital P25 mode of operation.
The P25 Digital mode assumes the following:
APX MSU Programmed for VRX1000 Operation
P25 FDMA only mode is selected on the MSU.
P25 PSU programmed for VRX1000 operation (Local PSU).
VRX1000 Enabled mode selected on the Local PSU.
VRX1000 channel programmed as Digital or Mixed or Forced Analog Mode of
Operation.
NOTE:
The Local PSU notation throughout this chapter refers to a P25 PSU which is used to
communicate with / through the VRX1000.
‘VRX/DVRS Enabled’ type Local PSU refers to the models described in Table 7 when
programmed for VRX1000 operation.
Some of the Digital mode features described are only available in P25 ‘VRX/DVRS
Enabled’ type PSUs and not available in Generic P25 PSUs (refer to Table 7). The use
of ‘VRX/DVRS Enabled’ PSUs and associated features through the VRX1000 require
that the VRX has Option TT05953AA.
A System PSU refers to a P25 PSU which has a P25 Mode (Trunking or Conventional)
selected and communicates directly with the P25 Trunking or Conventional System, i.e.
without a VRX1000.
In cross-band applications, the Local PSUs operate in different frequency band from the
system infrastructure, i.e. from the System PSUs.
The same PSU may be used as System and / or Local PSU depending on its currently
selected mode.
February 2016 Page 46 of 92
8A087X02 R3
MSU Priority Level
Activity
LOW
Idle (incl. in Emergency Call, not receiving
audio)
Group Voice Receive (all group call types,
including hangtime while on trunked voice
channel)
Packet Data
MEDIUM
Transmitting
Signaling features (call alert, status etc.)
Individual Calls (unit to unit and Phone)
HIGH
Emergency Alarm
Emergency Call Transmit
Emergency Call Receive
MSU Mode Change, Power Down
PSU Proxy Request Priority Level
Proxy Request
HIGH
Emergency Alarm
Emergency Call
LOW
All other Proxy Requests
VRX1000
User’s Guide
PSU Affiliation
When a local PSU user selects a VRX Enabled TG, the Local PSU is affiliated via an
active Primary VRX1000 if:
The selected VRX1000 channel is programmed for Digital or Mixed or Forced
Analog mode.
The same Digital RF channel (with matched NACs) is selected on both the PSU
and the VRX1000.
The PSU Conventional Astro ID and TG ID are valid on the FNE.
The MSU is on a P25 Mode (VRX Enabled) thus allowing P25 VRX1000
operation.
Generic P25 PSU is registered during the first Group Call made after switching to the
VRX enabled mode. ‘VRX/DVRS Enabled’ P25 PSU starts automatic affiliation process
upon selection of VRX Enabled Mode (no PTT required to start affiliation process). The
maximum number of PSUs that can get affiliated with one VRX1000 is 256.
Group Calls
Inbound and Outbound Group Calls are supported by the VRX1000.
MSU Priorities
Table 16 MSU Proxy Request Priorities
PSU Proxy Request Priorities
Table 17 PSU Proxy Request Priorities
February 2016 Page 47 of 92
8A087X02 R3
New Request
Existing Request
Action
High Priority Signaling
High Priority Signaling
Queue New Request
High Priority Signaling
Low Priority Signaling
Process New Request
Low Priority Signaling
Low/High Priority Signaling
Queue New Request
New Request
Existing Request
‘Outbound
Takeover By
Signaling
Allowed’
Action
High Priority Signaling
PSU Group Voice
Enabled or
Disabled
Process New
Request
High Priority Signaling
PSU Individual Voice
Enabled or
Disabled
Process New
Request
Low Priority Signaling
PSU Group Voice
Enabled or
Disabled
Discard New
Request
Low Priority Signaling
PSU Individual Voice
Enabled or
Disabled
Discard New
Request
H/L Priority Signaling
Group Voice
Hangtime
Enabled or
Disabled
Process New
Request
High Priority Signaling
Individual Voice
Hangtime
Enabled or
Disabled
Process New
Request
Low Priority Signaling
Individual Voice
Hangtime
Enabled
Process New
Request
Low Priority Signaling
Individual Voice
Hangtime
Disabled
Discard New
Request
VRX1000
User’s Guide
Signaling Request Interactions with Voice and Signaling Proxy
When the VRX1000 is in the process of handling a voice or signaling request for a PSU
and another Local PSU initiates a Signaling request, the VRX1000 will respond
depending on its programming and as described in Table 18 and Table 19 below. PSU
Emergency Alarm is considered High Priority Signaling. All other PSU signaling (such as
Status, Message etc.) is considered Low Priority.
Table 18 Signaling Request Interaction with Signaling Proxy
Table 19 Signaling Request Interaction with Voice Proxy
February 2016 Page 48 of 92
8A087X02 R3
New Request
Existing Request
Action
High Priority Voice
High/Low Priority Signaling
Process New Request
Low Priority Voice
High Priority Signaling
Discard New Request
Low Priority Voice
Low Priority Signaling
Process New Request
New Request
Existing
Request
‘Inbound
Takeover
Allowed’
‘Outbound
Takeover by
Voice Allowed’
Action*
High Priority Voice
High Priority PSU
Group Voice
Disabled
Enabled or
Disabled
Discard New
Request
High Priority Voice
High Priority PSU
Group Voice
Enabled
Enabled or
Disabled
Process New
Request
High Priority Voice
Low Priority PSU
Group Voice
Enabled or
Disabled
Enabled or
Disabled
Process New
Request
High Priority Voice
PSU Individual
Call
Enabled or
Disabled
Enabled or
Disabled
Process New
Request
Low Priority Voice
High Priority PSU
Group Voice
Enabled or
Disabled
Enabled or
Disabled
Discard New
Request
Low Priority Voice
Low Priority PSU
Group Voice
Enabled
Enabled or
Disabled
Process New
Request
Low Priority Voice
Low Priority PSU
Group Voice
Disabled
Enabled or
Disabled
Discard New
Request
Low Priority Voice
PSU Individual
Voice
Enabled
Enabled or
Disabled
Process New
Request
Low Priority Voice
PSU Individual
Voice
Disabled
Enabled or
Disabled
Discard New
Request
High/Low Priority
Voice
Group Voice
Hangtime
Enabled or
Disabled
Enabled or
Disabled
Process New
Request
Low Priority Voice
Individual Voice
Hangtime
Enabled or
Disabled
Enabled
Process New
Request
Low Priority Voice
Individual Voice
Hangtime
Enabled or
Disabled
Disabled
Discard New
Request
VRX1000
User’s Guide
Voice Request Interaction with Signaling and Voice Proxy
Voice Request Interactions with Signaling Proxy are described in Table 20. Emergency
Call is considered high priority voice, while all group voice calls (including Patch,
Dynamic Regrouping and Announcement / Multigroup are considered low priority voice.
PSU Emergency Alarm is considered high priority signaling. All other PSU signaling
(such as Status, Message etc.) is considered low priority. Voice Proxy Request
Interactions with Voice Proxy are handled by the VRX1000 as programmed.
Table 20 Voice Request Interactions with Signaling Proxy
*Action rules apply to ‘DVRS/VRX Enabled’ PSUs. Generic Conventional P25 radios perform interrupts
based on which unit has the strongest signal.
Table 21 Voice Proxy Interaction with Voice Proxy
February 2016 Page 49 of 92
8A087X02 R3
VRX1000
User’s Guide
MSU Voice and Signaling Proxy Interactions
The MSU handles interactions with a PSU voice or signaling proxy request from the
VRX1000 based on the following general priority rules:
MSU Emergency overrides all proxies including PSU emergency alarm /
emergency call.
PSU Emergency overrides all MSU non-emergency proxies
MSU PTT and signaling features (call alert, status etc) override all PSU non-
emergency proxies
PSU non-emergency proxies override MSU receive
Talk Group Proxing
The Local PSU User can change the selected ‘DVRS/VRX Enabled’ TG and seamlessly
talk to the corresponding TG users through the VRX1000. The MSU can be on any
‘DVRS/VRX Enabled’ TG, which may or may not match the TG selected by the Local
PSU. For example, if the Local PSU selects TG1 while the MSU is on TG2, the Local
PSU can talk to Local TG1 users (in Talk Around) as well as System TG1 users via the
VRX1000 i.e. the MSU will be transmitting on TG1. If the MSU microphone is PTT-ed,
the MSU will transmit on the TG selected on the MSU i.e. TG2. An outbound call
received by the MSU on either TG1 or TG2 will be repeated by the VRX1000 to the
Local PSUs.
If Proxing is Disabled then the Local PSU and the MSU must have the same TG
selected in order to enable Local PSU affiliation and communications.
Talk Group Translation
When TG translation is enabled in the VRX1000 for a specific PSU TG ID, then any call
that is received by the VRX1000 from the Local PSU with this TG ID will be translated to
the ID of the TG currently selected on the MSU’s control head. The Local PSU could be
programmed with just one TG ID and if this ID is programmed in the VRX1000 TG
Translation list, the PSU call will always be translated by the VRX1000 to the TG ID
currently selected on the MSU control head. For instance, if the Local PSU is on TG A,
which is programmed in the VRX1000 TG Translation list and the MSU is on TG B then
all inbound Local PSU calls will be repeated by the VRX1000 to the FNE on TG B. If the
MSU mode is then switched to TG C then the Local PSU calls will be repeated on TG C
to the FNE.
Generic (non-DVRS/VRX Enabled) Conventional P25 PSUs that are not enabled for
talkgroup operation will, by default, use TG ID 1 when transmitting. If TG ID 1 is added to
the VRX1000 Translation table then PSUs transmitting TG ID 1 will be translated to the
TG selected on the MSU.
IMPORTANT!
TG Translation requires that TG Proxing is enabled.
When TG proxing is enabled and the TG selected on the Local PSU is programmed in
the VRX1000 Translation Table, the VRX1000 will affiliate the Local PSU on the TG that
is selected on the MSU. If TG Proxing is enabled but the Local PSU is on a TG that is
not in the VRX1000 TG Translation list then the VRX1000 will proxy any inbound /
outbound calls on the PSU TG ID. Outbound call (system originated call) received on the
February 2016 Page 50 of 92
8A087X02 R3
VRX1000
User’s Guide
currently selected MSU TG is repeated ‘as is’ i.e. without any translation. Therefore the
Local PSUs need to be programmed with Normal Squelch (or NID = F7E) in order to
hear those calls.
IMPORTANT!
Encryption Key Translation is not supported by the VRX1000.
Private Calls
Private Calls (Local to System PSU; System to Local PSU) are supported on
‘DVRS/VRX Enabled’ PSUs only.
NOTE:
Inbound and Outbound Private Calls are not supported on ‘Generic P25’ PSUs or if the
VRX1000 does not have Option TT05953AA Installed.
PSU Talk Permit Tones
‘Go Ahead’ tones are generated in the ‘DVRS/VRX Enabled’ PSUs. Different tones are
generated to indicate if the VRX1000 is in Local or System Mode or the call is P25
Encrypted. As a programming option Local Mode tones can be generated when the
System is busy and only Local mode is available. Alternatively, the PSU user can get
‘System Busy’ tones and be forced to wait for system grant (see ‘Digital System Setup
Menu’ in the DVRS Programming section). Talk Permit Tones are NOT supported
when using Generic P25 PSU mode.
NOTE:
PSU Talk Permit Tones are not supported on ‘Generic P25’ PSUs or if the VRX1000
does not have Option TT05953AA Installed.
February 2016 Page 51 of 92
8A087X02 R3
VRX1000
User’s Guide
Status Broadcast
If enabled in the VRX1000 (“Network Status Reporting Interval”, Digital System setup
screen), the VRX1000 transmits status broadcasts that can be received only by P25
“DVRS/VRX Enabled” PSUs:
FNE Out of Range
VRX1000 Local only status
Site Trunking
IV&D Data Enabled / Disabled status
NOTE:
Only a Primary VRX1000 can transmit Status Broadcasts.
The above status indication is not available to Generic P25 PSUs or if the VRX1000
does NOT have Option VRX8003 installed. The status indication is passed to the Local
PSU every time the status changes. If there is no change to the status, the VRX1000
sends status indication to the Local PSUs at a preprogrammed time interval. The
VRX1000 also sends a network status notification every time a Local PSU is affiliated
with the FNE via VRX1000. If the FNE enters Failsoft mode, the MSU proxies the
Failsoft message (if Failsoft is enabled in the MSU), the VRX1000 stops sending Status
Broadcast to the Local “DVRS/VRX Enabled” PSUs and periodically transmits Failsoft
message instead.
NOTE:
Status Broadcast is not supported on ‘Generic P25’ PSUs or if the VRX1000 does not
have Option TT05953AA Installed.
Local Mode Indication
When the VRX1000 is operating in the LOCAL mode, the “DVRS/VRX Enabled” PSU
User can see “LOCAL ONLY” message displayed on the PSU screen.
The above indication is only available on ‘DVRS/VRX Enabled’ P25 PSUs.
NOTE:
Local Mode Indication is not supported on ‘Generic P25’ PSUs or if the VRX1000 does
not have Option TT05953AA Installed.
Radio Check / Inhibit
Radio Check and Radio Inhibit functions are passed through the VRX1000 to the Local
PSU when the VRX1000 is in the SYSTEM or LOCAL mode. Those functions are
available to both ‘DVRS/VRX Enabled’ and Generic P25 PSUs when the MSU is
operating on a P25 Trunked or P25 Conventional Mode. If the MSU gets radio inhibited,
the VRX1000 switches to ‘VR Disabled’ mode of operation.
P25 Trunking OTAR
P25 Over The Air Rekeying (OTAR) is supported through the VRX1000 when the Local
PSUs are of the ‘DVRS/VRX Enabled’ type, the VRX1000 is in the SYSTEM mode and
February 2016 Page 52 of 92
8A087X02 R3
VRX1000
User’s Guide
the MSU is on a P25 Trunking mode. OTAR is not supported on a P25 conventional
MSU channels.
NOTE:
P25 Trunked OTAR is not supported on ‘Generic P25’ PSUs or if the VRX1000 does not
have Options TT05952AA and TT05953AA installed.
Patch
When several TGs are patched on the system side (using the trunking group-regrouping
function), the VRX1000 ensures the patching is matched on the local PSU side when
‘DVRS/VRX1000 Enabled’ PSUs are used, the VRX1000 is in the SYSTEM or LOCAL
mode and the MSU is on a P25 Trunking TG.
IMPORTANT!
System design must ensure that PSU TGs that are programmed for TG Translation
are outside of the range of talkgroups used on the trunking system.
MSU Patch is supported as follows:
Inbound call from PSU on TG Translation enabled TG will be translated to the
patch supergroup and repeated locally and to the system.
Outbound call will be repeated as is (with the supergroup TG ID).
NOTE:
Patch is not supported on ‘Generic P25’ PSUs or if the VRX1000 does not have Option
TT05953AA Installed.
February 2016 Page 53 of 92
8A087X02 R3
VRX1000
User’s Guide
Dynamic Regrouping
The Dynamic Regrouping feature allows a dispatcher to remotely redirect subscribers to
operate on a designated TG without any intervention from the subscriber unit operator.
This is done by remotely assigning a new TG for the subscriber to operate on. When the
subscriber receives the request, it automatically switches to the assigned zone /
channel. The VRX1000 extends this functionality to the ‘DVRS/VRX Enabled’ Local
PSUs when the VRX1000 is in the SYSTEM or LOCAL mode and the MSU is operating
on a P25 trunked channel. PSU Reprogram request (PSU requesting to be dynamically
regrouped or ungrouped) and Selector Lock / Unlock (disabling / enabling the
zone/channel selection functionality while a PSU is dynamically regrouped) are not
presently supported via the VRX1000.
NOTE:
Dynamic Regrouping is not supported on ‘Generic P25’ PSUs or if the VRX1000 does
not have Option TT05953AA Installed.
Phone Interconnect
Phone Interconnect is NOT supported on the VRX1000.
Adaptive Power Control
The VRX1000 can be programmed to send P25 messages to the Local ‘DVRS/VRX
Enabled’ PSUs to adjust their transmit power depending on the received signal strength
from the VRX1000 and thereby to conserve the PSU battery. Enabling this feature is
NOT recommended in applications where more than one PSU are typically used with a
single VRX since it will affect the PSU-to-PSU communications.
This feature is not supported on Generic P25 PSUs.
NOTE:
Adaptive Power Control is supported on both ‘Generic P25’ XTS/APX PSUs as well as
on “DVRS/VRX Enabled” PSUs.
Digital Audio Buffering
Audio buffering is supported by the VRX1000 in order to eliminate loss of messages /
parts of messages due to the inherent delays associated with acquiring system access.
The Digital Audio Buffer in the VRX1000 is programmable up to 1800ms.
February 2016 Page 54 of 92
8A087X02 R3
Local PSU Call
MSU Secure
Strapping
Receiving Local
PSUs
Receiving FNE
P25 Clear
Clear or Secure
P25 Clear
P25 Clear
P25 Encrypted
Clear or Secure
P25 Encrypted
P25 Encrypted
Call from FNE
MSU Secure Strapping
Receiving Local PSUs
P25 Clear
Clear or Secure
P25 Clear
P25 Encrypted
Clear or Secure
P25 Encrypted
MSU Mode
MSU Secure Strapping
Receiving Local PSUs
Digital P25
Clear
P25 Clear
Digital P25
Secure
P25 Encrypted
VRX1000
User’s Guide
P25 Encryption
The VRX1000 transparently passes the P25 encryption algorithms used by the
subscriber and fixed network equipment. Even though the VRX1000 can be
programmed to support TG translation, it cannot support encryption key translation.
When the VRX1000 is on a P25 Digital channel, inbound digital audio from a Local PSU
is handled according to the following table:
Table 22 Inbound P25 Encryption Rules
While the VRX1000 is on a Digital channel, outbound digital audio originating from the
FNE is handled according to the following table:
Table 23 Outbound P25 Encryption Rules
While the VRX1000 is on a Digital channel, outbound digital audio originating from the
MSU is handled according to the following table:
Table 24 MSU MIC PTT P25 Encryption Rules
The MSU interfaced to the VRX1000 will unmute to Inbound or Outbound Encrypted P25
calls ONLY if the MSU contains the key used for encryption in its Encryption Key List.
NOTE:
P25 Encryption support requires Option TT05952AA to be installed in the VRX1000.
February 2016 Page 55 of 92
8A087X02 R3
VRX1000
User’s Guide
Remote VRX1000 Activation and Steering by PSU Call Alert
(Page)
A P25 PSU may be programmed to send a Call Alert (Page) and preprogrammed
Network ID (NID) to a specific VRX1000 and thereby remotely change:
VRX1000 Mode (from OFF or Local to System)
VRX1000 Status (Secondary / Primary)
Selected TG / Channel on MSU
NOTE:
Remote change of MSU Mode has no effect on the operation of the rest of the PSUs in
the area since the TG Proxing feature allows multiple TG operation. This applies to
Mode change within the same system, and when TG Translation is not enabled
The VRX1000 is addressed by sending a call alert (page) with the specific programmed
VRX1000 ID.
NOTE:
All VRX1000 should have unique IDs programmed in the digital mode settings menu if
the remote control feature is to be used. If no VRX1000 ID is programmed, the VRX1000
will assume the ID of the MSU currently interfaced to it. Remote activation and steering
are supported when the MSU ID = VRX1000 ID.
The remote VRX1000 status change will not be successful if there is another Permanent
Primary already present in the area (see Table 25).
February 2016 Page 56 of 92
The following table illustrates some typical remote steering scenarios:
Local PSU
VRX1000 A
Steering
BEFORE AFTER
VRX1000 B
Steering
BEFORE AFTER
Call Alert (Page)
to:
VRX1000 A
PSU on TG 1
OFF OR
LOCAL
SECONDARY
VR CH 1
MSU TG 1
SYSTEM
PRIMARY
VR CH 1
MSU TG 1
LOCAL OR SYSTEM
PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
SECONDARY
VR CH 1
MSU TG 1
Call Alert (Page)
to:
VRX1000 A
PSU on TG 1
OFF OR
LOCAL
SECONDARY
VR CH 1
MSU TG 1
SYSTEM
SECONDARY
VR CH 1
MSU TG 1
LOCAL OR SYSTEM
PERM. PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
PERM. PRIMARY
VR CH 1
MSU TG 1
Call Alert (Page)
to:
VRX1000 A
PSU on TG 2
OFF OR
LOCAL
SECONDARY
VR CH 1
MSU TG 1
SYSTEM
PRIMARY
VR CH 1
MSU TG 2
LOCAL OR SYSTEM
PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
SECONDARY
VR CH 1
MSU TG 1
Call Alert (Page)
to:
VRX1000 A
PSU on TG 2
OFF OR
LOCAL
SECONDARY
VR CH 1
MSU TG 1
SYSTEM
SECONDARY
VR CH 1
MSU TG 2
LOCAL OR
SYSTEM
PERM. PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
PERM. PRIMARY
VR CH 1
MSU TG 1
Call Alert (Page)
to:
VRX1000 A
PSU on CONV1
OFF OR
LOCAL
SECONDARY
VR CH 1
MSU TG 1
SYSTEM
PRIMARY
VR CH 1
MSU CONV1
LOCAL OR
SYSTEM
PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
SECONDARY
VR CH 1
MSU TG 1
Call Alert
(Page) to:
VRX1000 A
PSU on TG1
OFF OR
LOCAL
SECONDARY
VR CH 1
MSU CONV1
SYSTEM
PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
PRIMARY
VR CH 1
MSU TG 1
LOCAL OR
SYSTEM
SECONDARY
VR CH 1
MSU TG 1
8A087X02 R3
VRX1000
User’s Guide
Table 25 Typical Remote Steering Scenarios
February 2016 Page 57 of 92
8A087X02 R3
VRX1000
User’s Guide
Emergency in Digital Mode
The ‘DVRS/VRX Enabled’ P25 PSU can be programmed to block the launch of the
Emergency feature if the P25 Trunking system is in failsoft mode (when ‘Emergency
Blocked in Failsoft’ is enabled). The ‘DVRS/VRX Enabled’ P25 PSU can be programmed
to use the programmed ‘Revert Talkgroup’ while in Emergency and when on the
Dynamic Talkgroup channel without an assigned dynamic working group.
Emergency Alarm
When an affiliated Local PSU issues an Emergency Alarm, the active Primary VRX1000
will process the Emergency to the system as follows:
If the ‘Portable ID Display’ box (in the VRX1000 Emergency Mode Setup) is
checked, the local PSU unit ID will be displayed on the MSU control head of the
current Primary VRX1000.
The PSU unit ID will also appear on the display of the other local PSUs if they
are programmed accordingly.
During Emergency Call, the unit ID of the local PSU, which has initiated the
Emergency Call, may be displayed on the system PSUs / MSUs if those are
programmed accordingly.
The local PSU ID during Emergency may also be displayed on the dispatcher
console.
The VRX1000 sends back an Emergency ACK to prevent the PSU from re-
sending the Emergency either right after the VRX1000 decodes the Emergency
request (if the ‘System Acknowledge Type’ on the Mobile Radio Channel
Settings menu is set to “VR Ack”) or after FNE ACK has been received (if the
‘System Acknowledge Type’ on the Mobile Radio Channel Settings menu is
set to ‘Site Ack’ or ‘Console Ack’ ).
All Secondary VRX1000 in the area are monitoring the number of emergencies
issued by local PSUs according to the ‘Attempts Timeout’ and ‘Attempts
Counter’ settings programmed in the VRX1000s Emergency Mode Setup. If the
number of detected but not serviced Emergency Attempts exceeds the counter,
the Secondary VRX1000s will go through Primary / Secondary voting to select a
new Primary to pass the emergency to the System.
If a VRX1000 is in the OFF Mode when it receives an Emergency from a local
PSU, the VRX1000 will switch to System mode after the ‘Attempts Counter’ is
exceeded, affiliate the PSU and pass the Emergency to the System.
If a VRX1000 is on a ‘VR Disabled’ Mode and it receives an Emergency from a
local PSU with a valid steering NAC then after the ‘Attempts Counter’ is
exceeded, the VRX1000 will steer to the corresponding ‘VR Enabled’ MSU
mode, switch to SYSTEM mode, affiliate the PSU and pass the Emergency to the
System.
The PSU Emergency attempts counter must be programmed to be equal to the
VRX1000 ‘Attempts Counter’ plus 3.
February 2016 Page 58 of 92
8A087X02 R3
VRX1000
User’s Guide
Emergency Call
Emergency Call operation provides the user with access to a voice resource on a priority
basis. The user’s Emergency Call has priority over all other types of call traffic.
Upon receipt of an Emergency Call from a local PSU, the VRX1000 will proxy the call to
the FNE. The VRX1000 also updates its display to indicate the PSUs Emergency Call
condition. Upon PSU Cancellation of the Emergency Call, the VRX1000 will clear its
emergency display. The VRX1000 will also proxy the PSU emergency cancellation to the
P25 FNE. Emergency Hot MIC enables automatic emergency voice transmission without
having to press the PSU PTT. PSU Emergency Hot Mic is supported only on
‘DVRS/VRX Enabled’ PSUs. Only the ‘DVRS/VRX Enabled’ PSU waits for Emergency
Alarm ACK before requesting a voice channel. If Emergency Hot MIC is enabled in
Generic P25 PSUs (or ‘DVRS/VRX Enabled’ XTS PSUs with firmware older than
R12.00.13), the PSU will send emergency alarm and immediately enter the call phase,
which prevents consistent emergency processing.
Emergency Revert through VRX1000
The VRX1000 can be configured to revert local PSUs that have entered emergency by
mode steering the MSU to a preconfigured zone/channel. When the VRX1000 is
programmed for emergency revert and the MSU is not already in Emergency, the
VRX1000 steers the MSU to the preprogrammed zone/channel upon receiving and
Emergency Alarm / Call from the PSU. When the VRX1000 receives emergency
cancellation from the PSU, it steers the MSU back to the original zone / channel,
provided the MSU is not in emergency and the user has not manually changed the MSU
channel.
Emergency Revert through PSU
The PSU can be configured to revert to a preprogrammed talkgroup or zone / channel
when it enters Emergency. With the Talkgroup revert option, the PSU does not change
its mode but rather stays on the currently selected channel and performs all emergency
related voice and signaling by using the Revert Talkgroup ID. Talkgroup revert is only
supported on the APX ‘DVRS/VRX Enabled’ PSUs.
Emergency operation during TG Translation
Emergency operation is affected by TG Translation as follows:
Inbound Emergency Alarm received by the VRX1000 on TG X will be
translated to the ID of the TG selected on the MSU and forwarded to the FNE.
Outbound Emergency Alarm received by the MSU on the MSU selected TG
(TG Y) will be translated and repeated to the local PSUs on all translated TG IDs
that are selected on all Local PSUs, currently affiliated with the VRX1000.
Inbound Emergency Call on TG X will be translated by the VRX1000 to the ID
of the TG selected on the MSU and will be repeated on the translated TG to the
FNE.
Outbound Emergency call received on TG Y selected on the MSU will be
repeated by the VRX1000 to the Local PSUs on TG Y.
If Emergency Revert is programmed in the local PSU then:
If the revert TG is on the VRX1000 TG Translation list, then the Emergency will
be translated to the ID of the TG that is selected on the MSU.
February 2016 Page 59 of 92
8A087X02 R3
VRX1000
User’s Guide
If the revert TG is not in the VRX1000 TG Translation list then the emergency will
be proxied and the inbound and outbound repeat will be on the new emergency
revert TG.
If the MSU (interfaced to the Primary DVR) is placed in Emergency and
programmed to revert in Emergency then a subsequent local PSU emergency
will also be translated and declared on the MSU’s emergency revert TG.
Fireground (FG) Signaling
The VRX1000 supports FG Emergency signaling transmission from the Local PSU to the
FNE (if programmed in the VRX1000). Other types of FG signaling are discarded and
only the Local PSU user’s voice is transmitted from the Local PSU to the FNE in FG
applications.
PSU IV&D
The VRX1000 supports IV&D for only one PSU at any time. The use of PSU IV&D
requires P25 ‘DVRS/VRX Enabled’ PSUs, a VRX1000 in LOCAL or SYSTEM mode
operating on a P25 digital or Forced Analog channel, and MSU operating on a P25
Trunked mode. Voice operation and signaling (such as call alert etc.) initiated from the
MSU or PSU take priority over data operation.
NOTE:
PSU IV&D is not supported on ‘Generic P25’ PSUs or if the VRX1000 does not have
Option TT05953AA Installed.
PSU Location Reporting GPS
GPS is supported on ‘DVRS/VRX Enabled” PSUs when the MSU is operating on a P25
Trunked mode. PSU Location reporting (GPS) is supported on a single PSU via the
VRX1000. This feature relies on PSU IV&D functionality described above.
NOTE:
PSU GPS is not supported on ‘Generic P25’ PSUs or if the VRX1000 does not have
Option TT05953AA Installed.
PSU Call Alert
PSU Call Alert is supported via the VRX1000 when the MSU is operating on a P25
Trunked or P25 Conventional mode and when the PSU is either P25 ‘DVRS/VRX
Enabled’ or P25 Generic.
PSU Message
The Message feature is supported on all types of P25 PSUs when the MSU is operating
on a P25 Conventional mode only.
PSU Status Update and Status Request
The PSU Status Update & Status Request features are supported on all types of P25
PSUs when the MSU is operating on a P25 Conventional or P25 trunked mode.
February 2016 Page 60 of 92
8A087X02 R3
VRX1000
User’s Guide
Automatic PSU Revert to Talk Around (TA)
The ‘DVRS/VRX Enabled’ PSU can be programmed to automatically revert to TA and
continue to operate when it goes outside of the VRX1000 radio coverage range. This
way, simplex PSU-to-PSU calls (‘DVRS/VRX Enabled’ PSUs) will be allowed regardless
of the presence or absence of the VRX1000.
PSU Group Services
Pre-requisites for PSU Group Services support via VRX1000:
APX series ‘VRX1000/DVRS Enabled’ PSUs with Firmware R14.50.00 or later
P25 Trunked FNE with firmware 7.16 or later
VRX1000 with firmware R1.22 / MSU R14.50.00 or later
VRX1000 in SYSTEM or LOCAL Mode, Digital Channel Selected
MSU that VRX1000 is interfaced to receiving Group Services while on P25
Trunked FDMA Mode
The following Group Services can be supported by the VRX1000:
Group Text
Group text is an unconfirmed message that is sent to all members of a talkgroup. The
VRX1000 passes the Group Text messages to the local PSUs. If the Local
‘VRX1000/DVRS Enabled’ PSU users want to receive only Group Text Messages sent
to the PSU selected Talkgroup, then the PSU must be programmed for ‘Selective
Squelch’ instead of the default ‘Normal Squelch’. If programmed for ‘Normal Squelch’,
the Local PSU will receive all Group Text Messages proxied by the VRX1000 regardless
of the Talkgroup currently selected on the PSU.
NOTE:
The above also applies to voice calls in general – if the Local PSU users want their
PSUs to only unmute to the PSU selected Talkgroup, then they need to program
‘Selective Squelch’ in the PSU. If they are using the default ‘Normal Squelch’ setting, the
PSUs will unmute to all calls proxied by the VRX1000 regardless of the incoming call
Talkgroup.
February 2016 Page 61 of 92
8A087X02 R3
VRX1000
User’s Guide
Group Alias Update
Group Alias update is a message sent to a given Talkgroup while on a voice channel to
alert the receiving radio of the transmitting radio’s alias/ID configured in the Provisioning
Manager on the console. The updated Group Alias data is received by the members of
the Talkgroup and their Unified Call List (UCL) is updated. The VRX1000 passes the
Group Alias Update to the local ‘VRX1000/DVRS Enabled’ PSUs so that their UCLs can
get the update even while they are not directly connected to the trunked system but are
proxied via the VRX1000.
NOTE:
The updated Alias will be displayed on the receiving PSU only when the PSU is directly
affiliated on the trunking system. When affiliated through the VRX1000, the PSU will still
display the Unit ID of the transmitting PSU but it will not display the programmed or the
updated Alias for that transmitting Unit ID.
NOTE:
When the MSU is operating on TDMA mode, the MSU may receive group services but
will not proxy those to the VRX1000 / Local PSUs.
February 2016 Page 62 of 92
8A087X02 R3
FEATURE
VRX1000
OFF Mode
VRX1000
SYSTEM Mode
VRX1000
LOCAL Mode
Status Display on MSU CH
VR OFF <VRX CH>
VR SYS <VRX CH>
VR LOC <VRX CH>
PSU Affiliation
No
Yes
Yes
Talk Group Proxing / Translation
No
Yes
Yes
Outbound Group Call
No
Yes
Programmable
Outbound Private Call
No
No
No
MSU Microphone PTT
Keys up MSU only
Keys up MSU only
As programmed*
Inbound Group Call
No
Yes
Yes
PSU PTT ID Pass Through
No
Yes
Yes
Inbound Private Call
No
No
No
Inbound Call Alert
No
Yes
Yes
PSU Talk Permit Tones
No
Yes
Yes
PSU Emergency Alarm
Yes (after activation)
Yes
Yes
PSU Emergency Revert
No
Yes
Yes
PSU Emerg. ID Pass Through
Yes (after activation)
Yes
Yes
PSU Remote VRX1000 Activation
& Steering
Yes – Call Alert
Yes – Call Alert
Yes – Call Alert
Failsoft / Out of Range / Site
Trunking Indication on PSU
NA
NA
NA
PSU Local Mode Indication
No
No
Yes
Primary / Secondary Voting
No
Yes
Yes
VRX1000 Tones – MSU Speaker
No
Yes
Yes
PSU Radio Check / Inhibit
No
Yes
Yes
PSU GPS
No
No
No
PSU P25 Trunking OTAR
NA
NA
NA
PSU Patch
NA
NA
NA
PSU Dynamic Regrouping
NA
NA
NA
PSU Selector Lock /Unlock
NA
NA
NA
PSU Phone Interconnect
NA
NA
NA
PSU Adaptive Power Control
No
Yes
Yes
Audio Buffering
No
Yes
NA
PSU Scan
No
No
No
PSU Announcement Group
No
No
No
PSU P25 Encryption
No
Yes
Yes
PSU Status / Message
No
Yes
Yes
VRX1000
User’s Guide
Digital Mode – P25 Conventional Support
When only TT05951AA (P25 Phase 1 Operation) option is enabled, in addition to all
Analog mode features, the VRX1000 also supports basic P25 functionality with P25
Generic PSUs. “DVRS/VRX Enabled” PSUs are NOT supported. “DVRS/VRX Enabled”
PSUs and the associated Enhanced Trunking like features require TT05953AA (P25
Enhanced Trunking Features) option to be enabled.
P25 Digital VRX1000 Mode with P25 Conventional Mode Selected on MSU
*The APX MSU can be programmed so that MSU MIC PTT keys up either VRX1000 OR MSU
side but not both.
February 2016 Page 63 of 92
8A087X02 R3
FEATURE
VRX1000
OFF Mode
VRX1000
SYSTEM Mode
VRX1000
LOCAL Mode
Status Display on MSU CH
VR OFF <VRX CH>
VR SYS <VRX CH>
VR LOC <VRX CH>
PSU Affiliation
No
No
No
Talk Group Proxing / Translation
No
Yes
Yes
Outbound Group Call
No
Yes
Programmable
Outbound Private Call
No
No
No
MSU Microphone PTT
Keys up MSU only
Keys up MSU only
As programmed*
Inbound Group Call
No
Yes
No
PSU PTT ID Pass Through
No
Yes
Yes
Inbound Private Call
No
No
No
Inbound Call Alert
No
Yes
Yes
PSU Talk Permit Tones
No
No
No
PSU Emergency Alarm
Yes (after activation)
Yes
Yes
PSU Emergency Revert
No
Yes
Yes
PSU Emerg. ID Pass Through
Yes (after activation)
Yes
Yes
PSU Remote VRX1000 Activation
& Steering
Yes – Call Alert
Yes – Call Alert
Yes – Call Alert
Failsoft / Out of Range / Site
Trunking Indication on PSU
No
No
No
PSU Local Mode Indication
No
No
No
Primary / Secondary Voting
No
Yes
Yes
VRX1000 Tones – MSU Speaker
No
Yes
Yes
PSU Radio Check / Inhibit
No
Yes
Yes
PSU GPS
No
No
No
PSU P25 Trunking OTAR
No
No
No
PSU Patch
No
No
No
PSU Dynamic Regrouping
No
No
No
PSU Selector Lock /Unlock
No
No
No
PSU Phone Interconnect
No
No
No
PSU Adaptive Power Control
No
No
No
Audio Buffering
No
Yes
NA
PSU P25 Encryption
No
Yes
Yes
PSU Scan
No
No
No
PSU Group Services
No
No
No
PSU Announcement Group
No
No
No
PSU Status / Message
No
Status only
Status only
VRX1000
User’s Guide
P25 Digital VRX1000 Mode (Generic P25 PSUs) with P25 Trunked (FDMA)
Mode Selected on MSU
“DVRS/VRX Enabled” PSUs are blocked as indicated below and require TT05953AA
(P25 Enhanced Trunking Features) option in order to be enabled through the VRX1000.
*The APX MSU can be programmed so that MSU MIC PTT keys up either VRX1000 OR MSU
side but not both.
February 2016 Page 64 of 92
8A087X02 R3
FEATURE
VRX1000
OFF Mode
VRX1000
SYSTEM Mode
VRX1000
LOCAL Mode
Status Display on MSU CH
VR OFF <VRX CH>
VR SYS <VRX CH>
VR LOC <VRX CH>
PSU Affiliation
No
Yes
Yes
Talk Group Proxing / Translation
No
Yes
Yes
Outbound Group Call
No
Yes
Programmable
Outbound Private Call
No
No
No
MSU Microphone PTT
Keys up MSU only
Keys up MSU only
As programmed*
Inbound Group Call
No
Yes
Yes
PSU PTT ID Pass Through
No
Yes
Yes
Inbound Private Call
No
No
No
Inbound Call Alert
No
Yes
Yes
PSU Talk Permit Tones
No
Yes
Yes
PSU Emergency Alarm
Yes (after activation)
Yes
Yes
PSU Emergency Revert
No
Yes
Yes
PSU Emerg. ID Pass Through
Yes (after activation)
Yes
Yes
PSU Remote VRX1000 Activation
& Steering
Yes – Call Alert
Yes – Call Alert
Yes – Call Alert
Failsoft / Out of Range / Site
Trunking Indication on PSU
NA
NA
NA
PSU Local Mode Indication
No
No
Yes
Primary / Secondary Voting
No
Yes
Yes
VRX1000 Tones – MSU Speaker
No
Yes
Yes
PSU Radio Check / Inhibit
No
Yes
Yes
PSU GPS
No
No
No
PSU P25 Trunking OTAR
NA
NA
NA
PSU Patch
NA
NA
NA
PSU Dynamic Regrouping
NA
NA
NA
PSU Selector Lock /Unlock
NA
NA
NA
PSU Phone Interconnect
NA
NA
NA
PSU Adaptive Power Control
No
Yes
Yes
Audio Buffering
No
Yes
NA
PSU Scan
No
No
No
PSU Group Services
No
Yes
Yes
PSU Announcement Group
No
No
No
PSU P25 Encryption
No
Yes
Yes
PSU Status / Message
No
Yes
Yes
VRX1000
User’s Guide
Digital Mode – P25 Enhanced Trunking Features Support
When the VRX1000 has options TT05951AA (P25 Phase I Operation) , TT05952AA
(P25 Encryption) and TT05953AA (P25 Enhanced Trunking Features), it can be used
with “DVRS/VRX Enabled” PSUs and provides support for various Enhanced P25
Trunking system features as well as Forced Analog Mode as described in the Tables
below and in the Forced Analog Mode section of this document.
P25 Digital VRX1000 Mode with P25 Conventional Mode Selected on MSU
*The APX MSU can be programmed so that MSU MIC PTT keys up either VRX1000 OR MSU
side but not both.
February 2016 Page 65 of 92
8A087X02 R3
FEATURE
VRX1000
OFF Mode
VRX1000
SYSTEM Mode
VRX1000
LOCAL Mode
Status Display on MSU CH
VR OFF <VRX CH>
VR SYS <VRX CH>
VR LOC <VRX CH>
PSU Affiliation
No
Yes
Yes
Talk Group Proxing / Translation
No
Yes
Yes
Outbound Group Call
No
Yes
Programmable
Outbound Private Call
No
Yes
Yes
MSU Microphone PTT
Keys up MSU only
Keys up MSU only
As programmed*
Inbound Group Call
No
Yes
No
PSU PTT ID Pass Through
No
Yes
Yes
Inbound Private Call
No
Yes
Yes
Inbound Call Alert
No
Yes
Yes
PSU Talk Permit Tones
No
Yes
Yes
PSU Emergency Alarm
Yes (after activation)
Yes
Yes
PSU Emergency Revert
No
Yes
Yes
PSU Emerg. ID Pass Through
Yes (after activation)
Yes
Yes
PSU Remote VRX1000 Activation
& Steering
Yes – Call Alert
Yes – Call Alert
Yes – Call Alert
Failsoft / Out of Range / Site
Trunking Indication on PSU
No
Yes
No
PSU Local Mode Indication
No
No
Yes
Primary / Secondary Voting
No
Yes
Yes
VRX1000 Tones – MSU Speaker
No
Yes
Yes
PSU Radio Check / Inhibit
No
Yes
Yes
PSU GPS
No
Yes
Yes
PSU P25 Trunking OTAR
No
Yes
Yes
PSU Patch
No
Yes
Yes
PSU Dynamic Regrouping
No
Yes
Yes
PSU Selector Lock /Unlock
No
No
No
PSU Phone Interconnect
No
No
No
PSU Adaptive Power Control
No
Yes
Yes
Audio Buffering
No
Yes
NA
PSU P25 Encryption
No
Yes
Yes
PSU Scan
No
No
No
PSU Announcement Group
No
No
No
PSU Status / Message
No
Status only
Status only
VRX1000
User’s Guide
