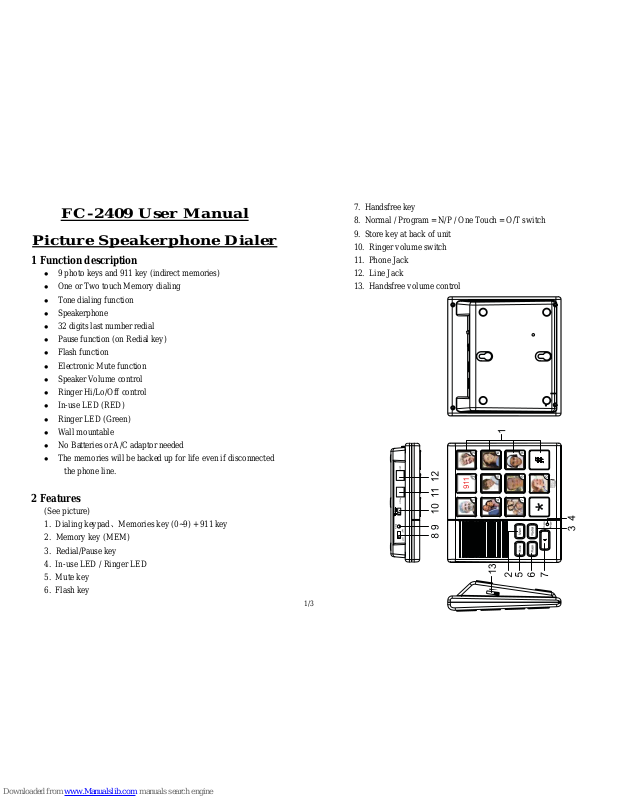

FC-2409 User Manual
Picture Speakerphone Dialer
1 Function description
z
9 photo keys and 911key (indirect memories)
z
One or Two touch Memory dialing
z
Tonedialing function
z
Speakerphone
z
32 digits last number redial
z
Pause function (on Redial key)
z
Flash function
z
Electronic Mute function
z
Speaker Volume control
z
Ringer Hi/Lo/Off control
z
In-use LED (RED)
z
Ringer LED (Green)
z
Wall mountable
z
No Batteries or A/C adaptor needed
z
The memories will be backed up for life even if disconnected
the phone line.
2Features
(See picture)
1. Dialing keypad、Memories key (0~9) + 911 key
2. Memory key (MEM)
3. Redial/Pause key
4. In-use LED / Ringer LED
5. Mute key
6. Flash key
7. Handsfree key
8. Normal / Program = N/P / One Touch = O/T switch
9. Store key at back of unit
10. Ringer volume switch
11. Phone Jack
12. Line Jack
13. Handsfree volume control
2/3
3 Installations
z
Connect the telephone Line Cord to the Line jack and the wall
socket.
z
Toconnect a parallel phone if needed plug the phone line cord
into the Phone jack socket.
4 Operations
During a call the In-Use LED will light up.
4.1 Storing number into one touch or two touch picture dialer
When programing switch (8) must be in N/P position
z
Press Handsfree Key to turn on handsfree function.
z
Press Store key at back of unit.
z
Entering the desired phone number.
z
Press Store key at back of unit.
z
Press a numerical key (0~ 9) for 10 indirect / direct memories.
z Press Handsfree Key again to turn off handsfree function.
4.2 Disconnecting 911 Key
As the 911 key is preprogramed from the factory, if you need to
disconnect the 911 key you may program any other number you
wish or just the digit “1” into this key by the following.....
z
Press Handsfree Key to turn on handsfree function.
z
Press Store key at back of unit.
z
Entering “1” or any number you wish to store.
z
Press Store key at back of unit.
z
Press 911 key.
z Press Handsfree Key again to turn off handsfree function.
4.3 Taking a call
z
When a call comes in, the phone will ring.
z
Press Handsfree Key to take the call.
4.4 Making a call
z Press Handsfree Key to turn on handsfree function.
z
Enter the telephone number you wish to dial
OR
z
Press Mem key.
z
Press an indirect Picture memory key (0~9) when the switch
(8) is in N/P position
OR
z
Press a direct Picture memory key (0~9) when the switch (8)
is in O/T position
4.5 Ending a Call
z
When you finish your conversation, Press Handsfree Key
to end the call...
4.6 Redialing
z Press Handsfree Key to turn on handsfree function.
z
Press Redial key to call previously dialed number.
Use Ringer volume switch select Hi / Lo / Off position to
adjust the volume of the ringer.
During a call, Use speaker volume control switch to adjust
the Speakerphone Volume.
3/3
4.7 Pause function
For some network services such as home banking or PABX’s
which give a secondary dial tone before further dialing, it may be
necessary to insert a pause between digits.
z
Press Redial key to add 3.6 seconds pause during dialing a
phone number.
z
Press Redial key to add 3.6 seconds pause during storing a
number into memory keys
4.8 Flash Function
Press Flash key the phone line will break and disconnected. It is
for Call-Waiting or other functions offered by local telephone
company.
4.9 Mute Function
During your phone call, if you want a private conversation not to
be heard by the other party on the line.
z
Press the Mute key.
z
Tocontinue your phone call, press the Mute key again.
SERVICE
According to FCC regulation. This equipment which has been certified and
registered by the FCC, may only be repaired by authorized person, the FCC
certification may be voided. Should you encounter any problems, please call
the FUTURE CALL LLC. Toll-free Customer Hotline for assistance:
1-888-934-CALL (2255) Monday - Friday between the hours of 9:00 am 6:00 pm PST
For general inquires, you can e-mail to helpl@future-call.com or visit our
website at www.future-call.com
FOR WARRANTY AND OUT-OF WARRANTY SERVICE:
You may call our toll-free hot line on 1-888-934-CALL(2255)9AM-6PM PST
or E-mail to help@future-call.com
QUESTIONS?
STOP...doesn’t take unit back to the store.
LOOK...for the toll-free “help” telephone number.
LISTEN... as our experts talk you through the problem.
LIMITED WARRANTY AND SERVICE
FUTURE CALLLLC.warrants this product to be free from defective materials
or factory workmanship and will replace or repair this unit or any part thereof,
except batteries, if it proves to be defective in normal use or service within 90
days from
date of original purchase. Our obligation under this warranty is the repair or
replacement of the defective instrument or any part thereof, except batteries.
This warranty will be considered void if unit is tampered with, improperly
serviced, or subjected to misuse, negligence or accidental damage. There
are no other express warranties other than those stated herein.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state. TO OBTAINSERVICE PLEASE E-MAIL
US ON help@future-call.com OR CALL US TOLL FREE 1-888-934-CALL
(2255) 9 AM-6 PM PST (IF THE UNIT IS UNDER WARRANTY PROOF OF
PURCHASE MUST BE PROVEN
