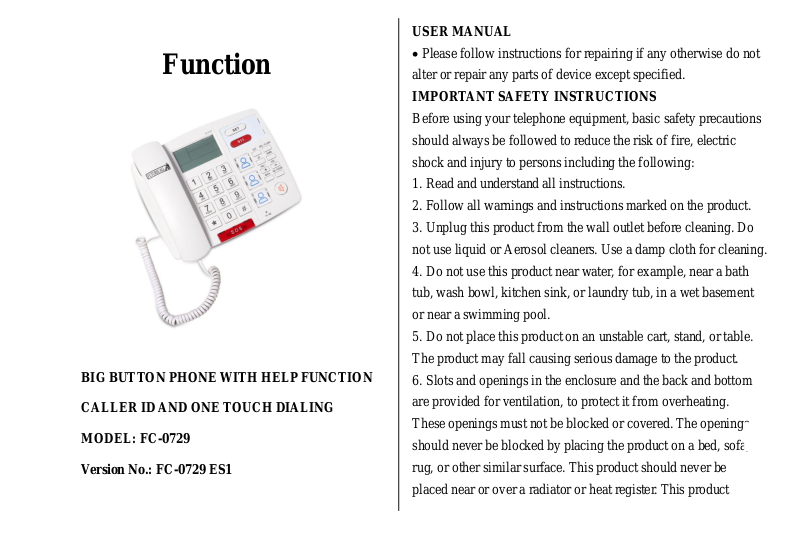

Future Call FC-0729 User Manual

Function

BIG BUTTON PHONE WITH HELP FUNCTION CALLER ID AND ONE TOUCH DIALING MODEL: FC-0729 Version No.: FC-0729 ES1

USER MANUAL

 Please follow instructions for repairing if any otherwise do not alter or repair any parts of device except specified.

IMPORTANT SAFETY INSTRUCTIONS

Before using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid or Aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table. The product may fall causing serious damage to the product.

6. Slots and openings in the enclosure and the back and bottom are provided for ventilation, to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product

should not be placed in a built-in installation unless proper ventilation is provided.

7. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

8. Do not disassemble this product, but take it to a qualified service technician or service center when repair work is required. Opening or removing covers may expose you to voltage or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

9. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and may require extensive work by a qualified technician to restore the product to normal operation.

E. If the product has been dropped or the enclosure has been damaged. F. If the product exhibits a distinct change in performance.

10.Avoid using a telephone during an electrical storm. There may be a remote risk of electric shock from lightning.

11. Do not use the telephone to report a gas leak in the vicinity of a leak.

12. Never install telephone wiring during a lightning storm.

13. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

14. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

Handset

Redial/Pause

LCD Dsiplay

Callback

Set Key

Speaker

911 Key

M1/M2/M3 Memory Keys

Out key

In-Use Lamp

Delete/Flash

SOS Key

Dialing Keys of 0-9, *, #

Down

Ringer Volume Switch

Vol-

Parallel Phone Port

Vol+

External Line

INSTALLATION

Coil Cord Connection

Insert coil cord into modular jack located on left hand side housing. Connect the other end into the modular jack located on handset.

Line Cord Connection

Insert one end of RJ11 plug into the rear side of base unit, insert the other end of RJ11 plug into the wall jack.

Make a Call

You can pick up the handset or push SPEAKER key then

dial the number you want using the (0-9) key, or you can enter the number you want using the (0-9) keys at on-hook state, then pick up the handset or push SPEAKER key, the number will be automatically dialed out.

In another way, whether the phone is on-hook or off-hook,

press one memory key of M1, M2 or M3, it will turn on the speakerphone to make a call. You can pick up the handset if you wish to talk privately.

At off-hook or handsfree speakerphone state, press

[REDIAL/PAUSE] key to redial the last dialed number. At on-hook state, when you find your desired number while checking the incoming call or outgoing call entries, press [CALLBACK] key to directly dial out it.

Function and Operation of Phone Setting the Function

Set the Date

At on-hook state, press [SET] key, it will show “-12345-” on LCD display, then press number 1, the LCD will show the blinking YEAR. Then press [UP] and [DOWN] key to adjust it. After the setting of Year is finished, press [SET] key to confirm and enter the setting of Month. The Month is set in the same way for Year, and then set Day, Hour, Minute likewise.

Set the Flash Time

At on-hook state, press [SET] key, it will show “-12345-” on LCD display, then press number 2, the LCD will show

“FLASH 1000”, it means that the flash time is 1000mS.

Press [UP] and [DOWN] key to adjust it among 100 mS, 300 mS, 600 mS and 1000 mS. After the setting is finished, press [SET] key to confirm.

Setting the Out-of-area Code (OAC) At on-hook state, press [SET] key, it will show “-12345-” on LCD display, then press number 3 and enter the setting

of OAC, the LCD will show “OCODE-”. Press [UP] and [DOWN] key to set the number of OAC. After the setting is finished, press [SET] key to confirm.

Set the Local Area Code (LAC) At on-hook state, press [SET] key, it will show “-12345-” on LCD display, then press number 4 and enter the setting of LAC, the LCD will show “AREA-”. Press [UP] and [DOWN] key to set the number of LAC. After the setting is finished, press [SET] key to confirm.

Set the Brightness At on-hook state, press [SET] key, it will show “-12345-” on LCD display, then press number 5 and enter the setting of brightness, the LCD will show “LCD-3”. Press [UP] and [DOWN] key to adjust the brightness of LCD. After the setting is finished, press [SET] key to confirm.

[UP] Key and [DOWN] Key Press [UP] and [DOWN] key to view the CID numbers in sequence. The display contents on screen include CID number, incoming call time, the serial No. of CID entry. If there is no any CID entry, LCD will show “NO CODE”.

[OUT] Key Press [OUT] key at on-hook state to browse the outgoing call entries including the outgoing call number, the outgoing call time length, the serial No. of outgoing call entry.

[DEL/FLASH] Key At on-hook state, when a CID call or outgoing call entry is found and needs to be deleted, press [DEL/FLASH] key once to delete it. At off-hook state, pressing [DEL/FLASH] key is just the same to tap the hookswitch once.

[VOL+] Key and [VOL-] Key At the communication state, press these two keys to adjust the handset or speakerphone volume among 4 steps.

[911] Key Whether at on-hook state or off-hook state, the phone can enter the speakerphone state to make a call by pressing [911] key. If you want to talk privately, you can lift the handset for conversation. After the conversation is finished, the phone will automatically hang up according to the hang-up busy tone from other party.

Changing the Number of 911:

At on-hook state, input the number from keypad + [SET]

key + [911] key

Set M (Memory) Key

1) Set or Change M Key:

At on-hook state, press the private number + press #

key + press the corresponding M key

2) Delete M Key: At on-hook state, press # key + press the corresponding

M key

3) Removing key top use a small flat headed screwdriver Place it on the right side of the key and gently pull up

Alarm Help Function

One-touch Emergency Help Function

Whether at on-hook state or off-hook state, press the red [SOS] key, the SOS key lamp blinks and the phone generates the alarm, then automatically dials the emergency help number.

Push-down Help Function

Lift the handset or press [SPEAKER] key for x seconds (depended on the customer’s demand) without any dial operation, the SOS key lamp blinks and the phone generates the alarm, then automatically dials the emergency help number.

Set the SOS Number

At on-hook state, press and hold the red [SOS] key for 3 seconds, input the first SOS number from keypad. If there is already an SOS number, press [DEL/FLASH] key once to delete it, and input the new number via keypad, then press [SET] key to confirm. At that time, input the second SOS number from keypad, then press [SET] key to confirm. If not required to set the second SOS number, directly press [SET] key to confirm and skip over.

Notes:

1. In the process of communication or making a call, in

the event of emergency, press the red [SOS] key on phone, the phone will cut off the call and directly dial out the SOS number.

2. After the phone has dialed out the SOS number, if the

answering party hangs up his/her phone, the phone will automatically hang up according to the busy tone signal.

CONSUMER INFORMATION This equipment complies with Part 68 of the FCC rules and the

requirements adopted by the ACTA On the bottom of this equipment is a label that contains, among other information, a product identifier of US: If requested, this number must be provided to the telephone company.

The applicable jacks (i.e. RJ11C) for this equipment are provided in the packaging with each piece of approved equipment. The jacks are certified by Universal Service Order Codes (USOC).

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug are provided with this product. They are designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. [For products approved after July 23, 2001, the REN for this product is part of the

product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.] If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice

isn’t practical, the telephone company will notify the customer

as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If you experience trouble with this equipment, disconnect it from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alter or repair any parts of device except specified. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. This equipment is hearing aid compatible.

NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SERVICE: According to FCC regulation. This equipment which has been certified and registered by the FCC, may only be repaired by authorized person, the FCC certification may be voided. Should you encounter any problems, please call the FUTURE CALL LLC. Toll-free Customer Hotline for assistance:

1-888-934-CALL, Monday - Friday between the hours of 9:00 am - 6:00 pm PST

For general inquires, you can E-Mail to futurecall@onvol.net or visit our website at www.future-call.com

FOR WARRANTY AND OUT-OF WARRANTY SERVICE:

You may call our toll-free hot line on 1-888-934-CALL (1-888-934-2255) 9AM-6PM PST or E-mail to help@future-call.com

STOP...doesn’t take unit back to the store. LOOK...for the toll-free “help” telephone number. LISTEN... as our experts talk you through the problem.

For immediate answers to your questions regarding operation, missing parts or installation call:

FUTURE CALL LLC HOTLINE & E-MAIL AT: 1-888-934-CALL & help@future-call.com

LIMITED WARRANTY AND SERVICE

FUTURE CALL LLC. warrants this product to be free from defective materials or factory workmanship and will replace or repair this unit or any part thereof, except batteries, if it proves to be defective in normal use or service within 90 days from date of original purchase. Our obligation under this warranty is the repair or replacement of the defective instrument or any part thereof, except batteries. This warranty will be considered void if unit is tampered with, improperly serviced, or subjected to misuse, negligence or accidental damage. There are no other express warranties other than those stated herein. This warranty gives you specific legal rights, and you may also have other rights which varies from state to state. TO OBTAIN SERVICE PLEASE E-MAIL US ON help@future-call.com OR CALL US TOLL FREE 1-888-934-CALL 9AM-6PM PST (1-888-934-2255). IF THE UNIT IS UNDER WARRANTY PROOF OF PURCHASE MUST BE PROVEN.
