Future Automation PICSIDE User Manual

Installation Instructions

PIC SD - Picture Side Mechanism

Design Highlights

-Range of Sizes of Mechanism

-Smooth Quiet Motion

-Optional to Combine with a Motorised Bracket

-Complete Sheet Metal Cassette Ensures Simple Installation

-Range of Panel Designs Available

Moving Panel Mechanism

Thank you for choosing

futureautomation

email [e-mail] tel: [phone] fax: [phone] ISSUE 001

PIC SD - Picture Side Mechanism

Safety Disclaimer

Important Safety Instructions
Explanation of graphical symbols

-(Electric Shock Symbol) = The lightning flash within an equilateral triangle is intended to alert you to the presence of un-insulated
“dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute an electric shock to persons

-(Caution Symbol) = The exclamation point within an equilateral triangle is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product

-(Tools Symbols) = The tools symbol within a coloured square are intended to highlight the required tools necessary for correct and
safe installation of the product. These are intended as a
guide only, and it is at the installer’s discretion as to which tools are used.

WARNING: RISK OF ELECTRIC SHOCK, ONLY AUTHORIZED INSTALLERS TO OPEN THE POWER CONTROL BOX.
WARNING: To reduce the risk of fire or electric shock, do not expose electrical parts to rain or moisture, unless the

product has been specifically designed to do so.
WARNING: Failure to provide adequate structural strengthening, prior to installation can result in serious personal injury or damage to the
equipment. It is the installer’s responsibility to ensure the structure to which the component is affixed can support the four times the

Introduction: Safety Information

weight of the component.
WARNING: Do not exceed the weight capacity. This can result in serious personal injury or damage to the equipment. It is the installer’s
responsibility to ensure that the total combined weight of all attached components does not exceed that of the maximum figure stated.
WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equip­ment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined
weight of all equipment. Reinforce the structure as required before installing the component.

Warnings:

1. Read all technical instructions fully before installation and use. It is the installer’s responsibility to ensure that all
documentation is passed on the end user and read fully before operation.

2. Keep all documentation.

3. Heed all warnings.

4. Follow all technical specifications and instructions during installation.

5. Do not use near water unless the product has been specifically designed to do so.

6. Clean only with a dry cloth.

7. Do not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades, one wider
than the other. A grounding type plug has two blades and a grounding prong. The wide blade or third prong are
provided for your safety. If the provided plug does not fit your outlet, consult an electrician or contact the
manufacturer.

8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where the exit from the apparatus.

9. Unplug the apparatus during lightning storms or when unused for long periods of time.

10. Only use attachments/accessories specified by the manufacturer.

11. Refer all servicing to qualified personnel. Servicing is required regularly on an annual basis, when the apparatus is
damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

12. To completely disconnect the apparatus form the AC mains, disconnect the power cord plug from the AC
receptacle on the power control box.

13. To prevent overheating, do not cover the apparatus. Install in accordance with the instructions.

14. UK, Ireland and Hong Kong only – The power cord is supplied with a 13A plug having an earthing pin. The
apparatus is earthed and this pin is not required for safety, merely to operate the safety shutter of mains outlet.

15. No naked flames such as lit candles should be placed on the unit.

16. Observe and follow the local regulations when disposing of batteries.

17. Do not expose the unit to dripping or splashing fluids.

18. Do not place objects filled with liquid, such as vases, on the unit.

19. Do not expose the batteries to excessive heat such as sunshine, fire or the like.

20. For all mounted apparatus, the apparatus should be installed on solid wood, bricks, concrete or solid wood
columns and battens.

21. Always turn off power at source before putting on or taking off parts and cleaning.

22. Do not use outdoors unless marked for outdoor use.

23. Exceeding the weight capacity can result in serious personal injury or damage to equipment.

Caution

Warning

Beware of

Moving Parts

Danger

Electricity

Keep Hands

Clear

Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future
Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every
possible contingency in connection with the installation or use of this product. The information contained in this document is subject to
change without prior notice or obligation of any kind. Future Automation makes no representation of warranty, expressed or implied,
regarding the information contained herein. Future Automation assumes no responsibility for accuracy, completeness or sufficiency of the
information contained in this document.

Page 1 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Contents Page

Introduction

Safety Information 1
Contents 2

Contents 3
Tool Indicator Icons 3

Installation

Parts List 4

Package Contents 4

Stage 1

Before You Start Check 5
Marking Mechanisms Positions 5

Stage 2

Mounting The Mechanism 6

Stage 3

Mounting The Mechanism 7
Control Box Set Up 7

Stage 4

Testing The Mechanism 8

Stage 5

Fitting The Moving Panel To The Mechanism 9

Stage 6

Adjusting The Stop Positions 10

Stage 7

Mounting The Screen 11

Stage 8

Controlling The Mechanism 12
Final Checks 12
Mechanism Movement 12

Electrical Connections

Electrical Connections In The Control Box 13
Contact Closure 14
Warning Lights 15
RS232 15
Wiring & Control Box Details 15

Introduction: Contents

Operations 16

Remote Control 16
Operation Buttons 16
Changing The Batteries 16

Trouble Shooting 17/18

Technical Overview 19

Page 2 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Introduction: Contents / Tool Indicator

Tool Indicator Icons

1. 2. 3. 4. 5. 6.

7.

8.

1. - Drill 3. - Allen Keys 5. - Screwdrivers 7. - Pencil

2. - Tape measure 4. - Spirit Level 6. - Spanners 8. - Saw

This product carries a warranty that covers the cost of labour and spare parts incurred by any defects in materials and workmanship under normal use
during a two year period from date of purchase. Support for any problems that are not hardware faults are excluded from the warranty entitlement.
This warranty does not affect your statutory consumer rights.

The following is excluded from warranty service:

• Malfunctioning caused by misuse or damage, accidental or otherwise, or service modification by persons not authorised by Future Automation,
or the use of any non Future Automation supplied parts;

• Any electrical, or other environmental work external to your Future Automation mechanism including power cuts, surges or lightning strikes;

• Additional items not supplied by Future Automation although they may have been supplied together by the retailer;

• Any 3rd party software products controlling your mechanism;

• Any transfer of ownership. Warranty is provided only to the initial purchaser;

• Compensation for loss of use of the product, and consequential loss of any kind;

• Use of the product over the specified weight capacity;

• Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery.

Product Warranty

Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation.

Page 3 of 20 // email [e-mail] tel: [phone] fax: [phone]







PIC SD - Picture Side Mechanism

Installation: Package Contents

Package Contents

1 - Mechanism

1.1 - Frame Horizontal Member

1.2 - Frame Vertical Member

1.3 - Drive Belt

1.4 - Motor

1.5 - Wall Plate

1.6 - x8 Moving Panel Brackets
2 - Control Box
3 - IR Remote Control

Not Shown On Page

4 - x2 AAA Batteries
5 - x8 M6 Nuts & Bolts
6 - Mains Power & Other Leads

PIC SD - Picture Side
Mechanism.
Available in 2 standard sizes,
PIC SD1 & 2.
Custom sizes also available.

3

1.2

2

1.1

1

1.6

1.3

1.5

1.4

1.2

1.1

Page 4 of 20 // email [e-mail] tel: [phone] fax: [phone]



PIC SD - Picture Side Mechanism

Before you Start Check, Check the Following:

- The product is in good condition

- No damage to any parts

Marking Mechanisms Positions

You will receive your mechanisms with the wall plate in the centre of the frame.
This is in the easiest position to mount straight onto the wall.

Installation: Stage 1

Start by marking where the mechanism will go on the wall. Mark centre points through
both the key hole slots, shown in the right detail view. Make sure the mechanism is
level using a spirit level.

These dimensions can differ depending on the moving panel frame work.

25mm [1]

Page 5 of 20 // email [e-mail] tel: [phone] fax: [phone]

Refer to the Tech Sheets
for further dimensions

PIC SD - Picture Side Mechanism

Mounting the Mechanism

Once marked, put appropriate fixings into the marked points. Offer the mechanism to the
wall and secure in place using appropriate fixing.

Make sure to run the mechanism power cables through the hole in the wall

Cable entry /
exit hole

Installation: Stage 2

Make sure the mechanism is
level using a spirit level.

Page 6 of 20 // email [e-mail] tel: [phone] fax: [phone]







PIC SD - Picture Side Mechanism

Final Mounting Fixings

Be sure to use as many fixings through the various slots as possible. Move the frame
left to right to gain access to the top and bottom mounting slots.

Installation: Stage 3

Various fixing slots

Make sure the mechanisms
are fixed securely and safely.

Control Box Setup

- THE CONTROL BOX MUST BE IN AN EASILY ACCESSIBLE LOCATION

- Wire up the control box, refer to page 13 Electrical Connection

- Connect the control box to the mains power supply

- Connect the infrared remote sensor even if you are going to
use switch control

- Cables can be easily extended

Page 7 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Testing the Mechanism

This is a good time to run and test the mechanism. Make sure the frame is square and wont
clash into anything in it’s moving path. Make sure the control box is connected correctly and
the cables wont catch on the mechanism.

Controlling the Mechanism

The supplied IR remote performs
the following functions:

OUT: Reveal Screen

IN: Hide Screen

Installation: Stage 4

STOP: Stop

Safety Note

When the mechanism is
moving if any button is
pressed apart from IN and
OUT it will stop the operation.

Page 8 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism



Fitting the Moving Panels to the Mechanisms

To make sure the moving panel doesn’t fall
off the mechanism attach the moving panel
brackets as shown.

Installation: Stage 5

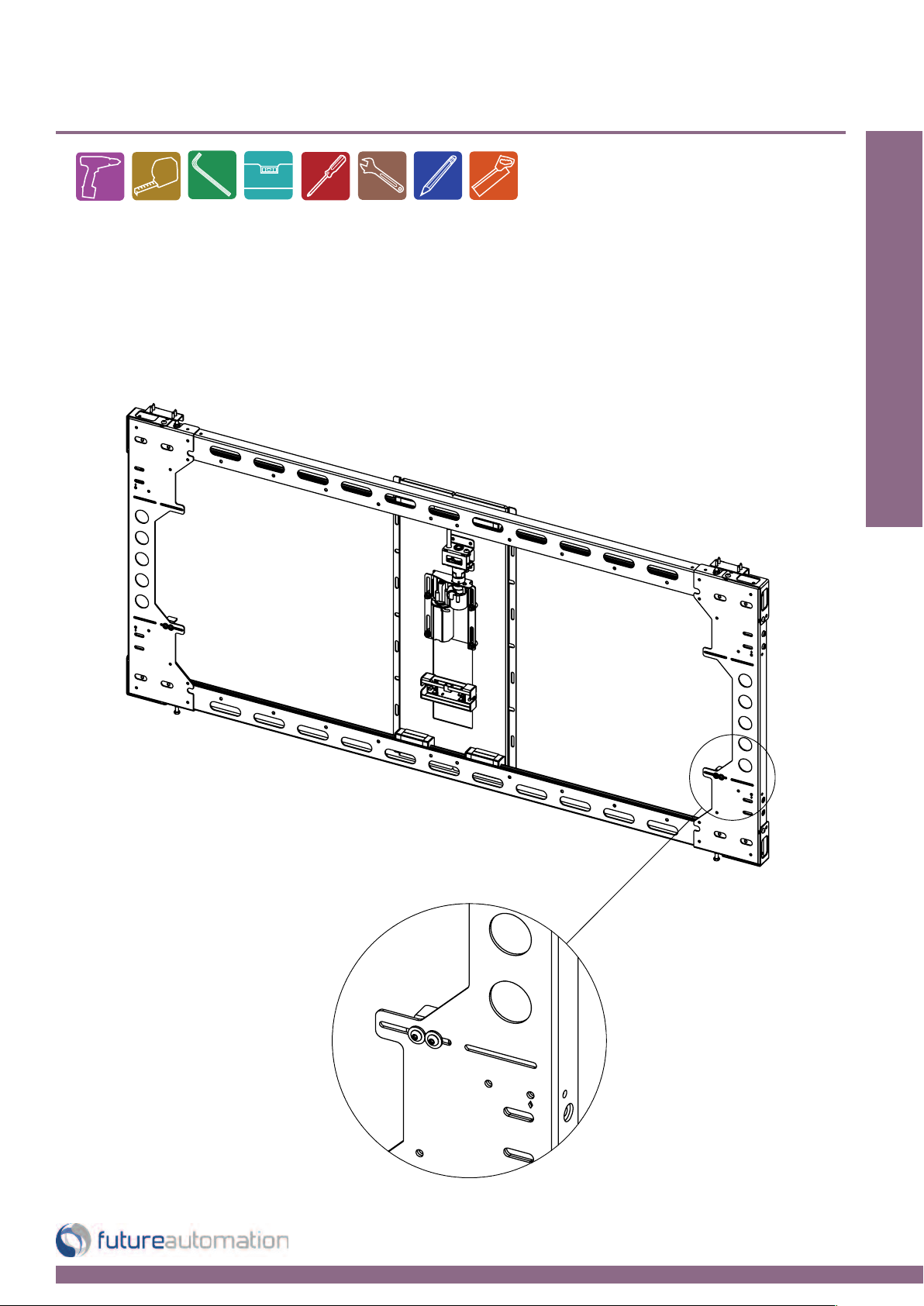

To alter the level of the moving
panel adjust the height of these
bolts which the moving panel
brackets sit on.

10mm

When mounting the
moving panel brackets
make sure to allow
10mm clearance from
the back of the panel to
the wall as shown
above.

Page 9 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Adjusting the Stop Positions

To alter the stopping positions of the moving panel loosen these 2 bolts on both sides
and then slide the bracket left to right to determine the finish positions.

Installation: Stage 6

Page 10 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Optional, Mounting the Screen

In some cases the moving panel will be hiding something else other than a screen such as a
safe or hi-fi which might already be installed otherwise mount the screen into the recess.
A range of screen mounts can be found in our catalogue or website. Models we recommend

Installation: Stage 7

are the V2, V3, V63, V74 & PF60. The V74 mount is shown within the diagram mounting a 48”
screen.

Page 11 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Final Checks

Make sure the mechanism is fixed securely and safely and nothing is in the path of
the moving panel.

Mechanism Movement

Installation: Stage 8

Page 12 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism





Connections

- The mechanism must be connected to all DC controls

Installation: Electrical Connection

Connect infrared
sensor here

Ensure the plug is connected
correctly and secure

Remove this screw
to release the lid

Page 13 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism





S

LQV

568A 568B

1 12V SUPPLY

12V SUPPLY - CURRENT LIMITED

W/G W/O

2 12V LATCH

When 12V attached, device will go OUT. When

12V removed, device will go IN.

GO

3GROUND GROUND W/OW/G

4 PIN 4 NOT USED BL BL

5 DEVICE LATCH

Short to GROUND (pin 3), device will go OUT,

remove short device will go IN.

W/BL W/BL LED 4

6 DEVICE STOP

Momentary short to GROUND (pin 3), stops

device in current position.

O G LED 3

7 DEVICE OUT

Momentary short to GROUND (pin 3), makes

device go OUT.

W/BR W/BR LED 2

8 DEVICE IN

Momentary short to GROUND (pin 3), makes

device go IN.

BR BR LED 1

PIN DESCRIPTION ACTION

WIRE / CABLE

CONTACT CLOSURE

LED INDICATOR

Contact Closure

- Use an RJ45 connector in the CCI
socket on the control box to operate
via contact closure

Installation: Electrical Connection

NOTE:

LED 1
LED 2
LED 3
LED 4
LED 5

Earlier versions of the control board
may not have these contact closure
LED indicators.

Page 14 of 20 // email [e-mail] tel: [phone] fax: [phone]

CONTACT CLOSURE INPUT

PIC SD - Picture Side Mechanism























SLQV

RS232

- Use an RJ25 connector
in the socket marked
RS232 on the control box
to operate using RS232

Pin 1: RX

Pin 6 : TX

Pin 3 & 4: GROUND

Details

Installation: RS232 and Operation Details

Baud rate: 9600
Stop bit: 1

RJ25 9 PIN D

Parity: None
Databits: 8

PIN 1: RX TO PIN 2: TX

PIN 6: TX TO PIN 3: RX

IMPORTANT

Ensure protocol is entered exactly

PIN 3: GROUND TO PIN 5: GROUND

PIN 4: GROUND TO PIN 5: GROUND

as written, including Carriage Return
(Enter / ASCII 13).

Pin 2: TX

Pin 3: RX

Pin 5: GROUND

fa_in Carriage Return (Enter ) Device IN

fa_out Carriage Return (Enter ) Device OUT

fa_stop Carriage Return (Enter ) Device STOP (At any position)

Operation Details

DC3

Controls low voltage (5V)
optical sensing end stop
positions for left panel

EMERGENCY STOP

This connection will stop all
functions of the mechanism once
broken / removed. This is where we
recommend wiring a safety device ­For a range of safety devices see
control, safety & accessories section
in product brochure

Protocol Action

DC4

Controls low voltage (5V)
optical sensing end stop
positions for right panel

DC1

Controls DC motor
for left panel

DC2

Controls DC motor
for right panel

Page 15 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Replacing Batteries

Future Automation IR Remote

Controller needs x2 AAA batteries
which are provided within the
packaging

Operation: Remote Control

Operation Buttons

In - Hides

the screen

Mechanism Reference

Store + Store + Right

Clears Memory

Store + Store + Out

References Mechanism

Stop - Will stop
the operation at
any point

Out - Reveals
the screen

Safety Note

When the mechanism is moving
if you press any button apart
from IN and OUT it will stop the
operation.

Page 16 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

SymptomCause RemedyPage

Remote control or

batteries faulty

Replace batteries or remote, to check batteries view

controler through a camera screen and press buttons,

controller light should be visible

14

Motor end stops

incorrectly set

Adjust end stop 9

Incorrect pin

configuration

Terminate 8-pin RJ45 to 568/b pin configuration 12

Faulty wiring Replace connector or cable 13

Faulty control box Test contact closure on control box 13

Incorrect settings Refer to instructions 14

Incorrect pin

configuration

Terminate 6-pin RJ11 to configuration supplied 13

ASC11 protocol error Amend Protocol 13

Mechanism not working

(Check flashing light on

control box)

Contact closure not

working

RS232 not working

PIC SD Picture Side Mechanism - Trouble Shooting Guide

Having problems? - Check the following:

Trouble Shooting:

If the mechanism does not operate correctly, check the items listed in the table below.
Should the problem persist, there may be a malfunction. If this is the case, disconnect the
mains power immediately and contact your installer

1. Are all the connections correct?

2. Is the mechanism being operated correctly?

Page 17 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Test Motor Operation

If the mechanism is not working, it is possible to test the motor directly. To do so, locate
and open the control box.

Trouble Shooting:

A / +

Motor direct drive

Motor A / B 12V Supply

+ / -

B / -

CAUTION. Apply mains voltage taking all necessary grounding precautions.

Page 18 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

PIC SD1 PIC SD2

Product Dimensions (W,D,H)

1465x55x700mm

[57.7x2.2x27.6"]

1715x55x700mm

[67.5x2.2x27.6"]

Weight (Kg) 18Kg [39.7lb] 20Kg [44.1lb]

Power Consumption 110W 110W

Power Consumption On Standby 3W 3W

Lifting Capacity (Kg) 10Kg [22.0lb] 10Kg [22.0lb]

Standard Colour BLACK BLACK

Picture Movement 1184mm [46.6"] 1435mm [56.5"]

Control

IR Remote, RS232 &

Contact Closure

IR Remote, RS232 &

Contact Closure

Power Supply 240V or 110V 240V or 110V

Control Of 3rd Party Product Yes Yes

Output Power Supply 12V - 240V 12V - 240V

Control Box Size (W,D,H)

150x150x52mm

[5.9x5.9x2"]

150x150x52mm

[5.9x5.9x2"]

Shipping Details X2 Boxes

Dimensions (W,H,D)

1600x800x150mm

[63x31.5x5.9"]

1850x800x150mm

[72.8x31.5x5.9"]

Weight (Kg) 22Kg [48.5lb] 24Kg [52.9lb]

Technical overview:

A general technical overview of the PIC SD1 & 2 picture side mechanism.

Page 19 of 20 // email [e-mail] tel: [phone] fax: [phone]

PIC SD - Picture Side Mechanism

Notes...

Page 20 of 20 // email [e-mail] tel: [phone] fax: [phone]

Future Automation

Unit 2 Kimpton Enterprise Park
Claggy Road
Kimpton
Hertfordshire
SG4 8HP
United Kingdom

Tel: [phone]
Fax: [phone]
Email: [e-mail]

www.futureautomation.co.uk
