Future Automation ML User Manual

Installation Instructions

ML - Heavy Duty Lift Mechanism

Design Highlights

-Unique Drop and Roll Flap Mechanism

-Hand Made Quality Construction

-Full Cable Management

-Custom Sized to Suit Exact Size of Screen

-Range of Add On Functions Available

-Custom Frames for Deeper Screens and Speakers

-Positively Driven Rack System for Secure and Robust Lifting

Lift Mechanisms

Thank you for choosing

futureautomation

email [e-mail] tel: [phone] fax: [phone] ISSUE 001

ML - Heavy Duty Lift Mechanism

Safety Disclaimer

Important Safety Instructions
Explanation of graphical symbols

-(Electric Shock Symbol) = The lightning flash within an equilateral triangle is intended to alert you to the presence of un-insulated
“dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute an electric shock to persons

-(Caution Symbol) = The exclamation point within an equilateral triangle is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product

-(Tools Symbols) = The tools symbol within a coloured square are intended to highlight the required tools necessary for correct and
safe installation of the product. These are intended as a
guide only, and it is at the installer’s discretion as to which tools are used.

WARNING: RISK OF ELECTRIC SHOCK, ONLY AUTHORIZED INSTALLERS TO OPEN THE POWER CONTROL BOX.
WARNING: To reduce the risk of fire or electric shock, do not expose electrical parts to rain or moisture, unless the

product has been specifically designed to do so.

Introduction: Safety Information

WARNING: Failure to provide adequate structural strengthening, prior to installation can result in serious personal injury or damage to the

equipment. It is the installer’s responsibility to ensure the structure to which the component is affixed can support the four times the
weight of the component.
WARNING: Do not exceed the weight capacity. This can result in serious personal injury or damage to the equipment. It is the installer’s
responsibility to ensure that the total combined weight of all attached components does not exceed that of the maximum figure stated.
WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equip­ment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined
weight of all equipment. Reinforce the structure as required before installing the component.

Warnings:

1. Read all technical instructions fully before installation and use. It is the installer’s responsibility to ensure that all
documentation is passed on the end user and read fully before operation.

2. Keep all documentation.

3. Heed all warnings.

4. Follow all technical specifications and instructions during installation.

5. Do not use near water unless the product has been specifically designed to do so.

6. Clean only with a dry cloth.

7. Do not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades, one wider
than the other. A grounding type plug has two blades and a grounding prong. The wide blade or third prong are
provided for your safety. If the provided plug does not fit your outlet, consult an electrician or contact the
manufacturer.

8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where the exit from the apparatus.

9. Unplug the apparatus during lightning storms or when unused for long periods of time.

10. Only use attachments/accessories specified by the manufacturer.

11. Refer all servicing to qualified personnel. Servicing is required regularly on an annual basis, when the apparatus is
damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

12. To completely disconnect the apparatus form the AC mains, disconnect the power cord plug from the AC
receptacle on the power control box.

13. To prevent overheating, do not cover the apparatus. Install in accordance with the instructions.

14. UK, Ireland and Hong Kong only – The power cord is supplied with a 13A plug having an earthing pin. The
apparatus is earthed and this pin is not required for safety, merely to operate the safety shutter of mains outlet.

15. No naked flames such as lit candles should be placed on the unit.

16. Observe and follow the local regulations when disposing of batteries.

17. Do not expose the unit to dripping or splashing fluids.

18. Do not place objects filled with liquid, such as vases, on the unit.

19. Do not expose the batteries to excessive heat such as sunshine, fire or the like.

20. For all mounted apparatus, the apparatus should be installed on solid wood, bricks, concrete or solid wood
columns and battens.

21. Always turn off power at source before putting on or taking off parts and cleaning.

22. Do not use outdoors unless marked for outdoor use.

23. Exceeding the weight capacity can result in serious personal injury or damage to equipment.

Caution

Warning

Beware of

Moving Parts

Danger

Electricity

Keep Hands

Clear

Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future
Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every
possible contingency in connection with the installation or use of this product. The information contained in this document is subject to
change without prior notice or obligation of any kind. Future Automation makes no representation of warranty, expressed or implied,
regarding the information contained herein. Future Automation assumes no responsibility for accuracy, completeness or sufficiency of the
information contained in this document.

Page 1 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Contents Page

Introduction

Safety Information 1
Contents 2

Contents 3
Tool Indicator Icons 3

Installation

Parts List

Package Contents 4

Stage 1

Before You Start 5

Stage 2

Fitting Flap Panel to the Mechanism 6

Stage 3

Fixing the Lift to the Cabinet 7

Stage 4

Adjusting the Up Stop Position 8

Stage 5

Positioning the Base Infill Panel 9

Stage 6

Adjusting the Flap Closed Position 10

Stage 7

Adjusting the Flap Open Position 11

Stage 8

Checking Screen Mount Suitability 12

Stage 9

Mounting the Screen to the Lift 13

Stage 10

Fixing the IR Sensor and Run the Mechanism 14

Electrical Connections

Contact Closure 15

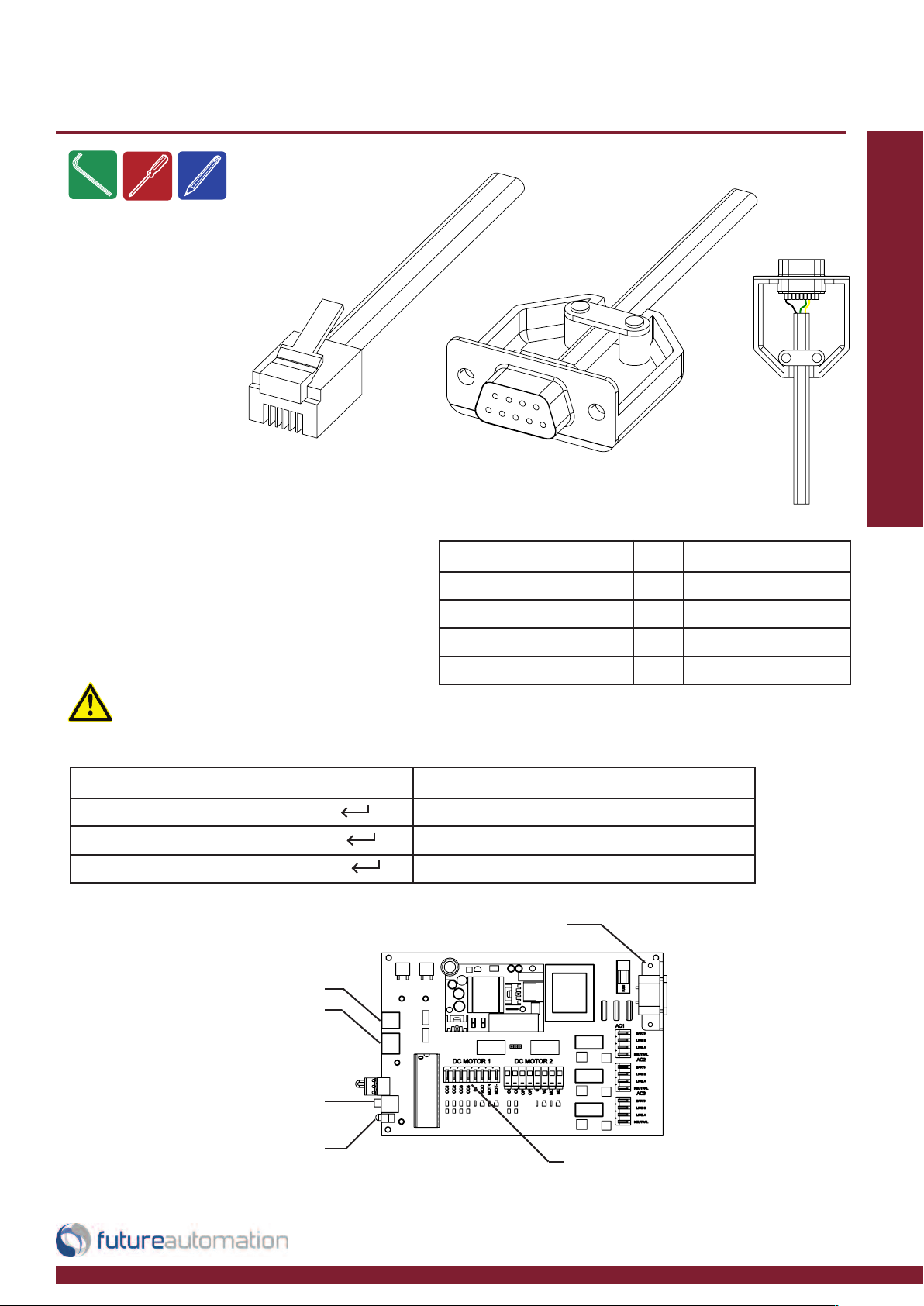

RS232 Controls 16

Introduction: Contents

Operations

IR Control 17
IR Operation 17
Changing Batteries 17
RF Control 17
RF Operation 17

Page 2 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Contents Page

Trouble Shooting 18

Technical Overview 19

Notes 20

Introduction: Contents / Tool Indicator

Tool Indicator Icons

1. 2. 3. 4. 5. 6.

7.

8.

1. - Drill 3. - Allen Keys 5. - Screwdrivers 7. - Pencil

2. - Tape measure 4. - Spirit Level 6. - Spanners 8. - Saw

This product carries a warranty that covers the cost of labour and spare parts incurred by any defects in materials and workmanship under normal use
during a two year period from date of purchase. Support for any problems that are not hardware faults are excluded from the warranty entitlement.
This warranty does not affect your statutory consumer rights.

The following is excluded from warranty service:

• Malfunctioning caused by misuse or damage, accidental or otherwise, or service modification by persons not authorised by Future Automation,
or the use of any non Future Automation supplied parts;

• Any electrical, or other environmental work external to your Future Automation mechanism including power cuts, surges or lightning strikes;

• Additional items not supplied by Future Automation although they may have been supplied together by the retailer;

• Any 3rd party software products controlling your mechanism;

• Any transfer of ownership. Warranty is provided only to the initial purchaser;

• Compensation for loss of use of the product, and consequential loss of any kind;

• Use of the product over the specified weight capacity;

• Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery.

Product Warranty

Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation.

Page 3 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Package Contents

1 - Mechanism

1.1 - Flap

1.2 - Screen Mount

1.3 - Cable Management

1.4 - Lifting Beam
2 - Control Box
3 - Remote Control

Not Shown On Page

4 - x2 AAA Batteries
5 - Multi Pack Of Nuts, Bolts & Washers
6 - Mains Power & Other Leads

Nuts & Bolts Multipack:

A range of nuts, bolts, washers
and spacers to help add in the
mounting for your screen

Installation: Parts List

1.1

3

1.2

1.3
1

2

Page 4 of 20 // email [e-mail] tel: [phone] fax: [phone]

1.4

ML - Heavy Duty Lift Mechanism

Before you Start

Check the Operation of the Mechanism.
Firstly, remove all the red cable ties which keep the mechanism safe and secure during

Installation: Stage 1

transit. There are usually 6 ties in the locations circled on the image.
However, on some models there may be more than 6 cable ties.
Once they have all been removed, the mechanism can be powered up and tested.
Connect the supplied IR lead and check that the mechanism operates correctly before con­tinuing with the installation.

Page 5 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Fitting Flap Panel to the Mechanism

The 6mm flap and the base should be made as part of the cabinet.
The surfaces of the flap should ideally be varnished or painted to help prevent it from warping.

Flap

Adhesive
Pad

Installation: Stage 2

Aluminium Flap

4 holes to be drilled in base panel.
These holes should be12mm diameter
to allow for adjustment later.
Use frame as a template to mark hole
locations.
Example hole locations shown above
are for the Group A frame.

Base Infill

Take care when fixing the

surfaces together. Place the

objects on a flat surface to

make sure the edges are

properly aligned when they

come into contact.

Try to use as many self

adhesive pads as possible to

get the most secure fixture.

Bolt through the support frame

then through base panel into the

black plates on the beam using

M8 x 30mm or M8 x 35mm bolts

Make sure the base panel lines

up squarely, directly on top of the

lifting beam.

Screw base in place from
underside through the 2
fixing brackets on either side.

Consult ML TECHNICAL SHEET

before fabricating any flaps or

base panels.

Page 6 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

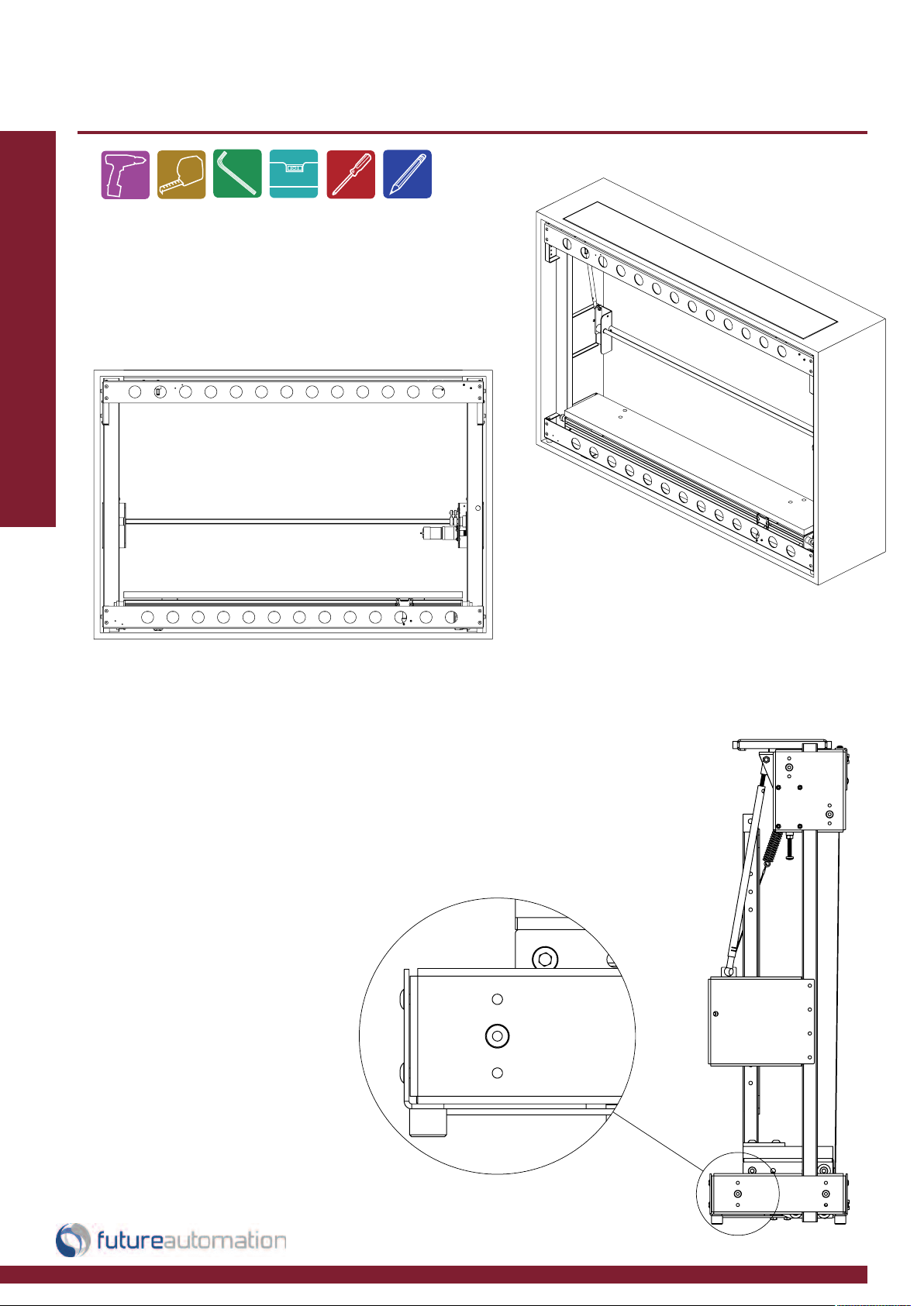

Fixing the Lift to the Cabinet

Place the mechanism within the cabinet.
Raise the beam to the top and carefully
guide the base through the opening.

Installation: Stage 3

With the top properly located, use the 8 pointed screws supplied, 4 on
each side, to pin the mechanism in place, fixing its position left and right.
These 8 screws should be screwed through the middle hole of each of
the clusters of 3, shown.

With the lift fixed in position, use 8 wood screws on each side to secure
the lift to the cabinet.

Page 7 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Adjusting the Up Stop Position

By adjusting the screw up or down, you can adjust the stop height of the lifting beam
and also, the base infill panel.

Installation: Stage 4

Make sure that the gears and
racks are evenly greased and
move smoothly.

Page 8 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Positioning the Base Infill Panel

Loosen off the frame and move the
base to the centre of the opening.
There should be a gap of about 3mm

Installation: Stage 5

[1/8”] around the edges of the base
panel to the cabinet opening.

Page 9 of 20 // email [e-mail] tel: [phone] fax: [phone]

You will also have to cut a

hole in the base infill panel to

allow the cables to pass up

through to the plasma screen.

The location of this hole will

depend on the screen type

that is going to be used.

ML - Heavy Duty Lift Mechanism

Adjusting the Flap Closed Position

1. - By adjusting the white screw, at each side
of the lift, you can adjust the tilt of the flap.

2. - By loosening the M6 bolts on each side under
the flap, you can adjust the position of the flap in the
cabinet top. Aim for a 3mm [1/8”] gap all round.

2.

CABINET BASE - SIDE VIEW

CABINET BASE - PLAN VIEW

Installation: Stage 6

3.

3. - For further adjustment
you can adjust the push
rod length by screwing the
studding in or out.

CABINET BASE - SIDE VIEW

1.

Page 10 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Adjusting the Flap Closed Position

By adjusting the bolts below each
flap arm, it is possible to alter the
angle the flap opens to.

Installation: Stage 7

It is very important that when the
flap is open, it rests in a vertical
position, as shown below.

Page 11 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Checking Screen Mount Suitability

With a standard plasma lift, the supplied mounting type will be either a Group A or C
framework, or a VESA 200 mount. Check that the type supplied suits the screen that is
going to be mounted to the mechanism.

VESA 200 Mount

Remove the screen plate, and fix it
to the back of the screen using the
appropriate fixings.

Installation: Stage 8

Group A or C Framework

Remove the uprights, and fix
them to the back of the screen
using the appropriate fixings.

If these screen mounts are
unsuitable to secure your
screen, a custom mount
plate can be designed.

Page 12 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Mounting the Screen to the Lift

Before mounting any screen,
press STOP on the IR remote in
order to prevent any motor

Installation: Stage 9

movements during the mounting
procedure.

Simply mount the screen on to
the mount supplied with your
mechanism. The example below
shows a Group A framework.

The height of the inner framework is adjustable
in 30mm increments. There is then the final
fine adjustment available from 30mm slots in
the side. The inner uprights will slide to allocate
different mounting systems.

When the screen is in position, the cables
can be connected and run up into the
cabinet.

Pass the cables through the hole you cut
in the base for the cables. Once inside the
cabinet, pass the cables in to the cable
management system. This resembles a
black chain running from the beam to the
base of the cabinet that the cables can be
pushed inside to keep them tidy.

Page 13 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Fix the IR Sensor and Run the Mechanism

The IR sensor can be located anywhere outside of the cabinet.

Installation: Stage 10

It is very important that once the mechanism is set up, the lift is run in and
out a number of times to bed in and stabilise.

It may then be necessary to re-adjust the height and / or level of the lifting
beam, as first discussed in Stage 4 of these instructions.

Page 14 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism





S

LQV

568A 568B

1 12V SUPPLY

12V SUPPLY - CURRENT LIMITED

W/G W/O

2 12V LATCH

When 12V attached, device will go OUT. When

12V removed, device will go IN.

GO

3GROUND GROUND W/OW/G

4 PIN 4 NOT USED BL BL

5 DEVICE LATCH

Short to GROUND (pin 3), device will go OUT,

remove short device will go IN.

W/BL W/BL LED 4

6 DEVICE STOP

Momentary short to GROUND (pin 3), stops

device in current position.

O G LED 3

7 DEVICE OUT

Momentary short to GROUND (pin 3), makes

device go OUT.

W/BR W/BR LED 2

8 DEVICE IN

Momentary short to GROUND (pin 3), makes

device go IN.

BR BR LED 1

PIN DESCRIPTION ACTION

WIRE / CABLE

CONTACT CLOSURE

LED INDICATOR

Contact Closure

- Use an RJ45 connector in the CCI
socket on the control box to operate
via contact closure

Installation: Electrical Connection

NOTE:
Earlier versions of the control board
may not have these contact closure
LED indicators.

Page 15 of 20 // email [e-mail] tel: [phone] fax: [phone]

LED 1
LED 2
LED 3
LED 4
LED 5

CONTACT CLOSURE INPUT

ML - Heavy Duty Lift Mechanism























SLQV

RS232

- Use an RJ25 connector
in the socket marked
RS232 on the control box
to operate using RS232

Pin 1: RX

Pin 6 : TX

Pin 3 & 4: GROUND

Installation: R232 Control

Pin 2: TX
Pin 3: RX

Pin 5: GROUND

Details

RJ25 9 PIN D

Baud rate: 9600
Stop bit: 1
Parity: None
Databits: 8

PIN 1: RX TO PIN 2: TX

PIN 6: TX TO PIN 3: RX

PIN 3: GROUND TO PIN 5: GROUND

PIN 4: GROUND TO PIN 5: GROUND

IMPORTANT

Ensure protocol is entered exactly as written,
including Carriage Return (Enter / ASCII 13).

Protocol Action

fa_in Carriage Return (Enter ) Device IN

fa_out Carriage Return (Enter ) Device OUT

fa_stop Carriage Return (Enter ) Device STOP (At any position)

Operation Details

RS232

Contact Closure

Mains Voltage Input

IR Input Jack

IR LED

Page 16 of 20 // email [e-mail] tel: [phone] fax: [phone]

DC1

Low voltage power output for
motor drive.LED’s to show
operation of limit switches
and positional counters

ML - Heavy Duty Lift Mechanism

Operation buttons for the IR remote

In - Brings the mechanism

inside the cabinet

cabinet facing forward

Installation: IR Control

Note

Only buttons indicated are
functional with the product.
Any button pressed when in
motion mechanism will stop.

Out - Brings the

mechanism out of the

Stop - Will stop

the operation at

any position

Replacing batteries

Future Automation IR
Remote Controller
needs x2 AAA batteries
which are provided
within the packaging

Page 17 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Heavy Duty Lift Mechanism - Trouble shooting guide

Lift Mechanism ML - Trouble shooting

For information on our products please refer to our web site -

www.futureautomation.co.uk

or for questions on installations and our product range please

phone us on - [phone] and ask for our technical

support department

Trouble Shooting:

Page 18 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

ML

Product Dimensions Custom

Weight Custom

Power Consumption 250W - 500W

Power Consumption On
Standby

100mA

Lifting Capacity (Kg) 100Kg [220.5lb]

Standard Screen Mount Colour Black

Width - N/A

Height - N/A

Depth - 155mm [6.1"]

Control

IR Remote, RF Remote,

Contact Closure & RS232

Power Supply 240V or 110V

Control Of 3rd Party Product Yes

Output Power Supply Yes (12V)

Control Box Size (W,D,H) 152x200x55mm [6x7.9x2.2"]

Shipping Details

Dimensions Approx (W,D,H)

1800x500x1200mm

[70.9x19.7x47.2"]

Weight Approx (Kg) 50 - 60Kg [110.2 - 132.3lb]

Max Television Size

Technical Overview

A general technical overview of the ML lift mechanism

Technical Overview:

Page 19 of 20 // email [e-mail] tel: [phone] fax: [phone]

ML - Heavy Duty Lift Mechanism

Notes...

Page 20 of 20 // email [e-mail] tel: [phone] fax: [phone]

Future Automation

Unit 2 Kimpton Enterprise Park
Claggy Road
Kimpton
Hertfordshire
SG4 8HP
United Kingdom

Tel: [phone]
Fax: [phone]
Email: [e-mail]

www.futureautomation.co.uk
