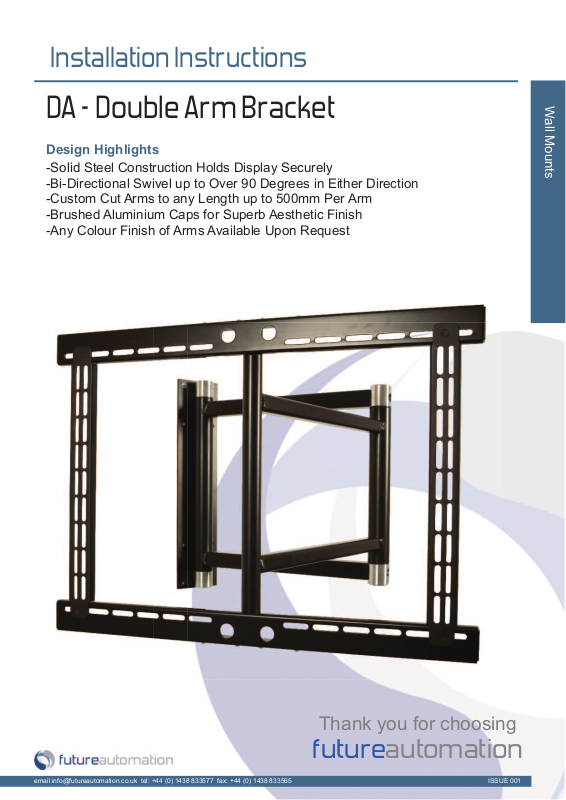

Future Automation DA User Manual

Installation Instructions

DA - Double Arm Bracket

Design Highlights

-Solid Steel Construction Holds Display Securely

-Bi-Directional Swivel up to Over 90 Degrees in Either Direction

-Custom Cut Arms to any Length up to 500mm Per Arm

-Brushed Aluminium Caps for Superb Aesthetic Finish

-Any Colour Finish of Arms Available Upon Request

Wall Mounts

Thank you for choosing

futureautomation

email [e-mail] tel: [phone] fax: [phone] ISSUE 001

DA - Double Arm Bracket

Safety Disclaimer

Important Safety Instructions
Explanation of graphical symbols

-(Electric Shock Symbol) = The lightning flash within an equilateral triangle is intended to alert you to the presence of un-insulated
“dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute an electric shock to persons

-(Caution Symbol) = The exclamation point within an equilateral triangle is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product

-(Tools Symbols) = The tools symbol within a coloured square are intended to highlight the required tools necessary for correct and
safe installation of the product. These are intended as a
guide only, and it is at the installer’s discretion as to which tools are used.

WARNING: RISK OF ELECTRIC SHOCK, ONLY AUTHORIZED INSTALLERS TO OPEN THE POWER CONTROL BOX.
WARNING: To reduce the risk of fire or electric shock, do not expose electrical parts to rain or moisture, unless the

product has been specifically designed to do so.

Introduction: Safety Information

WARNING: Failure to provide adequate structural strengthening, prior to installation can result in serious personal injury or damage to the

equipment. It is the installer’s responsibility to ensure the structure to which the component is affixed can support the four times the
weight of the component.
WARNING: Do not exceed the weight capacity. This can result in serious personal injury or damage to the equipment. It is the installer’s
responsibility to ensure that the total combined weight of all attached components does not exceed that of the maximum figure stated.
WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equip­ment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined
weight of all equipment. Reinforce the structure as required before installing the component.

Warnings:

1. Read all technical instructions fully before installation and use. It is the installer’s responsibility to ensure that all
documentation is passed on the end user and read fully before operation.

2. Keep all documentation.

3. Heed all warnings.

4. Follow all technical specifications and instructions during installation.

5. Do not use near water unless the product has been specifically designed to do so.

6. Clean only with a dry cloth.

7. Do not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades, one wider
than the other. A grounding type plug has two blades and a grounding prong. The wide blade or third prong are
provided for your safety. If the provided plug does not fit your outlet, consult an electrician or contact the
manufacturer.

8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where the exit from the apparatus.

9. Unplug the apparatus during lightning storms or when unused for long periods of time.

10. Only use attachments/accessories specified by the manufacturer.

11. Refer all servicing to qualified personnel. Servicing is required regularly on an annual basis, when the apparatus is
damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

12. To completely disconnect the apparatus form the AC mains, disconnect the power cord plug from the AC
receptacle on the power control box.

13. To prevent overheating, do not cover the apparatus. Install in accordance with the instructions.

14. UK, Ireland and Hong Kong only – The power cord is supplied with a 13A plug having an earthing pin. The
apparatus is earthed and this pin is not required for safety, merely to operate the safety shutter of mains outlet.

15. No naked flames such as lit candles should be placed on the unit.

16. Observe and follow the local regulations when disposing of batteries.

17. Do not expose the unit to dripping or splashing fluids.

18. Do not place objects filled with liquid, such as vases, on the unit.

19. Do not expose the batteries to excessive heat such as sunshine, fire or the like.

20. For all mounted apparatus, the apparatus should be installed on solid wood, bricks, concrete or solid wood
columns and battens.

21. Always turn off power at source before putting on or taking off parts and cleaning.

22. Do not use outdoors unless marked for outdoor use.

23. Exceeding the weight capacity can result in serious personal injury or damage to equipment.

Caution

Warning

Beware of

Moving Parts

Danger

Electricity

Keep Hands

Clear

Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future
Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every
possible contingency in connection with the installation or use of this product. The information contained in this document is subject to
change without prior notice or obligation of any kind. Future Automation makes no representation of warranty, expressed or implied,
regarding the information contained herein. Future Automation assumes no responsibility for accuracy, completeness or sufficiency of the
information contained in this document.

Page 1 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Contents Page

Introduction

Safety Information 1
Contents 2

Contents 3
Tool Indicator Icons 3

Installation

Parts List 4

Package Contents 4

Stage 1

Removing The Uprights 5
Before You Start Check 5

Stage 2

Vertical Height Alignment 6

Stage 3

Adjusting The Uprights 7

Stage 4

Mounting The Bracket 8

Stage 5

Mounting The Screen 9

Stage 6

Bracket Movement 10

Introduction: Contents

Trouble Shooting 10

Technical Overview 11

Page 2 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Introduction: Contents / Tool Indicator

Tool Indicator Icons

1. 2. 3. 4. 5. 6.

7.

8.

1. - Drill 3. - Allen Keys 5. - Screwdrivers 7. - Pencil

2. - Tape measure 4. - Spirit Level 6. - Spanners 8. - Saw

This product carries a warranty that covers the cost of labour and spare parts incurred by any defects in materials and workmanship under normal use
during a two year period from date of purchase. Support for any problems that are not hardware faults are excluded from the warranty entitlement.
This warranty does not affect your statutory consumer rights.

The following is excluded from warranty service:

• Malfunctioning caused by misuse or damage, accidental or otherwise, or service modification by persons not authorised by Future Automation,
or the use of any non Future Automation supplied parts;

• Any electrical, or other environmental work external to your Future Automation mechanism including power cuts, surges or lightning strikes;

• Additional items not supplied by Future Automation although they may have been supplied together by the retailer;

• Any 3rd party software products controlling your mechanism;

• Any transfer of ownership. Warranty is provided only to the initial purchaser;

• Compensation for loss of use of the product, and consequential loss of any kind;

• Use of the product over the specified weight capacity;

• Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery.

Product Warranty

Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation.

Page 3 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Package Contents

1 - Bracket

1.1 - Wall Plate

1.2 - Customized Arms

1.3 - Cross Members

1.4 - Uprights

Not Shown On Page

2 - Multi Pack Of Nut, Bolts & Washers

Nuts & Bolts Multipack:

A range of nuts, bolts, washers
and spacers to help add in the
mounting for your screen

1.2

Installation: Package Contents

1.1

1.4

1

1.3

1.2

1.3

1.4

Page 4 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Removing the Uprights

Before you start, check the following:

-The product is in good condition

Installation: Stage 1

-No damage to any parts

-Wiring is all secure

-The unit is in the closed position

The uprights should be attached to the
frame. To remove them loosen the bolts,
which are located behind the frame.

This will enable you to fix the uprights to the
back of the screen with greater ease.

Page 5 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Vertical height alignment

Firstly place the screen down onto a flat surface with the back penel facing up
making sure that the screen does not get damaged in any away time.

When flat place the uprights down into position and carefully bolt to the screen.

Installation: Stage 2

Non-Scratch Flat Surface

Make sure to measure the distance of the uprights so they are an equal distance from
the top of the screen and will be in the correct height position when mounted to the wall.

Page 6 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Adjusting the Uprights

The uprights are designed to have different size slots. 7mm
slots are for smaller bolts and 9mm slots are for larger bolts.

Installation: Stage 3

If the mounting points are recessed on the
back of the screen, it will be nessary to use
the spacers which have been provided.

It is recommended that a minimum of 15mm
Bolt thread screwed into the screen casing
without bottoming out. The spacer can also
be used if the back of the screen is not flat
or to help with electrical connection.

Spacer

Page 7 of 12 // email [e-mail] tel: [phone] fax: [phone]

Recess

DA - Double Arm Bracket

Mounting The Bracket

Mount the bracket to a secure solid wall, make sure that the bracket is
level and at the correct height for viewing when the screen is attached.

Installation: Stage 4

Page 8 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Mounting The Screen

Mount the screen with the uprights back on to the DA bracket and secure in place
using the previously removed nuts.

Installation: Stage 5

Wall ommitted for clarity

Page 9 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Bracket Movement

Examples of positions that can be created

Installation: Stage 6 & Trouble Shooting:

Wall Mount DA - Trouble shooting

For information on our products please refer to our web site -

www.futureautomation.co.uk

or for questions on installations and our product range please

phone us on - [phone] and ask for our technical

support department

Page 10 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA

Product Dimensions

(W,D,H When Closed)

Variable x95x325mm

[Variable x3.7x12.8"]

Weight (Kg) Variable

Maximum Weight (Kg) 50Kg [110.2lb]

Standard Colour Black

Max Rotation 90ȗ

Control Of 3rd

Party Product

No

Output Power Supply No

Shipping Details

Dimensions (W,D,H) Variable

Weight (Kg) Variable

DA - Double Arm Bracket

A general technical overview of the DA Double Arm Bracket

Technical overview:

Page 11 of 12 // email [e-mail] tel: [phone] fax: [phone]

DA - Double Arm Bracket

Notes...

Page 12 of 12 // email [e-mail] tel: [phone] fax: [phone]
