USER MANUAL
Page 2
CONTENTS
590 REV02 REV DATE: SEPTEMBER 13, 2013 2 AQUA NT
1 General ...............................................................................................................................................................4
Labels .....................................................................................................................................................................5
Operating Safety Warnings ....................................................................................................................................6
Features ..................................................................................................................................................................8
Safety Inspection Checklist ....................................................................................................................................9
Troubleshooting ................................................................................................................................................... 11
2 Front Riggings ................................................................................................................................................. 12
Installing And Adjusting The Front Rigging Figure 1, Figure 2 ............................................................................ 12
3 Arms ................................................................................................................................................................. 14
Adjusting And Installing Arms Figure 3Figure 4 .................................................................................................. 14
4 Back ................................................................................................................................................................. 16
Replacing Upholstery And Adjusting Back Height Figure 5Figure 6 ................................................................... 16
5 Seat .................................................................................................................................................................. 18
Replacing Seat Assembly Figure 7 ..................................................................................................................... 18
6 Potty ................................................................................................................................................................. 19
Removing and Installing Potty Figure 8 Figure 9 ................................................................................................ 19
7 Casters............................................................................................................................................................. 22
Adjusting commode seat height Figure 10 .......................................................................................................... 22
8 Rear wheels (self-propelled only) .................................................................................................................... 24
Page 3
CONTENTS
590 REV02 REV DATE: SEPTEMBER 13, 2013 3 AQUA NT
Removing/Installing the rear wheels Figure 11 ................................................................................................... 24
9 Wheel locks – (self-propelled only) .................................................................................................................. 25
Using the Wheel Locks Figure 12 ........................................................................................................................ 25
10 Anti-tippers (self-propelled only) ...................................................................................................................... 27
Installing/adjusting anti-tippers Figure 13 Figure 15 ............................................................................................ 27
11 Seat to Floor .................................................................................................................................................... 30
Adjusting the seat to floor ratio Figure 15 Table 1 ............................................................................................... 30
12 Cleaning and maintenance .............................................................................................................................. 32
13 Warranty .......................................................................................................................................................... 34
Page 4
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 4 AQUA NT
1 General
NOTE: Check all parts for shipping damages before using.
In case of damage, do NOT use the equipment.
NOTICE
Information contained within this document is subject to change
without notice.
WARNING
DO NOT install this equipment without first reading and
understanding this instruction booklet. If you are unable to
understand these instructions, contact a healthcare professional,
dealer or technical personnel before attempting to install this
equipment - otherwise, injury or damage may occur.
Page 5
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 5 AQUA NT
Labels
AQUA NT COMMODE
WEIGHT CAPACITY
300LBS. (136KGS)
REFER TO OWNER’S
MANUAL
Page 6
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 6 AQUA NT
Operating Safety Warnings
Unless otherwise noted, all service and adjustment should be performed while the tilt commode is unoccupied.
To determine and establish your particular safety limits, practice bending, reaching and transferring activities in
several combinations in the presence of a qualified healthcare professional BEFORE attempting active use of the
tilt commode.
Always verify that the back assembly is secure PRIOR to use when an attendant is used to propel or lift the tilt
commode. Check for any signs of looseness or deterioration and if found, contact a qualified technician. DO
NOT attempt to move the tilt commode by using the back assembly is it is found to be unsecure or have
deteriorated.
DO NOT sit or transfer into the commode unless it is fully open and the commode seat assembly is properly
fastened to the commode frame though the use of clips.
DO NOT TRAVERSE, CLIMB or GO DOWN ramps or slopes greater than 9 degrees
DO NOT attempt to move up or down an incline with a water, ice or oil film
DO NOT operate on roads, streets or highways
DO NOT attempt to ride over curbs or obstacles. Doing so may cause your commode to tip over and cause
bodily harm to you or damage to the commode.
DO NOT attempt to reach objects if you have to move forward in the seat.
DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your
knees.
DO NOT lean over the top of the back upholstery. This will change your center of gravity and may cause you
to tip over.
DO NOT shift your weight or sitting position toward direction you are reaching as the commode may tip over.
Page 7
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 7 AQUA NT
WHEEL LOCKS ARE NOT BRAKES. DO NOT attempt to stop a moving commode with wheel locks.
These locks are to be engaged by the occupant or attendant when the commode is stationary and prior to use
by the occupant.
CASTER LOCKS ARE NOT BRAKES. DO NOT attempt to stop a moving commode with caster locks.
These locks are to be engaged by the attendant when the commode is stationary and prior to use by the
occupant.
DO NOT tip the commode without assistance.
DO NOT use an escalator to move a commode between floors. Serious bodily injury may occur.
Before attempting to transfer in and out of the commode, every precaution should be taken to reduce the gap
distance. Turn both casters parallel to the object you are transferring onto. When transferring to and from the
commode, ALWAYS ENGAGE BOTH WHEEL and CASTER LOCKS.
DO NOT use parts, accessories or adapters other than those authorized by Future Mobility Healthcare Inc.
Otherwise, the warranty is void.
DO NOT attempt to lift the commode by any removable (detachable) part. Lifting by means of any removable
(detachable) parts of a commode may result in injury to the user and/or assistant or damage to the commode.
DO NOT stand on the frame of the commode.
DO NOT use the footplate as a platform. When getting in or out of the commode, make sure that the
footplates are in the upward position.
Page 8
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 8 AQUA NT
Features
FEATURES
SPECIFICATIONS
Removable seat and potty
Removable cantilever fixed height arm rest
Incredibly low 16-1/4” seat to floor height
Quick release clip on casters for adjustment of
seat to floor heights
Height adjustable back frame
50 or 70 degree swing away front riggings
(optional)
Removable rear wheels with stainless steel or
plastic hand rims (self-propelled only)
Composite footplates
Heel loops
Seat Width: 17”, 20”, 22”
Seat Depth: 17”
Overall Width: Seat Width +7” (self-propelled),
seat width + 6” (attendant propelled)
Seat to Floor: 15-1/4” –19”1/2”
Caster Size: 5” urethane w/lock
Rear Wheels: 20”, 22”, 24” (self-propelled only)
Back Style: Mesh Back
Back Height: 20”
Front Riggings: Swing away
Weight Capacity: 300lbs (136kgs)
Product Weight: 38lbs
Frame Material: Stainless Steel
Frame Finish: Electro polished or white powder
coat
Page 9
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 9 AQUA NT
Safety Inspection Checklist
Initial adjustments should be made to suit your personal body structure needs and preference. Thereafter follow
these maintenance procedures:
Item
Initially
Weekly
Monthly
Periodically
GENERAL
Commode rolls straight (no excessive
drag or pull to one side)
X X X
FRAME AND CROSSING TUBES
Inspect for loose or missing hardware
Inspect for bent frame or cross tubes
X
X
X
X
X
X
SEAT AND BACK
Inspect for rips or sagging
Inspect for loose or broken hardware
Inspect cane and back support for
wear/looseness
X
X
X
X
X
X
X
FRONT AND REAR CASTERS
Inspect caster assembly for proper
tension by spinning caster; caster should
come to a gradual stop
X
X
Page 10
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 10 AQUA NT
Adjust bearing system if wheel wobbles
or binds to a stop. Ensure wheel
bearings are clean and free of moisture.
Check caster stem for tightness
Inspect casters for cracks and wear
Inspect for cracked, bent or broken
spokes
Inspect Tente Caster lock to ensure it
engages properly
X
X
X
X
X
X
X
X
X
X
X
CLEANING
Clean upholstery and armrests
Clean potty and commode seat
Check commode for sign of human waste
on all parts to maintain sanitary
conditions.
X
X
X
X
X
X
X
X
X
Page 11
1 GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 11 AQUA NT
Troubleshooting
Commode
Veers
Right/Left
Sluggish
Turn or
Performance
Caster
Flutter
Squeaks
and
Rattles
Looseness
in Chair
Commode
not tilting
Solutions
X
X X X
Check for loose nuts and
bolts
X X
Tente Caster assembly in
the front and rear (if
applicable)
X
Check gas cylinder
assembly to see if cable
ball socket is fastened
properly
X
Check to see if tilt cable is
not kinked which would
prevent the chair from
tilting
Page 12
2 FRONT RIGGINGS
590 REV02 REV DATE: SEPTEMBER 13, 2013 12 AQUA NT

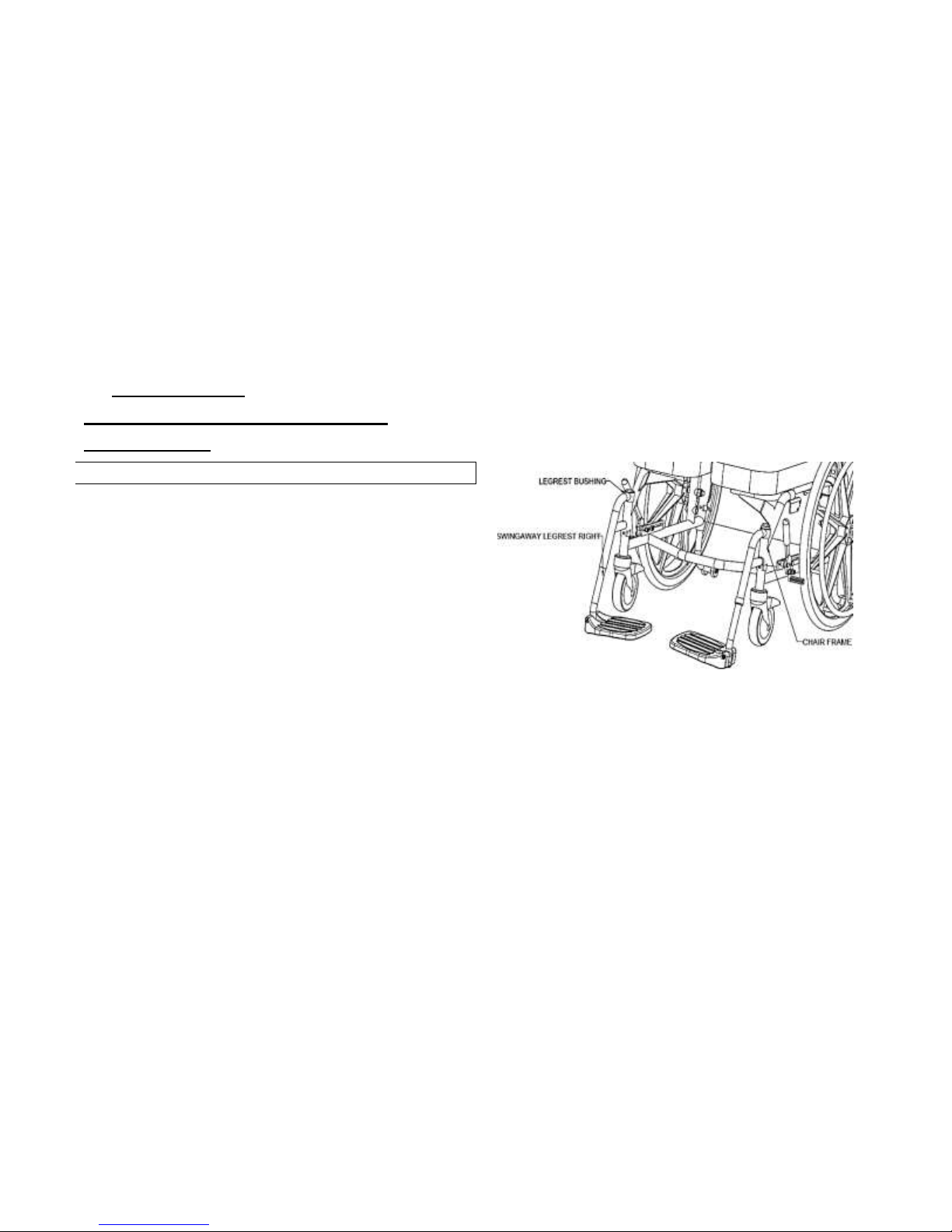

2 Front Riggings
Installing and Adjusting the Front Rigging
Figure 1, Figure 2
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Installing/Removing The Front Riggings
Installing:
1. Place the front rigging assembly parallel to the
commode pointing outwards.
2. Insert the bushing on the commode hanger into
the top opening of the frame front.
3. The back cutout on the bushing should come to
rest on the pin – which is welded to the frame
front.
4. Ensure the Front Rigging is not loose and is
‘snug’ in place
5. Repeat this procedure with the other front
rigging assembly.
Figure 1
Page 13
2 FRONT RIGGINGS
590 REV02 REV DATE: SEPTEMBER 13, 2013 13 AQUA NT
Removing:
1. Lift the front rigging vertically up such that the
hanger bushing clears the frame front pin.
2. The rigging should be placed near the
commode so when needed it may be placed
back onto the commode
3. Repeat this procedure with the other front
rigging assembly.

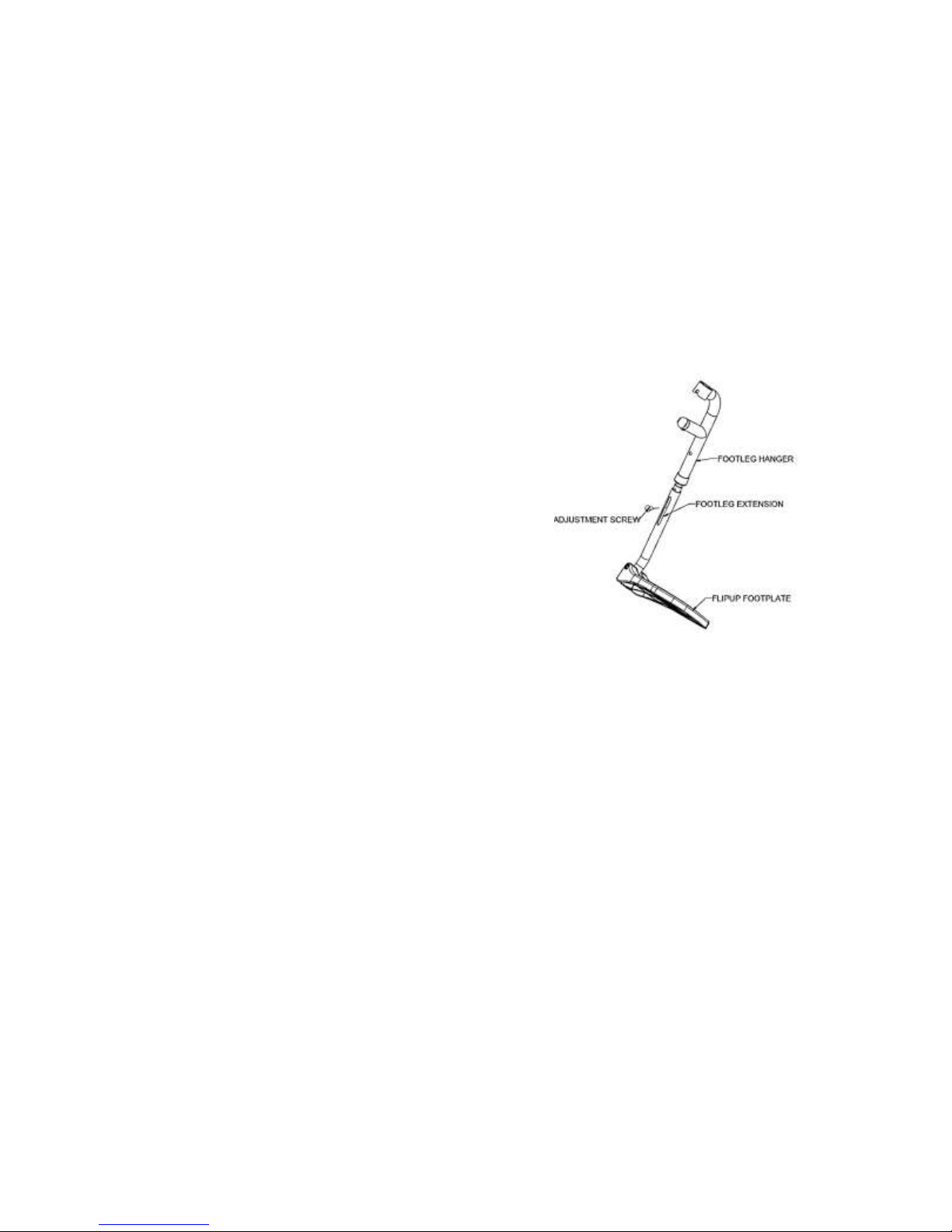

Adjusting Footplate Height
1. Remove the front rigging assembly. Refer to
INSTALLING/REMOVING THE FRONT
RIGGING in this section of the manual.
2. Loosen the 1/4-20 x 1/2” socket head button
screw which fastens the footrest hanger to the
footrest extension. Slide the footrest extension
up or down to desired height. There should be
approximately 2-3/8” of range for the footrest
extension.
3. Re-tighten socket head button screw.
4. Repeat this procedure with the other footplate
assembly.
Figure 2
Page 14
3 ARMS
590 REV02 REV DATE: SEPTEMBER 13, 2013 14 AQUA NT
3 Arms
Adjusting and Installing Arms Figure 3 Figure 4
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Removing Arm Assembly
1. Lift the arm latch up with index finger such that
the arm assembly is able to rotate
2. Rotate the arm assembly upwards to the
position show in the figure.
3. At this point the arm assembly should come to
a stop. Gently slide the arm assembly towards
your body and you should be able to see the
arm assembly out come from the arm pivot rod.
4. Do not force the arm assembly out as there a
nylon spacer which acts as a guide for the arm
while it is rotating and keeps the arm in place.
Note: If the nylon spacer becomes damaged
then it needs to be replaced because it could
cause problems for the end user.

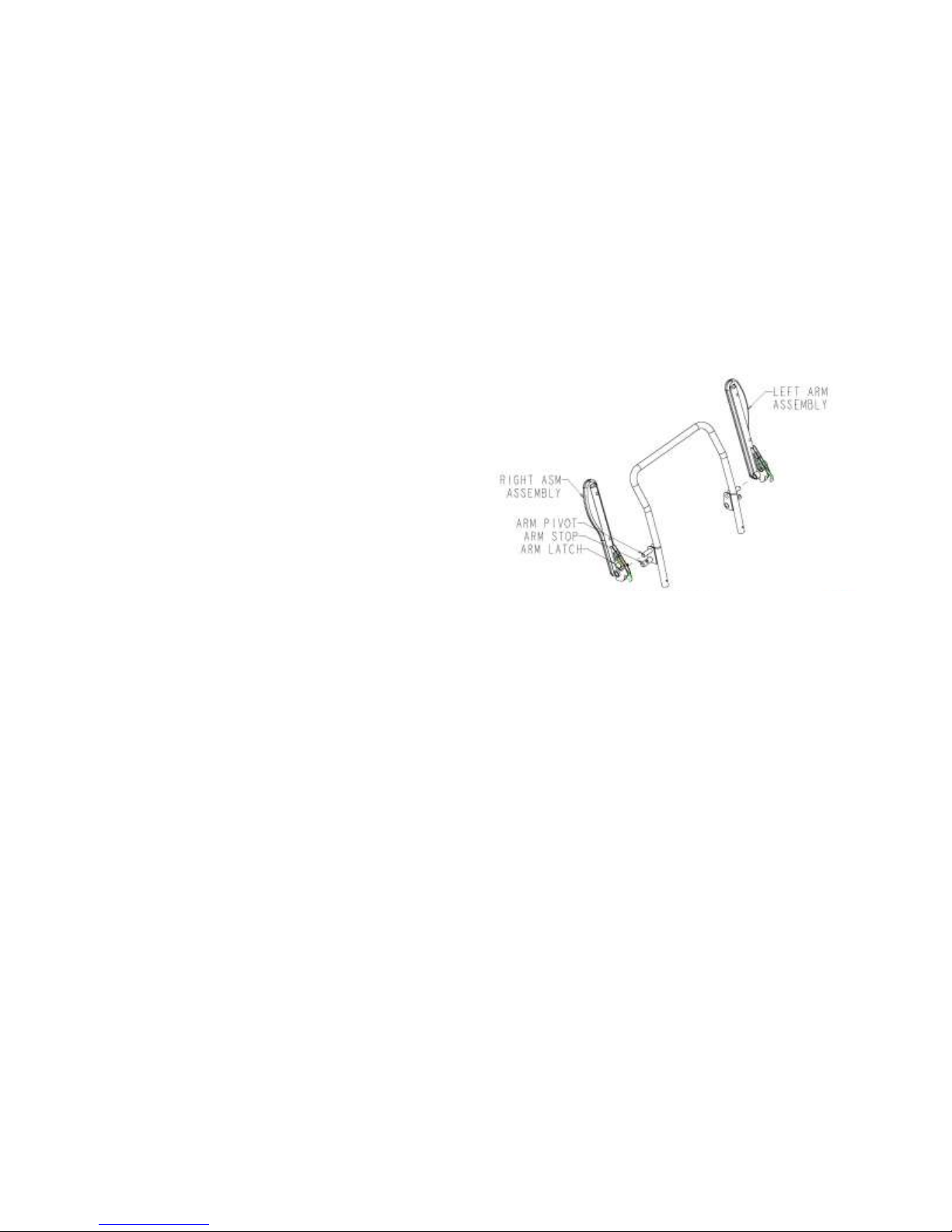

Figure 3
Page 15
3 ARMS
590 REV02 REV DATE: SEPTEMBER 13, 2013 15 AQUA NT
Installing Arm Assembly
1. Orient the arm assembly in a manner such that
the arm latch and arm pads are oriented away
from the back frame as shown below
2. Gently slide the arm assembly onto the arm
pivot rod until it comes to a stop.
3. One should notice that the space between the
two metal plates on the arm body should line
up with the nylon spacer.
4. Do not force the arm assembly inwards as
there a nylon spacer which acts as a guide for
the arm while it is rotating and keeps the arm in
place.
Note: If the nylon spacer becomes damaged
then it needs to be replaced because it could
cause problems for the end user.

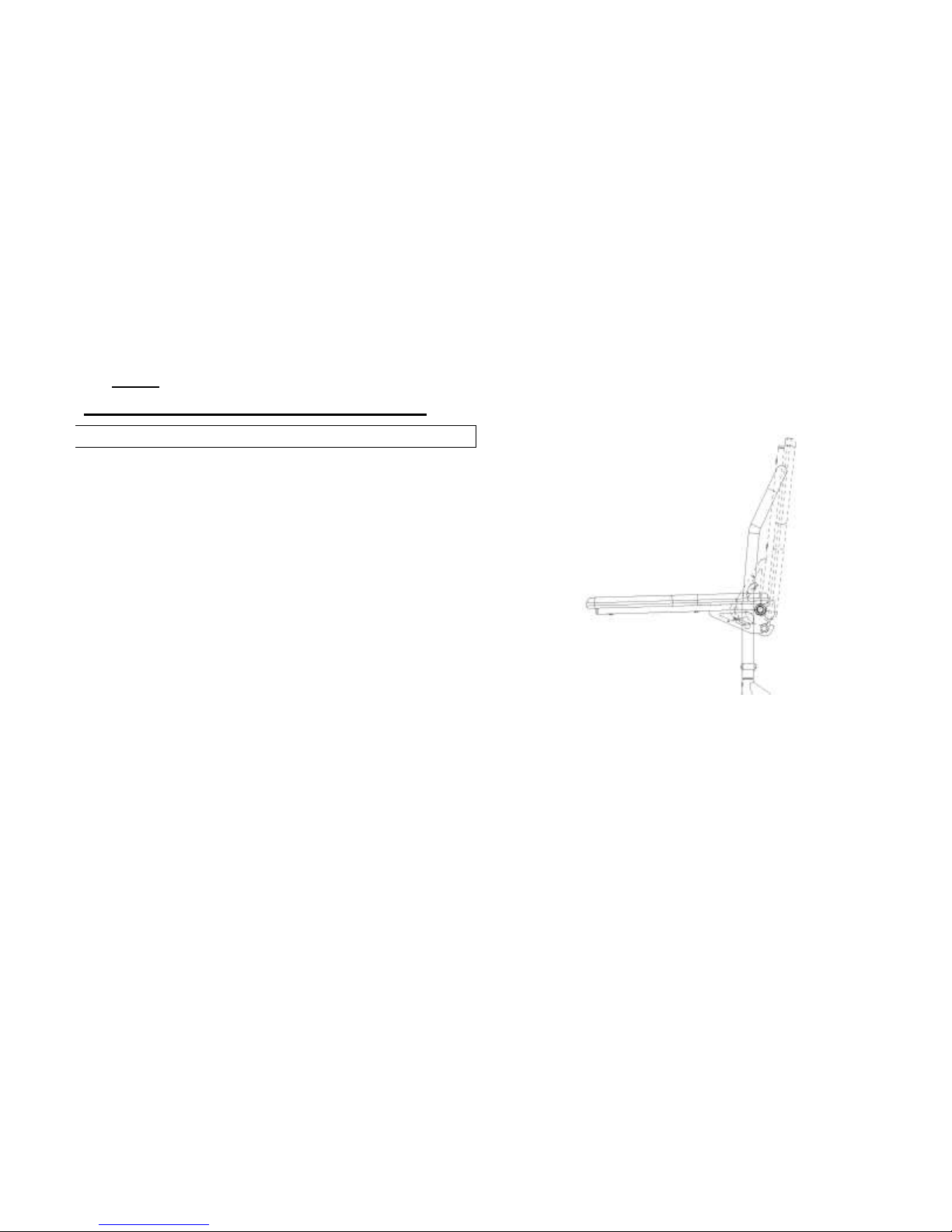

5. Gently rotate the arm assembly downwards
until the arm assembly comes to rest. One
should hear a ‘click’ noise and notice that the
back of the arm latch is engaged with the arm
stop.
Figure 4
Page 16
4 BACK
590 REV02 REV DATE: SEPTEMBER 13, 2013 16 AQUA NT
4 Back
Replacing Upholstery and Adjusting Back Height Figure 5 Figure 6
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.

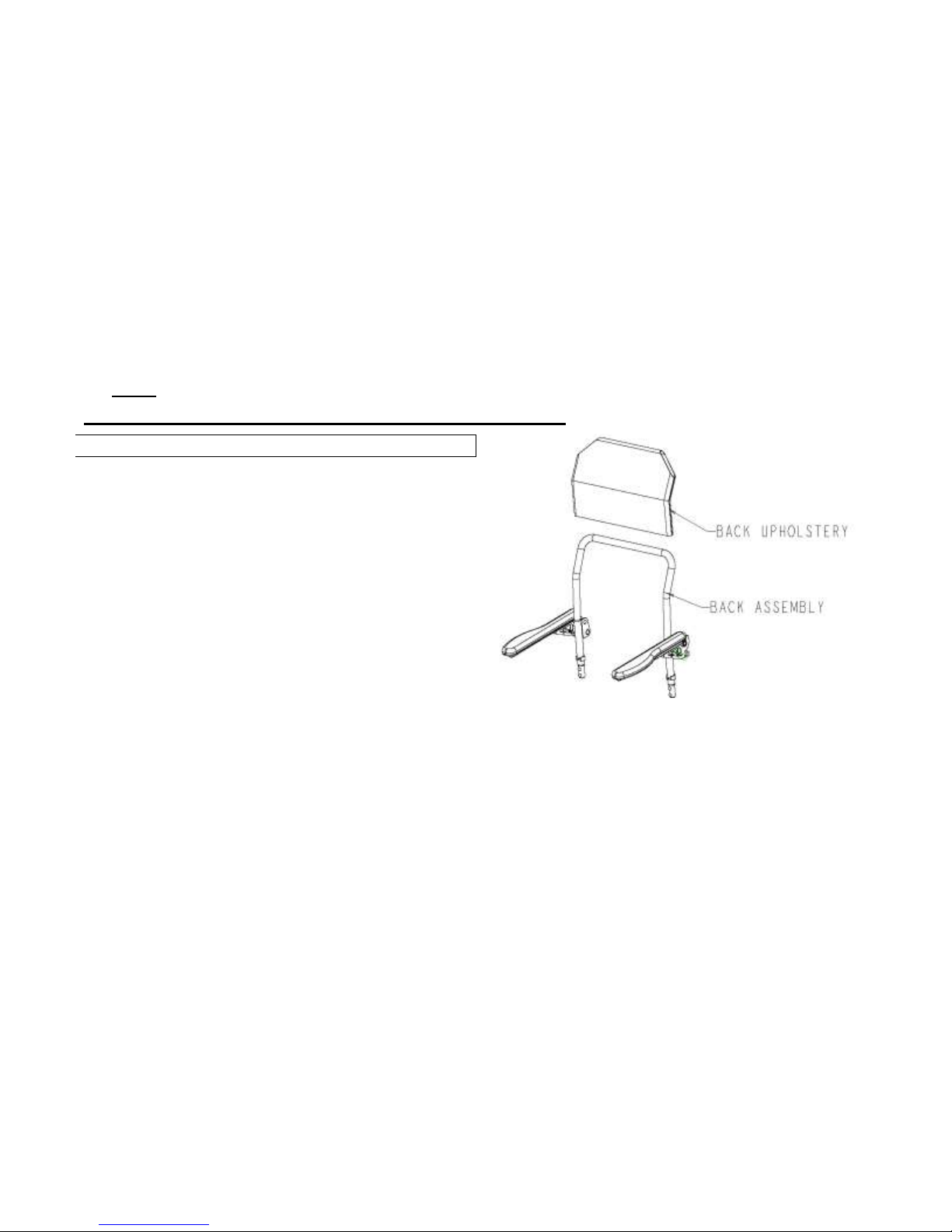

Replacing The Back Upholstery
1. Gently grasp the back upholstery from the
sides and slide the upholstery up the back
assembly until the upholstery becomes loose
and is independent from the commode.
2. Gently grasp the new back upholstery from the
sides and slide the upholstery down the back
assembly until the top of the upholstery lines
up with the top of the back assembly. One
should also notice that the bends at the top of
the back assembly should be visible through
the cutouts on either side of the back
upholstery.
Figure 5
Page 17
4 BACK
590 REV02 REV DATE: SEPTEMBER 13, 2013 17 AQUA NT

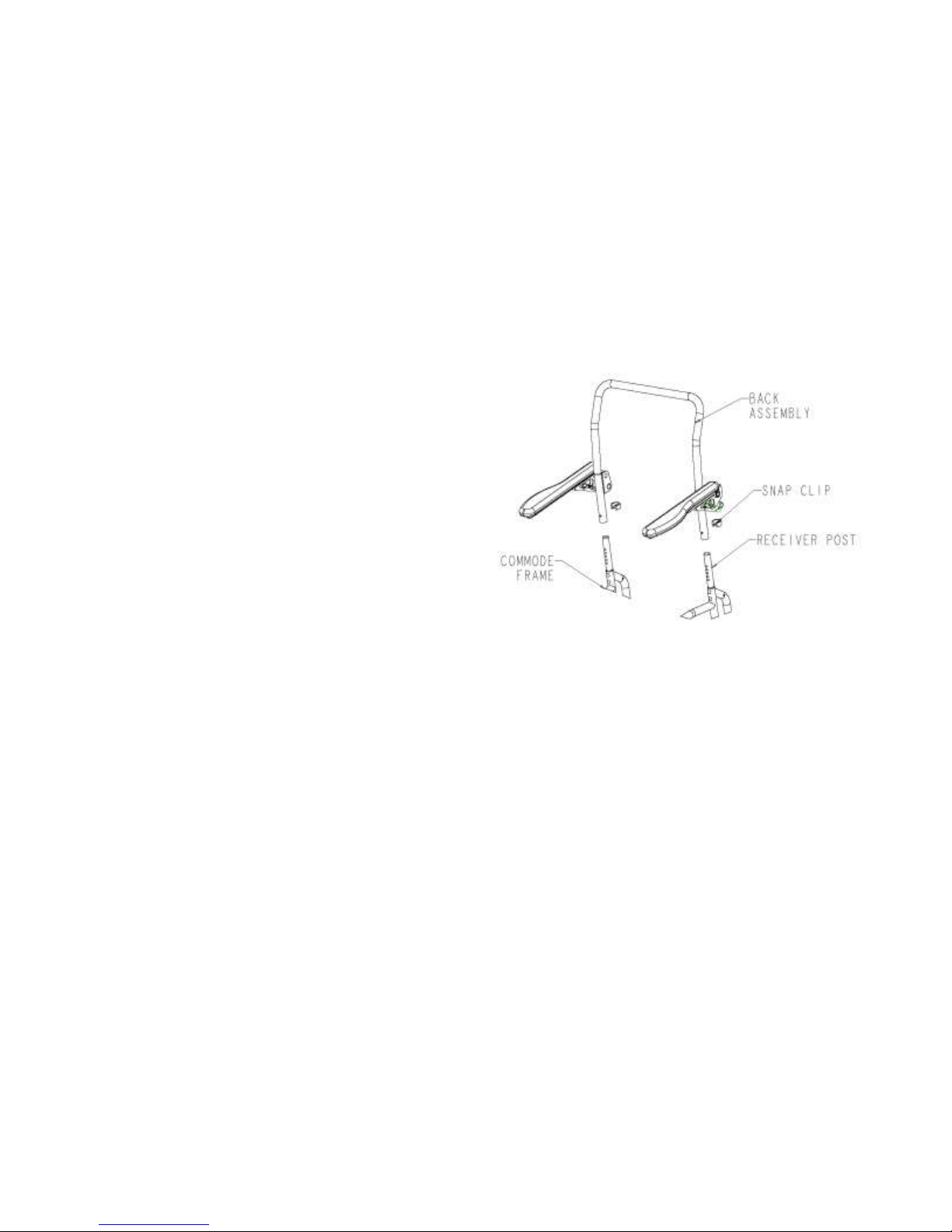

Adjusting Back Assembly Height
1. Remove the snap clip on both sides of the back
assembly
2. Adjust the position of the back assembly to the
desired height on the receiver post and hold
the back assembly in place.
3. Place the snap clip back into the back
assembly to secure the assembly to the
receiver post. Ensure the hole used by the
snap clip is at the same position on both sides
such that the back assembly is straight and not
at an angle.
Figure 6
Page 18
5 SEAT
590 REV02 REV DATE: SEPTEMBER 13, 2013 18 AQUA NT
5 Seat

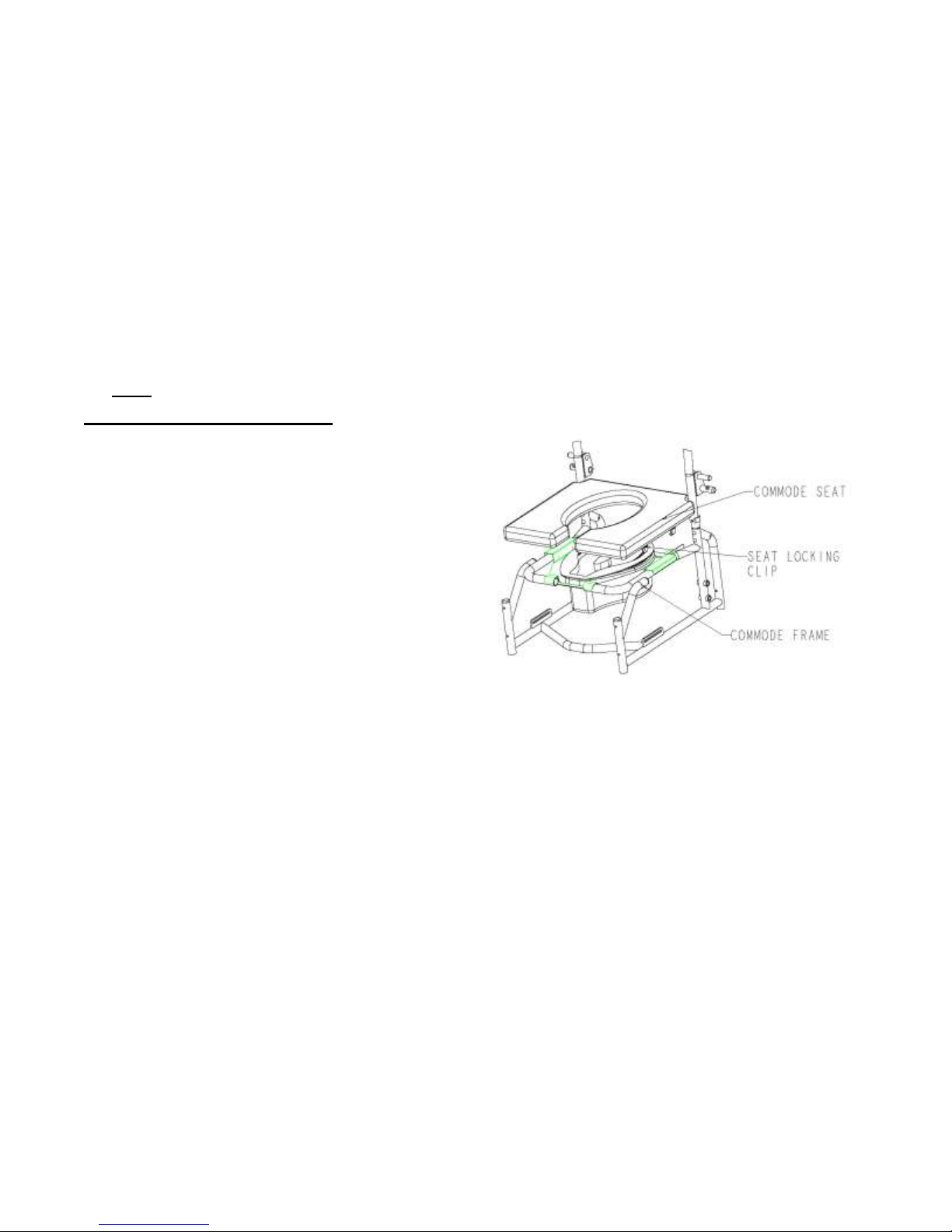

Replacing Seat Assembly Figure 7
Replacing Seat Assembly
1. Gently grasp the seat assembly from the sides
and pull upwards to release the seat locking
clips from the commode frame tubing such that
the seat assembly becomes independent from
the commode.
2. Gently grasp the new seat assembly from the
sides and line up the approximate location of
the seat locking clips with their respective
frame tubing that they will ‘lock’ onto.
3. Push the seat assembly down onto the frame
and ensure that the commode seat opening is
oriented in the manner shown below. The seat
locking clip should ‘lock’ onto the frame tubing.
The commode seat assembly should be ‘snug’
in place and should not be loose.
4. Ensure the seat locking clips do not interfere
with the bends on the potty receiver.
Figure 7
Page 19
6 POTTY
590 REV02 REV DATE: SEPTEMBER 13, 2013 19 AQUA NT
6 Potty

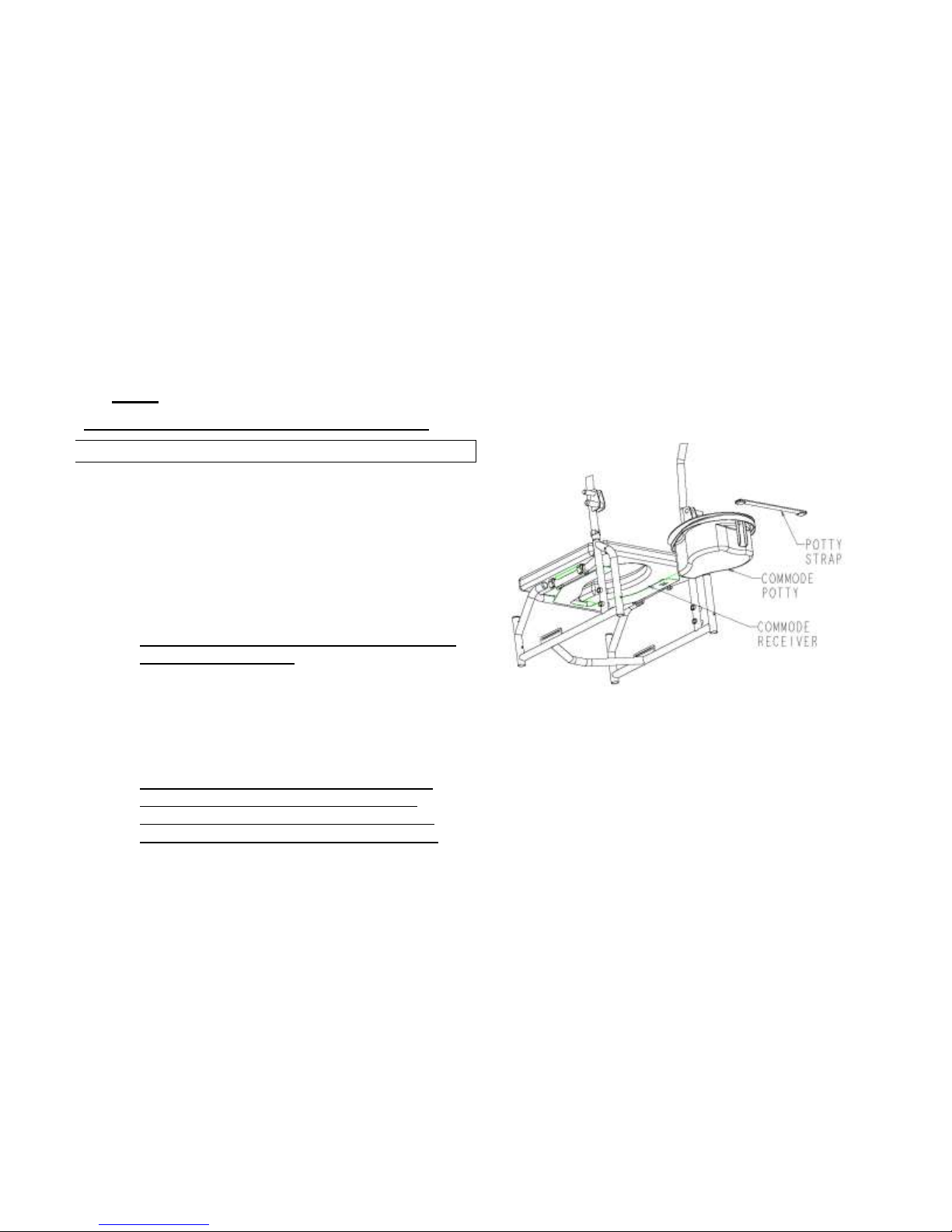

Removing and Installing Potty Figure 8 Figure 9
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Removing Potty
1. Turn the commode around so that one can see
the back of the commode and potty.
2. Ensure the wheel or caster locks are engaged
before removing potty.
3. Open one side of the Velcro potty strap located
on the potty receiver.
4. Gently grasp the handle of the potty and slide
the potty out from the potty receiver in a
direction away from the commode.

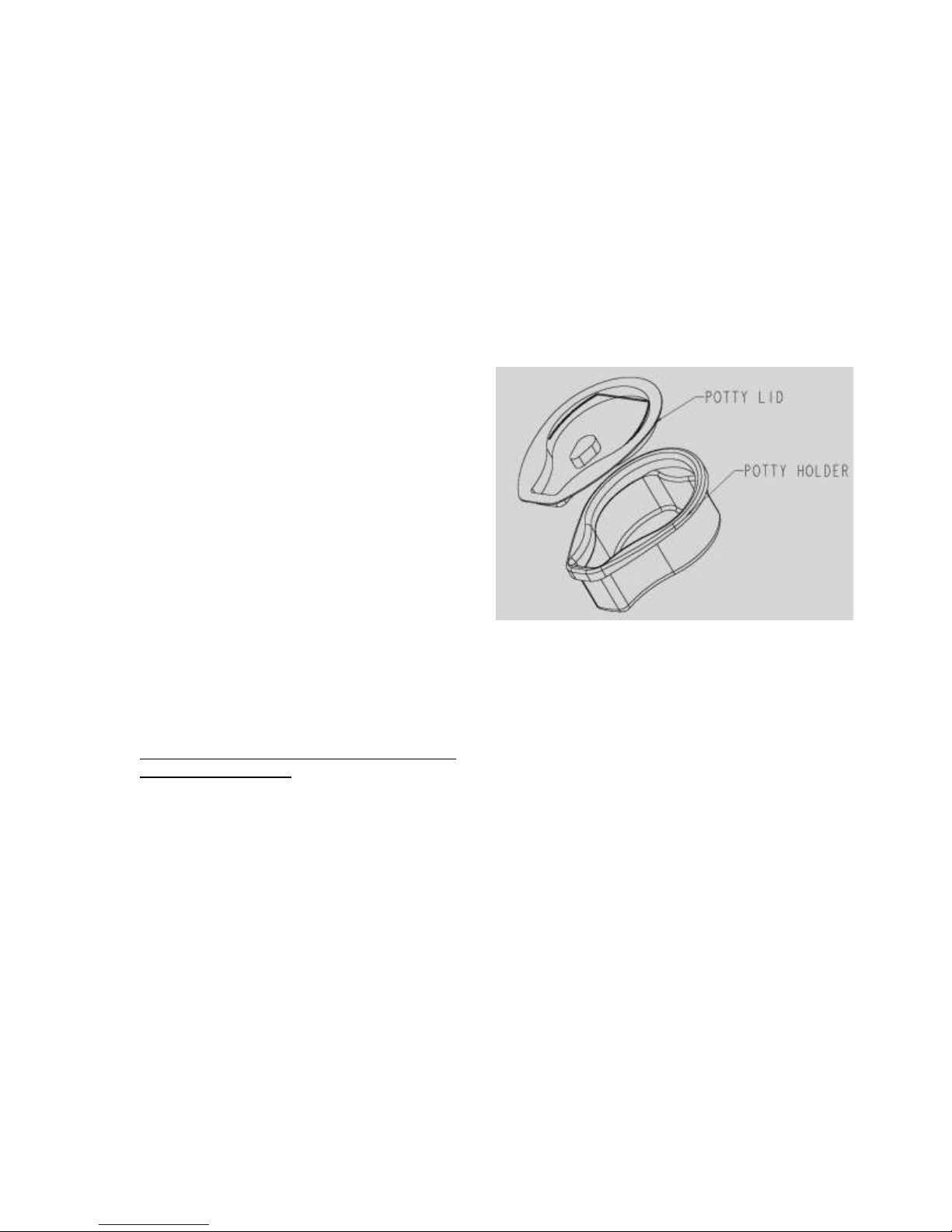

5. Place the lid on the potty as shown below and
ensure the lid and potty properly assemble
together. The potty lid handle should be
oriented vertical up to ensure that the potty
assembly does not fall when it is picked up.
Figure 8
Page 20
6 POTTY
590 REV02 REV DATE: SEPTEMBER 13, 2013 20 AQUA NT
6. Dispose the contents of the potty in the
washroom and properly sanitize the potty
assembly before placing the potty back into the
potty receiver.
Note: If the user wants to use the commode with a toilet
instead of with the potty then one has to remove
the potty receiver and potty. First one has to
remove the commode seat as describe in the
section REPLACING SEAT ASSEMBLY and then
remove the potty receiver and potty. Finally after
using the toilet the commode should be cleaned
and inspected to see if there may be human waste
on other parts of the commode. Then the potty
receiver and potty can be placed back onto the
commode if needed.
Installing Potty
1. Turn the commode around so that one can see
the back of the commode and potty.
2. Ensure the wheel or caster locks are engaged
before installing potty.
3. Open one side of the Velcro potty strap located
on the potty receiver.
4. Remove the lid on the potty (if any) and ensure
Figure 9
Page 21
6 POTTY
590 REV02 REV DATE: SEPTEMBER 13, 2013 21 AQUA NT
that the potty is properly sanitized.
5. Gently grasp the handle of the potty and slide
the potty into the potty receiver in a direction
towards the commode.
6. Close the Velcro strap and ensure the potty is
properly set in place with no means of falling
from the commode if it is pushed.
Page 22
7 CASTERS
590 REV02 REV DATE: SEPTEMBER 13, 2013 22 AQUA NT
7 Casters

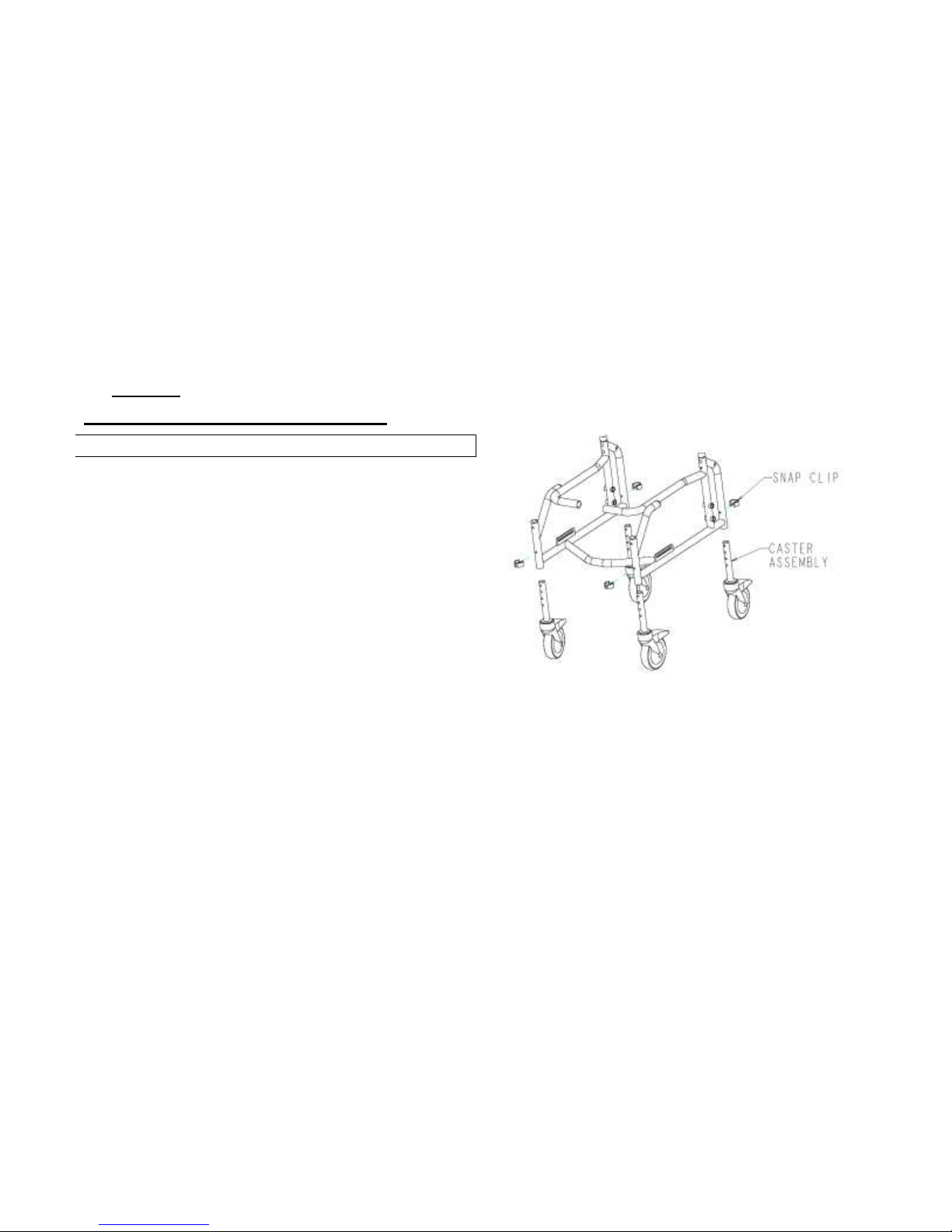

Adjusting commode seat height Figure 10
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
The Tente casters used on the commode have a
unique locking mechanism which is located in each
wheel. The mechanism allows the casters to be
independently locked in place so that the commode
does not move. In most instances one has to only the
front two casters for the attendant propelled version
and use the rear wheel locks on the self-propelled
version.
Adjusting Commode Seat Height
1. Remove the two snap clips located on the
frame front
2. Adjust the position of the caster assembly to
the desired height and hold the caster
assembly in place.
Figure 10
Page 23
7 CASTERS
590 REV02 REV DATE: SEPTEMBER 13, 2013 23 AQUA NT
3. Place the snap clip back into the frame front to
secure the caster assembly to the frame.
Ensure the hole used by the snap clip is at the
same position on both sides such that the
frame is straight and not at an angle.
4. Remove the two snap clips located on the
frame back
5. Adjust the position of the caster assembly to
the same position as the front casters and hold
the casters in place.
6. Place the snap clips back into the frame back
to secure the caster assembly to the frame.
Ensure the hole used by the snap clip is at the
same position on both sides such that the
frame is straight and not at an angle.
Note: When the height of the commode is changed one
must ensure that the commode is stable and that
one wheel is not higher or lower than another which
could cause problems for the end user.
Page 24
8 REAR WHEELS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 24 AQUA NT
8 Rear wheels (self-propelled only)
Removing/Installing the rear wheels Figure 11
WARNING
If changing the size of the rear wheel or a change in the
seat-to-floor height is desired, this procedure MUST be
performed by a qualified technician.

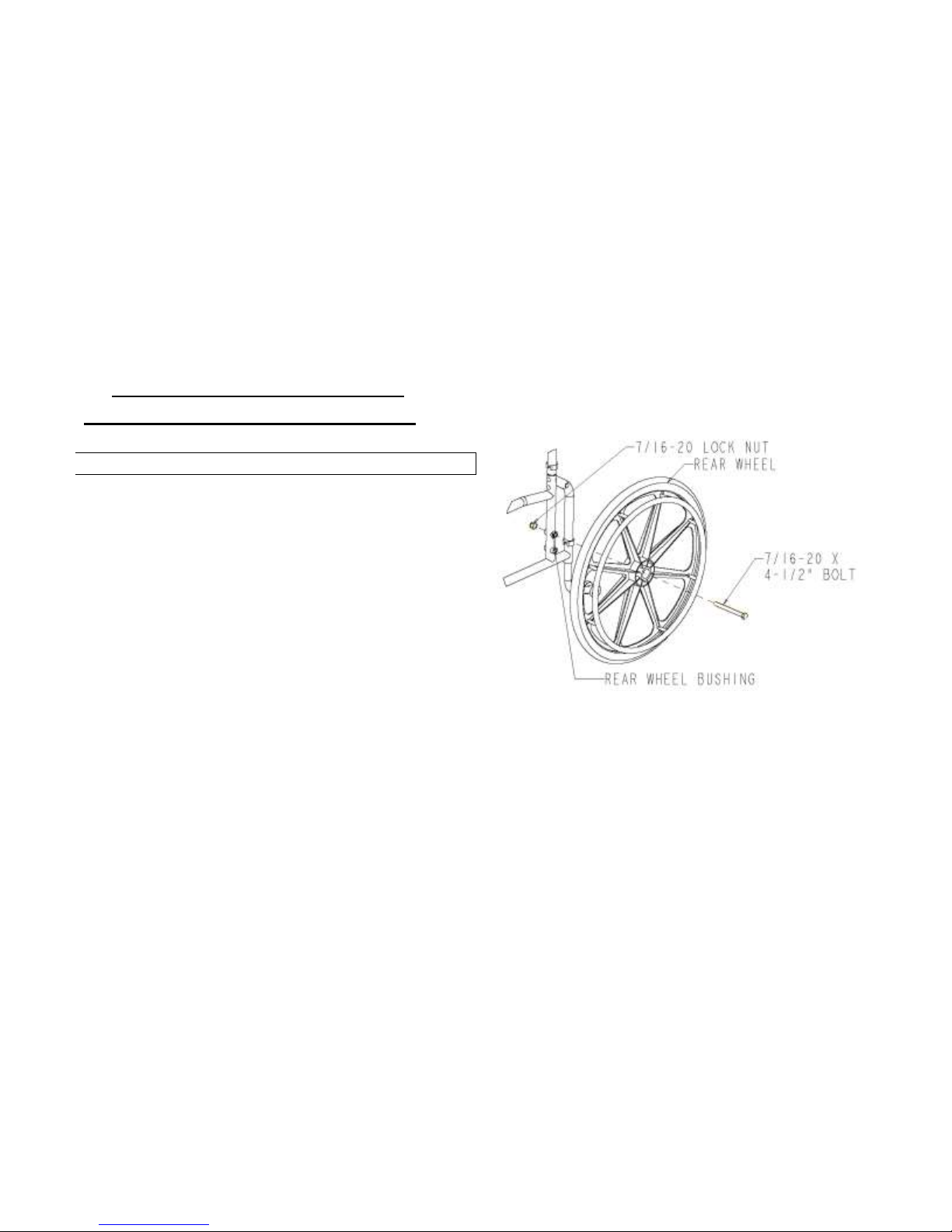

Removing Rear Wheel
1. Use a wrench to remove the 7/16-20 lock nut
holding the rear wheel in place.
2. Gently pull the 7/16-20 x 4-1/2” bolt out from
the bearings located in the rear wheel.
3. To reinstall the rear wheel onto the commode,
reverse steps 1 to 2.
4. Repeat this procedure for the other rear wheel
assembly if required.
5. Ensure there is no instability in the rear wheel
when it is spun.
6. Ensure that the wheel lock shoe engages
properly onto the wheel.
Figure 11
Page 25
9 WHEEL LOCKS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 25 AQUA NT
9 Wheel locks – (self-propelled only)

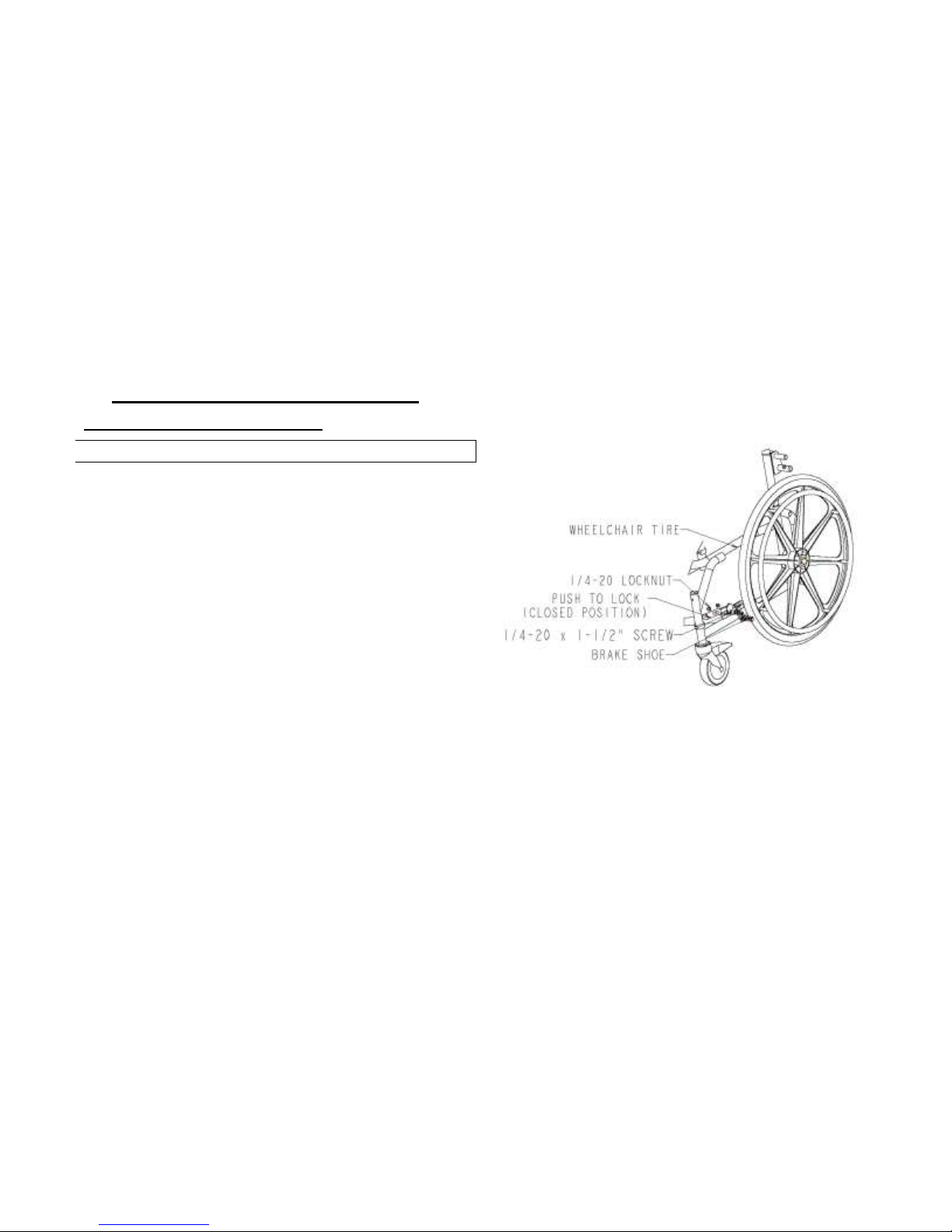

Using the Wheel Locks Figure 12
WARNING
DO NOT attempt to stop a moving commode with the
wheel locks. WHEEL LOCKS ARE NOT BRAKES –
otherwise injury or damage may occur.
1. Ensure the commode is not moving before
engaging the wheel locks.
2. Perform one (1) of the following:
Push-to-Lock – to engage, push the wheel
lock handle forward
3. Disengage the wheel locks by reversing STEP
2.
Adjusting The Patient Operated Wheel Locks
1. Disengage the wheel locks.
2. Loosen the two (2) 1/4-20 x 1-1/2” socket
screws shown in the below figure that secure
the wheel lock to the commode frame.
3. Reposition the wheel lock so that when
engaged, the wheel lock brake shoe embeds
Figure 12
Page 26
9 WHEEL LOCKS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 26 AQUA NT
the tire 1/8” (3/16” for pneumatic tires) and
HOLDS the occupied commode in place when
pushed.
4. Securely tighten the two (2) 1/4-20 X 1-1/2”
socket screws securing the wheel lock to the
commode frame.
5. Engage the wheel lock.
6. Measure the distance the wheel lock is
embedded into the tire
7. Repeat STEPS 1 to 6 until the wheel lock
brake shoe embeds the tire and HOLDS the
occupied commode in place when pushed.
Engage both wheel locks and ensure the occupied
commode is held in place when pushed.
Page 27
10 ANTI-TIPPERS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 27 AQUA NT
10 Anti-tippers (self-propelled only)

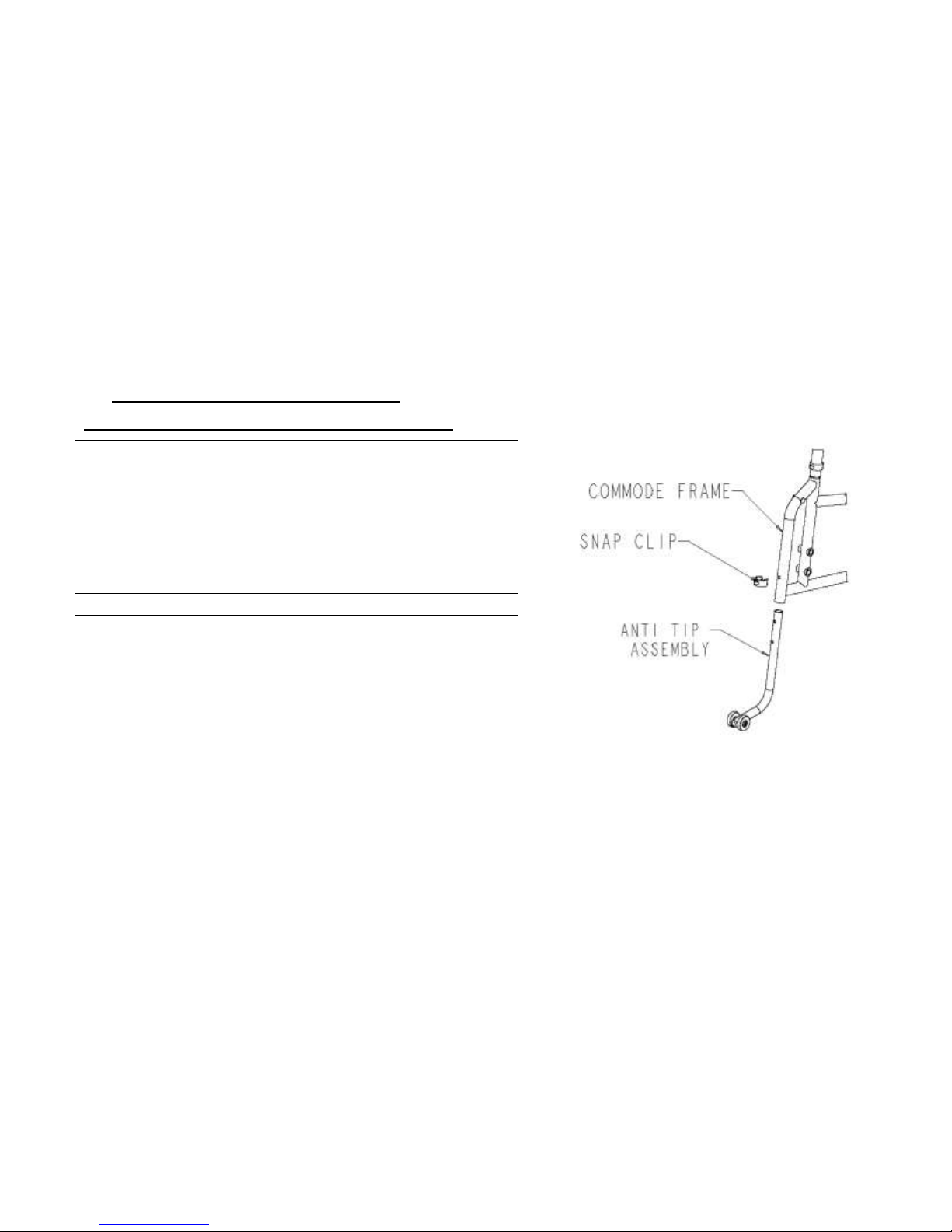

Installing/adjusting anti-tippers Figure 13 Figure 15
WARNING
After ANY adjustments, repair or service and BEFORE use,
make sure all attaching hardware is tightened securely –
otherwise injury or damage may occur.
Installing/Adjusting The Anti-Tippers
WARNING
Anti-tippers are specific to the different seat-to floor angles
and/or seat-to-floor heights for self-propelled commodes only.
Refer to the chart in this section of the manual for correct
usage and adjustment. If these requirements CANNOT be
achieved, DO NOT use the commode. Contact a qualified
technician. If changing the seat-to-floor height with or without
a change to seat-to-floor angle, the correct anti-tippers MUST
be used to maintain a 1 ½“to 2” ground clearance.
Seat-to-floor angle of 3 degrees to 6 degrees: if so equipped,
anti-tippers MUST be attached at all times. In as much as the
Figure 13
Page 28
10 ANTI-TIPPERS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 28 AQUA NT
anti-tippers are an option on this commode (you may order
with or without the anti-tippers), Future Mobility Healthcare
Inc. strongly recommends ordering the anti-tippers as a
safeguard for the commode user.
Anti-tippers MUST be fully engaged and snap clips fully
protruding out of adjustment holes.
Ensure both anti-tippers are adjusted to the same mounting
hole.
Installing Anti-Tippers

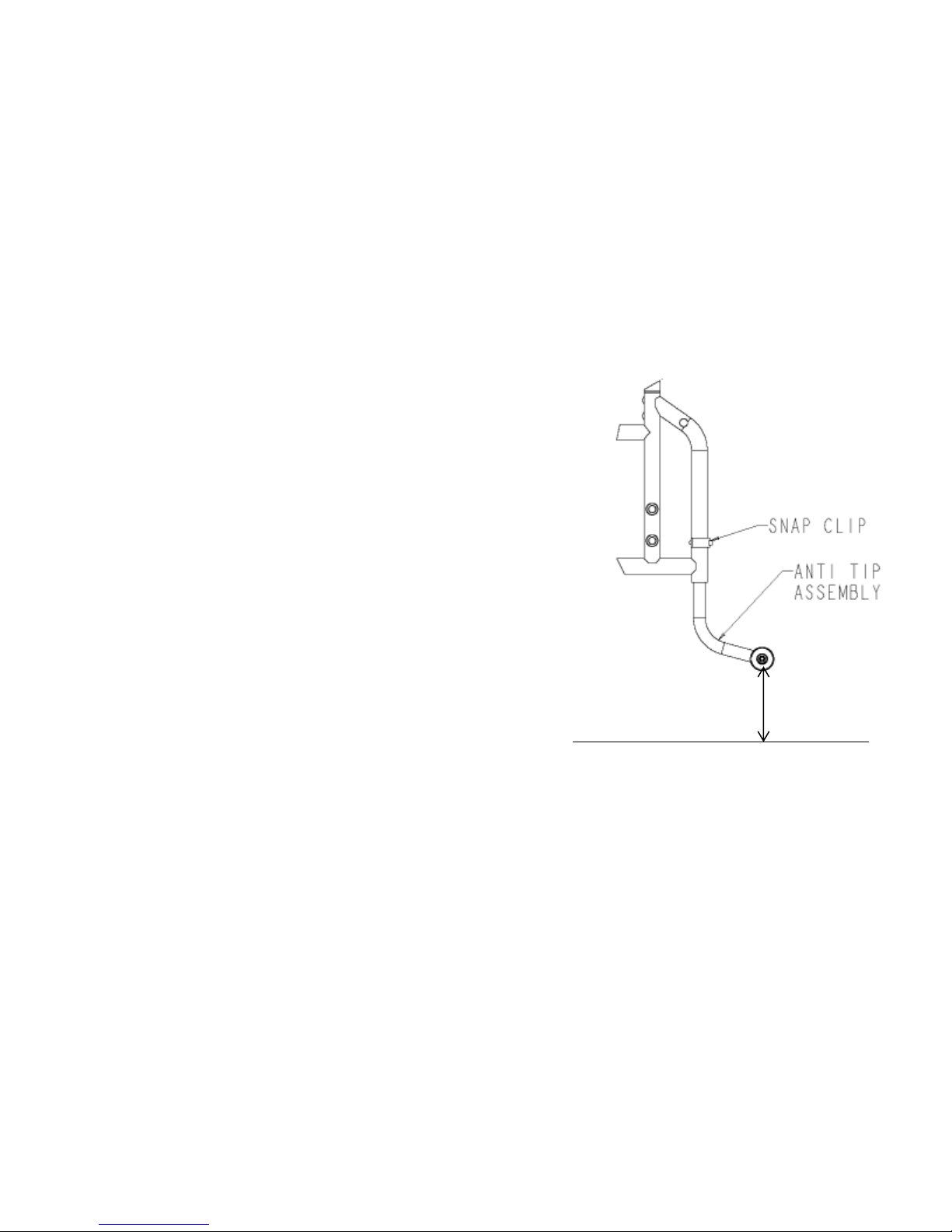

1. Insert the Anti-Tip assembly into the bottom of the
commode frame where the caster position is for the
attendant propelled commode.
2. Line up the hole in the back of the frame with one of
the holes on the anti-tip assembly.
3. Measure the distance between the bottom of the antitipper wheels and the ground/floor.
4. If the distance between the bottom of the anti-tipper
wheels and the ground/floor is not 1 ½ “ to 2”, adjust
the location of the anti-tippers and line up another
hole on the anti-tip assembly with the hole in the back
of the frame.
5. When the proper location of the anti-tip assembly is
Figure 14
1-1/2” to 2” clearance
Flat floor
Page 29
10 ANTI-TIPPERS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 29 AQUA NT
found, push a snap clip into the frame hole and into
the anti-assembly to hold it in place. As shown in the
figure below.
6. Repeat steps 1-5 for other anti-tip assembly.
Note: A 1 ½ “to 2” clearance between the bottom of the anti-
tipper wheels and the ground/floor MUST be
maintained at all times for self-propelled commode.
Page 30
11 SEAT TO FLOOR
590 REV02 REV DATE: SEPTEMBER 13, 2013 30 AQUA NT
11 Seat to Floor
Adjusting the seat to floor ratio Figure 15 Table 1
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Seat To Floor

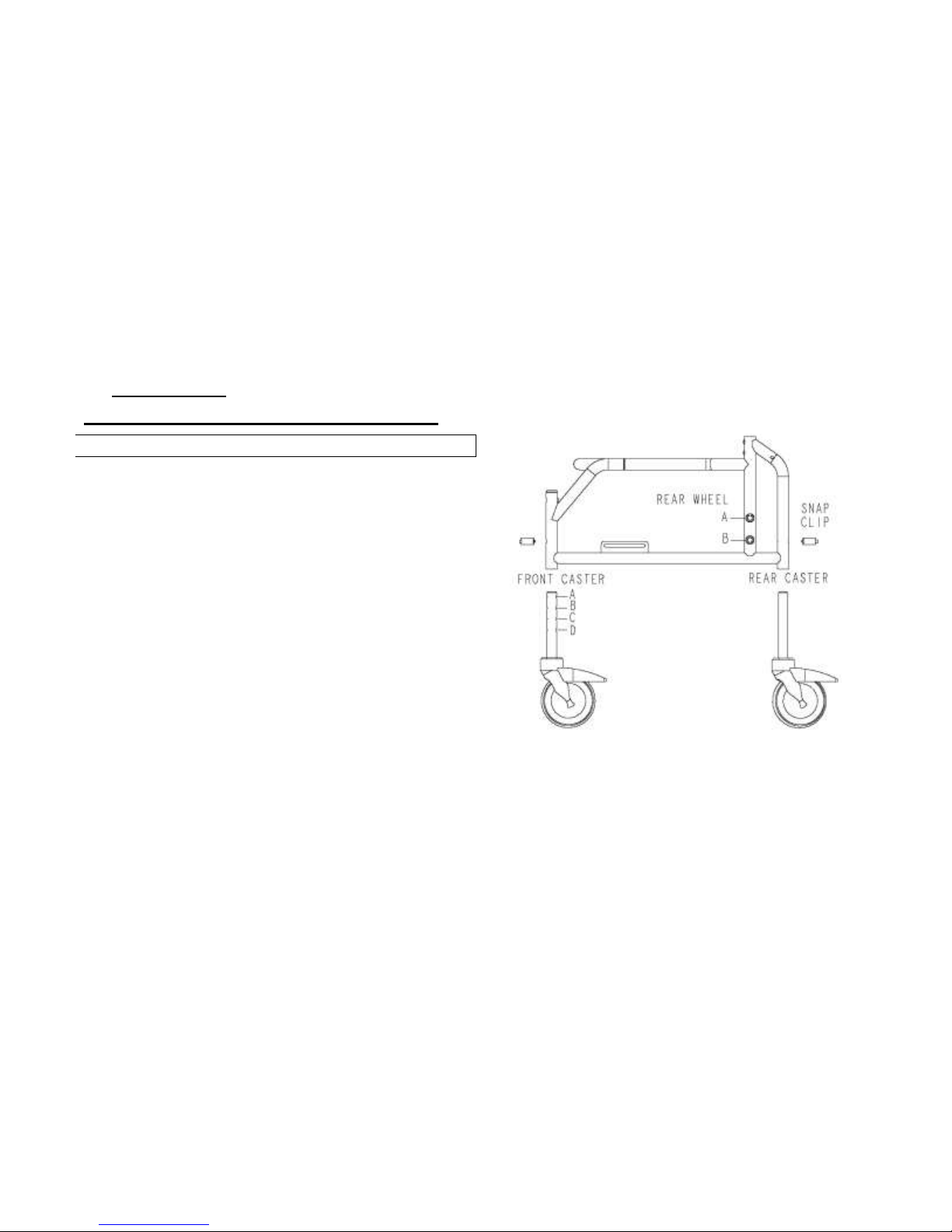

1. Follow the values in the table below to achieve
the desired seat to floor height.
The Front Caster and Rear Caster Should be
set to the same height
2. Ensure that no weight is on the commode while
performing the operations
3. Ensure after changing the seat to floor height
that the commode is still operational and that
no wheel flutter or instability occurs.
4. There are 2 possibilities for commode
assemblies
1) Attendant Propelled – 4 Tente Casters
2) Self-Propelled – 2 Tente Front Casters
Figure 15
Page 31
11 SEAT TO FLOOR
590 REV02 REV DATE: SEPTEMBER 13, 2013 31 AQUA NT
and 2 Rear Wheels (20”,22” or 24”)
and 2 Anti tipper assemblies
SEAT-TO-FLOOR HEIGHT MATRIX
COMMODE TYPE
STF – FRONT
(INCHES)
CASTER HOLE
REAR WHEEL
HOLE
REAR WHEEL
SIZE (INCHES)
STF – REAR
(INCHES)
ATTENDENT PROPELLED
16.50
D
N/A
N/A
16.50
ATTENDENT PROPELLED
17.50
C
N/A
N/A
17.50
ATTENDENT PROPELLED
18.50
B
N/A
N/A
18.50
ATTENDENT PROPELLED
19.50
A
N/A
N/A
19.50
SELF PROPELLED
16.25 D A
20
15.75
SELF PROPELLED
17.25 C A
22
16.50
SELF PROPELLED
18.25 B B
20
17.75
SELF PROPELLED
18.25 B A
24
17.50
SELF PROPELLED
19.25 A B
22
18.50
SELF PROPELLED
19.50 A B
24
19.25
Table 1
Page 32
12 CLEANING AND MAINTENANCE
590 REV02 REV DATE: SEPTEMBER 13, 2013 32 AQUA NT
12 Cleaning and maintenance
Procedure for Cleaning After Each Use
Commode Potty
Remove the Commode Potty and empty its contents.
Wash the potty with a multi-purpose disinfectant detergent.
DO NOT USE HOT AIR FOR DRYING.
Urethane Seat and Back
Use a multipurpose disinfecting detergent to spray seat, scrub with soft brush to clean a dirt.
Rinse well and dry by wiping with soft dry cloth.
DO NOT USE HOT AIR FOR DRYING.
For more detailed cleaning, remove the seat from commode chair.
DO NOT IMMERSE the commode chair seat in water or cleaning detergent solution.
Procedure for Cleaning As Needed
Frame, Armrest, Footrests and Other Components
Spray the frame and components with multi-purpose disinfectant detergent, and scrub with soft brush.
Rinse well and dry by wiping with soft dry cloth.
DO NOT USE HOT AIR FOR DRYING.
If needed, spray the frame and components with diluted (10 parts water to 1 part solution) calcium/lime
removal solution, scrub with soft brush and rinse well with water, dry with soft dry cloth.
DO NOT mix a calcium/lime remover with any other liquid or toxic fumes may result.
Page 33
12 CLEANING AND MAINTENANCE
590 REV02 REV DATE: SEPTEMBER 13, 2013 33 AQUA NT
It is recommended that the rinsing of Care Space Commodes components occur in a well-drained area with an
industrial steam cleaner or a commercial pressure washer.
Several times during year the chair and all components should be wiped down with a diluted calcium/lime removal
solution.
By wiping down with soft clothes after final rinse risk of mildew buildup will be minimized.
IMPORTANT:
DO NOT USE ABRASIVE POWDERS OR SCOURING PADS ON CARE SPACE COMMODE
DO NOT SUBMERGE COMMODE IN WATER
RINSE AFTER CLEANING TO ENSURE THAT ANY SOAP OR DETERGENT RESIDUE IS REMOVED
DO NOT USE CLEANING PRODUCTS WITHOUT CONSULTING THE PRODUCTS’ INSTRUCTIONS AND
TAKING APROPRIATE PRECAUTIONS FOR HUMAN EXPOSURE TO CHEMICALS
Page 34
13 WARRANTY
590 REV02 REV DATE: SEPTEMBER 13, 2013 34 AQUA NT
13 Warranty
This warranty is extended only to the original purchaser/user of our products. Future Mobility Healthcare Inc. warrants its
Aqua Rehab Commode to be free from defects in materials and workmanship for two (2) years from the date of purchase
for the steel frame while the stainless steel frame is warranted for five (2) years from the original date of purchase. The
back upholstery and commode seat is warranted for 90 days from the date of purchase. All other parts and hardware are
warranted for one (1) year from the date of purchase. If within this warranty period the product shall be proven to be
defective, such product shall be repaired or replaced, at Future Mobility Healthcare Inc. discretion. Future Mobility
Healthcare Inc. sole obligation and your exclusive remedy under this warranty shall be limited to the repair and/or
replacement of the product or its parts. This warranty does not include any labour or shipping charges incurred in
replacement part installation or repair of any product. For warranty service, please contact the dealer from whom you
purchased your Future Mobility Healthcare Inc. product. In the event you do not receive satisfactory warranty service,
please write directly to Future Mobility Healthcare Inc. at 3223 Orlando Drive, Mississauga, Ontario, L4V 1C5. Provide the
dealer's name, address, model number, date of purchase and indicate the nature of the defect. DO NOT return products to
Future Mobility Healthcare Inc. without our prior consent. The defective unit or parts must be returned for warranty
inspection within thirty (30) days of the return authorization date. (Future Mobility Healthcare Inc. will issue a return
authorization number). Please prepay all shipping charges; C.O.D. shipments will be refused. LIMITATIONS and
EXCLUSIONS: This warranty shall not apply to problems arising from normal wear or failure to adhere to the enclosed
instructions. Products subjected to negligence, accident, improper usage, maintenance or storage; or products modified
without Future Mobility Healthcare Inc. written consent including, but not limited to: modification through the use of any
unauthorized parts or attachments; products damaged by reason or repairs made to any component without the specific
consent of Future Mobility Healthcare Inc., or products repaired by anyone other than a Future Mobility Products dealer.
Such evaluation shall be determined by Future Mobility Healthcare Inc. The foregoing warranty is exclusive and in lieu of
all other expressed warranties. It shall not extend beyond the duration of the expressed warranty provided herein and the
remedy for violations of any implied warranty shall be limited to repair or replacement of the defective product pursuant to
the terms contained herein. Future Mobility Healthcare Inc. shall not be liable for any consequential or incidental damages
whatsoever. This warranty shall be extended to comply with all provincial laws and requirements.
Page 35
Page 36
Loading...
