Futura FCV1000, FCV2000, FCV1500 User Manual

LED Digital Panel Heater

FCV1000
FCV1500
FCV2000

REGISTER YOUR GUARANTEE

www. .co.uk/guarantee

User Manual— Please read and retain for future reference

Contents

Parts List

Technical Information

Safety Instructions

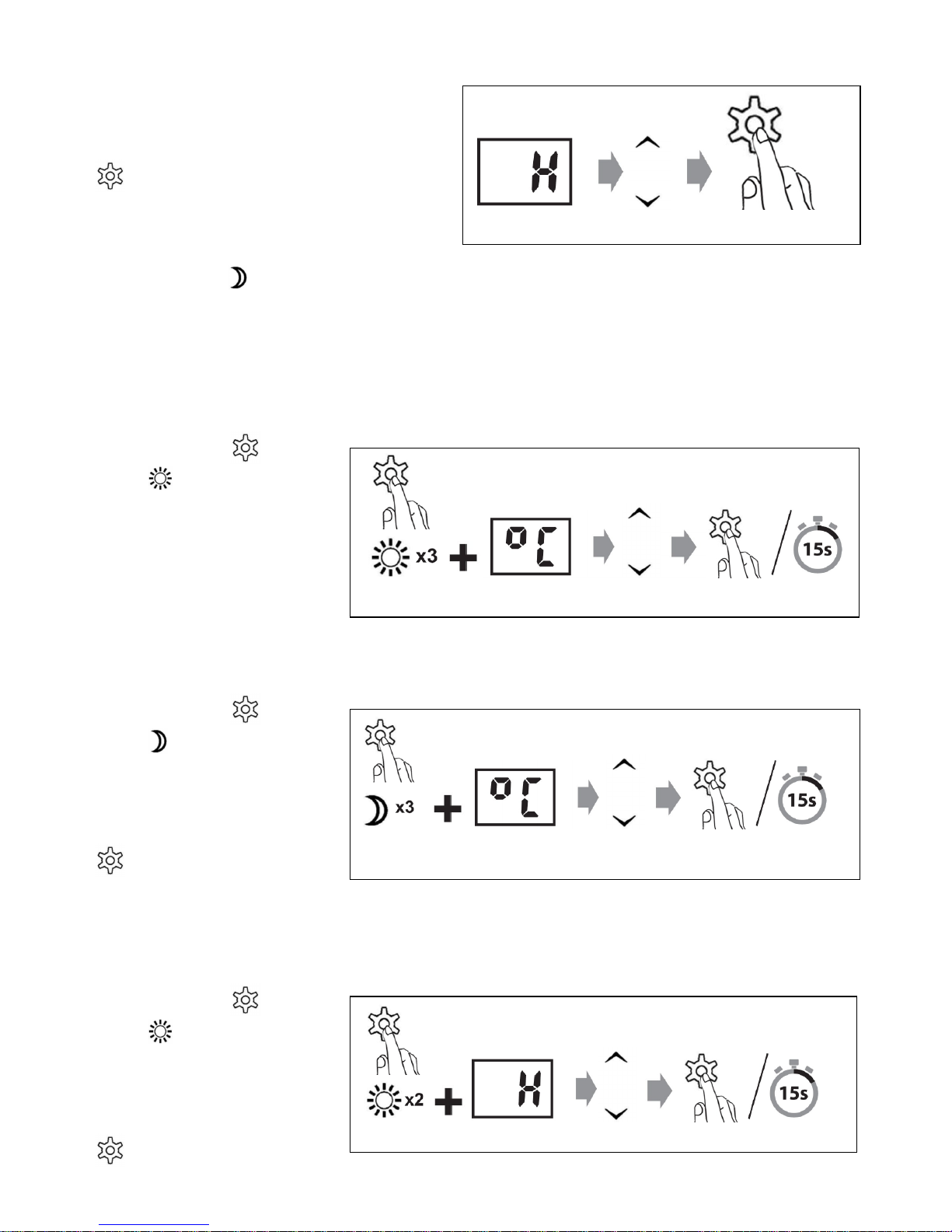

Using your unit

Maintenance

Warranty

!
!
!
!
!
!
!
!
!
!

Parts List

No.

Description

No.

Description

1

Front Panel

14

Tip Over Switch Box (Bottom)

2

Hook Rack (Top)

15

Tip Over Switch

3

Thermostat

16

Tip Over Switch Box (Top)

4

Waterproof Cover

17

Control Box Dam-board

5

Rear Cover

18

Control Box Cover

6

Hook Rack (Bottom)

19

Stopper Cover

7

Feet

20

Decoration Cover

8

Support Frame

21

Sticker

9

Heating Element Support

22

Small Panel

10

Heating Element

23

PCB

11

Sensor Dam-board

24

Controller

12

Sensor Fixed Cover

25

Power Switch

13

Sensor Fixed Part

26

Tension Disc

Exploded Assembly Diagram

NOTICE: Actual product may vary from pictures shown.

Technical Information

LED Digital panel heater

Model: FCV1000

Rated Voltage: 230V ~ 50Ha
Rated Power: 1000W
IP rating: IPX4
Machine Size (without feet): 54x8x40cm (Length x Width x Height)

Model: FCV1500

Rated Voltage: 230V ~ 50Ha
Rated Power: 1500W
IP rating: IPX4
Machine Size (without feet): 70x8x40cm (Length x Width x Height)

Model: FCV2000

Rated Voltage: 230V ~ 50Ha
Rated Power: 2000W
IP rating: IPX4
Machine Size (without feet): 86x8x40cm (Length x Width x Height)

Read this entire manual before using this product. Failure
to do so can result in serious injury. Save this manual for
future reference.

Copyright© 2018 by FUTURA Direct Ltd. All rights reserved. This manual or any
artwork contained herein must not be reproduced in any shape or form without the
express written consent of FUTURA Direct Ltd. Diagrams within this manual may
not be drawn proportionally. Due to continuing improvements, actual product may
differ slightly from the product described herein.

Safety Instructions

Read this owner's manual completely and make sure you understand all of
its safety guidelines.

WARNING! To avoid electric shock or damage due to the heat, always make sure the

plug is pulled out before the heater is moved or cleaned.

1. Read the instructions carefully.

2. The product is intended for home use only.

3. Make sure the heater is connected to the house's regular mains (230 V), as it
indicated on the heater.

4. New heaters will produce a specific odor when used the first time. This will stop
after a short time and is completely harmless.

5. Check for any pieces of packing foam or cardboard that may have fallen into the
heating elements of the heater. These pieces must be removed in order to avoid
unpleasant odors.

6. Prevent the heater from overheating – do not cover.

7. Always turn off the heater and unplug it when not used for a long time.

8. Pay special attention if the heater is used in rooms where children, the
handicapped or elderly reside.

9. The heater should not be set up directly beneath an electrical socket outlet.

10. The cord must not be laid under any kind of carpet. Make sure the cord is laid in
such a way that nobody can trip on it.

11. The heater must not be used if either the cord or plug is damaged. The heater
must not be used if it has been dropped on the floor or is damaged in any other
way causing it to malfunction.

12. The cord must be repaired by the manufacturer or by an expert if it has been
damaged, to avoid dangerous situations.

13. Avoid using extension cords, which may overheat and could possibly start a fire.

14. Never cover the air vents on the heater. Avoid potential fire hazards by making
sure the air intakes are not blocked or covered. The heater should be used in
rooms with normal flat floors.

15. The heater should not be installed in close proximity to flammable materials of
any kind because there can always be a risk of fire.

16. The heater must never be used in rooms where gasoline, paint or other
flammable liquids are stored, such as in a garage.

17. The heater is approved for use in zone 2 in bathrooms.

18. Never touch an electric heater with wet hands. The heater should be installed
so a person showering or taking a bath cannot come into direct contact with it.

19. The heater becomes hot when it is on. Therefore, be careful and avoid burning
or scorching your skin.

20. The heater must be switched off, the plug removed and the heater must cool
down before it is moved.

21. Avoid overloading the mains (the circuit) where the heater is connected. The
heater may overload the electrical circuit if other electrical devices are plugged
into the same socket outlet.

22. The device cannot be used by children under 8 years of age and persons with
reduced physical or mental abilities or lack of experience and knowledge unless
they have been given supervision or instruction in the safe use of the device and
understand the hazards involved.

23. Children should not play with the device. Cleaning and maintenance should not
be done by unsupervised children.

24. Children under the age of 3 should be kept away from the device, unless they
are under constant supervision.

25. Children aged 3 to 8 years are only permitted to turn the device ON/OFF,
assuming the device is mounted according to the assembly instructions and the
children have received instruction or supervision in the safe use of the device and
understand the hazards involved.

26. STORE THIS INSTRUCTION MANUAL FOR FUTURE USE!

27. NEVER TOUCH YOUR PANEL HEATER OR ITS CASING WITH WET HANDS!
See Fig. 1

Fig. 1
