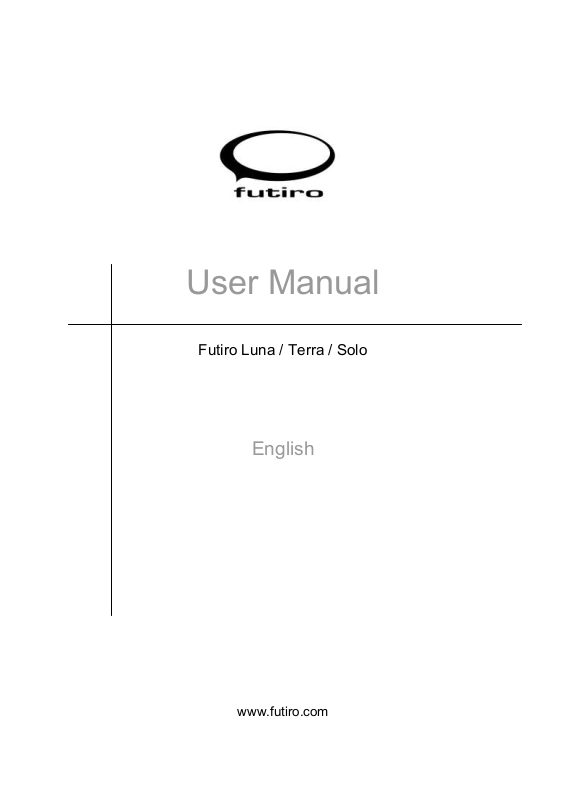

Futiro USB Phone User Manual

User Manual

Futiro Luna / Terra / Solo

English

www.futiro.com

Table of Contents

1. Introduction ................................................................................................2

1.1 Overview .................................................................................................2

1.2 System Requirements ............................................................................2

1.3 Features .................................................................................................3

2. Installing your Futiro USB Phone .............................................................4

3. Using your Futiro USB Phone ...................................................................8

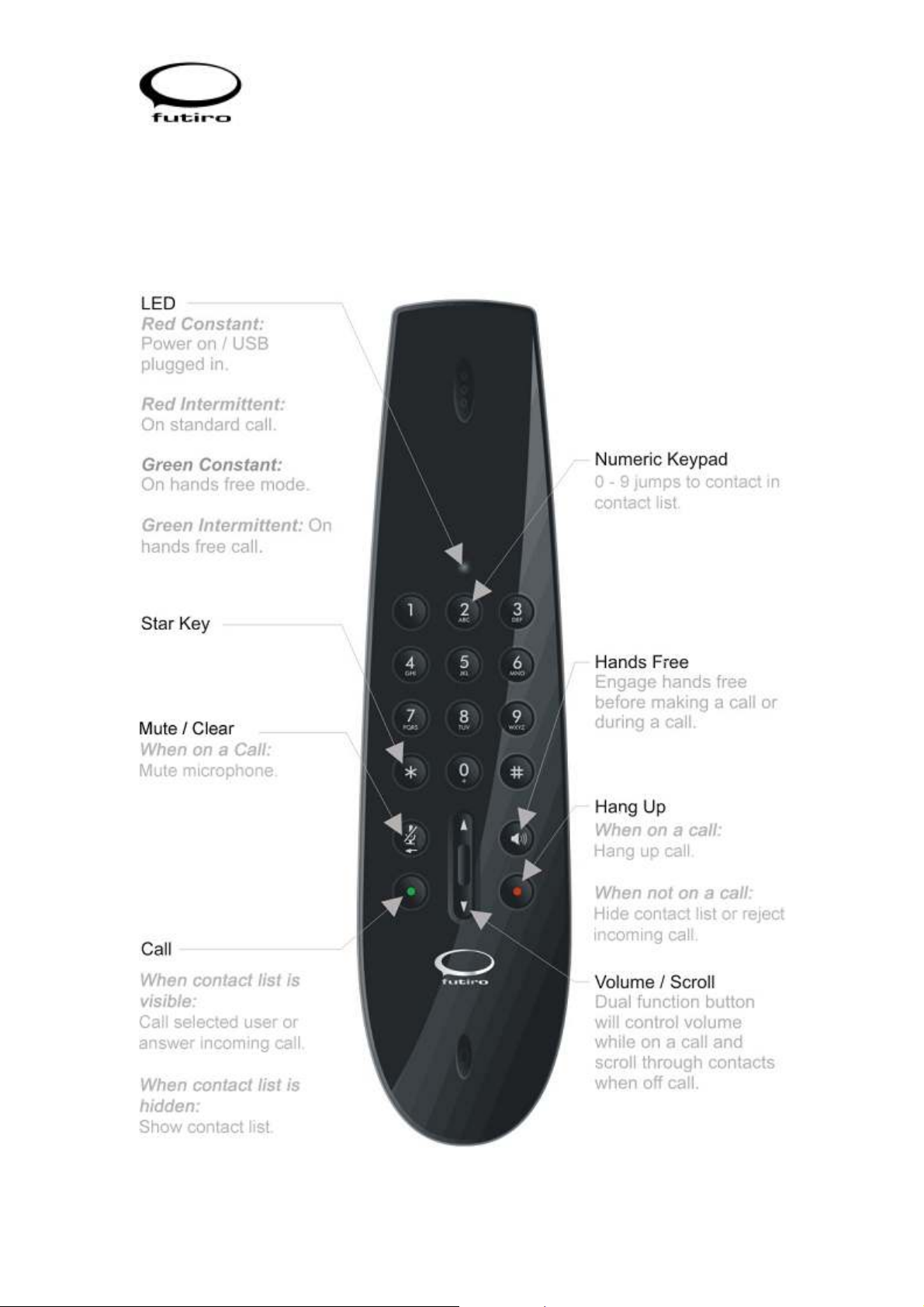

3.1 Using your Futiro Luna ........................................................................9

3.1.1 Luna Key functions ......................................................................... 10

3.2 Using your Futiro Terra ...................................................................... 11

3.2.1 Terra Key functions ........................................................................ 12

3.3 Using your Futiro Solo ....................................................................... 13

3.3.1 Solo Key functions ......................................................................... 14

4. Troubleshooting ....................................................................................... 15

1

Mac OS X v10.4.8 (Tiger)

•

1. Introduction

This manual provides instructions for installing and operating your Futiro USB
Phon.

1.1 Overview

Package Contents

• Futiro USB phone Luna, Terra or Solo.

• Futiro Quick Start Guide.

• Futiro software CD which includes :

o Futiro drivers and software to allow your phone to interact with

iChat.

o Futiro phone user manual in pdf format.
o Adobe Acrobat Reader

1.2 System Requirements

Intel / G4 800 MHz CPU or faster

• Minimum 512 MB RAM

• Minimum 10Mb of free space on your hard drive.

• 1 x USB 1.1/2.0.

• Broadband Internet Connection.

2

1.3 Features

• Easy to install plug-and-play technology.

• USB 1.1/2.0 compatible.

• USB bus powered.

• Connection type - USB Type A, Slave.

• iChat Integration.

• Adjustable in-call volume control.

• Unique Free Standing Design on Luna and Terra models.

• Stretchable cord on Luna and Terra models (up to approx 3 metres).

• Unique patented cable management system on Solo model.

• Hands-free and Speed-dial functionality on Luna model.

• Omnidirectional microphone with 60dB S/N Ratio and -43dB +/- 2dB

sensitivity.

• Speaker with a frequency range of F0-5.0 KHz

3

2. Installing your Futiro USB Phone

Please follow these 6 easy steps to set up your Futiro USB Phone for iChat.

STEP 1

First, remove any previous version of the Futiro software by dragging the
Futiro icon to Trash.

Locate the FutiroChat.dmg disk image (Figure 2.1) for Mac OS X on your
CD-ROM (or download from www.futiro.com) and double-click on it.

Figure 2.1 – FutiroChat Disk Image

4

STEP 2

Locate the FutiroChat mounted disk image in Finder (Figure 2.2). Drag the
FutiroChat icon over to the Applications folder.

Figure 2.2 – FutiroChat Mounted Disk Image

STEP 3

You may be prompted to enter an administrative username and password

(Figure 2.3). Enter these details and click OK.

Figure 2.3 – Authentication Prompt

5
