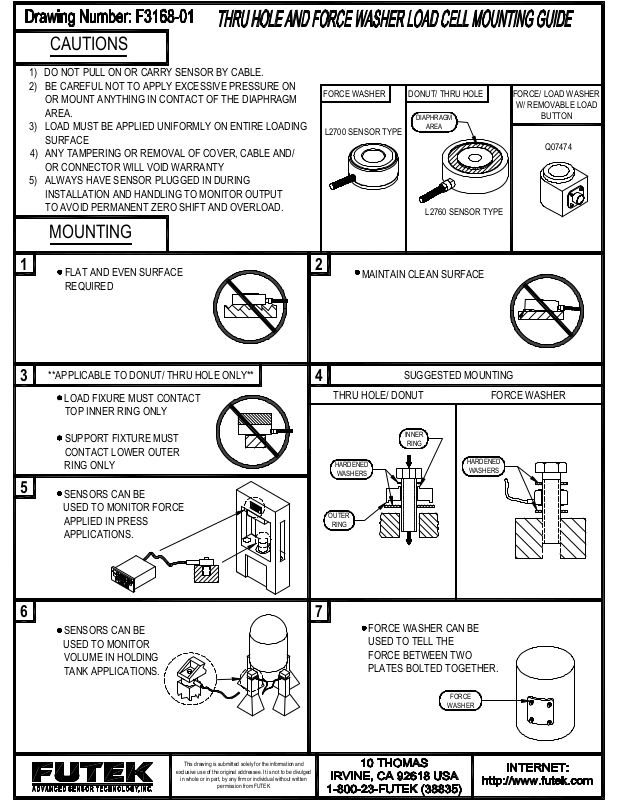

FUTEK LTH User Manual

CAUTIONS

1) DO NOT PULL ON OR CARRY SENSOR BY CABLE.

2) BE CAREFUL NOT TO APPLY EXCESSIVE PRESSURE ON
OR MOUNT ANYTHING IN CONTACT OF THE DIAPHRAGM
AREA.

3) LOAD MUST BE APPLIED UNIFORMLY ON ENTIRE LOADING
SURFACE

4) ANY TAMPERING OR REMOVAL OF COVER, CABLE AND/
OR CONNECTOR WILL VOID WARRANTY

5) ALWAYS HAVE SENSOR PLUGGED IN DURING
INSTALLATION AND HANDLING TO MONITOR OUTPUT
TO AVOID PERMANENT ZERO SHIFT AND OVERLOAD.

MOUNTING

FORCE WASHER DONUT/ THRU HOLE

DIAPHRAGM

L2700 SENSOR TYPE

AREA

L2760 SENSOR TYPE

FORCE/ LOAD WASHER

W/ REMOVABLE LOAD

BUTTON

Q07474

1 2

FLAT AND EVEN SURFACE
REQUIRED

**APPLICABLE TO DONUT/ THRU HOLE ONLY**

3

LOAD FIXURE MUST CONTACT
TOP INNER RING ONLY

SUPPORT FIXTURE MUST
CONTACT LOWER OUTER
RING ONLY

5

SENSORS CAN BE
USED TO MONITOR FORCE
APPLIED IN PRESS
APPLICATIONS.

MAINTAIN CLEAN SURFACE

4

THRU HOLE/ DONUT

HARDENED
WASHERS

OUTER

RING

SUGGESTED MOUNTING

FORCE WASHER

INNER

RING

HARDENED
WASHERS

6

SENSORS CAN BE
USED TO MONITOR
VOLUME IN HOLDING
TANK APPLICATIONS.

This drawing is submitted solely for the information and

exclusive use of the origina l addressee. It is not to be divulged

in whole or in part, b y any firm or individual without written

permission from FUTEK

7

FORCE WASHER CAN BE
USED TO TELL THE
FORCE BETWEEN TWO
PLATES BOLTED TOGETHER.

FORCE

WASHER
