FUTEK LSB User Manual

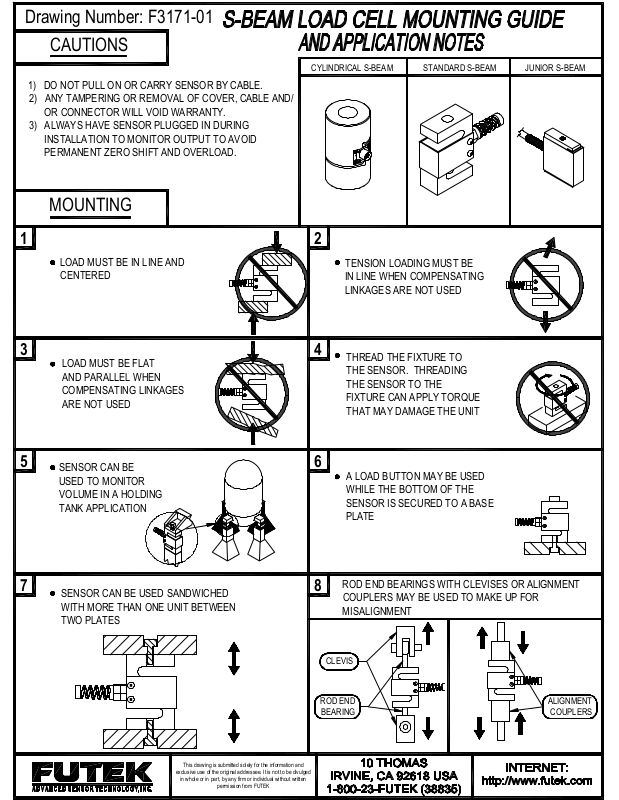

Drawing Number: F3171-01
CAUTIONS
1) DO NOT PULL ON OR CARRY SENSOR BY CABLE.
2) ANY TAMPERING OR REMOVAL OF COVER, CABLE AND/ OR CONNECTOR WILL VOID WARRANTY.
3) ALWAYS HAVE SENSOR PLUGGED IN DURING INSTALLATION TO MONITOR OUTPUT TO AVOID PERMANENT ZERO SHIFT AND OVERLOAD.
MOUNTING
1
LOAD MUST BE IN LINE AND CENTERED
3
LOAD MUST BE FLAT AND PARALLEL WHEN COMPENSATING LINKAGES ARE NOT USED
CYLINDRICAL S-BEAM STANDARD S-BEAM
2
TENSION LOADING MUST BE IN LINE WHEN COMPENSATING LINKAGES ARE NOT USED
4
THREAD THE FIXTURE TO THE SENSOR. THREADING THE SENSOR TO THE
FIXTURE CAN APPLY TORQUE
THAT MAY DAMAGE THE UNIT
JUNIOR S-BEAM
5
7 8
SENSOR CAN BE USED TO MONITOR VOLUME IN A HOLDING TANK APPLICATION
SENSOR CAN BE USED SANDWICHED WITH MORE THAN ONE UNIT BETWEEN TWO PLATES
6
A LOAD BUTTON MAY BE USED
WHILE THE BOTTOM OF THE SENSOR IS SECURED TO A BASE PLATE
ROD END BEARINGS WITH CLEVISES OR ALIGNMENT COUPLERS MAY BE USED TO MAKE UP FOR MISALIGNMENT
CLEVIS
ROD END
BEARING
ALIGNMENT
COUPLERS
This drawing is submitted solely for the information and
exclusive use of the origina l addressee. It is not to be divulged
in whole or in part, b y any firm or individual without written
permission from FUTEK
