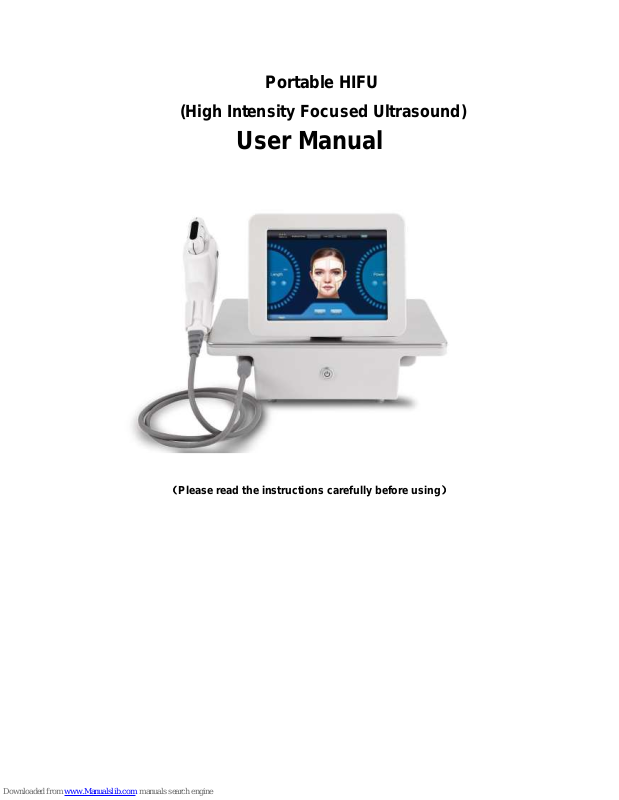

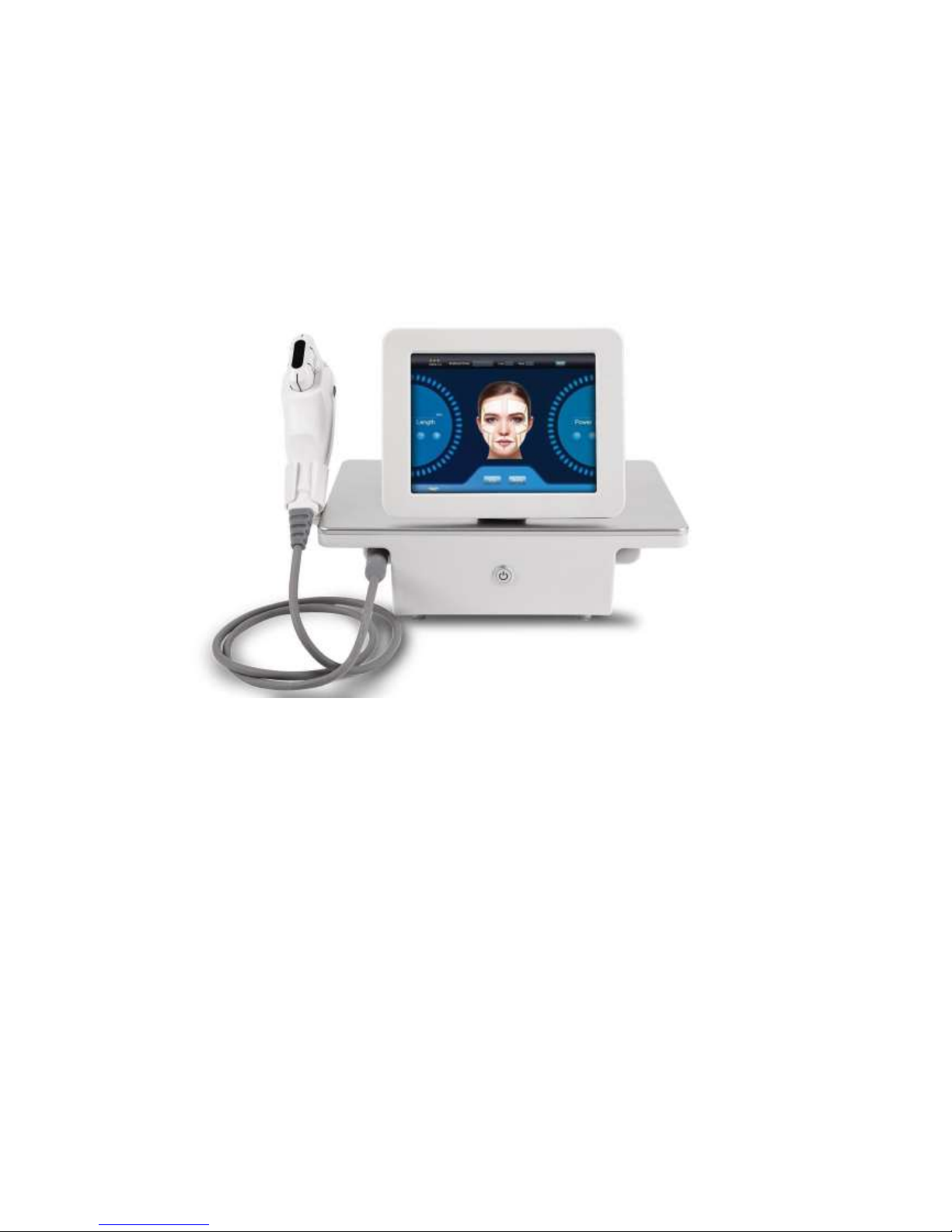

FUTAI FQA28-E User Manual

Portable HIFU

(High Intensity Focused Ultrasound)

User Manual

（Please read the instructions carefully before using）

1. Work Interface

Turn on the power switch of the device. The screen will show in Figure 1
focused High Intensity Focused Ultrasound interface.

Click anywhere on the screen and enter into customer information selection
interface. Like Figure 2.

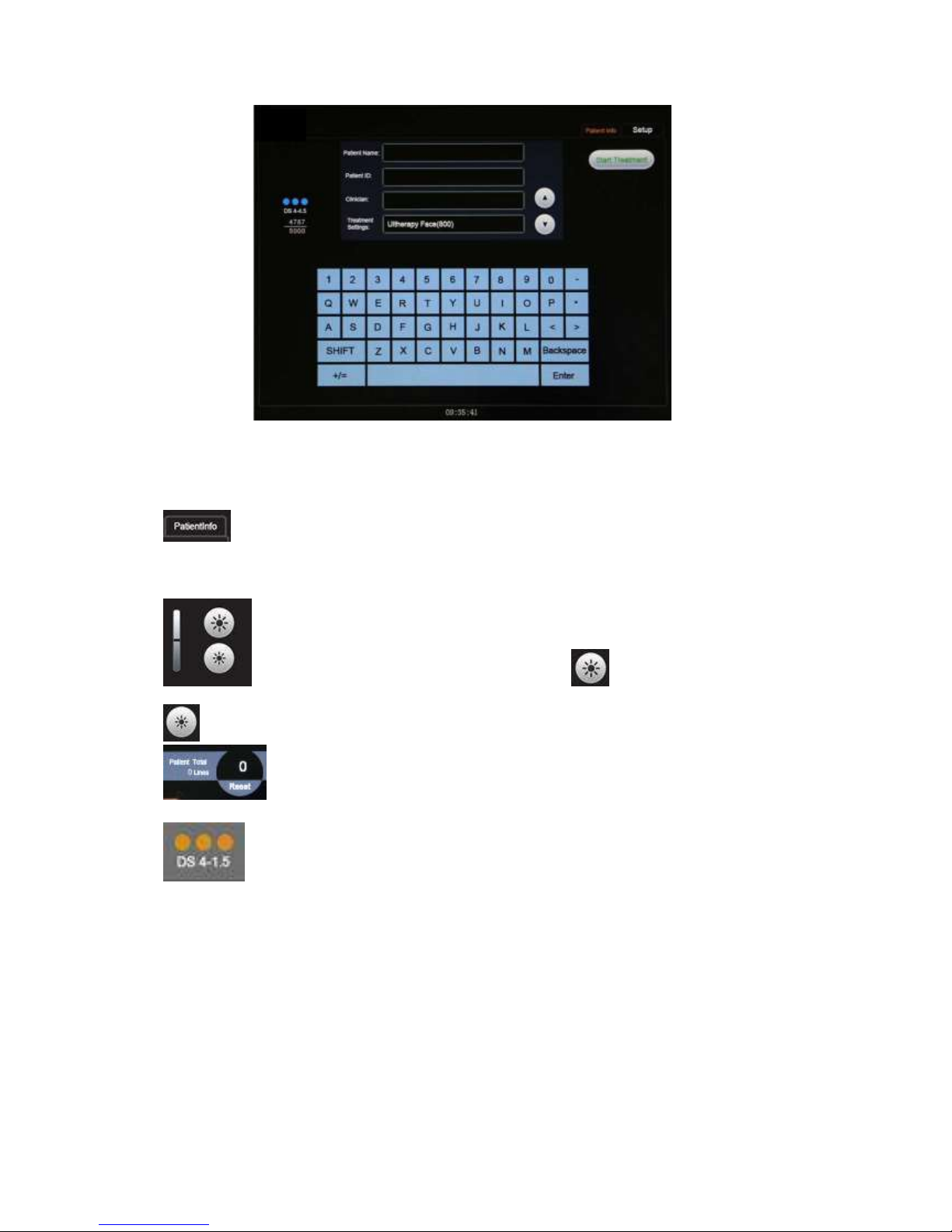

2.Customer information interface
Patient Name: Client name, supports up to five characters of input. Click the

text box to enter the input, you must click on to launch into the
output.

Patient ID：Client number which is the unique code to identify the customer, It
can search clients name and operator record according to the clients number

or ID. Click the text box to enter the input, you must click on to
launch into the input output.

Clinician：The operator's name, supports up to five characters of input. Click
the text box to enter the input, you must click on to launch into the

input output.

Click can enter the interface (Fig. 3).

Figure 2

2. Treatment interface

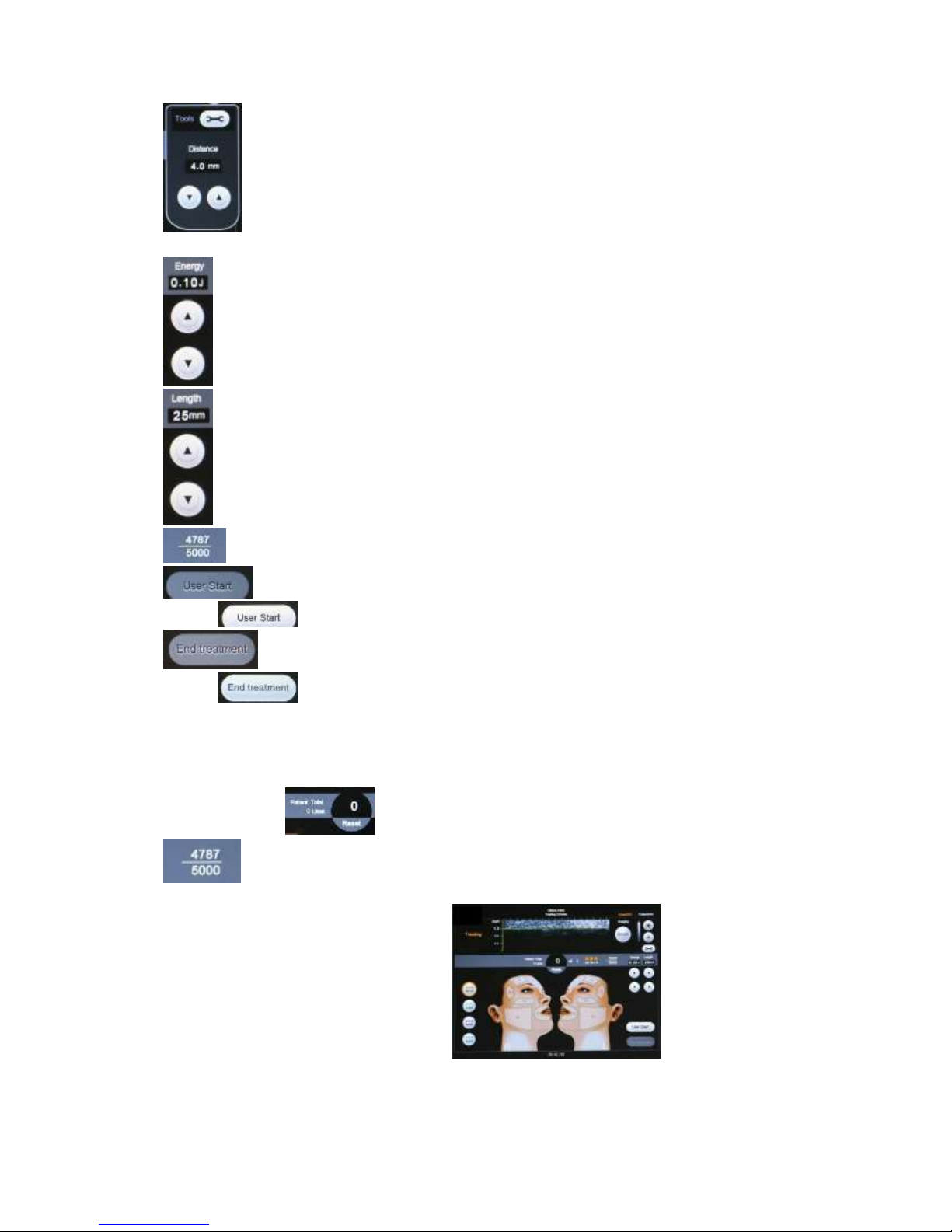

: Return button to return to the patient information interface.

: Scan button.

: Brightness adjustment buttons ， Click brighter ， Click

dim.

: Single treatment shots. Changing the treatment of head tip or

the patient number will be reset.

: Recognizing .different handle tip automatically

: Recognizing .different handle tip automatically

: Treatment dot distant adjustment, The distance between dots:

1.0mm-4.0mm.

: Energy setting, 0.1J-2.5J adjustable.

: Full length of dot distance Setting: 5.0mm-25mm adjustable.

: Upper for remain shots, Lower for total shots.

: User Start button, click the button then it will

display , mean the machine stworking now.

:End treatment button,click the button then it will

display ,
mean the machine stop working.

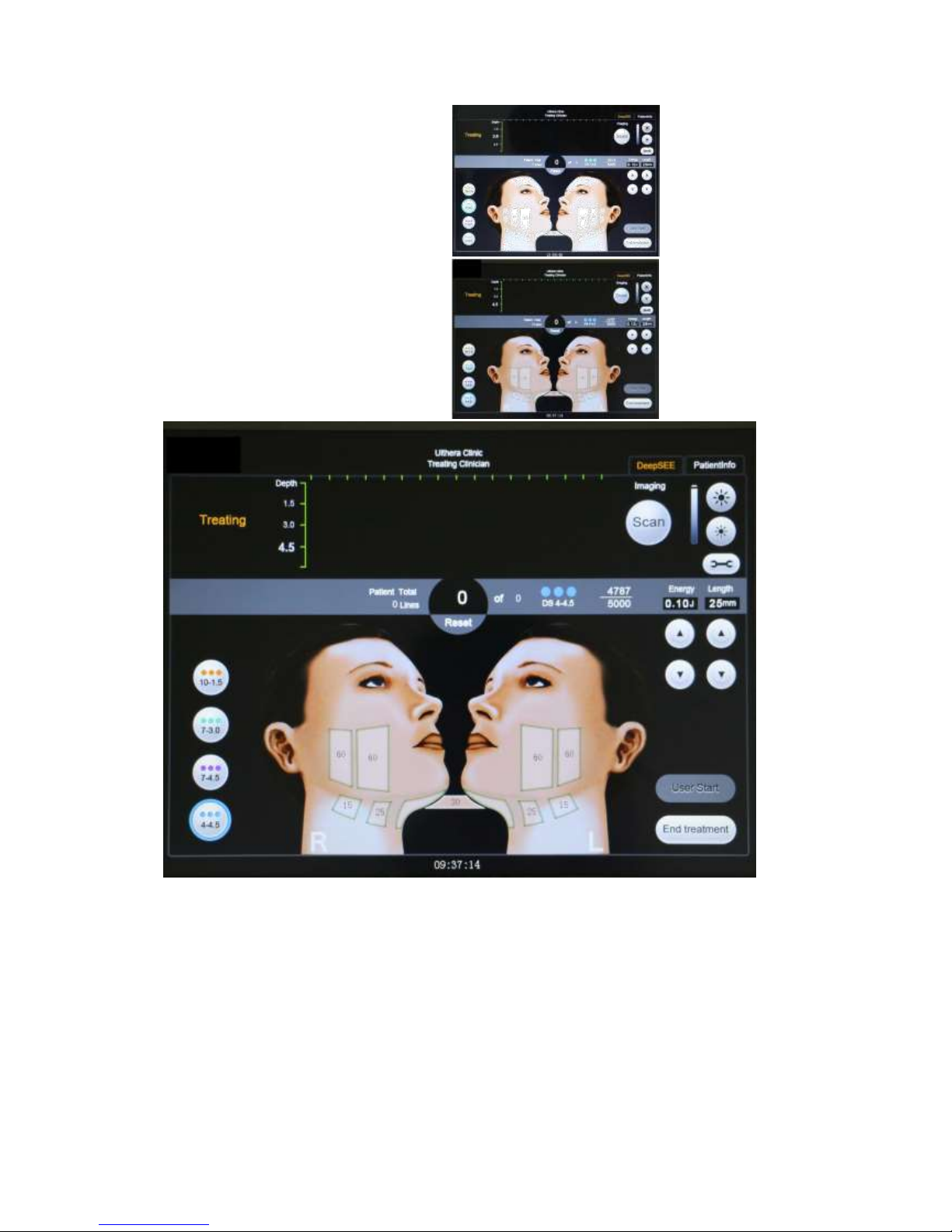

After installing handle tip the software will recognize its corresponding facial
treatment area automatically. Green parts are treatment areas. Then handle
tip need to connect with facial surface. Pressing handle button there will be

energy output. Single treatment shots will have one more shot

the remain shot upper will deduct one shot

Treatment of depth 1.5 head display

Treatment of depth 3.0 head display

Treatment of depth 4.5 head display

Figure

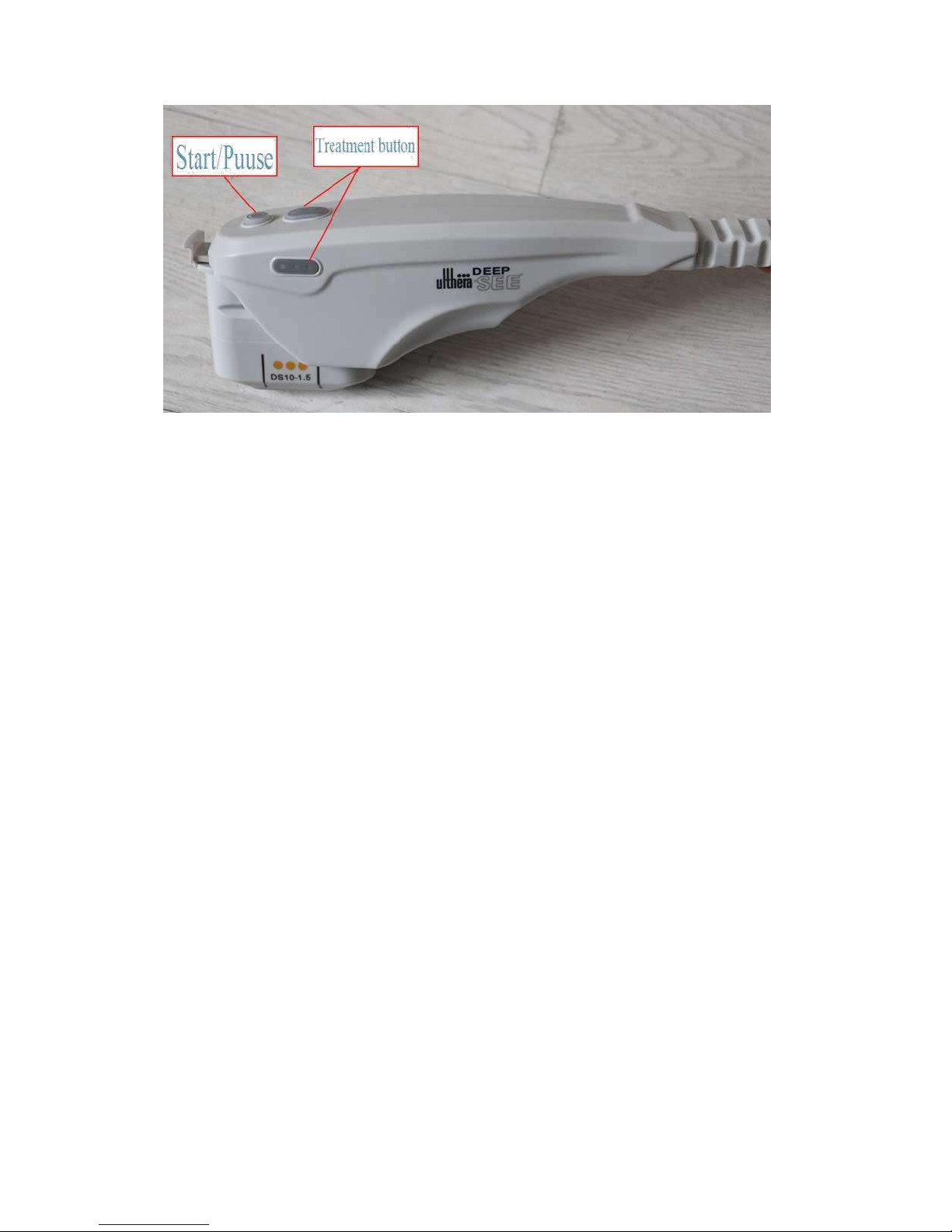

Treatment handle instruction

Working Principle:

A: Ultrasound (HIFU) is a sonic frequency above 20,000 hertz, which has
good direction and strong penetrating power on treatment.
It is easy to get a higher concentration of acoustic energy.
Propagation distance is distant in the water. Ultrasound (HIFU) can be used
for testing distance, Velocimetry, cleaning, welding, Medical gravel,
Sterilization and disinfection, etc. Ultrasonic low frequency limit is
approximately equal to the upper limit of human hearing..

B. Ultrasonic wrinkle removal Skin care Technology:

HIFU(High Intensity Focused Ultrasound)Using the latest achievements of
the most advanced anti-therapeutic ultrasound study. It utilizes the
characteristics of high-intensity focused ultrasound to focus on 3mm depth
Shallow fascia layer and 4.5mm depth fascia layer precisely. High Intensity
Focused Ultrasound energy enables focused area SMAS producing protein
coagulation reaction. Centering on the solidifying point to generate tension
around and radiating rebirth of collagen. This can double strengthen SMAS
elasticity. Non-invasive method of treatment can resolve facial sagging and
flabby problem. It stimulates subcutaneous collagen layer’s restructuring and
regeneration. HIFU(High Intensity Focused Ultrasound) can effectively
improve the coarse pore, wrinkles, elastic tissue changes of facial aging
problems.

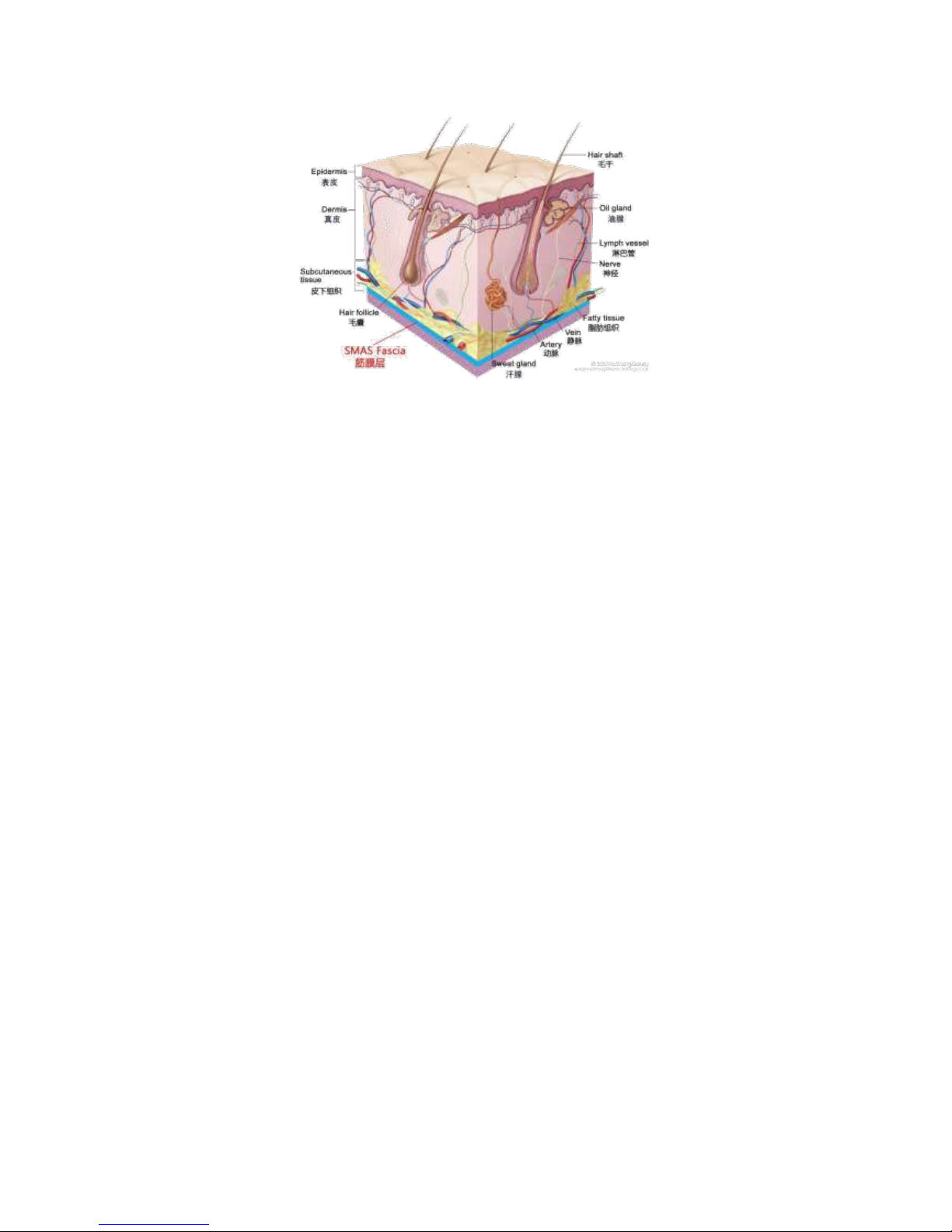

C. What’s for SMAS Fascia Layer

Superficial tendon membrane system is referred to as the SMAS

SMAS refers to a wide range of coverage in the deep tissue below the
dermis, connecting fat and facial shallow layer of connective tissue, muscle
membrane, extending the facial skeletal muscle

Theory

High Intensity Focused Ultrasound (HIFU) directly delivers heat energy to skin and
subcutaneous tissue that can stimulate and renew the skin's collagen and thus
consequently improving the texture and reducing sagging of the skin. It literally
achieves the results of a facelift or a body lifts without any invasive surgery or
injections, moreover, an added bonus of this procedure is that there is no downtime.
and also, it works equally well for people of all skin colours, in contrast to that of
lasers and the intense pulse lights.

It’s heating directly to deeper tissue, in oder to lift the skin.It is performed in the
offic e with only ultrasound gel applied to the skin. An ultrasound screen image
allows the physician to visualize the level of treatment before energy is applied to
the targeted tis sue. The treatment takes from 45 to 90 minutes depending on the
area(s) treated.

Ultherapy a safe and effective non-invasive ultrasound (US) treatment that can lift
and tighten facial skin and muscle without downtime. It is targeted for Lifting skin
on the neck, under the chin, on the brow etc.

Advantages

⚫ More than 50,000 shots according to quality inspection and clinical

tests, ensuring that each shot effects into the right depth set by
default.

⚫ Equipped 5 heads (1.5mm, 3.0mm, 4.5mm,8mm,13mm), precisely acting

on different depths of the skin. The energy will skip the epidermis, leaving
no damages.

⚫ It will produce thermal effect to the dermal collagen fibers and stimulate

the fat layer and SMAS. The result is far better than Thermage.

⚫ The skin will be lifted and tightened at once, and effect will last for

12-24 months.

⚫ There are no post-surgery down time and you can resume your normal

activities immediately

⚫ Easy to control and operate, no consumables, cost-saving.

Application:

1.Remove wrinkles on around forehead, eyes, mouth, etc.

2.Lifting and tightening both cheeks skin.

3.Improving skin elasticity and shaping
contour.

4.Improving jaw line, reducing “marionette lines”

5.Tightening the skin tissue on forehead, lifting the eyebrows lines.

6.Improving skin complexion, making the skin delicate and bright

7.Match with injecting beauty like Hyaluronic acid, collagen, to resolve more aging
problem

8.Removing neck wrinkles, protecting neck aging.

Operation steps:

1.Clean the Skin.

2.Take a photo before treatment , and paint on the preoperative lifting
location with make - up pencil .

3.According to the skin thickness to select appropriated transducer .

4.Set suitable length , distance , energy ; we suggestion that the length

adjust 25mm , distance adjust 2mm , energy generally start from 0.1J (
according to customers need )

5.Applying ultrasonic plentiful gel as couplant between transducer and skin. 6.face

lifting operate on the note of power line, forming a line thermal condensed

node in the specified depth under skin when the transmitting button is pressed
per time,operating continued on the powder line until the specified location
transmission is completed. The treatment parts such as face, chin and both
sides of neck.

7.don’t operate on marginal mandibular nerve and supra or bital nerve.

8.no recovery period after treatment,daub some moisture product and
make up immediately.

9.only once, the comprehensive effect will gradually appear in two or three
moths, Some people may do this treatments several times.

Compare effect:

Notes:

1, ultrasonic knife operation after a temporary slight swelling phenomenon is very

normal. Note 1 week don't go hot sauna, yoga and other high-temperature
environment after the operation, and is not recommended for exposure.

2, before the operation to maintain the skin, hair part clean, use the day cannot
make-up, the current traces of make-up to clean.Please does not use hot water wash
your face

3, three days (not more than the temperature of the water can be); note that

replenishment, suggest a week at least apply mask 3 times.

4, a week does not eat soy sauce pigment heavy things, alcohol,
spicy food.

Unsuitable for

1.implanted cardiac pacemaker or other similar electronic apparatus.

2.Pregnant women.

3.Over the past 9 months taking oral isotretinoin therapy were (Accutane
/ Roaccutane / Oratane).

4.Internal filler, if the face with gold implantation, it is not recommended to do.

5.Serious heart disease, diabetes, hyperthyroidism patients.

6.Operation wound not healed.

7.Patients with advanced cancer.The effect of unrealistic fantasies.

Equipment Maintenance:

1.gently, does not put the instrument placed in direct sunlight

2.regularly with a dry towel clean surface, machine parts surface dust and dirt.

3.before and after each use will probe cleaning and disinfection (wipe the
surface with a 75% medical alcohol, prohibit the use of alcohol)

4.to prevent cross infection, each operation probe for personal use!

Matters Need Attention

1、Please test three handle tips and make sure they can work well before
using the machine.
2，The operator can fell the inside motor works action when treatment, please
take away the handle tip from patients face if the inside motor cannot work
well. Then test the handle tip using the Acrylic board and test again, and make
sure whether the handle tip can work well.
3、Please using the tissue wipe handle tip carefully, then using the swab soak
normal saline smear the handle tip to disinfect (Prohibit using Alcohol)
4、Don’t using hot water to clean your face within 24 hours after finished the
treatment.
5、Don’t sauna and do facial massage within two weeks.
6、Avoid insolation within one week.
7、Do soothing rehydrating mask not cold mask within one week.
8、Don’t do laser RF treatment within 15 days.

Taboo Patients

1、Hypertension, Diabetes, Heart disease
2、Skin disease or skin lesion on the treatment part.
3、Pregnant, Epilepsy and Psychopath

Packing List

Name

Quantity

Power line

1Pc

Handle Piece

1Pc

Handle Tip （1.5mm,3.0mm,4.5mm，

3Pcs

8.0mm，13mm）

1.5MM Test Board

1Pc

3.0MM Test Board

1Pc

8.0MM Test Board

1pc

13MM Test Board

1pc

4.5MM Test Board

1Pc

Trolley

optional

Body machine

1set

Feature:

Mode no

FQA28-E

Type

Vertical(Trolley optional)

Display

15 inch touch screen

Depth of head

1.5mm/3.0mm/4.5mm/8.0mm/13mm

Shots of head

10000(optional)

Power

800w

Voltage

110-240v,50-60Hz

Energy

0.1-2.5J (0.1J adjustable)

Length

5-25mm (1mm adjustable)

Distance

1-4mm (0.1mm adjustable)

Packing size

128*61*57cm
