Fusion CA-ML600 User Manual

MODEL: CA-ML600

AM/FM/MP3/WMA/SD/USB/iPod/iPhone RECEIVER

INSTRUCTION MANUAL

CONTENTS

Precautions & Maintenance P3 Quick Start Guide P3 Dashboard Installation P4 Removal / Re-Attachment of the Face P5 Connecting the System P6 Basic Operations P7 Audio Functions P8 System Menu P9 Radio Operation P10 RDS Operation P10 iPod / iPhone Operation P11 Media Playback (USB/SD/Aux In) P12 Additional Media Playback Options P14 Troubleshooting P16 How To Reset The Unit P16 RDS Program Types & Descriptions P17 Product Speciﬁcations P17 Supported File Types P18 Licensing P18 Warranty P20-27

PRECAUTIONS & MAINTENANCE

GENERAL

• When cleaning the vehicle, do not get water or cleaning ﬂuids on the unit.

• Do not attempt to open the unit chassis. There are no user servicable parts or adjustments inside.

• This unit has been tested with all compatible authentic iPod/iPhone models under normal expected operating conditions, free from any pre-existing defects in either the unit or iPod/iPhone and with unmodiﬁed or “jailbroken” software.

• No Responsibility can be taken for use of the unit other than under normally expected operating conditions in conjunction with fully functional and undamaged iPod/iPhone units which have been manufactured and authorised by Apple Inc.

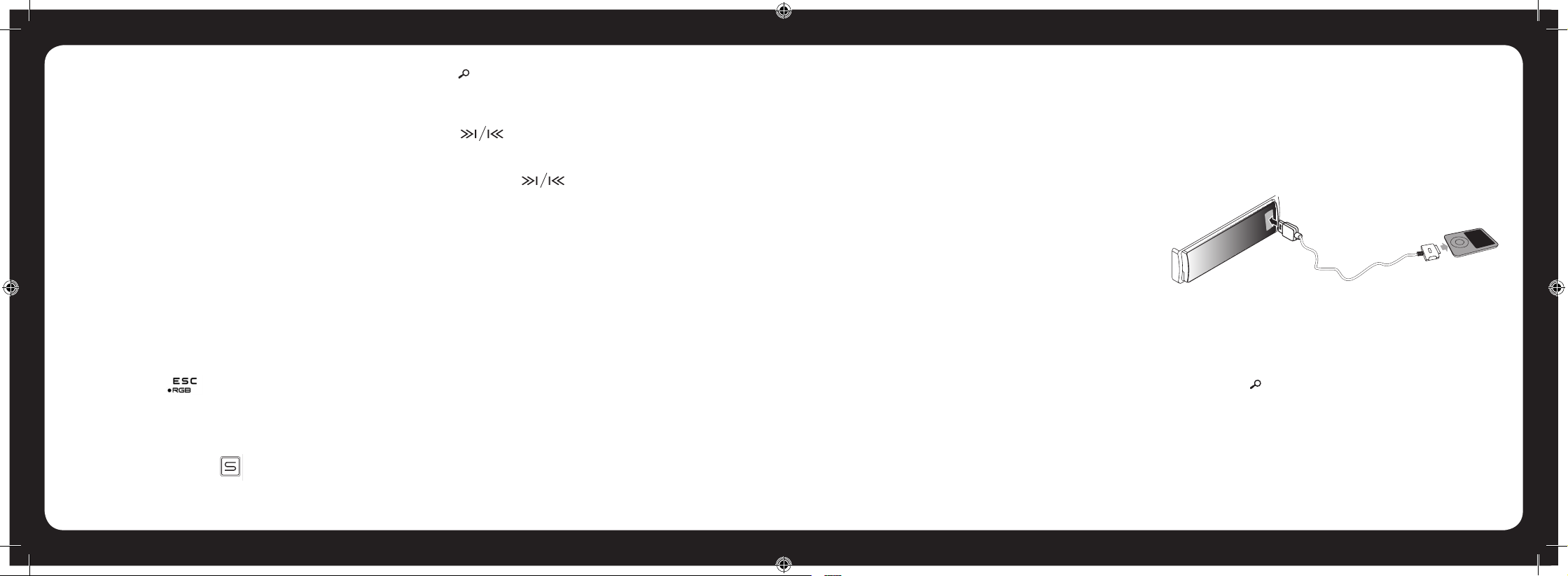

• Ensure that only a Apple sync iPhone/iPod cable is used for connection to this unit.

QUICK START GUIDE

TUNER REGION SETTING

When the unit is powered up for the ﬁrst time (or the battery is disconnected or runs ﬂat), you will need to set your tuner region.

1. When you press the power button to turn on the unit [OCEANIA] will be displayed on the LCD screen as the default Tuner region.

2. Rotate the Encoder Volume Control to select an option: OCEANIA (Australia / New Zealand), USA, EUROPE or RUSSIA.

3. Press the Encoder Volume Control to store your selection and exit to the Tuner mode.

If you make the wrong selection, you may not be able to tune in to your desired stations. This setting can be easily changed from the SYSTEM MENU — see page 9.

SELECTING THE MUSIC SOURCE

Press the source button to cycle through the following sources (if available) — Radio > USB > SD > AUX

RGB 32K+ COLOUR SELECTION

The initial colour setting for this unit is Colour Scan. To quickly enter the 32K+ RGB colour menu, press and hold the ESC/RGB button

You can then rotate the Encoder Volume Control to select from the following pre-set display colours:

WHITE: GREEN1: GREEN2: GREEN3: AMBER: PINK1: PINK2: PURPLE1: PURPLE2: BLUE1: BLUE2: USER COLOUR: ORANGE

Press the ESC/RGB button to conﬁrm your selection. See Page 10 for details on how to set the USER COLOUR

STORE DEMO MODE

When you connect the unit for the ﬁrst time and press the Mute/Power button the unit will operate in Demo Mode. To exit Demo Mode , press the Mute/Power Button again. See Page 10 to turn Demo Mode off.

DASHBOARD INSTALLATION

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your car audio retailer.

If you are not sure how to install this unit correctly, have it installed by a qualiﬁed installer.

REMOVAL/RE-ATTACHMENT OF THE FACE

1. Press the Panel OPEN button.

2. Hold the left-hand side of the Face and pull forward

2. After ﬂipping down the front panel, push it to the right (A),

3. Pull the Face towards you (1) to disengage it from the chassis (2).

then draw the left of the front panel outwards (B)

3. To re-attach the face, please complete the above steps in reverse.

CONNECTING THE SYSTEM

6. DISP - DISPLAY

a) In MP3/WMA playback mode, press to display ID3 information: Track number and elapsed play Time - > File

- > Album - > Title - > Artist. b) In iPod/iPhone playback mode, press to display Album

-> Title -> Artist

7. NUMERIC BUTTONS

a) In the Tuner mode, press the Numeric buttons to recall the preset stations. Press and hold these buttons for 2 seconds to store stations.

b) In Media playback mode, Press the Numeric buttons to perform the operations below:

8. SUBWOOFER – DIRECT SUBWOOFER LEVEL CONTROL

When a subwoofer is connected; use the DSLC buttons to adjust the subwoofer level up or down.

9. EQ

Press this button to select the preset equaliser settings: FLAT->POP->USER->DANCE->ROCK->CLASSIC-

>JAZZ->VOCAL

WIRING DIAGRAM

NOTE

RCA splitters may be required for subwoofer ampliﬁer connection

BASIC OPERATIONS

1. OPEN

Press this button detach the control panel.

2. ENCODER VOLUME CONTROL

Rotate the encoder volume to increase and decrease the volume.

3. iPod/iPhone INTERNAL/EXTERNAL CONTROL

Press this button to switch between iPod/iPhone control from either the unit or from the device itself.

4. ENCODER VOLUME CONTROL AUDIO/ENTER FUNCTIONS

a) AUDIO. Press this button to enter the Audio Menu mode. b) ENTER. In Media playback mode and Menu functions,

press this button to conﬁrm a selection (ENTER).

5. MUTE – POWER ON/OFF

a) Press this button to turn Mute ON or OFF b) Press this button to turn the unit on.

Press and hold to turn the unit off.

6. DISP - DISPLAY

a) In MP3/WMA playback mode, press to display ID3 information: Track number and elapsed play Time - > File

- > Album - > Title - > Artist. b) In iPod/iPhone playback mode, press to display Album

-> Title -> Artist

7. NUMERIC BUTTONS

a) In the Tuner mode, press the Numeric buttons to recall the preset stations. Press and hold these buttons for 2 seconds to store stations.

b) In Media playback mode, Press the Numeric buttons to perform the operations below:

8. SUBWOOFER – DIRECT SUBWOOFER LEVEL CONTROL

When a subwoofer is connected; use the DSLC buttons to adjust the subwoofer level up or down.

9. EQ

Press this button to select the preset equaliser settings: FLAT->POP->USER->DANCE->ROCK->CLASSIC-

>JAZZ->VOCAL

10. ESC/RGB

a) ESC – ESCAPE. Press to quick return previous menu or mode rather than having to cycle through all of the options in the menu.

b) RGB – 32K+ RGB COLOUR. Press and hold this button to

access the 32k+ variable colour setting mode. See Page 10

AUDIO FUNCTIONS

All Audio functions are easily accessable on the CA-ML600. AUDIO MENU. Press the ENCODER VOLUME CONTROL

to access the Audio Menu mode. Then press ENTER or TUNE UP to select the Audio Function to be adjusted, then rotate the ENCODER VOLUME CONTROL to select the desired setting. You can always return to the previous Audio Function by pressing the TUNE DOWN button.

REMINDER

In the AUDIO MENU, or in any menu, you can quickly exit the menu by pressing the ESC/RGB button

EBX ON/OFF: Turn ON or OFF the EBX (Encounter Bass Xtender) Bass Boost.

BAS Adjust the Bass level between -7 to +7. TRE Adjust the Treble level between -7 to +7. BAL (Balance) Adjust the balance between the right and left

speakers from 12R (full right) to 12L (full left). FAD (Fader) Adjust the fader between the front and rear

speakers from 12R (full rear) to 12L (full front).

(SUBWOOFER) SW ON/OFF Turn On or Off the Subwoofer RCA output. SW LPF Subwoofer low pass crossover: 80/120/160Hz SWAM ON/OFF In AM mode, turn ON or OFF the Sub output.

EQUALISER OPERATION

When you activate the Equaliser, the Pre-Set Equaliser settings override your existing Bass, Midrange & Treble Settings.

Press the Equaliser button repeatedly to cycle through the following pre-sets: FLAT->POP->USER->DANCE- >ROCK->CLASSIC->JAZZ->VOCAL

To return to the Bass & Treble settings that were in use before the EQ was selected, please select the USER setting.

SYSTEM MENU

Press (MENU) to access the System Menu and press again to select the item be adjusted, then rotate Encoder Volume Knob to select a value / option. To exit this menu at any time, press the ESC/RGB button

STORE (Auto store)

While in Tuner mode, press the ENCODER VOLUME CONTROL to activate Auto Store. The six strongest stations of the selected band will be saved in the preset channels automatically

RDS ON/OFF

While in Tuner mode, this selection turns On or Off RDS. RDS Functions are explained in more detail on Page 8. If RDS is set to OFF, then the RDS Functions indicated below with an * will not appear in the System Menu

PTY* (Program Type)

Press the ENCODER VOLUME CONTROL to enter program

AF* ON/OFF

Turn On or Off the Alternate Frequencies function.

TA* ON/OFF

Turn On or Off the Trafﬁc Announcement function.

REG* ON/OFF

Turn On or Off the Set Region for Alternate Frequencies function

CT* ON/OFF

Turn On or Off the CT function.

LOC* ON/OFF

(Local/Distance). Use this setting to Auto Seek to strong local stations (Local) or all stations regardless of their strength (Distance).

AREA Select your country/region for the tuner:

OCEANIA (Australia/New Zealand); USA; EUROPE; RUSSIA & press ESC/RGB to save.

CLK (Clock)

To set the clock, rotate the Encoder Volume Control to set the hours (Note “A” or “P” will be displayed in the top-right hand of the LCD display indicating AM or PM if the Clock is in 12H mode – see below). Press the Encloder Volume control to select “minutes” then rotate the control to set.

CLK 12H/24H (Clock Format)

Select the time format 12H or 24H

for more information

11. BAND/SEARCH

a) In Tuner mode, press this button to cycle through Bands: FM1, FM2, FM3, AM1 (MW1) or AM2 (MW2). b) In Media playback mode, press to access the folder / ﬁle

search mode. c) In iPod/iPhone playback mode, press this button to

access the iPod/iPhone search functions.

12. MENU

Press to access the system menu. See Page 9 for menu options.

13. TUNE UP/DOWN, FILE & TRACK UP/DOWN & FAST FORWARD/BACK

a) TUNE UP/DOWN. In tuner mode, press this button to Auto Seek to the next station or press and hold this button to manually tune in to your desired station.

b) FILE & TRACK UP/DOWN. In CD or USB/SD media playback mode, press these buttons to skip a chapter, track or ﬁle.

c) FAST FORWARD/BACK. In USB/SD media playback mode, press and hold momentarily to fast forward/rewind.

14. SOURCE BUTTON

Press the Source Button to cycle through the following sources if available: Radio: CD: USB: SD: AUX
