Fusion CA-CD500 User Manual

CA-CD500

OPERATION MANUAL

CONTENTS

FUSION CULTURE

There’s no point doing something if no one notices. We’ve always believed the way to make things happen is by getting noticed. From our product, to our demo cars, to our events, FUSION is about making some noise.

Now you are ready. Step out of the shadows and announce you’ve arrived in a world where the old limits are left behind. Where technology is creatively combined with the latest in product innovation. Where new levels of entertainment are delivered with outstanding performance and quality. Our development team create distinctively different products that redefine what can be done in entertainment.

Leave the old behind and push the limits of what can be achieved. Make some noise.

For more information about FUSION Electronics visit our website at www.fusionelectronics.com or email technical@fusionelectronics.co.nz

RECORD YOUR PRODUCT DETAILS HERE:

• PRECAUTIONS & MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . pg 4

• DETACHABLE FRONT PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 7

• BASIC OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 8

• SETUP MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 9

• GENERAL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 9

• AUDIO SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 11

• DISPLAY SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 11

• RDS SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 12

• RADIO OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 12

• MP3 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 13

• CD OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 14

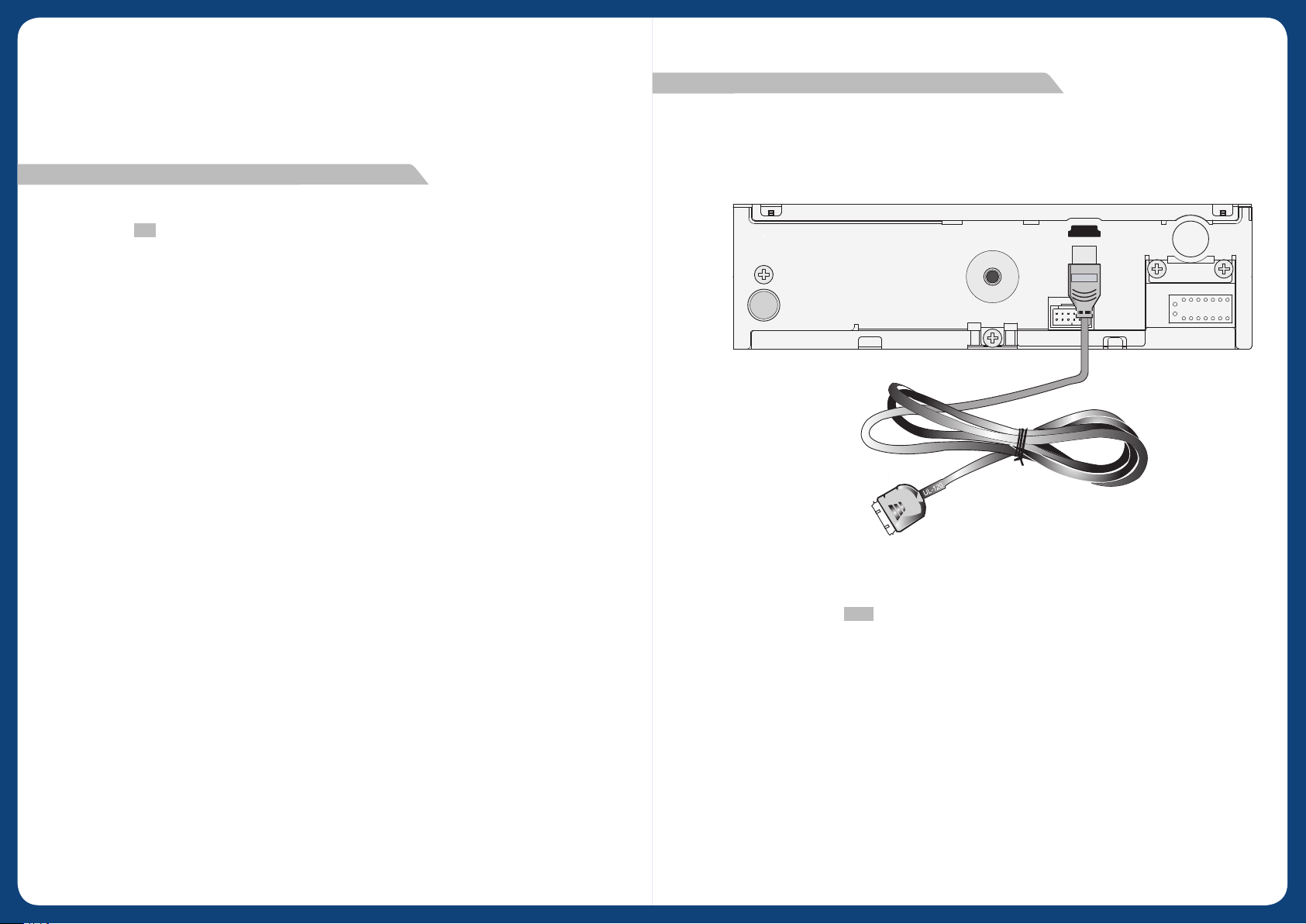

• iPOD CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 15

MODEL NUMBER DATE OF PURCHASE

AFFIX RECEIPT HERE

• AUX OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 16

• ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 16

• INSTALLATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 16

• TECHNICAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 20

• REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 21

• WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 22

Version 3.0

PRECAUTIONS & MAINTENANCE

• Do not attempt to open the unit chassis. There are no user serviceable parts or

adjustment’s inside.

This equipment has been tested and found to comply with the limits for a Class 1 laser product, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio reception, which can be determined by turning the equipment off or on, the user is encouraged to consult the dealer or an experienced radio technician for help.

CAUTION! : USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

• When cleaning the interior of the vehicle, do not get water or cleaning fluids on the unit.

• The CD player is a precision instrument and will not operate properly in extreme heat or cold. In case of such conditions, wait until the interior temperature of the vehicle reaches a normal temperature before using the player.

• If the temperature inside the unit gets too hot, a protective circuit will automatically stop play of the disc. In this case, allow the unit to cool off before operating the player again.

• When the vehicle warms up during cold weather or under damp conditions, moisture

may condense on the lens of the disc player. Should this occur, the player will not operate properly until the moisture has evaporated.

Handling Compact Discs (CD/CD-R/CD-RW)

- Avoid touching the surface

- Avoid exposing the disc to direct sunlight

- Ensure the disc is clean

- Ensure the disc is not scratched or damaged

Playback of CD-R/CD-RW

- If your CD-R/CD-RW will not play, Ensure that the last recording session was closed or

finalised.

Supported Media

- Only use compact discs with the CD logo’s on the label as listed below.

- If you use compact discs without the above logo’s correct performance cannot be

guaranteed.

- You can play audio disks recorded on CD-R (Recordable) and CD-RW (Re Writable) media

- MP3/WMA/AAC formatted audio files can also be played on CD-Rs and CD-RWs

containing these files.

- Usable bit rate 8kps - 320kps/VBR

- Recognisable length of folder name and file name; Folder name; max 16 characters, File

name: max 32 characters

• Never insert anything other than a 5” (12.5cm) compact disc into the player as the mechanism can be damaged by foreign objects.

• Do not attempt to use 3”(7.5cm) CD-Single discs in this unit, either with or without an

adaptor, as damage to the player and/or disc may occur. Such damage will not be covered by the Warranty on this product.

• When the CD function is not in use, always remove the compact disc. Do not leave an

ejected disc sitting in the disc slot as this can expose it to sunlight and other causes of damage.

TUNER SETTING

For correct operation in America, Tuner Frequency stepping needs to be changed,

Default setting is Europe, to Change:

SELECT: Menu - General - Area - America 1

Reasons For Playback Failure

RELEASE

- Scratched or flawed CD

- Fingerprints or marks on CD

- CD exposure to extreme sunlight or heat

- CD with a failed recording or open session

- Copy protected CD’s that don’t conform to the audio CD industry standard.

- Only use discs with WMA/MP3/AAC files written in a format that is compatible with this unit.

- Data only tracks contained in a disc will not produce sound when played back.

DETACHABLE FRONT PANEL

Removing The Front Panel

or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Windows Media and the Windows logo are trademarks,

Apple, the Apple logo, iPod and iTunes are Trademarks of Apple Computer, Inc.,

registered in the U.S. and other countries.

“MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson.”

“Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue generation) real time

broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting / streaming via internet,

intranets and/or other networks or in other electronic content distribution systems, such as pay-audio

or audio-on-demand applications. An independent license for such use is required. For details, please visit

http://www.mp3licensing.com”

1. Press the panel lock button to release the panel.

2. Remove the panel by pulling from RIGHT side.

3. Always store the detached panel in the supplied carrying case when not in use.

Keep in mind

- If any function does not work, remove the front panel and re-attach.

- Do not touch the contact pins on the rear of the front panel, as this can cause contact problems and they do become hot through normal use. If the contacts should become dirty, they can be cleaned carefully with a soft cloth.

- Do not expose the front panel to extreme heat or cold.

- Petrol and other solvents must not come into contact with the front panel.

- The front panel must not be pressed hard, or dropped.

- Never take the front panel apart.

Attaching The Front Panel

1. Hold the panel at its top and bottom edges.

2. Insert the left side of the panel in first. Then press the right-hand side in, to secure.
