Apollo™ RA770 Installation

Instructions

Important Safety Information

WARNING

Failure to follow these warnings and cautions could result in personal injury, damage to the vessel, or poor product performance.

See the

Important Safety and Product Information guide in the product box for product warnings and other important information.

This device must be installed according to these instructions. Disconnect the vessel's power supply before beginning to install

this product. Before applying power to this product, make sure it has been

correctly grounded, following the instructions in the guide.

CAUTION

Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface.

You must read all installation instructions before beginning the installation. If you experience difficulty during the installation, contact FUSION® Product Support.

What's In the Box

• Mounting gasket

• Four 8-gauge, self-tapping screws

• Two screw covers

• Power and speaker wiring harness

• Auxiliary-in, line-out, and subwoofer-out wiring harnesses

• 2 m (6 ft.) NMEA 2000® drop cable

• Dust cover

Tools Needed

• Phillips screwdriver

• Electric drill

• Drill bit (size varies based on surface material and screws

used)

• Rotary cutting tool or jigsaw

• Silicone-based marine sealant (optional)

Mounting Considerations

• The stereo must be mounted on a flat surface.

• The stereo must be mounted in a location that allows open

airflow around the rear of the stereo for heat ventilation.

• If you are installing the stereo in a location that may be

exposed to water, it must be mounted within 45 degrees below or 15 degrees above the horizontal plane.

• If you are installing the stereo in a location that may be exposed to water, you should install any connected cables with a drip loop to allow water to drip down off the cable and avoid damage to the stereo.

• If you need to mount the stereo outside a boat, it must be mounted in a location far above the waterline, where it is not submerged.

• If you need to mount the stereo outside a boat, it should be mounted in a location where it cannot be damaged by docks, pilings, or other pieces of equipment.

• To avoid interference with a magnetic compass, the stereo should be installed at least 15 cm (5.9 in.)

away from a

compass.

Mounting the Stereo

NOTICE

Be careful when cutting the hole to mount the stereo. There is only a small amount of clearance between the case and the mounting holes, and cutting the hole too large could compromise the stability of the stereo after it is mounted.

Be careful when installing the stereo in an aluminum boat or a boat with a conductive hull, if you require the electrical system to be isolated from the boat hull.

Do not apply grease or lubricant to the screws when fastening the stereo to the mounting surface. Grease or other lubricants can cause damage to the stereo housing.

Before you can mount the stereo in a new location on the mounting surface, you must select a location in accordance with the mounting considerations.

Trim the template and make sure it fits at the mounting location.

Adhere the template to the mounting surface.

Using a drill bit appropriate for the mounting surface, drill a hole inside the corner of the dashed line on the template to prepare the mounting surface for cutting.

Using a rotary-cutting tool, cut the mounting surface along the inside of the dashed line on the template.

Place the stereo in the cutout À to test the fit.

April 2018

190-02382-02_0A

DRAFT

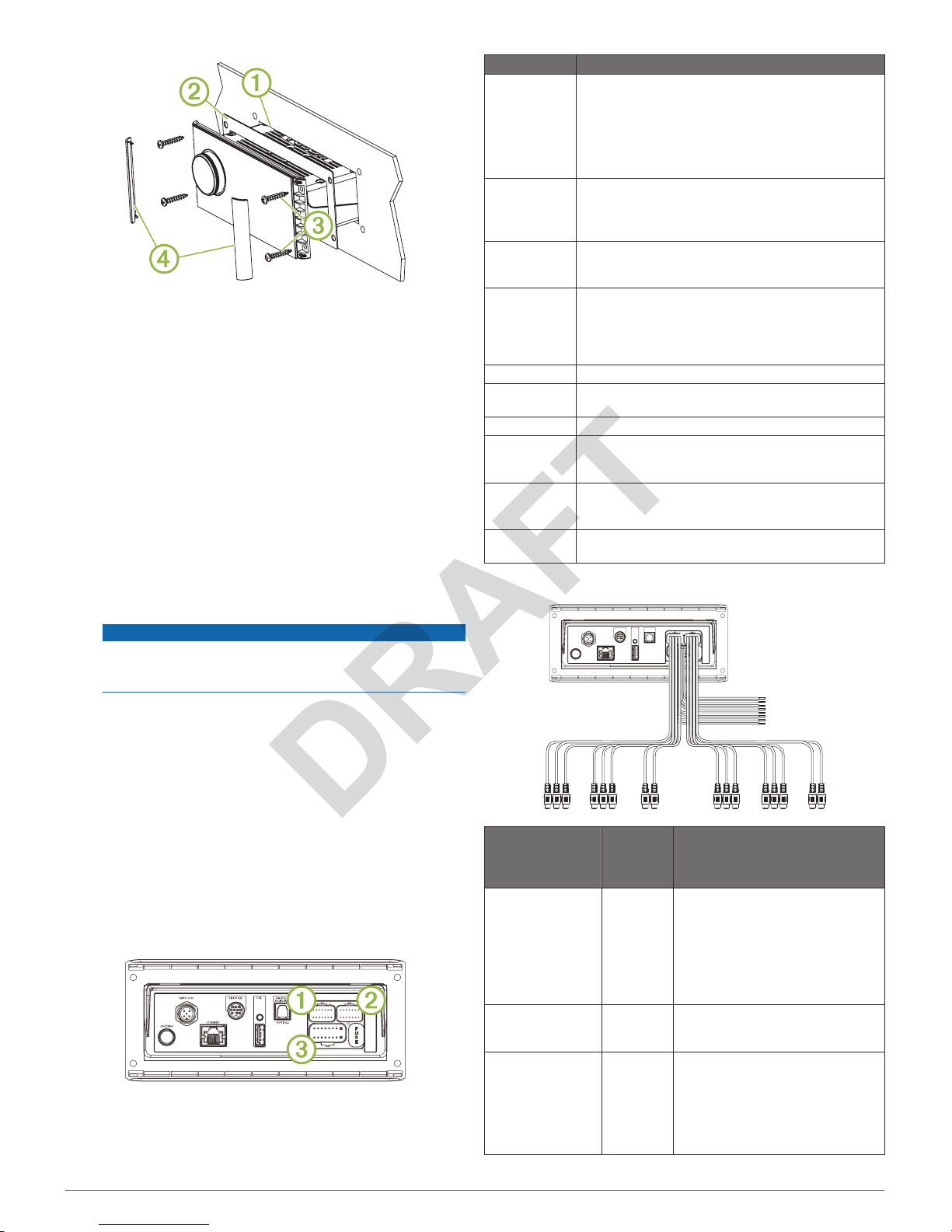

Page 2

If necessary, use a file and sandpaper to refine the size of the cutout.

After the stereo fits correctly in the cutout, ensure the mounting holes on the stereo line up with the pilot holes on the template.

If the mounting holes on the stereo do not line up, mark the new pilot-hole locations.

Using an appropriately sized drill bit for the mounting surface and screw type, drill the pilot holes.

Remove the template from the mounting surface.

Make the necessary wiring connections (Connection

Considerations,

page 2).

Select an option:

• If you are installing the stereo in a dry location, place the included mounting gasket Á on the back of the stereo.

• If you are installing the stereo in a location that is exposed to water, apply silicone-based marine sealant on the mounting surface around the cutout.

NOTICE

Do not install the included mounting gasket if you applied sealant to the mounting surface. Using sealant and the mounting gasket may reduce water resistance.

Place the stereo into the cutout.

Secure the stereo to the mounting surface using the included screws Â.

You should hand-tighten the screws when securing the stereo to the mounting surface to avoid overtightening them.

Snap the screw covers in place Ã.

Connection Considerations

For the stereo to function correctly, you must connect it to power, to speakers, and to input sources. You should carefully plan the layout of the stereo, speakers, input sources, optional NMEA 2000

network, and optional

FUSION PartyBus™ devices

or network before making any connections.

Port Identification

Item Description

ANTENNA Connects the stereo to a typical AM/FM antenna.

If you are installing the stereo on a boat with a metal hull, you must use a ground-dependent antenna. If you are installing the stereo on a boat with a non-metal hull, you must use a ground-independent antenna. See the installation instructions provided with your antenna for more information.

NMEA 2000 Connects the stereo to a

NMEA 2000 network (

NMEA

2000 System Wiring Diagram, page 4)

Connects to an NRX series remote control directly (

Configuring an Optional Wired Remote,

page 4).

ETHERNET Connects the stereo to another FUSION PartyBus

stereo, zone stereo, or network (FUSION PartyBus

Networking,

page 4).

SIRIUS XM Connects the stereo to a

SiriusXM

Connect Tuner to receive SiriusXM stations where available (not included).

Connects to a FUSION DAB module to receive DAB stations where available (not included).

USB Connects the stereo to a USB source.

DIGITAL AUDIO IN

Connects the stereo to an optical digital audio source, such as TV or DVD player.

FUSE Contains the 15 A fuse for the device.

Connects the stereo to the wiring harness for auxiliary input 2, and for the line and subwoofer outputs for zones 3 and 4.

Connects the stereo to the wiring harness for auxiliary input 1, and for the line and subwoofer outputs for zones 1 and 2.

Connects the stereo to the power and speaker wiring harness.

Wiring Harness Wire and Connector Identification

Wire or RCA Connector Function

Bare Wire Color or RCA Label Name

Notes

Ground (-) Black Connects to the negative terminal of

a 12 Vdc power source capable of supplying 15 A. You should connect this wire before connecting the yellow wire. All accessories connected to the stereo must share a common ground location (Connecting to Power,

page 3).

Power (+) Yellow Connects to the positive terminal of a

12 Vdc power source capable of supplying 15 A.

Ignition Red Connects to a separately-switched,

12 Vdc connection, such as an ignition bus, to turn the stereo on and off. If you are not using a switched 12 Vdc connection, you must connect this to the same source as the yellow (power) wire

2 Apollo RA770

Installation Instructions

DRAFT

Page 3

Wire or RCA Connector Function

Bare Wire Color or RCA Label Name

Notes

Amplifier on Blue Connects to optional external

amplifiers, enabling them to turn on when the stereo turns on.

Telemute Brown Activates when connected to ground.

For example, when you connect this wire to a compatible, hands-free mobile kit, the audio mutes or the input switches to

Aux1 when a call is received and the kit connects this wire to ground. You can enable this functionality from the settings menu.

Dim Orange Connects to the boat's illumination

wire to dim the stereo screen when the lights are on.

The gauge of the illumination wire must be suitable for the fuse supplying the circuit it is connected to.

Speaker zone 1 left (+)

White

Speaker zone 1 left (-)

White/black

Speaker zone 1 right (+)

Gray

Speaker zone 1 right (-)

Gray/black

Speaker zone 2 left (+)

Green

Speaker zone 2 left (-)

Green/ black

Speaker zone 2 right (+)

Purple

Speaker zone 2 right (-)

Purple/ black

Zone 1 line out (left)

Zone 1 line out (right)

Zone 1 subwoofer out

ZONE 1 ZONE 1

SUB OUT

Provides output to an external amplifier, and is associated with the volume control for zone 1.

Each subwoofer cable provides a single mono output to a powered subwoofer or subwoofer amplifier.

Zone 2 line out (left)

Zone 2 line out (right)

Zone 2 subwoofer out

ZONE 2 ZONE 2

SUB OUT

Provides output to an external amplifier, and is associated with the volume control for zone 2.

Each subwoofer cable provides a single mono output to a powered subwoofer or subwoofer amplifier.

Auxiliary in 1 left Auxiliary in 1 right

AUX IN 1 Provides an RCA stereo line input for

audio sources, such as a CD or MP3 player.

Zone 3 line out (left )

Zone 3 line out (right)

Zone 3 subwoofer out

ZONE 3 ZONE 3

SUB OUT

Provides output to an external amplifier, and is associated with the volume control for zone 3.

Each subwoofer cable provides a single mono output to a powered subwoofer or subwoofer amplifier.

Zone 4 line out (left)

Zone 4 line out (right)

Zone 4 subwoofer out

ZONE 4 ZONE 4

SUB OUT

Provides output to an external amplifier, and is associated with the volume control for zone 4.

Each subwoofer cable provides a single mono output to a powered subwoofer or subwoofer amplifier.

Auxiliary in 2 left Auxiliary in 2 right

AUX IN 2 Provides and RCA stereo line input

for audio sources, such as a CD or MP3 player.

Connecting to Power

When connecting the stereo to power, you must connect both power wires. You should connect the yellow power wire directly

to the battery. This provides power to the stereo and a constant trickle-power standby feed.

You should connect the red signal wire to the same battery through the ignition or another manual switch to turn the stereo on and off. If you are not routing the red wire through the ignition or another manual switch, you can connect the red wire to the yellow wire, and connect them both to the positive (+) battery terminal.

You must connect the power wire to the battery through a 15 A fuse or a 15 A circuit breaker.

If it is necessary to extend the yellow power and black ground wires, use 14 AWG (2.08 mm2) wire. For extensions longer than 1 m (3 ft.), use 12 AWG (3.31 mm²) wire. If it is necessary to extend the red wire, use 22 AWG (0.33 mm2) wire.

Route the yellow power À, red signal Á, and black ground

wires to the battery, and route the wiring-harness plug to the stereo.

Do not connect the wiring harness to the stereo until all of the bare wire connections have been made.

Connect the black wire to the negative (-) battery terminal.

Complete an action:

• If you are routing the red wire through the ignition or another manual switch Ã, connect the red signal wire to the ignition or switch, install a 15 A fuse Ä on the yellow wire as close to the battery as possible, and connect the yellow wire to the positive (+) battery terminal.

• If you are not routing the red wire through the ignition or switch, connect the red wire to the yellow wire, install a 15 A fuse as close to the battery as possible, and connect both wires to the positive (+) battery terminal.

Speaker Zones

You can group speakers in one area into speaker zones. This enables you to control the audio level of the zones individually. For example, you could make the audio quieter in the cabin and louder on deck.

Up to two pairs of speakers can be connected per channel of each zone, in parallel. A zone can support no more than four speakers using the on-board amplifier.

Zones 1 and 2 are powered by the on-board amplifier. To use the RCA line outputs and the RCA subwoofer outputs for zones 1 and 2, you must connect external amplifiers.

Zones 3 and 4 are available as line-level outputs only. To use the RCA line outputs and the RCA subwoofer outputs for zones 3 and 4, you must connect external amplifiers.

You can set the balance, volume limit, tone, subwoofer level, subwoofer frequency, and name for each zone.

Apollo RA770 Installation Instructions 3

DRAFT

Page 4

Single-Zone System Wiring Example

Speakers

Water-tight connection

Extended System Wiring

This diagram illustrates a system installation with an external amplifier and subwoofer connected to zone 2 on the stereo. You can connect an amplifier and subwoofer to any or all of the four zones on the stereo.

Item Description

Zone 1 speakers

Water-tight connection

Zone 2 speakers

Amplifier-on signal wire You must connect this wire to each amplifier connected to a zone

line out.

Powered amplifier connected to the zone 2 line out

Zone 2 line out and subwoofer out Each subwoofer cable provides a single mono output to a

powered subwoofer or subwoofer amplifier.

Subwoofer

NMEA 2000 System Wiring Diagram

Stereo

Supported chartplotter MFD or compatible FUSION

NMEA 2000

remote control

In-line switch

NMEA 2000 power cable

NMEA 2000 drop cable from the stereo, up to 6 m (20 ft.)

NMEA 2000 drop cable from the chartplotter MFD or compatible FUSION

NMEA 2000 remote control

9 to 16 Vdc power supply

NMEA 2000 terminator or backbone cable

NMEA 2000 T-connector

NMEA 2000 terminator or backbone cable

Configuring an Optional Wired Remote

NOTICE

The stereo is configured by default to work with a NMEA 2000 network, and the

NRX POWER option should be enabled only when an optional remote is connected directly to the stereo. Enabling this option when the stereo is connected to a NMEA 2000 network may damage other devices on the NMEA 2000 network.

If you connect an optional wired NRX remote directly to the stereo, and not through a NMEA 2000

network , additional

configuration is needed.

Select > >

NMEA

Select an option:

• If you connected both your stereo and your optional wired remote to a NMEA 2000 network, make sure the NRX

POWER

option is not selected. This enables the optional

remote to receive power from the NMEA 2000 network.

• If you connected the optional wired remote directly to the stereo through the NMEA 2000

connector, select the NRX POWER option. This enables the stereo to supply power to the optional remote.

FUSION PartyBus Networking

The FUSION PartyBus networking feature allows you to connect multiple compatible stereos and zone stereos together on a network, using a combination of wired or wireless connections.

A FUSION PartyBus device connected to the network can stream sources from and control media playback on another FUSION PartyBus device connected to the network.

You can connect up to eight FUSION PartyBus devices on a network.

4 Apollo RA770

Installation Instructions

DRAFT

Page 5

In the image above, a Apollo

RA770 stereo À connects to a

wireless router Á and to two

Apollo SRX400 zone stereos Â. You can connect a FUSION PartyBus zone stereo to a single speaker zone Ã. You can connect a FUSION PartyBus stereo to multiple speaker zones Ä to cover a larger area.

FUSION PartyBus devices connected to the network can stream media from and control media playback on other devices on the network, but cannot control the volume of other devices on the network. You can adjust the volume of speakers or speaker zones connected to the stereo only.

Wired Networking Considerations

When you are planning your network installation, observe the following considerations for all wired connections.

• Wired connections are more reliable than wireless

connections. When planning your network, you should use network cables to connect FUSION PartyBus devices to the network when possible.

• You must connect devices using standard Cat5e or Cat6

network cables with RJ45 connectors.

• You can use one network cable to directly connect two

compatible devices.

• You may need to use wired network switches and wired or

wireless network routers when you connect more than two compatible stereos to a network.

• If you install a router on the network, it should be configured

to be the DHCP server by default. See your router instructions for more information.

• If you do not install a router on the network, you must

configure one FUSION PartyBus device to be the DHCP server.

Wired Network Example for Direct Connections

You must configure one FUSION PartyBus device as a DCHP server when connecting two devices together directly.

FUSION PartyBus stereo

FUSION PartyBus zone stereo

Wired Network Example with a Switch or Router

You must use wired network switches, a wired network router, or both to connect more than two FUSION PartyBus devices.

FUSION PartyBus stereo

Wired network switch or wired network router

FUSION PartyBus zone stereo

Wireless Networking Considerations

When you are planning your network, observe the following considerations for all wireless connections.

• Wired connections are more reliable than wireless connections. You should plan your network to use network cables, but if it is not possible, FUSION PartyBus devices are Wi‑Fi® compatible. You can connect them to wireless routers or access points.

• You can configure a FUSION PartyBus device as a wireless access point, so you can connect devices within wireless range.

• If you install a wireless router on the network, it should be configured to be the DHCP server by default. See your wireless router instructions for more information.

• If you do not install a router or wireless router on the network, you must configure one FUSION PartyBus device to be the DHCP server.

• You can configure any FUSION PartyBus device on the wired network to be a wireless access point, even if you install a wireless router or additional wireless access points on the network. This would be useful to allow access to devices in range of the stereo but not in range of the other wireless access points.

• If you connect a FUSION PartyBus device to the network wirelessly, you cannot connect any additional wired FUSION PartyBus devices to that device.

• You can connect a smartphone to the wireless network to control any stereo on the network using the FUSION-Link

™

app.

Wireless Access Point Example

FUSION PartyBus stereo

FUSION PartyBus zone stereo

Smartphone using the FUSION-Link

app

Apollo RA770 Installation Instructions 5

DRAFT

Page 6

Wireless Network Example with a Wired Switch or Router

FUSION PartyBus stereo

Wired network switch or wired network router

FUSION PartyBus zone stereo

Smartphone using the FUSION-Link

app.

Wireless Network Example with a Wireless Router or Access Point

FUSION PartyBus stereo

Wireless network router or wireless access point

FUSION PartyBus zone stereo

Smartphone using the FUSION-Link app

Constructing a Network

You should have a basic understanding of networking when building a network for FUSION PartyBus devices.

These instructions guide you through the basics of building and configuring a network, and should apply to most situations. If you need to perform advanced networking tasks, such as assigning static IP addresses to devices on the network or configuring advanced settings on a connected router, you may need to consult a networking professional.

Determine the installation location of the FUSION PartyBus devices you want to connect to the network.

NOTE:

Wired connections are more reliable than wireless connections. When planning your network, you should run network cables instead of using wireless connections when possible.

Determine the installation location of any needed network routers or switches.

Route Cat5e or Cat6 network cable to the installation locations of the stereos, switches, and router.

Connect the network cables to the stereos, switches, and router.

NOTICE

Do not completely install the stereos yet. You should test the network before you install the stereos.

Turn on all devices connected to the network, including wireless devices.

Select an option:

• If you are not using a network router (wired or wireless),

configure one FUSION PartyBus device to be the DHCP

server (Setting the FUSION PartyBus Device as the

DHCP Server

, page 6). All other stereos should use

their default configuration (automatic IP).

• If you are using a network router (wired or wireless), consult the documentation provided with your router to configure the router as the DHCP server, if necessary. All stereos should use their default configuration (automatic IP).

Configure a stereo as a wireless access point, if necessary (Setting the FUSION PartyBus Device as a Wireless Access

Point

, page 6).

Configure a FUSION PartyBus stereo or zone stereo to connect to a wireless access point or router, if necessary (Connecting the FUSION PartyBus Device to a Wireless

Access Point, page 6)

Test the network by viewing the list of FUSION PartyBus devices from each device on the network and select an option:

• If any FUSION PartyBus devices are not available to the network, troubleshoot the network (Network

Troubleshooting, page 7)

• If all FUSION PartyBus devices are available to the network, complete the installation for each stereo, if necessary.

Network Configuration

Setting the FUSION PartyBus Device as the DHCP Server

If you connected two FUSION PartyBus devices together directly, or connected more than two together using a network switch and did not install a router, you must configure only one FUSION PartyBus stereo to be the DHCP server.

Select > >

NETWORK > ADVANCED > DHCP

SERVER > ENABLED > APPLY

Setting the FUSION PartyBus Device as a Wireless Access Point

Before you can connect additional FUSION PartyBus devices or smartphones to a FUSION PartyBus device wirelessly, you must configure at least one device as a wireless access point. This is not necessary if you installed a wireless router or other wireless access point on the network.

Select > >

NETWORK > WIFI ACCESS POINT

To view and change the SSID, password, and other access point settings select > >

NETWORK > ADVANCED >

WIFI ACCESS POINT SETTINGS

Connecting the FUSION PartyBus Device to a Wireless Access Point

Select > >

NETWORK > WIFI CLIENT

If necessary, select > > NETWORK > ADVANCED > WIFI CLIENT SETTINGS.

The stereo scans for available wireless networks.

Select an available wireless network.

Enter the network password, if necessary.

Select APPLY

to connect to the wireless network.

Resetting Network Settings

You can reset all network settings for this stereo to the factory default values.

Select > >

NETWORK > RESET > YES

Advanced Network Configuration

You can perform advanced networking tasks on a FUSION PartyBus device, such as defining DHCP ranges and setting static IP addresses. See the owner's manual for more information.

6 Apollo RA770

Installation Instructions

DRAFT

Page 7

Network Troubleshooting

If you cannot see or connect to FUSION PartyBus devices on the network, check the following:

• Verify that only one device, either a stereo or a router, is configured as a DCHP server.

• Verify that all FUSION PartyBus devices, network switches, routers, and wireless access points are connected to the network and turned on.

• Verify that wireless FUSION PartyBus devices are connected to a wireless router or wireless access point on the network.

• If you have made configuration changes that might be causing networking issues, reset all network settings to factory defaults.

Stereo Information

Specifications

General

Weight 750 g (26.5 oz.)

Water resistance IEC 60529 IPX7 (front), IEC 60529

IPX2 (rear)

Operating temperature range From 0 to 50°C (from 32 to 122°F)

Storage temperature range From -20 to 70°C (from -4 to 158°F)

Input voltage From 10.8 to 16 Vdc

Current (max.) 15 A

Current (muted) Less than 900 mA

Current (off, standby mode enabled)

120 mA

Current (off, standby mode disabled)

30 mA

Fuse 15 A mini blade-type

NMEA 2000 LEN 1 (50 mA)

Bluetooth® wireless range Up to 10 m (30 ft.)

ANT® wireless range Up to 3 m (10 ft.)

Wireless frequencies/protocols Wi‑Fi

2.4 GHz @ +15 dBm nominal

Bluetooth 2.4 GHz @ +10 dBm nominal

ANT

2.4 GHz @ +4 dBm nominal

Compass-safe distance

15 cm (5.9 in.)

On-board, Class D Amplifier

Output music power per channel 70 W max. x 4 at 2 ohms

Total output music power 280 W max.

Output power per channel 35 W RMS x 4 at 2 ohms

Line output level (max.) 6 V (peak to peak)

Aux input level (typical) 1 V RMS

Tuner Europe and

Australasia

USA Japan

FM radio frequency range

87.5 to 108 MHz 87.5 to

107.9 MHz

76 to 95 MHz

FM frequency step

50 kHz 200 kHz 50 kHz

AM radio frequency range

522 to 1620 kHz 530 to

1710 kHz

522 to 1620 kHz

AM frequency step

9 kHz 10 kHz 9 kHz

Stereo Dimension Drawings

Front Dimensions

192 mm (7.56 in.)

82 mm (3.23 in.)

Side Dimensions

20.4 mm (0.8 in.)

99 mm (3.9 in.)

50 mm (1.97 in.)

Top Dimensions

164 mm (6.5 in.)

20.4 mm (0.8 in.)

10 mm (0.39 in.)

Registering Your Apollo

RA770

Help us better support you by completing our online registration today.

• Go to www.fusionentertainment.com.

• Keep the original sales receipt, or a photocopy, in a safe place.

Software Updates

For best results, you should update the software in all FUSION devices at the time of installation to ensure compatibility.

You can update the software using the FUSION-Link remote control app on your compatible Apple or Android™ device, or using a USB flash drive.

Apollo RA770 Installation Instructions 7

DRAFT

Page 8

To download the app and update the device software, go to the Apple App StoreSM or the

Google Play

™

store. For software updates and instructions on updating the device using the USB flash drive, go to the device product page at

www.fusionentertainment.com/marine.

© 2018 Garmin Ltd. or its subsidiaries Garmin®, ANT®, FUSION®, and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Apollo™, FUSION-Link™, and FUSION PartyBus™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

Apple® and App StoreSM are trademarks of Apple Inc. Android™ and Google Play™ are a trademarks of Google Inc. Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. NMEA 2000®, and the NMEA 2000 logo are registered trademarks of the National Marine Electronics Association. SiriusXM® is a registered trademark of SiriusXM Radio Inc. Wi‑Fi® is a registered mark of Wi-Fi Alliance Corporation. Other trademarks and trade names are those of their respective owners.

www.fusionentertainment.com

DRAFT
