Furuno 1623 packing list

t

y

A

For Internal Use Only

Serial No.4311 ­Checked By:

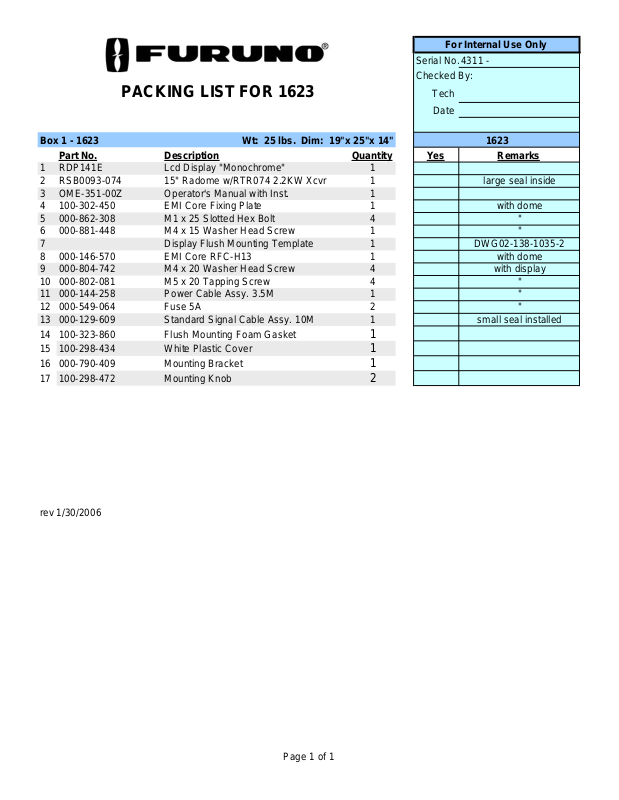

PACKING LIST FOR 1623

Box 1 - 1623 Wt: 25 lbs. Dim: 19"x 25"x 14"

Part No.

1 RDP141E Lcd Display "Monochrome" 1
2 RSB0093-074 15" Radome w/RTR074 2.2KW Xcvr 1 large seal inside
3 OME-351-00Z Operator's Manual with Inst. 1
4 100-302-450 EMI Core Fixing Plate 1 with dome
5 000-862-308 M1 x 25 Slotted Hex Bol
6 000-881-448 M4 x 15 Washer Head Screw 1 "
7 Display Flush Mounting Template 1 DWG02-138-1035-2
8 000-146-570 EMI Core RFC-H13 1 with dome
9 000-804-742 M4 x 20 Washer Head Screw 4 with displa
10 000-802-081 M5 x 20 Tapping Screw 4 "
11 000-144-258 Power Cable Assy. 3.5M 1 "
12 000-549-064 Fuse 5
13 000-129-609 Standard Signal Cable Assy. 10M 1 small seal installed

14 100-323-860 Flush Mounting Foam Gasket
15 100-298-434 White Plastic Cover 1
16 000-790-409 Mounting Bracket 1
17 100-298-472 Mounting Knob 2

Description Quantity Yes Remarks

4"

2"

1

Tech
Date

1623

rev 1/30/2006

Page 1 of 1
