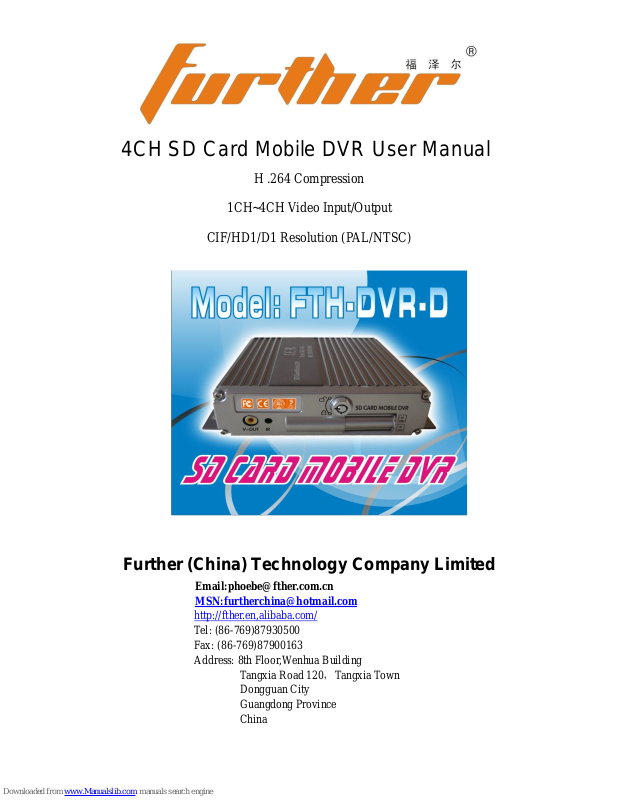

Further 4CH SD Card Mobile DVR, FTH-DVR-D User Manual

4CH SD Card Mobile DVR User Manual

H .264 Compression

1CH~4CH Video Input/Output

CIF/HD1/D1 Resolution (PAL/NTSC)

Further (China) Technology Company Limited

Email:[e-mail]

MSN:[e-mail]

http://fther.en,alibaba.com/

Tel: [phone]
Fax: [phone]
Address: 8th Floor,Wenhua Building

Tangxia Road 120，Tangxia Town
Dongguan City
Guangdong Province
China

1. Product Introduction

1.1 Product Overview

FTH-DVR-D Mobile DVR is a high cost-effective and good functional scalability device for
vehicle monitoring. It is introduced ARM+DSP high-speed dual-core processor and embedded
operating system, with the advanced H.264 video compression/ decompression, network technique,
GPS positioning, to playback or remotely manage video surveillance.

l Wide voltage
l Super shock-proof
l Store video by SD card

1.2 Main Function
a) H.264 compression supports 1CH to 4CH video. SD card stores DVR video, CIF, HD1, D1

resolutions are optional. Automatic adjusting video data according to sensor information to save
SD card space. Video playback supports sensor searching playback or reads video by general
PC.

b) Up to four sensor input interfaces and two alarm outputs, it supports to collect most car sensor

data, including switching door, speed, braking etc. User can adjust video data size automatically
and search video conveniently based on the information.

c) Wireless GPS/3G is available for recording geographic coordinates, speed, time, real-time video

transmission etc.

d) RJ45 10/100M adapts to net connect，and it’s convenient to transmit data and extend 3G

network.

e) Extension interface includes USB interface, RS232 interface, RS485 interface.

1.3 Parameters

Item Performance Parameter

Language Chinese/English
Interface OSD Interface

System

Password security Administrator manages password (No changing

the content after setting password by

administrator)
Video input 4CH video input, 1.0V, p-p, impedance 75 Ω
Video output 1CH video output, 1.0V, p-p, impedance 75 Ω
Video playback 1 or 4 screens playback

Video

Video standard PAL , 25FPS, CCIR625, 50 fields

NTSC, 30FPS, CCIR525, 60 fields

Audio input

4CH audio input (1CH~4CH optional),

impedance 600 Ω, PC player can choose turn on

or turn off audio channel.

Basic output level 1V-2V

Mode Record audio and video together

Audio

Audio compression

ADPCM/G .726

Image compression H .264, VBR

Video resolution CIF/HD1/D1(Optional)

Audio

streaming standard

ADPCM

Video quality

CIF: 256Kbps-1.5Mbps, 1~8 levels (1 is the

best)

HD1: 600Kbps-2.5Mbps, 1~8 levels (1 is the

best)

Audio bit rate 8KB/s

processing and
storage

Video storage 1 or 2 SD Cards (cycle recording)

Car black box Input and output 3 level inputs, 1 pulse input, 2 level outputs

Serial interface Support one RS232 interface, refer to DB44

standard

Serial interface Support one RS485 interface, refer to DB44

standard

USB interface Support one USB1.1 interface, refer to DB44

standard

Communication

interface

Network interface RJ45, 10M/100M adaptive network

interface(for 3G extension)

GPS/3G

Built-in or external GPS/3G module, record the geographic coordinates,

speed into coding stream, upload pictures wirelessly are available.

Software

Playback

Automatic playback 4CH video file,

automatically playback video by video

Software
upgrade

Support SD card/USB to upgrade

Power input DC: +9V~45V
Power output +12V@2A

Others

Working temperature

–25▫C-----70▫C

1. Product appearance and cable diagram

2.1 Cable diagram

Back view panel

Cable

Interface function

Interface Name Description

DC+ Positive power input ： -9V~54V connects with

vehicle battery positive

DC- Negative power input connects with vehicle power

negative
ACC Video control line connects with car key ACC
+12V Positive power output connects with camera and

voice recorder
GND Negative power output connects with camera and

voice recorder

Power

VSP Speed signal input connects with car speed sensor

signal wire

SEN1~SEN3 Alarm input. Such as braking, reversing, open or

close door etc.

ALM1,ALM2 Alarm output. Such as indicator, buzzer etc.

Sensor

GND Alarm input and output

Communication

Interface

USB/RS232/485 Expand USB, network functions etc.

VIN1~VIN4 1~4CH video output connects with camera

4GND 1~4CH video output connects with camera

AIN Audio input connects with voice recorder
GND Audio output connect with audio device

VOUT Video output connects with monitor. There is video

output at the front and back of DVR.

AUDIO&
VIDEO

GND Audio and video output

Appearance

1 or 2 SD card slots, 1 IR and 1 video output at the front of Mobile DVR.

Basic Operation Manual

3.1 Remote control

Name

Function

PWR Turn on or turn off device
ADJ Adjust brightness, contrast, color parameters

Up

Down

Right/VOL/Next

Left/VOL/Back
Menu Switch to the System SET interface
Exit Back to the previous interface / Stop play

Enter Select or confirm

1 1 / Punctuation /Channel 1
2 2 / ABC/Channel 2
3 3 / DEF/Channel 3
4 4 / GHI/Channel 4
5 5 / JKL/4 CH Together
6 6 / MNO/Video
7 7 / PQRS/Play or pause
8 8 / TUV/ Fast Forward

9 9 / WXYZ/

Stop Recording

0 0 / Space/ Fast Rewind

DEL Delete information

6/21

Language English and Chinese switch for number, small letter, big letter

Note： Multi-function button in green on the remote control

1、Only press the menu button to enter the system setup screen
2、Button 1：In the System SET, can enter number 1 and punctuation；when exit System
SET，can switch to Channel 1.
3、Button 2：In the System SET, can enter number 2 and ABC；when exit System SET，can
switch to Channel 2.
4、Button 3：In the System SET, can enter number 3 and DEF；when exit System SET，can
switch to Channel 3.
5、Button 4：In the System SET, can enter number 4 and GHI；when exit System SET，can
switch to Channel 4.
6、Button 5：In the System SET, can enter number 5 and JKL；when exit System SET，can
switch to 4CH video together.
7、Button 6：In the System SET, can enter number 6 and MNO；when exit System SET，
can control the video manually.
8、Button 7：In the System SET, can enter number 7 and PQRS；when exit System SET，
can replay and pause.
9、Button 8：In the System SET, can enter number 8 and TUV；when exit System SET，
can fast-forward play.
10、Button 9：In the System SET, can enter number 9 and WXYZ；when exit System SET，
can stop recording.
11、Button 0：In the System SET, can enter numbers 0 and space；when exit System SET，
can fast rewind playback.
12、Button Delete：In the System SET，short pressing to delete a single character, long
pressing to delete all.
13、Input method / Language key：In the System SET，can switch number, little letter, big
letter, English and Pinyin；when exit System SET, long pressing up to 3 seconds is switching
languages.

3.2 Turn on and login system

3.2.1 Turn on System

Connect DVR power cable with vehicle DC 12V, then system is standby. Turn on
system is decided by User SET (Please see User SET, Basic SET and Video SET). Usually,
vehicle in Power Mode DLI can provide power to the DVR, the sign of turn on is as follows.

Video out displays customer logo in the screen or customer parameter interface, as
long as the vehicle's power does not turn off, the camera recording signal is continuous.
When vehicle power is turned off, DVR can keep recording video.

3.2.2 The screen after turn on
