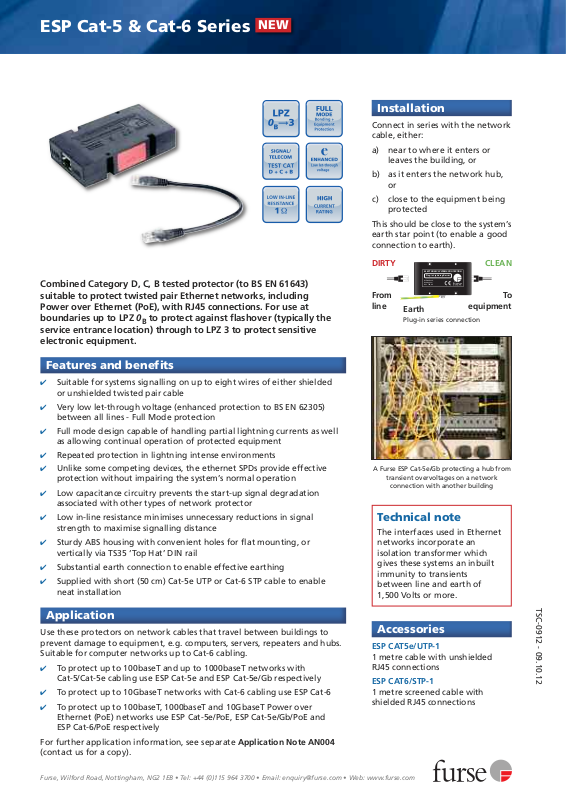

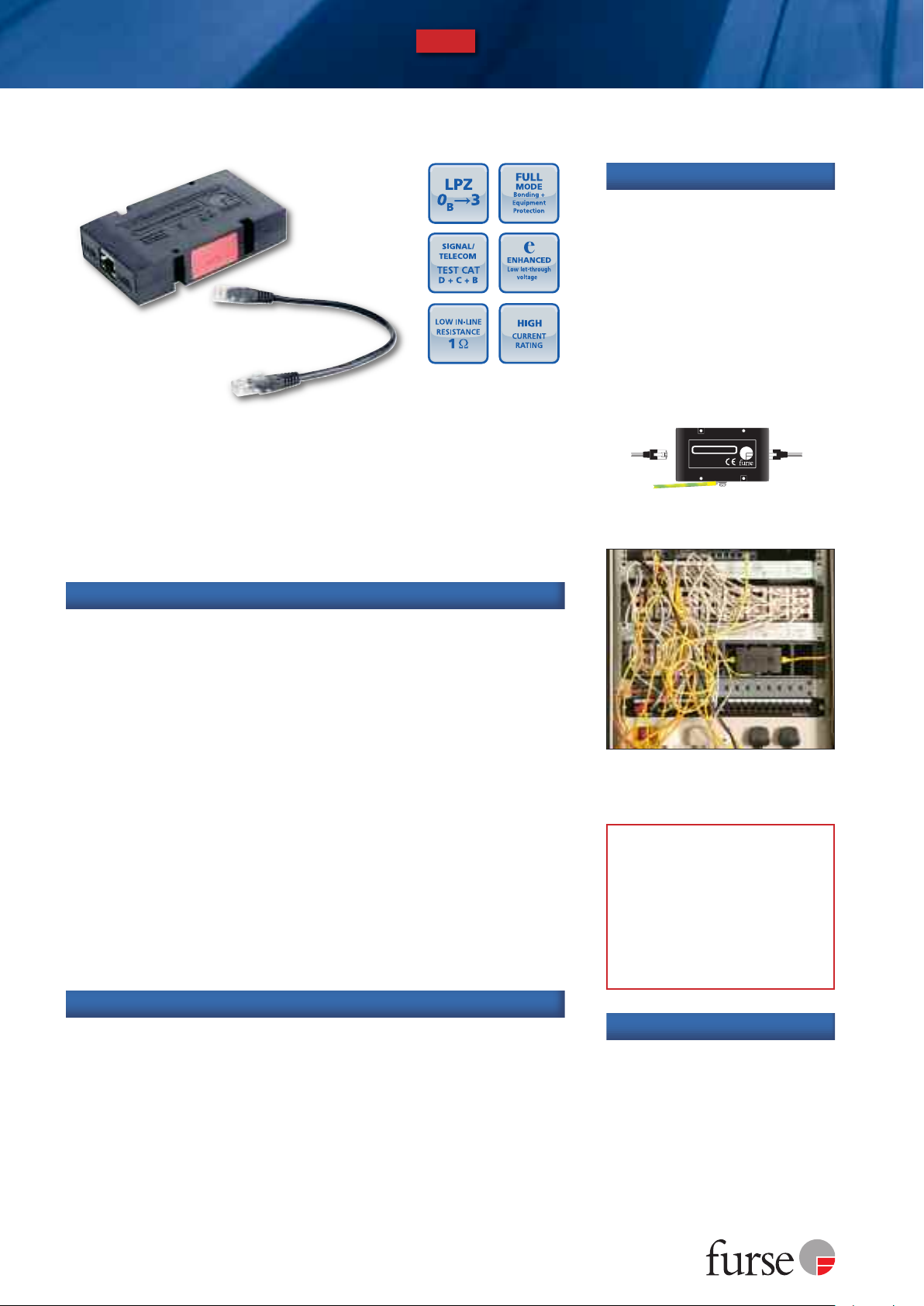

Page 1

ESP Cat-5 & Cat-6 Series

ELECTRONICSYSTEMS PROTECTION

Plug-inLightning Barrier

WilfordRoad, Nottingham, NG2 1EB,UK

NEW

Combined Category D, C, B tested protector (to BS EN 61643) suitable to protect twisted pair Ethernet networks, including Power over Ethernet (PoE), with RJ45 connections. For use at boundaries up to LPZ 0Bto protect against flashover (typically the service entrance location) through to LPZ 3 to protect sensitive electronic equipment.

Installation

Connect in series with the network cable, either:

a) near to where it enters or

leaves the building, or

b) as it enters the network hub,

c) close to the equipment being

protected

This should be close to the system’s earth star point (to enable a good connection to earth).

DIRTY CLEAN

From line

Earth

Plug-in series connection

equipment

Features and benefits

✔ Suitable for systems signalling on up to eight wires of either shielded

or unshielded twisted pair cable

✔ Very low let-through voltage (enhanced protection to BS EN 62305)

between all lines - Full Mode protection

✔ Full mode design capable of handling partial lightning currents as well

as allowing continual operation of protected equipment

✔ Repeated protection in lightning intense environments

✔ Unlike some competing devices, the ethernet SPDs provide effective

protection without impairing the system’s normal operation

✔ Low capacitance circuitry prevents the start-up signal degradation

associated with other types of network protector

✔ Low in-line resistance minimises unnecessary reductions in signal

strength to maximise signalling distance

✔ Sturdy ABS housing with convenient holes for flat mounting, or

vertically via TS35 ‘Top Hat’ DIN rail

✔ Substantial earth connection to enable effective earthing

✔ Supplied with short (50 cm) Cat-5e UTP or Cat-6 STP cable to enable

neat installation

Application

Use these protectors on network cables that travel between buildings to prevent damage to equipment, e.g. computers, servers, repeaters and hubs. Suitable for computer networks up to Cat-6 cabling.

✔ To protect up to 100baseT and up to 1000baseT networks with

Cat-5/Cat-5e cabling use ESP Cat-5e and ESP Cat-5e/Gb respectively

✔ To protect up to 10GbaseT networks with Cat-6 cabling use ESP Cat-6

✔ To protect up to 100baseT, 1000baseT and 10GbaseT Power over

Ethernet (PoE) networks use ESP Cat-5e/PoE, ESP Cat-5e/Gb/PoE and ESP Cat-6/PoE respectively

For further application information, see separate Application Note AN004 (contact us for a copy).

A Furse ESP Cat-5e/Gb protecting a hub from

transient overvoltages on a network

connection with another building

Technical note

The interfaces used in Ethernet networks incorporate an isolation transformer which gives these systems an inbuilt immunity to transients between line and earth of 1,500 Volts or more.

TSC-0912 - 09.10.12

Accessories

ESP CAT5e/UTP-1

1 metre cable with unshielded RJ45 connections

ESP CAT6/STP-1

1 metre screened cable with shielded RJ45 connections

Furse, Wilford Road, Nottingham, NG2 1EB • Tel: +44 (0)115 964 3700 • Email: [email protected] • Web: www.furse.com

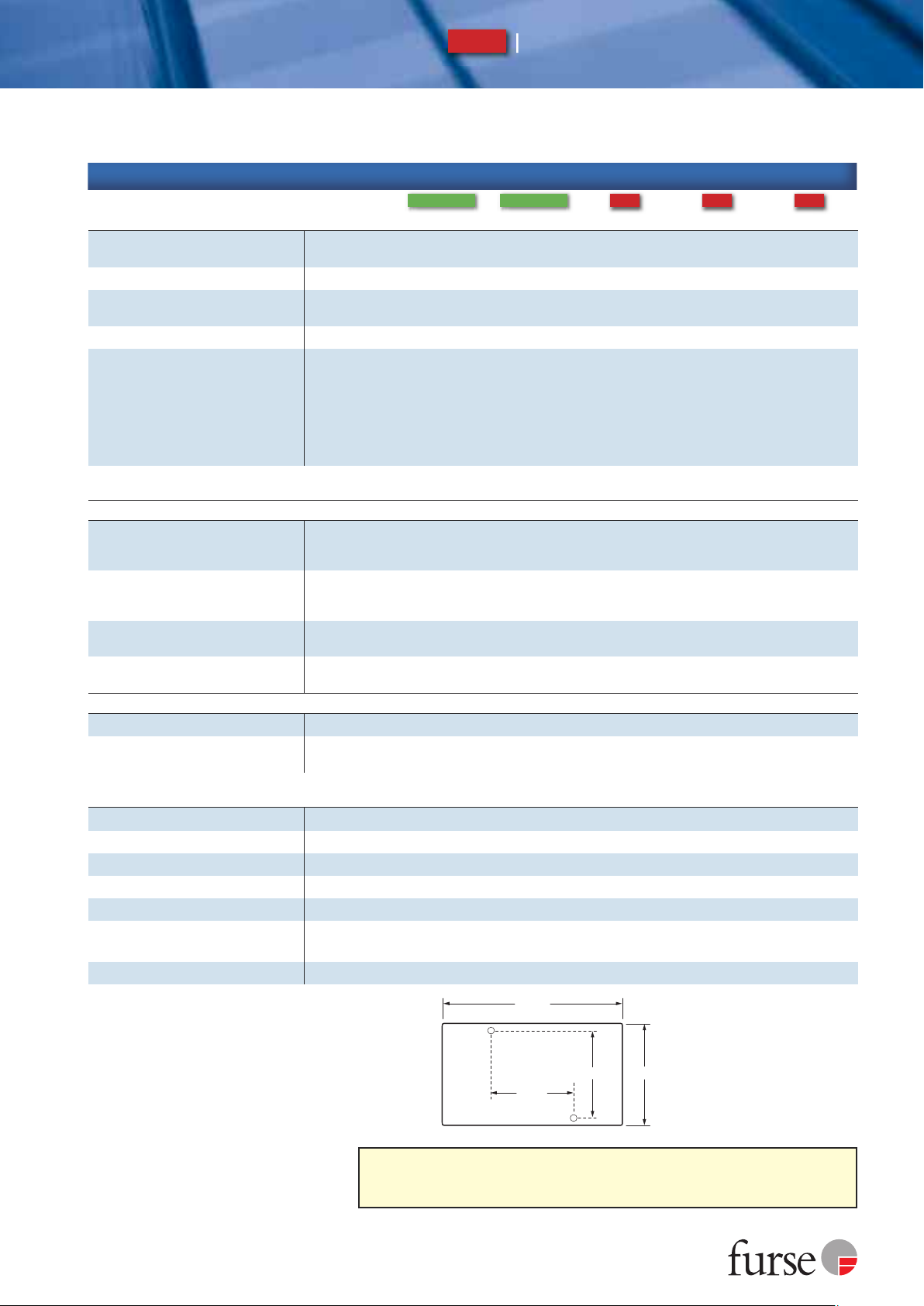

Page 2

NEW

106 mm

54 mm

49 mm

Depth: 24 mm

Fixing centres 49 x 54 mm, M3 clearance

60 mm

ESP Cat-5 & Cat-6 Series

Technical specification

IMPROVEDIMPROVED

Electrical specification

Maximum working - data voltage Uc

Current rating 300 mA 400 mA

In-line resistance - data

(per line ±10%) - power

Maximum data rate 100 Mbps 100 Mbps 1000 Mbps 1000 Mbps 1000 Mbps 1000 Mbps

Networking standards 10/100baseT

- power

ESP Cat-5e ESP Cat-5e/PoE ESP Cat-5e/Gb ESP Cat-5e/Gb/PoE ESP Cat-6 ESP Cat-6/PoE

5 V

1 Ω

TIA Cat-5e

IEEE 802.3i

IEEE 802.3u

5 V

58 V

1 Ω

4.4 Ω

10/100baseT

TIA Cat-5/PoE

IEEE 802.3i

IEEE 802.3u

IEEE 802.3af

5 V

300 mA 400 mA

1 Ω

10/100/1000baseT

TIA Cat-5e IEEE 802.3i

IEEE 802.3u

IEEE 802.3ab

NEW NEW NEW

5 V

58 V

1 Ω

10/100/1000baseT

TIA Cat-5e IEEE 802.3i

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

5 V

300 mA 400 mA

1 Ω

10/100/1000/

10GbaseT

TIA Cat-6

IEEE 802.3i

IEEE 802.3u IEEE 802.3ab IEEE 802.3an

5 V

58 V

1 Ω

10/100/1000/

10GbaseT

TIA Cat-6

IEEE 802.3i

IEEE 802.3u IEEE 802.3ab IEEE 802.3an

IEEE 802.3af

Transient specification

ESP Cat-5e ESP Cat-5e/PoE ESP Cat-5e/Gb ESP Cat-5e/Gb/PoE ESP Cat-6 ESP Cat-6/PoE

Let-through voltage (all conductors)5Up

C2 test 4 kV 1.2/50 µs, - line to line 2 kA 8/20 µs to - line to earth

120 V

700 V

120 V/88 V

700 V

120 V

120 V/86 V

700 V

120 V 700 V

BS EN/EN/IEC 61643-21

C1 test 1 kV, 1.2/50 µs, - line to line

0.5 kA 8/20 µs to - line to earth

74 V

600 V

74 V/63 V

600 V

74 V

74 V/73.5 V

600 V

74 V

600 V

BS EN/EN/IEC 61643-21

B2 test 4 kV 10/700 µs to - line to line BS EN/EN/IEC 61643-21 - line to earth

5 kV, 10/700 µs

- line to line

- line to earth

Maximum surge current

21 V

550 V

25 V

600 V

21 V/65 V

25 V/80 V

550 V

600 V

21 V

550 V

25 V

25 V/65.8 V

600 V

21 V/65 V

550 V

600 V

21 V

550 V

25 V

600 V

D1 test 10/350 µs to BS EN/EN/IEC 61643-21 1 kA

8/20 µs to ITU-T K.45:2003,

10 kA

IEEE C62.41.2:2002

Mechanical specification ESP Cat-5e, ESP Cat-5e/PoE, ESP Cat-5e/Gb, ESP Cat-5e/Gb/PoE ESP Cat-6, ESP Cat-6/PoE

Temperature range -40 to +80 ºC -40 to +80 ºC

Connection type RJ45 sockets RJ45 sockets

Cable (supplied) 0.5 m Cat-5e UTP patch lead 0.5 m Cat-6 STP patch lead

Earth connection M4/DIN rail M4/DIN rail

Case material ABS UL94 V-0 ABS UL94 V-0

Weight - unit 0.15 kg 0.15 kg

Weight - packaged 0.2 kg 0.2 kg

Dimensions

Maximum working voltage (DC or AC peak) measured at 1 mA leakage.

Data pairs 1/2 and 3/6 are protected as standard. Pairs 4/5 and 7/8 are also protected on Gigabit (Gb) & Cat-6 barriers.

PoE protectors transmit power to IEEE 802.3af. ESP Cat-5e/PoE using Mode A (combined phantom power/data) and Mode B (power on spare pairs 4/5 and 7/8), ESP Cat-5e/Gb/PoE and ESP Cat-6/PoE using Mode A (combined phantom power/data) only.

Based on 15.4 W of transmitted PSE power, to IEEE 802.3af.

The maximum transient voltage let-through of the protector throughout the test (±10%), line to line & line to earth. Response

TSC-0912 - 09.10.12

time <10 ns (on all protected pairs).

The interfaces used in Cat-5/5e systems incorporate an isolation transformer that inherently provides an inbuilt immunity to transients between line and earth of 1,500 Volts or more.

Test to IEC 61000-4-5:2006, ITU-T (formerly CCITT) K.20, K.21 and K.45,Telcordia GR-1089-CORE, Issue 2:2002, ANSI TIA/EIA/IS-968-A:2002 (formerly FCC Part 68).

The first number is for the data pair, with the second number for the power pair.

The installation and connectors external to the protector may limit the capability of the protector.

To protect datacomms systems based on twisted pairs, use the ESP D, E or H Series. Local protection for networked equipment is also available. For protection of legacy coaxial Ethernet networks, please contact us for details of our ESP ThinNet and ESP ThickNet protectors.

120 V/86 V

700 V

74 V/73.5 V

600 V

21 V/65 V

550 V

25 V/65.8 V

600 V
