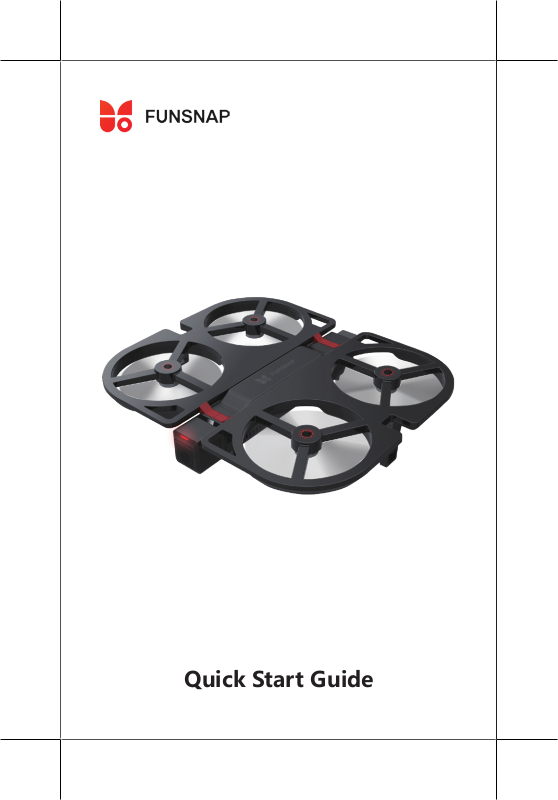

Quick Start Guide
Meet iDol
The iDol drone is portable and easy to use. It features a beautiful
streamlined and collapsible design. User can control flight and
capture video/picture through App as well as remote control (sold
separately). The iDol drone is filled with advanced features, such as
gesture control, smart following functions as well as one-button
record and other features. Take stable 1080p HD video with headless
mode, electric fence and several built in security modes to make flight
safe and reliable.
1
10
4.Micr
3
2
4
6
5
9
8
7
1
Download the FUNSNAP App
Scan the QR code to download the
FUNSNAP app from the APP Store
iOS
FUNSNAP requires iOS 9.0 and above or Android 4.4 or higher
Android
Charging Battery
Align the battery with the charger slot, then insert the battery into
the charger and make sure the battery is connected properly.Connect
the power adapter and start charging.
push
Solid red light: No battery inserted or the battery is not connected correctly.
Flashing green light: Charging.
Solid green light: Battery is at fully charged.
WARNING:
1. Do not leave charging batteries unattended in order to avoid accidents.
2. Do not charge the battery for too long, when the charging cycle is complete
disconnect the power supply from the charger.
2
Install/Remove Battery
Install battery
Ensure that battery is being inserted into the aircraft in
the right direction. Insert side A first, then insert side B
into the battery slot and apply a small amount of pressure.
Once the battery clicks into place it is secure.
Remove Battery
Press in the tabs on either side of the B side of the battery and pull
the battery upwards.
Power On/Power Off
Press and hold the power key for 3 seconds. When the iDol powers on
the power indicator light will turn green. The status indicator below
the power switch will also turn green.
Press and hold the power key for 3 seconds. Once the status and
power indicators go out let go of the power key.
3
Connection and Operation
Open the FUNSNAP app and follow the onscreen prompts
to connect.
FUNSNAP
DY-XXXXXX
Password：123456789
Turn on the drone battery Connect via Wi-Fi Run FUNSNAP App
Compass Calibration
1. Go to “Settings “in the app and select “Start Calibration”, the
LED will flash white.
2. Rotate the drone horizontally 4 times. Once the LED flashes twice
go to the next step.
3. Rotate the drone vertically 4 times. The LED indicator will change
color when the calibration is complete.
Important Hint:
※ Before the first flight of a new aircraft, or if the aircraft is being flown over 100km
away from the area in which it was last flown, calibrate the compass sensor.
※ Do not calibrate the sensor near strong magnetic fields or large metal objects.
※ If calibration fails restart the drone and repeat the steps above.
App
4
One button takeoff and landing
Turn the drone on and place it over a leveled ground and then
connect to the app.
Enter the operation interface and touch the icon, if there is a pop
up window select yes to start auto take off. Press the icon again
to engage auto landing (if a popup appears select yes).
Joystick Control
Touch the virtual gimbals and use them to control the drone.
rise
before
Left-handed
decline
Throttle up: Increase altitude Forward: Move the drone forward
Throttle down: Decrease altitude Back: Move the drone backwards
Left yaw: Rotate the drone counterclockwise Left: Move the drone horizontally left
Right yaw: Rotate the drone clockwise Right: Move the drone horizontally right
Right-handed
left
Rear
right
5
Technical Specifications
· Drone
Unfolded size 226×268×43（mm）
Folded size 226×144×48（mm）
Weight 350g（with battery）
Highest flight altit ude 4000m
Operating temperature 5-40℃
Wi-Fi band
· Camera
Image sensor 1/3 CMOS
Lens FOV: FOV 77.5°；28mm（35mmformat equivalent）
ISO range 100-3200
Camera tilt angle -90° to 30°
Max picture resolution 2688×1520
Video resolution 1080P，1920×1080 at 30 fps
Storage format JPEG、MP4
Storage capacity 8GB（Including system files）
Image transmission distanc e 50m
· Battery
Capacity 1800mAh，15.66Wh
Volt ag 8.7V
Battery type LiPo 2S
Weight 80g
Operating temperature 5-40℃
· Charger
Input 1 4-5V 2.4A MAX
Output 1 8.7V 1.1A MAX
Input 2 9-28V 2.3A MAX
Output 2 8.7V 2.2A MAX
Rating 16W
· Remote Control
Frequency band 2.4GHz
Range Not less than 50m
Operating temperature 5-40℃
Current 0.14A@4.5V
For product information and user manuals visit:
www.fun-snap.com
※Content is subject to change without notice.
5.8GHz
6
Package Contents
X
FUNSNAP
iDOL Drone
X X
Lithium polymer
rechargeable battery pack
X
1
&Propeller (anticlockwise x4)
1
1
Propeller (Clockwise x4)
Charger
8
X
1
5
X
Power adapter Documents
Disclaimer and Safety Information
· Battery Safety Manual
· Quick Start Guide
· Warranty card
· Packing List
7
Disclaimer and Safety
Information
8
Disclaimer and Warning
The user promises to be responsible for their own behavior and all
the consequences arising therefrom. The user will use the product
only for legal and legitimate purposes and agrees to the terms and
any related policies or guidelines that may be made by Funsnap
Technology.
While the product adopts advanced technology, inappropriate use
of the product could result in personal injury or property damages.
Please read the materials associated with the product before your
first use of the product. These documents are included in the product
package and are also available online on the FUNSNAP website at
http://www.fun-snap.com.
The information in this document affects your safety and your legal
rights and responsibilities. Read this entire document carefully to
ensure proper configuration before use. Failure to read and follow the
instructions and warnings in this document may result in product loss,
serious injury to you, or damage to your aircraft.
By using this product, you hereby signify that you have read this
disclaimer carefully and that you understand and agree to abide by
the terms and conditions herein.
You assume all risks for any damage that may result from your use of
or access to the product, product accessories, and any materials. you
understand and agree that you use the product at your own discretion
and risk, and that you are solely responsible for any personal injury,
death, damage to your property (including your computer system
or mobile device or FUNSNAP hardware used in connection with the
product) or third party property,or the loss of data that results from
your use of or inability to use the product.
FUNSNAP accepts no liability for damage, injury or any legal
responsibility incurred directly or indirectly from the use of this
product. The user shall observe safe and lawful practices including,
but not limited to, those set forth in these Safety Guidelines.
Warning
1. This product meets the requirements for class B digital products in
part 15 of the FCC guidelines:
① This product will not cause harmful interference.
② This product can withstand harmful interference that may cause
abnormal operation or unintended operation of the product. At
the same time, this product complies with the basic requirement’s
stipulated in 1999/5/EC and other related directives. It is forbidden to
modify or change this product without permission so as to avoid
9
harmful interference being emitted from the product.The manufacture
is not responsible for any consequence’s or problems that may arise
due to modifications made to this product.
2. It is forbidden to modify or change this product without permission
so as not to affect the normal operation of the product.
3. It is forbidden to use third party accessories or modify the product
without permission.
4. Do not operate this product while under the influence of drugs,
alcohol, medical or otherwise, including but not limited to illegal
drugs, anesthesia etc. Do not use this product when afflicted by
medical conditions that may inhibit judgment, reaction time or hand
eye coordination such as dizziness, fatigue, nausea or mental health
issues.
5. Before flight make sure to understand the local flight policies and
related regulations to ensure that drones can be flown in that area
and what restrictions on drone flight exist.
6. The battery temperature may be high after use, do not touch the
battery until it has cooled down after use.
7. Improperly folding the drone may cause scratches, damage etc.
Follow the instructions carefully to avoid this kind of damage.
8. Do not place the product or accessories within the reach of minors
under the age of 14. The product contains small parts that may cause
choking in younger children.
9. Do not use this product for the following activities (Including but
not limited to):
① Taking video or pictures of people without their permission or
taking videos or pictures in a private area without permission.
② Violation of any laws, administrative regulations, public order and
good practices in the area where the product is used.
③ Defame, harass, abuse, threaten, track or otherwise violate the
legal rights of others, such as privacy rights.
④ Use this product for anyunlawful or illegal use, such as for
authorized investigations, spying, military activities etc.
Safety Instructions
1. This product is not suitable for persons under the age of 14 and
other persons who do not have full civil capacity.
2. When the product is in operation, the propeller will rotate at high
speeds. When running there is a certain level of danger that must be
taken into account. Failure to do so may lead to personal injury or
property damage.
3. When using this product, stay away from dangerous environments
such as airports,railways,highways,high-rise buildings and suspended
wires.
10
4. When using this product,please stay away from mobile phone
base stations,high-power transmission equipment and other high
electromagnetic interference environment's.
5. Do not use this product in rain, lightning, sand, fog, snow, wind,
low temperature and other harsh weather conditions.
6. At altitudes above 4000 meters, use this product with caution.
High altitude environmental factors, such as wind, can cause difficulty
controlling the drone.
7. This product is not waterproof and cannot land on water.
8. When using this drone in populated areas always keep the drone in
line of sight.
9. When around crowds of people use carefully in order to avoid
accidents.
10. When the product is flying, do not turn off the motor unless it is
absolutely necessary.
11. Please check the product before each use, including but not
limited to the firmness of the parts, cracks and abrasions of the body
and propeller, battery power, and the validity of the indicator lights.
When you find an abnormality, stop using it immediately and replace
the corresponding accessories.
12. When the product is working abnormally, start the propeller's or
fly.
13. Make sure that the heat dissipation slots are not blocked,
otherwise the high temperature may cause the aircraft to fail, operate
abnormally or be damaged and may even cause burns.
14. This product cannot lift other objects.
15. Please follow the product manual carefully.
16. Please use spare parts provided by the company for maintenance
and replacement.
17. When lending to other personnel, please ensure that the operator
understands and complies with the safety instructions.
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Warning:Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
11
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator &
your body.
12
Battery Safety Instructions
13
Read the Battery Safety Instructions carefully before charging the iDol
rechargeable lithium polymer battery.Follow the instructions herein
strictly.
Warning
1. The lithium polymer cells in this battery use volatile materials.
Improper use of this battery may cause fire, damage to property or
personal injury.
2. The liquid in the battery is highly corrosive. If the battery leaks,
do not touch the liquid. If the liquid touches skin or eyes, rinse with
water and seek medical attention immediately.
3. Never allow the battery to come into contact with liquids. Do
not use the battery in rain or humid conditions. Contact with water
may cause a runaway reaction leading to extreme heat, fire or an
explosion.
4. Lithium polymer batteries are sensitive to temperature and
temperature changes. Make sure the battery is stored in an
environment within the recommended temperature range.
Before charging check the following:
1. Before use check the battery for any surface damage, swelling or
leaks. If any defects are found do not charge the battery.
2. Check the charger regularly to make sure it is working as expected
and has not sustained any damage. Never use a damaged charger.
3. Only charge the battery using the charger and adaptor
recommended by the company. If the incorrect adapters or chargers
are used, the user is responsible for any problems, damage or injury
that may occur.
14
Charging Precautions
1. Wait for the battery to cool down after a flight before charging.
Charging the battery while hot will decrease the battery’s life and
may cause serious damage. Chargers also have a thermal throttling
mechanism which will kick-in increasing charge time if the battery is
over heated.
2. If the battery level is low, charge it as soon as possible once it has
returned to a normal temperature. Failure to charge in time could
cause overcharging later which would cause damage to the battery.
3. Do not charge the battery close to combustible or flammable
materials or liquids.
4. Never leave charging batteries unattended to prevent accidents.
5. If there is a fire, disconnect the chargers power immediately and
extinguish the fire following the correct method.
6. The charger has a thermal throttling function, if the battery is within
the temperature range of 5 ° C - 40 ° it will charge normally. However,
if the battery temperature is outside of this range the battery will not
charge. If the temperature range is between 5 ° C - 15 ° C, it will take
longer to charge, if the battery temperature is between 15° C - 40° C
the battery will charge faster.
7. It takes about 1.5 hours to fully charge the battery. Do not charge
the battery for too long to prevent overcharging.
Precautions
1. Only charge the battery using the charger and adaptors
recommended by the company. If the incorrect adapters or chargers
are use the user is responsible for any problems, damage or injury
that may occur.
2. It is forbidden to dismantle, hit or crush the battery in anyway. This
can lead to damage, bulging, leaks, fires or an explosion.
15
3. If the battery is deformed, bulging, leaking or has any other
obvious abnormalities’ (connectors burned black for example),
discontinue use immediately.
4. Under no circumstances short the battery.
5. Do not store the battery in temperatures above 60 ° C. This may
result in a shorter battery life. Do not store close to water, fire or
corrosive materials.
6. Keep the battery out of reach of children and pets.
7、The normal operating temperature range of the battery is 5 ° C -
40 ° C.Exrteme temperatures may cause the battery to catch fire or
explode. Low temperatures can seriously affect the battery life. When
the battery temperature is outside this range they battery may not be
able to output a reliable power supply leading to issues when flying.
8. Unless in exceptional circumstances do not insert or remove the
battery when the iDol is powered on. This may cause loss of video,
photos or even damage electrical components.
9. If the battery is submerged in water place it in a safe open area and
stay away from it until the battery is air dried. The battery may not be
used again and as such and should be discarded. Follow the proper
recycling method and local laws & regulations for your district.
10. If the battery catches fire use CO2 (or another electrical safe
method) to extinguish the fire.
11. If the battery interface is dirty, wipe it with a dry cloth, otherwise
it may cause issues with the battery contacts, resulting in a loss of
power or inability to charge.
12. If iDol accidently falls or suffers an impact, check the battery
immediately to make sure there is no damage. If the battery
is damaged, cracking, bulging or has any other abnormalities,
discontinue use immediately. The battery may not be used again and
as such should be discarded. Follow the recycling method and local
laws and regulations for your district.
16
Storage and Transportation
1. Do not store the battery in any environment that is subject to
moisture, water leakage, sand, dust and dirt, close to anything
flammable, explosive, with heat sources or direct sunlight.
2. If you do not use the product for a long time remove the battery
from the body and store it separately to prevent overcharging. If
a battery is over charged, it may not be used again and as such
should be discarded. Follow the recycling method and local laws and
regulations for your district.
3. When the battery is stored for a long period of time, it is
recommended to charge the battery once every two months to
maintain the health of the battery. This will help maintain the battery
health and as such the life of the battery. You can check the remaining
battery though the app.
4. If the battery is stored for a long period of time, it is recommended
that the battery be stored when it is holding approximately half of its
full charge.
5. The battery storage temperature range:
Short-term storage (less than 1 month): -10° C -40° C
Long-term storage (more than 1 month): -10° C -30° C
6. Do not store or transport the battery together with glasses,
watches, metal necklaces or other metal objects.
7. Transport the battery within the temperature range of 23 ± 5 ° C.
8. Do not transport damaged batteries. When you need to transport
the battery make sure to discharge the battery until it is around 50%
capacity
9. Do not hit, crush or pierce the battery. Do not drop or short-circuit
the battery.
10. In hot weather the temperature inside a car will rise quickly. Do
not leave batteries in cars or other vehicles in hot weather which
may cause the battery to overheat, catch fire or explode resulting in
personal injury or property damage.
17
11. Before boarding a flight, discharge the battery to below 5%
capacity then charge again up to full capacity. Be sure to keep the
battery away from fire.
Battery Maintenance
1. Do not use the charger in an environment where the temperature is
too high or low.
2. Do not store the battery in an environment where the room
temperature exceeds 60° C.
3. Recharge and discharge the battery once every 3 months to
maintain the battery health.
Battery Disposal and Recycling
Do not throw away used batteries. Store the battery in a suitable
recovery box and then dispose of the battery in compliance with local
laws and regulations.
18
Warranty Card
Product Name
：
Product Serial Number
Dealer
：
Contact Number
：
：
User Name
：
Contact Phone Number
Date of purchase
：
：
Maintenance Records
Repair Date Fault and Repair Conditions
The following conditions are not covered by the
warranty:
1. Failure or damage due to transportation, loading and unloading
the product after purchase.
2. Any alterations, disassembly, repairs, or repairs not authorized by
the manufacturer.
3. Product damage caused by accidental factors or subjective
behavior such as: water damage, loss or improper input voltages,
crushing, main board deformation etc. For the power adapter, if
there’s any obvious signs of impact damage, cracks, broken feet,
severe deformation, wire damage, worn cord etc.
4. Failure or damage to the product caused by a failure to install, use,
maintain or store the product in accordance with the instructions.
5. Failure to provide valid proof of purchase or documents that have
been forged or altered.
19
6. The label, serial number or waterproof tamper marks are torn,
altered, fuzzy, unclear or unrecognizable.
7. Due to irresistible factors (such as fire, earthquake, flood etc.)
causing failure or damage.
8. Other failures caused by non-product quality related events.
User Notice
1. Data Backup
Before you accept this service, please back up all data separately. The
company does not take any responsibility for lost or damaged data
that may occur.
2. Ownership of parts requiring repair or maintenance
Replacement parts or any other parts that are repaired and replaced
during the company repair process will be serviced by the company.
Parts removed during repair or maintenance shall become property
of the company.
3. Paid maintenance costs
For products that have exceeded the warranty period and free
maintenance services period the company will strictly follow the
product’s paid services charges. Paid services are implemented and
at the same time, you are requested to pay for service payments that
are within the scope of the work/service needed.Fees: If you refuse to
pay fees in advance the company reserves the right to suspend the
service, the consequences of which will be borne by you.
For repairs, please contact your dealer or contact customer service:
Email：service@fun-snap.com
Facebook ID：FUNSNAP drone
Twitter ID：FUNSNAP-drone
Please visit www.fun-snap.com to get detailed warranty terms and
after-sales service policies.
Funsnap Technology Co., Ltd., reserves the right to modify
the contents of the above policies and articles without prior
announcement. For the latest version please visit the official website.
For more details, please scan the official WeChat QR code
20
Loading...
