Operation and Installation
(Document-No. 03.2124.010.71e)
P/N 800ATC-H-(2xx)-(2xx
)
TRT800H - OLED
Mode S Transponder
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
2 Document-No: 03.2124.010.71e / Revision: 1.00
Change History
Revision Date Description of Change
1.00 18.11.2011
First Release
List of Service-Bulletins (SB)
Service Bulletins have to be inserted into this manual and to be enlisted
in the following table.
SB No
Rev.
No. Issue Date
Insertion
Date Name
SB TRT800-A-H-1 1.04 17.10.2008
Survey of Variants
Part Number Description
P/N 800ATC-H-(201)–(210) Version with OLED-Display / one VFR-
Code / eight storable record sets for
AA-/AC-Code (ICAO 24bit-Address),
FID, Ground-Switch, RI-Code, GPS/Interface-Setting, Auto-On-Function
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
3Document-No: 03.2124.010.71e / Revision: 1.00
Table of Contents
1 GENERAL ..........................................................................................5
1.1 Symbols ...................................................................................5
1.2 Abbreviations ...........................................................................6
1.3 Customer Support ....................................................................7
1.4 Features ...................................................................................8
2 OPERATION ......................................................................................9
2.1 Controls....................................................................................9
2.2 ON/OFF.................................................................................. 11
2.3 Display-Brightness .................................................................11
2.4 Display-Indications .................................................................11
2.5 Flight-ID (FID) ........................................................................13
2.5.1 Display Flight-ID ..........................................................13
2.5.2 Configure Flight-ID ......................................................13
2.6 Transponder Mode selection.................................................. 14
2.7 Squawk-Setting ......................................................................15
2.8 VFR – Squawk .......................................................................15
2.9 ID – Special Position Identification (SPI): “Squawk Ident”......16
2.10 Error-Codes............................................................................16
3 INSTALLATION................................................................................ 17
3.1 Notes......................................................................................17
3.2 Telecommunication data ........................................................17
3.3 Scope of Delivery ...................................................................17
3.4 Unpacking and Inspecting of the Equipment..........................18
3.5 Mounting ................................................................................18
3.6 Equipment Connections .........................................................19
3.6.1 Electrical Connections................................................. 19
3.6.2 Static Air Port ..............................................................20
3.7 Wiring .....................................................................................21
3.7.1 Conductor Cross Section.............................................21
3.7.2 Pin Assignment ...........................................................21
3.7.3 TRT800EM – External Memory ...................................22
3.7.4 TRT800EMSS – External Memory (with RS232) ........23
3.8 Antenna..................................................................................24
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
4 Document-No: 03.2124.010.71e / Revision: 1.00
3.8.1 Antenna Selection .......................................................24
3.8.2 Installation Recommendation ...................................... 24
3.8.3 Antenna Wiring............................................................ 25
3.9 Post-Installation Check ..........................................................25
3.10 Starting Up ............................................................................. 26
3.11 Accessories............................................................................26
3.12 Drawings ................................................................................ 27
3.12.1 Dimensions.................................................................. 27
3.12.2 Mounting Advices ........................................................ 27
4 SETTINGS .......................................................................................28
4.1 Overview ................................................................................28
4.1.1 Error Logging............................................................... 28
4.1.2 ICAO 24-Bit Aircraft Address (AA)............................... 28
4.1.3 Aircraft Category (AC) ................................................. 29
4.1.4 Flight-ID (FID)..............................................................29
4.1.5 Option Ground-Switch ................................................. 30
4.1.6 Reply Information - Speed Category (RI) ....................31
4.1.7 Serial Interface (RS232).............................................. 31
4.2 Configuration..........................................................................33
4.2.1 Setup Steps................................................................. 33
4.2.2 Functions Overview..................................................... 36
5 APPENDIX .......................................................................................38
5.1 Technical Data .......................................................................38
5.2 Environmental Conditions ......................................................40
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
5Document-No: 03.2124.010.71e / Revision: 1.00
1 GENERAL
This manual contains information about the physical, mechanical and
electrical characteristics and about installation and operation of the
Mode S Transponder TRT800H.
1.1 Symbols
Advices whose non-observance can cause radiation
damage to the human body or ignition of combustible
materials
Advices whose non-observance can cause damage to the
device or other parts of the equipment.
Supplementary information
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
6 Document-No: 03.2124.010.71e / Revision: 1.00
1.2 Abbreviations
Abb. Meaning Explanation
FID Flight ID Flight plan number or if not assigned
registration number of aircraft
SPI Special Position
Identification
Activation on request by controllers
„Squawk Ident“, transmits SPI Pulse
for 18 seconds, which highlights the
respective traffic item on the
controllers radar screen
AA Aircraft Address assigned ICAO 24 bit Address
AC Aircraft Category Defines aircraft type into specific
categories
RI Reply Information Maximum airspeed
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
7Document-No: 03.2124.010.71e / Revision: 1.00
1.3 Customer Support
In order to facilitate a rapid handling of return shipments, please follow
the instructions of the input guide „Reshipment RMA“ provided at the
Service-Area within the Funkwerk Avionics web portal www.funkwerk-
avionics.com.
Any suggestions for improvement of our manuals are
welcome. Contact: service@funkwerk-avionics.com
.
Informations on software updates are available at Funkwerk
Avionics
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
8 Document-No: 03.2124.010.71e / Revision: 1.00
1.4 Features
In order to operate the Mode-S transponder it is necessary
to request an ICAO 24-Bit Aircraft Address at the
responsible national aviation authorities. The received Code
is assigned to the specific transponder/aircraft and must be
configured within the transponder. The 24bit Address is
stored in an external memory which allows the transponder
being exchanged without requiring any further configuration.
(for detailed information refer to sections 4.1.2 and 4.2.1).
• Class 1 Level 2es Non-Diversity Mode-S-Transponder for ground
based interrogations at 1030 MHz and response at 1090 MHz
• Replies to (Secondary) Radar Interrogations
o Mode-A replies with a Squawk (one of 4096 possible Codes;
e.g. flight plan number, Squawk assigned by a Controller or
the VFR Squawk 7000)
o Mode C replies, including encoded flight level
o Mode S replies, including aircraft address and flight level
o Extended Squitter, containing additional information on
position and velocity
• IDENT capability for activating the Special Position Identification“Pulse (SPI) for 18 seconds, which is requested by the Controller
„Squawk Ident“
• Maximum flight level 35 000 ft; maximum airspeed 250 kt
• Display information contains Squawk code, mode of operation and
pressure altitude.
• Temperature compensated high precision piezo-resistive pressure
sensor
• RS-232 I/O data port enabling connection with certain GPSReceivers in order to support ADS-B Out
• 8 storable entries for AA-/AC-Code, FID, Ground-Switch, RI-Code
and GPS-/Interface-setting (stored in external memory TRT800EM)
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
9Document-No: 03.2124.010.71e / Revision: 1.00
2 OPERATION
2.1 Controls
ON / OFF
„Squawk Ident“
Activate/
deactivate VFR
Change
Active Ù Standby
S
q
uawk
Select Operation
Cursor
adjustment
Rotary Knob
for adjusting values
at the cursor
position
Operation Mode
(Mode)
Standby
S
q
uawk
Active
S
q
uawk
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
10 Document-No: 03.2124.010.71e / Revision: 1.00
ON/OFF
Switch ON press button for approx. 0,5 s
Switch OFF press button for approx. 3 s
VFR
1. activate/deactivate VFR Squawk
(press shortly)
2. store active Squawk as VFR/VFRWSquawk (press button 3 s) see section. 2.8
CHANGE
1. change between active and standby-
Squawk
2. works as cursor back button (opposite
function of the cursor button) during entering
values and also for navigating backwards
through the configuration menu (see 4.2.1)
IDENT
1. „Squawk Ident“, sends Ident marking (SPI)
for 18 s (in normal mode) see section. 2.9
2. configuration of Flight-ID (FID)
(in standby mode, press button for 5 s)
MODE
Select transponder mode ACS, A-S or
Standby (see section 2.6)
CURSOR Set position of Cursor
Rotary
Knob
Adjust/Enter values at current cursor position,
select options; set standby Squawk see
section 2.7
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
11Document-No: 03.2124.010.71e / Revision: 1.00
2.2 ON/OFF
Switch ON: press button for 0.5 s
Switch OFF:
press button for 3 s
After turning-on the display appears as follows:
(Example)
Device Name
Software-Version
Firmware-Version
If more than one aircraft address/FID exists, select the correct entry with
the rotary knob and confirm with
. If there is no external memory
(TRT800EM) connected or no 24bit address defined (000000) the
message “CRADLE OFF” appears and the transponder is not working as
Mode-S device but as Mode A-C transponder.
The transponder starts in standby mode (see section 2.6).
2.3 Display-Brightness
In active mode (not standby) press -button for 2 s
Display indicates “DIM” Æ Adjust brightness (DIM) with rotary knob
Return to normal operation: press
or wait 5 s.
2.4 Display-Indications
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
12 Document-No: 03.2124.010.71e / Revision: 1.00
Value Meaning Remarks
diamond
Transponder is transmitting:
Replies on Interrogations
Extended Squitter
(ADS-B out)
Appears per reply
7000 active Squawk
I Transponder is locked by a
ground station and will be
directly addressed
Lock Information (indicated
as vertical dash below the
diamond)
PLL PLL Error Internal Error
TRX
DC
Transmit Failure
Low internal voltage
Internal error
FPG FPGA-Failure Internal error
BAT Battery Power too low maybe battery/generator fault
IDT transmits Ident-Marking (SPI) ID („Squawk Ident“) has been
pressed – active for 18 s
FL010
FLerr
Flight Level
Invalid altitude measuring
Flight Level (in 100 ft steps)
Beyond -1000 ... 35 000 ft,
C Mode gets inactive
ACS Operational Mode
(STBY, A-S, ACS, AC, A)
Modes see section 2.6
0000 Standby Squawk Could be changed with active
Squawk by pressing
F
G
in-flight
on-ground
Ground-Switch-Info
(if installed/available)
Cradle
Off
no AA (24bit-Address)
configured
Transponder works in A/CMode (no Mode-S)
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
13Document-No: 03.2124.010.71e / Revision: 1.00
2.5 Flight-ID (FID)
The FID is an identifier required by Mode-S Operation. During future
application of flight plans a FID could be assigned on a per flight basis. If
no FID is assigned (today’s normal case) the registration marking of the
aircraft should be used as FID. The FID should not
contain dashes or
blanks. The FID must not be confused with the 24-bit Aircraft Address.
2.5.1 Display Flight-ID
Press
(repeatedly) until „STBY“ appears
Press and hold
; while a counter is shown beside the active squawk,
release
at values between 1 and 4
Display:
The lower line contains the 24bit address (AA) and the aircraft category
(AC), marked by a line above the numbers as well as the Flight-ID (FID)
without any line above the numbers (“^”=cursor):
Digits 1 to 6: ICAO 24-bit Aircraft Address (AA, HEX-format)
Digits 7 to 8: Aircraft Category (AC)
Digits 9 to 16: Flight Identification (FID)
This screen will appear for 5s and will be left automatically afterwards.
2.5.2 Configure Flight-ID
Press
(repeatedly) until „STBY“ appears
Press and hold
; while a counter is shown beside the active squawk,
release
at values between 5 and 19
Enter Flight-Id with cursor button
and rotary knob
Press
to save and return to STBY
Enter FID left-aligned, without any blanks or dashes (!)
, e.g.
12345621DEFAV for the marking D-EFAV. The last
remaining digits shall be filled with blanks
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
14 Document-No: 03.2124.010.71e / Revision: 1.00
Please refer to section 4.2.1 for configuration of the 24-bit Address (AA)
and Aircraft Category (AC).
2.6 Transponder Mode selection
Press (repeatedly) to select from following Modes:
• STBY Æ „Standby“
Transponder does not respond to any interrogation. Squitter and
ADS-B output is not active.
• ACS Æ„Mode A+C+S“
Standard condition; transponder responds to mode A, C and S
interrogations.
• A-S Æ „Mode A+S, no C“
Altitude is not transmitted (neither on C nor on S requests). All
other Mode-S data as well as Mode-A replies are transmitted.
If no 24-bit address (AA) was defined or entered as “000000“ the
transponder works as Mode A-C transponder, in that case the
following Modes are possible apart from Standby:
• AC- Æ „Mode A+C“
Transponder replies only on Mode A and Mode-C interrogations.
• A-- Æ „Mode A“
Transponder replies only on Mode A interrogations.
In STBY (Standby) mode, all transponder transmissions
are disabled completely! Therefore, the transponder is not
visible in this mode to air traffic control or the anti-collision
systems onboard other aircrafts.
Never use the STBY mode in flight
unless you are requested
to do so by air traffic control. Always remember to put the
transponder in active mode prior to take off!
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
15Document-No: 03.2124.010.71e / Revision: 1.00
2.7 Squawk-Setting
The active Squawk is displayed in the upper line, while the standby
Squawk is presented at the lower line.
Setting the Standby Squawk:
• Press
to set the cursor („^“), turn rotary knob to set numbers of
the standby Squawk.
•
Press to activate the Standby Squawk , this moves the
current active Squawk into Standby
2.8 VFR – Squawk
The transponder features a user-defined squawk code for VFR-flight
(factory setting: 7000):
• Activate VFR-Squawk: Press
(„VFR“ is indicated), now the
active Squawk is moved into Standby but not visible because the
indication of the Standby Squawk is overlapped by „VFR“
• Display Standby Squawk:
Press
or or use the rotary knob (the VFR-Squawk
remains active!)
Example:
• Now the Standby Squawk can be adjusted by using the
rotary
knob and activated with
.
• In order to store the current active Squawk as new VFR-Squawk
(replacing the factory setting 7000):
Press and hold
until an „S“ is indicated (approx. 3 s); after
releasing the button „VFR“ is shown
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
16 Document-No: 03.2124.010.71e / Revision: 1.00
2.9 ID – Special Position Identification (SPI): “Squawk
Ident”
Press ID to activate transmission of the special position identification
pulse with every reply within 18 seconds; “IDT” appears on the display
By pressing
a special position identification pulse (SPI) is transmitted
with every reply within 18 seconds, which causes an accented marking
on the Controller’s screen. The „Special Position Identification“ has to be
activated after the „Squawk Ident“ request of the Controller.
2.10 Error-Codes
Please refer to 2.4 Display-Indications for possible displayed errors.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
17Document-No: 03.2124.010.71e / Revision: 1.00
3 INSTALLATION
3.1 Notes
The following suggestions should be considered before installing.
The assigned installation company will supply wiring. For diagrams refer
to 3.7 Wiring.
Transponder, External Memory, all cables and antennas shall be
installed according to „FAA AC-143.13-2A Acceptable Methods,
Techniques and Practices – Aircraft Alterations“ and the appropriate
manufacturer’s instructions.
3.2 Telecommunication data
Depending on your national telecommunications legislation, the following
data may be required when applying for the aircraft radio station license:
Manufacturer: Funkwerk Avionics GmbH
Type Designation: TRT800H
EASA Number: EASA.21O.269
Transmitter Power Output
126 W
Frequency: 1090 MHz
Emission Designator: 12M0M1D
3.3 Scope of Delivery
Part Number Description
TRT800H Transponder TRT800H
TRT800EM External Memory (AC-Address-Adaptor with
wiring)
M4X8ZSW
(3 pieces)
screw for panels up to 5 mm thickness
56S101A4 TNC antenna connector
03.2124.010.71e Manual „Operation and Installation“
EASA Form 1
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
18 Document-No: 03.2124.010.71e / Revision: 1.00
3.4 Unpacking and Inspecting of the Equipment
Carefully unpack the equipment and inspect for transport damages. If a
damage claim has to be filed, save the shipping container and all
packing materials as evidence to your claim.
3.5 Mounting
• In cooperation with a maintenance shop, location and kind of the
installation are specified. The maintenance shop can supply all
cables. Suitable sets of cables are available from Funkwerk
Avionics GmbH.
• Select a position away from heat sources. Care for adequate
convection cooling.
• Leave sufficient space for the installation of cables and connectors.
• Avoid sharp bends and wiring close to control cables.
• Leave sufficient lead length for inspection or repair of the wiring of
the connector (containing the memory), so that when the mounting
hardware for the rear connectors is removed, the assembly may be
pulled forward several inches.
• Bend the harness at the rear connectors to inhibit water droplets
(formed due to condensation) from collecting in the connector.
• For mounting details/drawing refer to chapter 3.12.2 Mounting
Advices.
For storage or reshipment the original packaging should be
used.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
19Document-No: 03.2124.010.71e / Revision: 1.00
3.6 Equipment Connections
3.6.1 Electrical Connections
One 15 pin D-SUB miniature connector includes all electrical
connections, except for the antenna. Use only an External Memory
Adapter TRT800EM or TRT800EMSS as they are part of the certification
and include a memory with the stored ICAO 24bit Aircraft Address.
3.6.1.1 Mutual Suppression
Other equipment on board (e. g. DME) may transmit in the same
frequency band as the transponder.
If such a device is installed a suppression wiring shall be installed in
order to protect the receiving parts of the different devices from in-band
transmissions.
Mutual suppression is a synchronous pulse that is sent to the other
equipment to suppress transmission of a competing transmitter for the
duration of the pulse train transmission. The transponder transmission
may be suppressed by an external source and vice versa.
To activate mutual suppression connect the SUPP_I/O signal to the
according signals of the other equipment
3.6.1.2 Ground Switch
If an external Ground-Switch is connected to the transponder and
activated in the setup, the transponder can detect if the aircraft is
airborne or on the ground This allows the transponder to automatically
activate the Ground mode whenever the aircraft is on ground.
In order to activate this feature, the input „FLY-GND“ must be connected
to an external switch which connects the input pin with „GND“ when the
gear is weighted, or remains open in the other case.
This feature must additionally be activated in the Setup. For details on
configuration please refer to section 4.2.1.
The (+UB)-wire has to protected by circuit breaker (2 Amp.)!
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
20 Document-No: 03.2124.010.71e / Revision: 1.00
3.6.1.3 Auto-On
The Auto-On input allows to define how the transponder will behave
when power is supplied to it.
If the aircraft is equipped with a dedicated avionics master switch that
switches the power supply to the transponder, the pin "Auto-On" must be
wired together with the UB+ pin to the avionic master switch. The on/off
button on the transponder is without function in that case. The
transponder will start automatically whenever power is supplied.
On aircraft without such an avionics master switch, the pin "Auto-On"
must be left unconnected. In this case, the transponder must be switched
on and off via the transponder's on/off button on the front panel.
3.6.2 Static Air Port
Install a silicon soft tube fitting the 5 mm static air port at the backside of
the transponder and secure plumbing with appropriate clamps.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
21Document-No: 03.2124.010.71e / Revision: 1.00
3.7 Wiring
3.7.1 Conductor Cross Section
Power Supply (Power, GND): AWG20 (0,62 mm²)
Signals: AWG22 (0,38 mm²)
The conductors must be approved for aircraft use.
3.7.2 Pin Assignment
The transponder may only be operated together with an
external memory address adaptor
(TRT800EM/TRT800EMSS)!
Pin Signal Remarks
Adapter
TRT800
EM EMSS
1 GND - ● ●
2 Internal -
3 EEPROM Signal TRT800EM/EMSS internal
4 EEPROM Signal TRT800EM/EMSS internal
5 TX RS-232 Serial Output ○ ●
6 switched +UB output
(1)
For future use ○ ○
7 Internal -
8 +UB power supply input ● ●
9 GND - ● ●
10 EEPROM VCC TRT800EM/EMSS internal
11 EEPROM GND TRT800EM/EMSS internal
12 RX RS-232 Serial Input ○ ●
13 Suppression Input / Output ○ ●
14 Auto-On
(2)
Input
(2)
● ●
15 Fly-GND Switch
(3)
Input
(3)
○ ●
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
22 Document-No: 03.2124.010.71e / Revision: 1.00
(1) SWITCHED +UB
OUT
May only be used for compatible Funkwerk Avionics
devices.
(2) Auto-On Connect to +UB override front panel on/off button. Leave
unconnected tu use front panel on/off button.
(3) Ground Switch/
FLY-GND
If an external Ground Switch is connected, it must
connect this pin to GND to indicate the on-ground
condition. Leave open otherwise.
3.7.3 TRT800EM – External Memory
The External – Memory – Address-Adapter TRT800EM contains electronic parts and must not be opened. Opening or
modifying the connector leads to the loss of airworthiness
certification!
DSUB 15pol
< PIN-1 >
< PIN-9 >
< PIN-8 >
< PIN-14>
TRT800H
blue
red
brown
GND
+UB
AUTO-ON
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
23Document-No: 03.2124.010.71e / Revision: 1.00
3.7.4 TRT800EMSS – External Memory (with RS232)
The External – Memory – Address-
A
dapter TRT800EMSS
contains electronic parts and must not be opened. Opening
or modifying the connector leads to the loss of airworthiness
certification!
TRT800H
*
DSUB 15pol
DSUB 9pol
< PIN-5 >
< PIN-12>
< PIN-15>
< PIN-13>
< PIN-1 >
< PIN-9 >
< PIN-8 >
< PIN-14>
<PIN-2
<PIN-3
<PIN-7
<PIN-8
<PIN-5
<PIN-9
TXD
RXD
FLY_GND
SUPP_I/O
Shielded cable GND
white
black
yellow
red
blue
red
brown
GND
+UB
AUTO-ON
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
24 Document-No: 03.2124.010.71e / Revision: 1.00
3.8 Antenna
3.8.1 Antenna Selection
• Recommended antennas: see section 3.11 Accessories
• Choose an antenna type compatible with the vehicle and the
mounting location.
• Specified features depend on proper installation of the antenna.
• The radiation pattern needs to be verified considering aircraft type
and mounting location.
• The electrical interference between the antenna and any other
equipment must be taken into account in such a way that no
reduction of the performance of any other system will occur.
• Install only certified antennas!
3.8.2 Installation Recommendation
• Take note of the antenna manufacturer’s instructions.
• The usually deployed Dipole- or Blade antennas necessarily
require a high frequency capable solid metal ground plane at the
antenna base.
• For installation in composite aircrafts, ground planes are to be
added. The ground plane should be as large as possible but in any
case not smaller than 10 cm x 10 cm. If in doubt, please contact
the aircraft manufacturer.
• Keep away three feet from any other antenna.
• Pursue mounting in vertical position under the belly in flight
direction.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
25Document-No: 03.2124.010.71e / Revision: 1.00
3.8.3 Antenna Wiring
• Suitable antenna cables: see section 3.11 Accessories
• Keep wiring as short as possible.
• The smallest cable bend radius is 10cm. Avoid sharp bends.
• Keep away from an ADF antenna cable at least 12 inches.
• Electrical connections to the antenna shall be protected against
moisture to avoid loss of efficiency.
3.9 Post-Installation Check
All steering and control functions of the aircraft are to be examined, in
order to exclude disturbances by the wiring.
The most important factor in the transponder configuration is the setting
of the ICAO address (see section 4.2.1).
Attenuation from antenna to transponder at 1090 MHz must
not exceed 1.5 dB!
A
certified maintenance shop must verify proper operation of
the transponder by testing in accordance with Appendix F of
“14 CFR Part 43 – ATC Transponder Tests and
Inspections”.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
26 Document-No: 03.2124.010.71e / Revision: 1.00
3.10 Starting Up
Turn the transponder on with .
After start-up the following screens appear:
3.11 Accessories
Part Number Description
TRT800EMSS External memory (AC-Address-Adapter) for
RS232 including wiring,
9-pol. SUB-D-Jack and Connector
TRKABEL2 Antenna cable 2,5 m (8.2 ft)
TNC Æ BNC, RG-142, 1,075 dB
TRKABEL3 Antenna cable 4,0 m (13.2 ft)
TNC Æ BNC, RG-142, 1,72dB
TRKABEL4 Antenna cable 6,5 m (21.3 ft)
TNC Æ BNC, RG-142, 2,8 dB
CI-105 Transponder/DME Antenna TSO C66b, C74c
CI105 Comant Industries Inc.
Height: 3,25”, Weight: 90 g (0.2 lbs)
AV22 Rod antenna
The TRT800H starts in Standby Mode (indicated with
STBY). In order to change into operational mode (indicated
with ACS) press
.
Very important is the correct configuration of the 24bit
Aircraft-Address (see 4.2.1 Setup Steps).
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
27Document-No: 03.2124.010.71e / Revision: 1.00
3.12 Drawings
3.12.1 Dimensions
20mm
15 mm
170 mm
TRT800
TRT800H
65 mm
65 mm
Ø 57 mm
Stat ic A ir
Antenna
Power/RS232
3.12.2 Mounting Advices
Connections Area
≈
80 mm
Panel Cut-out
47,0 mm
47,0 mm
57,5 mm
4 x Ø 4 mm
Ø
Connector (plug) has to be clamped with both spring locks
Fixing clips (spring)
left / ri
g
ht
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
28 Document-No: 03.2124.010.71e / Revision: 1.00
4 SETTINGS
4.1 Overview
The TRT800H is capable of storing the following information:
• ICAO 24-Bit Aircraft-Address (AA), see section 4.2.1
• Aircraft Category (AC), see section 4.1.3, e.g.
o „19“ for gliders
o „21“ for aircrafts with a MTOW below 15.500 lbs, motor glider
o „1C“ for ultra light aircraft
• Flight Identification (FID), e.g. „DEOLK“, see section 4.1.4
(Important: Enter FID without
any blanks and dashes!)
• Ground-Switch (Yes/No), see section 4.1.5
• Speed Category (RI), see section 4.1.6
• RS232 Interface Configuration, e. g. for connecting a GPS-
Receiver to support ADS-B Out

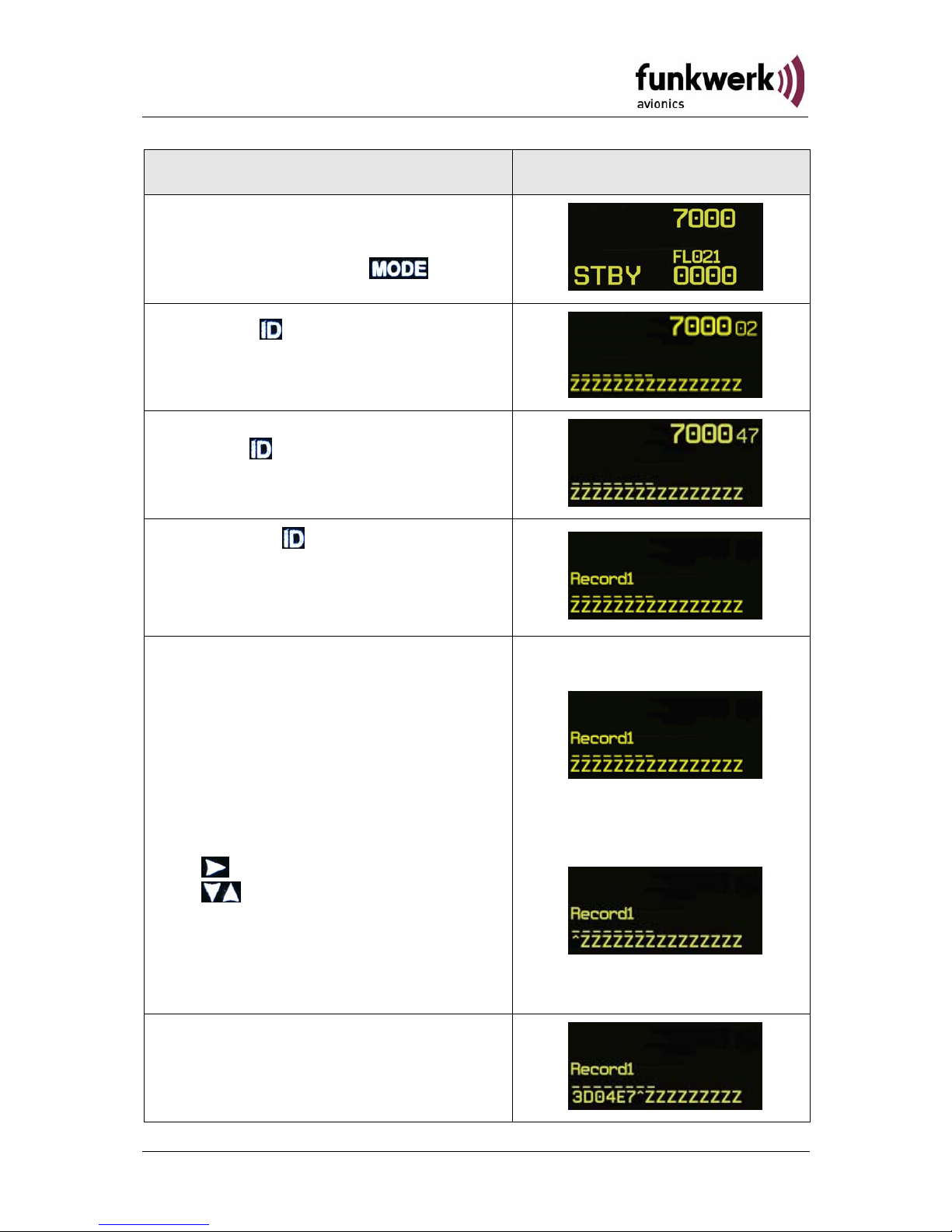

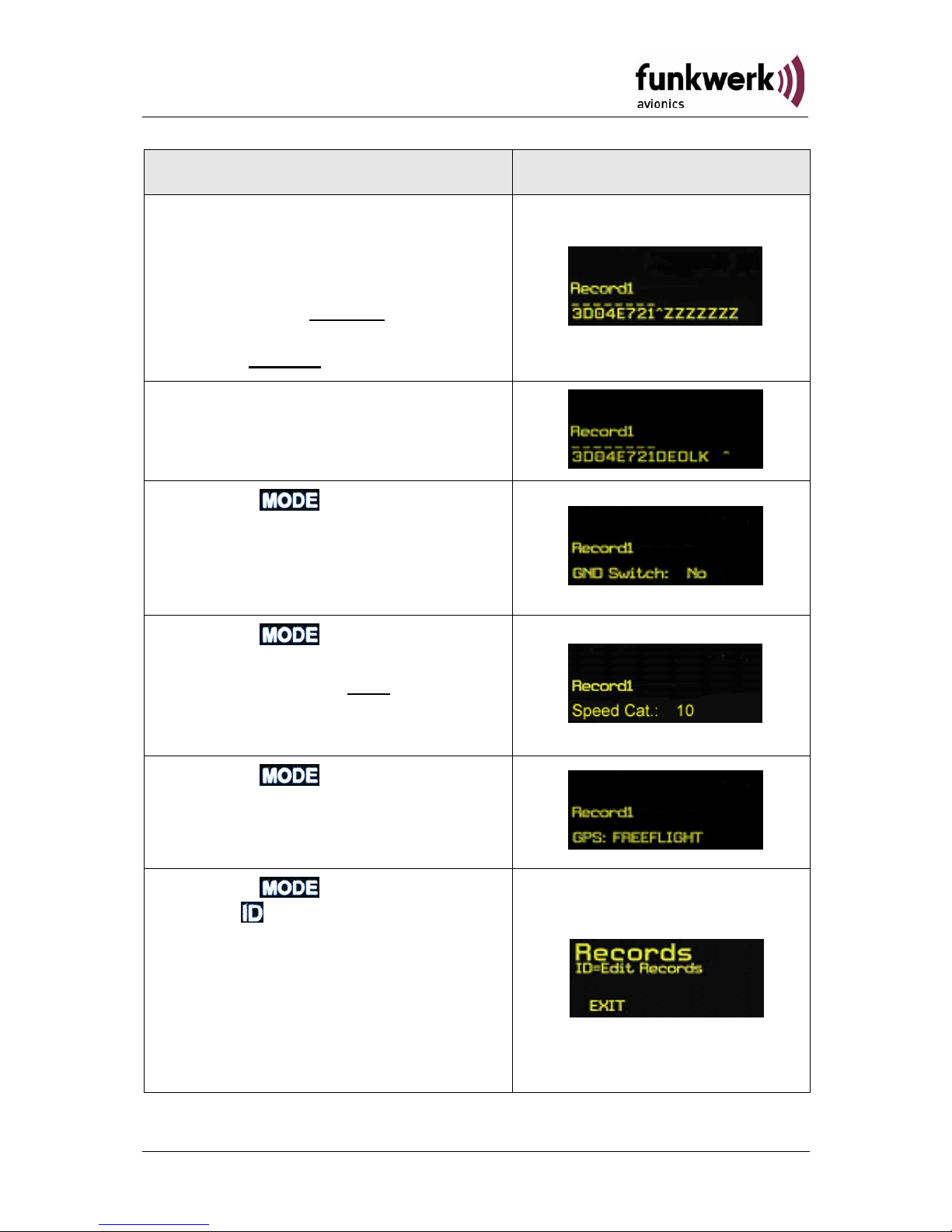

All of these data are configurable in the Setup (refer to section 4.2.1) and
are stored in the external memory module integrated within the housing
of the D-Sub connector (included in the delivery).
The cable with this connector shall remain in the aircraft even if the unit
is removed, to ensure that the ICAO 24bit aircraft address is fixed to the
aircraft.
4.1.1 Error Logging
If errors occur, those will be internally stored in the order of appearance.
The error list can be displayed as described in chapter 4.2.2 Functions
Overview.
4.1.2 ICAO 24-Bit Aircraft Address (AA)
Ask your national aviation authority (e. g. in Germany: LBA, Referat B5,
Department “Verkehrszulassung”) how to obtain the AA. In the case of
aerial sports equipment the contact point would be the respective
associations.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
29Document-No: 03.2124.010.71e / Revision: 1.00
Only the assigned AA has to be used and must not be modified at any
time, because a duplicate address would jeopardize the data
surveillance and integrity figures of Mode S.
If no AA is stored, after power on the display shows
“CRADLE OFF” and the transponder operates in Mode A/C.
(Configuration of the AA: see section 4.2.1)
4.1.3 Aircraft Category (AC)
Code Description Code Description
11 Emergency Vehicle 1C Ultra-Light / Paraglider
12 Service Vehicle 1E Drone
19 Glider 21 Aircraft (D-Exxx) < 15.500 lbs,
Motor Glider (D-Kxxx)
1A Balloon & Airship 22 Aircraft
≥ 15.500 lbs,< 75.000 lbs
1B Paratrooper 27 Rotorcraft
Only one of the Codes mentioned in the table above must
be used.
4.1.4 Flight-ID (FID)
Per ICAO regulation Mode-S data must contain a valid flight identification
(FID), to ensure that the correlation between flight plan and radar data
will work automatically.
FID setting is required to correspond to the aircraft identification that has
been (correctly!) specified at item 7 of the ICAO flight plan. It contains
seven characters at a maximum (left-aligned, no additional zeros,
dashes or spaces/blanks.)
For an aircraft using a company call sign, the Flight-ID mostly consists of
the ICAO three-letter designator for the aircraft operator, followed by an
identification code, e.g. KLM511, BAW213, JTR25.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
30 Document-No: 03.2124.010.71e / Revision: 1.00
If no company call sign is used or no flight plan is filed, the default FID to
be set consists of the registration marking of the aircraft (e.g. DEABC)
with no dashes, spaces/blanks or additional zeros, even if they are
included in the registration marking on the aircraft (tail number). While
entering the FID into the transponder the last remaining digits must be
filled with blanks.
The ICAO Flight Plan only specifies 7 characters for FID.
Funkwerk Avionics reserves 8 characters as stated in ED73B for further expansion of the flight plan.
The user shall only program 7 characters for FID.
4.1.5 Option Ground-Switch
If a ground switch is connected (and activated in the setup!), the
transponder is able to determine on-ground and in-flight state. In the onground state, the ground mode is automatically activated (symbol 'G'
shown on the display).
With a connected ground switch (see section 3.6.1.2) the transponder
automatically changes into ground mode once the gear touches the
ground. For this, the setup must be configured accordingly. For a
detailed description of the setup progress, please refer to section 4.2.1
Setup Steps.
In ground mode, the transponder will reply differently to certain
addressed interrogations. Also, the transmission rate of some
periodically sent data (squitters, ADS-B) is reduced. This allows ATC to
distinguish between airborne aircraft and those on the ground and it
reduces the Mode S channel load.
For small aircraft, authorities normally do not require such a ground
switch. In this case, the transponder will use the same data formats on
the ground as in the airborne state.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
31Document-No: 03.2124.010.71e / Revision: 1.00
4.1.6 Reply Information - Speed Category (RI)
Besides AA, AC and FID another important part of the Mode-S data is
the Speed Category of the respective aircraft. This speed category shall
be configured in the setup (see 4.2.1) and must contain one of the
following codes.
Code Description
08 No maximum airspeed data available.
09 Maximum airspeed ≤ 75 kt
10 75 kt > maximum airspeed ≤ 150 kt
11 150 kt > maximum airspeed ≤ 300 kt
12 300 kt > maximum airspeed ≤ 600 kt
13 600 kt > maximum airspeed ≤ 1200 kt
14 Maximum airspeed > 1200 kt
15 Not assigned
4.1.7 Serial Interface (RS232)
With the additionally available address adaptor TRT800EMSS the
RS232 interface can be connected to a GPS receiver, to support the
ADS-B Out functionality (Broadcasting of own position which could be
received by other appropriately equipped aircrafts and processed for
collision avoidance).
Selectable Options (How to proceed, see 4.2 Configuration):
• GPS-Receiver for ADS-B out
o FREEFLIGHT (GPS / WAAS Sensor 1201, 19200 Bd)
setting of the GPS receiver: not required.
o NexNav NNL 3101
setting of the GPS receiver: not required
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
32 Document-No: 03.2124.010.71e / Revision: 1.00
o KLN94 (Bendix King, KLN 89B, KLN 94, KMD 150, 9600 Bd)
setting of KLN89B/KLN94: “Standard RS232 Sentence”
setting of KMD 150: “Type 1 Sentence”
o NMEA-Format (4800 Bd)
setting: data format RMC is expected; to minimize the
amount of data other sub-formats are to be avoided.
• Comm-A/B-support (38400 Bd)
Data format for special purpose. An additional data link processor
allows COMM-A/B operation and processing of the position
information of a flight management system simultaneously.
• FAVISIA-support
o FAVISIA
Data format to be processed in FAVISIA avionics suite.
o FAVISIA + GPS
Data format to be processed in FAVISIA avionics suite
(output) and additional processing of incoming GPS-Receiver
position data (NMEA, 4800Bd) to support the ADS-B Out
functionality
Setting for all described GPS-systems:
1 ... 2 messages per 2 sec.
Information regarding Comm-A/B support as to usability of
other GPS equipment are available from Funkwerk Avionics
GmbH.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
33Document-No: 03.2124.010.71e / Revision: 1.00
4.2 Configuration
Programming of the ICAOA 24-bit Aircraft Address and of
the Aircraft Category shall be executed by qualified
personnel only!
A wrong Aircraft Address or Flight ID may cause serious
problems ATC or with ACAS/TCAS systems!
Pilot and owner
are responsible for correctly set
transponder data.
4.2.1 Setup Steps
Initially after installation
The entered ICAO 24-bit address is stored in one out of eight possible
records (Record=Presetting). Beside the 24bit address and the FID one
record stores also the settings made for the serial interface (GPS/COMM
A/B) and also for the optionally installed Ground-Switch. A stringently
required input is the speed category (RI) of the respective aircraft (see
section 4.1.6 “Reply Information - Speed Category (RI)“).
All those data are stored in one record. If more than one record exists, a
record can be selected out of a list during start-up of the transponder.
Step Display (Example)
1. Start-up Transponder
Any menu item can be passed by
. If no changes are
made the original settings will remain stored. Modification of
one menu item does not impact the others. No entries will be
deleted.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
34 Document-No: 03.2124.010.71e / Revision: 1.00
Step Display (Example)
2. Ensure, the transponder-mode is
„STBY“. If necessary change the
mode by pressing
3. Press
A counter is shown at the upperright corner
4. Hold the counter has reached
„47“
5. Release
You have now entered the
configuration mode for the ICAO
24-bit address.
6. Initially the Cursor „^“ is located
at the first digit in the lower line.
The first six digits define the
ICAO 24-Bit Aircraft Address.
In order to enter your 24bit
address, select the respective
letter or number by usage of the
rotary knob.
moves the cursor rightwards.
moves the cursor leftwards.
It is important to enter the
ICAO 24-Bit Aircraft Address
correctly.
7. With digits 7 and 8 the Aircraft
Category is specified. (see
section 4.1.3)
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
35Document-No: 03.2124.010.71e / Revision: 1.00
Step Display (Example)
8. With digit 9 and the following the
Flight-ID is defined (e. g.
DEOLK)
Important: Without
blanks or
any special characters and
also without
dashes.
9. The last digits of the line must be
filled with blanks.
10. Press .
with the rotary knob you can now
select „yes“ if a Ground Switch is
installed, if not select “no” and
proceed with step 11
11. Press .
at this stage the respective
speed category shall
be selected
by using the rotary knob. (see
section 4.1.6)
12. Press .
at this stage a GPS receiver for
ADS-B Out can be selected
(Selectable by rotary knob).
13. Press .
with further Records can now be
created and configured as
described in the aforementioned
steps
at start-up of the transponder one
of the defined records with all
associated configurations need to
be selected
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
36 Document-No: 03.2124.010.71e / Revision: 1.00
Step Display (Example)
14. Press . You have now left
the configuration mode and are
back in normal operation.
15. Switch Off the transponder
16. Switch On the transponder. Your
ICAO 24-Bit Aircraft Address is
now stored.
4.2.2 Functions Overview
In order to access the functions described in the following table press
during Standby mode and release
at the corresponding counter value.
Proceed analogue to the steps 1 to 4 described in the table in section
4.2.1.
The lower line contains the ICAO 24-Bit Aircraft Address (AA), the
Aircraft-Category (AC) und die Flight-ID (FID). AA and AC are marked by
a line above the numbers:
Digits 1 ... 6: ICAO 24-Bit Aircraft Address (HEX-Format)
Digits 7 ... 8: Aircraft Category
Digits 9 ... 16: Flight-ID (FID)
Counter Function
1..4 Just Display of:
ICAO 24-Bit Aircraft Address (AA)
Aircraft-ID (AC)
Flight-ID (FID)
Display-Mode automatically switches back to STBY
5..19 Change only FID (AA/AC-input locked)
• Set Cursor („^“) with
• turn rotary knob to select characters
• press
to save and to return to STBY
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
37Document-No: 03.2124.010.71e / Revision: 1.00
Counter Function
20 Test-Mode
• leave the test mode with
40 display error logging
press
to return to STBY
47 enter ICAO-24bit Aircraft Address / Aircraft Category (AC) /
Flight-ID (FID)
• the
button shifts the Cursor („^“) one digit to the
right, the
button shifts it one digit to the left
• turn rotary knob to select characters
• press to enter the next menu item
changes are kept in memory, but are not yet active
• press to return to the previous menu item
Ground-Switch-Info
• turn rotary knob to select option (Yes/No)
• press to enter the next menu item
changes are kept in memory, but are not yet active
• press to return to the previous menu item
Speed Category
• with respect to the maximum airspeed of the aircraft
enter the corresponding value (see section 4.1.6) with
the rotary knob
• press to enter the next menu item
changes are kept in memory, but are not yet active
• press to return to the previous menu item
configure RS232 interface (refer to section 4.1.7)
• turn rotary knob to select option
• press
to save and to return to STBY
• Transmission of position data is indicated by “p“ (type of
squitter) in the upper line in the test mode
Turn power off and on again with
to activate new
settings.
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
38 Document-No: 03.2124.010.71e / Revision: 1.00
5 APPENDIX
5.1 Technical Data
Compliance CS-ETSO-2C112a
EASA.21O.269
Applicable Documents CS-ETSO-2C112a
EUROCAE ED-73B Class 1 Level 2es
EUROCAE ED-26
RTCA DO-160D
RTCA DO-178B Software-Level D
Temperature Ranges
Operation -20 °C to +55 °C; for 30 min +70°C
Storage -55 °C to +85 °C
Altitude Range ≤ 35 000 ft
Speed Range ≤ 250 kt (TAS)
Shock 6 G Operation
20 G crash safety
Environmental Categories RTCA DO-160D Env.Cat.:
[C1Z]CAA[SM]XXXXXXZBAAA[TT]M[B3F3]
XXA
Power Supply 13,8 VDC (10 VDC .. 16 VDC)
0,40 A @ 13,8 VDC (typ.)
0,70 A @ 13,8 VDC (max.)
10 W (max)
Fuse External 2A-slow-blow fuse
Mounting Panel cut-out d=57,5 mm
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
39Document-No: 03.2124.010.71e / Revision: 1.00
Weight 0,6 kg (1.32 lbs.)
Receiver Characteristics:
Sensitivity
RF input power level resulting in a 90 %
reply rate:
A. MTL for ATCRBS and ATCRBS/Mode S
All-Call interrogations: -74 dBm ±3 dB.
B. MTL for Mode S interrogations:
-74 dBm ± 3 dB.
Reply transmission
frequency
1090 ± 1 MHz
RF Peak Power Output
≥ 21 dBW (126 W) at antenna base
(with maximum cable attenuation of 1,5 dB)
Squitter (ADS-B) transmitted at random intervals uniformly
distributed over the range from 0.8 to 1.2
seconds, full self-verification of data and
occurrence
Mode S Elementary Surveillance
ICAO 24-bit Aircraft
Address (Hex-Code)
aircraft address as assigned by national
aviation authority
FID Flight ID: Flight Plan call sign or aircraft
registration marking
Capability Report Reports the available data and means by
which the transponder can report.
Pressure Altitude Up to 35 000 ft in 25 ft increments
Flight Status in-flight / on-ground
Mode S Enhanced Surveillance
Level 2es Comm-A / Comm-B: 56/112-Bit-Messages
SI-capability
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
40 Document-No: 03.2124.010.71e / Revision: 1.00
5.2 Environmental Conditions
Characteristic DO–160D
Sectio
n
Cat. Condition
Temperature / Altitude 4.0
Low ground survival
temperature
4.5.1 – 55°C
Low operating temperature 4.5.1 – 20°C
High ground survival
Temperature
4.5.2 + 85°C
High Short-time Operating
Temperature
4.5.2 + 70°C
High Operating Temperature 4.5.3
C1
+ 55°C
In-Flight Loss of Cooling 4.5.4 Z
No auxiliary cooling
required
Altitude 4.6.1 C1 35 000 ft
Temperature Variation 5.0 C
2°C change rate minimum
per minute
Humidity 6.0 A
Shock 7.0 A
6 G operational shocks
20 G Crash Safety
Test Type R in all 6
directions
Vibration 8.0 S Vibration Curve M
Explosion Proofness 9.0 X No test required
Water Proofness 10.0 X No test required
Fluids Susceptibilities 11.0 X No test required
Sand and Dust 12.0 X No test required
Fungus Resistance 13.0 X No test required
Salt Spray 14.0 X No test required
Magnetic Effect 15.0 Z Less than 0,3 m
Power Input (DC) 16.0 B
Voltage Spike Conducted 17.0 A
Audio Frequency Conducted
18.0 A
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
41Document-No: 03.2124.010.71e / Revision: 1.00
Characteristic DO–160D
Sectio
n
Cat. Condition
Susceptibility
Induced Signal Susceptibility 19.0 A
Radio Frequency
Susceptibility
20.0 TT
Emission of RF Energy 21.0 M
Lightning Induced Transient
Susceptibility
22.0
B3F
3
Lightning Direct Effects 23.0 X No test required
Icing 24.0 X No test required
Electrostatic Discharge (ESD) 25.0 A
TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
42 Document-No: 03.2124.010.71e / Revision: 1.00
Notes:
Funkwerk Avionics GmbH
Gewerbestraße 2
D-86875 Waal
Germany
phone.: +49-8246 9699 0
fax.: +49-8246 1049
E-mail:
service@funkwerk-avionics.com
www.funkwerk-avionics.com
Loading...
