Funkwerk bintec WI-Client User Manual

bintec WI-Client

WLAN Ethernet Client Adapter

WLAN Serial Client Adapter

Manual

WI-Client Manual Version 2.16 V3 1

Content:

Overview .......................................................................................................................................................... 3

Technical features: ....................................................................................................................................... 5

WLAN - Interface: ....................................................................................................................................... 5

First Time Setup .............................................................................................................................................. 6

The ComPoint Manager ............................................................................................................................... 6

Reset to factory default ................................................................................................................................ 7

Parameter setting via WEB interface .............................................................................................................. 8

Information page .......................................................................................................................................... 8

Access Point page ....................................................................................................................................... 9

Security page ................................................................................................................................................ 11

Admin page .................................................................................................................................................. 12

Advanced page ............................................................................................................................................. 13

Cloning ..................................................................................................................................................... 13

Advanced bridging ................................................................................................................................... 13

Roaming ................................................................................................................................................... 14

Ethernet Port ............................................................................................................................................ 14

DHCP-Relay-Agent ................................................................................................................................. 14

Serial interface setup .................................................................................................................................... 16

Comment to the multicast settings ........................................................................................................... 17

Power supply connector .............................................................................................................................. 20

Legal Notice ................................................................................................................................................. 21

Pictures:

Illustration 1 Block schematic.........................................................................................................................3

Illustration 2 Connections and LEDs..............................................................................................................4

Illustration 3 arrangement to configure the WI-Client....................................................................................6

Illustration 4 screenshot of the ComPoint Manager........................................................................................7

Illustration 5: Information page......................................................................................................................8

Illustration 6: Access Point page.....................................................................................................................9

Illustration 7: Wireless page............................................................................................................................10

Illustration 8: Security page............................................................................................................................11

Illustration 9: Administration page.................................................................................................................12

Illustration 10: Configuration example...........................................................................................................13

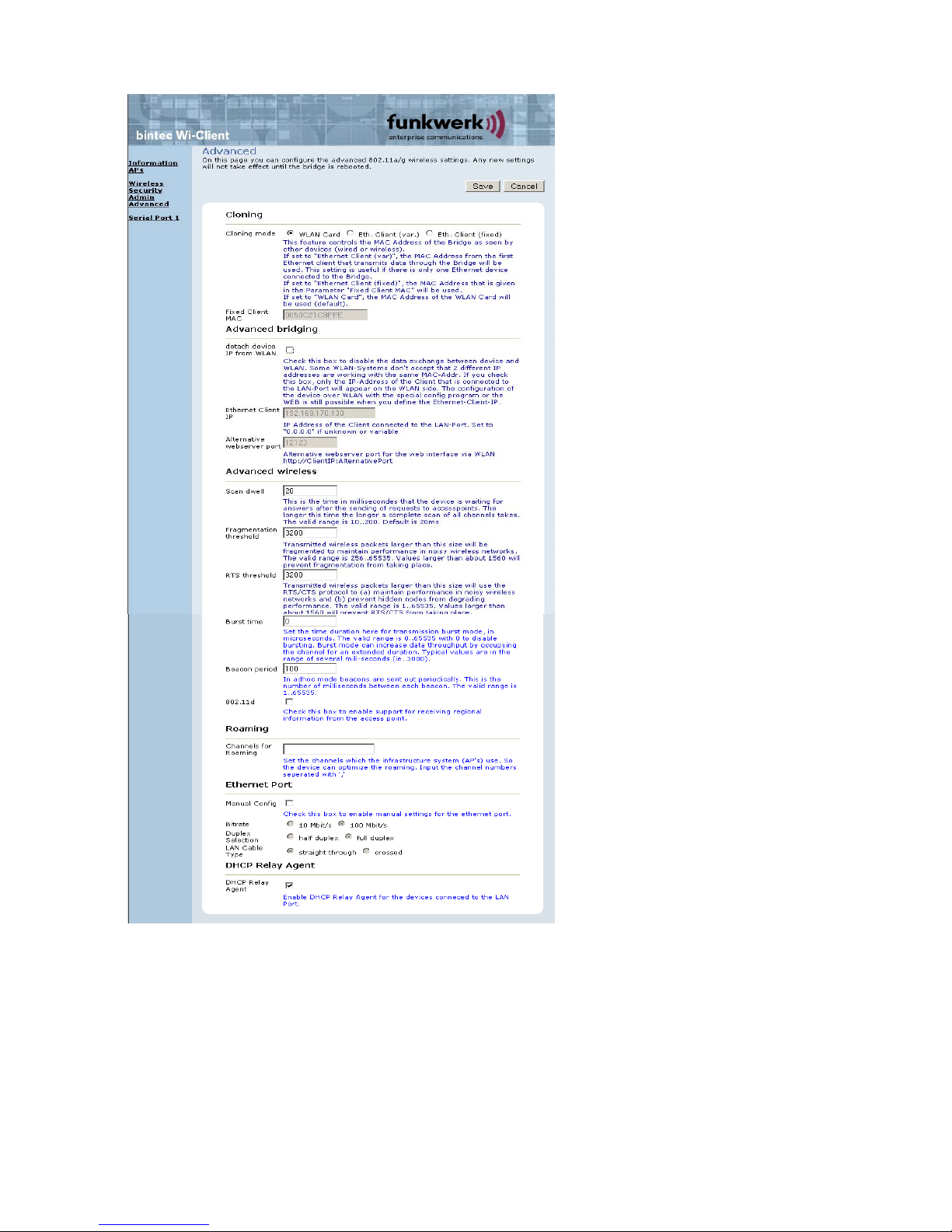

Illustration 11: Advanced page........................................................................................................................15

Illustration 12: Windows TCP/IP Portmonitor................................................................................................16

Illustration 13: Multicast-mode.......................................................................................................................17

Illustration 14: Serial interface setup..............................................................................................................19

Illustration 15: Power supply connector.........................................................................................................20

WI-Client Manual Version 2.16 V3 2

Overview

The WI-Client is intended to connect devices with ethernet or serial interfaces to a Wireless Local Area
Network (WLAN) corresponding to the 802.11 a/b/g standard. The WI-Client connects over the eth ernet
interface all devices in its LAN segment with a LAN that is accessible over WLAN.

The WI-Client can receive and transmit data over its serial port which are exchanged over LAN or WLAN
with other devices, i.e. annother WI-Client or a computer with a suitable software.

Functional blocks:

Illustration 1 Block schematic

The core of the WI-Client is a 32bit network processor that controls all functions.
The interfaces:

1) Mini-PCI-Socket

2) Ethernet-Interface 10/100 MBit + auto MDI (auto crossover function)

3) 1 or 2 serial interfaces with 6 status lines each

WI-Client Manual Version 2.16 V3 3

Network

Processor

UBICOM

IP3023

32bit

250MHz

Power

9 - 36V

< 3W

Reset

6

3

2

1

RJ45

TD-

TD+

RD-

RD+

32bit

Reset

1.2V

TxD
RxD

RS232

DTR

3

2

7

8

4

6

DSR

RTS
CTS

SER1

1
9

DCD

RI

M

I

I

Reset/

Watchdog

WD

4MByte -

Flash

miniPCI

radio modul e

CM9

miniPCI-

Socket

Eth.

MAC

10/100Mbit

Phy.

Auto MDIX

+

-

DC/DC

Converter

EEPROM

DC/DC

Converter

3.3V

UART

RS 232

PCISPI

A1

A2

SER2
SER1

LAN
WLAN

Power

3.3V

MEM

P
O
R
T

LAN

The ethernet port has a RJ45 plug. Because of the auto MDI functionality the WI-Client can be attached to a
HUB or the LAN port of a computer with standard patch cables. The WI-Client recognizes the cable polarity
and automatically connects the right signal lines.

The serial port is a 9 pin female D-SUB connector. The pinout makes it possible to connect to a com puter
COM port with a 1 to 1 serial cable, the exact pinout is shown in Illustration above.

The power supply should be 9 – 35VDC / 3W. At 12VDC the input current is typical 250mA.
Back and front view:

LINK

100MBit

54321

9876

W

L

A

N

L

A

N

S

e

r

1

S

e

r

2

R

e

s

e

t

O

n

0V

NC

+ VB

RP-SMA antenna connector

Option for a 2. antenna connector

PIN Function Dir.
1 DCD IN
2TxDOUT
3RxDIN
4DSRIN
5GND
6DTROUT
7CTSIN
8RTSOUT
9RIIN

Illustration 2 Connections and LEDs

LED Function

On Green always on when power is on
WLAN Red blinking searching for RF-connection (scanning)

Steady green found a suitable Access-Point and established

a connection

Green blinking 802.1x Authentification is in process
Green + red blinking

RF activity (receive or transmit)

LAN Off no link is recognized

Green link is established with another LAN device.
Green + red blinking

activity on the LAN interface

Ser1 (2) Off interface is inactive or not connected to the

other (W)LAN-.communication side

Green connected to other serial device.
Green + red blinking

activity on the serial interface (receive or
transmit)

WI-Client Manual Version 2.16 V3 4

Technical features:

Processor Type 32bit network processor 250MHz clock

Memory 256KByte program (internal)

64KByte data (internal)
4MByte flash (external)
4MByte SDRAM (external, optional)

Interface Ethernet 10/100 Mbps fast ethernet auto MDI/MDIX

Serial 1 RS232 with control lines

RTS, CTS, DSR, DTR,DCD (input), RI (inpu t )

(optional as RS485, RS422)
Serial 2 Same as serial 1 but only RS232
Mini-PCI Socket for RF cards with Atheros chi p sets

(AR5112, AR5113)
Relay (optional) Relay contact

can be operated over LAN or WLAN

Connection with circular M8-4pin connector
AUX input (optional) Isolated input with optocouple

LEDs LEDs - Power (green)

- WLAN (green, red)

- LAN (green, red)

- SER1 (green, red)

- SER2 (green, red)

Power supply Connector Circular M8-3pin connector with screw locking

Power consumption < 2.5W (typ.) < 3W (max.)
Voltage range S tandard: 8-30V non isolated

Temperature
range

operating 0 - 70°C ( 32 - 158°F)

storage -20 - 80°C ( -4 - 176°F)

Dimensions Board 120x100x20mm

Case standard: 125x105x40mm
Weight approx. 500g

WLAN - Interface:

WLAN Encryption 64, 128bit WEP, AES

Security 802.11i WPA + WPA2 (Wifi Protected Access) (PSK/TKIP)

802.1x (EAP-TLS, EAP-PEAP), LEAP

Data rates 802.11b 11, 5,5, 2 & 1 MBit/Sec.

802.11g 54, 48, 36, 24, 18, 12, 9, 6 MBit/Sec.

802.11a 54, 48, 36, 24, 18, 12, 9, 6 MBit/Sec.

Frequencies ISM band: 2.400 MHz to 2.483 MHz

U-NII band: 5.150 MHz to 5.350 MHz (ETSI, RegTP indoor)

5.470 MHz to 5.725 MHz (ETSI, RegTP outdoor)

Channels 802.11b/g:

ETSI: 1-13, (3 non overlapping)

802.11a:
ETSI: 12 non overlapping (5.150-5.350 & 5.470-5.725 MHz)

Power output 802.11b/g: 18dBm peak

802.11a: 18 or 17dBm

WI-Client Manual Version 2.16 V3 5

First Time Setup

To set up the WI-Client it has to be connected with a patch cable to the ethernet interface of a computer.
Because of the auto MDI/MDIX capability, you can use a straight or crossov er patch cable.
After applying power, the green “Link LED“ on the RJ45 connector shines when a link is detected. The yellow
“100 MBit LED“ indicates whether the connection is capabl e of 100 MBit.
The “LAN” LED on the front panel shines green when a connection has been established over the ethernet.
The “WLAN” LED on the front panel will be blinking red because usually no suitable WLAN is recognized.

The ComPoint Manager

To do the „first time setup“ the WI-Client has to be connected via the LAN-Interface to the computer (PC) that
runs the ComPoint Manager Program.

Illustration 3 arrangement to configure the WI-Client

You have to observe:

- The connected PC should have an fixed IP address. (no DHCP)

- The LAN-Interface at the PC must be detected as connected. Check the parameter of t he LAN­Interface with the „ipconfig“-command.

- If the LAN-Interface of the PC is correctly recognized then press the „refesh“-button of the WI-Client­config-program.

- An active firewall could prevent the communication the WI-Client.

For detection of the WI-Client and managing of the IP address the CD Rom contain a small tool, this tool is
called ComPoint Manager.

After the start the ComPoint Manager ascertained all network interfaces that are active at the PC. After that
the ComPoint Manager sends broadcast UDP requests to all these Interface s. The registered answers of the
WI-Client devices are shown in a list.

WI-Client Manual Version 2.16 V3 6

Notebook

/

Computer

9-35V DC

Ethernet

S

e

r

1
S

e

r

2
L

A

N

W

L

A

N

O

n

R

e

s

A

n

t

2

A

n

t

1

W

i

-

C

l

i

e

n

t

Illustration 4 screenshot of the ComPoint Manager

All located WI-Client-Devices are shown in list. A click to a device opens a sub window to change the unit
name and the IP address.

Reset to factory default

The factory default settings can be restored by pressing the reset butt on loc ated on the front panel for a
longer period. After about 5 seconds the LEDs “SER1“ and “SER2“ starts blinking red and green alternately.
By keeping the button depressed the factory default values are restored. After finishing all LEDs except the
“ON” LED are turned off. Now the reset button can be released.

main factory default values:
SSID = “WI-Client_WLAN“

WEP = OFF
WPA = OFF
MODE= 802.11b/g

IP = 192.168.0.252
Netmask = 255.255.255.0

SER1+2 : off

802.1x user: „admin“

802.1x password: „password“

WI-Client Manual Version 2.16 V3 7

Parameter setting via WEB interface

Information page

General information regarding firmware versions and status reports

Illustration 5: Information page

On the left hand side are links to differe nt setup and info pages.

• Information the page above(Illustration )

• APs Shows a table with all access points currently seen by the WI-Client (Illustration ).

• Wireless WLAN interface setup (SSID, mode, frequencies etc.) (Illustration )

• Security Encryption setup (WPA, WEP) (Illustration )

• Admin - reboot WI-Client

- reset all parameters to default.

- firmware updates

- configure IP-address, subnet mask, gateway IP

- configure setup options

- enter username and password
(Illustration )

• serial Port 1 setup of serial port 1 ()

• serial Port 2 setup of serial port 2

WI-Client Manual Version 2.16 V3 8

Access Point page

Information on all access points currently available to the WI-Client.

Illustration 6: Access Point page

WI-Client Manual Version 2.16 V3 9

Wireless page

Configuring the WLAN interface

The WLAN radio can be switch off or
here.

Wireless mode
Infrastructure = Connect to AP
Ad hoc = peer to peer connection

SSID, Service Set Identifier.
Name of the WLAN network.
This name must be the same as the
access points SSID

Transmission rate.
Best = automatic depending on signal
strength.
If useful, you can select a fixed
bitrate.

802.11 mode.

802.11b = 2.4GHz 11MBit

802.11g = 2.4GHz 54MBit

802.11b/g = 2.4GHz 11 + 54MBit

802.11a = 5GHz 54MBit

AP Density:
influences the roaming behaviour

Super mode: is not supported

Country
Select the country in which the
ESCG is used. This determines the
number of available channels.

802.11a Frequency Band s:
possible channel restriction for the 5GHz
(802.11a) operation.

Channel
This channel has to be selected
in ad hoc mode only

Antenna mode
single = when one antenna is used
diversity = when two antennas are
used. With two antennas the radio
can select the antenna that delivers
the best signal.

The Transmit Power can be adjusted
here.

Illustration 7: Wireless page

By clicking the “Save“ button all changes on this page are stored. Use “Cancel” to undo any chang es. After
clicking “Save” the program prompts the user to make a reboot. This should be done after all necessary
changes on all pages have been made.

WI-Client Manual Version 2.16 V3 10

Security page

Setting up the security options
If the user selects the 802.1x authentication the PSK or the WEP-Keys do n’t have to be defined because the
WI-Client and the Radius-Server will determine these parameters automatically.

Enable authentication with radius
server

Select authenticat ion me t hod:
EAP-PEAP
EAP-TLS
EAP-TTLS
LEAP (CISCO spec.)

Username and Password

Enable WPA and select WPA
mode
WPA = encryption with RC4
WPA2 = encryption conforming to
AES

Select cipher type

PSK = Pre Shared Key
for authentication
with access point

Default WEP key for data
transmission

Authentication type for registration
with an access point

WEP key length
64 bit or 128 bit

Enter keys as hex digits
10 digits for 64 bit WEP
26 digits for 128 bit WEP

There must be defined at least one
key that is defined as „default
WEP key“

Illustration 8: Security page

WI-Client Manual Version 2.16 V3 11

Admin page

Setting up administration rights and configure basic features, update firmware

Wi-Client

Option to block the bridging
funktion of the Wi-Client. This
could be useful when the Wi-Cl i ent
only works as a serial client
adapter. The configuration via
LAN-Interface is not blocke d w i t h
this option.

Enable more configuration options:

IP Config over UDP 41233:

assignment of an IP-Address over
the LAN-Interface (special
function).

Telnet-Config:

Configuration
option via an telnet server sock et
(TCP-Port 23).

disable wireless config:

for
security reasons it is possible to
prevent the configuration v ia
WLAN.

Enter user name and password to
protect the
Wi-Client from unauthor i zed
access

IP address:
By selecting “DHCP” the Wi-Cli ent
is assigned the IP address from a
DHCP server on the network.
By selecting “Static” the IP
address is fix ed. In this case the
network mask has to be definded
and possibly the default gateway.

Device name:
This is a name to identify the Wi­Client by external configuration
and IP address lookup programs,
i.e. the locator program.
This is not the SSID

Select firmware file

Restore the Wi-Client
configuration to default val ues

Reboot the Wi-Client

Upload firmware to Wi-Client

Illustration 9: Administration page

WI-Client Manual Version 2.16 V3 12

Advanced page

The advanced page offers more detailed options to define the behavior of the WI-Client in the WLAN
environment.

Cloning

The cloning parameter defines the MAC address of the WI-Client’s radio. Usually the WI-Client leaves the
MAC address at the manufacturers value. All devices connected to the WLAN over the WI-Client’s ethernet
port use this MAC address for communication.
The WI-Client keeps a table where the original MAC address of the connected device is linked to its IP
address.
If a data package arrives at the WI-Client on the ethernet port, the WI-Client first checks if there is an entry in
its table with the source MAC address of this device. If the answer is no, this MAC address is added to the
table.
Next it checks if there is an entry for the target MAC address.
If the answer is yes it means that the receiver of this data packet is located on the wired side of the WI-Client
and therefore there is no need to send it over the wireless radio.
If the answer is no, the source MAC address is replaced by the radio’s MAC address and the data package
is sent over the radio to the WLAN
If the WI-Client receives a data package from the WLAN, it first extracts the target IP address. Next it looks
up the corresponding MAC address in its table . This MAC address is placed in the data package which is
then sent over the ethernet port to the connected devices.
With this method several devices can be connected to the WI-Client.
This procedure only works in LAN’s / WLAN’s that use the IP protocol. If other protocols are used, the WI­Client can be forced to transfer the MAC address of the first data packet that arrives on the ethe rn et port t o
the radio. This method is called cloning. It ensures that all data packages intended for the connected device
are received by the WI-Client. The WI-Client can forward the data to the ethernet port without any further
processing.
This method allows only one device to be connected to the WI -Client ethernet port. This strategy is activated
by selection the option “Eth. Client (var)”.

With the option “Eth. Client (fixed)” the user can defined a MAC address that the WI-Client will use for the
WLAN Connection.

Advanced bridging

Check this box to disable the data exchange between WI-Client and WLAN. Some WLAN-Systems don't
accept that 2 different IP addresses are working with the same MAC-Address. If you check this box, only the
IP-Address of the Client that is connected to the LAN-Port will appear on the WLAN side. The configuration
of the WI-Client over WLAN is still possible with this setting.

Illustration 10: Configuration example

WI-Client Manual Version 2.16 V3 13

Roaming

Roaming is the term for automatically changing to another access point when the WI-Client recognizes a
decreasing RF signal level when leaving the covered area of the current access point and a better level with
another AP available.
For this purpose the WI-Client keeps a table with a list of access points from which it is receiving signals
(beacons).
To receive these beacons the WI-Client has to tune to the different channels and listen for incoming signals
for a certain amount of time. This hampers the regular data traffic which the WI-Client has to process.
Therefore this procedure is handled in different ways depending on the current signal level.
To make this procedur e even more effective, the us er can restrict the channels where the WI-Client is
allowed to look for beacons of other access points

Ethernet Port

Check this option to enable manual settings for the ethernet port.

DHCP-Relay-Agent

Check this option to enable the DHCP-Relay-Agent of the WI-Client. This is useful if the connected clients at
the ethernet port of the WI-Client are using DHCP.

WI-Client Manual Version 2.16 V3 14

Illustration 11: Advanced page

WI-Client Manual Version 2.16 V3 15

Serial interface setup

The WI-Client can have one or two serial interfaces, depending on the options. Each interface is configured
on its own WEB page.

Network configuration

There are different modes available for the use of the seria l interfaces:

1) TCP/IP server mode:
In this mode the WI-Client opens a socket in a “listen mode”, which means that it is waiting on a certain
port (local port) for a connection. The WI-Client only holds one connection at a time. In this mode only the
port number has to be specified.

Remark:

This operation mode is compatible with the implementation of the bintec Wix040 and Wix065

Rel.7.8 or higher.

2) TCP/IP client mode:
In this mode the WI-Client actively opens a TCP connection on the specified port of anoth er network
node. This node can be another WI-Client or a computer which is waiting for a connection on the
specified port. In this mode the port number and the IP address of the connected device have to be
specified.

Remark:

This operation mode is compatible with the implementation of the bintec Wix040 and Wix065

Rel.7.8 or higher.

3) UDP/IP mode:
In this mode the WI-Client is waiting for data on the “local port“ which are sent with UDP/IP. The received
data are then sent to the “remote port” of the remote IP address. The UDP should be used in
circumstances where the communication between the devices is frequently interrupted. It should be
considered though that the UDP protocol does not guarantee the correct transfer of data.

4) Printer server mode:
In this mode the WI-Client starts a TCP/IP socket in server mode which is waiting for a connection on port

515. The WI-Client is then able to execute print jobs corresponding to RFC1179. If you want to enable a
printer with this method under Windows, it has to be set up like the follo wing example:

Illustration 12: Windows TCP/IP Portmonitor

5) COM server mode:
In this mode the WI-Client provides virtual COM ports under Windows. For this purpose a software tool
from the company Wiesemann & Theis (www.wut.de

) has to be installed. The tool is named “COM

WI-Client Manual Version 2.16 V3 16

IP address ESCG

Protocol

Portnumber: LPD is always 515

Name: ignored by Wi-Client

Example:
Windows setup for a printer connected via LPR

Umlenkung. This tool enables the WI-Client to connect to serial devices over LAN/WLAN. After
installation of the softw are enter the WI-Client IP address and port number.

Please read and following the license terms of the tool.

Comment to the multicast settings

In the Multicast-Mode serial busmembers who are communica ting with RS485 interfaces can be connected
via the (W)LAN. Depending which task the serial device takes it is possible to configure different modes:

1. Slave

2. Master

3. Multimaster

As a slave the WI-Client receives data on the configured multicast address and sends this data to the serial
interface. Data that is received from the serial line is sent to the given unicast IP address.

As a master the WI-Client receives data from the unicast IP address and transmits data to the multicast IP
address.
In multimaster mode all transfers are done via the multicast IP address.

sample application:

W

i

-

C

l

i

e

n

t

W

i

-

C

l

i

e

n

t

PC

RS232/

RS485

RS232 / RS485

Device

RS232/

RS485

SLAVE

1

MASTER

W

i

-

C

l

i

e

n

t

RS232 / RS485

Device

RS232/

RS485

SLAVE

2

Multicast 224.0.0.42 Port 8889

Unicast 192.168.170.100 Port 8888

Unicast 192.168.170.100

Port 8888

IP: 192.168.170.100
Local Port: 8888
RemotePort: 8889
Multicast: 224.0.0.42

IP: 192.168.170.101
Local Port: 8889
RemotePort: 8888
Multicast: 224.0.0.42

IP: 192.168.170.102
Local Port: 8889
RemotePort: 8888
Multicast: 224.0.0.42

Illustration 13: Multicast-mode

WI-Client Manual Version 2.16 V3 17

“Keep alive“ settings

A TCP/IP connection remains open after being established until one of the communicating devices closes
the connection. If the physical connection between the WI-Client and the other device is interrupted without
closing the TCP/IP connection, there is a possibility that the WI-Client is not able to reconnect. The TCP/IP
socket can be programmed to send an empty data package to the communication partner in reg ular intervals
(keep alive period). If the communication partner supports this mode, it sends a corresponding answer. This
answer is proof that the connection is still intact. If there is no answer for a number of times (keep alive
probes), the TCP/IP connection is closed and the WI-Client starts the TCP/IP socket again.

“Send trigger” configuration

The data received by the WI-Client are first temporarily stored. There are diff erent criteria when the stored
data will be sent over the LAN/WLAN.

1) Byte trigger: The user defines a number of Bytes. After reaching that number, the stored data are
sent.

2) Timeout: After receiving a character a timer with the programmed value is started. Each received
character restarts the timer. Once the timer has elapsed the stored data are sent.

3) Delimiter: The user defines a certain character. When this character is received, the stored data are
sent.

The parameter “receive fifo size” defines the quantity of bytes that can be stored in a ringbuffer before the
data is sent to the (W)LAN interface. If you use the WI-Client in an application that receives permanently
data via the serial interface the “receive fifo size” has to be set to a value between 1024 and 2048 bytes.
Because the WI-Client need s all the available RAM memory in a situation of authentication with 802.1x
(PEAP,TLS) this value is set to a value of 256 Bytes by default to save memory space .

Handshake mode

This defines how the communication partners are signaling their ability to send and receive data. With the
status lines RTS and DTR the WI-Client reports that it is ready to receive. The status lines CTS and DTR are
inputs where the communication partner reports its readiness to rece ive. The signals DCD and RI can be
forwarded to the WI-Clients LAN/WLAN communication partner.
The WI-Client be controlled remote or local to handle the data flow.
The following modes are available to the user:

1) no handshake: The CTS/DSR signals are not utilized. CTS/RTS are set to active when the serial
interface is connected over the LAN/WLAN.

2) XON / XOFF : The WI-Client sends and receives the control characters XON = 0x11 and XOFF =
0x13. The WI-Client sends a XOFF to his serial communication partner when the memory buffer is
almost full and a XON when it is almost empty.

3) RTS/CTS: The WI-Client signals that it is ready to receive over the RTS line and recognizes the CTS
signal to determine if its serial partner is ready to receive.

4) DTR/DSR: The WI-Client signals that it is ready to receive over the DTR line and recognizes the
DSR signal to determine if its serial partner is ready to receive.

5) Remote: In this mode the WI-Client transmits the state of the status lines CTS, DSR, RI and DCD to
its LAN/WLAN communication partner. This happens over a different socket (port). This makes it
necessary for the user to enter more specifications.
The state of the status lines are descri bed by strings of letters.
A capital letter means the signal is active, a small letter means inactive.
’D’ = DSR active ‘d’ = DSR inactive
’R’ = CTS active ‘r’ = CTS inactive
’C’ = DCD active ‘c’ = DCD inactive
’I’ = DSR active ‘i’ = DSR inactive

The WI-Client interprets the received data as follows:
’D’ -> set DTR to active ‘d’ = set DTR to inactive
’R’ -> set RTS to active ‘r’ = set RTS to inactive
‘C’ or ‘c’ and ‘I’ or ‘i’ are ignored.

WI-Client Manual Version 2.16 V3 18

6) 3964R: This is a special protocol which is commonly used for communication with SPS
(programmable control systems). This protocol uses special characters and events to signal when it
is ready to transmit and receive. Descriptions of this proto c ol are available in literature.

Illustration 14: Serial interface setup

WI-Client Manual Version 2.16 V3 19

Power supply connector

The WI-Client is equipped with a circular M8- 3pin connector. The connection is as follows:

Illustration 15: Power supply connector

WI-Client Manual Version 2.16 V3 20

0V

NC

M8 cable wire colors:
0V blue
8-30V black
NC brown

NC = not connected

8-30V

Legal Notice

Aim and purpose

This document is part of the user manual for the installation and configuration of funkwe rk devices. For
the latest information and notes on the current software release, please al so read our release notes,
particularly if you are upda ting your software to a higher release version. You will find the latest release
notes under www.funkwerk-ec.com .

Liability

This manual has been put together with the greatest possible care. However, the information contained
in this manual is not a guarantee of the properties of your product. Funkwerk Enterprise Communications
GmbH is only liable within the terms of its conditions of sale and supply and accepts no liability
for technical inaccuracies and/or omissions.
The information in this manual can be changed without n otice. Y ou will find additional information and
also release notes for funkwerk devices under www.funkwerk-ec.com .
Funkwerk devices make WAN connections as a possible function of the system configuration. You
must monitor the product in order to avoid unwanted charges. Funkwerk Enterprise Communications
GmbH accepts no responsibility for data loss, unwanted connection costs and da mage caused by
unintended
operation of the product.

Trademarks

funkwerk trademarks and the funkwerk logo, bintec trademarks and the bintec logo, a rtem trademarks
and the artem logo, elmeg trademarks and the elmeg logo are registered trademarks of Funkwerk Enterprise
Communications GmbH.
Company and product names mentioned are usually trademarks of the companies or manufacturers
concerned.

Copyright

All rights reserved. No part of this manual may be reproduced or further processed in any way without
the written consent of Funkwerk Enterprise Communications GmbH. The documentation may not b e
processed and, in particular, translated without the consent of Funkwerk Enterprise Communications
GmbH.

You will find information on guidelines and standards in the declarations of conformity und er

www.funkwerk-ec.com .

How to reach Funkwerk Enterprise Communications GmbH

Funkwerk Enterprise Communications GmbH, Südwestpark 94, D-90449 Nuremberg, Germany,
Phone: [phone], Fax: [phone]

Funkwerk Enterprise Communications France S.A.S., 6/8 Avenue de la Grande Lande, F-33174
Gradignan, France, Phone: [phone], Fax: [phone]

Internet: www.funkwerk-ec.com

WI-Client Manual Version 2.16 V3 21
