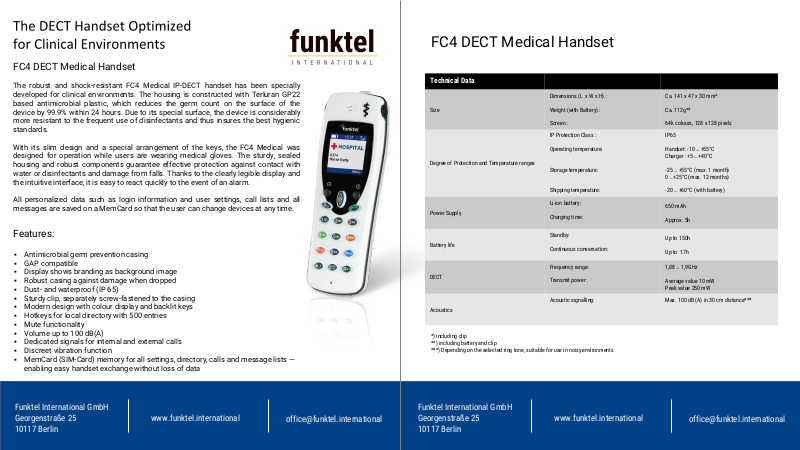

Funktel FC4 Medical Technical

FC4 DECT Medical Handset

The robust and shock-resistant FC4 Medical IP-DECT handset has been specially
developed for clinical environments. The housing is constructed with Terluran GP22
based antimicrobial plastic, which reduces the germ count on the surface of the
device by 99.9% within 24 hours. Due to its special surface, the device is considerably
more resistant to the frequent use of disinfectants and thus insures the best hygienic
standards.

With its slim design and a special arrangement of the keys, the FC4 Medical was
designed for operation while users are wearing medical gloves. The sturdy, sealed
housing and robust components guarantee effective protection against contact with
water or disinfectants and damage from falls. Thanks to the clearly legible display and
the intuitive interface, it is easy to react quickly to the event of an alarm.

All personalized data such as login information and user settings, call lists and all
messages are saved on a MemCard so that the user can change devices at any time.

FC4 DECT Medical Handset

Technical Data

Dimensions (L x W x H) :

Size

Degree of Protection and Temperature ranges

Power Supply

Weight (with Battery) :

Screen :

IP Protection Class :

Operating temperature:

Storage temperature:

Shipping temperature:

Li-ion battery:

Charging time:

Ca. 141 x 47 x 30 mm*

Ca. 112g**

64k colours, 128 x 128 pixels

IP65

Handset: -10 … +55°C
Charger : +5 …+40°C

-25 … +55°C (max. 1 month)
0 …+25°C (max. 12 months)

-20 … +60°C (with battery)

650 mAh

Approx. 5h

Features:

▪ Antimicrobial germ preventioncasing
▪ GAP compatible
▪ Display shows branding as background image
▪ Robust casing against damage when dropped
▪ Dust- and waterproof (IP 65)
▪ Sturdy clip, separately screw-fastened to the casing
▪ Modern design with colour display and backlit keys
▪ Hotkeys for local directory with 500 entries
▪ Mute functionality
▪ Volume up to 100 dB(A)
▪ Dedicated signals for internal and external calls
▪ Discreet vibration function
▪ MemCard (SIM-Card) memory for all settings, directory, calls and message lists —

enabling easy handset exchange without loss of data

Funktel International GmbH
Georgenstraße 25
10117 Berlin

www.funktel.international

[e-mail]

Standby:

Battery life

DECT

Acoustics

*) including clip
**) including battery and clip
***) Depending on the selected ring tone, suitable for use in noisy environments

Continuous conversation:

Frequency range:

Transmit power:

Acoustic signalling: Max. 100 dB (A) in 30 cm distance***

Funktel International GmbH
Georgenstraße 25

www.funktel.international

10117 Berlin

Up to 150h

Up to 17h

1,88 … 1,9GHz

Average value 10 mW
Peak value 250 mW

[e-mail]
