Funai SRDV200 User Manual [en, es]

Download

Page 1

OWNER’S MANUAL

If you need additional assistance for set-up or operating after reading owner’s manual, please call

TOLL FREE : 1-800-968-3429

Please read before using this equipment.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

DVD PLAYER

SRDV200

Page 2

–2–

1A23

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO

NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Page 3

–3–

1A23

IMPORTANT SAFEGUARDS

1) Read Instructions - All the safety and operating instructions should be read before the product is operated.

2) Retain Instructions - The safety and operating instructions should be retained for future reference.

3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4) Follow Instructions - All operating and use instructions should be followed.

5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7) Water and Moisture - Do not use this product near water for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13) Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

15) Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the

product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to its normal

operation, e) If the product has been dropped or damaged in any way,

and f) When the product exhibits a distinct change in perfor-

mance - this indicates a need for service.

20) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PORTABLE CART WARNING

(Symbol provided by RETAC)

S3125A

Page 4

–4–

1A23

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the DVD player. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

ABOUT COPYRIGHT

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SYMBOLS USED IN THIS MANUAL

The following symbols appear below in some headings and notes in this manual, with the following meanings!

: Description refers to playback of DVD video discs.

: Description refers to playback of audio CDs.

: Description refers to playback of MP3 discs.

MP3

DVD

SUPPLIED ACCESSORIES

Remote control

(N9071UD)

Two AA batteries A/V cables

(approx. 3 feet (100 cm) long)

(WPZ0102TM015)

Page 5

–5–

1A23

TABLE OF CONTENTS

■ LASER SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ IMPORTANT SAFEGUARDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

ABOUT COPYRIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SUPPLIED ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SYMBOLS USED IN THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

■ ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

DISC TYPES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ OPERATING CONTROLS AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DISPLAYS DURING OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LOADING THE BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ HOOKUPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CONNECTING TO A TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CONNECTING TO A DOLBY DIGITAL DECODER OR DTS DECODER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CONNECTING

TO ATVOR A STEREO TV THAT HAS COMPONENT VIDEO IN JACKS

. . . . . . . . . . . . . . . . . . . . . . . 11

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS SUCH AS MD DECK OR DAT DECK . . . . . . . . . 12

■ PLAYING ADISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

PLAYING A DVD VIDEO OR AN AUDIO CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

USING THE DVD MENUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

USING THE TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PAUSING PLAYBACK OR DISPLAYING A STILL PICTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

RESUMING PLAYBACK FROM THE POINT WHERE PLAYBACK STOPPED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

STEPPING THROUGH FRAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

FAST FORWARD/REVERSE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

SLOW MOTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

STARTING FROM A DESIRED TRACK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

PLAYING FROM A DESIRED TITLE OR CHAPTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

STARTING FROM A DESIRED TIME COUNT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

MARKER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RANDOM (Audio CD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

A-B REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

PROGRAM (Audio CD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ZOOM PLAYBACK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

PLAYING AN MP3 DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CHANGING THE ON-SCREEN DISPLAY DURING MP3 DISC PLAY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

PLAYING AN MP3 DISC FROM A DESIRED TRACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

PLAYING AN MP3 DISC AT RANDOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

PLAYING AN MP3 DISC IN A PROGRAMMED WAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

■ SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CHANGING THE AUDIO LANGUAGE OR SOUND MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CHANGING THE SUBTITLE LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CHANGING THE CAMERA ANGLE (Multi-Angle Pictures) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CHANGING THE ON-SCREEN DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

BLACK LEVEL SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

TRUSURROUND SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ CHANGING THE SETUP ITEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

LANGUAGE SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DISPLAY SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

AUDIO SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

PARENTAL LOCK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

■ LANGUAGE CODE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

■ TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

■ HANDLING PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

DISC HANDLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

■ SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

INDICE

■ CONTROLES DE OPERACIÓN Y FUNCIONES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

VISUALIZACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

VISUALIZACIONES DURANTE LA OPERACIÓN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

INSTALACIÓN DE LAS PILAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

■ CONEXIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

CONEXIÓN A UN TELEVISOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

CONEXIÓN A UN DESCODIFICADOR DOLBY DIGITAL O A UN DESCODIFICADOR DTS. . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ONEXIÓN A UN

TELEVISOR

O A UN

TELEVISOR

STÉREO QUE TENGA TOMAS COMPONENT VIDEO IN

. . . . . . . . . . . . 34

ONEXIÓN A UN AMPLIFICADOR EQUIPADO CON TOMAS DE ENTRADA DIGITAL, PLATINA MD O PLATINA DAT

. . . . . . . . . . 34

■ REPRODUCCIÓN DE UN DISCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

REPRODUCCIÓN DE UN DVD DE VÍDEO O UN CD DE AUDIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Page 6

–6–

1A23

FEATURES

¡Dolby Digital sound

This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random playback for audio CD and MP3

This player can shuffle the order of tracks to play them in random order.

¡Program playback for audio CD and MP3

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 30 minutes, the power is automatically turned off.

¡Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

¡Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Automatic detection of discs

This player automatically detects if a loaded disc is DVD, audio CD or MP3 on disc.

¡Playing an MP3 disc

You can enjoy MP3 files which are recorded on CDR/RW.

¡Direct Search

You can search the desired title, chapter, and track with numeric button during playback or in stop mode.

¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡DTS (Digital Theater System)

You can enjoy 5.1channel surround system developed by the Digital Theater System co. which reproduces the original sound as truthfully as possible.

¡Search

Chapter search:Search for the chapter designated by user

is possible.

Title search: Search for the title designated by user is

possible.

Track search: Search for the track designated by user is

possible.

Time search: Search for the time designated by user is

possible.

¡Repeat

Chapter: Repeated playback of the chapter of the

disc being played is possible.

Title: Repeated playback of the title of the disc

being played is possible.

Track: Repeated playback of the track of the disc

being played is possible.

Disc

(audio CD)

: Repeated playback of the entire disc being

(MP3) played is possible.

A-B: The part between A and B designated by

user is possible.

Album: Repeated playback of the folder of the

MP3 disc being played is possible.

¡Zoom

2-time and 4-time magnified screen can be displayed.

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which the play was stopped even if the power turn off.

¡SRS TruSurround

You can enjoy stereophonic virtual space on your existing stereo system.

¡Component Video Out Jacks

Jacks located on the back of the DVD Player which are used to send high-quality video to a TV via Component Video In Jacks.

¡Dimmer

Brightness of the display can be varied.

¡Bit rate indication ¡DRC (Dynamic range control)

You can control the range of sound volume.

This unit employs TruSurround system

of SRS Labs, Inc. as virtual

technology.

TruSurround and the symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc.

Page 7

–7–

1A23

ABOUT THE DISCS

The following discs can be played back on this DVD player.

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PA L or SECAM.

¡Some discs include region codes as shown below.

¡The number inside the symbol refers to a region of the

world, and a disc encoded in a specific region format can only be played back on DVD players with the same region code.

The following discs cannot be played back on this DVD player.

DVD with region codes other than 1 or ALL.

DVD-ROM

DVD-RAM (Never play back, otherwise malfunction may result.)

CD-ROM

VSD

CDV (Only plays back the audio part.)

CD-G (Only plays back the sound.)

CD-R/CD-RW (Only plays back the discs which audio CD and MP3 is recorded.)

CD-I (Never play back, otherwise malfunction may result.)

SACD

Photo CD (Never play back, otherwise malfunction may result.)

Video CD (Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications

PLAYABLE DISCS

DVD

Video

12 cm

Approx. 4 h

(single-sided)

Approx. 80 min

(single-sided)

8 cm

Logo

Maximum

Playback Time

ContentsDisc Type

Sound

and

Pictures

Disc Size

74 min

Approx. 8 h

(double-sided)

Approx. 160 min

(double-sided)

12 cm

20 min

8 cm

(singles)

Audio

Sound

[

DVD

]

Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs, and these playback conditions take priority over user operations on this player. If a function you selected do not run as desired, refer to the manual accompanying the disc.

DISC TYPES

Example

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4

[

AUDIO CD

]

Data on an audio CD is divided into sections called “tracks”, each of which is given a track number.

Example

Track 1 Track 2 Track 3 Track 4 Track 5 Track 6

[

MP3

]

Data on a MP3 is divided into sections called "albums", and then into subsections called "tracks", each of which is given an album or track number.

Example

Album 1 Album 2

Track 1 Track 2 Track 1 Track 2Track 3 Track 4

Page 8

–

8–

1A23

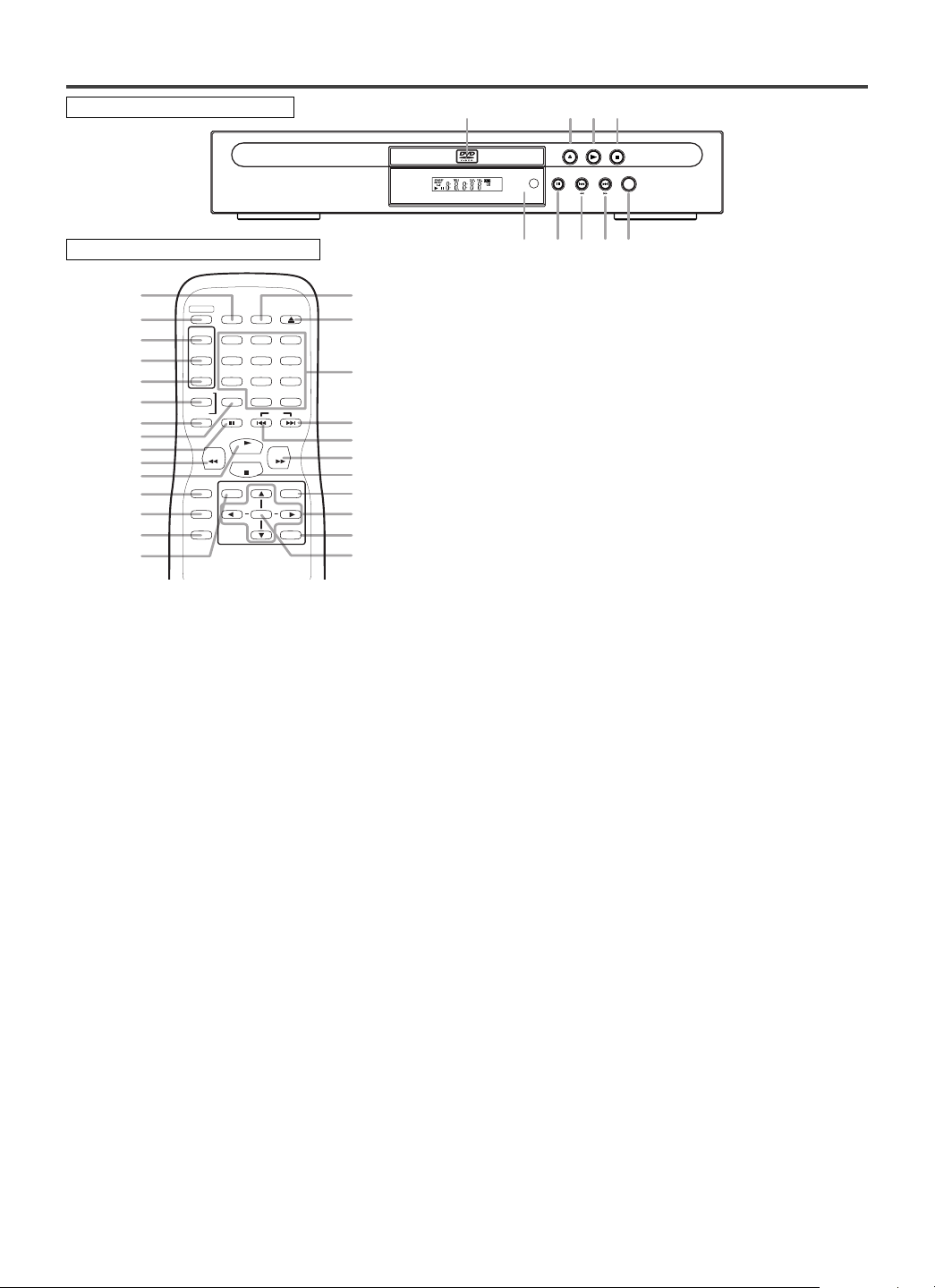

OPERATING CONTROLS AND FUNCTIONS

PLAY

STOP

PAUSE

OPEN/CLOSE

SKIP

POWER

211 412

8 531

FRONT PANEL

REMOTE CONTROL

RETURNZOOM

MODE

SKIPPAUSEA-B

REPEAT

ANGLE

AUDIO

SUB

TITLE

CLEAR

TITLE

STOP

PLAY

FWDREV

SETUP

ENTER

OPEN/ CLOSE

MODE

DISPLAY

123

456

789

0 +10

POWER

5 14

16 17 18

3 20

21 22

25 24

28 4

1. Display, Remote Sensor Window

2. PLAY Button [page 13]

Starts playback of the disc contents.

3. PAUSE Button [page 14]

Pauses the current disc operation.

4. STOP Button [page 14]

Stops operation of the disc.

5. POWER Button [page 13]

Press to turn the power on and off.

6. SEARCH MODE Button [pages 15,16]

Press to locate a desired point.

7. SKIP UP/FWD Button (main unit)

Plays back from the beginning of the next chapter or track. Hold down to fast forward playback.

8. SKIP DOWN/REV Button (main unit)

Plays back from the beginning of the current chapter or track. Hold down to fast reverse playback.

9. SKIP UP Button (remote control)

Plays back from the beginning of the chapter or track.

10. SKIP DOWN Button (remote control)

Plays back from the beginning of the current chapter or track.

11. OPEN/CLOSE Button [page 13]

Press to insert discs into or remove them from the tray.

12. Disc loading tray

13. DISPLAY Button [page 19,23]

Displays the current status on the TV screen for checking purposes.

14. AUDIO Button [page 21]

Press to select a desired audio language or sound mode.

15. SUBTITLE Button [page 22]

Press to select a desired subtitle language.

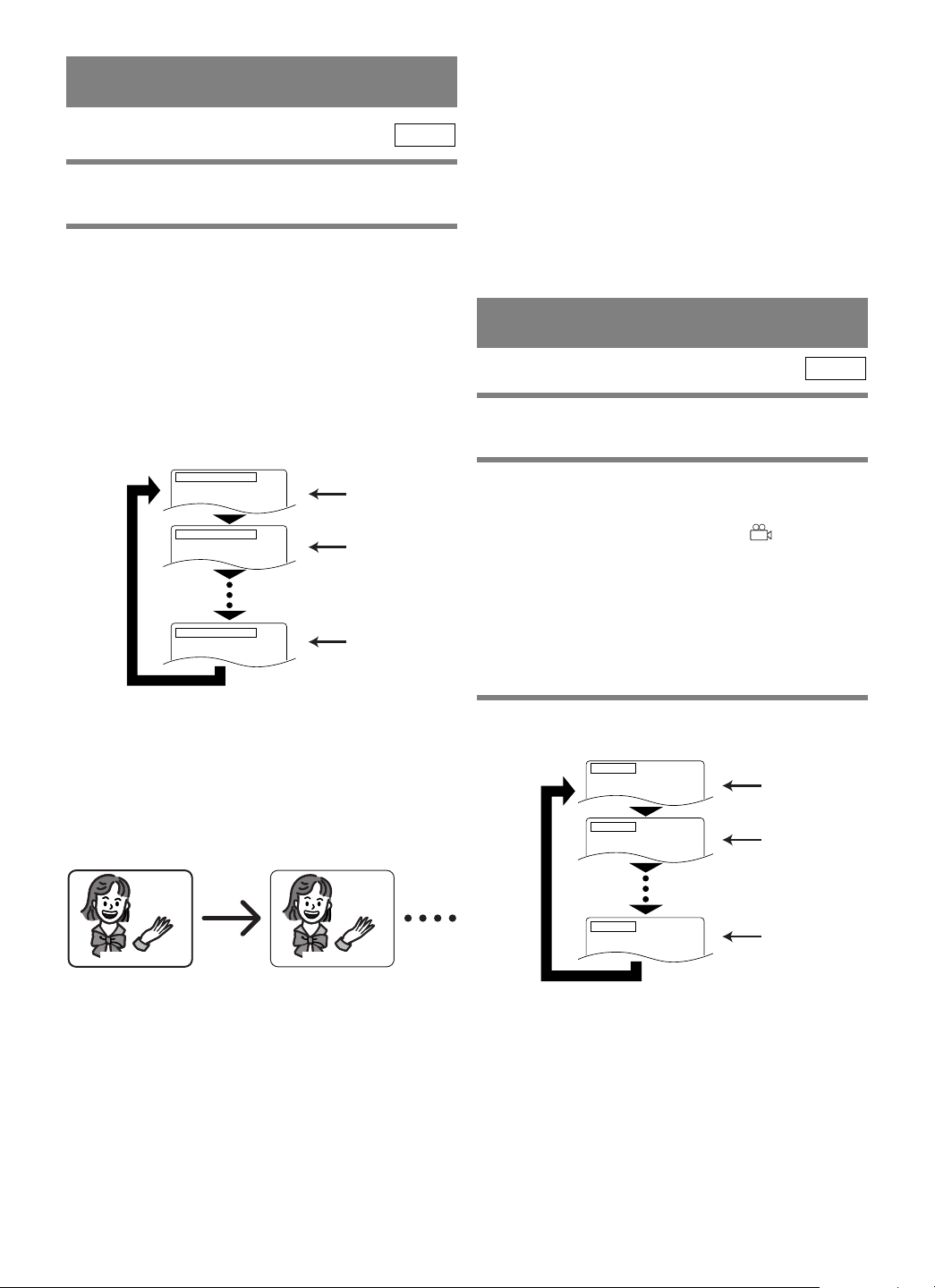

16. ANGLE Button [page 22]

Press to change the camera angle to see the sequence being played back from a different angle.

17. REPEAT Button [page 17]

Repeats playback of the current disc, title, chapter or track.

18. A-B REPEAT Button [page 17]

Repeats playback of a selected section.

19. CLEAR Button [pages 17]

Resets a setting.

20. REV Button

Fast reverse playback to a desired point.

21. SETUP Button [page 24]

Press to enter the setup mode or to change setup items.

22. MODE Button [pages 16]

Activates program playback or random playback mode when playing CDs or MP3. Sets Black level or SRS TruSurround.

23. TITLE Button [page 14] Displays the title menu.

24. ENTER Button Press to accept a setting.

25. RETURN Button

Returns to the previous operation.

26. Arrow Buttons

Use when making settings while watching the display on a TV screen.

27.

MENU Button [page 13] Displays the disc menus.

28. FWD Button [page 15]

Fast forwards playback to a desired point.

29. Numeric Buttons [page 15]

30. ZOOM Button [page 18]

Enlarges part of a DVD-reproduced image.

Page 9

–9–

1A23

S-VIDEO

OUT

YCr

VIDEO

OUT

AUDIO OUT

COAXIAL

31 36 3734 3532 33

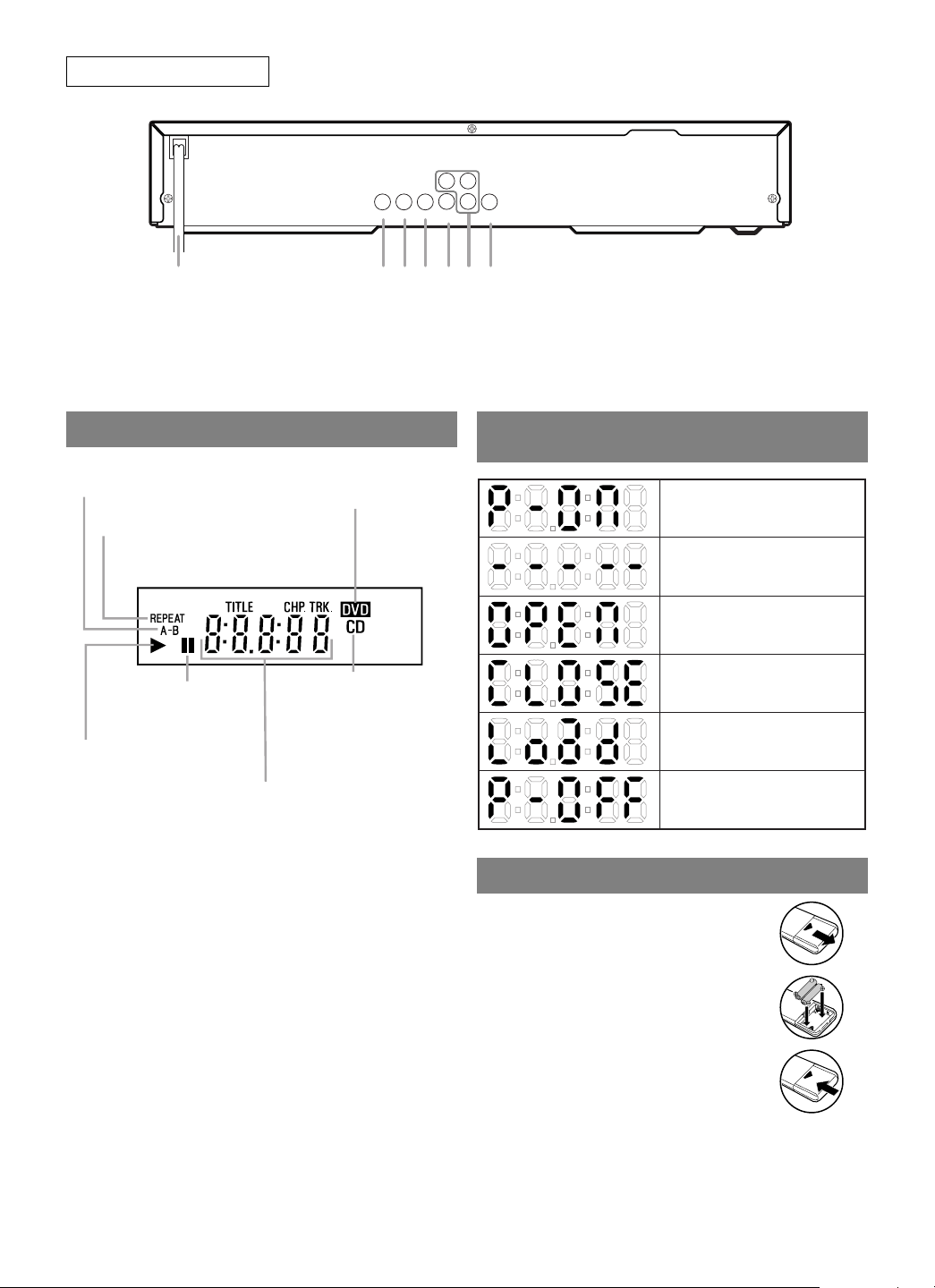

REAR VIEW

31. Power Cord

32. COAXIAL DIGITAL AUDIO OUT Jack

33. Right AUDIO OUT Jack

34. Left AUDIO OUT Jack

35. VIDEO OUT Jack

36. Component Video Out Jacks

37. S-VIDEO OUT Jack

DISPLAY

DISPLAYS DURING

OPERATION

LOADING THE BATTERIES

Stays on when the inserted disc is being played back.

Lights up when a CD is inserted on the tray.

Lights up when a DVD is inserted on the tray.

Lights up when the inserted disc comes to a pause.

Stays on when the A-B repeat function is on.

Stays on when the repeat function is on.

Displays how long a current title or track has been played back. When a chapter or track has switched, the number of a new title, chapter or track is displayed.

Power on

No disc inserted

Tray open

Tray closed

Loading the Disc

Power off

1. Open the battery compartment cover.

2. Insert two AA batteries, with each one oriented correctly.

3. Close the cover.

Notes

¡Do not mix alkaline and manganese batteries. ¡Do not mix old and new batteries.

Page 10

–10–

1A23

HOOKUPS

FOR TVs WITH S-VIDEO INPUT JACK

Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy pictures at higher quality.

CONNECTING TO A TV

S-VIDEO

OUT

YCr

VIDEO

OUT

AUDIO OUT

COAXIAL

A/V-compatible or

wide screen TV

To VIDEO OUT jackTo VIDEO INPUT jack

To Right (red) and Left (white)

AUDIO OUT jacks

AUDIO INPUT jacks

Notes

¡Connect the DVD player directly to a TV. If the A/V cables are connected to a VCR, pictures may be

distorted due to the copy protection system.

¡Be sure to turn off the power to all components in the system before connecting another component. ¡Refer to the Owner's Manuals for your TV, stereo system and any other components to be connected to the

DVD player.

S-VIDEO

OUT

YCr

VIDEO

OUT

AUDIO OUT

COAXIAL

To Right (red) and Left (white) AUDIO OUT jacks

A/V-compatible

wide screen TV

Stereo system

To VIDEO INPUT jack

To VIDEO OUT jack

To S-VIDEO INPUT jack

To S-VIDEO OUT jack

To ANALOG AUDIO INPUT jacks

S-VIDEO

OUT

YCr

VIDEO

OUT

AUDIO OUT

COAXIAL

To S-VIDEO OUT jackTo S-VIDEO INPUT jack

To Right (red) and Left (white)

AUDIO OUT jacks

AUDIO INPUT jacks

A/V-compatible or

wide screen TV

[Fig. 1]

[Fig. 2]

[Fig. 3]

Page 11

–11–

1A23

CONNECTING TO A DOLBY DIGITAL DECODER OR DTS DECODER

If using this DVD player to playback a DVD in a 5.1 channel Dolby Digital surround, DTS surround format, the DVD player outputs a Dolby Digital, or DTS data stream from its COAXIAL DIGITAL AUDIO OUT jack. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard such as can be heard in movie theaters.

Use an audio coaxial digital cables (not included) for the audio connections.

S-VIDEO

OUT

VIDEO

OUT

AUDIO OUT

COAXIAL

A/V-compatible

wide screen TV

Front speaker

(left)

Center speaker

Front speaker

(right)

Surround

speaker

(left)

Surround

speaker

(right)

Subwoofer

To VIDEO INPUT jack

To VIDEO OUT jack

To S-VIDEO INPUT jack To S-VIDEO OUT jack

To COAXIAL DIGITAL AUDIO OUT jack

To COAXIAL DIGITAL AUDIO INPUT jack

Dolby Digital, DTS decoder

YCr

[Fig. 4]

S-VIDEO

OUT

VIDEO

OUT

AUDIO OUT

COAXIAL

Stereo system

A/V-compatible

wide screen TV

To COMPONENT VIDEO INPUT jack

To COMPONENT VIDEO OUT jack

To Right (red) and Left (white) AUDIO OUT jacks

To ANALOG AUDIO INPUT jacks

YCr

CONNECTING TO A TV OR A STEREO TV THAT HAS

COMPONENT VIDEO IN JACKS

[Fig. 5]

Manufactured under license from Dolby Laboratories.“Dolby”and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Notes

¡Be sure to turn off the power to all components in the system before connecting another component. ¡Refer to the Owner’s Manuals for the components to be connected to the DVD player. ¡If output Dolby Digital audio, connect to a Dolby Digital decoder, and set Dolby Digital to on for audio out-

put in the setup mode.

¡If output DTS audio, connect to a DTS decoder, and set DTS to ON for audio output in the setup mode. ¡Unless connected to a Dolby Digital decoder, or a DTS decoder, set Dolby Digital or DTS to off for audio out-

put in the setup mode. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

Page 12

–12–

1A23

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL

INPUT JACKS SUCH AS MD DECK OR DAT DECK

Use an audio coaxial digital cables (not included) for the audio connections. Connecting to an amplifier equipped with digital input jacks such as MD Deck or Dat Deck.

AUDIO OUTCOAXIAL

VIDEO

OUT

S-VIDEO

OUT

To COAXIAL DIGITAL AUDIO INPUT jack

A/V-compatible

wide screen TV

Amplifier equipped with digital

input jacks, MD deck,

DAT deck, etc.

To VIDEO INPUT jack To VIDEO OUT jack

To S-VIDEO INPUT jack

To S-VIDEO OUT jack

To COAXIAL DIGITAL AUDIO OUT jack

[Fig. 6]

Notes

¡The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound

by an MD or DAT deck.

¡Be sure to turn off the power to all components in the system before connecting another component. ¡Refer to the Owner’s Manuals for the components to be connected to the DVD player. ¡Set Dolby Digital and DTS to off for audio output in the setup mode. Playing a DVD using incorrect settings

may generate noise distortion, and may also damage the speakers. (See page 26 to set ON for Dolby Digital and DTS)

HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS

If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD player to your TV’s 75-ohm coaxial antenna terminal using a commercially available Stereo Audio/Video RF Modulator, not included. Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.

If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator (usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna terminal as described above.

Note

¡The picture quality from DVD discs will not be as good if the DVD player is connected to the TV’s

antenna terminal through an RF Modulator.

Page 13

–13–

1A23

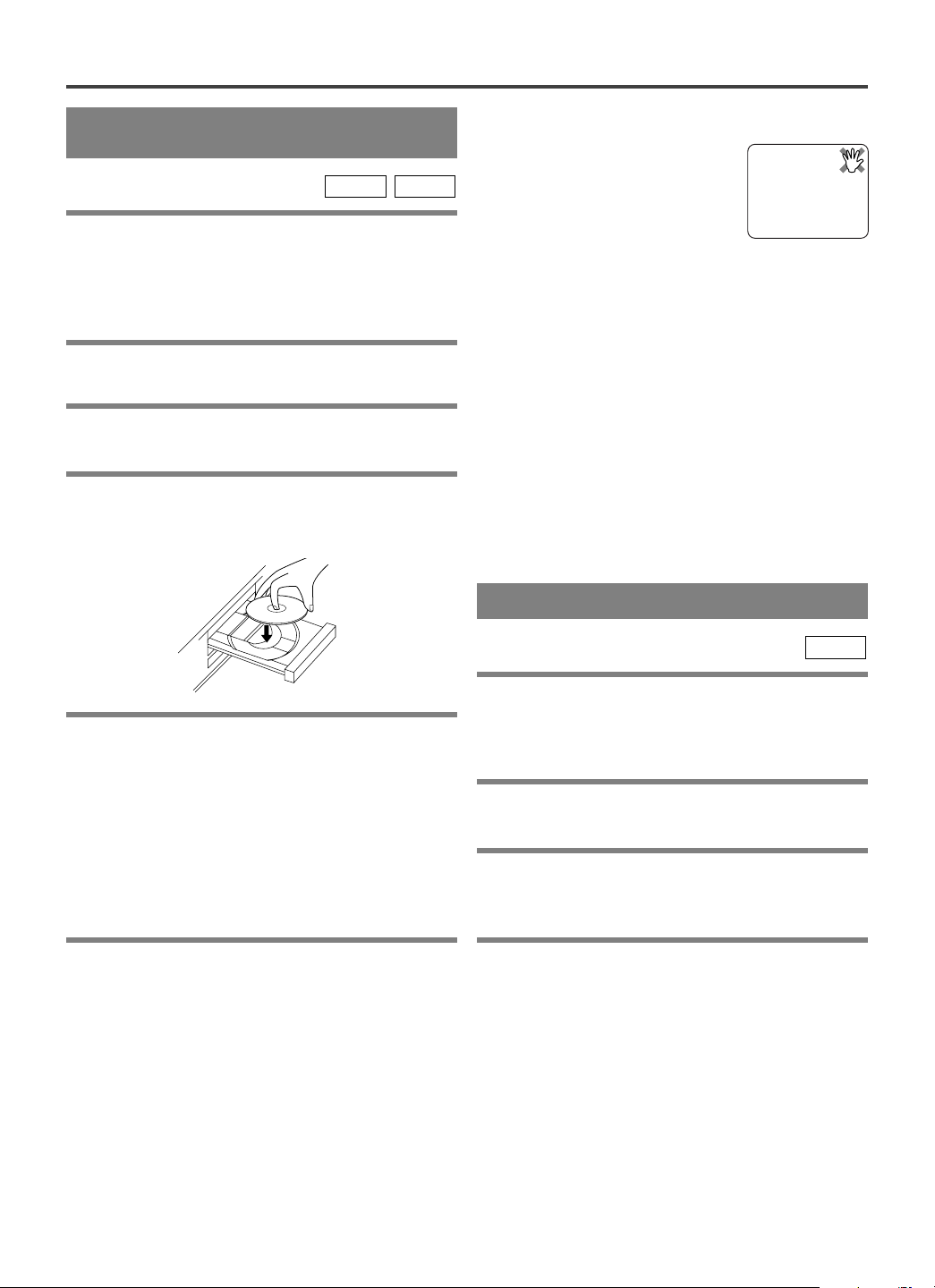

PLAYING A DVD VIDEO

OR AN AUDIO CD

Getting started

Turn on the power of the TV, amplifier and any other components which are connected to the DVD player. (Change the input system to suit the DVD player, and check that the sound volume is correct.)

1 Press the POWER button.

The power will turn on.

2 Press the OPEN/CLOSE button.

The disc loading tray will open.

3 Place a disc into the tray.

Make sure the disc is sitting properly in the correct recess, with the label side up.

4 Press the PLAY button.

¡The tray will close automatically, and playback will

then start from the first chapter or track of the disc. You need to press the PLAY button only when the tray has been closed by pressing the OPEN/CLOSE button.

¡When you playback the DVD which a title menu is

recorded, it may appear on the screen. In this case, refer to “USING THE TITLE MENU”.

5 Press the STOP button to stop play.

CDDVD

Notes

¡A “prohibited icon” may appear at

the top-right on the TV screen during operation, warning that a prohibited operation has been encountered by the DVD player or the disc.

¡If a disc is dirty or has scratches, the pictures may

appear distorted and the playback operation may stop. In such cases, clean the disc and unplug the power cord and then plug it again before resuming playback.

¡With DVDs that use some titles for playback

program signals, playback may start from the second title, or it may skip these titles.

¡During the playback of two layered disc, pictures

may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

PLAYING A DISC

USING THE DVD MENUS

Some DVDs contain their own menus, such as a guidance menu which describes the contents of the disc or a selection menu for sound, language and other customized settings.

1 Press the MENU button.

¡The DVD menu will appear.

2 Select the desired title.

Press the arrow buttons (L/K/B/s) to change the setting, and then press the ENTER button.

3 Playback will start from the selected title.

DVD

Page 14

–14–

1A23

USING THE TITLE MENU

With a DVD containing a title menu, you can select desired titles from the menu.

1 Press the TITLE button.

The title menu will appear.

2 Select the desired title.

Press the arrow buttons (L/K/B/s) to change the setting, and then press the ENTER button.

CALLING UP A MENU SCREEN DURING PLAYBACK

For DVDs

¡Press the MENU button to call up the DVD menu. ¡Press the TITLE button to call up the title menu.

Note

¡Contents of menus and corresponding menu

operations may vary between discs. Refer to the manual accompanying the disc for details.

DVD

PAUSING PLAYBACK OR

DISPLAYING A STILL PICTURE

1 Press the PAUSE button during playback.

Playback will pause, with sound muted.

2 Press the PLAY button to resume playback.

CDDVD

STEPPING THROUGH FRAMES

1 Press the PAUSE button while playback is

paused.

The next picture frame is displayed with sound muted each time the button is pressed.

2 Press the PLAY button to resume playback.

DVD

RESUMING PLAYBACK FROM

THE POINT WHERE

PLAYBACK STOPPED

1 Press the STOP button during playback.

Playback will stop, and then appear the resuming message at the center.

2 Press the PLAY button. Playback will start

from the point where the previous playback session was stopped.

Note

¡The resume function can be reset by pressing the

STOP button twice or by opening the disc loading tray.

CDDVD

Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'.

Page 15

1 Press the FWD g or REV h button dur-

ing playback.

¡For DVDs, pressing the FWD g or REV h but-

ton cycles the playback speed in four steps. In case of DVDs, the sound will mute.

¡For audio CDs, the playback speed is ×16 fixed.

2 Press the PLAY button to return to normal

playback speed.

CDDVD

1 Press the SEARCH MODE button and then

press the numeric buttons to select a title or a chapter.

Perform the title search and the chapter search after setting them on the same screen at the same time. Changeover by

K/L

buttons.

During playback,press the numeric buttons to select a Chapter. The Chapter will be located and playback will start.

When playback is stopped, press the numeric buttons to select a Title. The Title will be located and playback will start.

Notes

¡Playback from a desired title or chapter is not avail-

able with some DVDs.

¡Some discs which the chapter number isn’t dis-

played cannot playback from a desired chapter.

DVD

–15–

1A23

FAST FORWARD/REVERSE

You can also press the SEARCH MODE button, use the numeric buttons to enter the track number.

When the track number is entered in the entry box, playback of the desired track will start automatically.

Ex2

Ex8

Ex30

Ex60

Dx30

Dx60

Dx8

Dx2

REV Button Button

FWD

SLOW MOTION

1 Press the FWD g button while playback is

paused. (Sound remains muted.)

¡Slow motion mode will be activated. ¡Pressing the FWD g button cycles the playback

speed in three steps. Select an appropriate speed while referring to the speed indication on the screen.

2 Press the PLAY button to return to normal

playback speed.

Notes

¡Slow playback is not available with audio CDs. ¡The reverse of slow playback is not available.

DVD

×1/16

×1/8

×1/2

Button

FWD

STARTING FROM A DESIRED

TRACK

1 Press the numeric buttons to enter the

desired track number.

The selected track will be located, and playback will start.

TRICKS WITH THE SKIP BUTTONS (H, G)

If the SKIP button G is pressed during playback or while playback is paused, the current chapter will be skipped and the next chapter will be played. When the SKIP button H is pressed once, the top of the current chapter will be located for replaying. When the SKIP button H is pressed again within 2-seconds after playback begins, the previous chapter will be located.

PLAYING FROM A DESIRED

TITLE OR CHAPTER

TT : 1/ 2 CH __ / 49

TT : _/ 12 CH : 12/ 49

TRICKS WITH THE SKIP BUTTONS (H, G)

If the SKIP button G is pressed during playback or while playback is paused, the current track will be skipped and the next track will be played. When the SKIP button H is pressed once, the top of the current track will be located for replaying. When the SKIP button H is pressed again within 2-seconds after playback begins, the previous track will be located.

TR : 5

Page 16

–16–

1A23

STARTING FROM A DESIRED

TIME COUNT

1 Press the SEARCH MODE button twice.

2 Press the numeric buttons to set the desired

time count.

Example: 1 hour, 23 minutes and 30 seconds

1 → 2 → 3 → 3 → 0

CDDVD

TIME 1:23:30 TOTAL 1:29:00

Notes

¡In the case of DVD, Time Search in Title is effective.

(But Time Search in Chapter is ineffective.)

¡In the case of CD, Time Search in Track is effective.

(But Time Search in the entire disc is ineffective.)

¡Playback from a desired time count is not available

with some discs or if the unit is in stop mode.

¡If wrong numbers are entered, press the CLEAR but-

ton and re-enter the correct numbers.

MARKER

You can define the part to be called back.

1 Press the SEARCH MODE button three

times during playback.

Set the marker

¡Using the cursor (s / B) button, position the cursor

on to the marker number shown as “NOT SET”. Press the ENTER button when the screen to be reviewed appears. The marked time will be displayed. Up to 5 points can be marked.

Call back the marker

¡Using the cursor (s / B) button, position the cursor

on to the marker number to be called back and press the ENTER button.

Clear the marker

¡Using the cursor (s / B) button, position the cursor

on to the marker number to be cleared and press the CLEAR button. To clear all markers, place the cursor on “AC” (All clear markers) and press the ENTER button.

2 Press the SEARCH MODE button or the

RETURN button to exit the display.

CDDVD

RANDOM (Audio CD)

1 Press the MODE button in stop mode.

¡The program setting menu screen will appear.

2 Press the MODE button again.

RANDOM

EXIT : MODESTART : PLAY

3 Press the PLAY button. Random playback

will then start.

Note

¡Program playback is not available during random

playback.

1 2 3 4 5 AC

NOT SET

Page 17

–17–

1A23

REPEAT

1 Press the REPEAT button.

For DVDs

¡A single title or chapter is played back repeatedly. ¡Pressing the REPEAT button cycles the display on

the screen as follows.

For audio CDs

¡The whole disc or a single track is played back

repeatedly.

¡Pressing the REPEAT button cycles the display on

the screen through Off, Track and All.

CDDVD

The current Title is played back repeatedly.

REPEAT [OFF]

REPEAT

[CHAPTER]

REPEAT

[TITLE]

The current Chapter is played back repeatedly.

No repeat playback.

The whole Disc is played back repeatedly.

REPEAT [ALL]

REPEAT [TRACK]

The current Track is played back repeatedly.

No repeat playback.

REPEAT [OFF]

If the REPEAT button is pressed once during program/random playback, the current track is played back repeatedly.

If the REPEAT button is pressed again, the program/random playback is performed repeatedly.

Notes

¡Repeat playback does not available with some discs. ¡The REPEAT setting will be cleared when moving

to other title, chapter or track.

¡Repeat playback is not function during A-B repeat

playback.

You can define a section to be played back repeatedly.

Press the A-B REPEAT button during playback.

¡The starting point (A) will then be

selected.

2 Press the A-B REPEAT button again at the

end point (B) of the desired section.

The selected section will be played back repeatedly.

3 To exit A-B repeat playback, press the A-B

REPEAT button and set it to OFF.

Notes

¡With DVDs, the A-B repeat section can be set only

within the current title.

¡With audio CDs, the A-B repeat section can be set

within the current track.

¡A-B repeat is not available with some scenes in

DVD.

¡To cancel the A point which was set, press the

CLEAR button.

¡A-B repeat playback is not function during title,

chapter, track or all repeat playback had set.

CDDVD

A-B REPEAT

REPEAT [ A - ]

REPEAT [ A - B ]

REPEAT

[ OFF ]

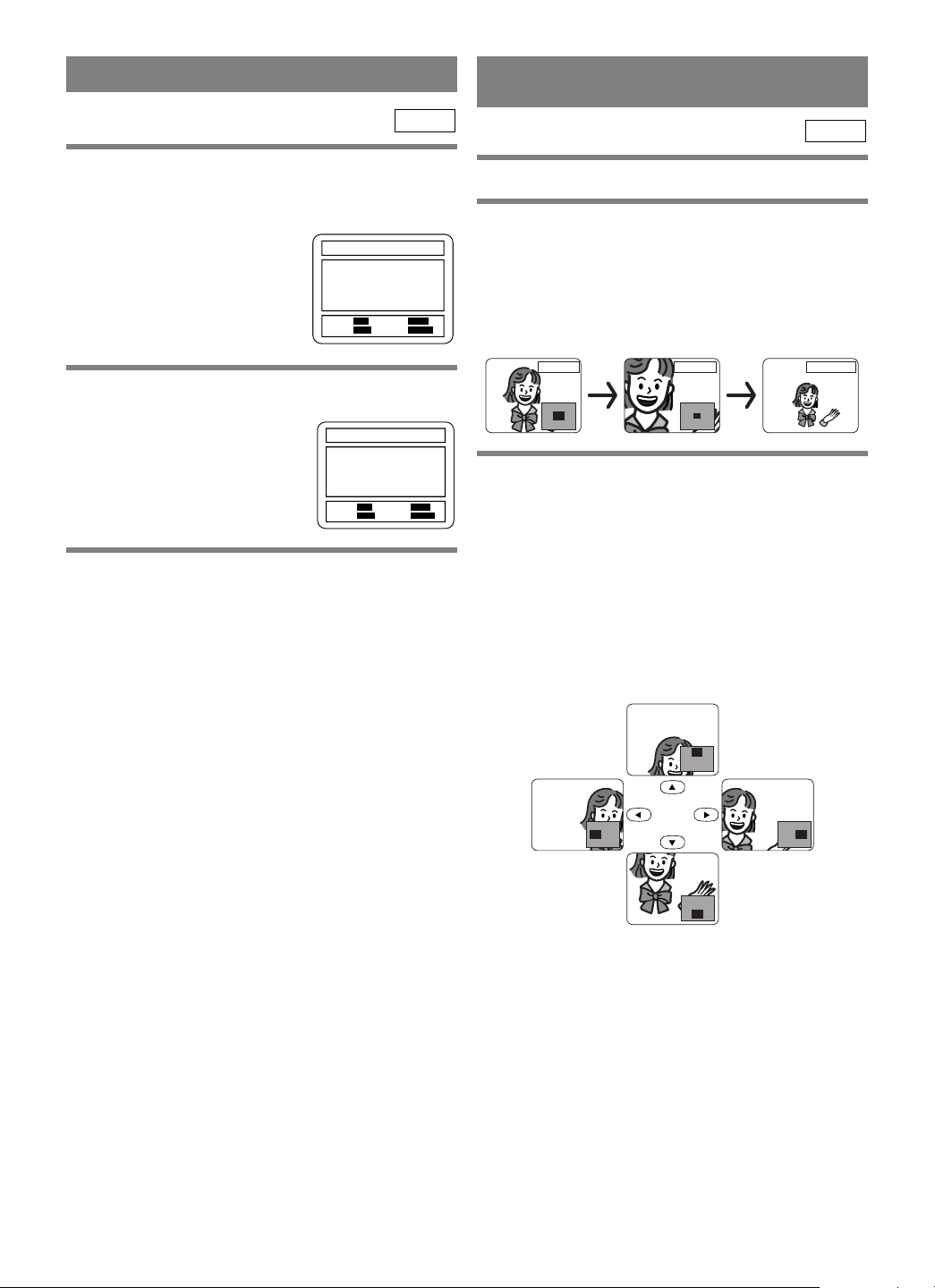

Page 18

–18–

1A23

PROGRAM (Audio CD)

Press the MODE button in stop mode.

¡The program screen will appear.

PROGRAM TIME 0:00:00 1/1

RANDOM

: MODE

EXIT

: RETURN

START: PLAY

DELETE

: CLEAR

2 Press the numeric buttons to enter the

desired track numbers.

50 programs can be displayed at once on the screen. Press “L” to go to the next page.

3 Press the PLAY button.

Playback will start in the programmed order.

¡While the program is being played back, the STOP

button works as follows.

¡Press the STOP button once and then the PLAY

button again, playback will restart from the point where the STOP button was pressed. (Program continued)

¡Press the STOP button twice and then the PLAY

button again, playback will restart from the track in the usual way. (Program cleared)

Notes

¡Adding programs is not possible during program

playback. You must stop the current playback before such operations can be carried out.

¡Press the CLEAR button to cancel a program. The

most recently entered program will then be deleted.

¡Up to 99 programs can be entered. ¡Playback from a desired track and random playback

are not available during program playback.

¡Program settings are cleared when the power is

turned off or the disc loading tray is opened.

¡Press the MODE button to check the programmed

setting.

02 05 07 04 10 14 06 15 21 08 20 28 10 25 35 12 30 42 11 34 49 16 40 58 18 45 63 01 03 _

PROGRAM TIME 2:07:43 1/1

RANDOM

: MODE

EXIT

: RETURN

START: PLAY

DELETE

: CLEAR

ZOOM PLAYBACK

(enlargement on-screen)

Images can be enlarged on the screen to your taste.

1 Press the ZOOM button during playback.

An image will be enlarged at the center of the screen.

¡Pressing the ZOOM button cycles the zooming

images in two steps.

DVD

ZOOM [x4]ZOOM [x2] ZOOM [OFF]

2 When the cursor (K/L/s / B) button is

pressed during zoom play, the part to be zoomed moves.

The zooming frame can be moved from the center

.... 4 steps to the right. 4 steps to the left. 4 steps to

the top. 4 steps to the bottom when 2 time zooming. The frames will move 6 steps when 4 time zooming.

¡Current position will be displayed on the right-bot-

tom of the screen. Press the ENTER button, and the display disappears.

Note

¡Zooming function does not work while disc menu is

shown.

Page 19

Insert an MP3 file-recorded disc.

¡The MP3 menu screen shows up. ¡Folders are referred to as

“ALBUMS” and files are referred to as “TRACKS”.

¡“+” appears at the beginning

of the album name.

MP3

–19–

1A23

PLAYING AN MP3 DISC

¡If all the TRACKS cannot be displayed at once on

the screen, “L” appears to go to the next page. If there is a previous page, “K” appears on-screen. On the left of “L”, the current page and the total number of pages are displayed.

¡The player can recognize 255 ALBUMS and

TRACKS altogether.

2 Using the K/L buttons, select a ALBUM or

TRACKS to be played.

[When TRACKS are selected]

The TRACKS will be played in the order of selection.

[When an ALBUM is selected]

Press the B button. The TRACK selection screen shows up. Using the

K/L buttons, select TRACKS

to be played.

¡Choose “FIRST PLAY”, and the ALBUMS and

TRACKS will be played from the beginning of the disc.

¡Press the TITLE button, and the top hierarchy will

be called back.

¡ALBUMS can be played up to the 8th hierarchy.

3 Press the PLAY button.

Playback will start.

4 To stop the play, press the STOP button.

CHANGING THE ON-SCREEN

DISPLAY DURING MP3 DISC PLAY

The information on an MP3 disc in play can be checked.

Press the DISPLAY button during playback.

¡The TRACK currently in play

will be highlighted.

2 Press the DISPLAY button again.

The ALBUM name being displayed will be replaced by the elapsed time of the track.

¡ will be displayed when the repeat play has been

selected.

A: Album (folder) repeat T: Track repeat D : Disc repeat

MP3

TRACK11

TRACK12 TRACK13 TRACK14 TRACK15

FOLDER NAME

3 Press the DISPLAY button again, and the dis-

play screen disappears.

TRACK11

TRACK12 TRACK13 TRACK14 TRACK15

0:02:31 A

VOLUME LABEL

FIRST PLAY

+ALBUM01 +ALBUM02 +ALBUM03 +ALBUM04

SELECT: /ENTER: RETURN:

START: PLAY

1/15

ALBUM01

+ALBUM11 +ALBUM12 +ALBUM13 +ALBUM14 +ALBUM15

SELECT: /ENTER: RETURN:

START: PLAY

Page 20

Press the MODE button in STOP mode.

¡The program screen shows up.

MP3

–20–

1A23

PLAYING AN MP3 DISC AT

RANDOM

Press the MODE button twice in STOP mode.

¡The random setting menu screen will appear.

2 Press the PLAY button.

Random play starts.

MP3

RANDOMRANDOM

EXIT

: MODE

START

: PLAY

1 P

ress the SEARCH MODE button during play-

back.

¡The SEARCH menu shows up. ¡The Track currently in play or under RESUME ON

will be highlighted. In the case of RESUME OFF, the first track of the disc will be highlighted.

¡Press the RETURN button, and the SEARCH menu

disappears.

2 Using the K/L buttons, select a track to be

played. Then press the PLAY button to start playing.

Notes

¡During play, a desired track can be directly searched.

Just type in the TRACK number with the numeric buttons.

¡If the typed TRACK number is not available, the

“disable” symbol appears and the direct search mode is cancelled.

¡Playback cannot be started from a desired time

count.

MP3

PLAYING AN MP3 DISC FROM A

DESIRED TRACK

PLAYING AN MP3 DISC IN A

PROGRAMMED WAY

2 Using the K/L buttons, select a track.Then

press the ENTER button to save it in a program.

The programmed track is displayed in the right-hand screen.

¡When the s button is pressed, the album atop in the

current left-hand screen will be highlighted.

¡If the entire program cannot be displayed at once on

the screen, “L” appears to go to the next page.

3 When the disc has been programmed, press

the PLAY button.

Programmed play starts.

Notes

¡Press the CLEAR button, and the last-programmed

entry will be deleted.

¡Press the RETURN button, and the STOP screen

will show up with the program contents in memory.

¡The program setting will be cancelled when the

power is turned off or the disc tray is opened.

RANDOM: MODE

EXIT

: RETURN

START

: PLAY DELETE: CLEAR

+ALBUM01

+ALBUM02 +ALBUM03 TRACK01 TRACK02

PROGRAM FOLDER NAME

1/11 1/1

RANDOM: MODE

EXIT

: RETURN

START

: PLAY DELETE: CLEAR

+ALBUM11 +ALBUM12

TRACK11

TRACK12 TRACK13

TRACK11

PROGRAM - ALBUM01

1/11 1/1

+ALBUM01

TRACK11

TRACK12 TRACK13 TRACK14

ALBUM NAME

1/15

START: PLAY

SELECT: /ENTER: RETURN:

RANDOM: MODE

EXIT

: RETURN

START

: PLAY DELETE: CLEAR

+ALBUM51 +ALBUM52 TRACK51 TRACK52 TRACK63

TRACK11 TRACK52 TRACK31 TRACK22 TRACK03

PROGRAM - ALBUM05

1/11

2/3

Page 21

–21–

1A23

SETTINGS

CHANGING THE AUDIO

LANGUAGE OR SOUND MODE

The DVD player has a function which allows you to select the desired audio language and sound mode.

For DVDs

Press the AUDIO button during playback, and then press the AUDIO button to select the desired audio language.

The audio language can be changed if multiple languages are recorded on the DVD being played.

CDDVD

Notes

¡Pressing the Audio button may not work on some

DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu). Operation varies between discs, so refer to the manual accompanying the disc.

¡Current audio language and sound mode will be dis-

played when you press the AUDIO button at first.

¡If a desired language is not shown after pressing the

Audio button several times, the disc does not have an audio source in that language.

¡If you choose a Language that has a 3 letter language

code, the code will be displayed everytime you change the Audio language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page28.)

¡The audio language resets to the one which has been

selected in the setup mode, every time the power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected.

¡The screen display will disappear after about 5

seconds.

¡If you use DIGITAL AUDIO OUT jack, the sound

mode of audio CDs can not be changed.

AUDIO 1.ENG DolbyD 5.1CH 48k/3

AUDIO 2.FRE DolbyD 5.1CH 48k/3

AUDIO 3.JPN DolbyD 5.1CH 48k/3

HELLO

Bon jour

For audio CDs

Press the AUDIO button during playback.

Pressing the AUDIO button cycles the sound mode through STEREO, L-CH and R-CH.

Both right and left channels are active (stereo).

AUDIO STEREO

Only the left channel is active.

AUDIO L-CH

AUDIO R-CH

Only the right channel is active.

Page 22

–22–

1A23

CHANGING THE CAMERA

ANGLE (Multi-Angle Pictures)

The DVD player has a function which allows you to select the desired camera angle.

Press the ANGLE button during playback.

¡If the disc contains sequences recorded from differ-

ent camera angles, the angle icon ( ) will appear at the top-right of the screen. You can change the camera angle when the icon appears on the screen.

¡The camera angle cannot be changed if the disc does

not contain sequences recorded from different camera angles.

Press the ANGLE button while the angle number is shown on the screen.

Notes

¡The screen display will disappear after about 5

seconds.

¡Current camera angle will be displayed when you

press the ANGLE button at first.

DVD

Angle 1

Angle 2

Angle 8

ANGLE 1 / 8

ANGLE 2 / 8

ANGLE 8 / 8

The DVD player has a function which allows you to select the desired language for subtitles.

1 Press the SUBTITLE button during playback,

and then press the SUBTITLE button to select the desired subtitle language.

The subtitle language can be changed if the subtitles are recorded in multiple languages on the DVD being played.

¡The subtitle language cannot be changed if the

subtitles are recorded in a single language on the DVD being played.

¡Pressing the SUBTITLE button cycles the subtitle

language from SUBTITLE 1, SUBTITLE 2 and all the languages recorded.

¡Current subtitle mode will be displayed when you

press the SUBTITLE button at first.

¡Press the SUBTITLE button, and then press the cur-

sor (s / B) button to set it to on or off.

DVD

Subtitle 1

Subtitle 2

OFF

SUBTITLE 1.ENG/6

SUBTITLE 2.FRE/6

SUBTITLE OFF

HELLO

Bon jour

CHANGING THE SUBTITLE

LANGUAGE

¡The subtitle language resets to the one which has

been selected in the setup mode, every time the power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected.

¡It may take time to display the subtitles in the

selected language.

¡The screen display will disappear after about 5

seconds.

¡When “SUBTITLE NOT AVAILABLE” appears on-

screen, it means no subtitle is recorded on the scene.

Notes

¡Some discs allow subtitle language setting on the

disc menu. (Operation varies between discs, so refer to the manual accompanying the disc.)

¡If the desired language is not shown after pressing

the SUBTITLE button several times, the disc does not have subtitles in that language.

¡If you choose a Language that has a 3 letter lan-

guage code, the code will be displayed everytime you change the Subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 28.)

Page 23

–23–

1A23

CHANGING THE ON-SCREEN

DISPLAY

TT 1/2 0:00:00 -1:23:45

TT(Title): Current title number / the number of total titles.

TIME: Elapsed time of the current title on remaining time of the current title.

You can check the information about the disc by pressing the DISPLAY button on the remote control.

For DVDs

Press the DISPLAY button during playback.

CDDVD

Press the DISPLAY button again.

¡Use the number button to start from a desired chap-

ter.

3 Press the

DISPLAY

button again.

4 Press the

DISPLAY

button

or the RETURN but-

ton to exit the display.

CH 7/49 0:01:46 -0:03:27

CH(Chapter): Current chapter number / the number of total chapter.

TIME: Elapsed time of the current chapter and remaining time of the current chapter.

BIT RATE

BIT RATE indicator will appear. BIT RATE shows the quantity of information which is recorded in DVD.

Layer number(*) L0: Layer 0 is playing back L1: Layer 1 is playing back Current Repeat setting C: Chapter repeat T: Title repeat A B: A-B repeat

*) It appears when the layered disc is playing back.

For audio CDs

Press the DISPLAY button during playback.

TR 4/12 0:03:21 -0:02:15 B

TR(Track): Current track number / the number of total tracks.

TIME: Elapsed time of the current track and remaining time of the current track.

Press the DISPLAY button again.

ALL 4/12 0:13:45 -0:45:40 B

ALL: Current track number / the number of total tracks.

TIME: Elapsed time of the current disk and remaining time of the current disc.

3 Press the

DISPLAY

button

or the RETURN but-

ton to exit the display.

You can set to make the black parts of the picture brighter.

Press the MODE button during playback.

¡The setup screen will appear.

Press the ENTER button to set it on or off.

¡ON : It makes the dark parts brighter.(Default : ON)

OFF : Original picture which is recorded on the disc will be shown.

¡Press the RETURN button to exit the display.

BLACK LEVEL SETTINGS

BLACK LEVEL : ON

¡Use the number button to start from a desired track.

DVD

You can enjoy stereophonic sound system when you playback Dolby Digital and PCM 48kHz sound.

Press the MODE button twice during playback.

¡The setup screen will appear.

Press the ENTER button to set it on or off.

ON : TruSurround ON.(Default : OFF) OFF : TruSurround OFF.

¡Press the DISPLAY button or the RETURN button

to exit the display.

TruSurround SETTINGS

SRS TruSurround ON

Page 24

–24–

1A23

Press the SETUP button

in STOP mode

¡The setup screen will appear.

2 Press the K/L buttons to select Language,

and then press the ENTER button.

3 Press the K/L buttons to select an item, and

then press the ENTER button.

AUDIO: (Voice is played back in selected language.)

SUBTITLE: (Subtitles are shown in selected language.)

DISC MENU: (The disc menu appears in selected language.)

PLAYER MENU: (The on-screen display appears in selected language.)

Press the

K/L

buttons to select a desired

item, and then press the ENTER button.

¡If “OTHER” is selected on the AUDIO, SUBTITLE

or DISC MENU setting screen, the Language Code setting screen will appear. Press the numeric buttons to enter the desired language code while referring to the list on page 28.

5 Press the SETUP button.

¡The setup mode will be canceled and the ordinary

screen will appear.

Notes

¡Be sure to press the SETUP button, or the setting

will not work.

¡Language Setting for Audio and Subtitle is not avail-

able with some discs. Then use the Audio and Subtitle button. Details are on pages 21 and 22.

¡You can also select the item by pressing the numbers

which displayed with the item.

¡When you change the setup items, press the STOP

button if you are in playback mode.

CHANGING THE SETUP ITEMS

LANGUAGE SETTINGS

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

Please enter a 4-digit Language code.

- - - -

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

LANGUAGE CONTROLS

DISC MENU

LANGUAGE CODE

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

AUDIO ORIGINAL

SUBTITLE OFF

DISC MENU ORIGNAL

PLAYER MENU ENGLISH

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

LANGUAGE CONTROLS

AUDIO ORIGINAL

SUBTITLE OFF

DISC MENU ORIGNAL

PLAYER MENU ENGLISH

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

LANGUAGE CONTROLS

AUDIO ORIGINAL

SUBTITLE OFF

DISC MENU ORIGINAL

PLAYER MENU ENGLISH

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

LANGUAGE CONTROLS

AUDIO ORIGINAL

SUBTITLE OFF

DISC MENU ORIGNAL

PLAYER MENU ENGLISH

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

LANGUAGE CONTROLS

Page 25

ANGLE ICON (Default : ON)

Display or not display the Angle icon on the screen.

AUTO POWER OFF (Default : ON) Set or not set to turn off after the screen saver is started and no keys are pressed for 30 minutes.

BACKGROUND COLOR (Default : BLUE) Select blue or gray.

Press the

K/L

buttons to select a desired

item, and then press the ENTER button.

5 Press the SETUP button.

The setup mode will be canceled and the ordinary screen will appear.

Notes

¡Be sure to press the SETUP button, or the setting

will not work.

¡You can also choose the item by pressing the num-

bers.

–25–

1A23

Press the SETUP button in STOP mode.

¡The setup screen will appear.

2 Press the K/L buttons to select DISPLAY

and then press the ENTER button.

3 Press the K/L buttons to select an item, and

then press the ENTER button.

TV ASPECT (Default : 4:3 LETTER BOX) 4:3 LETTER BOX : Wide screen with black bars on top and bottom 4:3 PAN & SCAN : Full height picture, trimmed both sides 16:9 WIDE : If wide screen TV is connected

PANEL DISPLAY (Default : BRIGHT) Adjust the brightness of the display of the unit. Auto: Stays dim only during playback.

DISPLAY SETTINGS

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

TV ASPECT 4:3 LETTER BOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

BACKGROUND BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

TV ASPECT 4:3 LETTER BOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

BACKGROUND BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

1.BRIGHT

2.DIMMER

3.AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

PANEL DISPLAY

TV ASPECT 4:3 LETTER BOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

BACKGROUND BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

TV ASPECT 4:3 LETTERBOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

BACKGROUND BLUE

1.4:3 LETTER BOX

2.4:3 PAN & SCAN

3.16:9 WIDE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

TV ASPECT

TV ASPECT 4:3 LETTER BOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

BACKGROUND BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DISPLAY CONTROLS

Page 26

Press the SETUP button in STOP mode.

¡The setup screen will appear.

2 Press the K/L buttons to select Audio and

then press the ENTER button.

3 Press the K/L buttons to select an item, and

then press the ENTER button.

DRC (Default : OFF)

On : DRC

(Dynamic Range Control)

¡This function is for controlling the range of sound

volume. By compressing the range of sound volume, it is possible not only to suppress the output of loud sound at night and but also to raise the volume of low sound.

¡This function is effective only for the sound record-

ed by Dolby Digital recording.

Dolby Digital (default : ON) On : Output by Dolby Digital

Set to On when the unit is connected to Dolby Digital Decoder.

–26–

1A23

DTS (Default : OFF) On : Output DTS sound Set to On when the unit is connected to DTS Decoder.

Down Sampling (Default : AUTO) Set the output for the DVD

recorded in PCM 96kHz (96kHz or 48kHz)

¡Press the K/L buttons to select an item, and then

press the ENTER button.

When playing a disc with copyright protection

¡If you select 96KHz, copyright protection will be

activated and no sound will come out. If you select AUTO, sound will be down sampled at 48KHz.

Press the SETUP button.

¡The setup mode will be canceled and the ordinary

screen will appear.

AUDIO SETTINGS

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DRC OFF

DOLBY DIGITAL ON

DTS OFF

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

AUDIO CONTROLS

DRC OFF

DOLBY DIGITAL ON

DTS OFF

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

AUDIO CONTROLS

SETUP MENU

AUDIO OPTIONS

1.DRC

OFF

DOLBY DIGITAL ON

DTS OFF

DOWN SAMPLING AUTO

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

DRC OFF

DOLBY DIGITAL ON

DTS OFF

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

AUDIO CONTROLS

SET-UP

AUDIO CONTROLS

DOWN SAMPLING

AUTO

48kHz

96kHz

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

Page 27

When “PARENTAL LEVEL” is selected

¡Press the K/L buttons to select an item from “ALL”

or 8 to 1 and then press the ENTER button.

When “CHANGE” is selected

¡Press the numeric buttons to enter the 4 digits pass-

word. Then press the ENTER button.

Press the SETUP button.

¡The setup mode will be canceled and the ordinary

screen will appear.

–27–

1A23

CONTROL LEVELS

ALL

All parental lock is cancelled.

Level 8

DVD software of any grade (adult/general/children) can be played back.

Levels 7 to 2

Only DVD software intended for general use and children can be played back.

Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

Notes

¡With some DVDs, it may be difficult to find if they

are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

¡Record the password in case you forget it.

IF YOU FORGET THE PASSWORD

1) Press the 4, 7, 3, 7 at step 3.

¡Password will be cleared and parental level will be

set to ALL.

2) Proceed the above steps 3-5 again.

Press the SETUP button in STOP mode.

¡The setup screen will appear.

2 Press the K/L buttons to select PARENTAL,

and then press the ENTER button.

3 Press the numeric buttons to enter the 4-

digit password, and then press the ENTER button.

When doing this for the first time, enter any 4 digits. (except for 4737) That number will be used as the password from the second time onward.

¡By entering the password, you can then change the

control level and password settings.

Press the

K/L

buttons to select an item, and

then press the ENTER button.

PARENTAL LOCK

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: ENTER

SET-UP

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SELECT:

/ SET

EXIT

: SETUP

SET-UP

PARENTAL CONTROLS

PASSWORD

Please enter a 4-digit password.

- - - -

EXIT

: SETUP

SET-UP

PARENTAL CONTROLS

PARENTAL LEVEL ALL

CHANGE

SELECT: EXIT

: SETUP

CANCEL

/ SET

CANCEL

: ENTER

: RETURN

: ENTER

: RETURN

SET-UP

PARENTAL CONTROLS

PARENTAL LEVEL

ALL

[NC-17]

7 6

[R]

SELECT:

/ SET

EXIT

: SETUP

: ENTER

CANCEL

: RETURN

SET-UP

PARENTAL CONTROLS

PASSWORD

Please enter current password.

- - - -

CANCEL

EXIT

: SETUP

: RETURN

Page 28

–28–

1A23

LANGUAGE CODE LIST

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68

No.

Language Country code

Afar Abkhazian Afrikaans Amharic Arabic Assamese Aymara Azerbaijani Bashkir Byelorussian Bulgarian Bihari Bislama Bengali;Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish [DAN] German [GER] Bhutani Greek [GRE] English [ENG] Esperanto Spanish [SPA] Estonian Basque Persian Finnish [FIN] Fiji Faroese French [FRE] Frisian Irish [IRI] Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian [HUN] Armenian Interlingua Interlingue Inupiak Indonesian Icelandic [ICE] Italian [ITA] Hebrew Japanese Yiddish Japanese [JPN] Georgian Kazakh Greenlandic Cambodian Kannada Korean [KOR] Kashmiri Kurdish Kirghiz Latin Lingala Laothian Lithuanian

4747 4748 4752 4759 4764 4765 4771 4772 4847 4851 4853 4854 4855 4860 4861 4864 4947 4961 4965 4971 5047 5051 5072 5158 5160 5161 5165 5166 5167 5247 5255 5256 5261 5264 5271 5347 5350 5358 5360 5367 5447 5455 5464 5467 5471 5547 5551 5557 5560 5565 5566 5569 5647 5655 5669 5747 5757 5758 5759 5760 5761 5765 5767 5771 5847 5860 5861 5866

69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98

99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136

No.

Language Country code

Latvian;Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Malay Maltese Burmese Nauru Nepali Dutch [DUT] Norwegian [NOR] Occitan (Afan)Oromo Oriya Panjabi Polish Pashto;Pushto Por tuguese [POR] Quechua Rhaeto-Romance Kirundi Romanian [RUM] Russian [RUS] Kinyarwanda Sanskrit Sindhi Sangho Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian Siswat Sesotho Sundanese Swedish [SWE] Swahili Tamil Telugu Tajik Thai Tigrinya Turkme n Tagalog Setswana Tonga Turkish [TUR] Tsonga Tatar Twi Ukrainian Urdu Uzbek Vietnamese Volapuk Wolof Xhosa Yo ruba Chinese [CHI] Zulu

5868 5953 5955 5957 5958 5960 5961 5964 5965 5966 5971 6047 6051 6058 6061 6149 6159 6164 6247 6258 6265 6266 6367 6459 6460 6461 6467 6469 6547 6550 6553 6554 6555 6557 6558 6559 6560 6561 6563 6564 6565 6566 6567 6568 6569 6647 6651 6653 6654 6655 6657 6658 6660 6661 6664 6665 6666 6669 6757 6764 6772 6855 6861 6961 7054 7161 7254 7267

If you choose a Language that has a 3 letter language code, the code will be displayed everytime you change the Audio or Subtitle language setting on pages 21 and 22. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

Page 29

No malfunction.

–29–

1A23

TROUBLESHOOTING GUIDE

If the DVD player does not perform properly when operated as instructed in this Owner's Manual, check the player, consulting the following checklist.

Symptom

Cause

Remedy

No power

Loose power plug.

Insert the power plug firmly into the wall outlet.

The player does not respond to the remote control.

The remote control is not aimed at the sensor on the player.

Obstacles present between the remote control and the sensor.

The remote control is too far away from the player.

Dead batteries.

Aim the remote control directly at the sensor on the player.

Remove the obstacles from the signal path.

Use the remote control within 7m of the player.

Replace the batteries.

No picture

Loose video connection.

Wrong disc.

Connect the video cables firmly.

Insert a correct video disc that plays on this player.

Disc cannot be played

No disc.

Dirty disc.

Disc is placed upside down.

Parental lock is active.

Insert a disc.

Clean the disc.

Place the disc correctly, with the label side up.

Cancel the parental lock or change the control level.

No sound

Loose audio connection.

The power of the connected audio component is off.

Wrong audio output settings.

Wrong input settings on the connected audio component.

Copy protection is active.

Immediately after playing, press fast forward or in reverse.

The 1st layer is switching to the 2nd layer, when playing a two layered disc.

Connect the audio cables firmly.

Turn the power of the audio component on.

Correct the audio output settings.

Correct the input settings on the audio component.

Distorted picture

Connect the player directly to the TV.

There are some cases where pictures may be slightly distorted, which are not a sign of a malfunction.

Although Pictures may stop for a moment, this is not a malfunction.

Audio or subtitle language does not match the setup.

The selected language is not available for audio or subtitles on the DVD.

No malfunction.

The camera angle cannot be changed.

The DVD does not contain sequences recorded from different camera angles.

No malfunction.

Audio or subtitle language cannot be changed.

The DVD does not contain audio source or subtitles in the selected language.

No malfunction.

“Prohibited icon” appears on the screen, prohibiting an operation.

That operation is prohibited by the player or disc.

Notes

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for details on correct operations.

¡Playback from a desired track and random playback are not available during program playback.

Page 30

–30–

1A23

HANDLING PRECAUTIONS

SERVICING

Should your DVD player become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800-9683429, to locate an Authorized Service Center.

CABINET CLEANING

¡Wipe the front panel and other exterior surfaces of

the DVD player with a soft cloth immersed in lukewarm water and wrung dry.

¡Never use a solvent or alcohol. Do not spray

insecticide liquid near the DVD player. Such chemicals may cause damage and discoloration to the exposed surfaces.

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

¡If the player still does not perform properly when it is operated while referring to the relevant sections and to

“TROUBLESHOOTING GUIDE” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

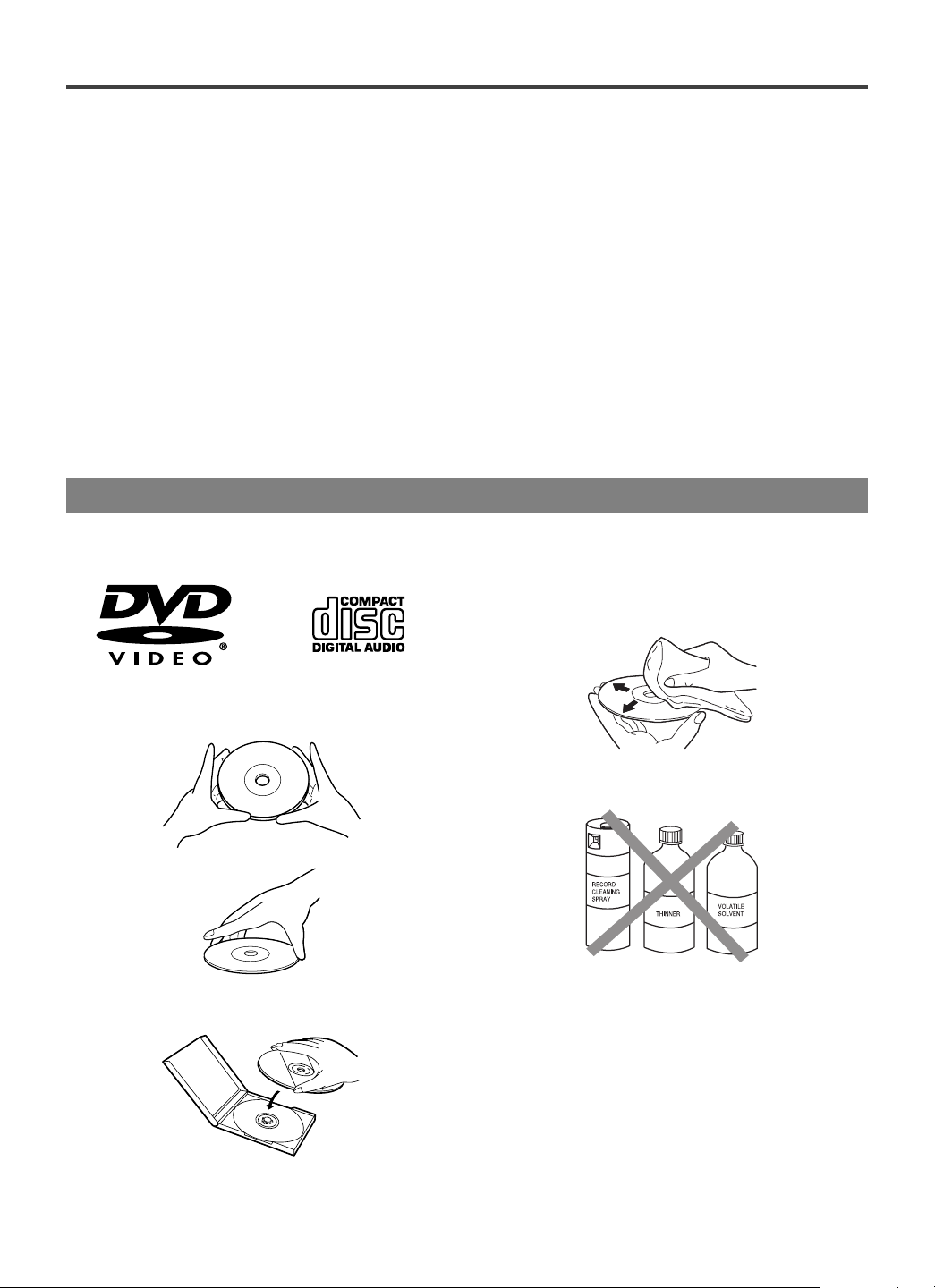

¡Use discs which have the following logos on them.

(Optical audio digital discs.)

¡Handle the discs so that fingerprints and dust do not

adhere to the surfaces of the discs.

¡Always store the disc in its protective case when it is

not used.

¡To clean-off, use a soft cloth. ¡Do not use a hard cloth since this will mar the disc. ¡Wipe the disc in a straight line from center to edge. ¡Never wipe with a circular motion.

¡Do not use detergent or abrasive cleaning agents.

DISC HANDLING

Page 31

–31–

1A23

SPECIFICATIONS

Product type : DVD Player

Discs : DVD video

Audio CD

Output signal format : NTSC color

Frequency response

DVD (linear sound) : 20 Hz to 22 kHz (sample rate: 48 kHz)

20 Hz to 44 kHz (sample rate: 96 kHz)

CD : 20 Hz to 20 kHz

Signal-to-noise ratio (S/N ratio)

CD : 110 dB (EIAJ)

Dynamic range

DVD (linear sound) : 95 dB CD : 94 dB (EIAJ)

Total distortion factor

CD : 0.005% (EIAJ)

Wow and flutter : Below the measurement limitation (+/-0.001% W PEAK) (EIAJ)

Connections

S-Video output : Mini DIN 4-pin jack (75 ohm) Video output : One RCA connector, 1 Vpp (75 ohm) Coaxial digital audio output : One pin jack, 500mVpp (75 ohm) Analog audio output : Two RCA connectors (one left channel, one right channel) 2 Vrms (47 kilo-ohm) Component video output : One pin jack (Y), 1 Vpp (75 ohm) Two pin jacks (CB)/(CR), 700mVpp (75 ohm)

Power source : 120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption : 14 W (standby: 2.2W)

Operating temperature : 5°C to 40°C

Dimensions : W 17-1/8” (435mm)

H 3” (75mm)

D 8-5/16” (211mm)

Weight : 4.63 lbs (2.1kg)

¡Designs and specifications are subject to change without notice. ¡If there is a discrepancy between languages, the default language will be English.

Page 32

–32–

1A23

CONTROLES DE OPERACIÓN Y FUNCIONES

PLAY

STOP

PAUSE

OPEN/CLOSE

SKIP

POWER

211 412

8 531

PANEL DELANTERO

MANDO A DISTANCIA

5 14

16 17 18

3 20

21 22

25 24

28 4

RETURNZOOM

MODE

SKIPPAUSEA-B

REPEAT

ANGLE

AUDIO

SUB

TITLE

CLEAR

TITLE

STOP

PLAY

FWDREV

SETUP

ENTER

OPEN/ CLOSE

MODE

DISPLAY

123

456

789

0 +10

POWER

1. Visualizador, ventana del sensor del mando a distancia

2. Botón de reproducción (PLAY)

Inicie la reproducción del contenido del disco.

3. Botón de pausa (PAUSE)

Hace una pausa en la operación del disco actual.

4. Botón de parada (STOP)

Detiene la operación del disco.

5. Botón de la alimentación

Púlselo para conectar y desconectar la alimentación.

Botón del modo de búsqueda (SEARCH MODE)

Púlselo para localizar un punto deseado.

7. Botón de salto ascendente/avance rápido (SKIP UP/FWD) (Unidad principal)

Inicia la reproducción desde el principio del capítulo o pista siguiente. Manténgalo pulsado para que la reproducción avance rápidamente.

8. Botón de salto descendente/retroceso rápido (SKIP DOWN/REV) (Unidad principal)

Inicia la reproducción desde el principio del capítulo o pista actual. Manténgalo pulsado para que la reproducción retroceda rápidamente.

9. Botón de salto ascendente (SKIP UP) (Mando a distancia)

Inicia la reproducción desde el principio del capítulo o pista.

10. Botón de salto descendente (SKIP DOWN) (Mando a distancia)

Inicia la reproducción desde el principio del capítulo o pista actual.

11. Botón de abertura/cierre (OPEN/CLOSE)

Púlselo para introducir discos en la bandeja o sacarlos de ella.

12. Bandeja de disco

13. Botón de visualización (DISPLAY)

Muestra el estado actual en la pantalla del televisor con fines de comprobación.

14. Botón de AUDIO

Púlselo para seleccionar el modo de sonido o el idioma de audio deseado.

15. Botón de subtítulos (SUBTITLE)

Púlselo para seleccionar el idioma de subtítulos deseado.

16. Botón de ángulos (ANGLE)

Púlselo para cambiar el ángulo de la cámara y ver desde un ángulo diferente la secuencia que está siendo reproducida.

17. Botón de repetición (REPEAT)

Repite la reproducción del disco, título, capítulo o pista actual.

18. Botón de repetición A-B (A-B REPEAT)

Repite la reproducción de una sección seleccionada.

19. Botón de cancelación (CLEAR)

Repone un ajuste.

20. Botón de retroceso (REV)

Hace que la reproducción retroceda rápidamente hasta un punto deseado.

21. Botón de preparación (SETUP)

Púlselo para entrar en el modo de preparación o para cambiar elementos de preparación.

22. Botón de modo (MODE)

Activa el modo de reproducción programada o el modo de reproducción aleatoria. Para fijar conexión /desconexión de nivel negro o SRS TruSurround.

23. Botón de titulación (TITLE)

Visualiza el menú de títulos.

24. Botón de introducción (ENTER)

Púlselo para aceptar un ajuste.

25. Botón de retorno (RETURN)

Púlselo para volver a la operación anterior.

26. Botones de flechas

Utilícelos cuando haga ajustes mientras ve la visualización en una pantalla de televisión.

27.

Botón de MENU Visualiza los menús DVD.

28. Botón de avance (FWD)

Hace que la reproducción avance rápidamente hasta un punto deseado.

29. Botones numéricos

30. Botón del ZOOM

Amplia parte de una imagen de DVD reproducida.

Page 33

–33–

1A23

S-VIDEO

OUT

YCr

VIDEO

OUT

AUDIO OUT

COAXIAL

31 36 3734 3532 33

VISTA TRASERA

31. Cable de alimentación

32. Toma de salida de audio digital coaxial

(COAXIAL DIGITAL AUDIO OUT)

33.

Toma de salida de audio derecha (AUDIO OUT)

34.

Toma de salida de audio izquierda (AUDIO OUT)

35. Toma de salida de vídeo (VIDEO OUT)

36. Tomas de salida de vídeo componente

37. Toma de salida de vídeo S (S-VIDEO OUT)

VISUALIZACIÓN

VISUALIZACIONES DURANTE

LA OPERACIÓN

INSTALACIÓN DE LAS PILAS

Permanece encendido cuando el disco insertado está siendo reproducido.

CD: Se enciende cuando se inserta un CD en la bandeja.

Se enciende cuando se inserta un DVD en la bandeja.

Se enciende cuando el disco insertado hace una pausa.

Permanece encendido cuando está activada la función de repetición A-B.

Permanece encendido cuando está activada la función de repetición.

Visualiza el tiempo de reproducción del título o de la pista actual. Cuando se cambia un capítulo o una pista, se visualiza el número del nuevo título, capítulo o pista.

Conexión de alimentación

No hay disco insertado

Bandeja abierta

Bandeja cerrada

Carga del disco

Desconexión de alimentación

1. Abra la tapa del compartimiento de las pilas.

Introduzca dos pilas AA con las polaridades colocadas correctamente.

3. Cierre la tapa.

Notas

¡No mezcle pilas alcalinas y de manganeso. ¡No mezcle pilas viejas y nuevas.

Page 34

–34–

1A23

CONEXIONES

Para empezar

Conecte la alimentación del televisor, amplificador y cualquier otro componente que esté conectado al reproductor DVD. (Cambie el sistema de entrada para adaptarlo al reproductor DVD, y compruebe que el volumen del sonido sea correcto.)

1 Pulse el botón POWER.

La alimentación se conectará.

2 Pulse el botón OPEN/CLOSE.

La bandeja de carga del disco se abrirá.

CDDVD

3 Ponga un disco en la bandeja.

Asegúrese de que el disco esté correctamente asentado en el hueco correcto, con el lado de la etiqueta hacia arriba.

4 4 Pulse el botón PLAY.

La bandeja se cerrará automáticamente y la reproducción empezará desde el primer capítulo o pista del disco. Necesitará pulsar el botón PLAY sólo cuando la bandeja haya sido cerrada pulsando el botón OPEN/CLOSE.

¡Cuando reproduzca un DVD que tenga grabado un

menú de títulos, el menú tal vez aparezca en la pantalla.

Pulse el botón STOP para detener la reproducción.

REPRODUCCIÓN DE UN DISCO

PARA TELEVISORES CON TOMA DE ENTRADA DE VÍDEO S

Utilice un cable de vídeo S (de venta en el comercio) en lugar del cable de vídeo amarillo para disfrutar de imágenes de más alta calidad.

CONEXIÓN A UN TELEVISOR

Consulte la figura 1 de la página 10

Para hacer las conexiones de audio utilice cables digitales coaxiales de audio (de venta en el comercio).

CONEXIÓN A UN AMPLIFI-

CADOR EQUIPADO CON

TOMAS DE ENTRADA DIGITAL,

PLATINA MD O PLATINA DAT

Consulte la figura 6 de la página 12

Si utiliza este reproductor DVD para reproducir un DVD en un formato de sonido ambiental DTS o sonido ambiental Dolby Digital de 5,1 canales, el reproductor DVD dará salida a un flujo de datos Dolby Digital o DTS desde su toma COAXIAL DIGITAL AUDIO OUT. Conectando el reproductor a un descodificador Dolby Digital o DTS, usted podrá disfrutar de un ambiente más convincente y real, con un sonido ambiental potente y de alta calidad de estándar profesional como el que puede oírse en los cines.

Para hacer las conexiones de audio utilice cables digitales coaxiales de audio (de venta en el comercio).

CONEXIÓN A UN DESCODIFI-

CADOR DOLBY DIGITAL O A

UN DESCODIFICADOR DTS

Consulte la figura 4 de la página 11

Consulte la figura 3 de la página 10

Consulte la figura 2 de la página 10

REPRODUCCIÓN DE UN DVD

DE VÍDEO O UN CD DE AUDIO

CONEXIÓN A UN TELEVISOR O

A UN TELEVISOR ESTÉREO

QUE TENGA TOMAS COMPO-

NENT VIDEO IN

Consulte la figura 5 de la página 11

Page 35

–35–

1A23

MEMO

Page 36

0VMN03012

E5608UD

★★★★

Printed in China

LIMITED 90 DAY WARRANTY

If this (product) experiences any failure due to a defect in material or workmanship within 90 days from the date of purchase, return it to your nearest Sears store, and it will be replaced free of charge.

This warranty applies only if this (product) is used for private household purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Registered Trademark / TM Trademark /

Service Mark of Sears, Roebuck and Co.

Marca Registrada /

Marca de Fábrica / SM Marca de Servicio de Sears, Roebuck and Co.

Get it fixed, at your home or ours!

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER

(1-800-533-6937)

www.sears.ca

Your Home

For repair- in your home -of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME

(1-800-469-4663)

Call anytime, day or night

(U.S.A. and Canada)

www.sears.com www.sears.ca

Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179 For the location of a Sears Service Center in your area : 1-800-488-1222

E5608.QX3 02.8.22 10:16 AM Page 36

Page 37

documentation manual, user maintenance, brochure, user reference, pdf manual

This file has been downloaded from:

User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..

Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,

manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
