SYLVANIA

OWNER’S MANUAL

VIDEO CASSETTE RECORDER

RSDCV603

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, WARNING: DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT SAFEGUARDS

1.Read Instructions- All the safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions- The safety and operating instructions should be retained for future reference.

3.Heed Warnings- All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions- All operating and use instructions should be followed.

5.Cleaning- Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments- Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7.Water and Moisture- Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories- Do not place this video product on an unstable cart, stand, tripod, bracket, or table.The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the

manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9.Ventilation- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered.The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface.This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to .

10.Power Sources- This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization- This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other).This plug will fit into the power outlet only one way.This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power Cord Protection- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna Grounding- If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

ANTENNA

LEAD

AS PER NATIONAL ELECTRICAL CODE

WIRE

GROUND



CLAMP





ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT

GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMP

NEC – NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING

S2898A

ELECTRODE SYSTEM



(NEC ART 250, PART H)

14.Lightning- For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and powerline surges.

15.Power Lines- An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading- Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry- Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

18.Servicing- Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service- Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supply cord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the video product.

c.If the video product has been exposed to rain or water.

d.If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e.If the video product has been dropped or damaged in any way.

f.When the video product exhibits a distinct change in performance-this indicates a need for service.

20.Replacement Parts- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21.Safety Check- Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

22.Heat- This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

– 1 –

EN

0VMN03673 / HD441CD

PRECAUTIONS

Install Location

For safety and optimum performance of your VCR:

Install the VCR in a horizontal and stable position. Do not place anything directly on top of the VCR. Do not place the VCR directly on top of the TV.

Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the VCR. Avoid locations subject to strong vibration or strong magnetic fields.

Avoid the Hazards of Electrical Shock and Fire

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the VCR at least for 2 hours until its inside is dry.

FCC Warning

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Important Copyright Information

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Note to the Cable TV System Installer

This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

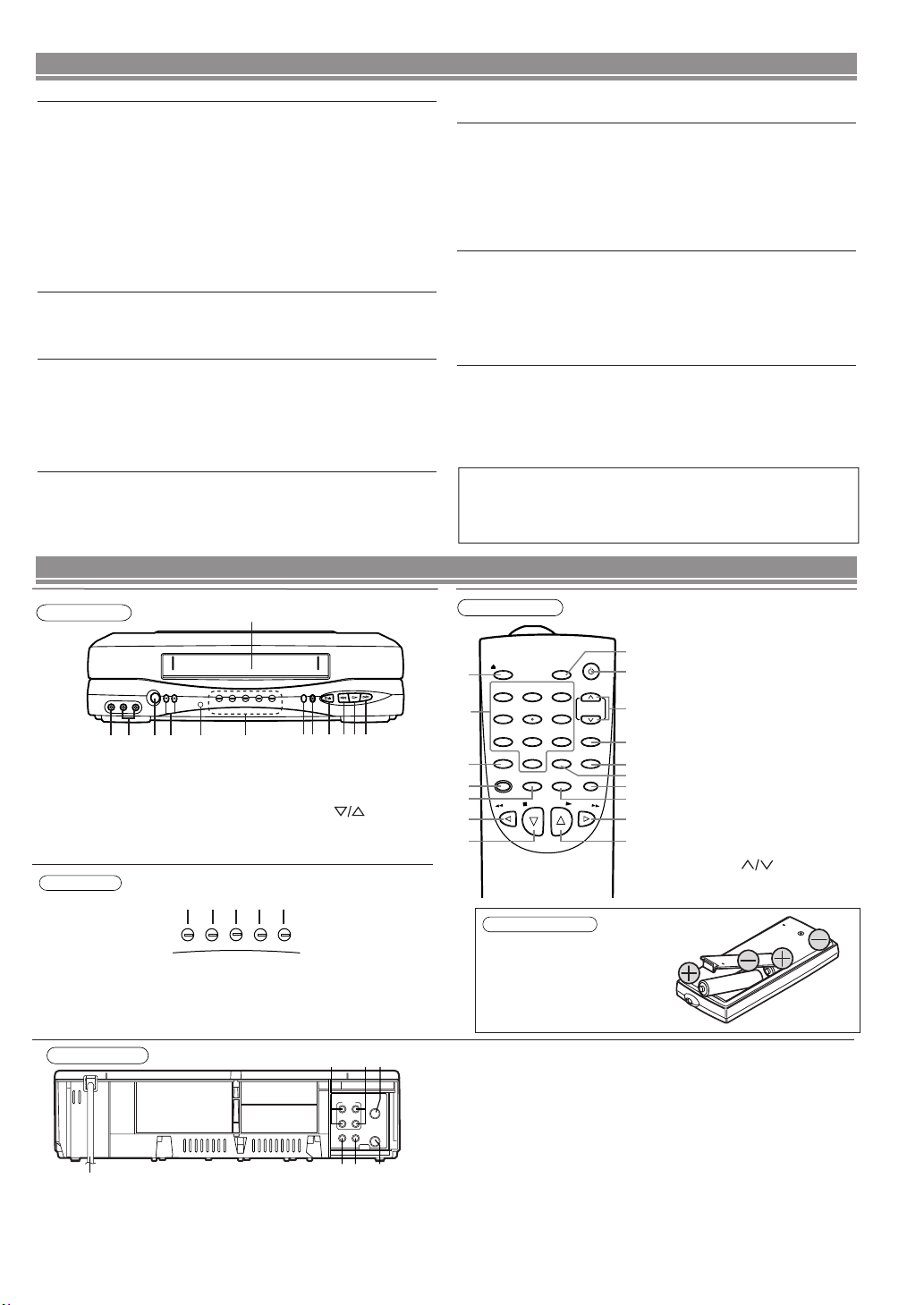

DESCRIPTION OF CONTROLS

Front Panel







1

































REW

PLAY

F.FWD







CHANNEL









MENU REC/OTR

/STOP

















EJECT











VIDEO L-AUDIO-R































POWER VCR/TV TAPE IN TIMER

REC















13 12

11 10

9



8



7 6

5

4 3 2





1. Cassette Compartment



18. Indicators











2. F.FWD button







19. Remote Sensor

) buttons

3. PLAY button







10. CHANNEL (







4. REW button







11. POWER button







5. STOP/EJECT button





12. AUDIO Input jacks



6. REC/OTR button





13. VIDEO Input jack





7. MENU button

























Indicators





























14

15

16

17

18

















POWER

VCR/TV

TAPE IN

TIMER

REC













14. POWER indicator





17. TIMER indicator





15. VCR/TV indicator





18. REC indicator







16. TAPE IN indicator























Rear Panel

















19



20 21









































AUDIO

ANT





















L

IN











































OUT

IN























R























VIDEO

OUT





















OUT

IN



25

















24 23

22

























19. AUDIO OUT jacks





23. VIDEO IN jack







20. AUDIO IN jacks





24. VIDEO OUT jack





21. ANT. IN jack







25. AC Power Cord







22. ANT. OUT jack























Remote Control









POWER

1

EJECT



VCR/TV



1

2

3







2

4

5

6

CHANNEL



7

8

9

SEARCH



-MODE



MENU

0

SLOW

C.RESET

3

EXIT







PAUSE



RECORD

SPEED

DISPLAY

4

/STILL









5

REW

STOP

PLAY

F.FWD







6

7

1. EJECT button

172. NUMBER buttons

3. MENU button

164. RECORD button

5. SPEED button

156. REW button

7.STOP button

8.PLAY button

14

9. F.FWD button

13

10. DISPLAY button

12

11. PAUSE/STILL button

11

12. SLOW button

10

13. C.RESET/EXIT button

914. SEARCH-MODE button

15. CHANNEL () buttons

816. POWER button

17. VCR/TV button

To insert the batteries

Install two AA batteries

(supplied) matching the

polarity indicated on the

bottom of the remote

control.

VIDEO OUT Jack

Connect a video cable going to the video in jack of a camcorder, another VCR, a TV, or an audiovisual system (laser disc player, video disc player, etc.) here.

AUDIO OUT Jacks

Connect the audio cables going to the audio in jacks of a camcorder, another VCR, a stereo amplifier, or an audio system here.

VIDEO IN Jack

Connect a video cable coming from the video out jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here.

AUDIO IN Jacks

Connect the audio cables coming from the audio out jacks of a camcorder, another VCR, or an audio source here.

– 2 –

EN

PREPARATION FOR USE

Connecting to a TV without A/V Terminals







1

Disconnect the AC power cord of the TV from the AC

outlet.

2

Disconnect the antenna or cable from the TV.







3

Connect the antenna or cable to the ANT. IN jack of

the VCR.



4

Connect the VCR to the TV using the RF cable.

5

Plug the AC power cords of the VCR and TV into the

AC outlets.

[VHF/UHF

[Indoor antenna]

[Back of the VCR]

combination antenna]



[Back of the





UHF/VHF combination TV]







OR

IN

RF cable









ANT













(supplied)

[Cable

box or satellite box]





UHF/VHF

OR

OUT



From Cable or

IN

OUT

























Satellite Company











RF Output Channel

If your TV does not have A/V terminals:

Press [PLAY] on the VCR for 3 seconds during playback.The RF output channel will change to CH4 from CH3.

When you want to return to CH3 for RF output channel, press [PLAY] on the VCR for 3 seconds during playback again. (Default setting :CH3)

There is case that the RF output channel does not change by situation (For example, when you adjust tracking using

[CHANNEL () ].

In this case, stop the playback, and start the playback again. After that, press [PLAY] on the VCR for 3 seconds.

If there is a power failure or the VCR is unplugged for more than 30 seconds, the RF output channel setting will return to CH3.

Connecting to a TV with A/V Terminals

Using Optional AUDIO/ VIDEO Output Jacks

With this connection, you can get better pictures and sounds when playing back a tape if your TV has A/V Input jacks. Please refer to your TV’s owner’s manual.

Using AUDIO/VIDEO Input Jacks

You can use the A/V input jacks on the front or the back of the VCR.

To use the input jacks on the back of the VCR, select "L1" position by pressing [0], [0], [1] on the remote control or

[CHANNEL () ].

• To use the input jacks on the front of the VCR, select "L2" position by pressing [0], [0], [2] on the remote control or [CHANNEL () ].

“L1” or “L2” is found before the lowest memorized channel. (Example: CH2)

[Playing VCR]

AUDIO

L

IN

R

VIDEO

Audio/Video cables

IN

(not supplied)

[TV A/V]

IN

L R

AUDIO

VIDEO

SETUP

Automatic Channel Set Up

You can automatically program the tuner to scan only the channels you receive in your area.

Channel memory programming is NOT needed when you connect the VCR to a cable box or satellite box as in "Connect VCR to TV Connection". In this case, select the VCR and TV to channel 3 or 4 the same channel as the RF output channel of the VCR. Then, the channel you want to record or view may be selected at the cable box or satellite box.

Follow the steps below once. Repeat it only if there is a power failure or if the VCR is unplugged for more than 30 seconds. (In these cases, the programmed channels are erased.)

You must follow the steps below before attempting to play or record a video tape. If you want to play or record a video tape BEFORE programming the tuner, you can cancel it by pressing [C.RESET/EXIT].

1

You need to connect the antenna or cable to the VCR

first. Then, connect the VCR power plug into a stan-





dard AC outlet.





2

Turn on the TV and set the TV to channel 3. If channel 3

is already occupied for broadcasting, change the RF output





to CH 4, and change the TV channel to CH4.





(See “RF Output Channel” on page 3 for the detail.)









3

Turn on the VCR by pressing [POWER]. When the

POWER is on, both the POWER and VCR/TV indicator on





the VCR will be on.















4

Select the On Screen Language

LANGUAGE SELECT

("ENGLISH" , "FRANCAIS" or





ENGLISH





"ESPAÑOL") by pressing [PLAY] or

FRANCAIS





[STOP]. Then, press [F.FWD].





5

Begin channel preset by pressing [F.FWD] once. The

tuner scans and memorizes all active

CH 01





channels in your area.











• The VCR distinguishes between standard

AUTO SET UP





TV channels and cable channels.





6

After scanning, the tuner stops on the lowest memo-

rized channel. The TV screen returns to TV mode.

If "AUTO SET UP" appears on the TV screen again, check the cable connections. Press [F.FWD] once again and the VCR will begin preset again.

To Select a Desired Channel

You can select the desired channel by using [CHANNEL () ] or directly pressing [Number] on the remote control.

Note for using the Number buttons:

When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number.(For example: 117, press 1,1,7)

You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).

To Preset the Channel Again







1

Press [MENU] until the main menu appears.







2

Select "CHANNEL SET UP" by pressing [PLAY] or

[STOP]. Then, press [F.FWD].







3

Select "AUTO SET UP" by pressing [PLAY] or [STOP].

Then, press [F.FWD]. After scanning, the tuner stops on

the lowest memorized channel.

– 3 –

EN

To Add/Delete Channels

When the VCR automatically program the tuner to scan only the channels you receive in your area, some channels may be skipped due to weak signal. You can manually add the channel in the VCR memory.

1

Press [MENU] until the main menu

- MENU -









appears.

TIMER PROGRAMMING

AUTO REPEAT

[OFF]

CLOCK SET











CHANNEL SET UP



2

Select "CHANNEL SET UP" by

LANGUAGE SELECT

TV STEREO

[ON]





AUDIO OUT



pressing [PLAY] or [STOP]. Then,

SAP











press [F.FWD].





3

Select "MANUAL SET UP" by pressing [PLAY] or



[STOP]. Then, press [F.FWD].











4

Enter the desired channel number by pressing [PLAY]

or [STOP].





5

Add or Delete it from memory by pressing [F.FWD] or

[REW] so that "ADD" or "DELETE" flashes on the TV







screen accordingly.







6

Exit the Preset mode by pressing [C.RESET/EXIT].







To Change the On-Screen Language















1

Press [MENU] until the main menu appears.



2

Select "LANGUAGE SELECT" by pressing [PLAY] or

[STOP]. Then, press [F.FWD].













3

Select "ENGLISH" , "FRANCAIS" or "ESPAÑOL" by

pressing [PLAY] or [STOP]. Then, press





[C.RESET/EXIT].

If you accidentally select Spanish or French and need English: Press [MENU] and choose SELEC. IDIOMA, or SELECTION LANGUE. Press [F.FWD], and select ENGLISH. Finally, press [C.RESET/EXIT].

Clock Set Up

1

Select main menu by pressing [MENU].(If the clock is not

set, the CLOCK SET menu appears first. In this case, fol-





low step [3].)

2

Select "CLOCK SET" by pressing [PLAY] or [STOP].

Then, press [F.FWD].

3 Set the clock.

Set the month

Press [PLAY] or [STOP] repeatedly.







Then, press [F.FWD].









Set the day

Press [PLAY] or [STOP]repeatedly.







Then, press [F.FWD].



















Set the year

Press [PLAY] or [STOP] repeatedly.







Then, press [F.FWD].











The day of the week will appear automatically.



Press [PLAY] or [STOP] repeatedly.





Set the hour







Then, press [F.FWD].











Press [PLAY] or [STOP] repeatedly.





Set the minute







Then, press [F.FWD].











Press [PLAY] or [STOP]









Set the AM

CLOCK SET

or PM

repeatedly.













MONTH

DAY

YEAR







03

/ 17 MON

2003







HOUR

MINUTE

AM/PM



05

:

40

PM AM











PM

• To go back one step, press [REW].

4 Start the clock by pressing [C.RESET/EXIT] or [F.FWD].

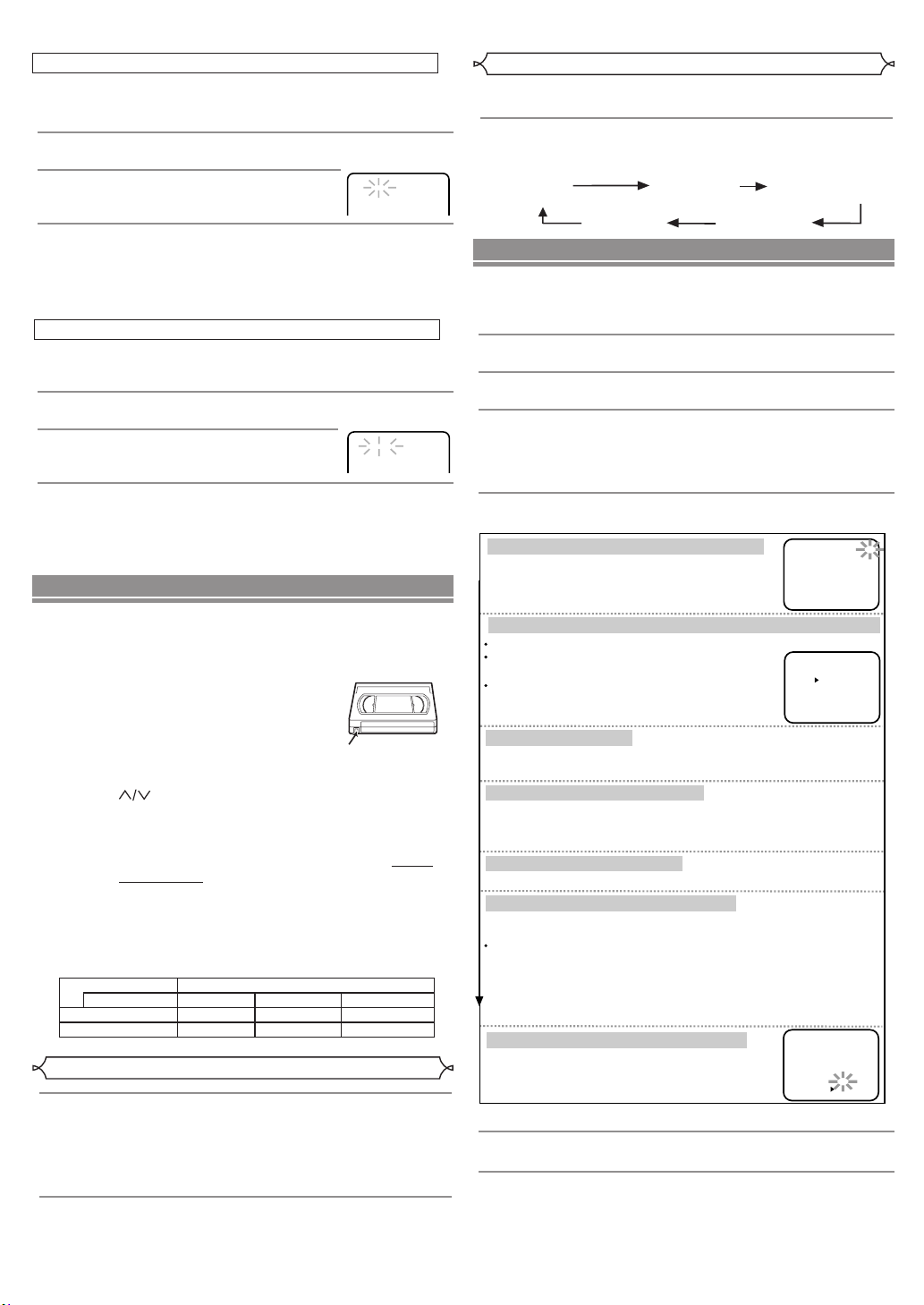

PLAYBACK FUNCTION

Normal Playback

1

Insert the prerecorded tape. The VCR will





turn on. If the safety tab has been removed,













the VCR will start playback automatically.

2

Turn on the TV and set the TV to channel 3. If channel

3 is already occupied for broadcasting, change the RF out-





put to CH 4, and change the TV channel to CH4.





(See “RF Output Channel” on page 3 for the detail.)



3

Begin playback by pressing [PLAY].

Tracking adjustment will be set automatically (Digital

Tracking function) when you start playback. To adjust the tracking manually, press [CHANNEL () ] on the VCR.

You cannot manually adjust the tracking of a Still picture. However, you may press [CHANNEL () ] on the VCR to remove vertical jitter in a Still picture.

When a tape has reached the end, the VCR will rewind the tape to the beginning, eject the tape, and turn off the VCR automatically.

4 To stop playback, press [STOP].

Counter Reset

You can reset the counter by pressing [C.RESET/EXIT] on the remote control

Still / Slow

You can freeze the picture on TV screen by pressing [PAUSE/STILL] during playback.

You can advance the picture by one frame at a time by pressing [PAUSE/STILL] during the still mode.

If the picture begins to vibrate vertically during the still mode, stabilize the picture by pressing [CHANNEL () ].

If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV, if equipped.

You can see the slow motion by pressing [SLOW] during playback or the still mode.

If the noise bar appears on the TV screen, you can reduce it by pressing [CHANNEL () ].

After the VCR has been in Still/Slow mode for 5 minutes, it will stop automatically to protect the tape and the video head from damage.

To return playback, press [PLAY].

Auto Repeat Playback

This feature allows you to play a tape over and over.

1

Select main menu by pressing [MENU].



2

Select "AUTO REPEAT" by pressing [PLAY] or [STOP].

3

Begin auto repeat playback by pressing [F.FWD] so that

[ON] appears next to "AUTO REPEAT".

If the on-screen menu still remains, press [C.RESET/EXIT] to exit the menu.

To cancel the Auto repeat mode, press [F.FWD] at step [3] so that [OFF] appears next to "AUTO REPEAT".

Search Functions

Picture Search

If you want to skip or repeat a scene during playback, press [F.FWD] or [REW].

Press it again and the VCR will now search in super high speed. (in the LP/SLP modes only)

– 4 –

EN

+ 12 hidden pages
