Page 1

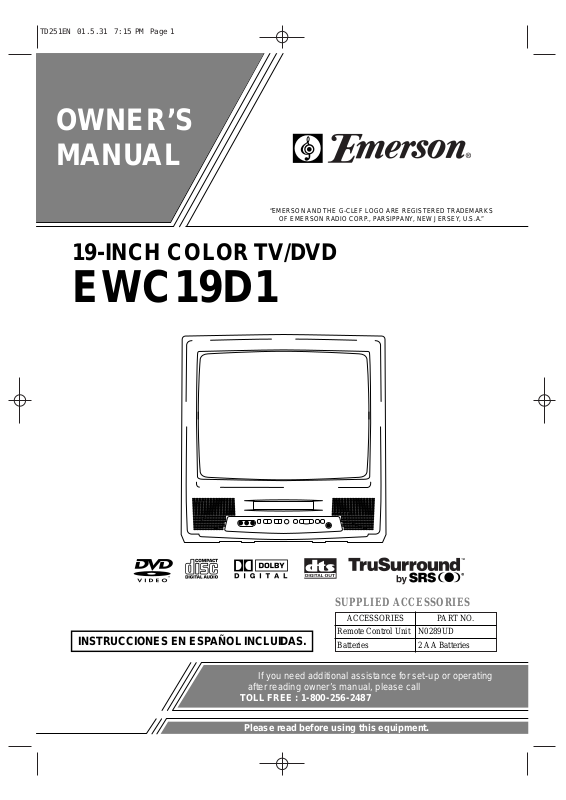

OWNER’S MANUAL

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

SUPPLIED ACCESSORIES

Batteries

Remote Control Unit

ACCESSORIES

2 AA Batteries

N0289UD

PART NO.

19-INCH COLOR TV/DVD

EWC19D1

If you need additional assistance for set-up or operating after reading owner’s manual, please call

TOLL FREE : 1-800-256-2487

Please read before using this equipment.

“EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS

OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.”

TD251EN 01.5.31 7:15 PM Page 1

Page 2

–2–

0C28

–2–

1.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions

should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the

operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions

should be followed.

5.Cleaning-Unplug TV/DVD from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Do not use attachments not recommended by

the TV/DVD manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/DVD near water-

for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this TV/DVD on an unstable cart,

stand, tripod, bracket, or table. The TV/DVD may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/DVD. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Accessoires- Ne placez pas cette TV/DVD sur une table roulante, un support, un trépied, une console ou une table instable. Cette TV/DVD risquerait de tomber, pouvant gravement blesser quelqu'un et l'appareil même pourrait être sérieusement endommagé. N'utilisez qu'une table roulante, un support, un trépied, une console ou une table recommandé par le fabriquant, ou vendu avec la TV/DVD. Pour n'importe quelle installation de l'appareil, on devra suivre les instructions du fabriquant et l'on devra utiliser les accessoires d'installation recommandés par le fabriquant. L'ensemble combiné de l'appareil avec une table roulante devra être déplacé avec précaution. Des arrêts brusques, une force excessive et des surfaces inégales peuvent provoquer le renversement de l'ensemble combiné de l'appareil/table roulante.

9.Ventilation-Slots and openings in the cabinet and the back

or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD on a bed, sofa, rug, or other similar surface. This TV/DVD should never be placed near or over a radiator or heat register. This TV/DVD should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This TV/DVD should be operated only

from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVDs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding orPolarization-This TV/DVD is equipped

with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

TD251EN 01.5.31 7:15 PM Page 2

PORTABLE CART WARNING

AVERTISSEMENT POUR UNE

TABLE ROULANTE PORTATIVE

S3126A

Page 3

–3–

0C28

–3–

12.Power-Cord Protection-Power-supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding-If an outside antenna or

cable system is connected to the TV/DVD, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/DVD receiver

during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be

located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind

into this TV/DVD through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD.

18.Servicing-Do not attempt to service this TV/DVD yourself

as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/DVD from

the wall outlet and refer servicing to qualified service per-

sonnel under the following conditions: a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the

TV/DVD. c. If the TV/DVD has been exposed to rain or water. d. If the TV/DVD does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions, as improper adjust-

ment of other controls may result in damage and will often

require extensive work by a qualified technician to restore

the TV/DVD to its normal operation. e. If the TV/DVD has been dropped or damaged in any way. f. When the TV/DVD exhibits a distinct change in perfor-

mance-this indicates a need for service.

20.Replacement Parts-When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer that have the same character-

istics as the original part. Unauthorized substitutions may

result in fire, electric shock, injury to persons or other haz-

ards.

21.Safety Check-Upon completion of any service or repairs to

this TV/DVD, ask the service technician to perform routine

safety checks to determine that the TV/DVD is in proper

operating condition.

22.Heat-This TV/DVD product should be situated away from

heat sources such as radiators, heat registers, stoves, or

other products (including amplifiers) that produce heat.

TD251EN 01.5.31 7:15 PM Page 3

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELE CTRICAL CODE

S2898A

FIGURE A

ELECTRIC SERVICE EQUIPMENT

NEC - NATIO NAL EL ECTR ICAL CODE

ANTENNA

LEAD IN WIRE

GROUND

CLAMP

ANTENNA

DISCHARGE UNI T (NEC SECTIO N 810 -20)

GROUNDING CONDUCTORS (NEC SECTIO N 810 -21)

GROUND CL AMPS

POWER SERVICE GRO UNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

Page 4

–4–

0C28

–4–

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

PRECAUTIONS

TD251EN 01.5.31 7:15 PM Page 4

Page 5

–5–

0C28

–5–

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

LOCATION

For safe operation and satisfactory performance of your TV/DVD, keep the following in mind when selecting a place for its installation:

•

Shield it from direct sunlight and keep it away from sources of intense heat.

•

Avoid dusty or humid places.

•

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

•

Install unit in a horizontal position.

•

Avoid locations subject to strong vibration.

•

Do not place the TV/DVD near strong magnetic fields.

•

Avoid moving TV/DVD to locations where temperature differences are extreme.

•

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

•

If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

•

Do not put your fingers or objects into the TV/DVD disc loading tray.

•

Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD which has moisture, it may damage the DVD and TV/DVD. Therefore when the condensation occurs inside the unit, turn the POWER button on and allow at least 2 hours for the unit to dry out.

The serial number of this product may be found on the back of the unit. No other TV/DVD has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

TD251EN 01.5.31 7:15 PM Page 5

Page 6

–6–

0C28

–6–

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

AVOID THE HAZARDS OF ELECTRICAL

SHOCK AND FIRE . . . . . . . . . . . . . . . . . . . . . .5

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

C SUPPLIED ACCESSORIES . . . . . . . . . . . . . . .7

C OPERATING CONTROLS AND FUNCTIONS 8

C PREPARATION FOR USE . . . . . . . . . . . . . . .10

ANTENNA/CABLE CONNECTIONS . . . . . . .10

INSTALLING THE BATTERIES . . . . . . . . . . .12

CONNECTING TO EXTERNAL INPUT JACKS .12 CONNECTING TO A STEREO SYSTEM (for DVD)

.13

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITALINPUT JACKS,

MD DECK OR DAT DECK (for DVD) . . . . . .13

CONNECTING TO ADOLBY DIGITAL DECODER OR DTS DECODER (for DVD) . .14

TV SECTION

C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . .15

LANGUAGE SELECTION . . . . . . . . . . . . . . .15

CHANNEL PRESETTING . . . . . . . . . . . . . . .15

C OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . .16

WATCHING ATV PROGRAM . . . . . . . . . . . .16

SELECTING THE SLEEP TIMER . . . . . . . . .16

CLOSED CAPTION . . . . . . . . . . . . . . . . . . . .16

PICTURE ADJUSTMENT . . . . . . . . . . . . . . . .17

V-CHIP SET UP . . . . . . . . . . . . . . . . . . . . . . . .18

VD SECTION

C ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . .20

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . .20

DISC TYPES . . . . . . . . . . . . . . . . . . . . . . . . . .20

SYMBOLS USED IN THIS MANUAL . . . . . .20

C PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . .21

PLA YING ADVD VIDEO OR AN AUDIO CD

.21

USING THE DVD MENUS . . . . . . . . . . . . . . .21

USING THE TITLE MENU . . . . . . . . . . . . . . .22

PAUSING PLAYBACK OR DISPLAYING

A STILL PICTURE . . . . . . . . . . . . . . . . . . . . .22

RESUMING PLAYBACK FROM THE

POINT WHERE PLAYBACK STOPPED . . . .22

STEPPING THROUGH FRAMES . . . . . . . . . .22

FAST FORWARD/REVERSE . . . . . . . . . . . . .23

SLOW MOTION . . . . . . . . . . . . . . . . . . . . . . .23

STARTING FROM A DESIRED TRACK . . . .23

STARTING FROM A DESIRED TIME COUNT

.23

PLAYING FROM A DESIRED TITLE OR

CHAPTER . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

RANDOM (Audio CD) . . . . . . . . . . . . . . . . . .24

REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

A-B REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . .25

PROGRAM (Audio CD) . . . . . . . . . . . . . . . . .25

C SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . .26

CHANGING THE AUDIO LANGUAGE OR

SOUND MODE . . . . . . . . . . . . . . . . . . . . . . . .26

CHANGING THE SUBTITLE LANGUAGE . .27 CHANGING THE CAMERA ANGLE

(Multi-Angle Pictures) . . . . . . . . . . . . . . . . . . .27

CHANGING THE ON-SCREEN DISPLAY . . .28

C CHANGING THE SETUP ITEMS . . . . . . . . .29

LANGUAGE SETTINGS . . . . . . . . . . . . . . . .29

VIDEO SETTINGS . . . . . . . . . . . . . . . . . . . . .30

AUDIO SETTINGS . . . . . . . . . . . . . . . . . . . . .30

PARENTAL LOCK . . . . . . . . . . . . . . . . . . . . .31

OTHER SETTINGS . . . . . . . . . . . . . . . . . . . . .32

C LANGUAGE CODE LIST . . . . . . . . . . . . . . . .33

C TROUBLESHOOTING GUIDE . . . . . . . . . . .34

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .37

DISC HANDLING . . . . . . . . . . . . . . . . . . . . . .37

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .38

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

TABLE OF CONTENTS

TD251EN 01.5.31 7:15 PM Page 6

Page 7

–7–

0C28

–7–

DVD

¡Dolby Digital sound

This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random playback for audio CD

This player can shuffle the order of tracks to play them in random order.

¡Program playback for audio CD

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 30 minutes, the power is automatically turned off.

¡Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

¡Tinted, Bright Black Matrix Picture Tube ¡181 Channel Selection

All VHF/UHF channels plus up to 125 cable channels.

¡PLL Frequency Synthesized Tuning

The latest PLL frequency synthesized electronic tuning system provides free and easy channel selection, and lets you tune directly to any channel using the channel number buttons (0~9 and +100-key) on the remote control.

¡On-Screen Function Display. ¡Full-Function Remote Control ¡Sleep Timer ¡Closed Caption Decoder

You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

¡Auto Shut Off Function

If there is no air signal input from the antenna terminal and no operation for 15 minutes, the TV will turn itself off automatically.

¡V-CHIP

Enables parents to prevent their children from watching inappropriate material on TV.

¡Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Automatic detection of discs

This player automatically detects if a loaded disc is DVD or audio CD.

¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡DTS (Digital Theater System)

Sound system different from Dolby Digital sound system

¡Search

Chapter search: Search for the chapter designated by user

is possible.

Title search: Search for the title designated by user is

possible.

Track search: Search for the track designated by user is

possible.

Time search: Search for the time designated by user is

possible.

¡Repeat

Chapter: Repeated playback of the chapter of the

disc being played is possible.

Title: Repeated playback of the title of the disc

being played is possible.

Track: Repeated playback of the track of the disc

being played is possible.

Disc

(audio CD)

: Repeated playback of the entire disc being

played is possible.

A-B: The part between A and B designated by

user is possible.

¡Zoom

4-time magnified screen can be displayed.

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which the play was stopped.

¡SRS T ruSurround

You can enjoy stereophonic virtual space on your existing stereo system.

¡Dimmer

Brightness of the display can be varied.

¡Bit rate indication ¡Dynamic range control

This unit employs TruSurround system of SRS Labs, Inc. as virtual

technology. TruSurround and the symbol are trademarks of

SRS Labs, Inc. TruSurround technology is incorporated under license

from SRS Labs, Inc.

FEATURES

TD251EN 01.5.31 7:15 PM Page 7

Page 8

–8–

0C28

–8–

VOLUME K/L buttons

Press to control the volume level for the DVD and TV.

6.CHANNEL K/L buttons

Press to select memorized channel. Press to change to TV mode when DVD mode.

Remote Sensor Window

8.STOP button

Stops operation of the disc.

REV button

Fast reverses playback to a desired point.

10.

PLAY button

Starts playback of the disc contents. Press to change to DVD mode when TV mode.

11.

FWD button

Fast forwards playback to a desired point.

12.

PAUSE button

Pauses the current disc operation.

13.

OPEN/CLOSE button

Press to insert discs into or remove them from the tray.

14.

HEADPHONE jack

To connect headphone (not supplied) for personal listening.

15.

MODE button

Activates program playback or random playback mode.

16.NUMBER button

TV Mode:

Press two digits to directly access the desired channel. Remember to press a "0" before a single digit channel.

+100 button–

Press to select cable channels which are equal or greater than number 100.

DVD Mode:

Press to enter the desired number.

+10 button–

Press to enter the desired numbers which are equal or greater than number 10.

L-AUDIO-RVIDEO

STOP

PLAY

SKIPSKIP

PAUSE

HEADPHONE

POWER

VOLUME CHANNEL

OPEN/CLOSE

7421 8 181018 1213 14653

REV

PLAY

STOP

FWD

ENTER

PAUSE

DISC

RETURNTITLESETUP

REPEATSEARCH MODE

CLEAR

MODE

ANGLESUBTITLEAUDIO

DISPLAY

SKIP

SELECT

POWER PICTURE

OPEN/ CLOSE

CH.

VOL.

MUTEZOOM

SLEEP

123 456 789

0 +10

+100

17 18

12 23

20 22

15 25

13 34

OPERATING CONTROLS AND FUNCTIONS

TV/DVD FRONT PANEL

REMOTE CONTROL

[Fig. 2]

[Fig. 1]

Disc loading tray

2.VIDEO input jack

Connect to the video output jack of a video camera or VCR.

AUDIO L/R input jacks

Connect to the audio output jacks of a video camera or VCR.

POWER button

Press to turn the power on and off.

TD251EN 01.5.31 7:15 PM Page 8

Page 9

–9–

0C28

–9–

AUDIO OUT

DIGITAL OUT

COAXIAL

38 403937

ANT.

31.ENTER button

Press to accept a setting.

32.

Arrow buttons TV Mode:

Press to select a setting mode from the menu on the TV screen. Press to select or adjust from a particular menu.

DVD Mode:

Use when making settings while watching the display on a TV screen.

33.

DISC MENU button

Displays the menus in the DVD.

34.

SELECT button

Press to change to TV mode, external input mode or DVD mode.

35.

MUTE button

Press the MUTE button to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press the MUTE button again or press the VOL(ume) K or L button to restore sound.

36.

PICTURE button

Press to enter picture adjustment mode.

37.

Power cord

Connect to a standard AC outlet (120V/60Hz).

NOTE: Remove the power cord from the hook to

avoid breaking a wire before you connect to a standard AC outlet.

38.

COAXIAL digital audio out jack

Connect to the digital input of an external amplifier or decoder.

39.

AUDIO L/R output jack

Connect to the analog audio input of an external amplifier or decoder.

NOTE: The AUDIO output jacks (red/white) on

the rear panel serve to give out DVD sound, not TV sound and external input sound.

40.

ANT. in jack

Connect to an antenna, cable system, or satellite system.

17.

SLEEP button

Press the SLEEP button to display the sleep timer and start the function. The shut off time can be determined by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)

18.

SKIP buttons

Skip chapters or tracks to a desired point.

19.

ZOOM Button

Enlarges part of a DVD-reproduced image.

20.SETUP button

Press to enter or exit the TV menu or DVD setup mode.

21.

TITLE button

Displays the title menu.

22.

CLEAR button

Resets a setting.

23.

DISPLAY button TV Mode:

Press to display the channel number on the screen. If you press it again, the channel number will disappear.

DVD Mode:

Displays the current status on the TV screen for checking purposes.

24.

SEARCH MODE button

Press to locate a desired point.

25.

AUDIO button

Press to select a desired audio language or sound mode.

26.

SUBTITLE button

Press to select a desired subtitle language.

27.

REPEAT button

Repeats playback of the current disc, title, chapter or track.

28.

ANGLE button

Press to change the camera angle to see the sequence being played back from a different angle.

29.A-B REPEAT button

Repeats playback of a selected section.

30.

RETURN button

Returns to the previous operation.

REAR VIEW

[Fig. 3]

TD251EN 01.5.31 7:15 PM Page 9

Page 10

–10–

0C28

–10–

ANTENNA/CABLE CONNECTIONS

VHF/UHF COMBINED ANTENNA

The VHF/UHF Rod Antenna (not supplied) is detachable. Insert the stem of the antenna into the hole on the upper-back portion of the TV/DVD. Connect the VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. terminal of the TV/DVD as shown in the diagram below. For the best reception, fully extend the VHF/UHF Rod Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE:

Before plugging the Rod antenna into antenna terminal, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into antenna terminal.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

AUDIO OUT

DIGITAL OUT COAXIAL

ANT.

Bent pin

Cable Plug

(Needs to be straightened)

(Straight pin)

AUDIO OUT

DIGITAL OUT COAXIAL

ANT.

NOTE:

The connection of an indoor antenna may not always give acceptable TV reception.

[Fig. 4]

[Fig. 5]

Rod Antenna (Not supplied)

VHF/UHF Antenna (Not supplied)

VHF/UHF Combiner (Not supplied)

Flat twin-lead cable

UHF Antenna (Not supplied)

VHF Antenna (Not supplied)

PREPARATION FOR USE

TD251EN 01.5.31 7:15 PM Page 10

Page 11

–11–

0C28

–11–

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

AUDIO OUT

DIGITAL OUT

COAXIAL

OUT

ANT.

[Fig. 7]

From Cable System or Satellite Dish

75-ohm Coaxial Cable (Not supplied)

Satellite Box or Cable Box (Not supplied)

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD without a converter box.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

AUDIO OUT

DIGITAL OUT

COAXIAL

ANT.

[Fig. 6]

From Cable System

75-ohm Coaxial Cable (Not supplied)

TD251EN 01.5.31 7:15 PM Page 11

Page 12

–12–

0C28

–12–

INSTALLING THE BATTERIES

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

Antenna/Cable Connections Continued on the Next Page.

CONNECTING TO EXTERNAL INPUT JACKS

When you watch a program recorded on an another source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD.

Connect the audio/video output jacks of another source to the AUDIO L/R and VIDEO jacks of this TV/DVD. Then press the SELECT button until "VIDEO" appears on the screen.

NOTE:

•

When you connect a monaural VCR (another source) to this TV/DVD, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this TV/DVD. The audio will output in both L and R channel equally.

L-AUDIO-RVIDEO

[Another source]

To the audio output jacks

Audio/Video coaxial cable (not supplied)

etc.

To the video output jack

[Front of the TV/DVD]

[Fig. 8]

TD251EN 01.5.31 7:15 PM Page 12

Page 13

–13–

0C28

–13–

CONNECTING TO A STEREO SYSTEM (for DVD)

AUDIO OUT

DIGITAL OUT

COAXIAL

ANT.

To Right (red) and Left (white) AUDIO OUT jacks (only DVD AUDIO OUT)

Stereo system

T o ANALOG AUDIO INPUT jacks

NOTES:

•

Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for your, stereo system and any other components to be connected to the TV/DVD.

•

The AUDIO output jacks (red/white) on the rear panel serve to give out DVD sound, not TV sound and external input sound.

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL

INPUT JACKS, MD DECK OR DAT DECK (for DVD)

Use an audio coaxial digital cable (commercially available) for the audio connections.

NOTES:

•

The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD or DAT deck.

•

Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for the components to be connected to the TV/DVD.

•

Set DOLBY DIGITAL and DTS to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

•

When DOLBY DIGITAL is set to OFF and VIRTUAL 3D to ON for audio output in the setup mode and you select the audio source in a 5.1 channel Dolby Digital surround format, the audio will be muted.

AUDIO OUT

DIGITAL OUT

COAXIAL

ANT.

Amplifier equipped with digital

input jacks, MD deck,

DAT deck, etc.

To COAXIAL DIGITAL AUDIO INPUT jack

To DIGITAL AUDIO OUT (PCM/BITSTREAM) COAXIAL jack

(only DVD AUDIO OUT)

[Fig. 9]

[Fig. 10]

TD251EN 01.5.31 7:15 PM Page 13

Page 14

–14–

0C28

–14–

CONNECTING TO A DOLBY DIGITAL DECODER

OR DTS DECODER (for DVD)

If using this TV/DVD to play back a TV/DVD in a 5.1 channel Dolby Digital surround or DTS surround format, the TV/DVD outputs a Dolby Digital or DTS data stream from its COAXIAL digital audio out jack. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard such as can be heard in movie theaters.

Use audio coaxial digital cables (commercially available) for the audio connections.

NOTES:

•

Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for the components to be connected to the TV/DVD.

•

If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.

•

If connected to a DTS decoder, set DTS to ON for audio output in the setup mode.

•

Unless connected to a Dolby Digital decoder or a DTS decoder, set DOLBY DIGITAL and DTS to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

•

When DOLBY DIGITAL is set to OFF and VIRTUAL 3D to ON for audio output in the setup mode and you select the audio source in a 5.1 channel Dolby Digital surround format, the audio will be muted.

AUDIO OUT

DIGITAL OUT

COAXIAL

ANT.

Front speaker

(left)

Center

speaker

Front speaker

(right)

Surround

speaker

(left)

Surround

speaker

(right)

Subwoofer

To DIGITAL AUDIO OUT (PCM/BITSTREAM) COAXIAL jack

To COAXIAL DIGITAL AUDIO INPUT jack

Dolby Digital

or DTS decoder

“DTS”and “DTS Digital Out”are trademarks of Digital Theater Systems, Inc.

[Fig. 11]

TD251EN 01.5.31 7:15 PM Page 14

Page 15

–15–

0C28

–15–

LANGUAGE SELECTION

If you want to change the language of the on-screen menu, follow the procedure below.

Press the SETUP button so that the setup display appears on the TV screen.

Press the Arrow K or L button to point to "LANGUAGE".

Select "ENGLISH", "ESPAÑOL" = Spanish or "FRANÇAIS" = French by using the Arrow B or s button.

Press the SETUP button to exit the setup. NOTE: An on-screen display language must be selected each for the TV mode and DVD mode.

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

CHANNEL PRESETTING

To preset a channel or to change a preset channel, follow the procedure below.

Press the SETUP button so that the setup display appears on the TV screen.

Press the Arrow K or L button to point to "CHANNEL SET". Then,

press the Arrow B button.

Press the Arrow K or L button to point to "AUTO MEMO". Then,

press the Arrow B button. The tuner scans and memorizes all active channels in your area.

•

The TV distinguishes between standard TV channels and cable channels.

•

When AUTO MEMO action is completed, the lowest memorized channel reappears on the screen.

•

When you press the Arrow K or L button after selecting AUTO MEMO, the tuner will stop at the memorized channels only.

•

The TV/VCR may memorize TV channels as CATV channels if reception conditions are poor. If this happens, try the AUTO MEMO action again when reception conditions are better.

[ADD/DELETE FUNCTION]

1)Press the SETUP button so that the setup display appears on the TV screen.

2)Press the Arrow K or L button to point to "CHANNEL SET". Then, press the Arrow B button.

3)Press the Arrow K or L button to point to "ADD/DELETE". Then press the Arrow B button.

4)Use the Arrow K or L button to select the channel you wish to put into memory or to erase from memory.

NOTE: The display will return to the screen in about 10 seconds. Perform "ADD/DELETE" function while this display appears on the screen.

•

Press the Arrow B or s button to light up the channel number in LIGHT BLUE if you wish to add the channel into memory.

•

Press the Arrow B or s button to light up the channel number in LIGHT RED if you wish to erase the channel from memory.

5)Press the SETUP button to exit the setup.

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

ADD/DELETE AUTO MEMO

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

Getting started

Connect the power cord to a standard AC outlet. NOTE: If some digits appear in the corner of the

screen, press the POWER button without unplugging the power cord.

Press the POWER button to turn on the TV/DVD.

Press the SELECT button on the remote control until channel number or "TV" appears on the screen.

Then press the TV button.

TV SECTION

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

SET UP FOR USE

TD251EN 01.5.31 7:15 PM Page 15

Page 16

–16–

0C28

–16–

WA TCHING ATV PROGRAM

Select the desired channel with the CH(annel) K or L button.

Adjust the volume to the desired listening level using the VOL(ume) K or L button.

Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

Note: Suppose that the TV/DVD is shut off or in any other mode than TV. Press the CHANNEL K or L

button on the TV/DVD, and the TV/DVD will be in the TV mode to watch television.

SELECTING THE SLEEP TIMER

The sleep timer function enables you to shut off the power without pressing the POWER button after a desired time period.

Press the SLEEP button on the remote control.

You may change the sleep time with pressing the SLEEP button on the remote control repeatedly. The timer is set up to 90 minutes, 10 minutes each time the SLEEP button is pushed. (The timer display counts up and sleep timer will be displayed on the screen when you press the SLEEP button on remote control.)

NOTES:

•

When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.

•

When the TV mode is changed to the DVD mode, the sleep time will be lost.

SLEEP 10

To cancel the sleep timer:

Press the SLEEP button repeatedly until "SLEEP 0" is displayed.

CLOSED CAPTION

This TV can receive C1 and C2 of Caption and Text.

CAPTION MODE

1)Characters can be displayed on the TV screen when the received broadcast signal contains the Caption Signals.

2)Paint-on mode: Displays input characters on the screen immediately. Pop-on mode: Once characters are stored in memory, it is displayed all at once. Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

NOTE: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will not be displayed.

TEXT MODE

1)Displays the text on the screen by scrolling (max. 7 lines)

2)If the received broadcast signal does not contain the caption or text signal, no change will occur.

NOTES:

1)When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or text.

2)Captions and texts may not match the TV voice exactly.

3)Interference may cause the closed caption system not to function properly.

4)The caption or text characters will not be displayed while the setup display or function’s display is shown.

OPERATIONS

DEGAUSSING

Magnetism from nearby appliances might affect the color of the TV picture.

If this happens, move this unit away from the appliance. If the color is still not correct,

disconnect power

cord from AC outlet then reconnect it after 30 minutes.

TD251EN 01.5.31 7:15 PM Page 16

Page 17

–17–

0C28

–17–

5)If you see this screen!!

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To clear screen, select CAPTION C1, C2 or CAPTION [OFF].

CLOSED CAPTION SELECTION

You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

Press the SETUP button so that the setup display appears on the TV screen.

Press the Arrow K or L button to point to "CAPTION".

Press the Arrow B or s button to select the mode you wish.

When done, press the SETUP button to exit the setup.

: Press the Arrow

B or s

button.

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [ C1]

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [ C2]

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [ T1]

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [ T2]

PICTURE ADJUSTMENT

GAME MODE

Set to the most suitable position for TV GAME.

[B] : ON [s] : OFF

BRIGHT

Adjust until the whitest parts of the picture are as bright as you prefer.

[B] : increase brightness [s] : decrease brightness

CONTRAST

Adjust to increase or decrease contrast.

[B] : increase contrast [s] : decrease contrast

COLOR

Adjust to be brilliant or pale color.

[B] : be brilliant color [s] : be pale color

TINT

Adjust to obtain natural skin tones.

[B] : greenish tone [s] : reddish tone

NOTES:

•

In the above steps, the picture adjustment display will disappear from the TV screen after about 10 seconds unless you press any buttons, even though you may not be finished. Press the SETUP and Arrow B button so that "PICTURE" mode is selected. Then, press the Arrow K or L button repeatedly until the display returns to the screen.

•

If you adjust the other Picture control after you set the Game mode to [ON], the Game mode is set to [OFF] automatically. If you want to set the Game mode, reset it to [ON].

[ ]

GAME MODE

[ ]

OFF ON

[ ]

BRIGHT

[ ]

CONTRAST

[ ]

COLOR

[ ]

TINT

[ ]

: Press the Arrow ▲ or ▼ button.

Press the PICTURE button.

Select the feature you wish to adjust with the Arrow K or L button and adjust it with the Arrow B or s

button.

TD251EN 01.5.31 7:15 PM Page 17

Page 18

–18–

0C28

–18–

V-CHIP SET UP

V-CHIP enables parents to prevent their children from watching inappropriate material on TV. V-CHIP reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program's rating meets the limitations you select. In this case, "PROTECTED PROGRAM by ..." message appears on the TV screen. You can watch the protected program by entering access code (default 0000). To block ratings, follow the steps below.

•

Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (MPAA RATING and TV RATING).

•

You cannot access the menu when the "PROTECTED PROGRAM by ..." message appears. In this case, change to the unblocked channel, then press the SETUP button.

[MPAA RATING SET UP]

Press the SETUP button so that the setup display appears on the TV screen.

Press the Arrow K or L button to point to "V-CHIP SET UP". Then, press the Arrow B button.

Use the number buttons to enter 4digit access code. The default code is 0000.

Press the Arrow K or L button to point to "MPAA RATING". Then, press the Arrow B button.

Press the Arrow K or L button to point to your desired item. Then, press the Arrow B button to select [BLOCK] or [VIEW].

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

TV RATING MPAA RATING CHANGE CODE

•

When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

•

When you turn "G" to [BLOCK] or [VIEW], the all ratings will turn to [BLOCK] or [VIEW] automatically.

•

When you turn "X" to [VIEW], the all ratings will turn to [VIEW] automatically.

Press the SETUP button to exit the setup.

[TV RATING SET UP]

Press the SETUP button so that the setup display appears on the TV screen.

Press the Arrow K or L button to point to "V-CHIP SET UP". Then, press the Arrow B button.

Use the number buttons to enter 4digit access code. The default code is 0000.

Press the Arrow K or L button to point to "TV RATING". Then, press the Arrow B button.

Press the Arrow K or L button to point to your desired item. Then, press the Arrow B button to select [BLOCK] or [VIEW].

• G: General Audience

• PG: Parental Guidance suggested.

• PG-13: Unsuitable for children under 13

• R: Restricted; under 17 requires

accompanying parent or adult guardian

• NC-17: No one under 17 admitted

• X: Mature audience only

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

ACCESS CODE

- - - -

TV RATING MPAA RATING CHANGE CODE

G [VIEW] PG

[VIEW]

PG-13

[VIEW]

[BLOCK]

NC-17

[BLOCK]

ACCESS CODE

- - - -

TV-Y

[VIEW]

TV-Y7 ( )

[VIEW]

TV-G

[VIEW]

TV-PG

( ) [VIEW]

TV-14

( ) [VIEW]

TV-MA ( )

[VIEW]

TD251EN 01.5.31 7:15 PM Page 18

Page 19

–19–

0C28

–19–

•

When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

•

When you turn "TV-Y" to [BLOCK] or [VIEW], the all ratings will turn to [BLOCK] or [VIEW] automatically.

•

When you turn "TV-MA" to [VIEW], the all ratings will turn to [VIEW] automatically.

When you select TV-Y7, TV-PG, TV-14, or TV-MA and you press the Arrow B button, the sub-ratings will appear on the TV screen. If you select the rating category (example: TV-PG) and turn it [BLOCK] or [VIEW], the sub-ratings (example: V for Violence) will turn [BLOCK] or [VIEW] automatically.

You can set the sub-ratings to [BLOCK] or [VIEW] individually when the rating category is set to [BLOCK]. To set the sub-ratings individually, follow the steps below.

•

When you select [TV-Y7]:

Press the Arrow K or L button to select "FV" (Fantasy Violence). Then, press the Arrow B button to select [BLOCK] or [VIEW].

•

When you select [TV-PG], [TV-14] or [TV-MA]:

Press the Arrow K or L button to select "D"(Suggestive Dialog), "L"(Coarse Language), "S"(Sexual Situation), or "V"(Violence). Then, press the Arrow B button to select [BLOCK] or [VIEW]. NOTE: When you select [TV-MA], "D" does not appear on the TV screen.

•

The sub-ratings which set to [BLOCK] appears next to the rating category in the TV RATING menu.

Press the SETUP button to exit the setup.

• TV-Y: Appropriate for all children

• TV-Y7: Appropriate for children seven and

older

• TV-G: General Audience

• TV-PG: Parental Guidance suggested.

• TV-14: Unsuitable for children under 14

• TV-MA: Mature audience only

TV-Y7

[BLOCK]

TV-PG

[BLOCK]

TV-Y

[VIEW]

TV-Y7 (

) [VIEW]

TV-G

[BLOCK]

TV-PG

(DLSV) [BLOCK]

TV-14

(DLSV) [BLOCK]

TV-MA (

LSV) [BLOCK]

[CHANGE ACCESS CODE]

To change access code, follow the steps.

Press the SETUP button so that the setup display appears on the TV screen.

Press the Arrow K or L button to point to "V-CHIP SET UP". Then, press the Arrow B button.

Use the number buttons to enter 4digit access code. The default code is 0000.

Press the Arrow K or L button to point to "CHANGE CODE". Then, press the Arrow B button.

Use the number buttons to enter your desired access code in the NEW CODE space. Then enter the same code in the CONFIRM CODE space. V-CHIP SET UP screen appear on the screen.

•

If you enter wrong code, repeat step 5, making sure you enter the same new code exactly in the confirm code space.

Press the SETUP button to exit the setup.

Note:

•

If you unplug the power code or power failure occures, the changed access code will be lost and will return to default (0000). Change your access code again as necessary.

CHANNEL SET LANGUAGE [ENGLISH] ESPAÑOL FRANÇAIS V-CHIP SET UP CAPTION [OFF]

ACCESS CODE

- - - -

TV RATING MPAA RATING CHANGE CODE

NEW CODE

CONFIRM CODE

- - - -

NEW CODE

CONFIRM CODE

x x x x

- - - -

TD251EN 01.5.31 7:15 PM Page 19

Page 20

–20–

0C28

–20–

ABOUT THE DISCS

The following discs can be played back on this DVD player.

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

¡Some discs include region codes as shown below.

¡The number inside the symbol refers to a region of the

world, and a disc encoded in a specific region format can only be played back on DVD players with the same region code.

The following discs cannot be played back on this DVD player.

DVD with region codes other than 1 or ALL.

DVD-ROM

DVD-RAM (Never play back, otherwise malfunction may result.)

CD-ROM

VSD

CDV (Only plays back the audio part.)

CD-G (Only plays back the sound.)

CD-R (Never play back, otherwise malfunction may result.)

CD-I (Never play back, otherwise malfunction may result.)

Photo CD

(Never play back, otherwise malfunction may result.)

Video CD

(Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications

PLAYABLE DISCS

DVD

Video

12 cm

Approx. 4 h

(single-sided)

Approx. 8 h

(double-sided)

Approx. 80 min

(single-sided)

Approx. 160 min

(double-sided)

20 min

8 cm

(singles)

Logo

Maximum

Playback Time

ContentsDisc Type

Sound

and

Pictures

Audio

Disc Size

Sound

74 min

[

DVD

]

Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs, and these playback conditions take priority over user operations on this player. If a function you selected do not run as desired, refer to the manual accompanying the disc.

DISC TYPES

Example

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4

[

AUDIO CD

]

Data on an audio CD is divided into sections called “tracks”, each of which is given a track number.

Example

Track 1 Track 2 Track 3 Track 4 Track 5 Track 6

DVD SECTION

TD251EN 01.5.31 7:15 PM Page 20

Page 21

–21–

0C28

–21––21–

PLAYING A DVD VIDEO

OR AN AUDIO CD

Getting started

Turn on the power of the TV, amplifier and any other components which are connected to the DVD player. (Change the input system to suit the DVD player, and check that the sound volume is correct.)

1 Press the POWER button.

The power will turn on.

2 Press the OPEN/CLOSE button.

¡The disc loading tray will open.

3 Place a disc into the tray.

Make sure the disc is sitting properly in the correct recess, with the label side up.

4 Press the PLAY button.

The tray will close automatically, and playback will then start from the first chapter or track of the disc. You need to press the PLAY button only when the tray has been closed by pressing the OPEN/CLOSE button.

¡When you play back the DVD which a title menu is

recorded, the menu may appear on the screen. In this case, refer to “USING THE TITLE MENU”.

5 Press the STOP button to stop play.

CDDVD

Notes

¡When the DVD mode has been switched to the TV

mode, the DVD mode shut down first and then TV picture and sound appears in about 4 seconds. Similarly, when the POWER button is pressed off in the DVD mode, this mode shut down first and then the set’s power is turned off.

¡A“prohibited icon” may appear at

the top-right on the TV screen during operation, warning that a prohibited operation has been encountered by the DVD player or the disc.

¡If a disc is dirty or has scratches, the pictures may

appear distorted and the playback operation may stop. In such cases, clean the disc and unplug the power cord and then plug it again before resuming playback.

¡With DVDs that use some titles for playback

program signals, playback may start from the second title, or it may skip these titles.

PLAYING A DISC

USING THE DVD MENUS

Some DVDs contain their own menus, such as a guidance menu which describes the contents of the disc or a selection menu for sound, language and other customized settings.

1 Press the DISC MENU button.

The DVD menu will appear.

2 Select the desired title.

¡Press the arrow buttons (L/K/B/s) to change the

setting, and then press the ENTER button.

3 Playback will start from the selected title.

DVD

TD251EN 01.5.31 7:15 PM Page 21

Page 22

–22–

0C28

–22––22–

USING THE TITLE MENU

With a DVD containing a title menu, you can select desired titles from the menu.

1 Press the TITLE button.

The title menu will appear.

2 Select the desired title.

Press the arrow buttons (L/K/B/s) to change the setting, and then press the ENTER button.

CALLING UP A MENU SCREEN DURING PLAYBACK

For DVDs

¡Press the DISC MENU button to call up the DVD

menu.

¡Press the TITLE button to call up the title menu.

Note

¡Contents of menus and corresponding menu

operations may vary between discs. Refer to the manual accompanying the disc for details.

DVD

PAUSING PLAYBACK OR

DISPLAYING A STILL PICTURE

1 Press the PAUSE button during playback.

Playback will pause, with sound muted.

2 Press the PLAY button to resume playback.

CDDVD

Pause F

Play B

STEPPING THROUGH FRAMES

1 Press the PAUSE button while playback is

paused.

The next picture frame is displayed with sound muted each time the button is pressed.

2 Press the PLAY button to resume playback.

DVD

Pause F

Play B

RESUMING PLAYBACK FROM

THE POINT WHERE

PLAYBACK STOPPED

1 Press the STOP button during playback.

Playback will stop, and then appear the resuming message at the center.

2 Press the PLAY button. Playback will start

from the point where the previous playback session was stopped.

Notes

¡Resuming playback is not available with some discs. ¡If you switch to the TV mode during DVD playback,

the resuming

¡It is possible to switch from the DVD play mode to

the TV mode. Even if the power is turned off, the resume function enables to playback on from the previously interrupted point. But note that the Marker commands are not saved.

¡The resume function can be reset by pressing the

STOP button twice or by opening the disc loading tray.

CDDVD

Press 'PLAY' to play from here To play beginning, press 'STOP' first and the 'PLAY'.

Play B

TD251EN 01.5.31 7:15 PM Page 22

Page 23

–23–

0C28

–23––23–

FAST FORWARD/REVERSE

1 Press the FWD g or REV h button dur-

ing playback.

For DVDs, pressing the FWD g or REV h button cycles the playback speed in three steps.

¡For audio CDs, the playback speed is ×16 fixed.

2 Press the PLAY button to return to normal

playback speed.

CDDVD

1 Press the numeric buttons to enter the

desired track number.

The selected track will be located, and playback will start.

You can also press the SEARCH MODE button, use the numeric buttons to enter the track number, when the track number is entered in the entry box, playback of the desired track will start automatically.

Ex2

Ex8

Ex32 Ex32

Dx8

Dx2

REV Button Button

FWD

SLOW MOTION

1 Press the FWD g button while playback is

paused. (Sound remains muted.)

Slow motion mode will be activated.

¡Pressing the FWD g button cycles the playback

speed in three steps. Select an appropriate speed while referring to the speed indication on the screen.

2 Press the PLAY button to return to normal

playback speed.

Notes

¡Slow playback is not available with audio CDs. ¡The reverse of slow playback is not available.

DVD

×1/16

×1/8

×1/2

Button

FWD

STARTING FROM A DESIRED

TRACK

TRICKS WITH THE SKIP BUTTONS (H, G)

If the SKIP button G is pressed during playback or while playback is paused, the current track is skipped and the next track is played. When the SKIP button H is pressed once, the top of the current track is located for replaying. When the SKIP button H is pressed again while Within 2-second playback, the previous track is located.

STARTING FROM A DESIRED

TIME COUNT

1 Press the SEARCH MODE button.

Press the button twice for DVDs or two times for audio CDs.

2 Press the numeric buttons to set the desired

time count.

Example: 1 hour, 23 minutes and 30 seconds

1 → 2 → 3 → 3 → 0

Notes

¡In the case of DVD, Time Search in Title is effec-

tive. (But Time Search in Chapter is ineffective.)

¡In the case of CD, Time Search in Track is effective.

(But Time Search in the entire disc is ineffective.)

¡Playback from a desired time count is not available

with some discs.

¡Specific time playback is not available with some

discs or if the unit is in stop mode.

CDDVD

Search Time _:__:__ Total Time 1:29:00

TD251EN 01.5.31 7:15 PM Page 23

Track: __ / 26

Page 24

–24–

0C28

–24––24–

PLAYING FROM ADESIRED

TITLE OR CHAPTER

You can also press the SEARCH MODE button, use the numeric buttons to enter the chapter number.

Perform the title search and the chapter search after setting them on the same screen at the same time. Changeover by

K/L

buttons.

Note

¡Playback from a desired title or

chapter is not available with some DVDs.

DVD

Search Title : 1 / 4 Chapter:__ / 17

RANDOM (Audio CD)

1 Press the MODE button in stop mode.

¡The program setting menu screen will appear.

2 Press the MODE button again.

3 Press the PLAY button. Random playback

will then start.

Note

¡Program playback is not available during random

playback.

Audio CD Random

Exit : MODEStart : PLAY

REPEAT

1 Press the REPEAT button.

For DVDs

¡A single title or chapter is played back repeatedly. ¡Pressing the REPEAT button cycles the display on

the screen as follows.

For audio CDs

¡The whole disc or a single track is played back

repeatedly.

¡Pressing the REPEAT button cycles the display on

the screen through All, Repeat Track and Off.

CDDVD

Repeat

[Title]

Repeat

[Chapter]

Repeat

[Off]

The current Title is played back repeatedly.

The current Chapter is played back repeatedly.

No repeat playback.

Repeat

[Off]

Repeat

[Track]

The current Track is played back repeatedly.

The whole Disc is played back repeatedly.

No repeat playback.

Repeat

[All]

If the REPEAT button is pressed once during program/random playback, the program/random playback is performed repeatedly.

If the REPEAT button is pressed again, the current track is played back repeatedly.

Notes

¡Repeat playback is not available with some discs. ¡The REPEAT setting will be cleared when moving

to other title, chapter or track.

TD251EN 01.5.31 7:15 PM Page 24

Page 25

–25–

0C28

–25––25–

A-B REPEAT

You can define a section to be played back repeatedly.

Press the A-B REPEAT button during playback.

¡The starting point (A) will then be

selected.

2 Press the A-B REPEAT button again at the

end point (B) of the desired section.

The selected section will be played back repeatedly.

3 To exit A-B repeat playback, press the A-B

REPEAT button and set it to OFF.

Notes

¡With DVDs, the A-B repeat section can be set only

within the current title.

¡With audio CDs, the A-B repeat section can be set

within the current track.

¡A-B repeat is not available with some scenes in

DVD.

¡T o cancel the A point which was set, press RETURN

button.

CDDVD

Repeat [ A - ]

PROGRAM (Audio CD)

Press the MODE button in stop mode.

¡The program screen will appear.

Audio CD Program

Total [Track] – –

[Time] 0:00:00

Random : MODE

Track 00 / 15

Exit

: RETURN

Start : PLAY

Delete

: CLEAR

Repeat [ A - B ]

Repeat [ off ]

2 Press the numeric buttons to enter the

desired track numbers.

The total playback time for the selected tracks will appear on the TOTAL line.

3 Press the PLAY button.

Playback will start in the programmed order.

¡While the program is being played back, the STOP

button works as follows.

¡Press the STOP button once and then the PLAY

button again, playback will restart from the point where the STOP button was pressed. (Program continued)

¡Press the STOP button twice and then the PLAY

button again, playback will restart from the first tune in the program in the usual way. (Program continued)

¡Press the STOP button three times and then the

PLAY button again, playback will restart from the track in the usual way. (Program cleared)

Notes

¡Adding programs is not possible during program

playback. You must stop the current playback before such operations can be carried out.

¡Press the CLEAR button to cancel a program. The

most recently entered program will then be deleted.

¡Numbers which exceed the number of tracks on the

disc in the tray are not accepted.

¡Playback from a desired track and random playback

are not available during program playback.

¡Program settings are cleared when the power is

turned off or the disc loading tray is opened.

¡If the track no. is once set in the program, the setting

cannot be changed.

02 05 07 14 01 09 13 10 03 11 08 04

Audio CD Program

Total [Track] 12

[Time] 0:47:29

Random : MODE

Track 04 / 15

Exit

: RETURN

Start : PLAY

Delete

: CLEAR

TD251EN 01.5.31 7:15 PM Page 25

Page 26

–26–

0C28

–26––26–

ZOOM PLAYBACK

(enlargement onscreen)

Images can be enlarged four times on the screen to your taste.

Press the ZOOM button during playback.

An image will be enlarged at the center of the screen.

¡Press the ZOOM button again, and the image will be

back to the previous size.

DVD

SETTINGS

CHANGING THE AUDIO

LANGUAGE OR SOUND MODE

The DVD player has a function which allows you to select the desired audio language and sound mode.

For DVDs

Press the AUDIO button during playback, and then press the AUDIO button to select the desired audio language.

The audio language can be changed if multiple languages are recorded on the DVD being played.

DVD

Notes

¡Pressing the Audio button may not work on some

DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu). Operation varies between discs, so refer to the manual accompanying the disc.

¡If a desired language is not shown after pressing the

Audio button several times, the disc does not have an audio source in that language.

¡The audio language resets to the one which has been

selected in the setup mode, every time the power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected.

¡The screen display will disappear after about 5

seconds.

Audio 1 , English / 8

Audio 2 , French

Audio 8 , Japanese

HELLO

Bonjour

Zoom [on]

When the cursor (K/L/s/ B) button is pressed during zoom play, the part to be zoomed moves.

The zooming frame can be moved from the center

.... 4 steps to the right. 4 steps to the left. 4 steps to

the top. 4 steps to the bottom.

Note

¡Zooming function does not work while operation

display screen is shown.

TD251EN 01.5.31 7:15 PM Page 26

Page 27

–27–

0C28

–27––27–

CHANGING THE SUBTITLE

LANGUAGE

The DVD player has a function which allows you to select the desired language for subtitles.

Press the SUBTITLE button during playback, and then press the SUBTITLE button to select the desired subtitle language.

The subtitle language can be changed if the subtitles are recorded in multiple languages on the DVD being played.

¡The subtitle language cannot be changed if the

subtitles are recorded in a single language on the DVD being played.

¡Pressing the SUBTITLE button cycles the subtitle

language from SUBTITLE 1, SUBTITLE 2 and all the languages recorded through to off.

Notes

¡Some discs allow subtitle language setting on the

disc menu. (Operation varies between discs, so refer to the manual accompanying the disc.)

¡If the desired language is not shown after pressing

the SUBTITLE button several times, the disc does not have subtitles in that language.

¡The subtitle language resets to the one which has

been selected in the setup mode, every time the power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected.

¡It may take time to display the subtitles in the

selected language.

¡The screen display will disappear after about 5

seconds.

¡When “Subtitle Not Available” appears onscreen, it

means no subtitle is recorded on the scene.

DVD

CHANGING THE CAMERA

ANGLE (Multi-Angle Pictures)

The DVD player has a function which allows you to select the desired camera angle.

Press the ANGLE button during playback.

¡If the disc contains sequences recorded from differ-

ent camera angles, the angle icon ( ) will appear at the top-right of the screen. You can change the camera angle when the icon appears on the screen.

¡The camera angle cannot be changed if the disc does

not contain sequences recorded from different camera angles.

Press the ANGLE button while the angle number is shown on the screen.

Note

¡The screen display will disappear after about 5

seconds.

DVD

Subtitle 1

No subtitles

Subtitle 2

Subtitle 1 , English / 8

Subtitle 2 , French

Subtitle Off

Angle 1

Angle 2

Angle 8

Angle 1 / 8

Angle 2 / 8

Angle 8 / 8

HELLO

Bonjour

TD251EN 01.5.31 7:15 PM Page 27

Page 28

–28–

0C28

–28––28–

CHANGING THE ON-SCREEN

DISPLAY

DVD Play Repeat [Chapter]

Title

Chapter

Time

0:17:52

-1:38:46

Bit Rate

Chapter 18 / 30 Title 1 / 5 Time 1:56:38 Audio 1.English / 4

•

Picture in play back

Playback Setup Window

Info. Window

Elapsed time of the current title and

Remaining time of the current title.

Current chapter number

Current title number

Current repeat status

Current playback status

Kind of disc in playbacking

Audio CD Play

Repeat [Track]

Track

2 Play Mode Normal

Time

[Track] 0:01:46

-0:03:27

Track 2 / 12 Time 0:05:13 Maker ... Time Display Track

01 02 03 04 05 06 07 08 09 10 11 12

Playback Setup Window

[Track]

Elapsed time of the current track and

Remaining time of the current track.

[All]

Elapsed time of the current disc and

Remaining time of the current disc.

Current track number

Nomal playback

Programedplayback

Random playback

Current repeat status

Current playback status

Kind of disc in playbacking

Info. Window

Playback Setup Window (DVD)

Playback Setup Window (CD)

To exit the display (DVD and CD):

Press the RETURN button.

In the playback Setup Window, press the RETURN button to change the present indication to the former one.

ITEM DISPLAY CONTENTS

Time Total time of the current title

SRS TruSurround

The current setting (On/Off) is displayed.

Marker

Place the cursor and press the ENTER button to activate the Marker function.

[Set the marker] Using K/Lbutton, position the cursor on

to the marker number shown as “Not Set”. Press the ENTER button when the screen to be reviewed appears. Up to 5 points can be marked.

[Call back the marker] Using

K/L

button, position the cursor on to the marker number to be called back and press the ENTER button.

[Clear the marker] Using

K/L

button, position the cursor on to the marker number to be cleared and press the CLEAR button.

To clear all markers, place the cursor on “All Clear Markers” and press the ENTER button.

Chapter

Current chapter number / the number of total chapters

Title

Current title number / the number of total titles

Audio

Audio No., audio language / the number of available audio languages in the disc

Subtitle

Subtitle No., subtitle language / the number of available subtitle languages in the disc Off : Subtitle is not displays. Not Available : Subtitle is not included.

Angle

Angle No. / total number of the angles 1/1 : Multi angle is not included in the disc.

ITEM DISPLAY CONTENTS

Time Total time of the current track

Marker

Place the cursor and press the ENTER button to activate the Marker function.

[Set the marker] Using

K/L

button, position the cursor on to the marker number shown as “Not Set”. Press the ENTER button when the screen to be reviewed appears. Up to 5 points can be marked.

[Call back the marker] Using

K/L

button, position the cursor on to the marker number to be called back and press the ENTER button.

[Clear the marker] Using

K/L

button, position the cursor on to the marker number to be cleared and press the CLEAR button.

To clear all markers, place the cursor on “All Clear Markers” and press the ENTER button.

Track

Current track number / the number of total tracks

Time Display

The time informations displays on the left side of the screen (Track/All)

For DVDs

You can check the information about the disc by pressing the DISPLAY button on the remote control.

For audio CDs and DVDs

Press the DISPLAY button, the display appears on the screen.

For the selecting the item of the Playback Setup Window, press the K

/Lbutton to select the item,

then press the ENTER button.

For audio CDs

CDDVD

TD251EN 01.5.31 7:15 PM Page 28

Page 29

–29–

0C28

–29––29–

Press the SETUP button.

¡The setup screen appears.

2 Press the K/L buttons to select Language,

and then press the ENTER button.

3 Press the K/L buttons to select an item, and

then press the ENTER button.

(Voice is played back in selected language.)

(Subtitles are shown in selected language.)

(The disc menu appears in selected language.)

(The on-screen display appears in selected language.)

Press the

K/L

buttons to select a desired

item, and then press the ENTER button.

¡If Other is selected on the Audio, Subtitle or Disc

Menu setting screen, the Language Code setting screen will appear. Press the numeric buttons to enter the desired language code while referring to the list on page 25.

5 Press the SETUP button.

The setup mode will be canceled and the ordinary screen will appear.

Note

¡Language Setting for Audio and Subtitle is not avail-

able with some discs. Then use the Audio and Subtitle button. Details are on pages 18 and 19.

Note

¡When you change the setup items, press the STOP

button if you are in playback mode.

CHANGING THE SETUP ITEMS

LANGUAGE SETTINGS

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Language Controls

Audio English

Subtitle English Disc Menu English Player Menu English

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio

Irish Portuguese Dutch

Other _.......

Language Controls

Audio English

Subtitle English Disc Menu English Player Menu English

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Language Controls

Audio English

Subtitle English Disc Menu English Player Menu English

Audio

Original

English French Spanish

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Language Controls

Audio English

Subtitle English

Disc Menu English Player Menu English

Subtitle

Off

English

Spanish French

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Language Controls

Audio English Subtitle English

Disc Menu English

Player Menu English

Disc Menus

Original

English French Spanish

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Language Controls

Audio English Subtitle English Disc Menu English

Player Menu English

Player Menu

English

Français Español

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

TD251EN 01.5.31 7:15 PM Page 29

Page 30

–30–

0C28

–30––30–

Press the

K/L

buttons to select a desired

item, and then press the ENTER button.

5 Press the SETUP button.

¡The setup mode will be canceled and the ordinary

screen will appear.

Press the SETUP button.

¡The setup screen will appear.

2 Press the K/L buttons to select Display and

then press the ENTER button.

3 Press the K/L buttons to select an item, and

then press the ENTER button.

TV Aspect

(Default : 4:3 Pan & Scan) 4:3 Pan & Scan : Full height picture, trimmed both sides 4:3 Letter Box : Wide screen with black bars on top and bottom

Notes

• Some discs do not contain pan and scan images.

• Some discs do not contain letter box images.

On Screen Info (Default : On) Display or not display the disc status (Example “PLAYB”).

Angle Icon (Default : On) Display or not display the Angle icon on the screen.

Background Color (Default : Gray) Select gray or blue

Auto Power Off (Default : On) Set or not set to turn off after the screen saver is started and no keys are pressed for 30 minutes..

DISPLAY SETTINGS

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Display Controls

TV Aspect 4:3 Pan & Scan

On Screen Info

On Panel Display Bright Angle Icon On

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Display Controls

TV Aspect 4:3 Pan & Scan

On Screen Info

On Angle Icon On Background Color

Gray

TV Aspect

4:3 Pan & Scan

4:3 Letterbox

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Display Controls

TV Aspect 4:3 Pan & Scan

On Screen Info

Angle Icon On Background Color

Gray

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Display Controls

TV Aspect 4:3 Pan & Scan On Screen Info

Angle Icon On

Background Color

Gray

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Display Controls

On Screen Info On Angle Icon On

Background Color

Gray

Auto Power Off On

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Display Controls

On Screen Info On Angle Icon On Background Color Blue

Auto Power Off On

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

TD251EN 01.5.31 7:15 PM Page 30

Page 31

–31–

0C28

–31––31–

Down Sampling (Default : 48kHz) Set the output for the DVD recorded in PCM 96kHz (96kHz or 48kHz)

Press the

K/L

buttons to select a desired

item, and then press the ENTER button.

¡If PCM, Dolby Digital or DTS MPEG is selected on

the Digital Audio Out setting screen, press the K/L buttons again to select a further item, and then press the ENTER button.

Dolby Digital (Default : Off) On : Output by Dolby Digital. Set to On when the unit is connected to Dolby Digital Decoder.

DTS (Default : Off) On : Output DTS sound Set to On when the unit is connected to DTS Decoder.

MPEG (Default : Off) On : Output by MPEG Off : Convert the MPEG to PCM Set to On when the unit is connected to MPEG2 Decoder.

Press the SETUP button.

¡The setup mode will be canceled and the ordinary

screen will appear.

Press the SETUP button.

¡The setup screen will appear.

2 Press the K/L buttons to select Audio and

then press the ENTER button.

3 Press the K/L buttons to select an item, and

then press the ENTER button.

Digital audio out setting (Next step)

Dynamic Range (Default : Off) On : Dynamic range is available

¡This function is for controlling

the range of sound volume. By compressing the range of sound volume, it is possible not only to suppress the output of loud sound at night and but also to raise the volume of low sound.

¡However, this function is effec-

tive only for the sound recorded by Dolby Digital recording. When the sound recorded by Dolby Digital 5.1ch is outputted, the sound is compressed automatically even with this function being set at “Off”.

Downmix Mode

(Default : Dolby Surround) Dolby Surround: When the player is connected to an audio component that conforms to Dolby Surround Pro Logic STEREO: When the player is connected to a normal audio component

AUDIO SETTINGS

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Audio Controls

Digital Audio Out ...

Dynamic Range On Downmix Mode Dolby Surround Down Sampling 48kHz

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Audio Controls

Digital Audio Out ...

Dynamic Range On Downmix Mode Dolby Surround Down Sampling 48kHz

Digital Audio Out

Dolby Digital Off

DTS On MPEG Off

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio Controls

Digital Audio Out ...

Dynamic Range On

Downmix Mode Dolby Surround Down Sampling 48kHz

SSelect : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio Controls

Digital Audio Out ... Dynamic Range On Downmix Mode Dolby Surround

Down Sampling 48kHz

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio Controls

Digital Audio Out ...

Dynamic Range On Downmix Mode Dolby Surround Down Sampling 48kHz

Digital Audio Out

Dolby Digital Off

DTS On MPEG Off

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio Controls

Digital Audio Out ...

Dynamic Range On Downmix Mode Dolby Surround Down Sampling 48kHz

Digital Audio Out

Dolby Digital Off

DTS On

MPEG Off

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio Controls

Digital Audio Out ...

Dynamic Range On Downmix Mode Dolby Surround Down Sampling 48kHz

Digital Audio Out

Dolby Digital Off DTS On

MPEG Off

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Audio ControlsAudio Controls

Digital Audio Out ... Dynamic Range On

Downmix Mode Dolby Surround

Down Sampling 48kHz

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

TD251EN 01.5.31 7:15 PM Page 31

Page 32

–32–

0C28

–32––32–

CONTROL LEVELS

Level 8

DVD software of any grade (adult/general/children) can be played back.

Levels 7 to 2

Only DVD software intended for general use and children can be played back.

Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

Notes

¡With some DVDs, it may be difficult to find if they

are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

¡Record the password in case you forget it.

IF YOU FORGET THE PASSWORD

1) Open the tray.

2) Press the 1, 2, 3, 4, then DISPLAY button on the remote control. the default setup screen will appear. Then, press the ENTER button.

3) Disconnect the power once and reconnect, then proceed the step 1 to 4 of the PARENTAL LOCK again.

Note: If you proceed the above steps, ALL the settings of the DVD player will be cleared. To use the DVD player under the previous settings, set each setting item all over again.

Press the SETUP button.

¡The setup screen will appear.

2 Press the K/L buttons to select Parental,

and then press the ENTER button.

3 Press the numeric buttons to enter the 4-

digit password, and then press the ENTER button.

When doing this for the first time, enter any 4 digits. That number will be used as the password from the second time onward.

¡By entering the password, you

can then change the control level and password settings.

Press the

K/L

buttons to select an item, and

then press the ENTER button.

When Parental Level is selected

¡Press the K/L buttons to select an item from 8 to 1

and then press the ENTER button.

¡When Change is selected, press the numeric buttons

to enter the four digits password. Then press the ENTER button.

Press the RETURN button.

¡The setup screen will appear.

PARENTALLOCK

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Parental Contorols

Parental Level 7[NC-17]

Change

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Parental Level

5 4 [PG-13] 3 [PG] 2

Parental Contorols

Parental Level 7[NC-17]

Change

Select : / Set : ENTER Cancel : Exit : SETUP

Language

Display

Audio

Parental

Parental Contorols

Parental Level 7[NC-17]

Change

Password

Enter current password

_ _ _ _

Select : / Set : ENTER Cancel : Exit : SETUP

Password

Enter current password...

_ _ _ _

Language

Display

Audio

Parental

Select : / Set : ENTER Cancel : Exit : SETUP

TD251EN 01.5.31 7:15 PM Page 32

Page 33

–33–

0C28

–33––33–

1 Afar 4747 2 Abkhazian 4748 3 Afrikaans 4752 4 Amharic 4759 5 Arabic 4764 6 Assamese 4765 7 Aymara 4771 8 Azerbaijani 4772 9 Bashkir 4847

10 Byelorussian 4851

11 Bulgarian 4 8 5 3 12 Bihari 4854 13 Bislama 4855 14 Bengali;Bangla 4860 15 Tibetan 4861 16 Breton 4864 17 Catalan 4947 18 Corsican 4961 19 Czech 4965 20 Welsh 4971 21 Danish 5047 22 German (GER) 5051 23 Bhutani 5072 24 Greek 5158 25 English (ENG) 5160 26 Esperanto 5161 27 Spanish (SPA) 5165 28 Estonian 5166 29 Basque 5167 30 Persian 5247 31 Finnish 5255 32 Fiji 5256 33 Faroese 5261 34 French (FRE) 5264 35 Frisian 5271 36 Irish 5347 37 Scots Gaelic 5350 38 Galician 5358 39 Guarani 5360 40 Gujarati 5367 41 Hausa 5447 42 Hindi 5455 43 Croatian 5464 44 Hungarian 5467 45 Armenian 5471 46 Interlingua 5547 47 Interlingue 5551 48 Inupiak 5557 49 Indonesian 5560 50 Icelandic 5565 51 Italian (ITA) 5566 52 Hebrew 5569 53 Japanese (JPN) 5647 54 Yiddish 5655 55 Javanese 5669 56 Georgian 5747 57 Kazakh 5757 58 Greenlandic 5758 59 Cambodian 5759 60 Kannada 5760 61 Korean (KOR) 5761 62 Kashmiri 5765 63 Kurdish 5767 64 Kirghiz 5771 65 Latin 5847 66 Lingala 5860 67 Laothian 5861 68 Lithuanian 5866

No. Language Country code

69 Latvian;Lettish 5868 70 Malagasy 5953 71 Maori 5955 72 Macedonian 5957 73 Malayalam 5958 74 Mongolian 5960 75 Moldavian 5961 76 Marathi 5964 77 Malay 5965 78 Maltese 5966 79 Burmese 5971 80 Nauru 6047 81 Nepali 6051 82 Dutch (DUT) 6058 83 Norwegian 6061 84 Occitan 6149 85 (Afan)Oromo 6159 86 Oriya 6164 87 Panjabi 6247 88 Polish 6258 89 Pashto;Pushto 6265 90 Portuguese 6266 91 Quechua 6367 92 Rhaeto-Romance 6459 93 Kirundi 6460 94 Romanian 6461 95 Russian 6467 96 Kinyarwanda 6469 97 Sanskrit 6547 98 Sindhi 6550

99 Sangho 6553 100 Serbo-Croatian 6554 101 Singhalese 6555 102 Slovak 6557 103 Slovenian 6558 104 Samoan 6 5 5 9 105 Shona 6 5 6 0 106 Somali 6 5 6 1 107 Albanian 6 5 6 3 108 Serbian 6564 109 Siswat 6565 110 Sesotho 6566

111 Sundanese 6567 112 Swedish 6568 113 Swahili 6569 114 Tamil 6647 115 Telugu 6652 116 Tajik 6653 117 Thai 6654 118 Tigrinya 6655 119 Turkmen 6657 120 Tagalog 6 6 5 8 121 Setswana 6660 122 Tonga 6661 123 Turkish 6 6 6 4 124 Tsonga 6665 125 Tatar 6 6 6 6 126 Twi 6669 127 Ukrainian 6757 128 Urdu 6764 129 Uzbek 6772 130 Vietnamese 6855 131 Volapuk 6 8 6 1 132 Wolof 6961 133 Xhosa 7054 134 Yoruba 7161 135 Chinese (CHI) 7 2 5 4 136 Zulu 7267

No. Language Country code

DVD

LANGUAGE CODE LIST

TD251EN 01.5.31 7:15 PM Page 33

Page 34

–34–

0C28

–34––34–

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save your time and money.

Problem Corrective Action

Remote Control Doesn’t Work

•

Is TV/DVD plugged in?

•

Power at outlet?

•

Check batteries in Remote Control.

Bars On Screen

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

Picture Distorted or Blurred

•

Try a new channel, if OK, then possible station trouble.

•

If outside antenna is being used, check for broken wire.

Picture Rolls Vertically

•

Try a new channel, if OK, then possible station trouble.

Lines or Streaks in Picture

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

No Color

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to terminal on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Adjust COLOR control.

Poor Reception on Some Channels

•

Try a new channel, if OK, then possible station trouble.

Ghosts in Picture

•

Is antenna connected to terminal on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

Weak Picture

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to terminal on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Adjust CONTRAST & BRIGHT control.

Sound OK, Picture Poor

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to terminal on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

•

Adjust CONTRAST & BRIGHT control.

Picture OK, Sound Poor

•

Try a new channel, if OK, then possible station trouble.

•

Check for local interference.

No Picture or Sound

•

Try a new channel, if OK, then possible station trouble.

•

Is TV/DVD plugged in?

•

Power at outlet?

•

Is TV/DVD’S POWER button on?

•

Is antenna connected to terminal on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Turn off with POWER button and then turn it on after about a minute.

TROUBLESHOOTING GUIDE

TD251EN 01.5.31 7:15 PM Page 34

Page 35

–35–

0C28

–35––35–

Closed Caption Problem Possible Remedy

My TV is showing captions • You are watching a live broadcast and spelling errors made by the that are misspelled. • closed captioning production company may pass through uncorrected.

• A prerecorded program will not show any misspelled words because

• of the normal time available for editing the captions.

My TV will not show the text • Captions that are delayed a few seconds behind the actual dialogue in its entirety or there is a delay of • are common for live broadcast. Most captioning production companies what is being said. • can display a dialogue to a maximum of 220 words per minute. If a

• dialogue exceeds that rate, selective editing is used to insure that the

• captions remain up-to-date with the current TV screen dialogue.

My captions are scrambled with • Interference caused by building, power lines, thunderstorms, etc. white boxes on the TV screen. • may cause scrambled or incomplete captions to appear.

My program guide listed a TV show

• Broadcasters may at times use a time compression process to the as being closed captioned but none • actual program so that additional advertising time can be given. of the captions were displayed. • Since the decoder cannot read the compressed information,

• captions will be lost.

My TV screen shows a black box • You are in the TEXT mode. Select CAPTION mode or CAPTION on certain channels. • [OFF].

TD251EN 01.5.31 7:15 PM Page 35

Page 36

–36–

0C28

–36––36–

Symptom Cause Remedy

No power.

•

Loose power plug.

•

Insert the power plug firmly into the wall out-

let.

The player does not

•

The remote control is not aimed•Aim the remote control directly at the sensor

respond to the

•

at the sensor on the TV/DVD.

•

on the TV/DVD.

remote control.

•

Obstacles present between the

•

Remove the obstacles from the signal path.

•

remote control and the sensor.

•

The remote control is too far

•

Use the remote control within 7m of

•

away from the TV/DVD.

•

the TV/DVD.

•

Dead batteries.

•

Replace the batteries.

No picture

•

Loose video connection.

•

Connect the video cables firmly.

•

Wrong disc.

•

Insert a correct video disc that plays on this

•

TV/DVD.

Disc cannot be

•

No disc.

•

Insert a disc.

played

•

Dirty disc.

•

Clean the disc.

•

Disc is placed upside down.

•

Place the disc correctly, with the label side up.

•

Parental lock is active.

•

Cancel the parental lock or change the control

•

level.

No sound

•

Loose audio connection.

•

Connect the audio cables firmly.

•

The power of the connected

•

Turn the power of the audio component on.

•

audio component is off.

•

Wrong audio output settings.

•

Correct the audio output settings.

•

Wrong input settings on the

•

Correct the input settings on the audio

•

connected audio component.

•

component.

Distorted picture

•

Immediately after playing,

•

There are some cases where pictures may be

•

press fast forward or in reverse.•slightly distorted, which are not a sign of a

•

malfunction.

Audio or subtitle

•

The selected language is not

•

No malfunction.

language does not

•

available for audio or subtitles

match the setup.

•

on the DVD.

The camera angle

•

The DVD does not contain

•

No malfunction.

cannot be changed.

•

sequences recorded from

•

different camera angles.

Audio or subtitle

•

The DVD does not contain

•

No malfunction.

language cannot be

•

audio source or subtitles in the

changed.

•

selected language.

"Prohibited icon"

•

That operation is prohibited by•No malfunction.

appears on the

•

the TV/DVD or disc. screen, prohibiting an operation.

CD sound dropout

•

Scratched disc

•

Replace the disc with unscratched one. No CD reproduction DVD picture dropout DVD picture freeze DVD picture in mosaic No DVD reproduction

NOTES:

•

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for details on correct operations.

•

Playback from a desired track and random playback are not available during program playback.

If the TV/DVD does not perform properly when operated as instructed in this Owner’s Manual, check the player, consulting the following checklist.

DVD

TD251EN 01.5.31 7:15 PM Page 36

Page 37

–37–

0C28

CABINET CLEANING

•

Wipe the front panel and other exterior surfaces of the TV/DVD with a soft cloth immersed in lukewarm water and wrung dry.

•

Never use a solvent or alcohol. Do not spray insecticide liquid near the TV/DVD. Such chemicals may cause damage and discoloration to the exposed surfaces.

SERVICING

•

Should your TV/DVD become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800256-2487, to locate an Authorized Service Center.

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

•

If the player still does not perform properly when it is operated while referring to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

•

Use discs which have the following logos on them. (Optical audio digital discs.)

•

Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

•

Always store the disc in its protective case when it is not used.

DISC HANDLING

•

To clean-off, use a soft cloth.

•

Do not use a hard cloth since this will mar the disc.

•

Wipe the disc in a straight line from center to edge.

•

Never wipe with a circular motion.

•

Do not use detergent or abrasive cleaning agents.

MAINTENANCE

TD251EN 01.5.31 7:15 PM Page 37

Page 38

–38–

0C28

Television system: NTSC-M

TV Standard Closed caption system: §15.119/FCC Channel coverage:

VHF: 2 ~ 13 UHF: 14 ~ 69 CATV: 2 ~13, A ~ W,

W+1 ~ W+84,

A-5 ~ A-1, 5A Tuning System: 181 channel

frequency synthesized

tuning system Channel access: Direct access keyboard,

programmable

scan and up/down

Product type: DVD Player Discs: DVD video, Audio CD Output signal format: NTSC color Frequency response (out put jack)

DVD (linear sound): 20 Hz to 22 kHz

(sample rate: 48 kHz)

20 Hz to 44 kHz

(sample rate: 96 kHz)

CD: 20 Hz to 20 kHz Signal-to-noise ratio (S/N ratio)(out put jack)

CD: 100 dB (EIAJ) Dynamic range (out put jack)

DVD (linear sound): 85 dB

CD: 84 dB (EIAJ) Total distortion factor

CD: 0.07% (EIAJ) Wow and flutter: Below the measurement

limitation (+/-0.001% W PEAK) (EIAJ)

•

Designs and specifications are subject to change without notice and without our legal obligation.

•

If there is a discrepancy between languages, the default language will be English.

DVD

GENERAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS

Sound output: 2 speakers, 1W, 8 ohm

OTHER SPECIFICATIONS

Terminals

Antenna input: VHF/UHF/CATV

75 ohm unbalanced (F-type) Video input: RCA connector [ 1 Audio L/R input: RCA connector [ 2 Headphone: 1/8” stereo (3.5 mm) Coaxial digital audio output (only DVD): One pin jack,

500m Vpp (75 ohm) Analog audio L/R output (only DVD): RCA connector [ 2

Remote control: Digital encoded

infrared light system

Operating temperature: 5ºC to 40ºC

(41ºF~104ºF)

Power requirements: AC 120V, 60Hz Power consumption (Maximum): 90W Picture tube: 19" Dimensions: H:19-5/8” (498mm)

W:19-3/16” (487mm)

D:18-21/32” (474mm)

Weight: 41.9 lbs (19kg) Accessories: Remote Control Unit with

2"AA"batteries

Owner’s Manual

SPECIFICATIONS

TD251EN 01.5.31 7:15 PM Page 38

Page 39

–

0C28

INDICE

■ CONTROLES DE OPERACIÓN Y FUNCIONES. . . . . 39

PANEL FRONTALDEL TELEVISOR/DVD . . . . . . . . . . 39

MANDO ADISTANCIA. . . . . . . . . . . . . . . . . . . . . . . . . 39

VISTA POSTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

■ PREPARACIÓN PARA LA UTILIZACIÓN . . . . . . . . . . 40

CONEXIONES DE ANTENA/TELEVISIÓN

POR CABLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

INSTALACIÓN DE LAS PILAS . . . . . . . . . . . . . . . . . . . 41

CONEXIÓN ATOMAS DE ENTRADA EXTERNA. . . . 41

CONEXIÓN AUN SISTEMA ESTÉREO (Para DVD) . . 41 CONEXIÓN A UN AMPLIFICADOR EQUIPADO CON TOMAS DE ENTRADA DIGITAL, PLATINA MD O

PLATINA DAT (Para DVD) . . . . . . . . . . . . . . . . . . . . . . 41

CONEXIÓN AUN DECODIFICADOR DOLBY DIGITAL

O AUN DECODIFICADOR DTS (Para DVD) . . . . . . . . 41

TV SECTION

■

PREPARACIÓN PARA LA UTILIZACIÓN

. . . . . . . . . . . . 42

SELECCIÓN DE IDIOMA . . . . . . . . . . . . . . . . . . . . . . . 42

PREAJUSTE DE CANALES. . . . . . . . . . . . . . . . . . . . . . 42

DVD SECTION

■ REPRODUCCIÓN DE UN DISCO . . . . . . . . . . . . . . . . 43

REPRODUCCIÓN DE UN DVD DE VÍDEO O UN CD DE

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

CONTROLES DE

OPERACIÓN Y FUNCIONES

PANEL FRONTAL DEL

TELEVISOR/DVD

Consulte la figura 1 de la página 8

MANDO A DISTANCIA

Consulte la figura 2 de la página 8

VISTA POSTERIOR

Consulte la figura 3 de la página 9

1.Bandeja de carga del disco

2.Toma de entrada VIDEO

Conecte aquí la toma de salida de vídeo de una videocámara o de una videograbadora.

Tomas de entrada AUDIO L/R

Conecte aquí las tomas de salida de audio de una videocámara o de una videograbadora.

Botón POWER

Púlselo para conectar y desconectar la alimentación.

Botones VOLUME K/L

Púlselos para controlar el nivel del volumen para el DVD y el televisor.

Botones CHANNEL K/L

Púlselo para seleccionar el canal memorizado. Púlselo para cambiar a un modo de televisor cuando modo de DVD.

Ventanilla del sensor del mando a distancia

8.Botón STOP

Detiene la operación del disco.

Botón REV

Reproduce rápidamente hacia atrás hasta un punto deseado.

10.

Botón PLAY

Inicia la reproducción del contenido del disco. Púlselo para cambiar a un modo de DVD cuando modo de televisor.

11.

Botón FWD

Reproduce rápidamente hacia adelante hasta un punto deseado.

12.

Botón PAUSE

Hace una pausa en la operación del disco.

13.

Botón OPEN/CLOSE

Púlselo para insertar discos en la bandeja o retirarlos de ella.

14.

Toma HEADPHONE

Para conectar auriculares (no suministrados) y escuchar en privado.

15.

Botón MODE

Activa el modo de reproducción programada o el modo de reproducción aleatoria.

16.

Botones de números Modo del televisor:

Pulse dos dígitos para tener acceso directamente al canal deseado.

Recuerde pulsar "0" antes de elegir un canal de un solo dígito.

Botón +100

Púlselo para seleccionar canales de televisión por cable cuyo número sea igual o superior al 100.

Modo DVD:

Púlselo para introducir el número deseado.

Botón +10

Púlselo para introducir los números deseados cuyo número sea igual o superior al 10.

17.

Botón SLEEP

Pulse el botón SLEEP para visualizar el temporizador para dormir y activar la función. La hora de apagado puede determinarse por el número de veces que usted pulsa el botón. (0, 10, 20, 30, 90, 0 minutos)

18.

Botones SKIP

Salta capítulos o pistas hasta un punto deseado.

19.

Botón ZOOM

Amplia parte de una imagen de DVD reproducida.

20.Botón SETUP

Púlselo para activar o salir del modo de menús de televisor o preparación de DVD.

21.

Botón TITLE

Visualiza el menú de títulos.

22.

Botón CLEAR

Repone un ajuste.

23.

Botón DISPLAY

TD250UAES 01.5.31 7:14 PM Page 39

Page 40

–

0C28

Modo del televisor:

Púlselo para visualizar el número del canal en la pantalla. Si lo pulsa de nuevo, el número del canal desaparecerá.

Modo de DVD:

Visualiza el estado actual en la pantalla del televisor con fines de comprobación.

24.

Botón SEARCH MODE

Púlselo para localizar un punto deseado.

25.

Botón AUDIO

Púlselo para seleccionar un idioma de audio o un modo de sonido deseado.

26.

Botón SUBTITLE

Púlselo para seleccionar un idioma de subtítulos deseado.

27.

Botón REPEAT

Repite la reproducción del disco, título, capítulo o pista actual.

28.

Botón ANGLE

Púlselo para cambiar el ángulo de la cámara y verde, desde un ángulo diferente, la secuencia que está siendo reproducida.

29.

Botón A-B REPEAT

Repite la reproducción de una sección seleccionada.

30.Botón RETURN

Para volver a la operación anterior.

31.

Botón ENTER

Púlselo para establecer un ajuste.

32.

Botones de flechas Modo de televisor:

Púlselo para seleccionar un modo de ajuste desde el menú que aparece en la pantalla del televisor. Púlselo para seleccionar o ajustar desde un menú particular.

Modo de DVD:

Se utiliza cuando se hacen ajustes mientras se observa la visualización en una pantalla de televisor.

33.Botón DISC MENU

Visualiza menús en el DVD.

34.

Botón SELECT

Púlselo para cambiar a un modo de televisor, modo de entrada externa o modo de DVD.

35.

Botón MUTE

Pulse el botón MUTE para apagar el sonido de un programa de TV. La visualización del nivel del sonido cambia de ROJO CLARO a AZUL CLARO.) Pulse de nuevo el botón MUTE o el botón VOL K o L para restaurar el sonido.

36.

Botón PICTURE

Presione para entrar en el modo de ajuste de imagen.

37.

Cable de alimentación

Conéctelo a una toma de CA convencional (120 V/60 Hz).

NOTA: Retire el cable de alimentación del gancho

para evitar romperlo antes de conectarlo a una toma de CA convencional.

38.

Toma de salida de audio digital COAXIAL

Conéctela a la entrada digital de un amplificador o decodificador externo.

39.

Toma de salida AUDIO L/R

Conéctela a la entrada de audio analógico de un amplificador o decodificador externo. NOTA: Las tomas de entrada de audio (roha y

blanca) en el lado trasero sirven para producir no el son televisor ni el son de entrada externa, sino el son DVD.

40.

Toma de entrada ANT.

Conéctela a una antena, sistema de televisión por cable o sistema de satélite.

ANTENA COMBINADA DE VHF/UHF

La antena de varilla de VHF/UHF (no suministrada) es desmontable. Inserte el vástago de la antena en el agujero de la parte superior del televisor/DVD. Conecte la antena de varilla de VHF/UHF o la antena combinada de VHF/UHF al terminal ANT. del televisor/DVD como se muestra en el diagrama de abajo. Para obtener la mejor recepción, extienda completamente la antena de varilla de VHF/UHF y haga los ajustes necesarios. (Evite tocar la sección superior cuando haga el ajuste.)

NOTA:

Antes de enchufar la antena de varilla en un terminal de antena, compruebe que la clavija no esté doblada. Si lo está, enderece la clavija como se muestra en la ilustración y luego enchufe la clavija en el terminal de antena.

NOTA:

La conexión de una antena interior puede que no proporcione siempre una recepción de TV aceptable.

ANTENAS SEPARADAS DE VHF/UHF

En algunas áreas será necesario utilizar una antena exterior.

Consulte la figura 5 de la página 10

Consulte la figura 4 de la página 10

CONEXIONES DE ANTENA/

TELEVISIÓN POR CABLE

PREPARACIÓN PARA LA

UTILIZACIÓN

TD250UAES 01.5.31 7:14 PM Page 40

Page 41

–

0C28

NOTAS:

•

Asegúrese de desconectar la alimentación a todos los componentes del sistema antes de hacer la conexión a otro componente.

•

Consulte el manual del propietario de su sistema estéreo y de cualquier otro componente que vaya a conectar al televisor/DVD.

•

Las tomas de entrada de audio (roha y blanca) en el lado trasero sirven para producir no el son televisor ni el son de entrada externa, sino el son DVD.

Utilice un cable digital coaxial (de venta en el comercio) para las conexiones de audio.

NOTAS:

•

La fuente de audio de un disco del formato de sonido ambiental Dolby Digital de 5,1 canales no puede ser grabada como sonido digital por una platina MD o DAT.

•

Asegúrese de desconectar la alimentación de todos los componentes del sistema antes de hacer la conexión a otro componente.

•

Consulte los manuales del propietario de los componentes que vaya a conectar al televisor/DVD.

•

Ponga DOLBY DIGITAL y DTS en OFF para la salida de audio en el modo de preparación. La reproducción en el televisor/DVD utilizando los ajustes incorrectos puede generar distorsión de ruido, y también puede estropear los altavoces.

•

El audio se silenciará cuando DOLBY DIGITAL se ponga en OFF y VIRTUAL 3D se ponga en ON para la salida de audio en el modo de preparación y usted seleccione la fuente de audio del formato de sonido ambiental Dolby Digital de 5,1 canales.

Consulte la figura 10 de la página 13

CONEXIÓN A UN

AMPLIFICADOR EQUIPADO

CON TOMAS DE ENTRADA

DIGITAL, PLATINAMD O PLATINA DAT (Para DVD)

Consulte la figura 9 de la página 13

CONEXIÓN A UN SISTEMA

ESTÉREO (Para DVD)

TELEVISIÓN POR CABLE SIN CAJA DE CONVERTIDOR/DECODIFICADOR

Utilice esta conexión si su sistema de televisión por cable se conecta directamente a su televisor/DVD sin necesidad de caja de convertidor.

TELEVISIÓN POR CABLE CON CAJA DE CONVERTIDOR/DECODIFICADOR O CAJA DE SATÉLITE

Si su proveedor de servicios de televisión por cable le suministra una caja de convertidor o si usted utiliza un sistema de satélite, podrá utilizar la conexión básica mostrada aquí.

1) Abra la tapa del compartimiento de las pilas del mando a distancia presionándola en el sentido de la flecha.

2) Inserte 2 pilas tamaño "AA" en su compartimiento colocando las polaridades (+/-) en sus posiciones correspondientes.

3) Vuelva a poner la tapa.

Cuando vea un programa grabado en otra fuente (videograbadora o videocámara), utilice las tomas de entrada de audio/vídeo de la parte delantera del televisor/DVD.

Conecte las tomas de salida de audio/vídeo de otra fuente a las tomas AUDIO L/R y VIDEO de este televisor/DVD. Y luego pulse el botón SELECT hasta que "VIDEO" aparezca en la pantalla.

NOTA:

•

Cuando conecte una videograbadora monoaural (otra fuente) a este televisor/DVD, conecte la toma de salida de audio de la videograbadora monoaural (otra fuente) a la toma AUDIO L de este televisor/DVD. El audio saldrá igualmente en los canales Ly R.

Conexiones de antena/televisión por cable Continúa en la página siguiente.

Consulte la figura 8 de la página 12

CONEXIÓN A TOMAS DE

ENTRADA EXTERNA

INSTALACIÓN DE LAS PILAS

Consulte la figura 7 de la página 11

Consulte la figura 6 de la página 11

TD250UAES 01.5.31 7:14 PM Page 41

Page 42

–

0C28

Para empezar

Conecte el cable de alimentación a una toma de CA convencional.

NOTA: Si aparecen algunos dígitos en la esquina de

la pantalla, pulse el botón POWER sin desenchufar el cable de alimentación.

Pulse el botón POWER para encender el televisor/DVD.

Pulse el botón SELECT del mando a distancia hasta que el número del canal o "TV" aparezca en la pantalla. Luego pulse el botón TV.

Si desea cambiar el idioma del menú en pantalla, siga el procedimiento de abajo.

Pulse el botón MENU para que la visualización del menú aparezca en la pantalla del televisor.

Pulse el botón de flecha K o L para apuntar a "LENGUAJE".

Seleccione "ENGLISH" (inglés), "ESPAÑOL" o "FRANÇAIS" (francés) utilizando el botón de flecha B o s.

Pulse el botón MENU para salir del menú. NOTA: Para el modo del televisor y el modo del

DVD se deberá seleccionar un idioma de visualización en pantalla.

Para preajustar un canal o cambiar un canal de preajuste, siga el procedimiento de abajo.

PREAJUSTE DE CANALES

SELECCIÓN DE IDIOMA

TV SECTION

PREPARACIÓN PARA LA

UTILIZACIÓN

“DTS” y “DTS Digital Out” son marcas de fábrica de Digital Theater Systems, Inc.

Si se utiliza este televisor/DVD para reproducir fuentes del formato de sonido ambiental Dolby Digital de 5,1 canales o de sonido ambiental DTS, el televisor/DVD dará salida a un flujo de datos Dolby Digital o DTS desde su toma de salida de audio digital COAXIAL. Conectando el reproductor a un decodificador Dolby Digital o DTS, usted podrá disfrutar de un ambiente más convincente y real con un sonido ambiental potente y de alta calidad de tipo profesional tal como el que se oye en salas de cine.

Utilice cables digitales coaxiales (de venta en el comercio) para las conexiones de audio.

NOTAS:

•

Asegúrese de desconectar la alimentación de todos los componentes del sistema antes de hacer la conexión a otro componente.

•

Consulte los manuales del propietario de los componentes que vaya a conectar al televisor/DVD.

•

Si conecta un decodificador Dolby Digital, ponga DOLBY DIGITAL en ON para la salida de audio en el modo de preparación.

•

Si conecta un decodificador DTS, ponga DTS en ON para la salida de audio en el modo de preparación.

•

A menos que se haga la conexión a un decodificador Dolby Digital o DTS, ponga DOLBY DIGITAL y DTS en OFF para la salida de audio en el modo de preparación. La reproducción en el televisor/DVD utilizando los ajustes incorrectos puede generar distorsión de ruido, y también puede estropear los altavoces.

•

Consulte la figura 11 de la página 14

CONEXIÓN A UN

DECODIFICADOR DOLBY

DIGIT ALO A UN

DECODIFICADOR DTS

(Para DVD)

TD250UAES 01.5.31 7:14 PM Page 42

Page 43

–

0C28

Pulse el botón MENU para que la visualización del menú aparezca en la pantalla del televisor.

Pulse el botón de flecha K o L para apuntar a "CANALES PROGRAMADOS". Luego pulse el botón de flecha B.

Pulse el botón de flecha K o L para apuntar a "MEMO AUTOMÁTICA". Luego pulse el botón de flecha B. El sintonizador explora y memoriza todos los canales activos de su zona.

•

El televisor distingue entre los canales de TV convencional y los canales de televisión por cable.

•

Cuando termine la función AUTO MEMO, el canal memorizado más bajo vuelve a aparecer en la pantalla.

•

Cuando pulse el botón de flecha K o L después de seleccionar AUTO MEMO, el sintonizador se detendrá en los canales sin memorizar solamente.

•

El televisor puede considerar canales de TV como canales CATV según las condiciones de la recepción. En este caso, active de nuevo la función AUTO MEMO en condiciones de recepción fina.

[FUNCIÓN DE ADICIÓN/BORRADO]

1) Pulse el botón MENU para que la visualización del menú aparezca en la pantalla del televisor.

2) Pulse el botón de flecha K o L para apuntar a "CANALES PROGRAMADOS". Luego pulse el botón de flecha B.

3) Pulse el botón de flecha K o L para apuntar a "AÑADIR/BORRAR". Luego pulse el botón de flecha B.

4) Utilice el botón de flecha K o L para seleccionar el canal que desee memorizar o borrar de la memoria.

NOTA: La visualización volverá a la pantalla en

unos 10 segundos. Realice la función "AÑADIR/BORRAR" mientras aparece la visualización en la pantalla.

•

Pulse el botón de flecha B o s para encender el número de canal en AZUL CLARO si usted desea añadir el canal a la memoria.

•

Pulse el botón de flecha B o s para encender el número de canal en ROJO CLARO si usted desea borrar el canal a la memoria.

5) Pulse el botón MENU para salir del menú.

REPRODUCCIÓN DE UN DVD

DE VÍDEO O UN CD DE AUDIO

Para empezar

Conecte la alimentación del televisor, amplificador y cualquier otro componente que esté conectado al reproductor DVD. (Cambie el sistema de entrada para adaptarlo al reproductor DVD, y compruebe que el volumen del sonido sea correcto.)

1 Pulse el botón POWER.

La alimentación se conectará.

2 Pulse el botón OPEN/CLOSE.

La bandeja de carga del disco se abrirá.

3 Ponga un disco en la bandeja.

¡Asegúrese de que el disco esté correctamente asen-

tado en el hueco correcto, con el lado de la etiqueta hacia arriba.

4 Pulse el botón PLAY.

La bandeja se cerrará automáticamente y la reproducción empezará desde el primer capítulo o pista del disco. Necesitará pulsar el botón PLAY sólo cuando la bandeja haya sido cerrada pulsando el botón OPEN/CLOSE.

¡Cuando reproduzca un DVD que tenga grabado un

menú de títulos, el menú tal vez aparezca en la pantalla. En este caso, consulte "UTILIZACIÓN DEL MENÚ DE TÍTULOS".

Pulse el botón STOP para detener la reproducción.

CDDVD

REPRODUCCIÓN DE UN

DISCO

DVD SECTION

TD250UAES 01.5.31 7:14 PM Page 43

Page 44

Printed in Malaysia 0EMN01819

TD251UB ★★★★

LIMITED WARRANTY

FUNAI CORP. will repair this Emerson product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the

date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date

of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This FUNAI CORPORATION Limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REP AIR OF THIS PRODUCT, PLEASE CONTACTFUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

T o locate yournearest Emerson Authorized Service Centeror for general service procedure, please call 1-800-256-2487 or write to the following:

FUNAI CORPORATION, INC.

Customer Service

100 North Street; Teterboro, NJ 07608

Tel :1-800-256-2487

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

TD251UB_BCV 01.5.31 7:15 PM Page 44

Page 45

documentation manual, user maintenance, brochure, user reference, pdf manual

This file has been downloaded from:

User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..

Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,

manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
