Fulljoin PPS006, PPS003 User Manual

Download

Page 1

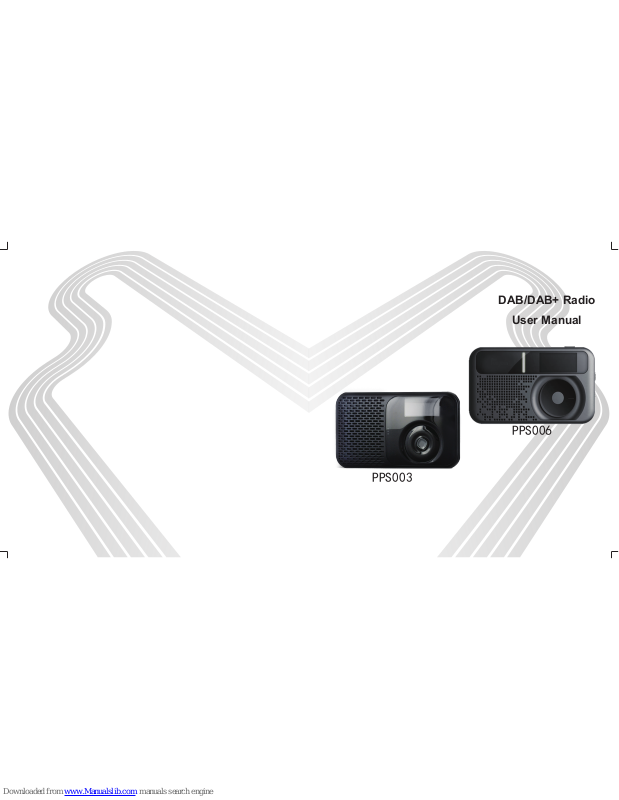

DAB/DAB+ Radio

User Manual

PPS006

PPS003

Page 2

Quick Start Guide

Press the Power Button for more than 3 seconds to turn on the radio. The green power

indicator illuminates and start-up screen will appear.

DAB Radio

The radio can search for local DAB, DAB+ radio stations; if enter into the DAB mode for

the ﬁrst time, it will be access to automatic search interface after the start-up screen,

and it will be access to <Station List> interface after the search is finished, which

will display all of the radio stations be searched, and broadcast the ﬁrst radio station

automatically.

FM Radio

FM radio with RDS function, you can use it to listen to local FM radio stations.

Press the Power Button once or access to the <Main Menu> and then switch to FM

mode.

Press the Back Button to access to the FM Main Menu.

Use the Control Wheel to navigate to <Auto Program> and then press Enter Button.

Previously stored radio stations will be updated automatically by the new stations be

searched.

Page 3

MP3

Songs can be stored into Flash or MicroSD card; the radio can play MP3 music stored

in Flash and MicroSD card ﬂuently. At the same time, it can set the play mode, play lists

and equalizer.

Clock & Alarm

You can manually adjust the clock or use DAB and FM to synchronize clock.

You can set either a DAB or FM broadcast radio as alarm, when the alarm sounds, the

radio will play preset radio station automatically.

Recording Function

During broadcasting DAB or FM Stations, it can be access to record as your

requirement. You can choose Flash or MicroSD card as stored path to record.

Page 4

Brief Introduction

Packaging and Speciﬁcations

Packaging.................................................................

Speciﬁcations............................................................

DAB Function ......................................................

FM Function.........................................................

MP3.....................................................................

Time and Alarm....................................................

Battery .................................................................

Device .................................................................

Button Instruction 11

Display Types

Broadcasting Screen.................................................

Menu Screen.............................................................

Information Screen....................................................

Query Screen............................................................

Main Menu

Main Menu Structure.................................................

Mode Switching.........................................................

User Manual

10 10

Page 5

DAB Menu

Preset List................................................................

Station List...............................................................

Local Scan...............................................................

Manual Tune.............................................................

Region.....................................................................

DRC.........................................................................

Record.....................................................................

Sort..........................................................................

System Setup..........................................................

Main Menu...............................................................

DAB Mode Operation

Basic Operation.......................................................

Power On DAB for the First Time.........................

Power On DAB Next Time...................................

Select Stations....................................................

Play Stations.......................................................

Store Stations.....................................................

Recall Preset.......................................................

Display Station Information..................................

19 19

User Manual

Page 6

FM Radio Menu Introduction and Operation

Preset List.................................................................

Channel List..............................................................

Seek Mode................................................................

Tune Mode................................................................

Auto Program............................................................

Clear All Station.........................................................

Region.......................................................................

Scan Setting..............................................................

Audio Setting.............................................................

Record......................................................................

System Setup............................................................

Main Menu................................................................

MP3 27

Flash.........................................................................

MicroSD Card............................................................

Audio Setting.............................................................

Play Mode............................................................

Play Range...........................................................

EQ........................................................................

User Manual

Page 7

System Setup...........................................................

Main Menu...............................................................

MP3 User interface for display..................................

Download the ﬁles from PC......................................

System Setup Menu Introduction and Operation

Set Power Off Time..................................................

Time Setup..............................................................

Display Time & Date............................................

Set Time & Date..................................................

Alarm.......................................................................

Brightness................................................................

Backlight TimeOut....................................................

Reset All...................................................................

Info...........................................................................

Charging the Device

Using the Antenna

Safety Warning

User Manual

Page 8

Brief Introduction

Full-Join PPS006 is a digital multimedia products with DAB, DAB+, FM, MP3, alarm

clock functions.

DAB is the abbreviation of Digital Audio Broadcasting, it is the third-generation

broadcasting after the AM, FM traditional analogue broadcasting; this new transmission

system with great anti-interference performance, it can eliminate noise and distortion in

the process of signal transmission, while the transmission errors can also be amended,

which leads it to provide CD-quality stereo.

DAB+ is the updated version of the DAB standard series, which is used in many

countries such as Europe, Canada, China, South Korea. DAB+ standard is based on

HE-AACv2. Compared with DAB technology used in MPEG Audio Layer II, HE-AACv2

can provide homogeneous or much better sound at a lower bit rate.

As DAB Radio isn't widespread currently, and taking the existing few radio models into

consideration, PPS006 keeps the FM function.

In MP3 mode, it can play the music stored in Flash and MicroSD card.

For Clock & Alarm: You can set either a DAB or FM broadcast radio as alarm, when the

alarm sounds, the radio will play the preset radio station automatically.

Page 9

Packaging and Speciﬁcations

Packaging

Thank you for choosing our DAB radio, please check the accessories in the box

according to the list as below. If there is anything shortage, please contact you retailer.

1. DAB radio 1 pc

2. USB 2.0 cable 1 pc

3. Antenna 1 pc

4. User Manual 1 pc

Speciﬁcations

DAB Function

• This DAB radio can receive and play all the Band III radio stations under DAB

standard, and the frequency range of DAB band III is 174.928MHz~239.2MHz.

• Support region setting, the device will search the radio stations when the user set up

the default region.

• Support local searching.

• Support searching by preferred frequency channel.

• Support DRC function.

• Support DLS function.

• Support recording function, and the default recording format is MP2 when it is in DAB

Page 10

status. The default recording format is AAC when it is in DAB+ status. The capacity is up

to the capacity of Flash or MicroSD card.

• Support preset function, and the maximum is 30 radio stations in preset.

FM Function

• Also you can use this device to receive and play FM radio stations, and the frequency

range is 87.5MHz~108MHz, the frequency interval is 50KHz.

• Support searching and playing radio stations with strong signal only.

• Support playing the radio stations only in Mono mode.

• Support searching and conserving the radio stations automatically, the maximum is

30 radio stations in Channel List.

• Support preset function, the maximum is 30 radio stations.

• Support tune and seek mode.

• Support recording function. And the default recording format is MP3, and the capacity

is up to the capacity of Flash or MicroSD card.

• Support clearing all the conserved radio station list, including the preset list and the

channel list.

• Support RDS (PTY, PS, RT, CT).

MP3

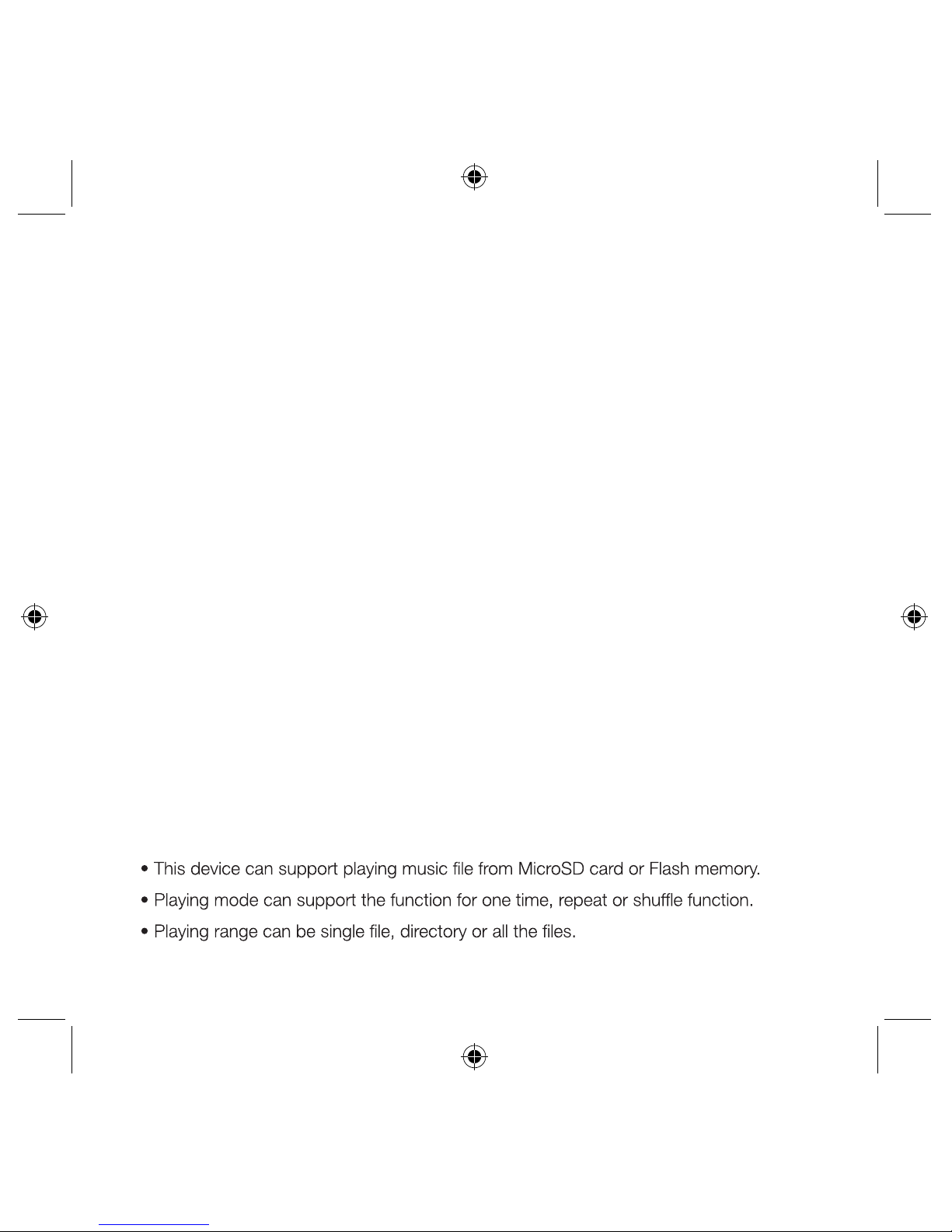

Page 11

• Support equalizer function.

• Support play, pause, next, previous function.

Time and Alarm

• The time can be set up manually or synchronous with DAB or FM.

• Alarm will start with a radio station, user can set up to play a DAB or FM radio station

on the alarming time, and the device can turn on automatically and play the preset radio

station.

Battery

1. Build in 1260mAh Li-polymer battery, it can play over 10 hours.

2. Charging time: 4.5 hours.

3. Maximum charging electric current: 500mA.

4. Age of charging circle: over 300 times.

Device

1. Built in speaker: 2 W.

2. 3.5mm stereo headphone socket.

3. Dimension: 73mm*125mm*23.4mm (H*W*D).

4. Weight: 155.7 grams.

Page 12

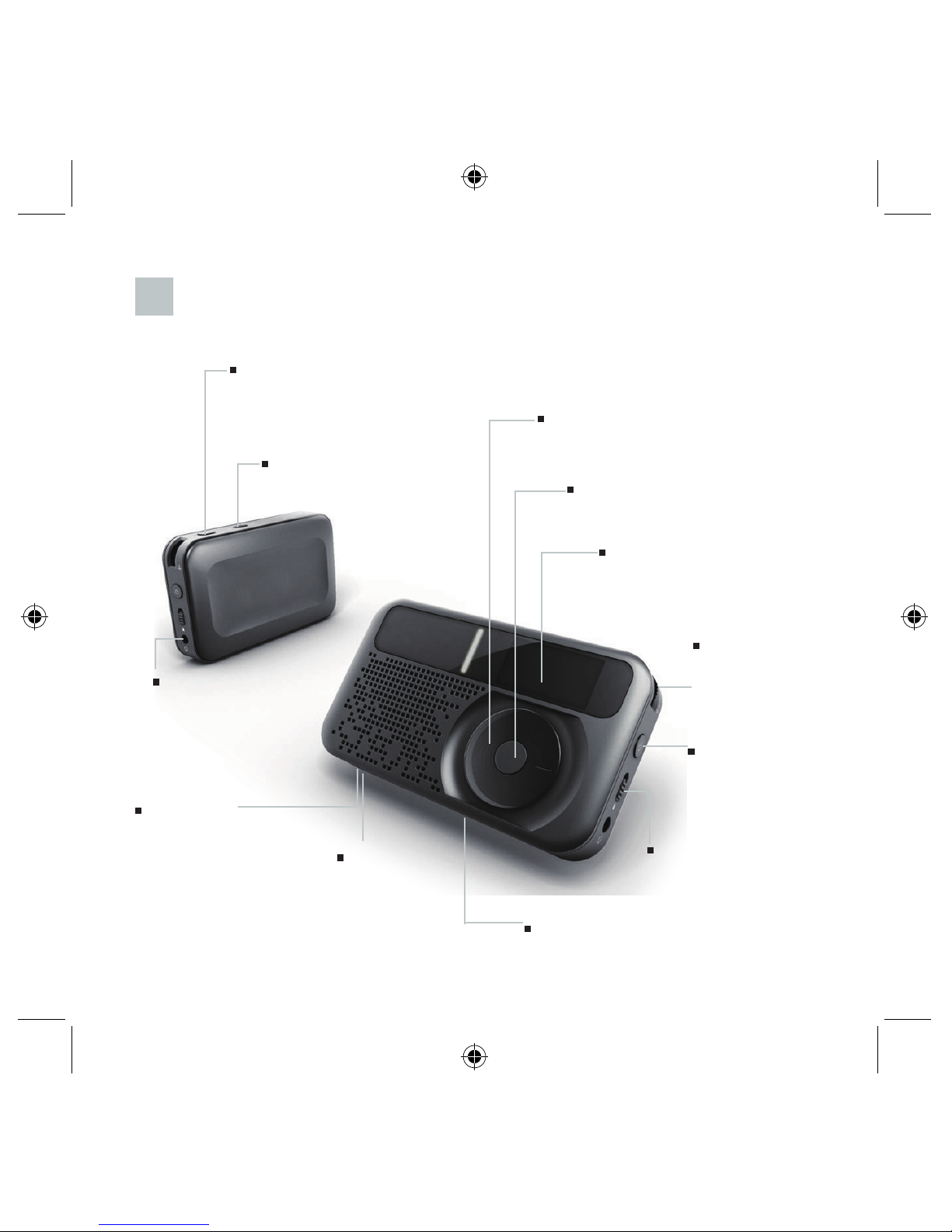

Button Instruction

LCD Display

Display all the pictures or characters info.

Control Wheel

To select the menu entry by circling.

USB 2.0 Cable

You can use this cable to charge this device or transfer datas by connecting to your computer.

Reset

To reset the device to original setting.

Enter Button

To conﬁrm your operating.

Power Button

Long pressing is for power on and power off, short pressing is for mode converting.

Volume

Clockwise rotation is for higher voice, and anti-clockwise is for lower voice.

Back Button

Shor t pressin g ba c k to upper menu. Long pressing (3 seconds) back to main menu under the function.

Speaker Switch

Left is speaker off, right is speaker on.

Hold Switch

To lock all the buttons.

H ea d se t o r

Antenna Socket

MicroSD Card

Slot

Plug in MicroSD card to this slot.

Connect 3 .5mm stereo headset or antenna.

Page 13

Display Types

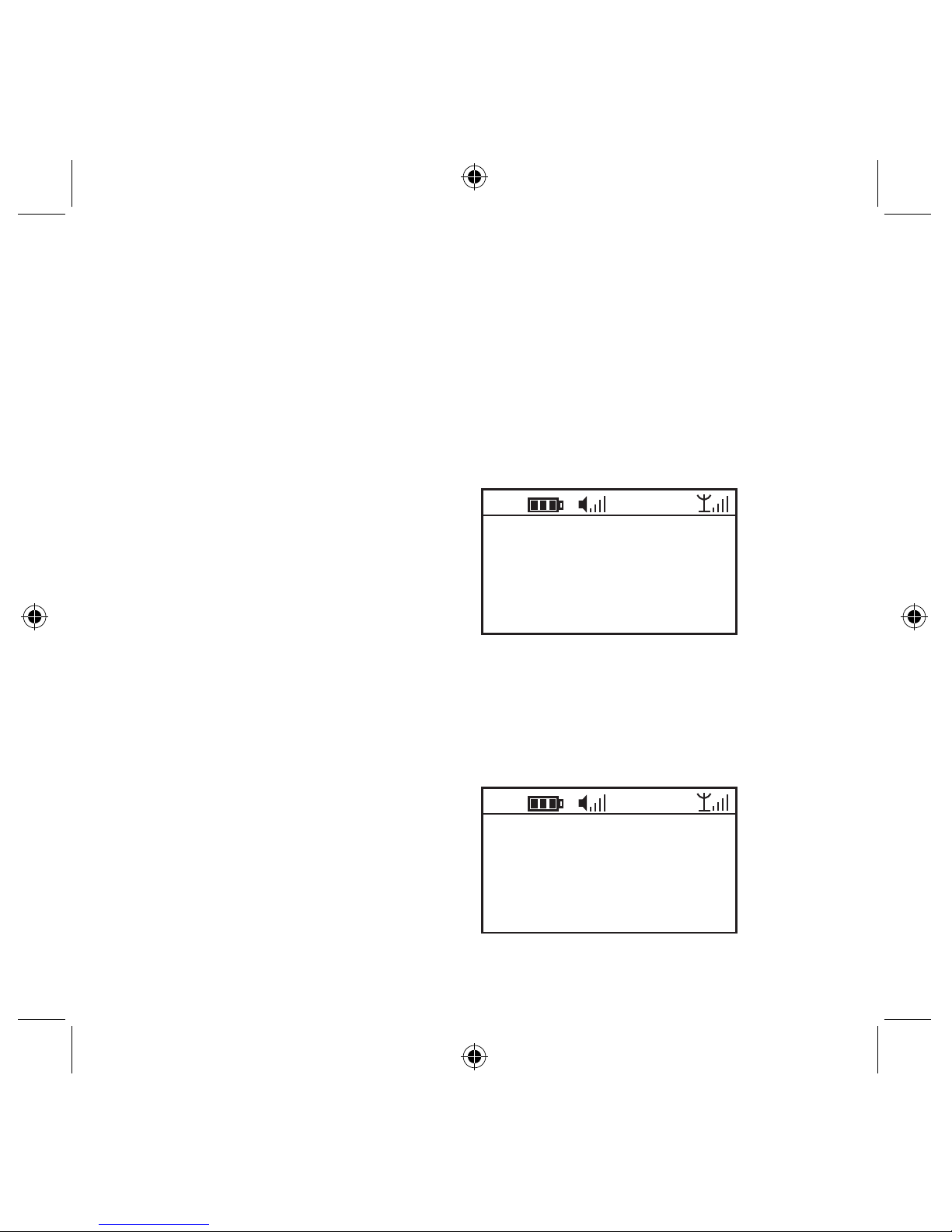

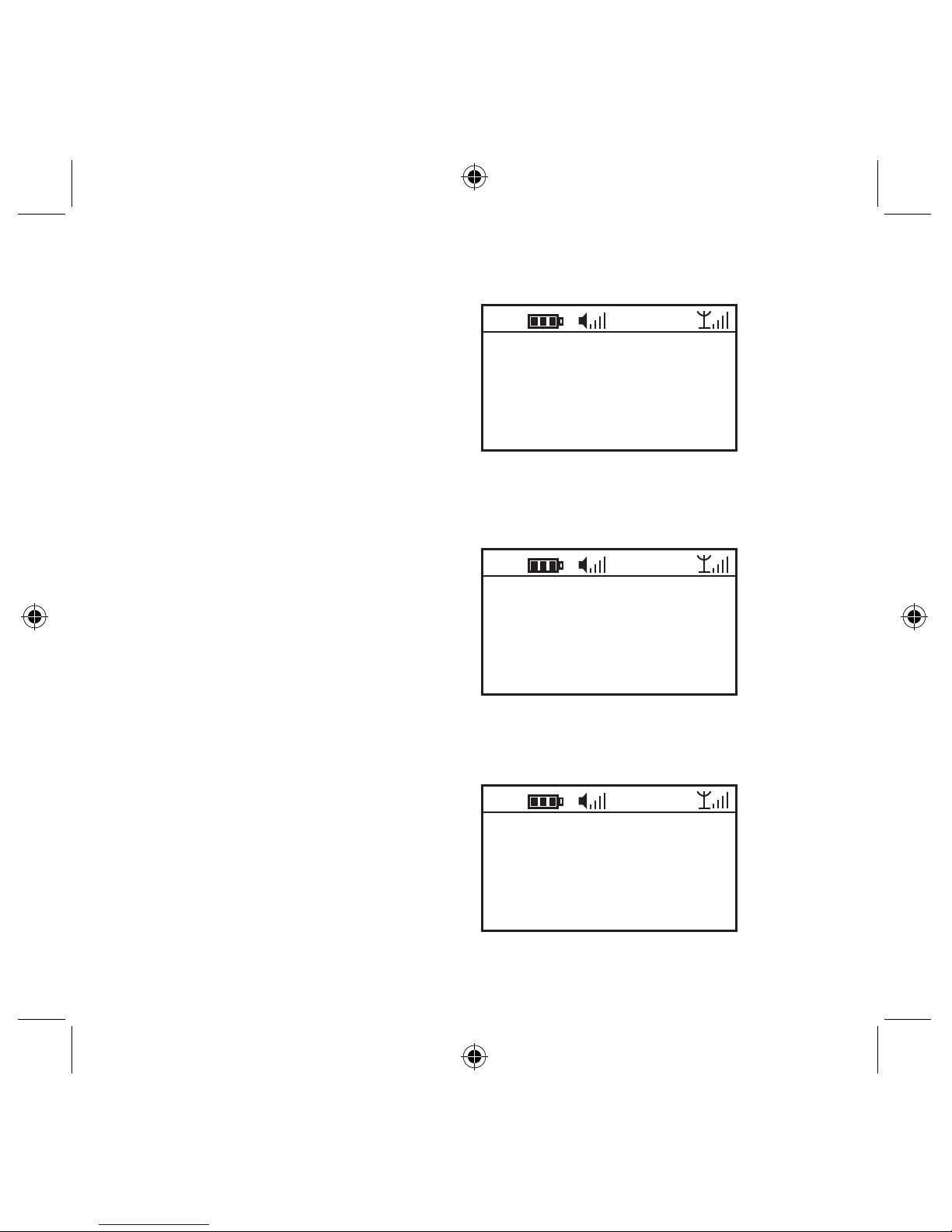

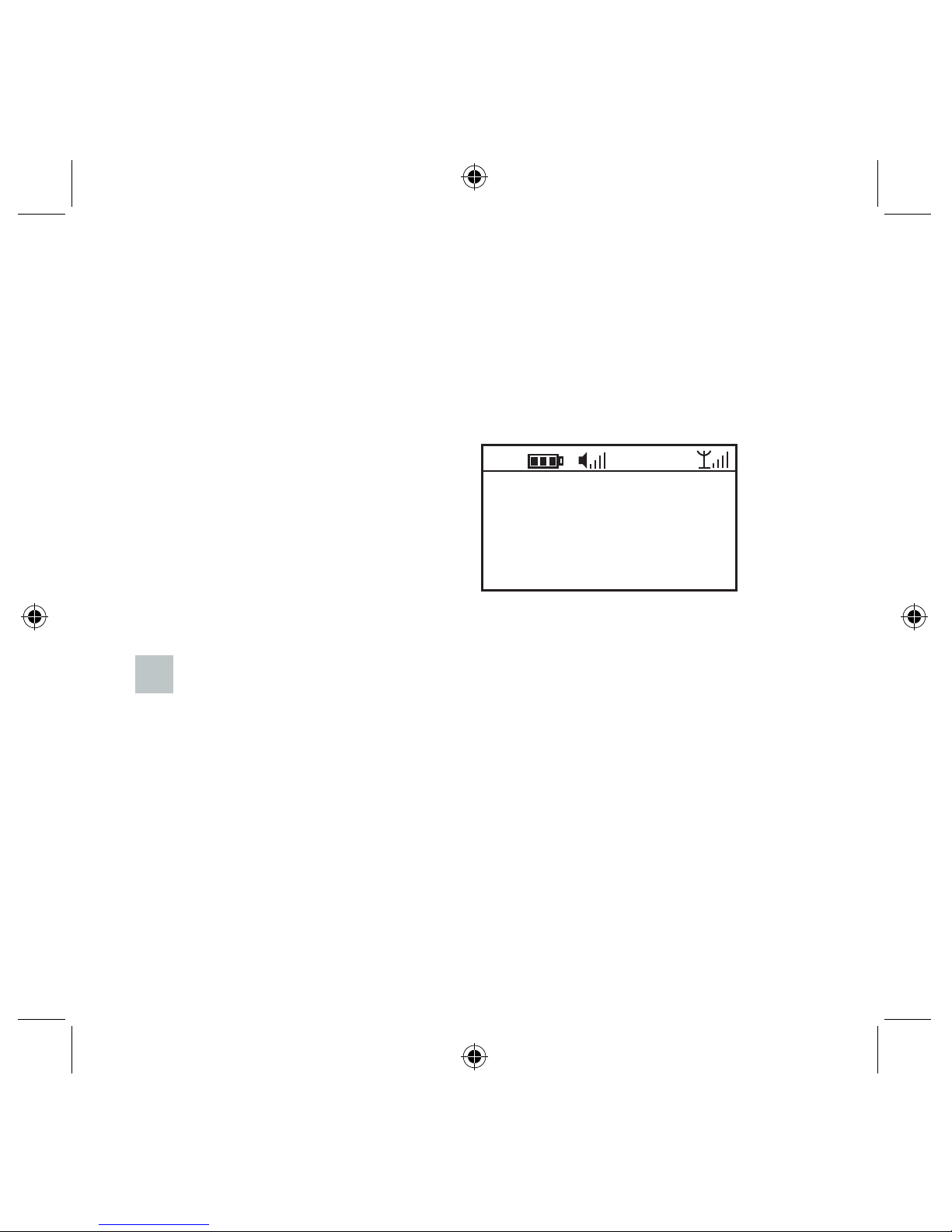

Broadcasting Screen

There are three modes: DAB, FM, and MP3.

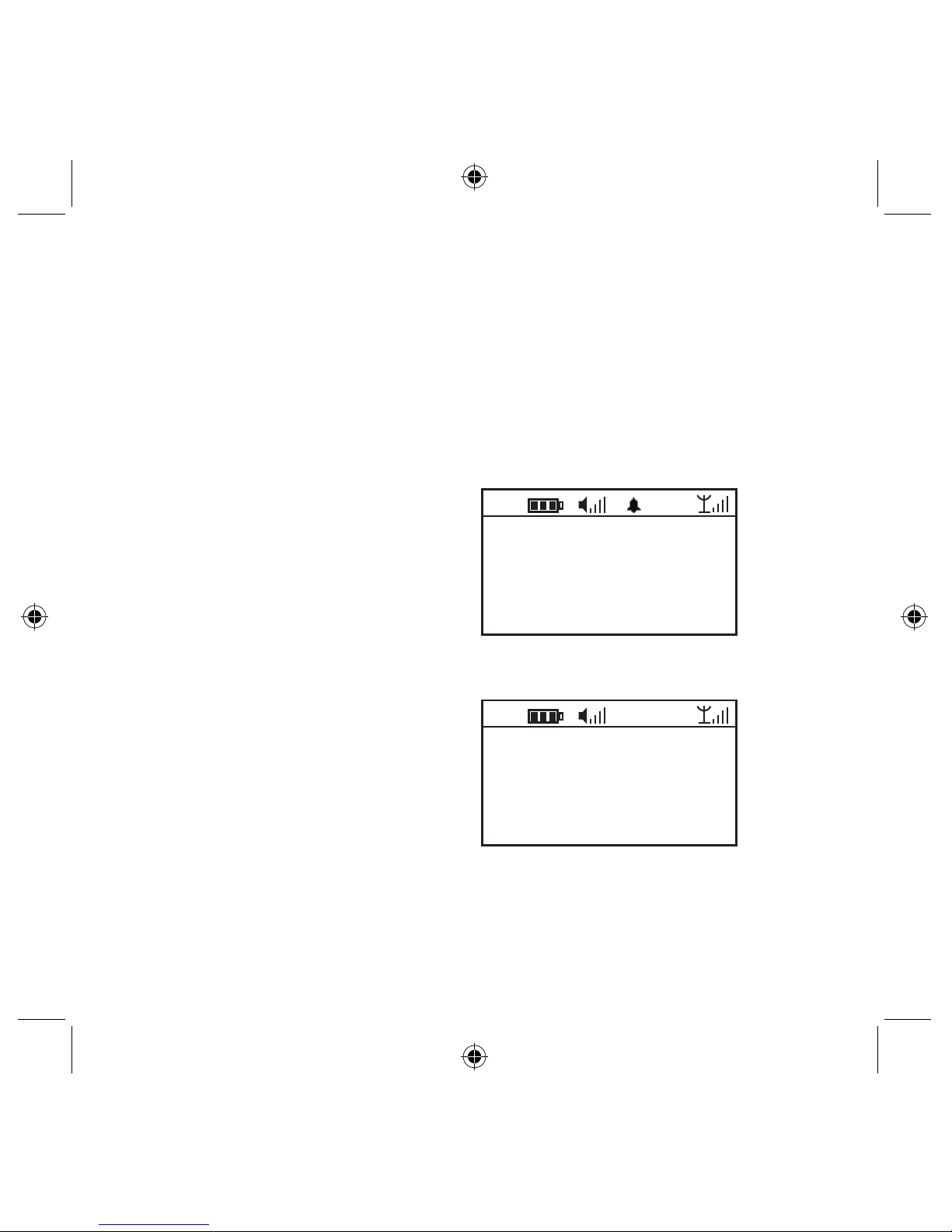

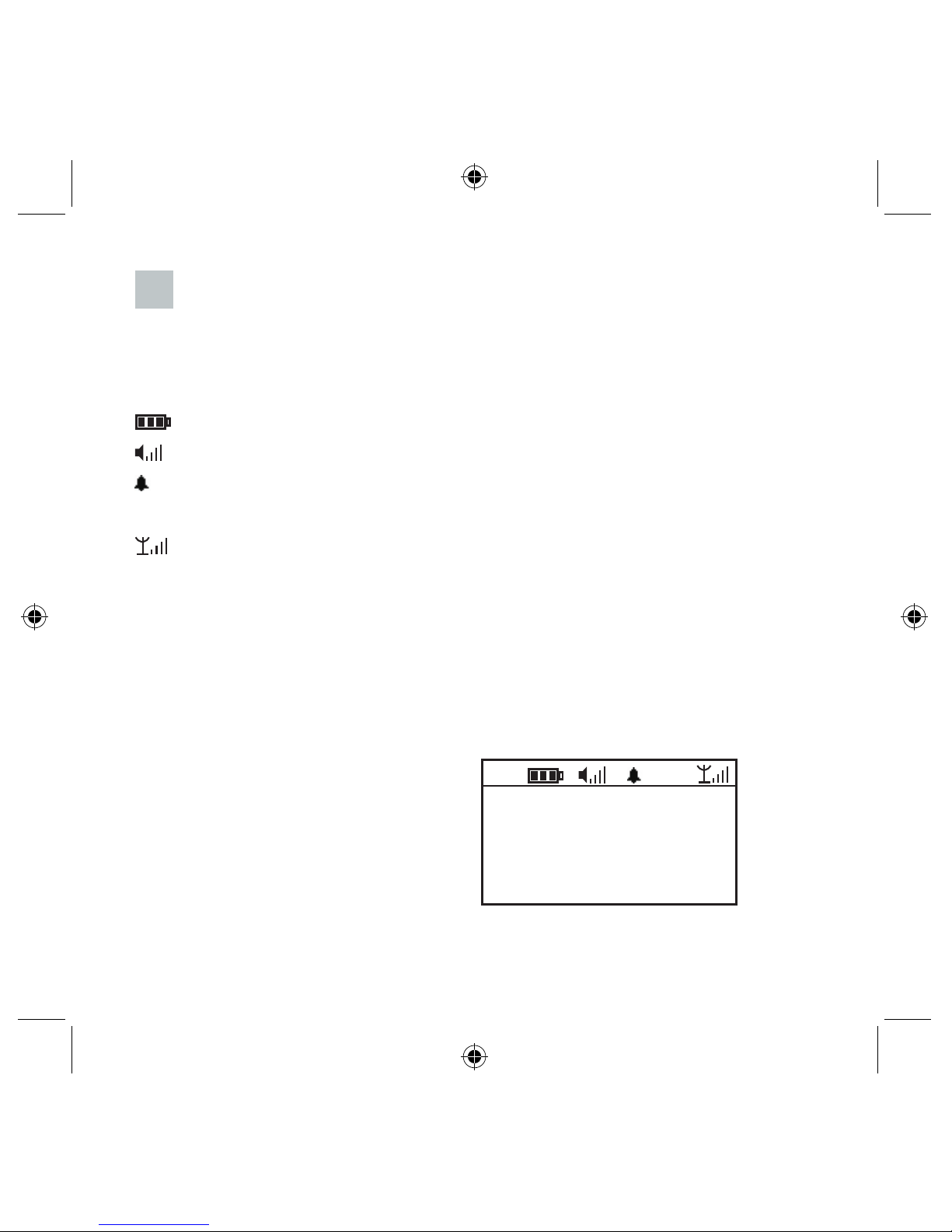

: Display the current electricity directives.

: Display the current volume.

: It will appear after the alarm is set.

11:01: Display the current time.

: Display the signal strength.

SZTV-2: Display a station name.

Pop music: DLS info (not all stations with DLS info).

In the DAB or FM mode, short pressing Enter Button, the radio information will be

displayed on the screen. (Note: only if FM stations with RDS, the information can be

displayed on the screen.)

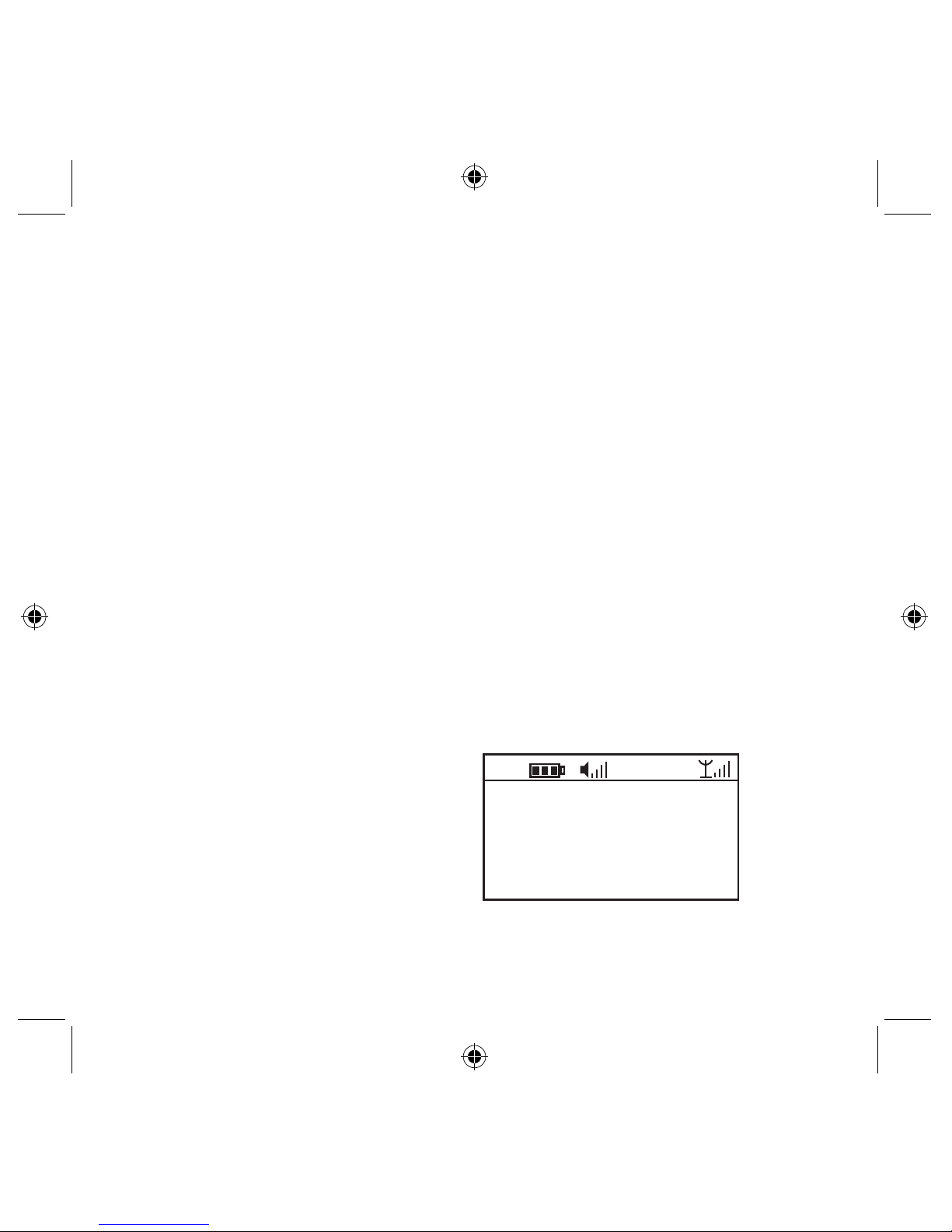

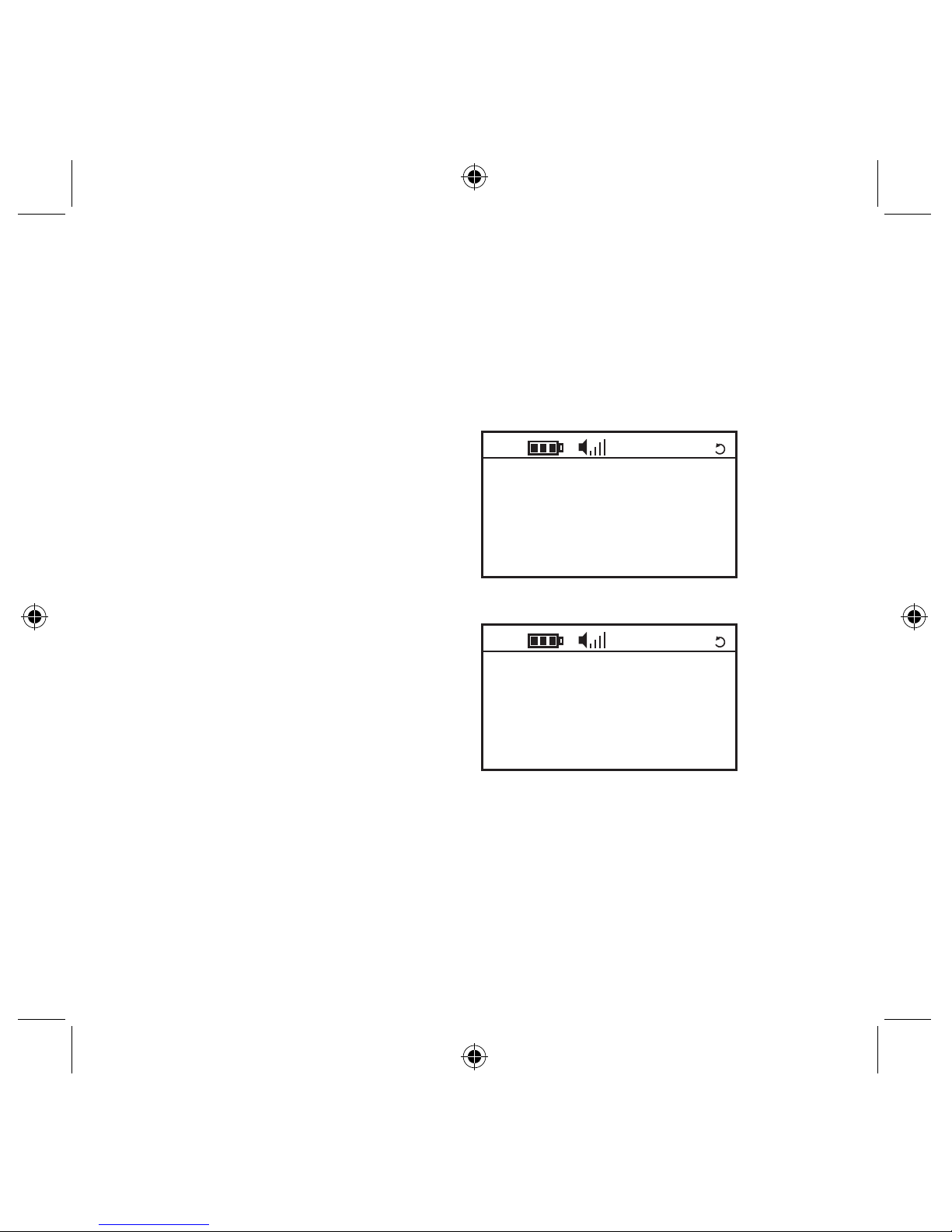

Example as below:

Menu Screen

SZTV-2

Pop music

DAB

11:01

Page 14

A menu screen displays four options, with the currently selected option shows “>”. If

more than four options are available, turn the Control Wheel up and down to select it.

Note: Under DAB mode, FM mode or MP3 mode, it is with <System Setup> and <Main

Menu>, you can make system settings by access to <System Setup> menu or select

modes by access to <Main Menu>.

Example as below:

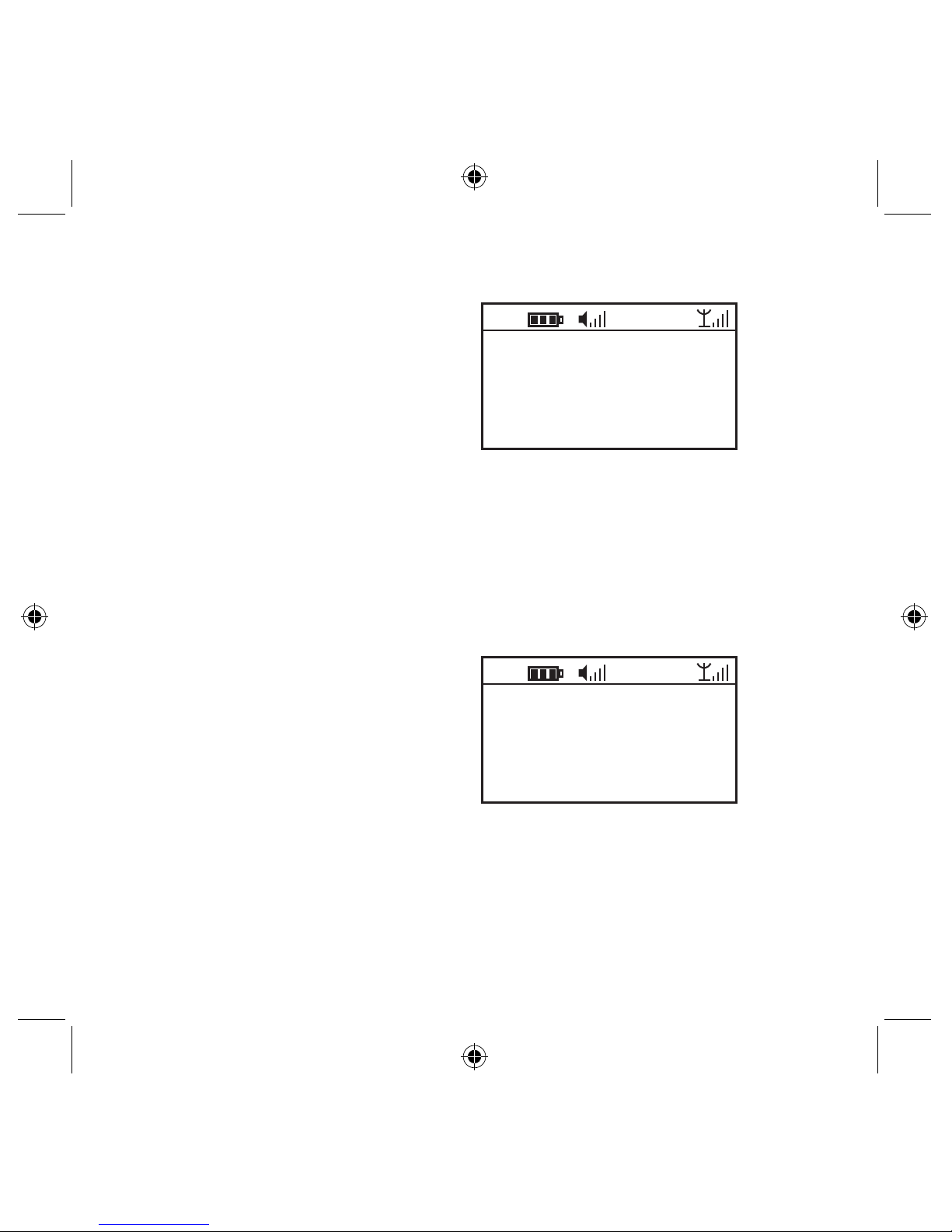

Information Screen

Information screens are used to display messages to the user. Then time is out after one

second.

Example as below:

DAB

11:01

> Preset List Station List Local Scan Manual Tune

DAB

11:01

Preset Saved

Page 15

Query Screen

A query screen is used to offer the user a choice. Queries are worded so that you can

respond with a “Yes” (Press Enter Button) or a “No” (Press Back Button).

Example Query Screen:

Main Menu

Main Menu Structure

• DAB

• FM

• MP3

• System Setup

When power on the radio for the ﬁrst time, it will show the <Main Menu> after start-up

screen, there are <DAB>, <FM>, <MP3>, and <System Setup> for you choice, users

Previousiy Stored Stations Will

Be Deleted.

Are You Sure?

Yes No

DAB

11:01

Page 16

can select <DAB>, <FM> or <MP3> to access to appropriate mode.

Power on: Press the Power Button for more than 3 seconds to turn on the radio.

Power off: Press the Power Button for more than 3 seconds to turn off the radio.

When power on the radio for the ﬁrst time, it will show the <Main Menu> after start-up

screen, users can select <DAB>, <FM> or <MP3> to access to appropriate mode. And

can also select <System Setup> to set system parameters. Please refer to the <System

Menu> to get to know how to set the system parameters.

(1) If select the DAB mode, system will play the station that broadcasted last time

automatically. If power on for the ﬁrst time, it will search for DAB stations automatically,

when the search is ﬁnished, the system will store the information of DAB stations and

display the number of received stations. It will play the ﬁrst station be searched.

(2) If select the FM mode, system will be access to FM interface automatically, and

will play the frequency be listened last time. If power on for the ﬁrst time, the default

frequency is 87.5MHz.

(3) If select the MP3 mode, system will display the MP3 menu.

Mode Switching

Under any menu, short pressing the Power Button, it can switch among DAB, FM and

MP3 modes.

Each mode with welcome interface, which will last for 1 second. As shown below:

Access to DAB mode:

Page 17

Access to FM mode:

Access to MP3 mode:

Welcome to DAB

DAB

11:01

Welcome to FM

11:01

Welcome to MP3

MP3

11:01

Page 18

DAB Menu

DAB Menu structure

• Preset List

• Station List

• Local Scan

• Manual Tune

• Region

• DRC

• Record

• Sort

• System Setup

• Main Menu

Preset List

Display a list of preset stations. The preset stations are stored in the memory of the DAB

radio. 30 preset radio stations can be stored at most.

Station List

Display a list of received stations, which are stored in the memory of the DAB radio. 500

radio stations can be stored at most.

Local Scan

Page 19

Search for local stations, select the menu <Local Scan>, the radio will search for radio

stations automatically and display the search progress, when the search is ﬁnished, the

radio will store the information of DAB stations, and display the number of radio stations

be searched. And it will play the ﬁrst station be searched.

Manual Tune

Select a frequency under <Manual Tune>, press the Enter Button to access to manually

search for radio stations.

Change a frequency every time, the radio will search for all stations within this frequency,

the process will take about a few seconds, when the search is finished, the screen

Total: 0

12%

DAB

11:01

>5A 174.928MHz 5A 176.640MHz 7A 176.720MHz 7B 178.432MHz

DAB

11:01

Page 20

will display the number of radio stations be searched and it will play the first station

be searched automatically. If no station be searched, it will display “0”. When search

ﬁnished, it will be access to broadcast interface.

Region

You can select a appropriate region, the regions are: China, Korea, Europe, UK

Different regions with the corresponding frequency range:

• China Band: 7A-11D 176.720

MHz

- 213.856

MHz

• Korea Band: 7A-13C 175.280

MHz

- 214.736

MHz

• Europe Band: 5A-13F 174.928

MHz -

239.200

MHz

• UK Band: 11B-12D 218.640

MHz

- 229.072

MHz

DRC

According to requirement, you can set the DRC to three states: high, low, and off.

Record

In the DAB mode, you can record your favorite programs; It can be stored in the Flash

or MicroSD card.

In the DAB mode, select the <Record> menu; It will appear storage path interface,

select a desired storage path. It will be access to the preparing interface for record,

press the Enter Button to start to record. During the recording, it will pause recording if

press the Enter Button, and it can stop recording if press the Back Button. If you stop

recording and press the Enter Button, it will start a new recording.

Sort

Page 21

The stations stored in the <Station List> can be sorted, there are two sorts:

The ﬁrst one is according to the frequency; The second one is according to the radio

station names in alphabetical.

System Setup

Please refer to <System Setup Menu Introduction and Operation> from page 31 to page 35.

Main Menu

Please refer to <Main Menu Introduction> from page 14 to page 16.

DAB Mode Operation

Basic Operation

Power On DAB for the First Time

When use the DAB mode for the ﬁrst time, it will be access to auto-search interface,

when the search is ﬁnished, it will be access to <Station List> interface, which will display

all of the stations be searched. It will play the ﬁrst station be searched automatically, and

the system will store all of the stations be searched.

Power On DAB Next Time

When power on the DAB next time, it will play the last station that be broadcasted last

time automatically.

Select Stations

Page 22

Turn the Control Wheel in broadcast interface or Select <Station List> in the DAB menu

to access to <Station List> menu; You can press the Enter Button to select the radio

stations you desired.

Play Stations

Press the Back Button to DAB menu, turn the Control Wheel and press the Enter

Button to highlight <Preset List> or <Station List>, select the stations you desired and

press the Enter Button to play it.

Store Stations

In broadcasting interface, press the Enter Button for more than 3 seconds, it will display

<Save Preset> menu, select any position under this menu and press the Enter Button,

if the screen display “Preset Saved”, it means the station has been stored into <Preset

List> menu.

Recall Preset

Select <Preset List> in DAB menu, it will display “Preset List Stations”, select the station

you desired and press the Enter Button to play it.

Display Station Information

DAB radio loads a lot of digital information, in the DAB broadcast interface, short

pressing Enter Button to get corresponding information such as “Ensemble Label”,

“Ensemble Num”, “Channels Mode”, “Bit Rate”.

Page 23

FM Radio Menu Introduction and Operation

FM Radio Menu Structure:

• Preset List

• Channel List

• Seek Mode

• Tune Mode

• Auto Program

• Clear All List

• Region

• Scan Setting

• Audio Setting

• Record

• System Setup

• Main Menu

Preset List

Display a series of preset stations. The preset stations are stored in the memory of the

DAB radio. Up to 30 preset stations can be stored within the radio.

Channel List

“Channel List” is mainly an automatic station search list for <Auto Program>.

The channel list will be updated each time you select <Auto Program>.

Page 24

Auto program searched stations will be stored in the memory of the DAB radio, it can be

stored up to 30 stations.

The user can select a station from the list.

Seek Mode

Press Back Button go back to main menu, select <Seek Mode> and press the Enter

Button, it will search the stations automatically.

Turn the Control Wheel to search for FM stations automatically.

Turn the Control Wheel clockwise to seek in a frequency increasing direction and anti-

clockwise to seek in a frequency decreasing direction.

When the search function ﬁnds a radio station, it will stop and broadcast automatically.

Tune Mode

During normal radio playing, press the Back Button to enter the FM main menu.

Turn the Control Wheel to <Tune mode>, press the Enter Button to enter <Tune Mode>

for manual turning thereafter.

Turn the Control Wheel and the frequency will change by rate of 0.05MHz per step.

Clockwise means the frequency increases, anticlockwise means the frequency

decreases.

Turn the Control Wheel to locate the radio stations that you desired.

Auto Program

In the FM menu interface, turn the Control Wheel to <Auto Program> and press the

Page 25

Enter Button to enter Auto Program Mode.

The system will search the stations between 87.50MHz~108.00MHz automatically and

will show the frequency.

At the same time, it will store the received stations in the Channel List. (30 stations at

most)

After search is ﬁnished, it will automatically revert to the Channel List.

The Channel List will show the received stations, any previously stored stations will be

replaced.

Clear All Station

To access the <Clear All List> menu during playing interface, press the Back Button

to FM main menu, and turn the Control Wheel to <Clear All List> and press the Enter

Button to enter the <Clear All List> menu.

In the <Clear All List> menu, you can delete all the stations in the Preset List and

Channel List.

Once selected, the screen promptly appears to conﬁrm this action, as below:

Cl ea r A ll P re st o r e d FM

Stations?

Yes No

11:01

Page 26

If you conﬁrm and press the Enter Button, the radio will clear all the stored stations in

the Preset List and Channel List and conﬁrm with “Clear All”, later the system will go

back to the playing interface.

Region

In the playing interface, press the Back Button to enter the FM main menu, turn

and press the Control Wheel to <Region>, you can select the corresponding region

according to your location.The Region contains: <U.S.A>, <Europe>, <Japan>; Press

Enter Button to save them and go back to FM main menu.

Scan Setting

In the playing interface, press Back Button and enter the FM main menu, turn the

Control Wheel to <Scan Setting> and press the Enter Button, the interface will show

“Strong Stations Only”? Press Enter Button, it will be set to search Strong Stations Only

and return to the FM main menu.

Press Back Button, it will not do the settings and return to the FM main menu.

Audio Setting

Strong Stations Only?

Yes No

11:01

Page 27

In the playing interface, press Back Button and enter the FM main menu, turn Control

Wheel to <Audio Setting> and press the Enter Button, the interface will show “Listen in

Mono Only”? Press Enter Button, it will be set to Listen in Mono only and return to the

FM main menu.

Press Back Button, it will logout Mono Setting and return to the FM main menu.

Record

When listening to the FM radio, you can record your favorite stations.

The recorded stations you can choose to store in the Flash or MicroSD card.

In the playing interface, press Back Button and enter the FM main menu, turn Control

Wheel to <Record> and press the Enter Button, it will enter Record interface. It will

appear storage path interface, select a desired storage path. Press Enter Button and

begin to record.

During record, you can press Enter Button to pause the record, or press Back Button

to stop the record.

When stop record, you can press Enter Button to begin a new record, press Back

Listen in Mono Only?

Yes No

11:01

Page 28

Button and exit the record interface.

System Setup

Please refer to <System Setup Menu Introduction and Operation> from page 31 to page 35.

Main Menu

Please refer to <Main Menu Introduction> from page 14 to page 16.

MP3

MP3 Menu Structure:

• Flash

• MicroSD Card

• Audio Setting

• System Setup

• Main Menu

Flash

In the MP3 main menu, turn Control Wheel to <Flash>, press Enter Button to view

Flash display and the audio ﬁles in Flash.

If there isn't any audio ﬁle or directory, it will display “NO FILE”;

If there is an audio ﬁle, press the Enter Button to play.

MicroSD Card

Page 29

In the MP3 main menu, turn Control Wheel to <MicroSD Card>, press Enter Button to

view MicroSD card display and the audio ﬁles in MicroSD card.

If there isn't any audio ﬁle or directory, it will display “NO FILE”;

If there is an audio ﬁle, press the Enter Button to play.

Audio Setting

Play Mode

Turn Control Wheel to <Play Mode> and press the Enter Button, it will set the play

mode as <One Time>, <Repeat>, <Shufﬂe>;

Turn Control Wheel to select any one of the three modes, press Enter Button to save

them and return to <Play Mode>.

Play Range

>One Time

Repeat

Shufe

MP3

11:01

>Play Mode

Play Range

MP3

11:01

Page 30

Turn Control Wheel to <Play Range> and press the Enter Button, it will set the play

range as <Single>, <Directory>, <All>.

Turn Control Wheel to select any one of the three modes, press Enter Button to save

them and return to <Play Range>.

Turn Control Wheel to <EQ>, it will set the equalizer as <Normal>, <Classic>, <Pop>,

<Jazz>, <Bass>, <Rock>;

Turn Control Wheel to select any one of the six types, press Enter Button to save them

and return to <EQ>.

System Setup

>Single
