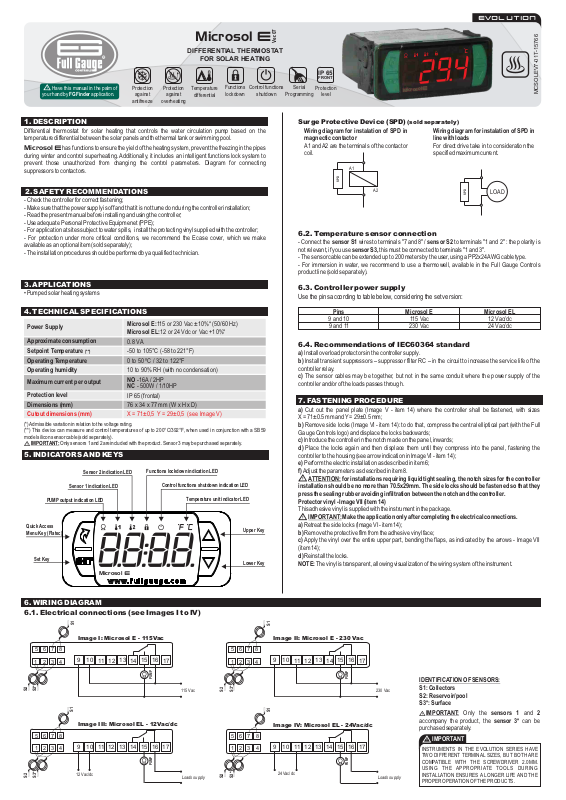

1. DESCRIPTION
Differential thermostat for solar heating that controls the water circulation pump based on the
temperature differential between the solar panels and the thermal tank or swimming pool.
Microsol e
during winter and control superheating. Additionally, it includes an intelligent functions lock system to
prevent those unauthorized from changing the control parameters. Diagram for connecting
suppressors to contactors.
2. SAFETY RECOMMENDATIONS
- Check the controller for correct fastening;
- Make sure that the power supply is off and that it is not turned on during the controller installation;
- Read the present manual before installing and using the controller;
- Use adequate Personal Protective Equipmenet (PPE);
- For application at sites subject to water spills, install the protecting vinyl supplied with the controller;
- For protection under more critical conditions, we recommend the Ecase cover, which we make
available as an optional item (sold separately);
- The installation procedures should be performed by a qualified technician.
3. APPLICATIONS
has functions to ensure the yield of the heating system, prevent the freezing in the pipes
• Pumped solar heating systems
4. TECHNICAL SPECIFICATIONS
Power Supply
Approximate consumption
Setpoint Temperature (**)
Operating Temperature
Operating humidity
Maximum current per output
Protection level
Dimensions (mm)
Cutout dimensions (mm)
(*) Admissible variation in relation to the voltage rating.
(**) This device can measure and control temperatures of up to 200°C/392°F, when used in conjunction with a SB59
model silicon sensor cable (sold separately).
IMPORTANT: Only sensors 1 and 2 are included with the product. Sensor 3 may be purchased separately.
Microsol E:115 or 230 Vac * (50/60 Hz)±10%
Microsol EL 12 or 24 Vdc or Vac * : +10%
0.8 VA
-50 to 105°C (-58 to 221°F)
0 to 50 ºC / 32 to 122°F
10 to 90% RH (with no condensation)
NO -16A / 2HP
NC - 500W / 1/10HP
IP 65 (frontal)
76 x 34 x 77 mm (W x H x D)
X = 71±0,5 Y = 29±0,5 (see Image V)
5. INDICATORS AND KEYS
Functions lockdown indication LED
Control functions shutdown indication LED
Temperature unit indicator LED
Upper Key
Lower Key
PUMP output indication LED
Quick Access
Menu Key (Flatec)
Set Key
Sensor 2 indication LED
Sensor 1 indication LED
Microsol e
Surge Protective Device (SPD) (sold separately)
Wiring diagram for instalation of SPD in
magnectic contactor
A1 and A2 are the terminals of the contactor
coil.
A1
SPD
A2
Wiring diagram for instalation of SPD in
line with loads
For direct drive take in to consideration the
specified maximum current.
LOAD
SPD
6.2. Temperature sensor connection
- Connect the sensor S1 wires to terminals "7 and 8" / sensor S2 to terminals "1 and 2" : the polarity is
not relevant, if you use sensor S3, this must be connected to terminals "1 and 3".
- The sensor cable can be extended up to 200 meters by the user, using a PP2x24AWG cable type.
- For immersion in water, we recommend to use a thermowell, available in the Full Gauge Controls
product line (sold separately).
6.3. Controller power supply
Use the pins according to table below, considering the set version:
Pins Microsol E Microsol EL
9 and 10
9 and 11
115 Vac
230 Vac
12 Vac/dc
24 Vac/dc
6.4. Recommendations of IEC60364 standard
a) Install overload protectors in the controller supply.
b) Install transient suppressors – suppressor filter RC – in the circuit to increase the service life of the
controller relay.
c) The sensor cables may be together, but not in the same conduit where the power supply of the
controller and/or of the loads passes through.
7. FASTENING PROCEDURE
a) Cut out the panel plate (Image V - item 14) where the controller shall be fastened, with sizes
X = 71±0.5 mm and Y = 29±0.5 mm;
b) Remove side locks (Image VI - item 14): to do that, compress the central elliptical part (with the Full
Gauge Controls logo) and displace the locks backwards;
c) Introduce the controller in the notch made on the panel, inwards;
d) Place the locks again and then displace them until they compress into the panel, fastening the
controller to the housing (see arrow indication in Image VI - item 14);
e) Perform the electric installation as described in item 6;
f) Adjust the parameters as described in item 8.
ATTENTION: for installations requiring liquid tight sealing, the notch sizes for the controller
installation should be no more than 70.5x29mm. The side locks should be fastened so that they
press the sealing rubber avoiding infiltration between the notch and the controller.
Protector vinyl - Image VII (item 14)
This adhesive vinyl is supplied with the instrument in the package.
IMPORTANT: Make the application only after completing the electrical connections.
a) Retreat the side locks (Image VI - item 14);
b) Remove the protective film from the adhesive vinyl face;
c) Apply the vinyl over the entire upper part, bending the flaps, as indicated by the arrows - Image VII
(item 14);
d) Reinstall the locks.
NOTE: The vinyl is transparent, allowing visualization of the wiring system of the instrument.
6. WIRING DIAGRAM
6.1. Electrical connections (see Images I to IV)
S1
Image I: Microsol E - 115Vac
5
678
9 10
3
4
1
2
S2
S3*
5
678
3
4
1
2
S2
S3*
11 121314
S1
Image III: Microsol EL - 12Vac/dc
9 10
11 121314
12 Vac/dc
15 16
15 16
17
PUMP
115 Vac
17
PUMP
Loads supply
S1
Image II: Microsol E - 230 Vac
5
678
9 10
3
4
1
2
S2
S3*
5
678
3
4
1
2
S2
S3*
11 121314
S1
Image IV: Microsol EL - 24Vac/dc
9 10
11 121314
24 Vac/dc
15 16
15 16
17
PUMP
230 Vac
IDENTIFICATION OF SENSORS:
S1: Collectors
S2: Reservoir/pool
S3*: Surface
IMPORTANT: Only the sensors 1 and 2
accompany the product, the sensor 3* can be
purchased separately.
IMPORTANT
17
PUMP
Loads supply
INSTRUMENTS IN THE EVOLUTION SERIES HAVE
TWO DIFFERENT TERMINAL SIZES, BUT BOTH ARE
COMPATIBLE WITH THE SCREWDRIVER 2.0MM.
US ING T HE AP PROP RIATE TOO LS DU RING
INSTALLATION ENSURES A LONGER LIFE AND THE
PROPER OPERATION OF THE PRODUCTS.
8. ADJ U S T I NG THE D E S I R ED TEMP E R AT U R E A ND
PARAMETERS
8.1. Quick Access Menu Map
To access or browse the quick access menu use the ;key (quick touch) while the controller is
displaying the temperature. With each touch the next function in the list is displayed. To confirm use
the/ key (quick touch). See chapter 9. for more details. The map of functions is shown below:
FUNCTIONS LOCKDOWN
;
Microsol e
CONTROL FUNCTIONS
SHUTDOWN
;
Microsol e
MIN. AND MAX.
TEMPERATURE RECORD
;
Microsol e
ERASE MAX. AND MIN.
VALUES
;
Microsol e
EXIT FUNCTION
;
Microsol e
FUNCTION SELECTION
;
Microsol e
SWITCH BETWEEN MANUAL
AND AUTOMATIC MODE
;
Microsol e
ADJUSTS THE DESIRED
TEMPERATURE FOR THE
SWIMMING POOL OR
THERMAL TANK
;
Microsol e
8.2. Quick access keys map
When controller is on temperature display mode, the following keys can be used as a shortcut for the
following functions:
/
/
<
<
<
<
Quick touch: confirmation of the function adjustments.
Hold down for 2 seconds: adjusts the desired temperature for the
swimming pool or thermal tank.
Quick touch: display of the maximum and minimum temperatures recorded.
Hold down for 2 seconds: clear history when records are being displayed.
Quick touch: momentarily switches the temperature view.
Hold down for 5 seconds: switch between manual and automatic pump
activation mode.
Quick touch: quick access menu.
;
Hold down for 5 seconds: control functions shutdown.
;
<
<
Hold down simultaneously: access to the function selection.
9. BASIC OPERATIONS
9.1 Adjusting HT2 (superheating temperature (S2) to switch the
pump off)
Hold the/key down for 2 seconds until the message [Ht2,]. is displayed. The adjusted control
temperature will be displayed when the key is released. Use the<or>key to change the value and
then press/to save. Upon reaching this temperature, the water circulation pump is switched off to
avoid thermal discomfort. The desired temperature can also be changed in the quick access menu, (see
chart in item 8.1).
9.2 Viewing other temperatures
To switch between the temperature views for sensor 1, sensor 2, sensor 3 (if enabled) and temperature
difference, press> until the desired temperature is displayed.
[T-1,]Sensor 1 temperature
[T-2,]Sensor 2 temperature
[T-3,]Sensor 3 temperature
[dif,]Temperature differential (T1-T2)
The selected temperature will be displayed for 15 seconds and then the default indication will return (as
per[,F02]parameter setting).
9.3 Functions lockdown
The use of the functions lock brings greater security to the operation of the instrument. When it is active,
the setpoint and other parameters are visible to the user but are protected against undue changes
[,f18]= 2 or you can block changes to functions control and leave the adjustment of the setpoint
temperature enabled [,f18]=1. Using the ;key (quick touch), access the function [LOC,] in the
quick access menu, confirm by pressing/(quick touch), then the message [no,,] will be displayed.
Keep the > key pressed for the time configured for the functions lockdown [,f19], until[LOC,]. is
displayed. The message [On,,]will be displayed indicating the functions lockdown is activated upon
releasing the key.
Microsol e
To unlock, turn the controller off and then turn it on again with the> key pressed. Keep the key pressed
until[LOC,]is displayed. Keep the key pressed for 10 seconds and, upon releasing the key, the
message [OFF,] will be displayed indicating the functions lockdown is deactivated.
9.4 Control functions shutdown
Turning the control functions off allows for the controller to operate only as a temperature indicator,
keeping the control outputs and the alarms off. Use of this feature is enabled and disabled by the control
functions shutdown options[,f20].When enabled, the control functions are turned off
([CTRL][OFF,]) or on ([Ctrl][ON,,]) through the quick access menu in the option [Ctrl].
When the control functions are off the message[OFF,]will then be displayed alternately with the
temperature and the other messages.
Except when [,f20] is equal to 3 or 4, in which case the display is switched off, keeping only the
icon on.
Microsol e
NOTE: It is also possible to switch the control functions on / off by pressing the ; key for five seconds.
9.5 Minimum and Maximum Temperature Record
By pressing the <key or also through the quick access menu (see item 8), the message [rEg,] will
be displayed and then message [t-1,]indicating the temperature of sensor 1 and the maximum and
minimum recorded temperatures immediately after, then the temperature of sensor 2 [t-2,], sensor
3 [t-3,](if enabled), and differential [DiF,]. will be displayed. To erase the current minimum and
maximum values, press the ; key (quick touch) until the message [CrEg] is displayed. Press /to
confirm.
NOTE: If the <key is pressed while the records are being displayed the values will be reset and the
message [rst,] will be displayed.
9.6 Unit Selection (ºC / ºF)
To select the units the instrument will use, access the main menu through the quick access menu (;),
option [Func]or by pressing<and>simultaneously while the temperature is being displayed, and
enter function[,F01]with the access code[,231] and press/. Then select the desired
unit[,=C,]or[,=F,] using the<>keys, and press /to confirm.
NOTE: Whenever the units are changed, the functions configuration returns to the factory default
settings so it must be configured again.
9.7 Choosing between manual and automatic pump activation mode
The pump is manually activated by pressing the > key for 5 seconds. It will be deactivated after 6
hours in manual mode. When the manual mode is selected, the pump operation mode remains in that
state for 6 hours (fixed time) and then the controller assumes the automatic mode. If you want to return
to the automatic mode before the 6 hours have elapsed, press the > key again for 5 seconds to
deactivate the manual mode; the message[AUTo]will be displayed. The message [Man,], is
displayed upon manual activation, this message alternates with the display of the default indication
[,F02]. It is also possible to choose the mode through the quick access menu [man,].
NOTE: It is not possible to activate the manual pump mode when the control shutdown is active.
NOTE: Manual pump mode can be activated even with one or more sensor errors.
10. ADVANCED OPERATIONS
10.1. Adjustment of the parameters
Access function[,F01] by pressing keys simultaneously or through the quick access
menu (item 8.1). When [,F01] is displayed, press /key (quick touch). Use the keys to
enter with access code [,123] and when ready press /. Use the keys to access the
<and>
<or>
<or>
desired function. After selecting the function, press/ key (quick touch) to view the value configured for
that function. Use to change the value and press / to save the configured value and return to
the functions menu. To leave the menu and return to the normal operating mode (temperature
indication), press /(hold down) until [----]is displayed.
NOTE 1: If the functions lock is active, when pressing the keys the controller will show the
<or>
<or>
message [LOC,]and will not allow the adjustment of the parameters.
NOTE 2: If no button is touched for 15 seconds after providing the access code and / or after configuring
the parameter the controller will return to the operating mode and it will be necessary to enter the access
code again in function[,F01].
10.2. Parameters table
DescriptionFun
[,F01]
Access Code
[,F02]
Preferred indication
[,F03]
Differential (T1-T2) to switch the pump on
[,F04]
Differential (T1-T2) to switch the pump off
[,F05]
Antifreeze temperature (S1) to switch the pump
on
[,F06]
Superheating temperature (S1) to switch the
pump off - Ht1
[,F07]
Superheating temperature (S2) to switch the
pump off - Ht2
Superheating temperature (S3) to switch the
[,F08]
pump off - Ht3
Cooling (S3)
[,F09]
Superheating temperature hysteresis of sensor
[,F10]
S2
Superheating temperature hysteresis of sensor
[,F11]
S3
Indication offset of sensor S1
[,F12]
Indication offset of sensor 2
[,F13]
Indication offset of sensor 3
[,F14]
Linking of sensor S3 to the automatic mode
[,F15]
Minimum temperature in S1 to activate the pump
[,F16]
Instrument energization delay
[,f17]
Functions lock mode
[,f18]
Time for functions lockdown
[,F19]
Control functions shutdown
[,F20]
CELSIUS (°C)
Max
Min
0
999
t1
all
-1.0
40.0
-1.0
40.0
-18(off)
10.0
0.0
200
0.0
200
200.1(off)
0.0
off
on
0.1
5.0
0.1
5.0
5.0
-5.0
5.0
-5.0
5.0
-5.0
yes
no
200.0
-50(off)
999
0(no)
2
0
60
15
4
0(no)
Legend:[all,]=
Unit
sec.
sec.
°C
°C
°C
°C
°C
°C
°C
°C
°C
°C
°C
°C
-
-
200.1(off)
-
-
-
-
FAHRENHEIT (°F)
Unit
Default
Min
0
0
t2
t1
1
8.0
1
4.0
0(off)
8.0
32
90.0
32
32
392(off)
32
off
off
1.0
1
1.0
1
0.0
-9
0.0
-9
0.0
-9
no
no
-50(off)
-58(off)
0(no)
0(no)
0
0
15
15
0(no)
0(no)
alternate display of the temperatures
Max
999
392
392
yes
392
999
Default
-
-
all
°F
72
°F
72
°F
50
°F
194
°F
392(off)
°F
on
-
9
°F
9
°F
9
°F
9
°F
9
°F
-
-58(off)
°F
0(no)
sec.
2
-
60
sec.
4
-
0(no)
0
t2
14
7
46
89
off
2
2
0
0
0
no
0
15
.
10.2.1. Description of parameters
F01 - Access Code:
Microsol e
[,123] Allows changing the advanced parameters.
[,231] Allows choosing the units of temperature: Celsius or Fahrenheit.
F02 - Preferred indication:
This function allows configuring the default temperature indication. The options are:
[T-1,]Displays the temperature of sensor 1
[T-2,]Displays the temperature of sensor 2
[T-3,]Displays the temperature of sensor 3 (if enabled)
[dif,]Displays the differential temperature (T1-T2)
[All,]Alternate display of the temperatures
When the differential temperature is being displayed (T1-T2) the two LEDs corresponding to these
sensors remain on.
F03 - Differential (T1-T2) to switch the pump on:
As the solar panels receive energy, the temperature in sensor 1 increases. When this temperature is at
an ascertainable value above the temperature of sensor 2, the pump is switched on and circulates the
heated water down, storing it in the tank for example.
F04 - Differential (T1-T2) to switch the pump off:
Allows configuring the temperature difference in degrees between sensor 1 and sensor 2 for
Microsol e
Example:
[,F03]= 8.0
[,F04]= 4.0
When sensor 1 (panel) is at 35°C and sensor 2 (tank or pool) is at 23°C, the difference will be 12ºC.
Thus the circulation pump will be on (35-23 = 12 greater than 8). With the pump on, the warm water
circulates down and the cold water circulates up. Thus the temperature difference between 1 and 2
decreases. Thus, when the difference between sensor 1 and sensor 2 reaches 4º C (function F03), the
circulation pump will be switched off (35-31 = 4).
function[,F04]. Therefore oes not allow making invalid adjustments in order to
ensure its perfect operation.
Ex.: Current configuration:
[,F03]: 10.0°C
[,F04]: 5.0°C
You want to change it to:
[,F03]: 4.0°C
[,F04]: 2.0°C
First adjust [,F04] to 2.0°C and then adjust[,F03]to 4.0°C.
F05 - Antifreeze temperature (S1) to switch the pump on:
When the temperature at the panels (sensor 1) is too low (e.g. winter nighttime), the pump is switched
on at regular intervals to prevent the water from freezing and damaging the pipes. The hysteresis is
fixed at 2°C (4°F). The minimum time the pump is on is 3 minutes. While the pump is switched on due to
the antifreeze, message [ICE,]is alternated with the default temperature indication. This function
can be disabled by adjusting it to the minimum value [OFF,].
F06 - Superheating temperature (S1) to switch the pump off:
When the temperature at the collectors (sensor 1) is higher than an adjustable value, the pump is
switched off to prevent the superheated water from circulating through the pipes and damaging them (if
PVC pipes are used). The hysteresis is fixed at 2°C (4°F). When superheating is detected in sensor 1,
message[HT1,]is alternated with the default temperature indication.
F07 - Superheating temperature (S2) to switch the pump off:
When the temperature in sensor 2 reaches an ascertainable value the pump is switched off to avoid
thermal discomfort. This function is used in swimming pool heating systems without the third sensor.
The hysteresis may be adjusted from 0.1 to 5.0°C (see function [,F10]). When superheating is
detected in sensor 2, message [Ht2,]is alternated with the default temperature indication.
F08 - Superheating temperature (S3) to switch the pump off:
When the temperature in sensor 3 reaches a configured value the pump is switched off to avoid thermal
discomfort. This function is used in swimming pool heating systems with the third sensor to measure the
temperature on the water surface. The hysteresis may be adjusted from 0.1 to 5.0°C (see function
[,F11]). When superheating is detected in sensor 3, message[HT3,]is alternated with the default
temperature indication. This function may be disabled by adjusting it to the maximum value [Off,],
and thus sensor 3 will be disabled too.
F09 - Cooling (if sensor 3 is enabled):
Cools the pool during the night whenever the superheating temperature of this sensor is exceeded and
the temperature difference between sensor 1 and sensor 2 reaches -4°C (-7ºF), the pump is then
switched on using the panel as a radiator to cool the pool water. When the difference (T1-T2) drops to
-2°C (-4ºF) or the temperature in sensor 3 displays superheating, the pump is switched off.
NOTE: If the value of this function is [On,,], and disabled the sensor 3 the value of this function
returns to[Off,].
F10 / F11 - Superheating temperature hysteresis of sensor 2 / sensor 3:
If the pump is off due to superheating in sensor 2 or sensor 3 this function can define a temperature
range within which the pump will remain off.
F12 / F13/ F14 - Indication offset of sensor 1/ sensor 2/ sensor 3:
It allows compensating possible deviations in the temperature reading caused by the replacement of
the sensor or changes in the cable length.
F15 - Linking of sensor S3 to the automatic mode (if sensor 3 is enabled):
[no,,]Circulation pump operating in automatic mode and not linked to sensor 3. With this mode the
pump is activated only by the temperature differential (S1-S2).
[yes,]Circulation pump operating in automatic mode and linked to sensor 3. With this mode the
pump is activated by the temperature differential and when the temperature at sensor 1 is higher than
that at sensor 3.
NOTE: When the value of this function is[yes,] it will return to [no,,]when sensor 3 is disabled.
F16 - Minimum temperature in S1 to activate the pump:
Prevents the pump from being turned on when the temperature of the panel (collector) is below the
desired temperature, thus preventing warm or cold water from circulating through the system, which
would cause higher power consumption.
has two different access codes:
to switch on the water circulation pump.
IMPORTANT: The value adjusted in function [,F03] must be higher than the value adjusted in
Microsol e d
Example: If the panels are at 27°C and the pool is at 28°C the circulation pump does not need to be
activated. This function can be disabled by adjusting it to the minimum value[Off,].
NOTE: This function has priority over the other pump activation functions except for the manual
activation.
F17 - Instrument energization delay:
With this function enabled, when the instrument is energized, it only works as a temperature indicator
remaining with the output off during the defined time. In installations with several units of equipment,
configuring different values for the start-up delay time of each instrument, it is possible to avoid demand
peaks by activating the loads at different times. This function can be disabled by adjusting it to the
minimum value 0 [no,,].
F18 - Functions lock mode:
It allows and configures the functions lock.
[,,,0]Do not allow the functions lock.
[,,,1]It allows a partial lock where the control functions will be locked but the adjustment of the
setpoint and maximum and minimum record views are allowed.
[,,,2]It allows the full lock, enabling only view and maximum and minimum record.
F19 - Time for functions lock:
Allows lockdown of control functions (see item 9.3).
[,,15] - [,,60] - Defines the time in seconds for the controller to activate.
F20 - Control functions shutdown:
Allows the turning off of the control functions (see item 9.4).
[,,,0]Disables the control functions shutdown.
[,,,1]Enables activation/deactivation of the control functions only if the functions are unlocked.
[,,,2]Enables activation/deactivation of the control functions even if the functions are locked.
[,,,3]Enables the activation/deactivation of the control functions only if the functions are unlocked,
switching off the display.
[,,,4]Enables activation/deactivation of the control functions even if the functions are locked,
switching off the display.
NOTE: In options 3 and 4 the display is switched off if no keys are pressed and switched on when any
key is pressed, remaining on for five seconds.
11. INDICATIONS ON THE DISPLAY
[Err1]
[Err2]
[Err3]
[HT1,]
[Ht2,]
[Ht3,]
[Man,]
[LOC,][On,,]
[LOC,][OFF,]
[eCAL]
[pppp]
Sensor 1 disconnected or damaged.
Sensor 2 disconnected or damaged.
Sensor 3 disconnected or damaged.
Sensor 1 superheating
Sensor 2 superheating.
Sensor 3 superheating.
Pump manually activated.
Functions lockdown activated.
Functions lockdown disabled.
Contact Full Gauge Controls.
Reconfigure the values of the functions.
12. GLOSSARY OF ACRONYMS
- °C: Temperature in Celsius degrees.
- °F: Temperature in Fahrenheit degrees.
- Auto: Automatic.
- LOC: Blocked.
- No: No.
- OFF: Turned off/disabled.
- ON: Turned on, enabled.
- SET (as in "Setting") (setting or configuration).
- Vac: Electrical voltage (volts) of alternating current.
- Vdc: Electrical voltage (volts) of direct current.
- Yes: Yes.
13. OPTIONAL ITEMS - Sold Separately
Ecase protective cover
It is recommended for the Evolution line, keeps water from entering the back part of the instrument. It
also protects the product when the installation site is washed.
ECASE PROTECTIVE
COVER
Extended frame
It allows the installation of Evolution line controllers with sizes 76 x 34 x 77 mm in various situations,
since it does not require precision in the notch of the instrument fitting panel.
The frame integrates two switches of 10 Amperes that may be used to actuate interior light, air curtain,
fan, and others.
EXTENDED FRAME
- version 2 or higherEasyProg
It is an accessory that has as its main function to store the parameters of the controllers. At any time, you
can load new parameters of a controller and unload them on a production line (of the same controller),
for example. It has three types of connections to load or unload the parameters:
CONTROLLER
SWITCHES
- Serial RS-485: It connects via RS-485 network to the controller (only
for controllers that have RS-485).
- USB: it can be connected to the computer via the USB port, using
Sitrad's Recipe Editor.
- Serial TTL: The controller can be connected directly to
EasyProg by the TTL Serial connection.
EASYPROG
ENVIRONMENTAL INFORMATION
Packaging:
The materials used in the packaging of Full Gauge products are 100% recyclable. Try to
perform disposal through specialized recyclers.
Product:
The components used in Full Gauge controllers can be recycled and reused if
disassembled by specialized companies.
Disposal:
Do not incinerate or dispose the controllers that have reached the end of their service as
household garbage. Observe the laws in your area regarding disposal of electronic
waste. If in doubt, please contact Full Gauge Controls.
Products manufactured by Full Gauge Controls, as of May 2005, have a two (02) year
warranty, as of the date of the consigned sale, as stated on the invoice. They are guaranteed
against manufacturing defects that make them unsuitable or inadequate for their intended
use.
The Warranty does not cover expenses incurred for freight and/or insurance when sending
products with signs of defect or faulty functioning to an authorized provider of technical
support services. The following events are not covered either: natural wear and tear of parts;
external damage caused by falls or inadequate packaging of products.
Products will automatically lose its warranty in the following cases:
- The instructions for assembly and use found in the technical description and installation
procedures in Standard IEC60364 are not obeyed;
- The product is submitted to conditions beyond the limits specified in its technical
description;
- The product is violated or repaired by any person not a member of the technical team of
Full Gauge Controls;
- Damage has been caused by a fall, blow and/or impact, infiltration of water, overload
and/or atmospheric discharge.
WARRANTY - FULL GAUGE CONTROLS
To make use of the warranty, customers must send the properly packaged product to Full
Gauge Controls together with the invoice or receipt for the corresponding purchase. As much
information as possible in relation to the issue detected must be sent to facilitate analysis,
testing and execution of the service.
These procedures and any maintenance of the product may only be provided by Full
Gauge Controls Technical Support services in the company's headquarters at Rua Júlio de
Castilhos, 250 - CEP 92120-030 - Canoas - Rio Grande do Sul – Brasil
EXCEPTIONS TO WARRANTY
LOSS OF WARRANTY
USE OF WARRANTY
Copyright 2016
Rev. 03
14. ANNEXES - Reference Images
Image V
X
PANEL
Image VI
CONTROLLER
LOCKS
PANEL
Y
CONTROLLER
Image VII
VINYL
CONTROLLER
Loading...
