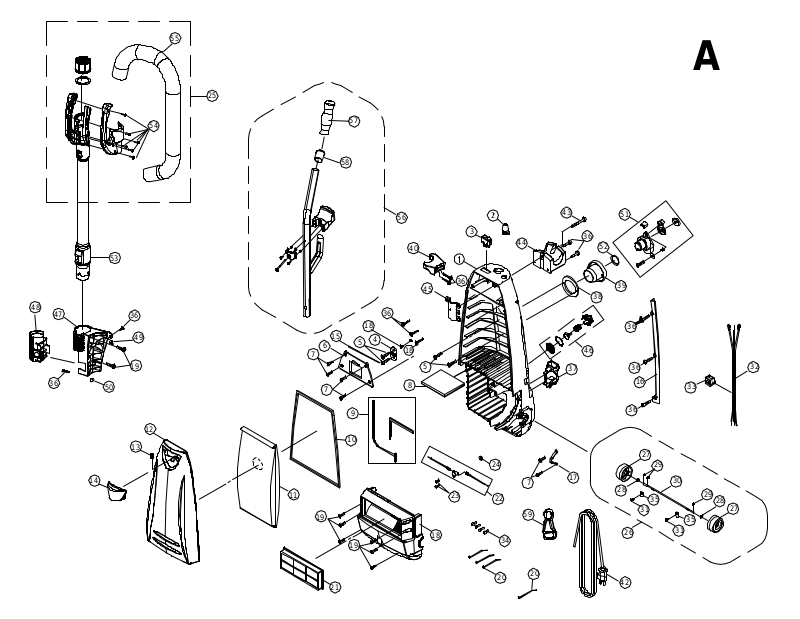

Page 1
55
A
25
48
36
47
14
50
53
36
19
13
49
12
54
11
57
58
56
40
45
36
18
15
6
7
7
19
10
19
4
5
9
18
5
8
36
23
18
2
3
44
24
7
22
59
34
43
36
46
37
17
38
52
39
28
51
26
36
36
36
16
31
27
35
29
30
31
33
35
29
28
32
27
21
20
20
42
Page 2
Handle & Body Parts
FBP-14PW
KEY
PART NO
DESCRIPTION
KEY
PART NO
DESCRIPTION
1
53.150
Dust Compartment
30
54.135
Rear Wheel Shaft
2
B236-0114
Boot Strain Relief
31
A732-8500
Screw
3
25.104
Seesaw Switch
32
B224-3614B
Motor Cord/Wire Assembly
4
B332-0014
Cord Holder
33
A732-4114
Wire Bushing
5
53.059
Screw
34
B123-0100
Wire Connector
6
54.131
Inner Switch Cover
35
54.136
Axle Clamp
7
A732-4500
Screw
36
A732-7705
Screw
8
06.611
Secondary Filter
37
53.152
On-Board Tools Holder
9
84.103
Motor Cover Seal Kit
38
Z19
Swivel Inlet Gasket
10
54.134
Dust Compartment Seal
39
89.855
Paper Bag Inlet
11
06.163
Paper Bag
40
53.153
Wand Holder
12
53.064
Dust Cover
41
A430-0700
Screw
13
54.123
Latch Spring
42
14.062
Power Cord
14
54.124
Dust Cover Release Handle
43
A232-0100
Handle Screw
15
54.128
Seal f/Inner Switch Cover
44
54.140
Hose Hanger
16
54.129
Wire Harness Cover
45
B324-0400
Handle Fitting
17
54.130
Support Strap
46
53.154
Relief Valve Assembly
18
53.065
Motor Cover
47
53.153
Quick-Draw Attachment Holder
19
A732-8314
Screw
48
53.155
Quick-Draw Clean Out
20
A732-0100
Zip Tie
49
53.168
Washer
21
06.729
Hepa Filter
50
A732-7605
Nut22B333-0400B
Thermal Switch
51
C625-0131
Suction Inlet Complete
23
A732-0700
Screw
52
Z12
Suction Inlet Seal
24
B333-0600
Switch Seal
53
53.157
Quick-Draw Wand Assembly
25
53.158
Handle Grip Assembly /Hose
54
53.059
Screw
26
54.127
Rear Wheel Assembly
55
53.161
Stretch Hose Only
27
B210-0531
Rear Wheel
56
53.159
Handle Assembly Complete
28
54.024
Washer
57
B431-2314
Rubber Handle Grip
29
A732-0300
E-Ring
58
G10
Handle End Cap
59
B352-6900
Cord Clip
11/10/2010

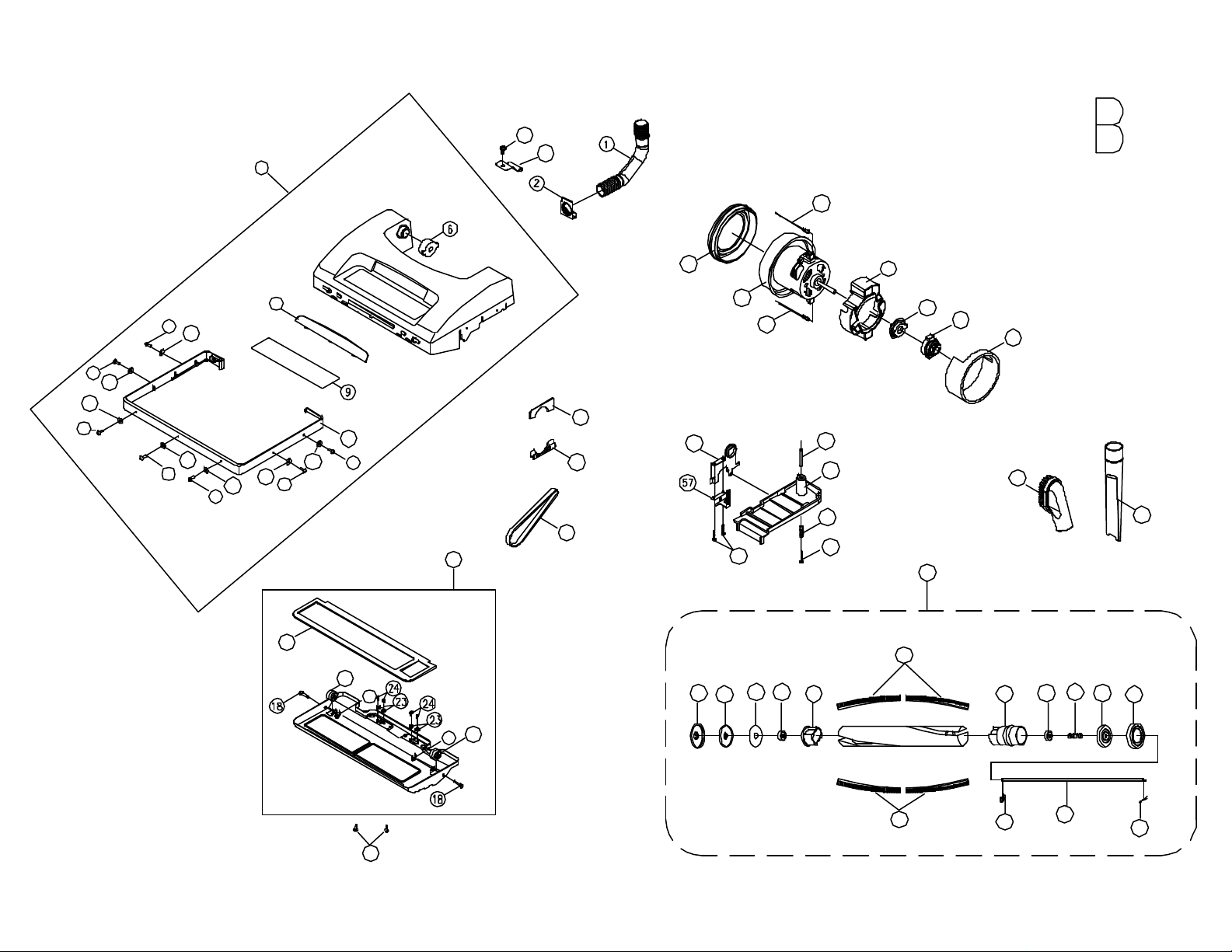

Page 3
21
5
20
29
27
34
35
28
26
29
36 37
25
48
24
23
38
7
3
11
3
11
11
3
11
3
3
11
11
3
16
11
10
3
15
17
8
12
22
13
14
4
30
31
32
46
47
33
39
37 41 42
40
43
19
17
8
39
49
44
45
Page 4
Nozzle Parts FBP-14PW
KEY PART NO DESCRIPTION KEY PART NO DESCRIPTION
1 53.163 Nozzle Hose 26 A732-7300 Screw
2 A07 Hose Fitting 27 54.047 Motor Mount
3 53.164 Rivet 28 20.063 Motor
4 53.073 Motor Shroud 29 54.149 Temperature Wire
5 53.114 Nozzle Housing w/Furniture Guard 30 54.150 Motor Mount
6 84.200 Plastic Housing 31 B123-1300 Pivot Sleeve
7 53.166 Lens Plate Black 32 B123-1900 Sound Suppressor
8 A732-2100 Base Plate Springnut 33 10.130 Pinned Brush Roll Assembly Complete
9 53.072 Topper Mark 34 B012-0214 Rubber End Cover (Left)
10 53.167 Furniture Guard 35 B012-0700 Left Cover
11 53.168 Washer 36 B012-0600 Felt Cover
12 A09 Felt Packing 37 08.008 Bearing
13 B017-1200 Vented Support Fitting 38 B08S Agitator Bearing Holder
14 09.104 Belt 39 10.133 Agitator Brush
15 54.006 Bottom Plate Assembly 40 B07S Agitator Pulley
16 B021-0200 Packing Lower Plate Assembly 41 B624-0100 Spacing Spring
17 B010-0413 Base Plate Wheel 42 B012-0800 Right Cover
18 B010-0500 Base Plate Wheel Pin 43 B012-0114 Rubber End Cover (Right)
19 A732-2000 Bottom Plate Set Screw 44 B012-1000 Agitator Shaft
20 53.088B Positioning Spring 45 A732-0400 Spring Clip
21 53.169 Screw 46 54.152 Round Bursh (Natural Bristles)
22 54.147 Pedal Frame 47 54.153 Crevice Tool
23 53.170 Screw 48 53.173 Belt Cover
24 53.171 Spring 49 A732-0200 E-Clip
25 53.172 Spring Pin
11/10/2010
