Full Boar FBT-3300 Instruction Manual
KNOW YOUR PRODUCT
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1215
INVERTER
GENERATOR
•3100WMAX.POWER
•KEYSTARTWITH
REMOTE
•2X240V15APOWER
OUTLETS
•USBPORT
•LCDSCREEN
INSTRUCTIONMANUAL
2
ENGINE
Motor Type: 4-stroke, OHV, 1-cylinder
Displacement: 270cc
Engine Speed: 3600/min¹
Cooling System: Forced air cooling
Ignition System: T.D.I
Oil Capacity: 1L
Fuel Tank Capacity: 13L
Spark Plug: Torch F7RTC
Fuse: 20 Amp
Battery Type: Sealed Lead Acid (SLA)
12 Volt, 9 Ah
Battery Part No.: MFQ-9-1 or equivalent.
Noise Level Rating (7m): 59dB
SPECIFICATIONS - MODEL NO. FBT-3300
KNOW YOUR PRODUCT
1. Fuel cap
2. Fuel level indicator
3. Foldable handle
4. Recoil starter
5. Right side maintenance cover
6. Left side maintenance cover
7. Keys and remotes
8. Control panel
9. DC socket
10. Fuel valve
11. AC socket A and B
12. Oil ll bottle

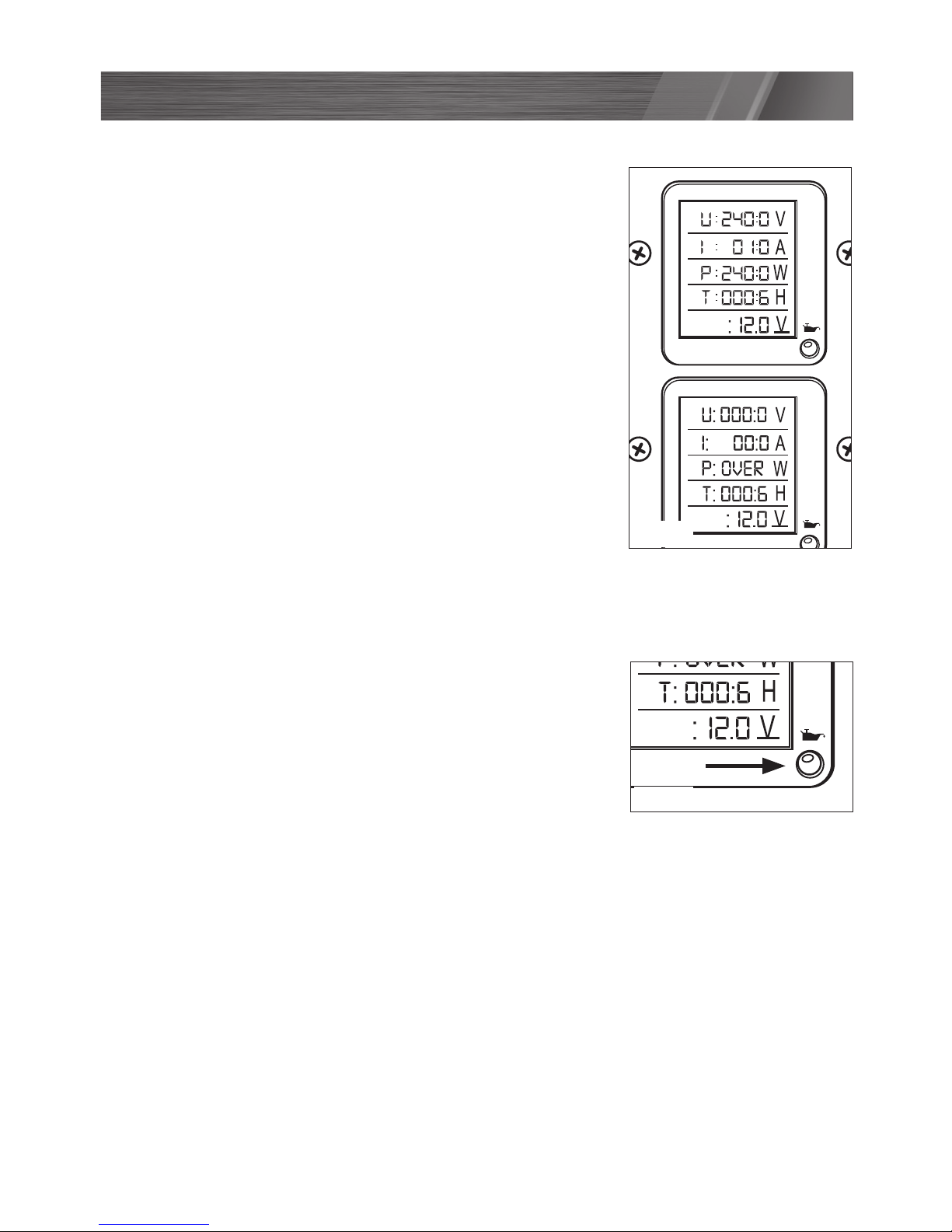

13. Digital display
14. Oil alert indicator light
15. USB port
16. Economy throttle switch
17. Remote control switch
18. Engine switch - Ignition
19. Front handle
20. Wheels
21. Battery charging socket
22. DC circuit breaker reset
23. Grounding terminal
24. Emergency stop button
25. Fuse
26. Convertible screwdriver
27. Battery Charging Cable
28. Oil drain tube
29. Brakes
30. Spark plug
31. Spark plug wrench
GENERATOR
AC Output: 240V
50Hz
15Amp
3000W
3100W Max.
DC output: 12V, 8.3Amp
USB output: 5V, 5W, 1Amp
L x W x H: 600 x 450 x 500mm
Net weight: 62kg
5V DC USB
ECONOMY
ON
ON
OFF
OFF
REMOTE CONTROL
STOP
12V DC 8.3A
240V
STOP
START
ON
12V DC 8.3A
DC OVERLOAD
RESET
Batt
30 31
29
6
17
16
20
29
1821
22
23
24
3
KNOW YOUR PRODUCT (cont.)
8 9 10 11
12
13 14 15
28
1 2 3 4 5
7
25
27
26
Left SideRight Side
Top
19
4
TABLE OF CONTENTS
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 05
SAFETY INSTRUCTIONS........................................... Page 05
EXPLANATION OF RISKS.......................................... Page 08
SET-UP........................................................................ Page 12
PRE-OPERATION CHECK.......................................... Page 13
OPERATION............................................................... Page 15
MAINTENANCE......................................................... Page 23
TRANSPORTING & STORAGE .................................. Page 28
TROUBLE SHOOTING .............................................. Page 29

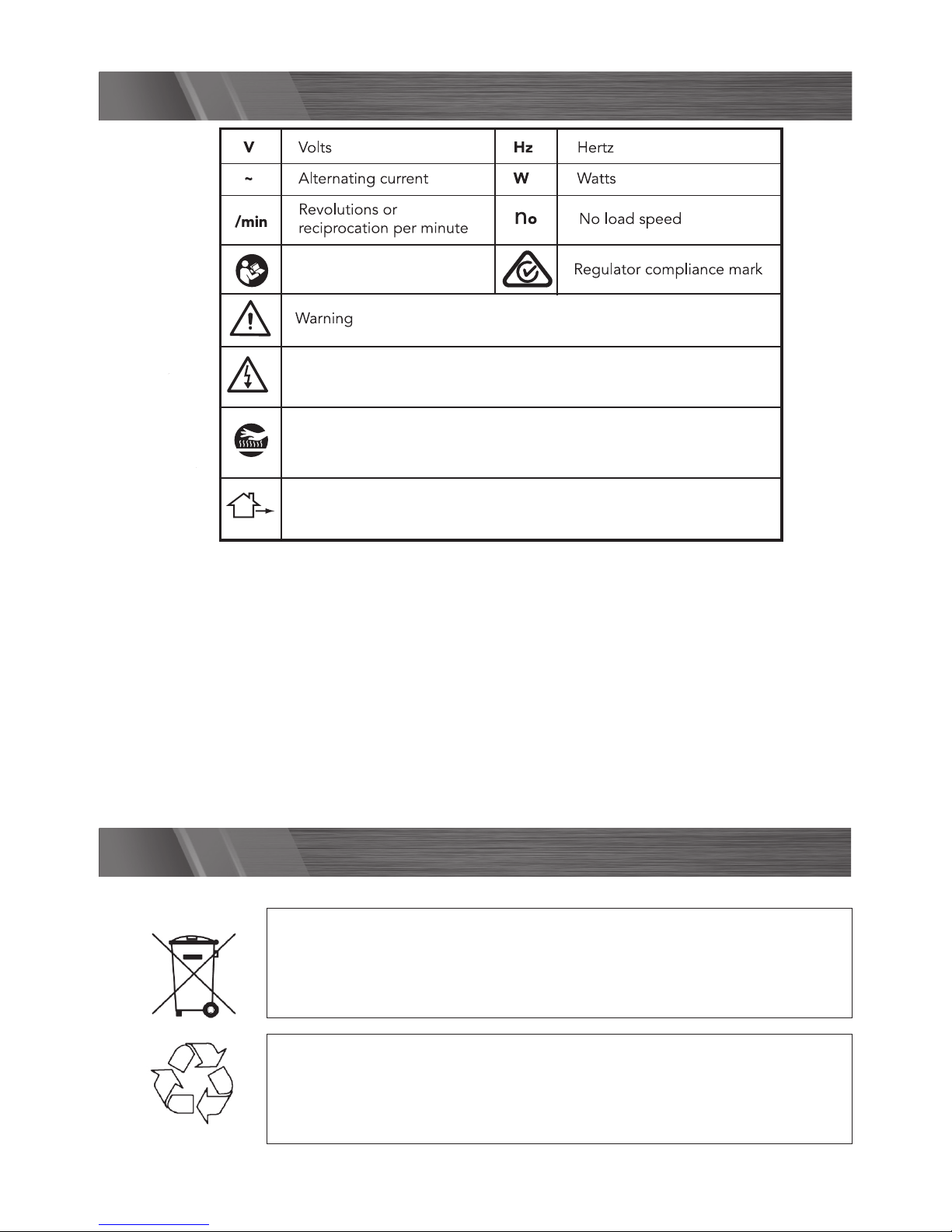

DESCRIPTION OF SYMBOLS..................................... Page 31
CONTENTS................................................................ Page 32
WARRANTY................................................................ Page 34
5
Congratulations on purchasing a Full Boar Digital
Inverter Generator.
Your Full Boar Digital Inverter Generator FBT-3300
has been designed to give regulated electricity for
a continuous, uninterrupted power supply. Inverter
technology provides a suitable power source for
camping applications, outdoor lights, sound systems,
televisions, microwaves and power tools.
Read and understand the Owner’s Manual before
operating the generator. Failure to do so could result in
personal injury or equipment damage.
INTRODUCTION
WARNING! When using this equipment, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal
injury and material damage.
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The petrol generator has been designed to output 240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and
New Zealand.

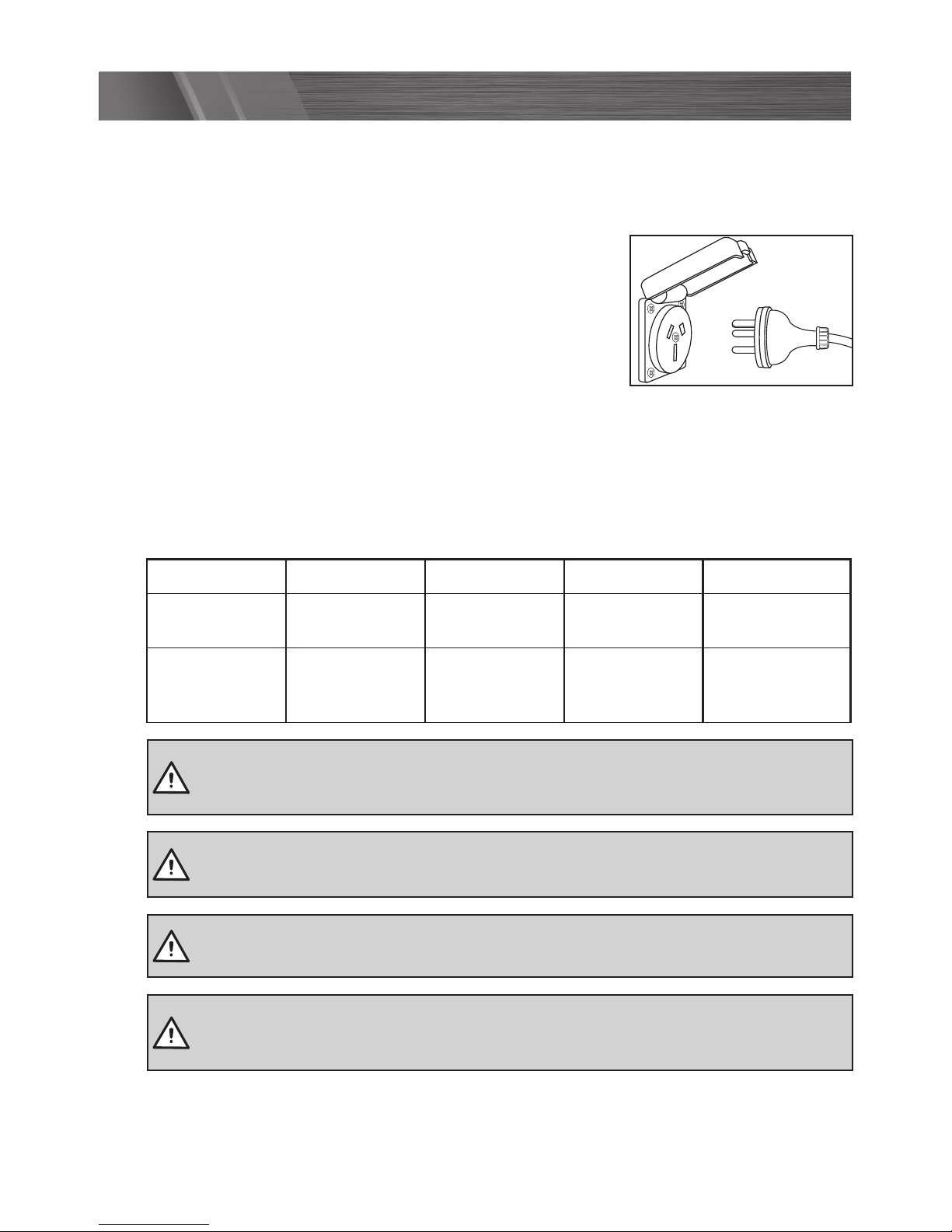

Using an Extension Lead
Always use an approved extension lead suitable for the power output from this generator.
Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the
extension lead if damaged or defective. When using an extension lead on a reel, always
unwind the lead completely. Use of an extension lead not suitable for the power input of the
tool or which is damaged or defective may result in a risk of re and electric shock.
6
• The generator is designed to give safe and dependable service if operated according to
instructions.
• Read and understand the Owner’s Manual before operating the generator. Failure to do
so could result in personal injury or equipment damage.
• Petrol is extremely ammable and explosive under certain conditions. Refuel in a well
ventilated area with the engine stopped.
• Keep away from cigarette, smoke and sparks when re-fuelling the generator. Always
refuel in a well ventilated location.
• Prevent the spilling of fuel as this may also ignite with the hot motor. Wipe up spilled
petrol at once. Never refuel whilst the engine running.
• Connections for standby power to a building’s electrical system must be made by a
qualied electrician and must comply with all applicable laws and electrical codes.
Improper connections can allow electrical current from the generator to back feed
into the utility lines. Such back feed may electrocute utility company workers or others
who contact the lines during a power outage, and when utility power is restored, the
generator may explode, burn, or cause res in the building’s electrical system.
• Store the generator in a dry area away from inammable liquids.
• Always make a pre-operation inspection before you start the engine. You may prevent an
accident or equipment damage.
• Place the generator at least 1m (3ft) away from buildings or other equipment during
operation. ALWAYS operate generator a minimum of 2 meters from any conductive
surface eg. metals.
• Persons who are fitted with a heart pacemaker, or similar medical conditions should take
care when using this device. Even the extra low voltage of the Battery charging output
should not be handled by a person with medical conditions as or similar to the above.
• Operate the generator on a level surface. If the generator is tilted, fuel spillage may
result.
• Do not operate in a hazardous location. Such areas include where there is a risk of
explosion of petrol fumes, leaking gas or explosive dust.
• Know how to stop the generator quickly and understand operation of all the controls.
Never permit anyone to operate the generator without proper instructions.
• Keep children and pets away from the generator when it is in operation.
• Keep away from rotating parts while the generator is running.
• The generator is a potential source of electrical shocks when misused; do not operate
with wet hands.
SAFETY WARNINGS FOR GENERATORS
IMPORTANT! When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete operating manual
with due care. Keep this manual in a safe place so that the information is available at
all times. If you give the equipment to any other person, give them these operating
instructions as well.
We cannot accept any liability for damage or accidents which arise due to a failure
to follow these instructions and the safety information.
7
SAFETY WARNINGS FOR GENERATORS (cont.)
• Generator can be operated in light rain and mist. IP23M weather proof rating
• Your power tool should only be passed on with these instructions.
• Children should be supervised to ensure they do not play with the appliance.
WARNING! Exhaust contains poisonous carbon monoxide. Do not operate
generator in conned area. Be sure to operate the generator in a well-ventilated
environment or with an aerator. Using a generator indoors will kill you in minutes.
Never use in the home or in a partly enclosed area such as garages. Only use
outdoors and far from open windows doors and vents.
WARNING! The inverter generator is supplied with a grounding terminal (23)
that may reduce the risk of electrocution in certain applications. Always consult
a qualied electrician before connecting the grounding terminal or when using
the generator for applications other than direct connection of appliances (such as
connection to a caravan).
WARNING! The output of this generating set is potentially lethal. The set should
not be connected to a xed electrical installation except by an appropriately
licensed person.
WARNING! The mufer becomes very hot during operating and remains hot for a
while after stopping the engine. Be careful not to touch the mufer while it is hot.
Let the engine cool before storing the generator indoors.
WARNING! Do not parallel connect other cables to receptacles, use special jack, or
it may cause an electrical shock.
8
RISK OF ELECTROCUTION AND FIRE
Hazard What could happen How to prevent it
Improper storage
of extension cord.
Extension cord can come into
contact with hot engine parts
resulting in damage. Using a
damaged extension cord can
result in electrocution or death.
Remove extension cord from the
generator and store separately
away from generator.
Operation of
generator in
heavy rain, wet,
icy, or flooded
conditions.
Water is an excellent conductor
of electricity! Water which
comes in contact with electrically
charged components can
transmit electricity
to the frame and other surfaces,
resulting in electrical shock to
anyone contacting them.
Operate generator in a clean, dry,
well ventilated area. Make sure
hands are dry before touching
unit.
Placing generator
on or against
highly conductive
surface, such as a
steel walkway or
metal roof.
Accidental leakage of electrical
current could charge conductive
surfaces in contact with the
generator.
Place generator on low
conductivity surface such as a
concrete slab.
ALWAYS operate generator a
minimum of 2 meters from any
conductive surface.
Operation of unit
when damaged,
or with guards or
panels removed.
Attempting to use the unit when
it has been damaged, or when it
is not functioning normally could
result in fire or electrocution.
Removal of guarding could
expose electrically charged
components and result in
electrocution.
Do not operate generator with
mechanical or electrical problem.
Have unit repaired by an
Authorized Service Centre.
Do not operate generator with
protective guarding removed.
9
RISK OF FIRE
Hazard What could happen How to prevent it
Attempting to ll
the fuel tank while
the engine
is running
Fuel and fuel vapours can
become ignited by coming in
contact with hot components
such as the mufer, engine
exhaust gases, or from an
electrical spark.
Turn engine off and allow it to
cool before adding fuel to the
tank. Equip area of operation
with a re extinguisher certied
to handle fuel res.
Sparks, re, hot
objects
Cigarettes, sparks, res, or other
hot objects can cause fuel or
fuel vapours to ignite.
Add fuel to tank in well
ventilated area. Make sure there
are no sources of ignition near
the generator.
Improper storage
of fuel
Improperly stored fuel could
lead to accidental ignition. Fuel
improperly secured could get
into the hands of children or
other unqualied persons.
Store fuel in an approved
container designed to hold
fuel. Store container in secure
location to prevent use by
others.
Inadequate
ventilation for
generator
Materials placed against or near
the generator or operating the
generator in areas where the
temperature exceeds 40°C.
ambient (such as storage rooms
or garages) can interfere with
its proper ventilation features
causing overheating and
possible ignition of the materials
or buildings.
Operate generator in a clean,
dry, well ventilated area.
DO NOT OPERATE UNIT
INDOORS OR IN ANY
CONFINED AREA.
Overlling the fuel
tank - fuel spillage
Spilled fuel and its vapours
can become ignited from hot
surfaces or sparks.
Use care in lling the tank to
avoid spilling fuel. Make sure
fuel cap is secured tightly and
check engine for fuel leaks
before starting engine. Move
generator away from refuelling
area or any spillage before
starting engine. Allow for fuel
expansion. Never refuel with
the engine running.
10
Hazard What could happen How to prevent it
Fire, Inhalation,
Damage to Vehicle
Surfaces
Fuel or oil can leak or spill and
could result in re or breathing
hazard, serious injury or death
can result. Fuel or oil leaks can
damage carpet, paint or other
surfaces in vehicles or trailers.
Transport fuel only in an
approved fuel container.
Always place generator
on a protective mat when
transporting to protect against
damage to vehicle from leaks.
Remove generator from vehicle
immediately upon arrival at
your destination.
RISK OF INJURY AND PROPERTY DAMAGE
WHEN TRANSPORTING GENERATOR
Hazard What could happen How to prevent it
Contact with
hot engine
and generator
components
Contact with hot surfaces,
such as engines exhaust
components, could result in
serious burns.
During operation, touch only
the control surfaces of the
generator. Keep children
away from the generator at all
times. They may not be able to
recognize the hazards of this
product.
Hazard What could happen How to prevent it
Lifting a very heavy
object
Serious injury can result from
attempting to lift too heavy an
object.
When lifting, always keep the
object you are lifting near
the vertical axis of your body.
DO NOT use you back to lift
heavy loads. Both people
should crouch down, grab the
underside of unit and use your
legs to carry the weight. Keep
the object as near the centre of
your body’s gravity as possible.
Avoid twisting your bodies
when carrying the unit; instead,
turn your whole body using
your feet.
RISK OF HOT SURFACES
RISK FROM LIFTING
11
Hazard What could happen How to prevent it
Operation of
generator in careless
manner
All sources of energy include
the potential for injury. Unsafe
operation or maintenance of
your generator could lead to
serious injury or death to you or
others.
Review and understand all of
the operating instructions and
warnings in this manual.
Become familiar with the
operation and controls of the
generator. Know how to shut it
off quickly.
Equip area of operation with
a re extinguisher certied to
handle gasoline or fuel res.
Keep children or others away
from the generator at all times.
Operating generator
while suspended
Generator will not operate
properly and will cause damage
to the generator and could
cause serious injury or death to
you or others.
Never operate generator while
suspended or in an unlevel
position. Always operate
generate on a at, level
surface.
RISK OF UNSAFE OPERATION
Loading...
