User instructions
TheÀrst time you use the oven
Clean the oven thoroughly with soapy water and rinse well. To remove the lateral frames from smoothwalled ovens, proceed as shown in the mgure.
Operate the oven for about 30 minutes at maximum temperature to burn off all traces of grease which might
otherwise create unpleasant smells when cooking.
Do not use rough abrasives or sharp metal scrapers to clean the glass door of the oven because they could
scratch the surface and cause the glass to shatter.
Important:
As a safety precaution, before cleaning the oven, always disconnect the plug from the power socket or the
power cable from the oven. Do not use acid or alkaline substances to clean the oven (lemon juice, vinegar,
salt, tomatoes etc.). Do not use chlorine based products, acids or abrasive products to clean the painted
surfaces of the oven.
Do not use steam cleaners to clean the appliance.
4
Self-cleaning catalytic panels (Where present)
SELF-CLEANING PANELS
The CLEAN (where present) function activates the reaction
that causes cleaning.
Our smooth walled ovens can be mtted with selfcleaning panels to cover the inside walls.
These special panels are simply hooked on to the walls before the side frames are mtted. They are coated
in a special, micro-porous catalytic enamel which oxidises and gradually vaporises splashes of grease and
oil at cooking temperatures above 200° C.
If the oven is not clean after cooking fatty foods, operate the empty oven for 60 minutes (max.) at maximum
temperature.
Never wash or clean selfcleaning panels with abrasive, acid, or alkaline products.
Respect for the environment
The documentation for this appliance is printed on paper bleached without chlorine or recycled
paper to contribute to protecting the environment. The packaging was designed to prevent
damage to the environment; they are ecological products that can be recovered or recycled.
Recycling the packing saves raw materials and reduces the volume of industrial and domestic
waste.
THE PACKING MATERIAL is 100% recyclable and marked with the recycling symbol. Dispose of in
conformity with local law. The packing material (plastic bags, polystyrene parts, etc.) must be kept out of
the reach of children because it is potentially dangerous. THIS APPLIANCE is marked in conformity with
European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). By making sure that
this product is disposed of correctly, the user contributes to preventing potential negative consequences
for the environment and health.
THE SYMBOL on the product or accompanying documentation indicates that this product must not
be treated as domestic waste but must be delivered to a suitable collection point for the recycling
of electrical and electronic equipment.
DISPOSAL MUST BE MADE in conformity with local laws on waste disposal.
5
FOR ADDITIONAL INFORMATION about the treatment, recovery and recycling of this product, contact
the local ofmce of competence, the domestic waste collection service or the store where the product was
purchased.
BEFORE SCRAPPING, make it unusable by cutting the electrical cord.
Introduction to the oven
Dear Customer, your new oven is controlled by an electronic board that constantly monitors its
operation to improve its performance.
The touch controls are state-of-the-art, precise and reliable.
The interface is elegant, orderly and discrete, more intuitive than ever!
A few buttons, many functions and no combination or sequence is difmcult to enter, so you can
concentrate on following the recipe and the oven is ready in two clicks!
Installation and hook-up
Dear Customer, this oven is a sophisticated electronic appliance, classimed as a durable good. Its
installation requires qualimed professionals for both the hook-up of the power line and itsplacement in
the kitchen counter.

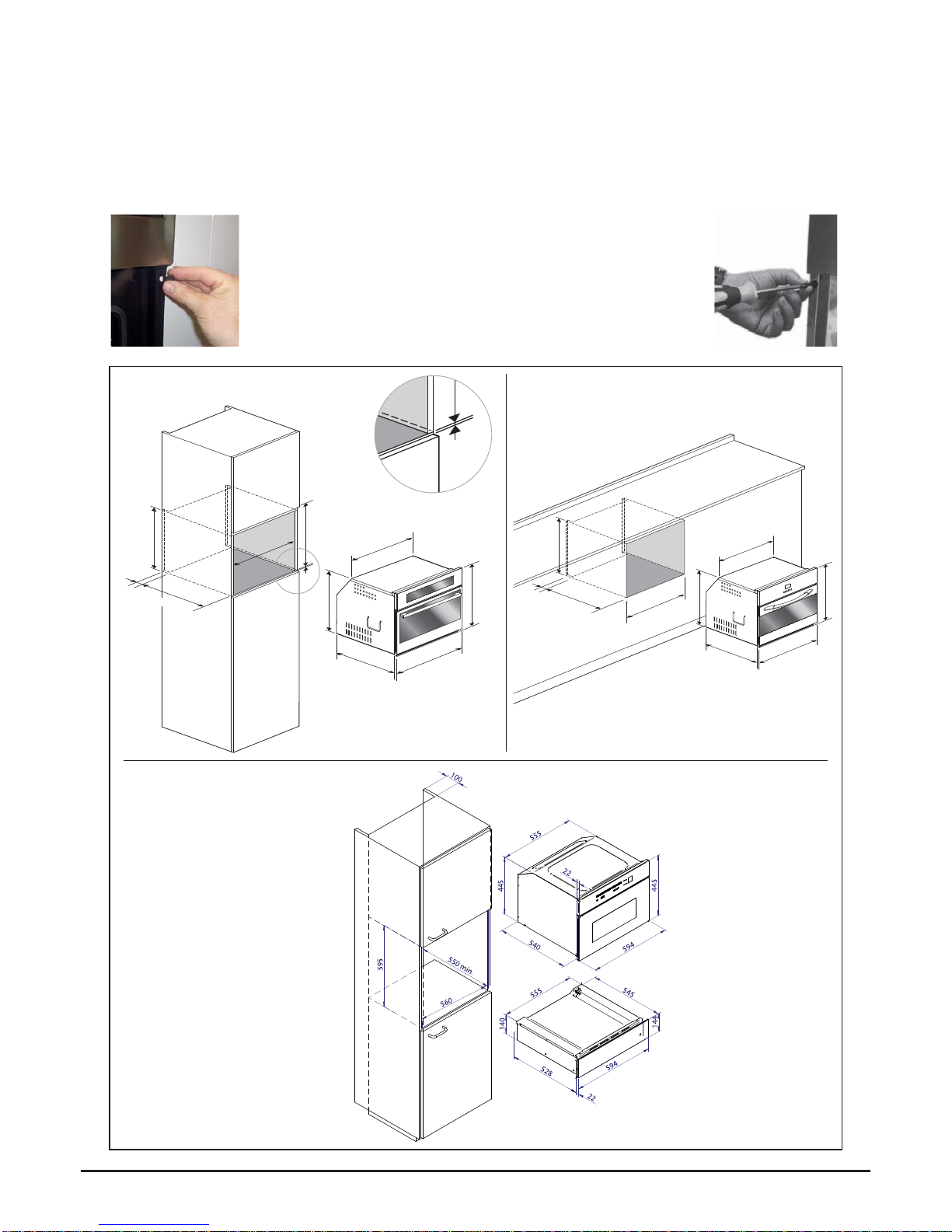

(SEE ASSEMBLY INSTRUCTIONS ON PAGE 62)
Before hook-up
When the oven is connected to the electric mains for the mrst time, the display will ask you to select your
language;use the buttons
to select the language you want;
use the button
to conmrm the choice;
(from now on, the language choice will remain mxed even when their are power outages).
Now, it goes into demonstration mode.
Demonstration mode
This is the mode that the oven is normally in every time that there is a power failure and, consequently,
when it is mrst hooked-up
the purpose is to show how you can control it with a recorded sequence of commands.
6
In this mode, the oven is never REALLY turned on, i.e., the heating elements are never powered!
The control panel is INACTIVE and, so, the oven will not respond to commands!
To disable the demonstration mode, touch the light
symbol for mve seconds:
the control will go to
normal operation and ready for turning on.
Now you can set the time but it is not necessary for
turning on the oven.
Setting the clock
The oven will signal that it is connected to the power mains with a double beep.
To set the system time, press the “TIMER FUNCTIONS” button
for at least 3 seconds
Each command activated is conmrmed by a beep.
Set the clock with the + and - buttons: during
setting the separator dots nash, the time has been
set when the dots remain steady on.
7
ACTIONS THAT ARE POSSIBLE WITH THE OVEN OFF
- Turn on oven light
The oven light is turned on/off by touching the
symbol as shown in the mgure.
- Change the Language
When the oven is off, you can change the language of the display by simultaneously selecting and
the + in the lower right for at least 3 seconds.
Then use
to select the language and conmrm the choice with .
- Setting the “minute-counter” timer function
See the appropriate section on page 5.
Turning on the oven
Turn the oven on by pressing the symbol shown
in mgure.
to activate the oven functions, always press
except for the light and timer functions, which are
independent
The command activates all the icons by lighting up
their backgrounds.
NOTE: Remember that the oven only turns on if the key function is deactivated
The word ON appears on the display for a minute. The control is waiting for you to select a
cooking function. Otherwise, the oven assumes that it was turned on by accident and, for
safety reasons, it automatically turns off displaying the word OFF for several seconds.
8
Key (or child safety) function
The key function is activated/deactivated by
pressing the
button for at least 3 seconds.
You can activate and deactivate the operating
mode of the oven at any time.
The padlock OPEN symbol means that the key function is not active.
The padlock CLOSED symbol means that the key function is active.
9
MAIN FUNCTIONS
Overview of the command panel
Cooking functions
Special function
Temperature/power
Lock
Clock
Oven ON/OFF
Lock oven ON/OFF
Programmin the
oven
The cooking functions
The provides eleven specimc cooking functions!
To activate a function, just touch the corresponding symbol.
Each function has a temperature setting selected on the basis of cooking tests of the recipes that are
typically used, which can be easily changed based on your own experience.
Attention:
“During use, the accessible parts of the oven can become very hot. Children should be kept
at a distance; you should also be careful not to touch the heating elements inside the oven.”
10
Control panel functions
The oven lamp always turns on when the door is opened and, to save energy, it is managed
by the system in the other modes.
Upper and lower heating elements. Preset to 190 °C. Regulation of the thermostat from
50° C to MAX
Lower heating element. Pre-set to 50 °C. Regulation of the thermostat from 50° C to MAX
Upper heating element (grill surface and reduced power). Preset to MAX. Regulation of the
thermostat from 50 °C to MAX.
Double heating element (large grill surface area). Preset to MAX. Regulation of the thermostat
from 50 °C to MAX.
Double upper heating element with fan (large grill surface area). Pre-set to 165 °C. Regulation
of the thermostat from 50 °C to MAX.
Upper heating element, lower with fan. Pre-set to 165 °C. Regulation of the thermostat from
50° C to MAX.
Circular heating element with fan. Pre-set to 165 °C. Regulation of the thermostat from 50°
C to MAX.
Lower heating element + Circular heating element with fan. Pre-set to 230 °C. Regulation of
the thermostat from 50° C to MAX.
Fan for defrosting. Regulation of the Thermostat from 0 to 60° C.
Access to preset recipes
Rapid preheating
Rapid cleaning (for ovens with self-cleaning catalytic panels)

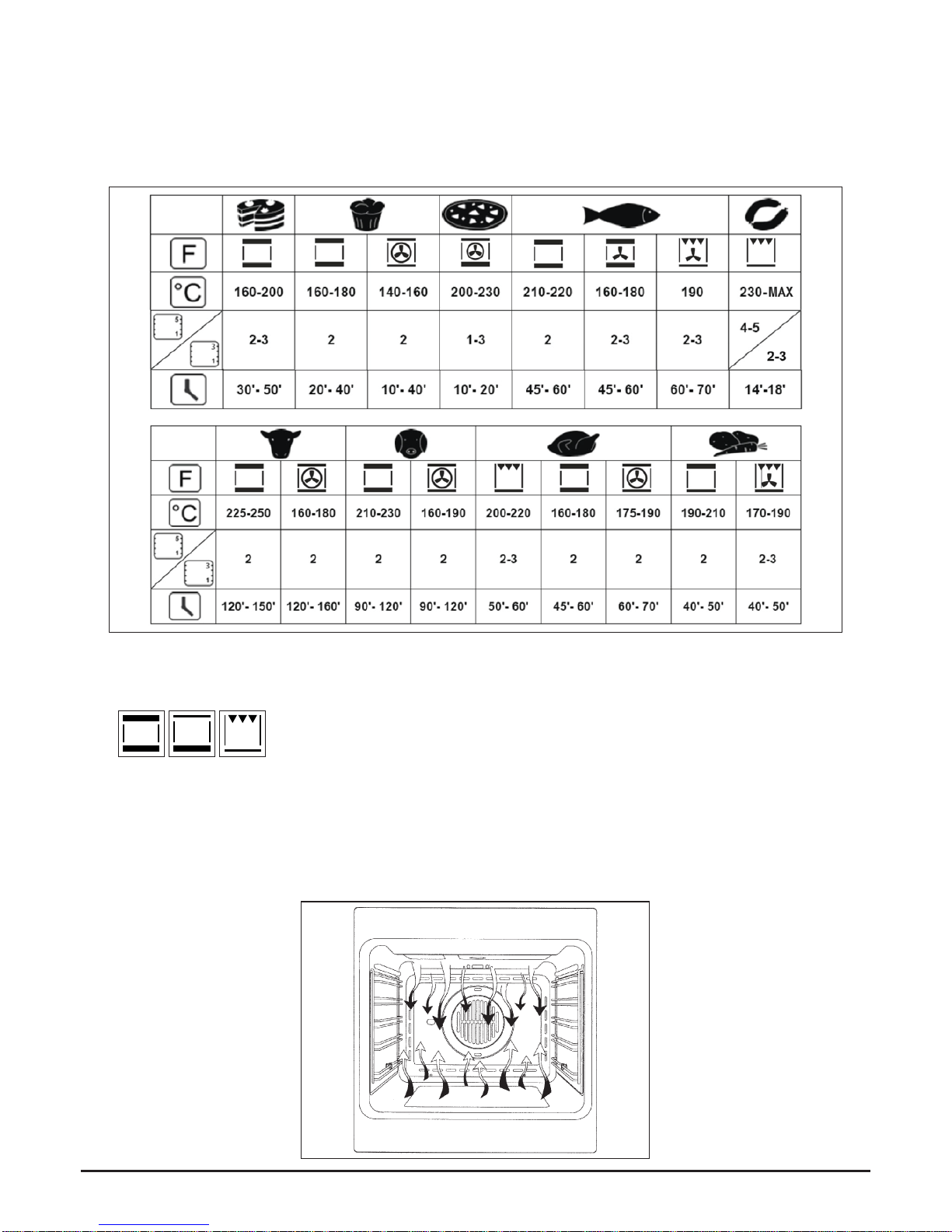

The table below shows the results of the cooking tests conducted in our laboratories by a professional
cook. In any case, these are only indicative and the values that we have selected are only a starting
point for your to experiment with your own recipes to obtain better results!
11
