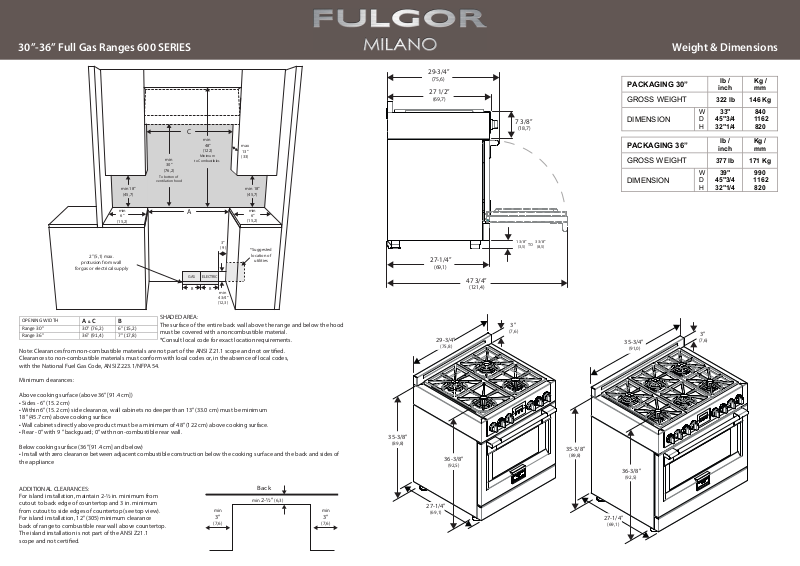

Page 1

30”-36” Full Gas Ranges 600 SERIES

lb /

inch

Kg /

32"1/4

820

lb /

inch

Kg /

32"1/4

820

min

48”

(122)

min

30”

(76,2)

To botton of

min 18”

(45,7)

min

6”

(15,2)

2” (5,1) max.

protusion from wall

for gas or electrical supply

OPENING WIDTH

Range 30" 30" (76,2) 6" (15,2) Range 36" 36" (91,4) 7" (17,8)

Note: Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and not certied. Clearances to non-combustible materials must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

A & C B

ventilation hood

SHADED AREA: The surface of the entire back wall above the range and below the hood must be covered with a noncombustible material. *Consult local code for exact location requirements.

Minimum

to Combustibles

GAS ELECTRIC

Minimum clearances:

Above cooking surface (above 36” [91.4 cm])

• Sides - 6” (15.2 cm)

• Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum

18” (45.7 cm) above cooking surface

• Wall cabinets directly above product must be a minimum of 48” (122 cm) above cooking surface.

• Rear - 0” with 9 ” backguard; 0” with non-combustible rear wall.

Below cooking surface (36” [91.4 cm] and below)

• Install with zero clearance between adjacent combustible construction below the cooking surface and the back and sides of the appliance

ADDITIONAL CLEARANCES: For island installation, maintain 2-½ in. minimum from cutout to back edge of countertop and 3 in. minimum from cutout to side edges of countertop (see top view). For island installation, 12" (305) minimum clearance back of range to combustible rear wall above countertop. The island installation is not part of the ANSI Z21.1 scope and not certied.

min

(7,6)

3”

( 9 )

min 4 3/4” (12,3)

max

13”

(33)

min 18”

(45,7)

min

6”

(15,2)

3”

*Suggested location of

utilities

Back

min 2-½” (6,3)

min

(7,6)

Weight & Dimensions

29-3/4”

(75,6)

27 1/2”

(69,7)

7 3/8”

(18,7)

1 3/8”

3 3/8”

(3,5)

(8,5)

27-1/4”

(69,1)

47 3/4”

(121,4)

3”

29-3/4”

(75,8)

35-3/8”

(89,8)

36-3/8”

(92,5)

27-1/4”

3”

(69,1)

(7,6)

35-3/8”

(89,8)

PACKAGING 30”

GROSS WEIGHT

DIMENSION

PACKAGING 36”

GROSS WEIGHT

DIMENSION

35-3/4”

(91,0)

36-3/8”

(92,5)

27-1/4”

(69,1)

322 lb 146 Kg

33"

45"3/4

D H

377 lb 171 Kg

39"

45"3/4

3”

(7,6)

840

1162

990

1162

Page 2

600 Series 36" Gas Range F6PGR366S1

Gas Cooktop Features

Power (Max/ Min) G20

18000 (BTU/h)

5300W / 950 (BTU/h)

275W

BAR CODE (EAN 13) 801980101610 5

600

Series

Size 36" Main Colour Logo ● Stainless Steel Aestethics Professional

FULL GAS

Cooktop

Type GAS

Cooking Surface Black Enameled Gas Type NG or LP Knobs ●

Electric Flame Ignition and Re-ignition ● Flame out sensin Top Mount Injectors ●

L.P. Conversion Kit ● Dual Flame Brass Burne Heav Pressure Re

Cooking Zones 6 Front Left Dual Flame Burner
