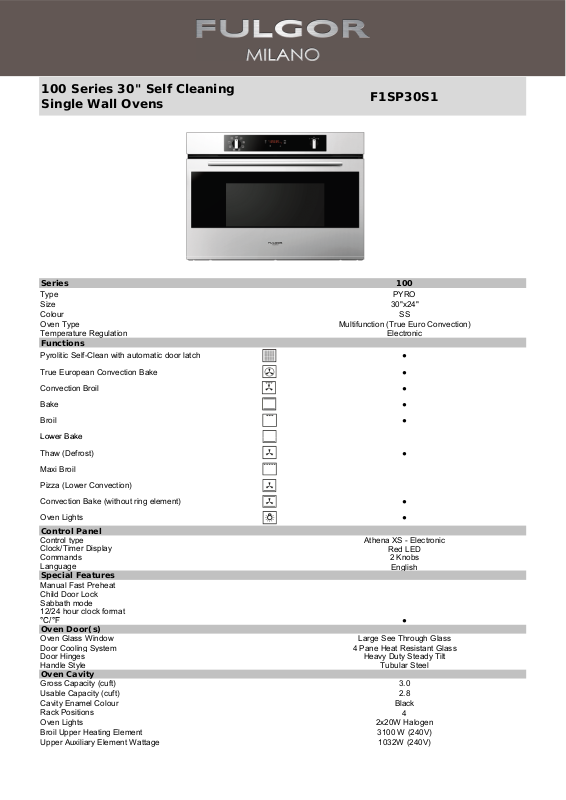

Page 1
100 Series 30" Self Cleaning
)
Lower Bake
yp
play
guag
g
p
°C/°F
)
g Sy
y
y
Single Wall Ovens
F1SP30S1
Series
Type PYRO
Size
Colour
Oven Type Multifunction (True Euro Convection
Temperature Regulation Electronic
Functions
Pyrolitic Self-Clean with automatic door latch ●
True European Convection Bake ●
Convection Broil ●
Bake ●
Broil ●
Thaw (Defrost) ●
Maxi Broil
100
30"x24"
SS
Pizza (Lower Convection)
Convection Bake (without ring element) ●
Oven Lights ●
Control Panel
Control t
Clock/Timer Dis
Commands 2 Knobs
Lan
ecial Features
S
Manual Fast Preheat
Child Door Lock
Sabbath mode
12/24 hour clock format
Oven Door(s
Oven Glass Window Large See Through Glass
Door Coolin
Door Hinges Heavy Duty Steady Tilt
Handle St
Oven Cavit
Gross Capacity (cuft) 3.0
Usable Capacity (cuft) 2.8
Cavity Enamel Colour Black
Rack Positions
Oven Lights 2x20W Halogen
Broil Upper Heating Element 3100 W (240V)
Upper Auxiliary Element Wattage 1032W (240V)
e Athena XS - Electronic
Red LED
e
stem 4 Pane Heat Resistant Glass
le Tubular Steel
En
lish
●
4
Page 2
Concealed Bake Lower Heating Element 1400 W (240V)
)
gs (
INSTRUCTIONS FOR USE
Lower Auxiliary Element Wattage 600W (240V)
Convection Element Wattage 2500 W (240V)
Accessories
Chromed racks 2
Enameled Grill set ( basin + anti splash
Telescopic chromed rack
Dimensions
Overall dim - width 29 3/8" (745mm)
Overall dim - height 23 3/16" (589mm)
Overall dim - depth 22 1/16" (560mm)
Cutout - width 28" (710mm)
Cutout - height (min) 23" (585mm)
Cutout - depth (min) 24" (610mm)
Power / Ratin
KW/Amps rating at 240V, 60Hz 3.625kW - 15.6A
KW/Amps rating at 208V, 60Hz 3.529kW - 17.4A
Cable + Conduit ●
208/240 V, 60 Hz)
1
Optional
Use & Care Manual
Installation Manual
EN, SP, FR
EN, SP, FR
