PRIMERGY RX330 S1 Server
Operating manual
Edition May 2007
Comments… Suggestions… Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
manuals@fujtsu-siemens.com.
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2007 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.
RX330 S1 Operating manual
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Documentation overview . . . . . . . . . . . . . . . . . . . . 7
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Notational conventions . . . . . . . . . . . . . . . . . . . . 16
1.4 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 17
2 Installation steps, overview . . . . . . . . . . . . . . . . . . 19
3 Important information . . . . . . . . . . . . . . . . . . . . . 21
3.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.2 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3 FCC Class A Compliance Statement . . . . . . . . . . . . . 28
3.4 Transporting the server . . . . . . . . . . . . . . . . . . . . 29
3.5 Notes on installing in the rack . . . . . . . . . . . . . . . . . 30
3.6 Environmental protection . . . . . . . . . . . . . . . . . . . 31
4 Hardware installation . . . . . . . . . . . . . . . . . . . . . . 33
4.1 Unpacking the server . . . . . . . . . . . . . . . . . . . . . 34
4.2 Installing/removing the server in/from the rack . . . . . . . 35
4.2.1 Installation in PRIMECENTER/DataCenter Rack . . . . . . . . 39
4.2.2 Installation in 3rd party racks . . . . . . . . . . . . . . . . . . 42
4.2.3 Inserting the server . . . . . . . . . . . . . . . . . . . . . . . 43
4.3 Connecting devices to the server . . . . . . . . . . . . . . . 45
4.4 Connecting the server to the mains . . . . . . . . . . . . . . 47
4.5 Notes on connecting/disconnecting cables . . . . . . . . . 48
Operating manual RX330 S1
Contents
5 Starting up and operation . . . . . . . . . . . . . . . . . . . 49
5.1 Controls and displays . . . . . . . . . . . . . . . . . . . . . . 49
5.1.1 Front of server . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.1.2 Rear of server . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.2 Switching the server on and off . . . . . . . . . . . . . . . . 56
5.3 Configuring the server . . . . . . . . . . . . . . . . . . . . . 58
5.3.1 Configuring onboard SAS controller . . . . . . . . . . . . . . . 58
5.3.2 Configuration with ServerStart . . . . . . . . . . . . . . . . . . 59
5.3.3 Configuration without ServerStart . . . . . . . . . . . . . . . . 60
5.4 Cleaning the server . . . . . . . . . . . . . . . . . . . . . . . 60
6 Property and data protection . . . . . . . . . . . . . . . . . . 61
6.1 BIOS Setup security functions . . . . . . . . . . . . . . . . . 61
7 Troubleshooting and tips . . . . . . . . . . . . . . . . . . . . 63
7.1 Power-on indicator remains unlit . . . . . . . . . . . . . . . . 63
7.2 Server switches itself off . . . . . . . . . . . . . . . . . . . . 64
7.3 Screen remains blank . . . . . . . . . . . . . . . . . . . . . . 64
7.4 Flickering stripes on monitor screen . . . . . . . . . . . . . 65
7.5 No screen display or display drifts . . . . . . . . . . . . . . . 65
7.6 No mouse pointer displayed on screen . . . . . . . . . . . . 65
7.7 Incorrect date and time . . . . . . . . . . . . . . . . . . . . . 66
7.8 System will not boot . . . . . . . . . . . . . . . . . . . . . . . 66
7.9 Drives reported as “dead” when starting system . . . . . . . 67
7.10 Added drive reported as defective . . . . . . . . . . . . . . . 67
7.11 Error message on screen . . . . . . . . . . . . . . . . . . . . 67
RX330 S1 Operating manual
Contents
8 Hot-plug components . . . . . . . . . . . . . . . . . . . . . 69
8.1 Hot-plug power supply units . . . . . . . . . . . . . . . . . 69
8.1.1 Remove the dummy module . . . . . . . . . . . . . . . . . . . 70
8.1.2 Installing/removing the hot-plug power supply unit . . . . . . . 71
8.1.3 Replacing the hot-plug power supply unit . . . . . . . . . . . . 72
8.2 Hot plug hard disk drives . . . . . . . . . . . . . . . . . . . 73
8.2.1 Handling hard disk drives and HDD modules . . . . . . . . . . 75
8.2.2 Removing/Installing the dummy module . . . . . . . . . . . . . 76
8.2.3 Installing/removing the HDD module . . . . . . . . . . . . . . 77
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Literature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
RX330 S1 Operating manual 7
1 Introduction
The PRIMERGY RX330 S1 server is an AMD-based server for workgroups and
small networks. The server is suitable for use as a file server and also as an
application, information or Internet server.
Thanks to its highly developed hardware and software components, the
PRIMERGY RX330 S1 server offers a high level of data security and availability.
These components include hot-plug hard disk modules, redundant power
supply units, and the Server Management ServerView Suite, Prefailure Detection
and Analysing (PDA) and Automatic Server Reconfiguration and Restart
(ASR&R).
Security functions in the BIOS setup protect the data on the server against
manipulation. Additional security is provided by the lockable rack door.
The server occupies 2 height units (HU) in the rack.
1.1 Documentation overview
I PRIMERGY manuals are available in PDF format on the ServerBooks
DVD. The ServerBooks DVD is part of the ServerStart Suite supplied with
every server.
The PDF files of the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available on the Internet can be found using the URL:
http://manuals.fujitsu-siemens.com. The PRIMERGY server documentation
can be accessed using the Industry standard servers navigation option.
Concept and target groups for this manual
This operating manual describes how to install, set up and operate your server.
This manual is intended for those people responsible for installing the hardware
and ensuring that the system runs smoothly. The manual contains all the information required to install and operate your PRIMERGY RX330 S1.
It is assumed that users have some knowledge of hardware and data transmission, and a basic familiarity with the operating system that is being used.
8 Operating manual RX330 S1
Documentation overview Introduction
Additional server documentation
The PRIMERGY RX330 S1 documentation also includes:
– “Quick Start Hardware - PRIMERGY RX330 S1” (leaflet)
– “Quick Start Software - PRIMERGY ServerView Suite” (leaflet)
– “Warranty” manual (print version supplied with the system, PDF file available
on the ServerBooks DVD supplied)
– “Safety notes and other important information” manual (print version
supplied with the system, PDF file available on the ServerBooks DVD
supplied)
– “Ergonomics” manual (PDF file available on the ServerBooks DVD supplied)
– “Returning used devices” manual (PDF file available on the ServerBooks DVD
supplied)
– “Helpdesk” (leaflet with worldwide helpdesk telephone numbers)
– Technical manual for the system board D2440 (PDF file available on the
ServerBooks DVD supplied)
– “BIOS Setup” (PDF file available on the ServerBooks DVD supplied)
– “PRIMERGY RX330 S1 Server Options Guide” (PDF file available on the
ServerBooks DVD)
I The “Options Guide” describes the server expansion and modifi-
cation options.
– “ServerView Suite” includes the ServerStart Disc 1, the ServerStart Disc 2
and the ServerBooks DVD. The version of the
“PRIMERGY ServerView Suite - ServerStart” user manual is available on
the ServerBooks DVD.
I If you need a replacement copy of the ServerBooks DVD, send the
details of your server to the following e-mail address: Reklamat-PC-
LOG@fujitsu-siemens.com
– “ServerView RAID User Manual” (PDF file available on the ServerBooks DVD
supplied)
– “Integrated RAID for SAS User’s Guide” (PDF file available on the
ServerBooks DVD supplied)
– “Integrated Mirroring User’s Guide” (PDF file available on the supplied
ServerBooks DVD)
– “LSI SATA Software RAID User’s Guide” (PDF file available on
theServerBooks DVD supplied)
RX330 S1 Operating manual 9
Introduction Features
Further sources of information:
– Technical Manual for the relevant rack
– Manual for the monitor
– Manual on ServerView Server Management
– Manual for the remote testing and diagnostic system RemoteView
– Documentation for boards and drives
– Documentation for your operating system
– Information files on your operating system
(See also “Literature” on page 87.)
1.2 Features
System board
The features of the system board are described in the technical manual for the
system board D2440 for the hardware and in the “BIOS Setup” for the firmware
(see “Literature” on page 87).

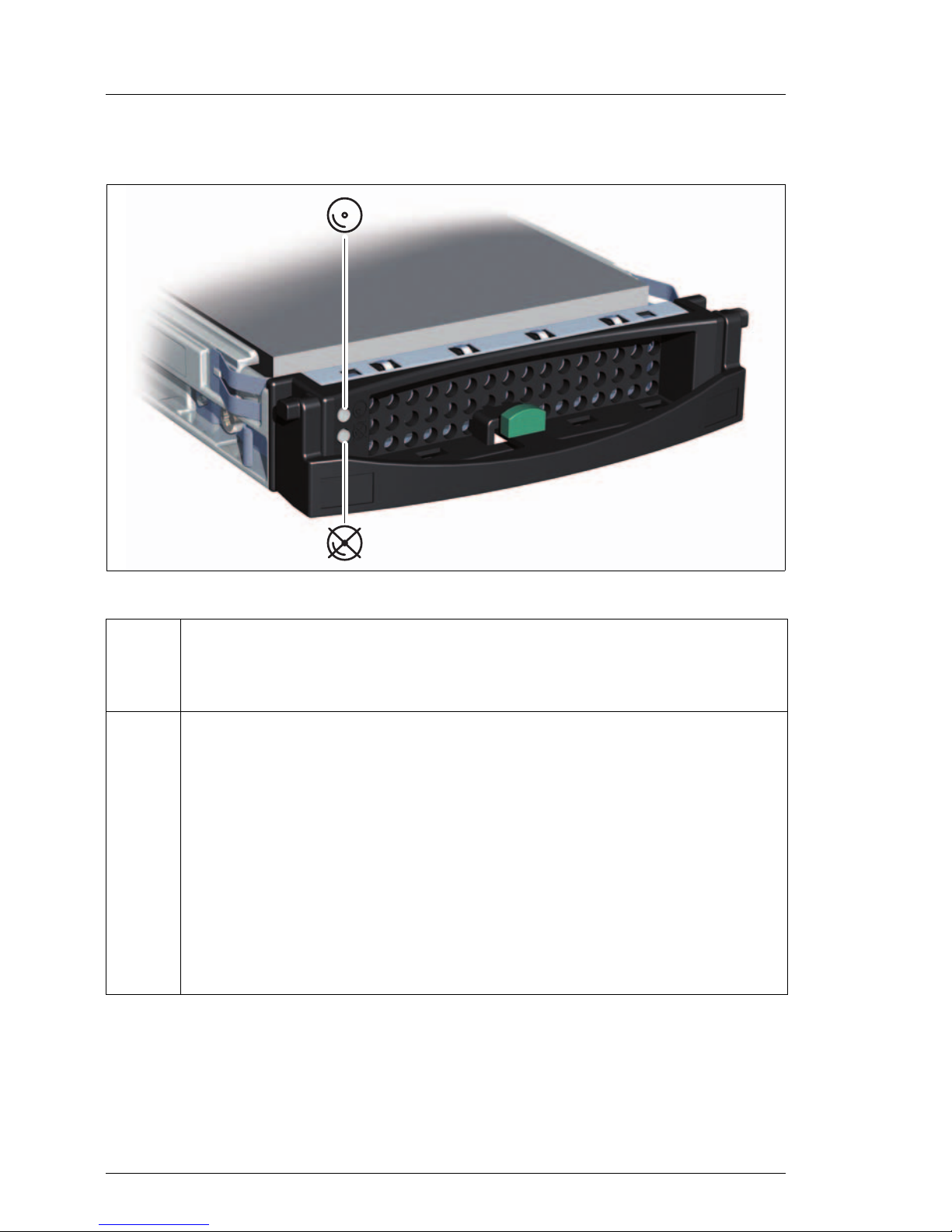

Hard disk drives
The server includes two drive cages with up to six (2x3) SAS/SATA2 hard disk
modules. Each hard disk module can accommodate an SAS/SATA2 hard disk
drive with a maximum height of 1 inch. The module is connected to the
SAS/SATA2 backplane wirelessly. This allows hard disk drive modules to be
simply plugged in or pulled out (for further details see “Hot plug hard disk drives”
on page 73).
The hard disk subsystem is designed for SAS/SATA 2, each with one channel
for each hard disk drive.
If the server has the corresponding RAID configuration, HDD modules can also
be exchanged during operation.
10 Operating manual RX330 S1
Features Introduction
Onboard SAS controller with Integrated Mirroring Enhanced functionality
An onboard SAS controller with "Integrated Mirroring Enhanced" (IME) functionality is fitted to operate the six hard drives. IME also offers RAID functionality for
configuring the internal hard disk drives (RAID level 0, 1).
I A separate utility is available to the controller for IME configuration.
Further information can be found in the "Integrated RAID for SAS User’s
Guide" (on the ServerBooks DVD under "Controllers").
The RAID functionality can optionally be expanded with a corresponding PCI
expansion module (zero-channel RAID controller). In addition to RAID levels 0
and 1, this RAID controller also offers the option of configuring RAID 5. The ZCR
controller uses the Onboard SAS controller using logic that is specially
integrated on the system board.
Accessible drives
A 5.25 inch bay is available for a CD/DVD drive or a magnetic tape drive. The
accessible drive installed here cannot be replaced during operation.
USB port
The USB interface on the front of the server supports activities carried out by
the service technician. The maximum length of the external cable are three
meters.
Power supply
The basic configuration of the server includes a hot-plug power supply unit,
which automatically sets itself to a mains voltage in the range of 100 V - 127 V
or 200 V - 240 V. As an option, the power supply can be expanded with an extra
power supply unit to create a redundant power supply. If a power supply unit
fails, the redundant configuration assures continued operation. The defective
power supply unit can be replaced during operation (for further details see “Hot-
plug power supply units” on page 69).
High level of availability and data security
When memory data is accessed, 1-bit errors in the main memory are identified
and automatically corrected with the ECC (Error Correcting Code) method. The
patented memory scrubbing function regularly starts up the EDC mechanism
and thus ensures continuous data integrity.
RX330 S1 Operating manual 11
Introduction Features
The memory modules used support SDDC technology (Chipkill™), which also
increases the effectiveness of the monitoring and correction of memory errors.
ASR&R (Automatic Server Reconfiguration and Restart) restarts the system in
case of an error and automatically “hides” the defective system components.
The PDA (Prefailure Detection and Analyzing) technology from Fujitsu Siemens
Computers analyzes and monitors all components that are critical for system
reliability.
The onboard SAS controller in conjunction with the ZCR controller supports
RAID levels 0, 1, and 5, thereby increasing the availability of the system.
Additional security is provided by the hot-plug HDD modules (depending on the
server variant).
iRMC with integrated service LAN port
I The features of the iRMC Advanced Video Redirection and Remote
Storage are available as an option.
The iRMC (integrated Remote Management Controller) is a BMC with
integrated service LAN port and expanded functionality that was previously only
available with additional plug-in cards. In this way, the iRMC enables complete
control of PRIMERGY servers, regardless of system status, and thus particularly the control of PRIMERGY servers that are in the "out-of-band" system
status.
By default, the service LAN port is assigned to the iRMC. However, you can also
configure LAN port 2 as the service LAN port in the BIOS setup. LAN port 2
then fulfills the tasks of a standard LAN port and those of a service LAN port at
the same time (virtual LAN with 2 different IP addresses).
12 Operating manual RX330 S1
Features Introduction
Major functions supported by the iRMC include the following:
● Browser access via iRMC's own Web server
● Secure communication (SSH, SSL)
● Power Management for the managed server (depending on its system
status)
● Text console bypass
● Command Line Interface (CLP)
● Simple, interactive or script-based iRMC configuration
● iRMC-s own user management
● Automatic network configuration via DNS / DHCP
● Power supply to the iRMC via the system standby supply
● Full-coverage alarm management
● System Error and Event Log (SEL) reading and processing
More information about the iRMC can be found in the "PRIMERGY ServerView
Suite - integrated Remote Management Controller (iRMC)" manual (see “Liter-
ature” on page 87).
RX330 S1 Operating manual 13
Introduction Features
Server management
Server management is implemented using theServerView software supplied
combined with PDA (Prefailure Detection and Analyzing) technology from
Fujitsu Siemens Computers. PDA reports the threat of a system error or
overload at an early stage, allowing preventive measures to be taken.
ServerView enables the management of all PRIMERGY servers in the network
via a central console. The following key functions and others are supported by
ServerView:
● Round-the-clock monitoring, regardless of server status
● High-performance, graphical console bypass (AVR) protected by
HTTPS/SSL (128 bit)
● Remote storage via USB
● Remote power on (Wake On LAN)
● Automatic switch-off when the housing is opened (Housing monitoring)
● Temperature monitoring of the CPU and the surrounding area
● Watchdog timer for Automatic Server Reconfiguration and Restart (ASR&R)
in the event of failure of memory modules or processors
● Power monitoring
● End-of-life monitoring of fans with prompt notification before failure
● Watchdog timer for operating system monitoring and application monitoring
with ASR&R
Further information about ServerView server management is provided in the
associated documentation (see “Literature” on page 87).
14 Operating manual RX330 S1
Features Introduction
ServerStart
You can configure the PRIMERGY server quickly and precisely with the ServerStart software provided. User-guided menus are available for installing the
server operating system (for further details see section “Configuring the server”
on page 58).
Service and support
PRIMERGY servers are service-friendly and modular, thus enabling quick and
simple maintenance.
The handles and locks (touch point) on the different hot pluggable components
are colored green to ensure simple and immediate recognition.
In order to avoid damage to components by incorrect handling when they are
being installed and removed, green highlighting also identifies the areas of all
components that can be touched without causing damage to the respective
component.
The Flash EPROM program supplied with the Fujitsu Siemens Computers
utilities supports a fast BIOS update.
With the iRMC (integrated Remote Management Controller) on the system
board and the optional remote testing and diagnostic system RemoteView, the
PRIMERGY RX330 S1 server can also be maintained and serviced remotely.
This enables remote diagnosis for system analysis, remote configuration and
remote restart should the operating system or hardware fail.
RX330 S1 Operating manual 15
Introduction Features
RemoteView
RemoteView is the remote management solution from Fujitsu Siemens
Computers for PRIMERGY servers. RemoteView and the relevant hardware
components integrated on the system board allow remote monitoring and
maintenance as well as fast restoration of operation in the event of errors.
Remote monitoring and maintenance avoids time-consuming and costly on-site
repairs and reduces service costs. This leads to a reduction in the total cost of
ownership and an excellent return on investment for the remote management
solution.
The administrator can access all system information and information from the
sensors such as fan speeds or voltages via the iRMC's Web interface (see
section “iRMC with integrated service LAN port” on page 11). He can also start
the text-based or graphic console bypass (Advanced Video Redirection, AVR)
and get information about remote storage.
I The features of the iRMC Advanced Video Redirection and Remote
Storage are available as an option.
16 Operating manual RX330 S1
Notational conventions Introduction
1.3 Notational conventions
The following notational conventions are used in this manual:
Text in italics indicates commands, menu items or software programs.
“Quotation marks” indicate names of chapters and terms that are being
emphasized.
Ê describes activities that must be performed in the order
shown.
V CAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
I indicates additional information, notes and tips.
RX330 S1 Operating manual 17
Introduction Technical data
1.4 Technical data
Electrical data (hot-plug power supply unit)
Compliance with regulations and standards
Rated voltage range 100 V - 127 V or 200 V - 240 V
Frequency 50 Hz - 60 Hz
Rated current with basic configuration 100 V - 240 V / 1.7 A - 0.8 A
Max. rated current 100 V - 240 V / 4.7 A - 2.0 A
Effective power 453 W
Apparent power 462 VA
Heat dissipation 1630 kJ/h (1545 btu/h)
Main power fuse 16 A
Protection class I
Product safety and
ergonomics
IEC 60950-1 / EN 60950-1, UL/CSA 60950-1,
CNS 14336 / GB 4943 / EN 50371
Electromagnetic
compatibility
FCC class A
CNS 13438 class A; VCCI class A
AS/NZS CISPR 22 class A / GB 9254 class A
GB 17625
Interference emissions EN 55022 class A
Harmonic current EN 61000-3-2
Flicker EN 61000-3-3
Interference immunity EN 55024, EN 300386
CE marking
to EU directives
Low Voltage Directive 73/23/EEC
(Product Safety)
Electromagnetic Compatibility 89/336/EEC
18 Operating manual RX330 S1
Technical data Introduction
Mechanical values
Weight
Approx. 24 - 27 kg (depending on configuration).
Ventilation clearance
At least 200 mm on the front and rear.
Ambient conditions
Condensation during operation must be avoided!
Noise level
Width 431 mm
Depth 686 mm
Height 87 mm (2 HU)
Installation depth in the
rack
651 mm
Cable depth in the rack 200.0 mm (1000 mm rack recommended)
Environment class 3K2
Environment class 2K2
EN 60721 / IEC 721 Part 3-3
EN 60721 / IEC 721 Part 3-2
Temperature:
Operation (3K2) 10 °C ... 35 °C
Transport (2K2) -25 °C ... 60 °C
Humidity 10% ... 85%
Sound power level L
WAd
(ISO 9296) < 6.6 B (standby)
< 7.3 B (operation)
Sound pressure level at adjacent workstation
L
pAm
(ISO 9296)
< 49 dB (A) (standby)
< 56 dB (A) (operation)
RX330 S1 Operating manual 19
2 Installation steps, overview
This chapter contains an overview of the steps necessary to install your server.
Links guide you to sections where you can find more detailed information on the
individual steps:
Ê First of all, it is essential that you familiarize yourself with the safety infor-
mation in the “Important information” on page 21 chapter.
Ê Unpack the system, check the contents of the package for visible transport
damage and check whether the delivery agrees with the details in the
delivery note (see “Unpacking the server” on page 34).
Ê The server includes loose parts. Keep these parts in a safe place. They are
designed to be used for installing optional components at a later time.
Ê Transport the server to the place where you want to install it
Ê Make sure that all necessary manuals (see “Additional server documen-
tation” on page 8) are available; print out the PDF files if required.
Ê Mount the server into the rack (see “Installing/removing the server in/from
the rack” on page 35).
Ê Wire the server. To do this, refer to sections “Connecting devices to the
server” on page 45 and “Notes on connecting/disconnecting cables” on
page 48.
Ê Connect the system to the line voltage (see “Connecting the server to the
mains” on page 47).
Ê Make yourself familiar with the operating and indicator elements on the front
and on the rear side of the server (see “Controls and displays” on page 49).
20 Operating manual RX330 S1
Installation steps, overview
Ê Configure the server and install the desired operating system and applica-
tions. The following options are available:
– Remote configuration and installation with ServerStart:
The ServerStart disc supplied allows you to conveniently configure the
server and install the operating system.
Details on how to operate ServerStart, as well as some additional information, can be found in the “PRIMERGY ServerView Suite - ServerStart”
manual.
Configuration information can also be found in the “Configuration with
ServerStart” on page 59 section.
– Local configuration and installation with or without ServerStart (see the
“Configuration with ServerStart” on page 59 section or the “Configuration
without ServerStart” on page 60 section).
I You will find more information on installing the server remotely or
locally in the ServerStart manual. This manual contains the installation
steps (“Quick Step Guide”). A corresponding file in PDF format is
included on the ServerBooks DVD.
RX330 S1 Operating manual 21
3 Important information
In this chapter you will find essential information regarding safety when working
on your server.
3.1 Safety
I The following safety instructions are also provided in the manual “Safety
notes and other important information”.
This device complies with the relevant safety regulations for data processing
equipment. If you have any questions about where you can set up the device,
contact your sales outlet or our customer service team.
V CAUTION!
● The actions described in this manual should only be performed by
technical specialists.
● Equipment repairs should only be performed by service personnel.
● Any unauthorized opening and improper repairs could expose the
user to risks (electric shock, energy hazards, fire hazards) and could
also damage the equipment.
● Any unauthorized opening of the device will result in the invalidation
of the warranty and exclusion from all liability.
22 Operating manual RX330 S1
Safety Important information
Before starting up
V CAUTION!
● During installation and before operating the device, observe the
instructions on environmental conditions for your device (see section
“Technical data” on page 17).
● If the server has been moved from a cold environment, condensation
may form both inside and on the outside of the machine.
Wait until the server has acclimatized to room temperature and is
absolutely dry before starting it up. Material damage may be caused
to the server if this requirement is not met.
● Only transport the server in the original packaging or in packaging
that protects it from impacts and jolts.
Installation and operation
V CAUTION!
● This unit should not be operated in ambient temperatures above
35°C.
● If the unit is integrated into an installation that draws power from an
industrial power supply network with an IEC309 connector, the power
supply's fuse protection must comply with the requirements for nonindustrial power supply networks for type A connectors.
● The unit automatically adjusts itself to a mains voltage in a range of
100 V - 127 V or 200 V - 240 V. Ensure that the local mains voltage
lies within these limits.
● This device must only be connected to properly grounded shock-
proof sockets or insulated sockets of the rack's internal power supply
with tested and approved power cables.
● Ensure that the device is connected to a grounded shockproof socket
close to the device.
RX330 S1 Operating manual 23
Important information Safety
V CAUTION!
● Ensure that the power sockets on the device and the grounded shock-
proof sockets are freely accessible.
● The On/Off button or the main power switch (if present) does not
isolate the device from the mains power supply. To disconnect it
completely from the mains power supply, unplug all network power
plugs from the grounded shockproof sockets.
● Always connect the server and the attached peripherals to the same
power circuit. Otherwise you run the risk of losing data if, for example,
the central processing unit is still running but a peripheral device (e.g.
memory subsystem) fails during a power outage.
● Data cables must be adequately shielded.
● The EN 50173 and EN 50174-1/2 standards apply for LAN cabling.
The minimum requirement is the use of a category 5 screened LAN
cable for 10/100 Mbps Ethernet, or a category 5e cable for Gigabit
Ethernet. The requirements from the ISO/IEC 11801 specification
must also be met.
● Route the cables in such a way that they do not create a potential
hazard (make sure no-one can trip over them) and that they cannot
be damaged. When connecting the server, refer to the relevant
instructions in this manual.
● Never connect or disconnect data transmission lines during a storm
(risk of lightning strike).
● Make sure that no objects (e.g. jewelry, paperclips etc.) or liquids get
inside the unit (electric shock hazard, short circuit).
● In emergencies (e.g. damaged casing, controls or cables, penetration
of liquids or foreign bodies), switch off the server immediately, remove
all power plugs and contact your sales outlet or customer service
team.
24 Operating manual RX330 S1
Safety Important information
V CAUTION!
● Proper operation of the system (in accordance with IEC 60950-1/
EN 60950-1) is only ensured if the casing is completely assembled
and the rear covers for the installation slots have been fitted (electric
shock, cooling, fire protection, interference suppression).
● Only install system expansions that satisfy the requirements and
rules governing safety and electromagnetic compatibility and those
relating to telecommunication terminals. If you install other expansions, they may damage the system or violate the safety regulations.
Information on which system expansions are approved for installation
can be obtained from our customer service center or your sales
outlet.
● The components marked with a warning notice (e.g. lightning symbol)
may only be opened, removed or exchanged by authorized, qualified
personnel. Exception: hot-pluggable power supply units can be
replaced.
● The warranty is void if the server is damaged during installation or
replacement of system expansions.
● Only set screen resolutions and refresh rates that are specified in the
operating manual for the monitor. Otherwise, you may damage your
monitor. If you are in any doubt, contact your sales outlet or customer
service center.
RX330 S1 Operating manual 25
Important information Safety
Working with CDs/DVDs and CD/DVD drives
When working with devices with CD/DVD drives, these instructions must be
followed.
V CAUTION!
● Only use CDs/DVDs that are in perfect condition in your server's
CD/DVD drive, in order to prevent data loss, equipment damage and
injury.
● Check each CD/DVD for damage, cracks, breakages etc. before
inserting it in the drive.
Note that any additional labels applied may change the mechanical
properties of a CD/DVD and cause imbalance.
Damaged and imbalanced CDs/DVDs can break at high drive speeds
(data loss).
Under certain circumstances, sharp CD/DVD fragments can pierce
the cover of the CD/DVD drive (equipment damage) and can fly out
of the device (danger of injury, particularly to uncovered body parts
such as the face or neck).
I You can prevent mechanical damage and damage to the CD/DVD drive,
as well as premature CD/DVD wear, by observing the following suggestions:
– Only insert CDs/DVDs in the drive when needed and remove them
after use.
– Store the CDs/DVDs in suitable sleeves.
– Protect the CDs/DVDs from exposure to heat and direct sunlight.
Laser information
The CD/DVD drive complies with IEC 60825-1 laser class 1.
V CAUTION!
The CD/DVD drive contains a light-emitting diode (LED), which under
certain circumstances produces a laser beam stronger than laser
class 1. Looking directly at this beam is dangerous.
Never remove parts of the CD/DVD drive casing!
26 Operating manual RX330 S1
Safety Important information
Batteries
V CAUTION!
● Incorrect replacement of batteries may lead to a risk of explosion. The
batteries may only be replaced with identical batteries or with a type
recommended by the manufacturer (see the technical manual for the
system board under “Literature” on page 87).
● Do not throw batteries into the trash can. They must be disposed of
in accordance with local regulations concerning special waste.
● The battery must be disposed of in accordance with local regulations
concerning special waste.
● Replace the lithium battery on the system board in accordance with
the instructions in the technical manual for the system board (see
“Literature” on page 87).
● All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). In addition, the marking is provided with
the chemical symbol of the heavy metal decisive for the classification
as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead
RX330 S1 Operating manual 27
Important information Safety
Modules with Electrostatic-Sensitive Devices
Modules with electrostatic-sensitive devices are identified by the following
sticker:
Figure 1: ESD label
When you handle components fitted with ESDs, you must always observe the
following points:
● Switch off the system and remove the power plugs from the power outlets
before installing or removing components with ESDs.
● You must always discharge static build-up (e.g. by touching a grounded
object) before working with such components.
● Any devices or tools that are used must be free of electrostatic charge.
● Wear a suitable grounding cable that connects you to the external chassis of
the system unit.
● Always hold components with ESDs at the edges or at the points marked
green (touch points).
● Do not touch any connectors or conduction paths on an ESD.
● Place all the components on a pad which is free of electrostatic charge.
I For a detailed description of how to handle ESD components, see the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).
28 Operating manual RX330 S1
CE conformity Important information
Other important information:
● During cleaning, observe the instructions in section “Cleaning the server” on
page 60.
● Keep this operating manual and the other documentation (such as the
technical manual, CD) close to the device. All documentation must be
included if the equipment is passed on to a third party.
3.2 CE conformity
3.3 FCC Class A Compliance Statement
If there is an FCC statement on the device, then:
The following statement applies to the products covered in this manual, unless
otherwise specified herein. The statement for other products will appear in the
accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a
“Class A” digital device, pursuant to Part 15 of the FCC rules and meets all
requirements of the Canadian Interference-Causing Equipment Standard
ICES-003 for digital apparatus. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in strict accordance with the instructions, may cause harmful
interference to radio communications. However, there is no warranty that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
The system complies with the requirements of the EC directives
89/336/EEC regarding “Electromagnetic Compatibility” and
73/23/EEC “Low Voltage Directive”. This is indicated by the CE
marking (CE = Communauté Européenne).
RX330 S1 Operating manual 29
Important information Transporting the server
● Reorient or relocate the receiving antenna.
● Increase the separation between equipment and the receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those
specified by Fujitsu Siemens Computers. The correction of interferences
caused by such unauthorized modification, substitution or attachment will be the
responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to
any and all optional peripheral or host devices. Failure to do so may violate FCC
and ICES rules.
WARNING:
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
3.4 Transporting the server
V CAUTION!
Only transport the server in its original packaging or in packaging that
protects it from impacts and jolts. Do not unpack the server until it is at
its installation location.
If you need to lift or transport the server, ask other people to help you.
Never lift or carry the device by the handles on the front panel.
30 Operating manual RX330 S1
Notes on installing in the rack Important information
3.5 Notes on installing in the rack
V CAUTION!
● For safety reasons, at least two people are required to install the
rack model because of its weight and size.
● Never lift the server into the rack using the handles on the front panel.
● When connecting and disconnecting cables, observe the relevant
instructions in the “Important Information” chapter of the technical
manual for the corresponding rack. The technical manual is supplied
with the corresponding rack.
● When installing the rack, make sure that the anti-tilt mechanism is
correctly fitted.
● For safety reasons, no more than one unit may be removed from the
rack at any one time during installation and maintenance work.
● If several units are simultaneously removed from the rack, there is a
risk that the rack could tip over.
● The rack must be connected to the power supply by an authorized
specialist (electrician).
● If the rack model is integrated into an installation that draws power
from an industrial power supply network with an IEC309 type
connector, the power supply's fuse protection must comply with the
requirements for non-industrial power supply networks for the type A
connector.
RX330 S1 Operating manual 31
Important information Environmental protection
3.6 Environmental protection
Environmentally-friendly product design and development
This product has been designed in accordance with the Fujitsu Siemens
Computers standard for “environmentally friendly product design and development”. This means that key factors such as durability, selection and labeling
of materials, emissions, packaging, ease of dismantling and recycling have
been taken into account.
This saves resources and thus reduces the harm done to the environment.
Energy-saving information
Devices that do not need to be constantly switched on should be switched off
until they are needed as well as during long breaks and after completion of work.
Packaging information
Do not throw away the packaging. You may need it later for transporting the
system. If possible, the equipment should only be transported in its original
packaging.
Information on handling consumables
Please dispose of printer consumables and batteries in accordance with the
applicable national regulations.
In accordance with EU directives, batteries must not be disposed of with
unsorted domestic waste. They can be returned free of charge to the manufacturer, dealer or an authorized agent for recycling or disposal.
All batteries containing pollutants are marked with a symbol (a crossed-out
garbage can). They are also marked with the chemical symbol for the heavy
metal that causes them to be categorized as containing pollutants:
Cd Cadmium
Hg Mercury
Pb Lead
32 Operating manual RX330 S1
Environmental protection Important information
Labels on plastic casing parts
Please avoid sticking your own labels on plastic parts wherever possible, since
this makes it difficult to recycle them.
Returns, recycling and disposal
Details regarding the return and recycling of devices and consumables within
Europe can also be found in the “Returning used devices” manual, via your local
Fujitsu Siemens Computers branch or from our recycling center in Paderborn:
Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn
Tel. +49 5251 8 18010
Fax +49 5251 8 18015
The device must not be disposed of with domestic waste. This
device is labeled in compliance with European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
This directive sets the framework for returning and recycling used
equipment and is valid across the EU. When returning your used
device, please use the return and collection systems available to
you. Further information can be found at
www.fujitsu-siemens.com/recycling.
RX330 S1 Operating manual 33
4 Hardware installation
V CAUTION!
● Follow the safety instructions in the chapter “Important information”
on page 21.
● Do not expose the server to extreme environmental conditions (see
“Ambient conditions” on page 18). Protect the server from dust,
humidity and heat.
● Make sure that the server is acclimatized for the time indicated in this
table before putting it into operation.
In table “Acclimatization time”, the temperature difference refers to
the difference between the operating environment temperature and
the temperature to which the server was exposed previously (outside,
transport or storage temperature).
Temperature difference (°C) Minimum acclimatization time
(hours)
53
10 5
15 7
20 8
25 9
30 10
Table 1: Acclimatization time
34 Operating manual RX330 S1
Unpacking the server Hardware installation
4.1 Unpacking the server
V CAUTION!
Follow the safety instructions in the “Important information” on page 21
chapter.
The server must always be lifted or carried by at least two people.
Do not unpack the server until it is at its installation location.
Ê Transport the server to the place where you want to set it up.
Ê Unpack all individual parts.
Keep the original packaging in case you want to transport the server again.
Ê Check the delivery for any damage during transport.
Ê Check whether the items delivered match the details on the delivery note.
The product name and serial number of the product can be found on the identification rating plate.
Ê Notify your supplier immediately should you discover that the items delivered
do not correspond to the delivery note.
RX330 S1 Operating manual 35
Hardware installation Installing/removing the server in/from the rac
k
4.2 Installing/removing the server in/from the
rack
V CAUTION!
● Follow the safety instructions in chapter “Important infor-
mation” on page 21 and section “Notes on installing in the rack”
on page 30.
● At least two people are needed to position the server into/out of
the rack.
● The rack can tip over when more than one unit is removed.
● The server may not occupy the top height unit of the rack (38 HU/42
HU PRIMECENTER Rack and/or DataCenter Rack), as otherwise
boards or fans cannot be replaced even with the plug-in module fully
extended.
Rack requirements
The rack systems from Fujitsu Siemens Computers (PRIMECENTER Rack and
DataCenter Rack) support installation of PRIMERGY servers. Installation in
most current rack systems from other manufacturers (3rd party racks) is also
supported.
To accommodate the ventilation concept and ensure proper ventilation, any
unused areas in the rack must be sealed using dummy covers.
The power is supplied via the multiple socket outlets fitted in the rack.
36 Operating manual RX330 S1
Installing/removing the server in/from the rack Hardware installation
The main features of the rack systems from Fujitsu Siemens Computers are as
follows:
PRIMECENTER Rack
– Telescopic rails screwed to the front
The rails have a linear alignment feature to ensure that they can be adjusted
to different rack depths.
– Enhanced cable management in the lateral rack area.
DataCenter Rack
– Telescopic rails screwed to the front (except in the rear left area, where a
support bracket is used).
– Enhanced cable management in the lateral rack area.
The mounting of the rails in the different racks is described in the next sections.
Installation of the cable management is described in detail in the Technical
Manual for the respective rack.
For rack systems from other manufacturers:
RX330 S1 Operating manual 37
Hardware installation Installing/removing the server in/from the rac
k
3rd party rack
Certain general conditions must be met:
– Installation dimensions (see the dimensions shown in figure 2 on page 38):
– You must ensure that the safety mechanisms on the server, e.g. stoppers or
retaining systems, are functioning correctly.
– The shape of the rack support uprights must ensure that the rails can be
bolted to the front.
– Telescopic rails screwed to the front
The rails have a linear alignment feature to ensure that they can be adjusted
to different rack depths.
– No support of the cable management (delivered with the mounting kit).
– Climatic conditions.
An unobstructed air intake in the rack front and air discharge in the rear
cover of the rack are essential for ventilation of the installed server.
In principle the ventilation concept plans that the necessary cooling is
reached by the horizontal self-ventilation of the installed devices (air flow
from the front to the rear).
1 Front of rack
2 Rear of rack
A Rack depth (comparison PRIMECENTER Rack 940/1000 mm)
B Rack width (comparison PRIMECENTER Rack 700 mm)
C Clearance for 19” installation level
C1 Front 19” installation level
C2 Rear 19” installation level
D Cable routing area (cable area depth) and ventilation
E Space for front panel and ventilation
F Space for right and left support systems
P PRIMERGY rack installation depth
a1 Front left support upright
a2 Front right support upright
b1 Rear left support upright
b2 Rear right support upright
38 Operating manual RX330 S1
Installing/removing the server in/from the rack Hardware installation
– Power supply:
For installation in 3rd party racks, you must ensure that the appropriate
socket strips are present.
Figure 2: Mechanical requirements
RX330 S1 Operating manual 39
Hardware installation Installing/removing the server in/from the rac
k
4.2.1 Installation in PRIMECENTER/DataCenter Rack
For installation in a PRIMECENTER/DataCenter Rack, the following parts are
required:
– Support bracket
– One left and one right telescopic rail (assembled)
– M5x10 screws with integrated plugwashers
I – Or, M5x10 screws with separate plugwashers can also be used. In
this case, two plugwashers each must be fitted beforehand on the
support uprights and the support bracket.
– The descriptions and figures in this section refer to the current
variable support.
– General information is provided in the Technical Manual for the
PRIMECENTER and/or DataCenter Rack (see “Literature” on
page 87).
When mounting the left telescopic rail in the PRIMECENTER/DataCenter Rack,
the supplied support bracket must first be mounted on the rear left support
upright flush with the bottom edge of the device.
Figure 3: Fitting the support bracket
Ê Position the support bracket at the corresponding height on the rear left
support upright, (insert lug in corresponding hole) (1).
Ê Secure the bracket with two screws incl. plug washers (2).
2
1
40 Operating manual RX330 S1
Installing/removing the server in/from the rack Hardware installation
Figure 4: Remove the outer telescopic rail
Ê Extend the telescopic rail fully (1).
Ê Press the release spring (2) and remove the server rail.
Ê Repeat both steps with the second telescopic rail.
I No nuts are required to secure the telescopic rails as the fixing holes on
the rails are threaded.
1
1
2
RX330 S1 Operating manual 41
Hardware installation Installing/removing the server in/from the rac
k
Installing the telescopic rail with variable support
Figure 5: Fit the left telescopic rail in the PRIMECENTER/DataCenter Rack
Ê Position the left-hand rail (1) in the support bracket with the vertical lug (a)
in the middle square catch.
Ê Press the left rail together until its front end passes behind the front left
support upright (2), then release.
Ê Secure the rail on the front left support upright (3) and the support bracket
in the rack (4) with two (M5) screws each.
Ê Repeat the steps with the right telescopic rail (to be secured to the right
support uprights).
Ê Fit the PRIMECENTER/DataCenter Rack cable management as described
in the technical manual for the rack.
Ê Insert the server (see the “Inserting the server” on page 43 section).
Ê Route the cables once the server has been inserted, as described in the
Technical Manual for the rack in question.
a
1
4
3
2
42 Operating manual RX330 S1
Installing/removing the server in/from the rack Hardware installation
4.2.2 Installation in 3rd party racks
The following parts are required to install the server in 3rd party racks:
– One left and one right telescopic rail (assembled)
– M5x10 screws with integrated plugwashers
I – Or, M5x10 screws with separate plugwashers can also be used.
In this case, two plugwashers each must be fitted beforehand on
the support uprights and the support bracket.
– The descriptions and figures in this section refer to the current
variable support.
Ê Refer to the manual from the rack manufacturer for details of the mechanical
installation and the climatic conditions.
V CAUTION!
For installation in 3rd party racks, it must be ensured that an air flow
from the front to the back of the rack is guaranteed.
Ê Fit the required original parts (support bracket or cable management
system).
I Under certain circumstances, you will not be able to use some of the
parts from the rack installation kit supplied - you will need to use
original 3rd party rack parts instead.
Ê Remove the outer telescopic rail as described in page 40 (figure 4).
Racks with installation depth of 735 mm
The lengths of the telescopic rails do not need to be adjusted with respect to
each other for the installation in rack systems with 735 mm installation depth.
Ê Secure the telescopic rails as described in section “Installation in PRIME-
CENTER/DataCenter Rack” on page 39.
Ê Mount the server (see section “Inserting the server” on page 43) and route
the cables as described in the rack manual.
RX330 S1 Operating manual 43
Hardware installation Installing/removing the server in/from the rac
k
Racks with installation depth smaller/greater than 735 mm
The lengths of the telescopic rails have to be adjusted with respect to each other
when installing in rack systems with an installation depth greater than/less than
735 mm. The length is adjusted with the spring element on the variable support
Ê Secure the telescopic rails as described in section “Installation in PRIME-
CENTER/DataCenter Rack” on page 39.
Ê Mount the server (see section “Inserting the server” on page 43) and route
the cables as described in the rack manual.
4.2.3 Inserting the server
Figure 6: Preparing the server
Ê Place the server rails on the three screws on both sides of the server (1) and
slide the server rails forwards to secure them (2).
The safety spring (a) must engage with an audible click.
1
2
a
44 Operating manual RX330 S1
Installing/removing the server in/from the rack Hardware installation
Figure 7: Inserting the server
V CAUTION!
At least two people are needed to position the server in the rack.
Ê Fully extend the fitted telescopic rails (1). They must click into place so that
they can no longer be moved.
Ê Push the prepared server into the rails that are attached to the rack until the
server rails engage (2).
I Ensure that the server is inserted horizontally and is not tilted.
Ê Press the safety springs in on both sides (3).
Ê Gently push the server as far as it will go into the rack (4).
Ê Fasten the server to the rack (5) using the two knurled screws (front panel).
To remove the server, follow this procedure in reverse.
1
1
2
3
4
4
5
5
RX330 S1 Operating manual 45
Hardware installation Connecting devices to the server
4.3 Connecting devices to the server
The ports for external devices are on the rear of the server. The additional ports
available on your server depend on the options and PCI boards installed.
The standard ports (figure 8) are marked with symbols, and some are colorcoded:
Figure 8: Ports on the rear
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the desired devices to the server.
You can find an additional USB port (1) on the front of the server (figure 9):
1 Mouse port (PS/2) (green) 6 2 x USB ports (black)
2 Serial port COM 2 (turquoise) 7 Monitor port (VGA) (blue)
3 Service LAN port 8 Serial port COM 1 (turquoise)
(alternative service port)
4 LAN port 2 9 Keyboard port (PS/2) (purple)
5 LAN port 1
56789
4321
56789
4321
46 Operating manual RX330 S1
Connecting devices to the server Hardware installation
Figure 9: USB port on the front
Connecting the keyboard, mouse and monitor
Ê Connect the monitor, keyboard and mouse to the standard ports of the
server (see table and figure 8 on page 45).
I If a separate graphics card is installed in a slot, the graphic controller on
the system board is automatically deactivated. The corresponding
monitor port (VGA) can not be used. Plug the data cable of the monitor
into the monitor port of the graphics card.
Ê Connect the power cable of the monitor to the mains socket strip of the rack.
I The rated current for the monitor can be found on the technical data label
on the monitor or in the operating manual for the monitor.
1
RX330 S1 Operating manual 47
Hardware installation Connecting the server to the mains
4.4 Connecting the server to the mains
In its basic configuration level the server has a hot-plug power supply unit. A
second hot plug power supply unit can be added to achieve redundant power
supply. If a defect occurs in one power supply unit, the other power supply unit
ensures continued operation of the server.
V CAUTION!
The installed power supply units automatically set themselves to a mains
voltage in the range of 100 V - 127 V or 200 V - 240 V. Make sure that
your local mains voltage is within the correct range.
Figure 10: Connecting the server to the mains
Ê Connect the power cable with the insulated connector (1) to the power
supply unit of the server, and plug the power plug (2) into a grounded outlet
on the mains socket strip on the rack (see the technical manual for the rack).
I A phase redundancy in the power supply of the server can be set up if
two hot plug power supply units are installed.
In this case, the two power supply units are connected to two different
phases.
1
2
48 Operating manual RX330 S1
Notes on connecting/disconnecting cables Hardware installation
4.5 Notes on connecting/disconnecting cables
V CAUTION!
Always read the documentation supplied with the device you wish to
connect.
Never connect, or disconnect cables during a thunderstorm.
Never pull on a cable when disconnecting it. Always take hold of the
cable by the plug.
Follow the sequence described below to connect or disconnect external
devices to or from the server:
Connecting cables
Ê Turn off all power and equipment switches.
Ê Disconnect all power plugs from the grounded shockproof sockets.
Ê Connect all cables to the server and peripherals.
Ê Plug all data communication cables into the utility sockets.
Ê Plug all power cables into the grounded shockproof sockets.
Disconnecting cables
Ê Turn off all power and equipment switches.
Ê Disconnect all power plugs from the grounded shockproof sockets.
Ê Unplug all data communication cables from the utility sockets.
Ê Disconnect the relevant cables from the server and all the peripherals.
RX330 S1 Operating manual 49
5 Starting up and operation
V CAUTION!
Follow the safety instructions in the chapter “Important information” on
page 21.
5.1 Controls and displays
5.1.1 Front of server
Figure 11: Controls and indicators on the front
1 HDD BUSY indicator 7 On/Off button
2 HDD FAULT indicator 8 Global error indicator
3 CD/DVD indicator 9 Drive access indicator
4 ID indicator 10 Power-on indicator
5 Reset button 11 ID button
6 NMI button
1
2
3 4
5
6
89
1011
7
1
2
3 4
5
6
89
1011
7
50 Operating manual RX330 S1
Controls and displays Starting up and operation
Controls
Indicators on the control panel
On/Off button
When the system is switched off, it can be switched on again by
pressing the On/Off button. When the system is operating, pressing
the On/Off button will switch off the system.
I The On/Off button does not disconnect the server from the
mains. To disconnect from the mains completely, remove the
power plug(s).
NMI NMI button
I Do not press! The NMI button may only be used by service
personnel.
RST Reset button
Pressing the reset button reboots the system.
ID ID button
Lights up (blue) on the front and on the rear of the server when the
ID button is pressed. The two ID indicators are synchronized.
Power-on indicator (three colors)
Lights red when the server is switched off but line voltage is
present.
Lights yellow during power up delay.
I If the server is switched off and then immediately switched
on again, a server is only restarted after a power up delay.
This prevents a current overload, for example.
You can set the power up delay (in seconds) in the BIOS
setup in the Server Menu menu with Power Cycle Delay .
Lights up green when the server is switched ON.
Flashes green when the server has been switched on and is in
standby mode.
RX330 S1 Operating manual 51
Starting up and operation Controls and displays
Indicators on the drives
CD/DVD indicator
Lights up green when the storage medium is being accessed.
Drive access indicator (green)
Flashes green when an internal hard disk drive is being
accessed.
Global Error indicator (red)
Does not light up when the system is OK. No service incident or
critical event has occurred.
Lights up red when a predictable error has been detected. Users
can check the system and event log or via ServerView for more
detailed information.
Flashes red when a critical event has occurred. Users can check
for event details in the BIOS Setup, the system and event log or
via ServerView.
If the event is still acute after a power failure, the indicator is
activated after the restart.
ID ID indicator (blue)
Lights up blue when the system has been selected by pressing
the ID button. To deactivate, press the button again.
The ID indicator can also be activated via ServerView and its status
reported to ServerView.
!
52 Operating manual RX330 S1
Controls and displays Starting up and operation
Indicators on the HDD module
Figure 12: Indicators on the HDD module
LED
green
HDD BUSY
– lights: HDD in active phase
– does not light: HDD inactive (drive inactive)
LED
red
HDD FAULT (in conjunction with a RAID controller)
– does not light: no HDD error
– Lit: HDD Faulty or Rebuild Stopped (drive defective/needs
replacing, a rebuild process was stopped or the HDD module is
not correctly inserted)
– Slow flashing: HDD Rebuild (the data is being restored after
changing a hard disk drive)
– Fast flashing: HDD Identify
– four fast blinks/pause: HDD Predicted Fault
– Two fast flashes/pause: HDD Hot Spare (Hot spare drive active.
The corresponding drive has failed).
HDD BUSY
HDD FAULT
RX330 S1 Operating manual 53
Starting up and operation Controls and displays
5.1.2 Rear of server
Indicators on connection panel (global error indicator and ID indicator)
Figure 13: Global error indicator and ID indicator
1 ID indicator (blue)
Lights blue when the system has been selected by pressing the ID button
on the front. To deactivate, press the button again.
The ID indicator on the front also lights up at the same time. The two ID
indicators are synchronized.
The ID indicator can also be activated via ServerView and its status
reported to ServerView.
2 Global Error indicator (red)
Does not light up when the system is OK. No service incident or critical
event has occurred.
Lights up red when a predictable error has been detected. Users can check
the system and event log or via ServerView for more detailed information.
Flashes red when a critical event has occurred. Users can check BIOS
Setup, system- and eventlog or via ServerView for event details.
If the event is still acute after a power failure, the indicator is activated after
the restart.
2
1
54 Operating manual RX330 S1
Controls and displays Starting up and operation
Indicators on the connection panel (LAN indicators)
Figure 14: LAN indicators
1 LAN link/active indicator (service LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
2 LAN transfer rate indicator (service LAN)
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
3 LAN link/Active indicator (standard LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
4 LAN transfer rate indicator (standard LAN)
Lights yellow for a LAN transfer rate of 1 Gbps.
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
1 324
3 4
RX330 S1 Operating manual 55
Starting up and operation Controls and displays
Hot-plug PSU indicators
Figure 15: Hot-plug PSU indicators
LED Status Meaning
1 AC On Mains voltage on
Off Mains voltage off
2 DC On PSU in operation
Off PSU in standby mode or failed
1
2
1
2
56 Operating manual RX330 S1
Switching the server on and off Starting up and operation
5.2 Switching the server on and off
V CAUTION!
If nothing appears on the screen but flickering stripes after switching on
the server, switch the server off immediately (see section “Flickering
stripes on monitor screen” on page 65).
The On/Off button does not disconnect the server from the mains. To
disconnect from the mains completely, remove the power plug(s).
Switching the server on
The power-on indicator (item 10 in figure 11 on page 49) lights red.
– Starting up for the first time:
Ê Press the On/Off button (position 7 in figure 11 on page 49).
The power-on indicator lights up green (item 10 in figure figure 11 on
page 49).
Ê Insert ServerStart disc 1 in the CD/DVD drive.
Ê Follow the on-screen instructions (see also section “Configuration with
ServerStart” on page 59 or section “Configuration without ServerStart”
on page 60).
– System already installed:
Ê Press the On/Off button (position 7 in figure 11 on page 49).
The power-on indicator lights up green (item 10 in figure figure 11 on
page 49).
The server is switched on, performs a system test and boots the
operating system.
RX330 S1 Operating manual 57
Starting up and operation Switching the server on and off
Switching the server OFF
Power-on indicator (position 10 in figure 11 on page 49) lights green.
Ê Shut down the operating system properly.
The server is automatically switched off. The Power-on indicator lights red.
I If the operating system does not switch the server off automatically,
press the On/Off button for at least four seconds and/or send a corresponding control signal.
Other on/off options
In addition to the On/Off button, the server can be switched ON and OFF in the
following ways:
– Specified switch on time / switch off time
The server is switched ON or OFF at a time specified in the ServerView
program
– Ring indicator
The server is switched on by an internal or external modem.
– Wake On LAN (WOL)
The server is switched on by a command via the LAN (Magic Packet).
– After power failure
The server automatically reboots following a power failure (depending of the
settings in the BIOS).
– “Power override” function
The server can be switched off immediately by pressing and holding the
On/Off button (approx. 4-5 sec.).
V CAUTION!
There is a risk that data may be lost.
58 Operating manual RX330 S1
Configuring the server Starting up and operation
– IPMI
The server is switched on by an IPMI console via serial port COM1 (item 8
in figure 8 on page 45) or via LAN port M (item 3 in figure 8 on page 45).
5.3 Configuring the server
This section contains information about configuring the server and installing the
operating system.
I Make sure that the energy saving functions are disabled in the BIOS Setup
during server operation.
5.3.1 Configuring onboard SAS controller
The server has an onboard SAS controller with “Integrated Mirroring Enhanced”
functionality. You can configure the Onboard-SAS-Controller either before or
during ServerStart. Using ServerStart is recommended.
I A separate utility is available to the controller for IME configuration.
Further information can be found in the "Integrated RAID for SAS User’s
Guide" (on the ServerBooks DVD under "Controllers").
I Descriptions of operating systems not covered in the RAID controller
manual are provided in the appropriate readme files on the driver CDs.
RX330 S1 Operating manual 59
Starting up and operation Configuring the server
5.3.2 Configuration with ServerStart
With the ServerStart Disc 1 provided, you can configure the server and install the
operating system in a convenient manner. Menu-guided configuration includes
server configuration with the SCU and RAID controller configuration with
ServerViewRAID.
The ServerStart advantages
– Automatic configuration of your server’s hardware and disk arrays.
– Installation assistance for all leading server operating systems.
– Creation of configuration files for unattended installation of several
PRIMERGY servers with identical hardware configurations.
– Installation of drivers and additional software.
I The software that can be installed depends on your server’s hardware
configuration. This configuration is detected automatically.
I Descriptions of operating systems not covered in the RAID controller
manual are provided in the appropriate readme files on the driver CDs.
To find out how to operate ServerStart and for further information, refer to the
corresponding manual (see “Literature” on page 87).
If you are using ServerStart, you can skip the following section on how to
configure the server and install the operating system. Continue from the
“Cleaning the server” on page 60 section.
60 Operating manual RX330 S1
Cleaning the server Starting up and operation
5.3.3 Configuration without ServerStart
Configuring onboard SAS controller
Configure the controller as described in section “Configuring onboard SAS
controller” on page 58.
Operating system installation
Ê Insert the CD for the operating system you want to install.
Ê Reboot the server.
Ê Follow the instructions on screen and in the manual for the operating
system.
If your server is equipped with a RAID controller, please read how to install the
desired operating system in the related manual.
5.4 Cleaning the server
V CAUTION!
Switch the server off and disconnect the power plugs from the grounded
shockproof sockets.
Do not clean any interior parts yourself; leave this job to a service
technician.
Do not use any cleaning agents that contain abrasives or may corrode
plastic.
Ensure that no liquid enters the system. Ensure that the ventilation areas
of the server and the monitor are clear.
Clean the keyboard and the mouse with a disinfecting cloth.
Wipe the server and monitor casing with a dry cloth. If particularly dirty, use a
cloth that has been moistened in a mild domestic detergent and then carefully
wrung out.
RX330 S1 Operating manual 61
6 Property and data protection
The lockable rack door protects the server against unauthorized access.
To protect your system and data internally against unauthorized access, you
can use the BIOS Setup security functions.
6.1 BIOS Setup security functions
The Security menu in the BIOS Setup provides you with various options for
protecting your data from unauthorized access. By combining these options,
you can also achieve optimum protection for your system.
I You will find a detailed description of the Security menu and how to assign
passwords in the manual for the BIOS Setup and on the ServerBooks DVD
(see “Literature” on page 87).
Preventing unauthorized BIOS Setup calls
You can activate this protection by entering a setup password in the Security
menu. You can also suppress the Press F2 for Setup message in this menu.
This message is then no longer displayed while the server's startup routine is in
progress.
Preventing unauthorized system access
You can activate this protection by entering a system password in the Security
menu.
Preventing unauthorized access to the boards with their own BIOS
You can activate this protection by selecting the Extended item for Setup Password
Lock field in the Security menu.
Preventing the system from booting from the floppy disk drive
You can activate this protection by selecting the item Diskette Lock for the System
Load field in the Security menu.
62 Operating manual RX330 S1
BIOS Setup security functions Property and data protection
Preventing unauthorized writings of floppy disks
To activate this protection, select the value Disabled for the Diskette Write field in
the Security menu.
Protecting BIOS from being overwritten
To activate this protection, select the value Disabled for the Flash Write field in
the Security menu.
Protecting the server from being switched on by an external device
To activate this protection, select the value Disabled for the Remote Power On field
in the Security menu.
Protecting the server from being switched off by a program
To activate this protection select the value Disabled for the Soft Power Off field in
the Security menu.
RX330 S1 Operating manual 63
7 Troubleshooting and tips
V CAUTION!
Follow the safety instructions in the “Safety notes and other
important information” manual and in the “Important information”
on page 21 chapter.
If a fault occurs, attempt to resolve it using the measures described:
– in this chapter,
– in the documentation for the connected devices,
– in the help systems of the software used.
If you fail to correct the problem, proceed as follows:
Ê Make a list of the steps performed and the circumstances that led to the fault.
Also make a list of any error messages that were displayed.
Ê Switch off the server.
Ê Contact our customer service team.
7.1 Power-on indicator remains unlit
The power-on indicator remains dark after you switch on your device.
Power cable incorrectly connected
Ê Make sure that the power cable(s) is/are correctly connected to the server
and the grounded socket(s).
Power supply overloaded
Ê Disconnect the server power plug(s) from the power socket(s).
Ê Wait a few seconds before you plug it/them into the grounded socket(s)
again.
Ê Switch on your server.
64 Operating manual RX330 S1
Server switches itself off Troubleshooting and tips
7.2 Server switches itself off
Server Management has detected an error
Ê Check the error list or the ErrorLog file in the ServerView program, and
attempt to eliminate the error.
7.3 Screen remains blank
Monitor is switched off
Ê Switch on your monitor.
Screen has gone blank
Ê Press any key on the keyboard.
or
Ê Deactivate screen saver. Enter the appropriate password.
Brightness control is set to dark
Ê Set the brightness control on the monitor to light. For detailed information,
refer to the operating manual supplied with your monitor.
Power cable or monitor cable not connected
Ê Switch off the monitor and the server.
Ê Check whether the power cable is properly connected to the monitor and to
the grounded socket.
Ê Check whether the monitor cable is properly connected to the server and
monitor (if it is plugged in with a connector). If a separate graphics card is
installed in the server, then the monitor cable must be connected to the
graphics card.
Ê Switch on the monitor and the server.
RX330 S1 Operating manual 65
Troubleshooting and tips Flickering stripes on monitor screen
7.4 Flickering stripes on monitor screen
V CAUTION!
Switch off the server immediately. Risk of damaging the server.
Monitor does not support the set horizontal frequency
Ê Find out which horizontal frequency your monitor screen supports. You will
find the horizontal frequency (also known as line frequency or horizontal
deflection frequency) in the documentation for your monitor.
Ê Refer to the documentation for your operating system or the software for the
screen controller for details of how to set the correct horizontal frequency for
your monitor, and follow the procedure accordingly.
7.5 No screen display or display drifts
The wrong horizontal frequency or resolution has been selected for the
monitor or for the application program.
Ê Find out which horizontal frequency your monitor screen supports. You will
find the horizontal frequency (also known as line frequency or horizontal
deflection frequency) in the documentation for your monitor.
Ê Refer to the documentation for your operating system or the software for the
screen controller for details of how to set the correct horizontal frequency for
your monitor, and follow the procedure accordingly.
7.6 No mouse pointer displayed on screen
Mouse driver not loaded
Ê Check whether the mouse driver is properly installed and is activated when
the application program is started. Detailed information can be found in the
user manuals for the mouse, the operating system and the application
program.
66 Operating manual RX330 S1
Incorrect date and time Troubleshooting and tips
Mouse controller disabled
The mouse controller on the system board must be enabled if you are using the
mouse supplied.
Ê Check in the BIOS Setup that the mouse controller is Enabled.
7.7 Incorrect date and time
Ê Set the date and time in the operating system or in the BIOS Setup under the
Main menu, using System Date and System Time respectively.
I Note that the operating system may affect the system time. For example,
the operating system time may deviate from the system time under Linux,
and would overwrite the system time in the default setting on shutdown.
If the date and time are still wrong after the server has been switched off and
back on again, replace the lithium battery (for a description refer to the Technical
Manual for the D2440 system board) or contact our customer service team.
7.8 System will not boot
The system will not boot after installing a new hard disk drive.
SAS configuration incorrect
Ê Check the settings for the hard disk drives (SAS Device Configuration) and the
additional settings in the SAS configuration menu.
RX330 S1 Operating manual 67
Troubleshooting and tips Drives reported as “dead” when starting system
7.9 Drives reported as “dead” when starting
system
This error message can occur when the onboard SAS controller has RAID
functionality or the server is equipped with a PCI RAID controller.
RAID controller configuration incorrect
Ê Check and correct the settings for the drives using the RAID controller utility.
Further information is provided in the manual for the RAID controller.
7.10 Added drive reported as defective
RAID controller is not configured for this drive
The drive was probably installed when the system was switched off.
Ê Reconfigure the RAID controller for the drive using the corresponding utility.
Information is provided in the documentation for the RAID controller.
or
Ê Remove and reinstall the drive while the system is switched ON.
If the drive continues to be reported as defective, then replace it (see
“Installing/removing the HDD module” on page 77 and “Removing the HDD
module” on page 79).
7.11 Error message on screen
The meaning of the error message is explained in the manual for the BIOS-Setup
and in the documentation for the relevant components and programs on the
PRIMERGY ServerBooks DVD.
RX330 S1 Operating manual 69
8 Hot-plug components
This chapter describes how to handle the hot-plug components and how to
modify your server hardware (e.g. installing/removing hot-plug power supply
units or hot-plug HDD modules) .
I Upgrades, updates and replacement of non-hot-pluggable components
are described in the “Options Guide” or in the service supplement and
may only be performed by authorized specialist personnel.
The hot-plug procedure increases the availability of system operation and
guarantees a high degree of data integrity and failsafe performance.
V CAUTION!
Follow the safety instructions in the chapter “Important information” on
page 21.
8.1 Hot-plug power supply units
I A redundant power supply can be created by installing a second hot-
pluggable power supply unit (optional). If one power supply unit fails, the
other unit ensures operation can continue. The defective power supply
unit can be replaced online.
70 Operating manual RX330 S1
Hot-plug power supply units Hot-plug components
8.1.1 Remove the dummy module
The mounting location for the second hot-plug power supply unit contains a
dummy module. This dummy module must be removed before installing a
second power supply unit.
Figure 16: Remove the dummy module
Ê Loosen the fixing screw (1) and remove the dummy module from the second
power supply mounting location (2).
V CAUTION!
Store the dummy module in a safe place. If the power supply unit is
removed and not replaced with a new unit, the dummy module must be
reinstalled due to cooling, to comply with applicable EMC regulations
(regulations on electromagnetic compatibility) and to protect against fire.
121
2
RX330 S1 Operating manual 71
Hot-plug components Hot-plug power supply units
8.1.2 Installing/removing the hot-plug power supply unit
Figure 17: Unlocking and installing the power supply unit
Ê Fold down the locking lever (1) and slide the power supply unit into the
mounting location (2) as far as it will go.
The locking lever will turn upwards and engage.
Ê Check that the locking lever is properly locked in place.
If necessary, push the lever up.
Ê Connect the power supply unit to the mains (see section “Connecting the
server to the mains” on page 47).
To remove the server, follow this procedure in reverse.
1
2
1
2
72 Operating manual RX330 S1
Hot-plug power supply units Hot-plug components
8.1.3 Replacing the hot-plug power supply unit
V CAUTION!
Before replacing a non-defective power supply unit in a non-redundant
configuration (only one power supply unit present), the server must have
been switched off.
Ê Remove the cable of the defective power supply unit.
Ê Remove the defective power supply unit (see section “Installing/removing
the hot-plug power supply unit” on page 71).
Ê Install the new power supply unit in the empty mounting location (see section
“Installing/removing the hot-plug power supply unit” on page 71).
I Make sure that the power supply unit engages correctly in the
mounting location and is locked in position.
This is the only way to avoid the power supply unit being shaken out
of its mountings and damaged during transportation.
Ê Connect the newly installed power supply unit.
RX330 S1 Operating manual 73
Hot-plug components Hot plug hard disk drives
8.2 Hot plug hard disk drives
Up to six hot-plug hard disk drives can be installed in the PRIMERGY RX330 S1
Server.
The hard disk drives which can be ordered for the PRIMERGY RX330 S1 are
supplied already mounted in an installation frame so that defective hard disk
drives can be replaced and new drives can be added during operation. The
HDD drive and installation frame together make up the HDD module.
V CAUTION!
● The HDD must not be removed from the installation frame by anyone
except a service technician.
● The HDD modules (drives) must all be marked clearly so that they
can be put back in their original places after an upgrade. If this is not
done, existing data can be lost.
● The hot-plug function is only possible in conjunction with a corre-
sponding RAID configuration.
Further information about RAID configuration or the RAID level can
be found in the RAID controller documentation (see “Literature” on
page 87).
V CAUTION!
Hybrid operation using both SAS and SATA2 hard disk drives is not
supported.
74 Operating manual RX330 S1
Hot plug hard disk drives Hot-plug components
HDD module and dummy module
1 HDD module (installation frame with hard disk drive installed)
2 Indicators
HDD Busy (LED green)
HDD Fault (LED orange)
For description see section “Indicators on the HDD module” on page 52.
3 Handle for locking and unlocking the HDD module
4 Button for locking and unlocking the handle
5 Ridge for the application of a sticker with the current drive name
6 Dummy module
7 Tabs for unlocking the dummy module
1675
4
32
4
RX330 S1 Operating manual 75
Hot-plug components Hot plug hard disk drives
8.2.1 Handling hard disk drives and HDD modules
Hard disk drives incorporated in the HDD modules are highly sensitive electromagnetic devices and must be handled with great care. Incorrect handling can
cause partial or total failure of the hard disk drives. These failures can result in
data errors and to a loss of data or to total corruption of the hard disk drive.
Observe the following rules to prevent such problems occurring:
● Only store and transport HDD modules within the limits stipulated in the
specification.
● When transporting HDD modules (even over short distances), always use
the original packaging (ESD label).
● Never expose HDD modules to a temperature shock. Avoid the formation of
condensation inside and on the outside of the hard disk drive.
V CAUTION!
The HDD module must be acclimatized in its operating environment
for an acclimatization time before it is started up for the first time.
● Always set the HDD module down carefully, with the large surface facing
downwards to prevent it from tipping over.
Temperature difference (°C)
(operating
environment/outside)
Minimum acclimatization time
(hours)
53
10 5
15 7
20 8
25 9
30 10
Table 2: Acclimatization times for HDD modules
76 Operating manual RX330 S1
Hot plug hard disk drives Hot-plug components
8.2.2 Removing/Installing the dummy module
Free slots are provided with dummy modules. Remove the dummy module
before installing an additional HDD module.
Figure 18: Removing the dummy module
Ê Press both tabs on the dummy module together until the locking mechanism
disengages (1).
Ê Pull the dummy module out of the slot (2).
To install a dummy module, follow the same procedure in reverse order.
V CAUTION!
Store the dummy module in a safe place. If you have removed an HDD
module and do not install a new one in its place, put the dummy module
back in its place for cooling, to comply with EMC regulations (regulations
regarding electromagnetic compatibility), and for protection against fire.
Ensure that the dummy module engages correctly in the slot.
1
1
2
RX330 S1 Operating manual 77
Hot-plug components Hot plug hard disk drives
8.2.3 Installing/removing the HDD module
Unlocking the HDD module
I If HDD modules are provided with a transport lock, remove the lock
before releasing the locking mechanism.
Figure 19: Removing the transport lock
Ê Pull the transport lock out in the direction of the arrow.
Figure 20: Unlocking the HDD module
Ê Open the locking mechanism by pressing the locking button (1).
Ê Push the handle of the HDD module fully in the direction of the arrow (2).
The HDD module is now unlocked.
1
2
78 Operating manual RX330 S1
Hot plug hard disk drives Hot-plug components
Installing the HDD module
Figure 21: Installing the HDD module
Ê Unlock the HDD module as described in section “Unlocking the HDD
module” on page 77.
Ê Carefully push the HDD module into the empty mounting location (1) until it
stops.
Ê Push the handle completely in the direction of the arrow (2) until the locking
mechanism engages.
1
2
RX330 S1 Operating manual 79
Hot-plug components Hot plug hard disk drives
Removing the HDD module
V CAUTION!
● Only remove a HDD module during operation if the drive is not
currently being accessed. Observe the control LEDs for the corresponding HDD modules (see “Indicators on the HDD module” on
page 52).
● Under no circumstances should you remove an HDD module while
the system is in operation if you are not sure whether the hard disk
drive is operated by a RAID controller and belongs to a disk array
which is operating at RAID level 1 or 5.
An HDD module can only be replaced during operation in conjunction
with a corresponding RAID configuration.
● All HDD modules (drives) must be uniquely identified so that they can
be reinstalled in their original mounting locations later. If this is not
done, existing data can be lost.
If you want to remove an HDD module during operation, proceed as follows:
Ê If you want to remove a HDD module that is not defective, the drive must be
first set to offline via the software (RAID controller configuration software).
Ê Unlock the HDD module as described in section “Unlocking the HDD
module” on page 77.
Ê Pull the HDD module out a few centimeters.
Ê Wait for at least 60 seconds.
I This period is necessary for the RAID controller to recognize that an
HDD module has been removed and for the hard disk drive to come
to a stop.
Ê Pull the HDD module out completely.
80 Operating manual RX330 S1
Hot plug hard disk drives Hot-plug components
Ê Install the new HDD module, as described in “Unlocking the HDD module”
on page 77 and “Installing the HDD module” on page 78.
V CAUTION!
If you have removed an HDD module and do not install a new one in
its place, put the dummy module back in its place for cooling, to
comply with EMC regulations (regulations regarding electromagnetic
compatibility), and for protection against fire. Ensure that the dummy
module engages correctly in the slot.
RX330 S1 Operating manual 81
Abbreviations
AC
Alternating Current
ANSI
American National Standard Institut
ASR&R
Automatic Server Reconfiguration and Restart
ATA
Advanced Technology Attachments
BIOS
Basic Input-Output System
BMC
Baseboard Management Controller
CC
Cache Coherency
CD
Compact Disk
CD-ROM
Compact Disk-Read Only Memory
CHS
Cylinder Head Sector
CMOS
Complementary Metal Oxide Semiconductor
COM
Communication
CPU
Central Processing Unit
82 Operating manual RX330 S1
Abbreviations
DC
Direct Current
DIMM
Dual Inline Memory Module
DIP
Dual Inline Package
DMA
Direct Memory Access
DMI
Desktop Management Interface
ECC
Error Checking and Correcting
ECP
Extended Capabilities Port
EEPROM
Electrically Erasable Programmable Read-Only Memory
EGB
Elektrostatisch Gefärdete Bauteile (component are in danger of electrostatic)
EMP
Emergency Management Port
EPP
Enhanced Parallel Port
EMV
Elektromagnetische Verträglichkeit (electromagnetic compatibility)
ESD
ElectroStatic Discharge (elektrostatische Entladung)
FPC
Front Panel Controller
RX330 S1 Operating manual 83
Abbreviations
FRU
Field Replaceable Unit
FSB
Front Side Bus
GUI
Graphical User Interface
HDD
Hard Disk Drive
HSC
Hot-Swap Controller
I²C
Inter-Integrated Circuit
I/O
Input/Output
ICM
Intelligent Chassis Management
ID
Identification
IDE
Intergrated Drive Electronics
IME
Intergrated Mirroring Enhanced
iRMC
integrated Remote Management Controller
IRQ
Interrupt Request Line
LAN
Local Area Network
84 Operating manual RX330 S1
Abbreviations
LBA
Logical Block Address
LCD
Liquid Crystal Display
LUN
Logical Unit Number
LV D
Low-Voltage Differential
LWL
LichtWellenLeiter (fiber optic cable)
MMF
Multi Mode Faser
MRL
Manually Retention Latch
NMI
Non Maskable Interrupt
NVRAM
Non Volatile Random Access Memory
OS
Operating System
PCI
Peripheral Component Interconnect
PDA
Prefailure Detection and Analysing
POST
Power ON Self Test
RAID
Redundant Arrays of Independent Disks
RX330 S1 Operating manual 85
Abbreviations
RAM
Random Access Memory
ROM
Read-Only Memory
RSB
Remote Service Board
RTC
Real Time Clock
RTDS
Remote Test- und Diagnose-System
SAF-TE
SCSI Accessed Fault-Tolerance Enclosures
SAS
Serial Attached SCSI
SATA
Serial ATA
SBE
Single Bit Error
SCA
Single Connector Attachment
SCSI
Small Computer System Interface
SDDC
Single Device Data Correction
SDR
Sensor Data Record
SDRAM
Synchronous Dynamic Random Access Memory
86 Operating manual RX330 S1
Abbreviations
SEL
System Event Log
SMI
System Management Interrupt
SSU
System Setup Utility
SVGA
Super Video Graphics Adapter
USB
Universal Serial Bus
VGA
Video Graphics Adapter
RX330 S1 Operating manual 87
Literature
PRIMERGY server manuals are also available as PDF files on the ServerBooks
DVD. The ServerBooks DVD is part of the PRIMERGY ServerView Suite, which is
supplied with every server.
The current versions of the required manuals may be downloaded for free from
the Internet as PDF files. The overview page showing the online documentation
available on the Internet can be found at the URL: http://manuals.fujitsu-
siemens.com. The server PRIMERGY documentation can be accessed using the
Industry standard servers navigation option.
[1] Safety notes and other important information
[2] Warranty
[3] Ergonomics
[4] Returning used devices
[5] Quick Start Hardware - PRIMERGY RX330 S1
Leaflet
[6] Quick Start Software - Quick Installation Guide
Leaflet
[7] PRIMERGY RX330 S1 Server
Options guide
[8] System Board D2440 for RX330 S1
Technical manual
[9] BIOS Setup
Reference manual
[10] PRIMERGY ServerView Suite
ServerStart
User manual
88 Operating manual RX330 S1
Literature
[11] PRIMERGY ServerView Suite
ServerView S2
Server Management
User Guide
[12] PRIMERGY ServerView Suite
ServerView
Server Management
User Guide
[13] PRIMERGY ServerView Suite
integrated Remote Management Controller (iRMC)
[14] ServerView RAID
User manual
[15] Integrated RAID for SAS
User’s guide
[16] LSI SATA Software RAID
User’s guide
[17] Integrated Mirroring
User’s guide
[18] PRIMECENTER Rack
Technical manual
[19] DataCenter Rack
Technical manual
[20] 19-Zoll-Rack/19 inch rack
Technical manual
[21] PRIMERGY ServerView Suite
RemoteView
User manual
RX330 S1 Operating manual 89
Index
3rd party rack
installing in 42
requirements 37
A
Accessible drives
CD-RW 10
DVD-RW 10
magnetic tape drive 10
Acclimatization time 33, 75
Advanced Video Redirection 11
Ambient conditions 18
Articulated cable guide 41
ASR&R 11
Availability 10
AVR 11
B
BIOS update 14
BIOS, security functions 61
C
Cables
connecting 48
disconnecting 48
CD drive, indicator 49
CD/DVD indicator 51
CE marking 17, 28
Chipkill 11
Class A Compliance Statement 28
Cleaning
keyboard 60
monitor 60
mouse 60
server 60
Components
hardware 7
software 7
Configuration, server 58
Configuring onboard SAS
controller 60
Configuring RAID 58
Connecting cables 48
Connecting devices to the server 45
Connecting external devices 45
Connections 45
Consumables 31
Control panel 49
Controls 49
Correcting faults 63
D
Data manipulation 7
Data protection 61
Data security 10
DataCenter Rack, requirements 36
Date, incorrect 66
Delivery note
19, 34
Disconnecting cables 48
Disposal, devices 32
Drive
“dead” 67
defective 67
Drive access
indicator 49, 51
Dummy module, HDD module 76,
80
DVD drive, indicator 49
E
ECC 10
EDC 10
Electrical data 17
Electromagnetic compatibility 17, 28
Electrostatic-sensitive devices
(ESD) 27
EMC directive 17
EMC regulations 76, 80
Environment class 18
Environmental protection 31
90 Operating manual RX330 S1
Index
Error
drifting display on monitor 65
drive “dead” 67
drive defective 67
incorrect date 66
incorrect time 66
no display on monitor 65
no mouse pointer 65
power-on indicator does not
light 63
screen remains blank 64
screen shows flickering
stripes 65
server switches itself off 64
system does not boot 66
Error Correcting Code 10
Error Detection Code 10
Error message on screen 67
ESD (electrostatic-sensitive
devices) 27
External devices, connecting 45
F
Fault
drifting display on monitor 65
incorrect date 66
incorrect time 66
no display on monitor 65
screen remains blank 64
screen shows flickering
stripes 65
system does not boot 66
FCC statement 28
Features 9
Flash EPROM 14
G
Global Error, indicator 49, 51, 53
Graphics card 46
H
Hard disk drive 9
handling 75
hard disk module 73
hot-plug hard disk drive 73
indicator 51, 52
installation frame 73
replacing online 79
Hard disk module
dummy module 73
handling 73
HDD module 11
acclimatization time 33, 75
installation frame 77
installing/removing
77
Hot-plug HDD module 11, 73
Hot-plug power supply unit 10, 47,
69
Hot-spare memory, memory
module 11
I
ID button 49, 50
ID indicator 49, 51, 53
IME (Integrated Mirroring
Enhanced) 58
Indicators
CD 49
drive access 51
DVD 49
front of device 49
Global Error 49, 51, 53
hard disk drive 52
HDD access 49
hot-plug power supply unit 55
ID 49, 51, 53
LAN connection/active 54
LAN transfer rate 54
on power supply unit 55
on the connection panel 53, 54
Power on indicator 49
rear of device 53, 54, 55
Information material, additional 9
RX330 S1 Operating manual 91
Index
Installation
server 43
telescopic rails 44
Installing in
3rd party rack 42
PRIMECENTER Rack 39
Installing in the rack, notes 30
Installing, server 35
Integrated Mirroring Enhanced
RAID functionality 10
Integrated Mirroring Enhanced
(IME) 58
integrated Remote Management
Controller 11
iRMC 11
K
Keyboard port 45
L
Labels 32
LAN connection/active indicator 54
LAN port 1 45
LAN port 2 11, 45
LAN port, service 45
LAN transfer rate indicator 54
Laser information 25
Light emitting diode (LED) 25
Lithium battery 26
Low Voltage Directive 17, 28
M
Mains voltage, connecting server 47
meaning of the symbols 16
Memory module, hot-spare
memory 11
Memory scrubbing 10
Monitor
display drifts 65
no display 65
Mouse port 45
Mouse, no mouse pointer on
screen 65
N
NMI button 49, 50
Noise level 18
Norms and standards 17
Notational conventions 16
O
On/Off button 49, 50
Operating system installation 60
Operation 49
Overload 13
P
Packaging 31, 34
PDA
11, 13
Ports
keyboard port 45
LAN port 1 45
LAN port 2 45
mouse port 45
service LAN port 45
USB 10, 45
Power on indicator 50
Power supply unit 69
dummy module 70
hot-plug 10
indicators 55
installing 71
redundant 47
removing 71
replacing 72
wide range 10
Power supply, redundant 10, 47
Power-on indicator
does not light 63
Power-supply unit 47
PRIMECENTER Rack
installing in 39
requirements 36
Property protection 61
92 Operating manual RX330 S1
Index
R
Rack
requirements 35
telescopic rails 44
RAID controller is not configured for
this drive 67
RAID functionality 10
RAID level 11
Rating plate 34
Recycling devices 32
Redundancy, power supply 10
Remote Storage 11
RemoteView 14, 15
Removing, server 35
Replacing online 79
Requirements
3rd party rack 37
DataCenter Rack 36
PRIMECENTER Rack 36
Reset button 49, 50
Return of devices 32
Routing cables 41
S
Safety 21
Safety standards 17
SAS controller
configuring RAID 58
IME configuration 58
Integrated Mirroring
Enhanced 10
Saving energy 31
Screen
error message 67
flickering 65
remains blank 64
shows flickering stripes 65
Security functions 7
setup password 61
system password 61
unauthorized access 61
Server
ambient conditions 18
configuration 14, 58
connecting mains voltage 47
dimensions 18
electrical data 17
fitting in rack 35
installation 43
installing 35
noise level 18
removing 35
routing cables 41
service 14
switches itself off (error) 64
switching off 56
switching on 56
technical data 17
transportation 29
unpacking 34
ventilation clearance 18
weight 18
Server management 13
ServerStart 14, 59
ServerView 13
supported functions 13
Service
server 14
touch-point 14
Service LAN port 11, 45
Setting up 49
Setup password 61
Support bracket 39
Switch off time, defining 57
Switch on time, defining 57
Switching off, server 56
Switching on, server 56
System board 9
System does not boot 66
System password 61
T
Target group 7
Technical data 17
Telescopic rail 41
Telescopic rails 44
Time, incorrect 66
Touch-point 14
RX330 S1 Operating manual 93
Index
Transport damage 19, 34
Troubleshooting 63
U
Unauthorized access 61
Unpacking, server 34
USB port
front of device 46
rear of device 45
service technician 10
V
Ventilation clearance 18
W
Weight 18
Information on this document
On April 1, 2009, Fujitsu became the sole owner of Fujitsu Siemens Computers. This new subsidiary of Fujitsu has been renamed Fujitsu Technology Solutions.
This document from the document archive refers to a product version which
was released a considerable time ago or which is no longer marketed.
Please note that all company references and copyrights in this document have
been legally transferred to Fujitsu Technology Solutions.
Contact and support addresses will now be offered by Fujitsu Technology Solutions and have the format …@ts.fujitsu.com.
The Internet pages of Fujitsu Technology Solutions are available at
http://ts.fujitsu.com/...
and the user documentation at http://manuals.ts.fujitsu.co m .
Copyright Fujitsu Technology Solutions, 2009
Hinweise zum vorliegenden Dokument
Zum 1. April 2009 ist Fujitsu Siemens Computers in den alleinigen Besitz von
Fujitsu übergegangen. Diese neue Tochtergesellschaft von Fujitsu trägt seitdem den Namen Fujitsu Technology Solutions.
Das vorliegende Dokument aus dem Dokumentenarchiv bezieht sich auf eine
bereits vor längerer Zeit freigegebene oder nicht mehr im Vertrieb befindliche
Produktversion.
Bitte beachten Sie, dass alle Firmenbezüge und Copyrights im vorliegenden
Dokument rechtlich auf Fujitsu Technology Solutions übergegangen sind.
Kontakt- und Supportadressen werden nun von Fujitsu Technology Solutions
angeboten und haben die Form …@ts.fujitsu.com.
Die Internetseiten von Fujitsu Technology Solutions finden Sie unter
http://de.ts.fujitsu.com/..., und unter http://manuals.ts.fujitsu.com finden Sie die
Benutzerdokumentation.
Copyright Fujitsu Technology Solutions, 2009
Loading...
