Operating manual
System
LIFEBOOK T732
Congratulations on your pu
rchase of an innovative
product from Fujitsu.
The latest information about our products, tips, updates etc. can be found
on the Internet at: "
For automatic driver updates, go to: "http://support.ts.fujitsu.com/download"
Should you have any technical questions, please contact:
• our Hotline/Service Desk (see the Service Desk list or visit:
"
http://support.ts.fujitsu.com/contact/servicedesk")
• Your sales partner
• Your sales office
We hope you enjoy working with your new Fujitsu system!
http://www.fujitsu.com/fts/"
Published by
Fujitsu Tec
Mies-van-der-Rohe-Straße 8 (Mies-van-der-Rohe Street No. 8)
80807 Munich, Germany
Contact
h
Copyrigh
© Fujitsu Technology Solutions 2012. All rights reserved.
hnology Solutions
ttp://www.fujitsu.com/fts/
t
Publication Date
10/12
Order No.: A26391-K368-Z320-1-7619, edition 1
LIFEBOOK T732
Operating manual
Innovative technology 7
Ports and controls 9
Important notes 12
First-time setup of your device 15
Working with the notebook 18
Security functions 68
Connecting external devices 75
Removing and installing components
during servicing 82
Settings in BIOS Setup Utility 90
Troubleshooting and tips 92
Technical data 99
Manufacturer’s notes 102
Index 108
Remarks
Information on the product description meets the design specifications of Fujitsu and
is provided for c omparison purposes. Several factors may cause the actual results to
differ. Technical data is subject to change without prior notification. Fujitsu rejects any
responsibility with regard to technical or editorial mist akes or omissions.
Trademarks
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited or its
subsidiaries in the United States and other countries.
Microsoft and Windows are trademarks or registered trademarks of the Microsoft
Corporation in the United States and/or other countries.
Made under license from DTS Licensing Limited. DTS and the symbol are registered trademarks and
& DTS Boost is a trademark of DTS, Inc. Product contains software. © DTS, Inc. All rights reserved.
All other trademarks specified here are the property of their respective owners.
Copyright
No part of this publication may be copied, reproduced or t ranslated without
the prior written consent of Fujitsu.
No part of this publication may be saved or transferred by any electronic means
without the written approval of Fujitsu.
Contents
Contents
Innovativetechnology ................................................................. 7
Furtherinformation ...................................................................... 7
Notational conventions .................................................................. 8
Portsand controls ..................................................................... 9
Importantnotes ........................................................................ 12
Safetynotes ............................................................................ 12
Additional safety notes for devices with radio components . . . ............................... 12
Energysaving .......................................................................... 13
Energy saving under Windows ....................................................... 13
Travelling with yournotebook ............................................................ 13
Before youtravel ................................................................... 13
Notebook: transporting ............................................................... 14
Cleaning thenotebook .................................................................. 14
First-time setup o
Unpacking an d che
Selectingalocat
Mains adap ter con
Switchingonthe
Working withthenotebook ............................................................ 18
Status indicators ........................................................................ 18
Opening the notebook ................................................................... 20
Switching on the notebook . ... ........................................................... 21
Programming theON/OFF switch ..................................................... 21
Different ways to use your notebook . . .................................................... 22
From notebook to Tablet PC . ........................................................ 22
Select display orientation(portrait orlandscape orientation) ............................. 24
From TabletPCto notebook .......................................................... 25
Switching off the notebook . ... ........................................................... 26
Closing the notebook . . .................................................................. 27
Handwriting recognition under Windows 7 . .... ............................................ 27
LCD screen ............................................................................ 28
Ambient LightSensor ................................................................ 28
Using adevice asa tablet PC ............................................................ 28

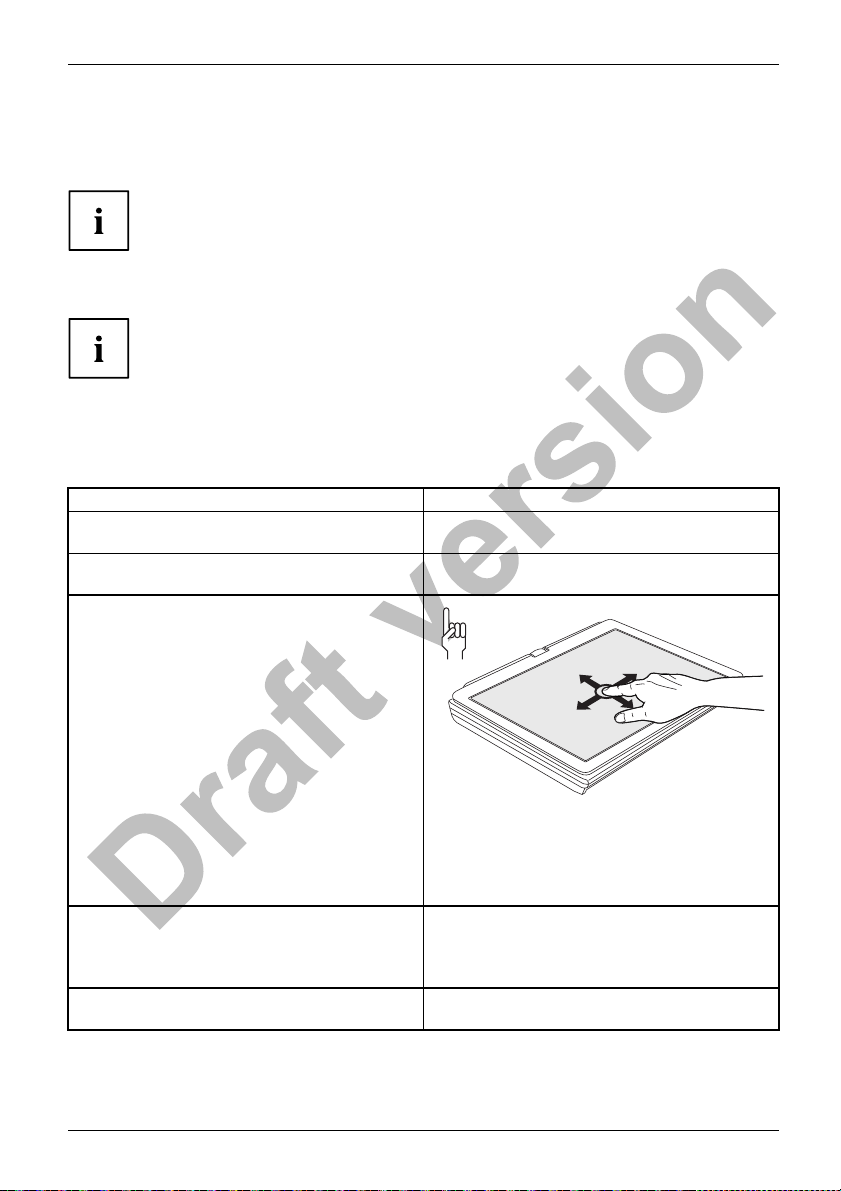

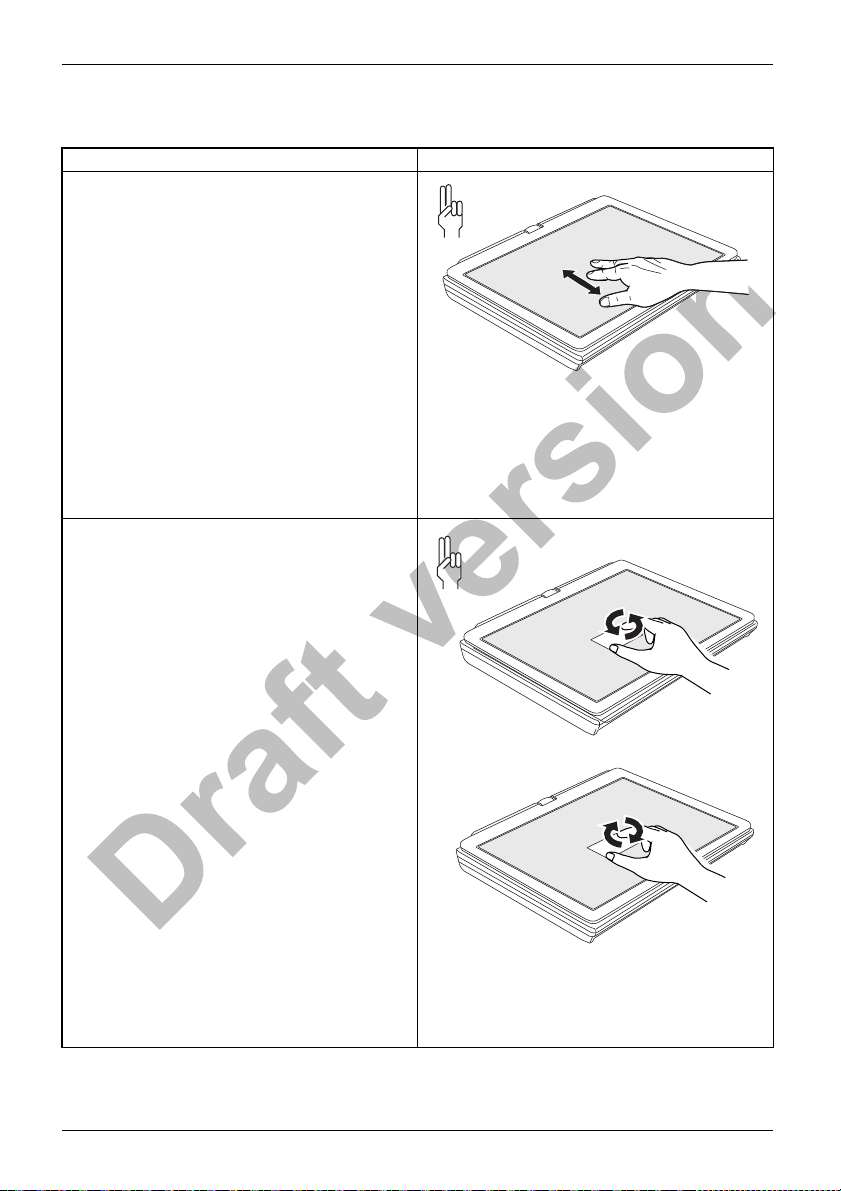

Using fingers ....................................................................... 29

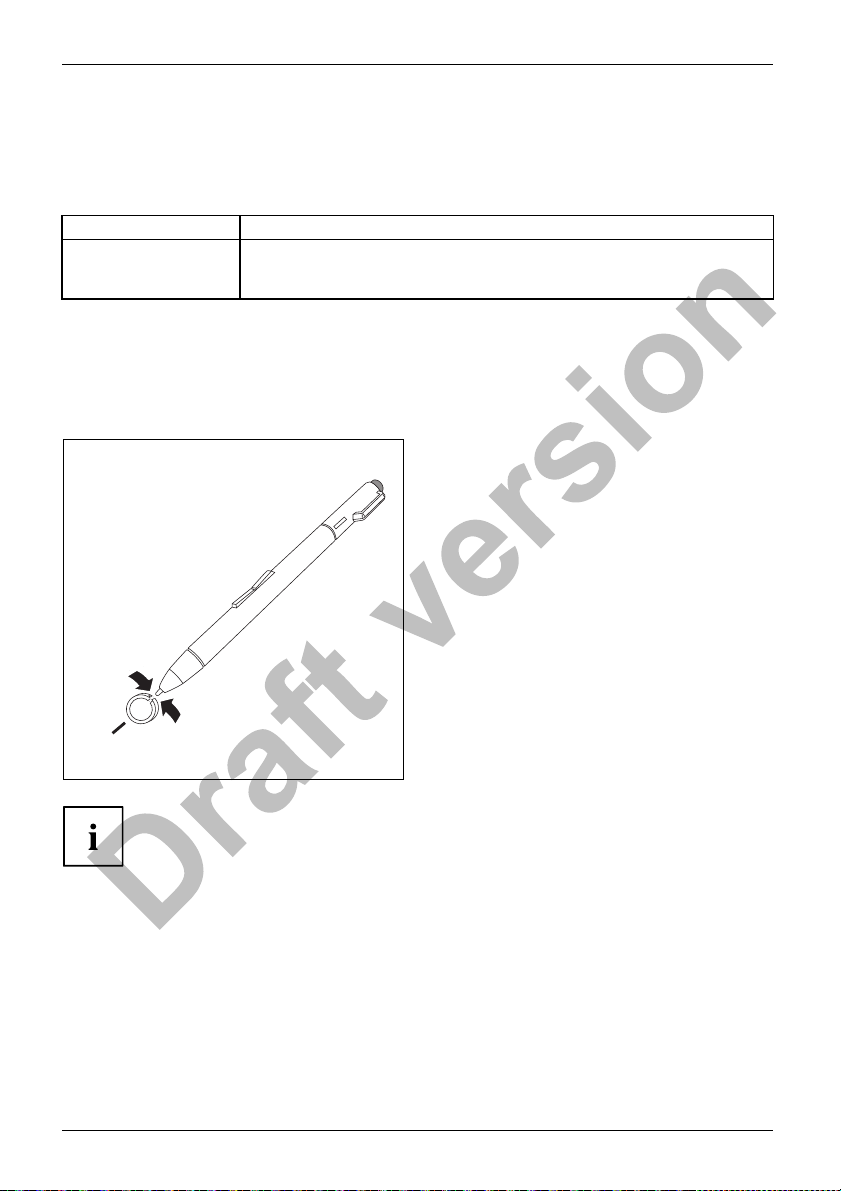

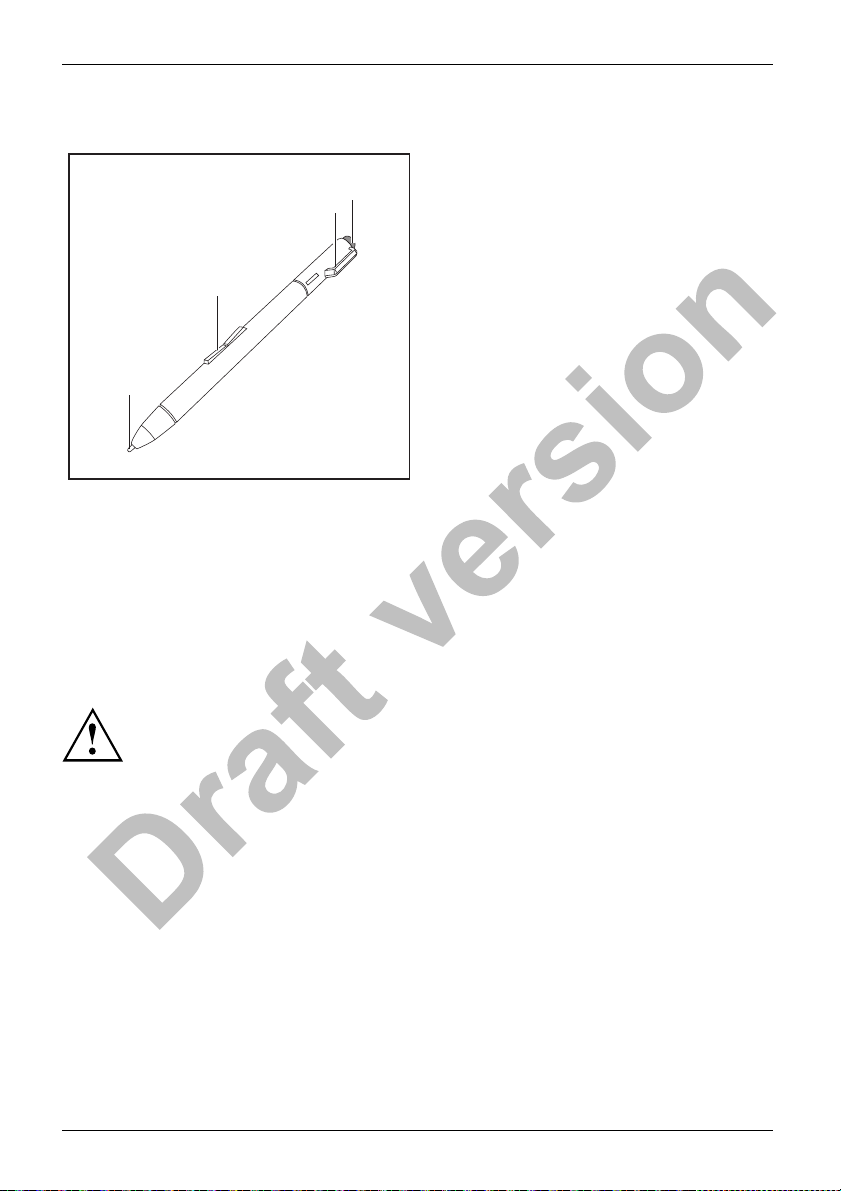

Using the stylus pen ................................................................. 32
Using the device as anotebook .......................................................... 35

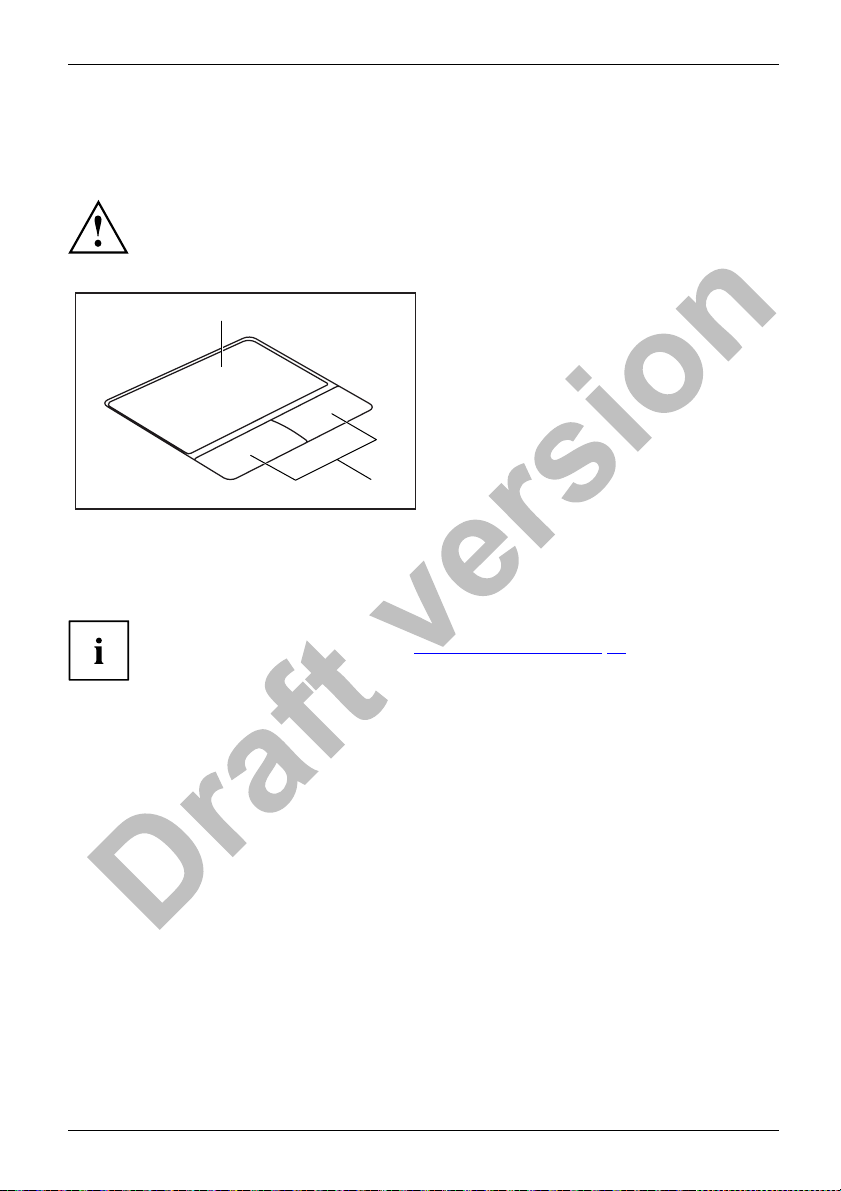

Touchpad andtouchpad buttons ...................................................... 35
Keyboard ............................................................................... 37

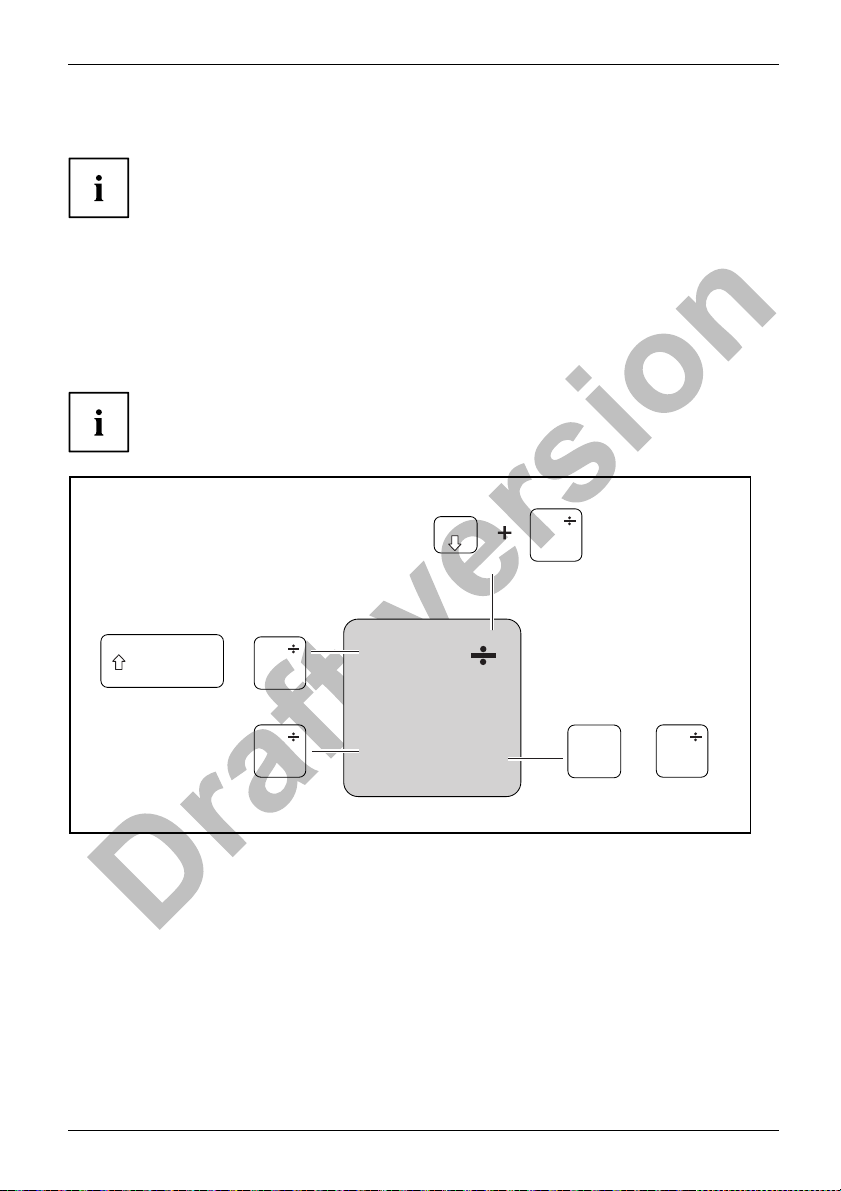

Virtual numeric keypad .............................................................. 39
Country and keyboard s ettings ....................................................... 39
Key combinations ................................................................... 40
Tablet buttons .......................................................................... 42
Programming thetablet buttons ...................................................... 43
Webcam ............................................................................... 44
Rechargeable battery ................................................................... 45
Charging, caring for andmaintaining thebattery ....................................... 45

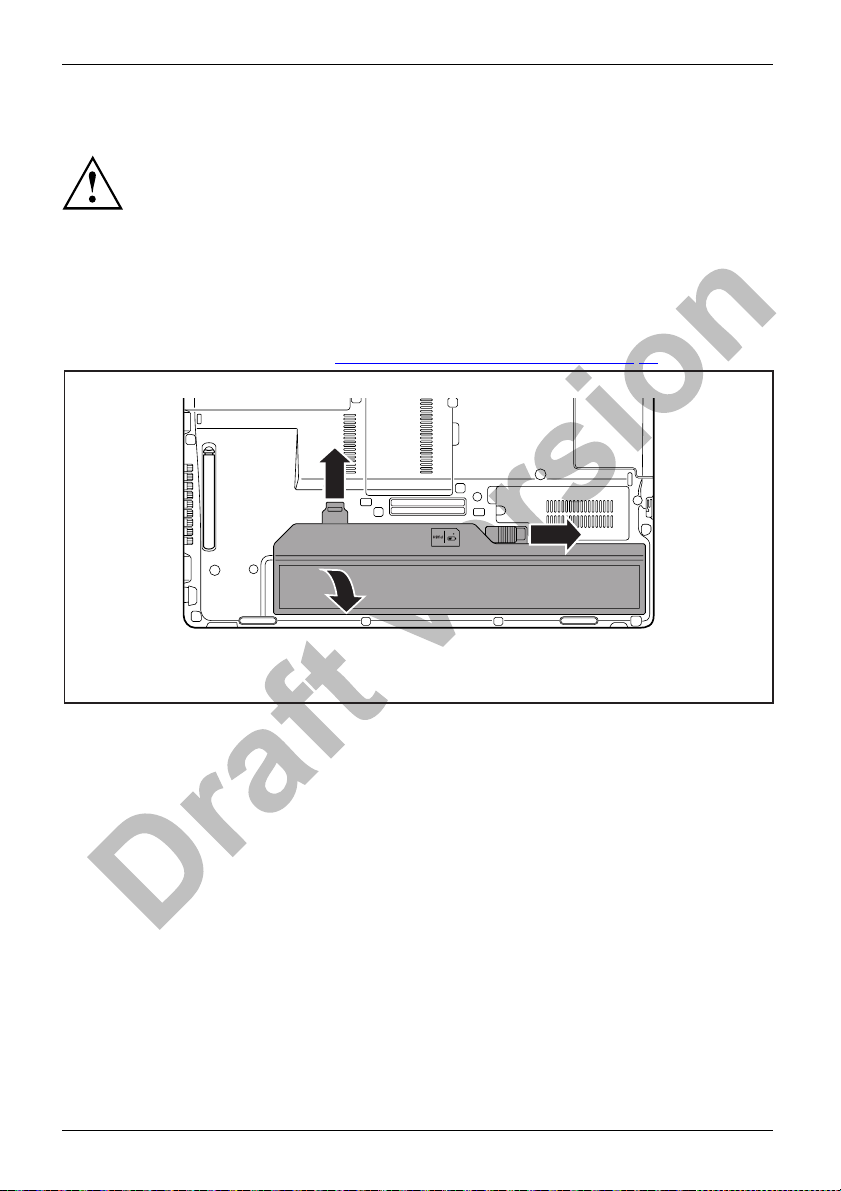

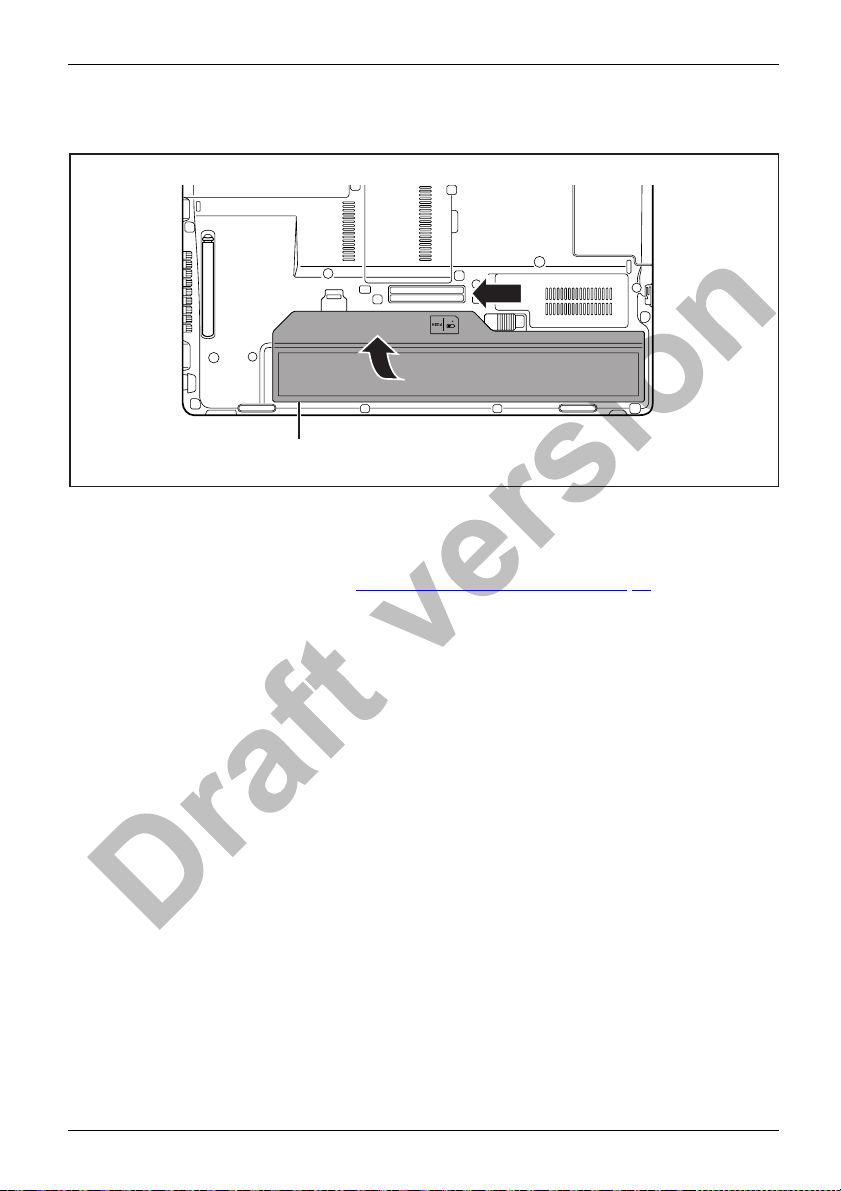

Removing andinstalling the battery ................................................... 46

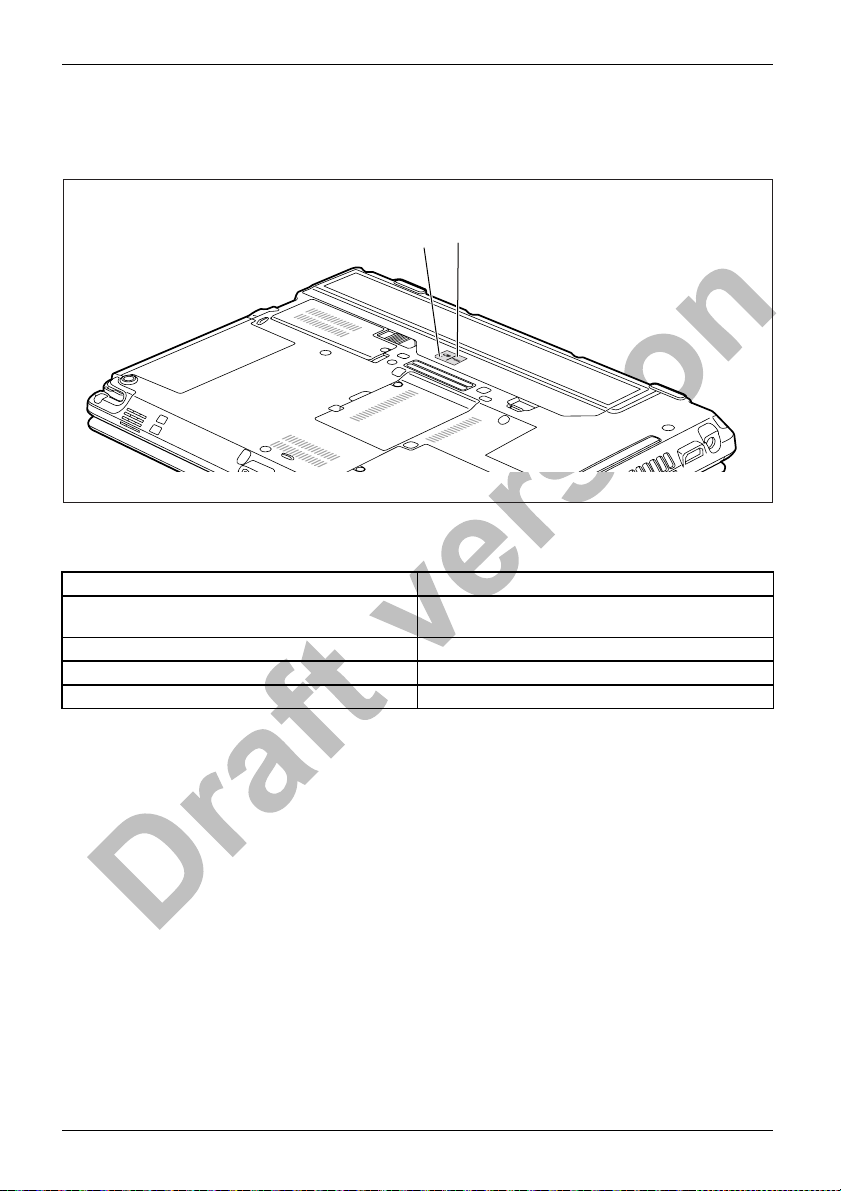

Battery chargestatus indicator ....................................................... 48
fyour device .........................................................
cking the device ......................................................
ion .....................................................................
necting ...............................................................
device for the first time ..................................................
15
15
16
16
17
Fujitsu 3
Contents
Module ................................................................................. 49
Removing a module . ................................................................ 49
Installing a module .................................................................. 50
Optical drive ............................................................................ 50
Handling data carriers . . ............................................................. 50
CD/DVD indicator ................................................................... 51

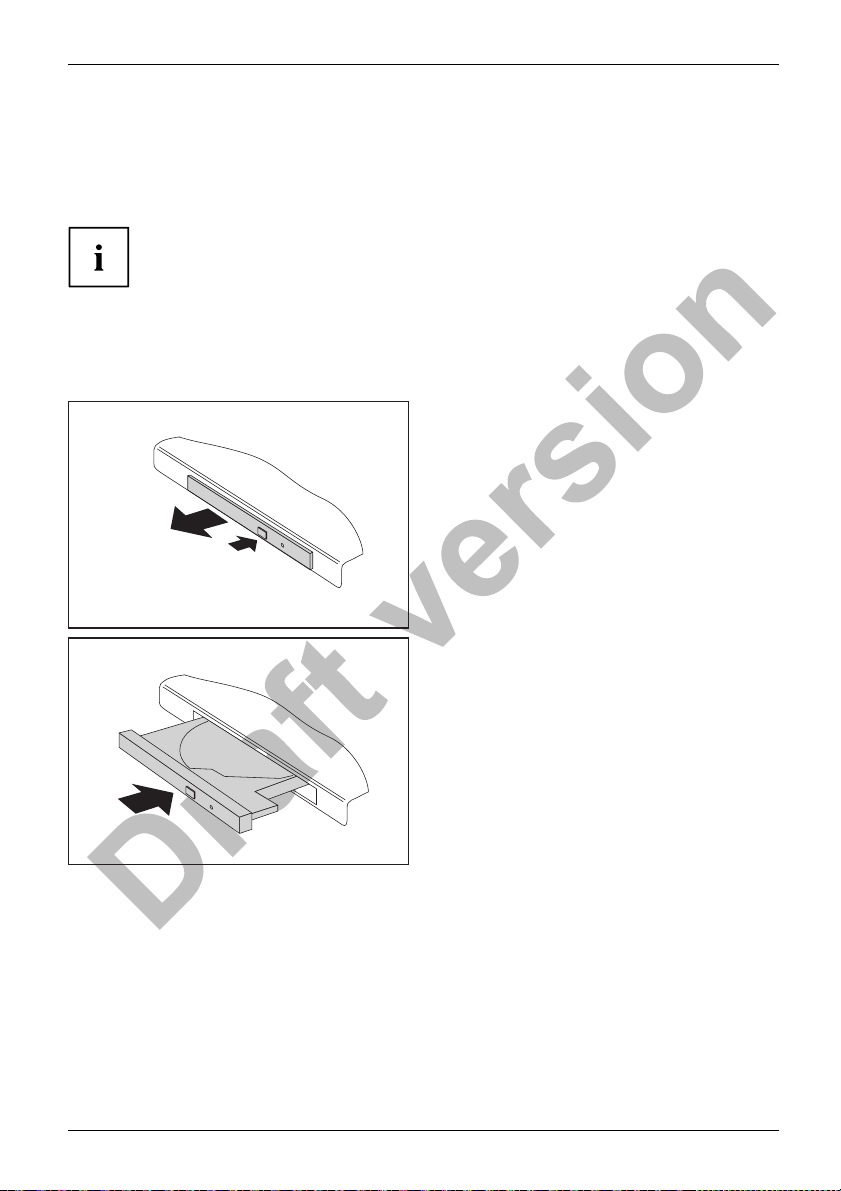

Inserting orremoving adata carrier ................................................... 51

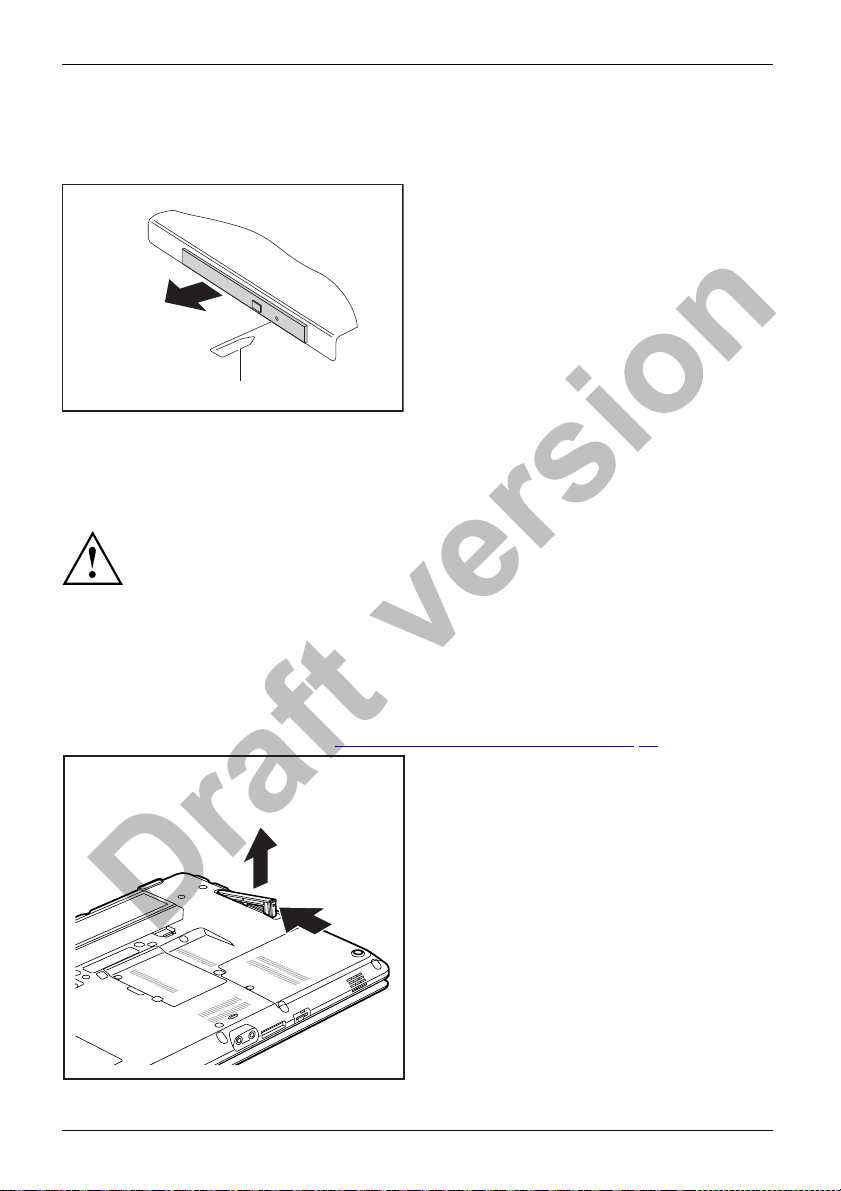

Manual removal (emergency removal) ... ............................................. 52
Removing and fitting the dustremoval cover (ventilationslotcover) ......................... 52
Using the power-management features . .................................................. 54
Memory cards .......................................................................... 55
Supported format .................................................................... 55

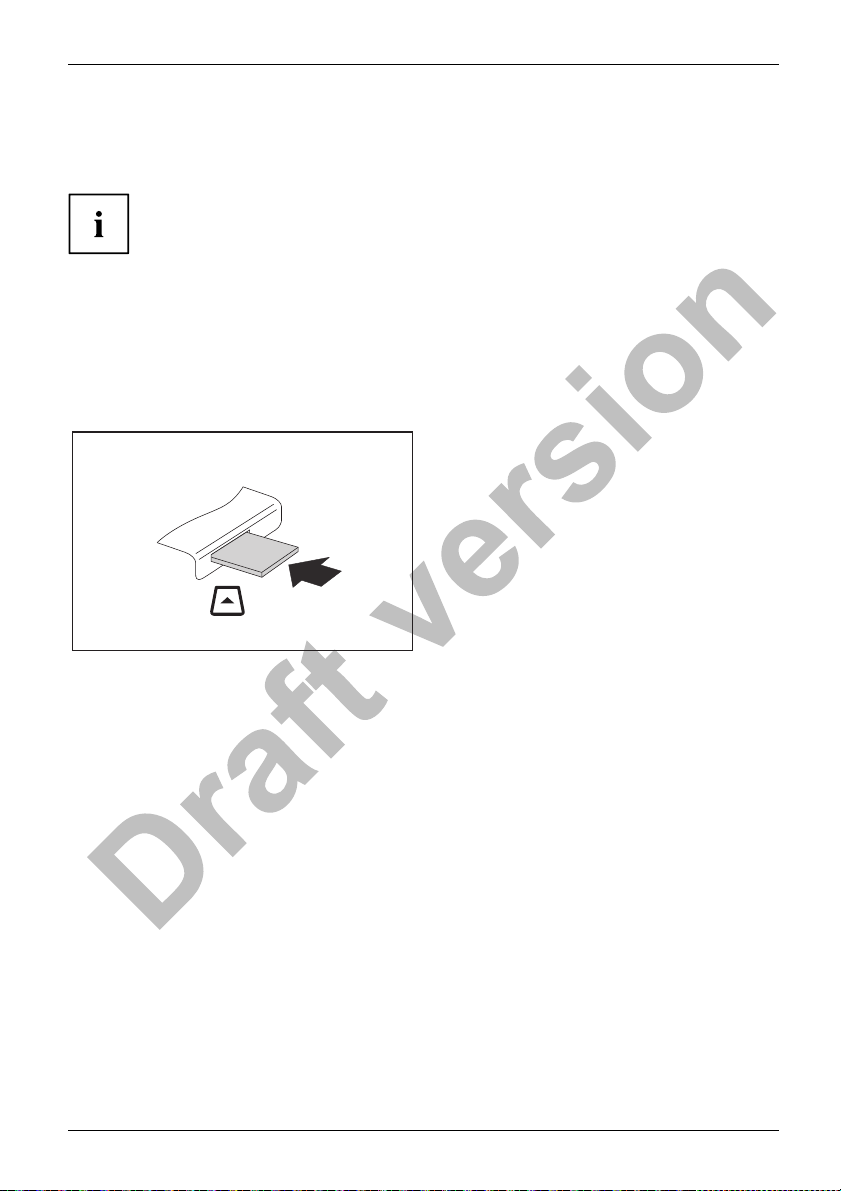

Inserting thememorycard ........................................................... 55
Removing the memory card .......................................................... 56
ExpressCards .......................................................................... 56
Inserting thecard ................................................................... 57
Removing the card .................................................................. 58
Loudspeakers and microphones . ......................................................... 58
SIM card ............................................................................... 59
Inserting theSIMcard ............................................................... 59
Removing the SIM card .............................................................. 59
Optional Wireless LAN / Bluetooth / UMTS / LTE wireless components . ..................... 60

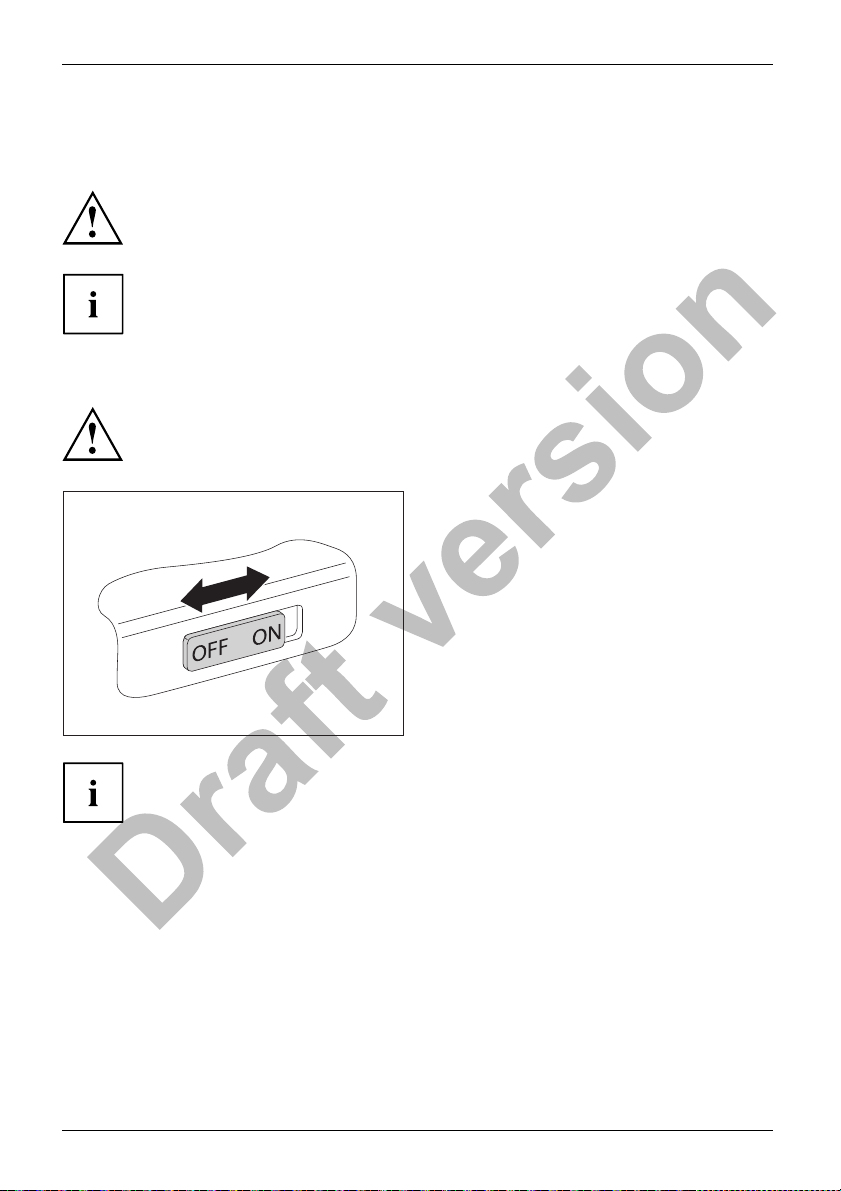

Switching the wireless components on and off ......................................... 60
Setting up WLAN access ............................................................ 61
Access via UMTS/LTE .............................................................. 61
UMTS/LTE antenna ................................................................. 61
Ethernet andLAN ....................................................................... 62
Your Port Replicator (optional) ... ........................................................ 62

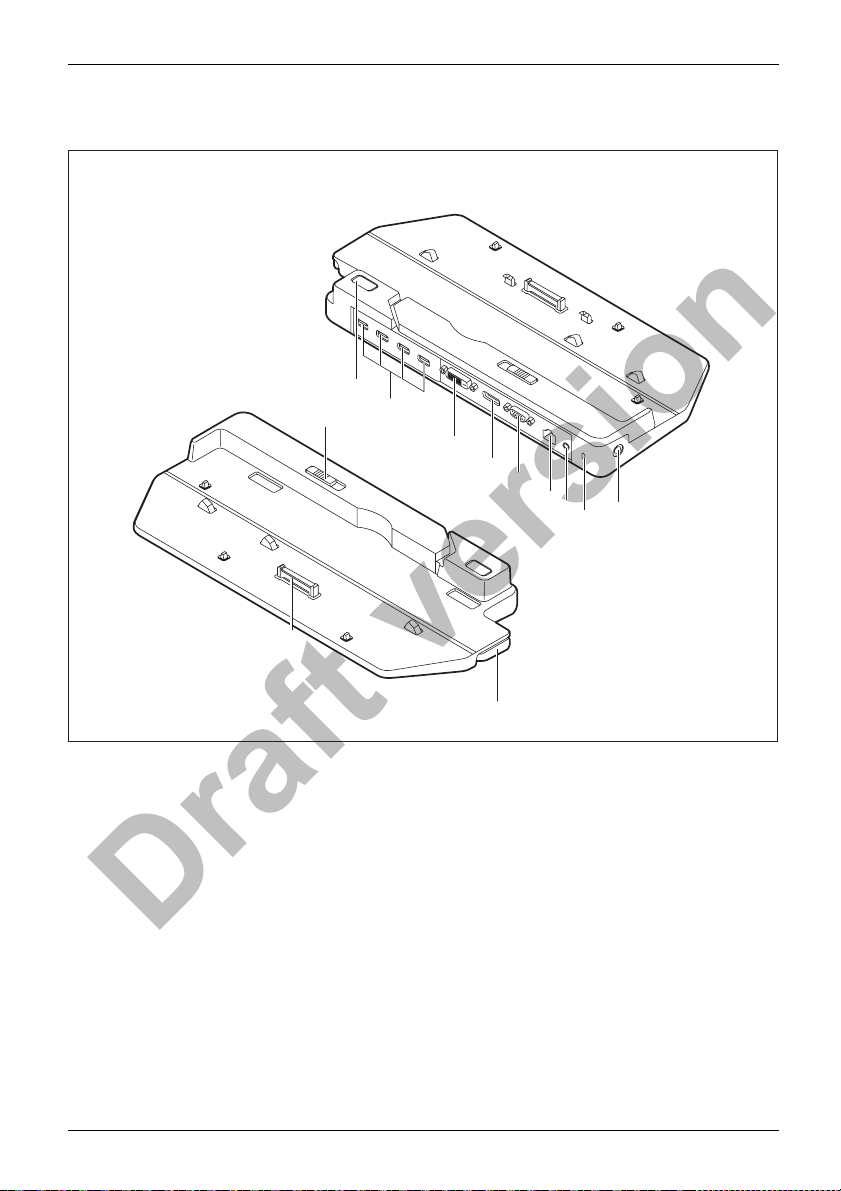

Ports on thePortReplicator .......................................................... 63
Setting up the port replicator ......................................................... 64

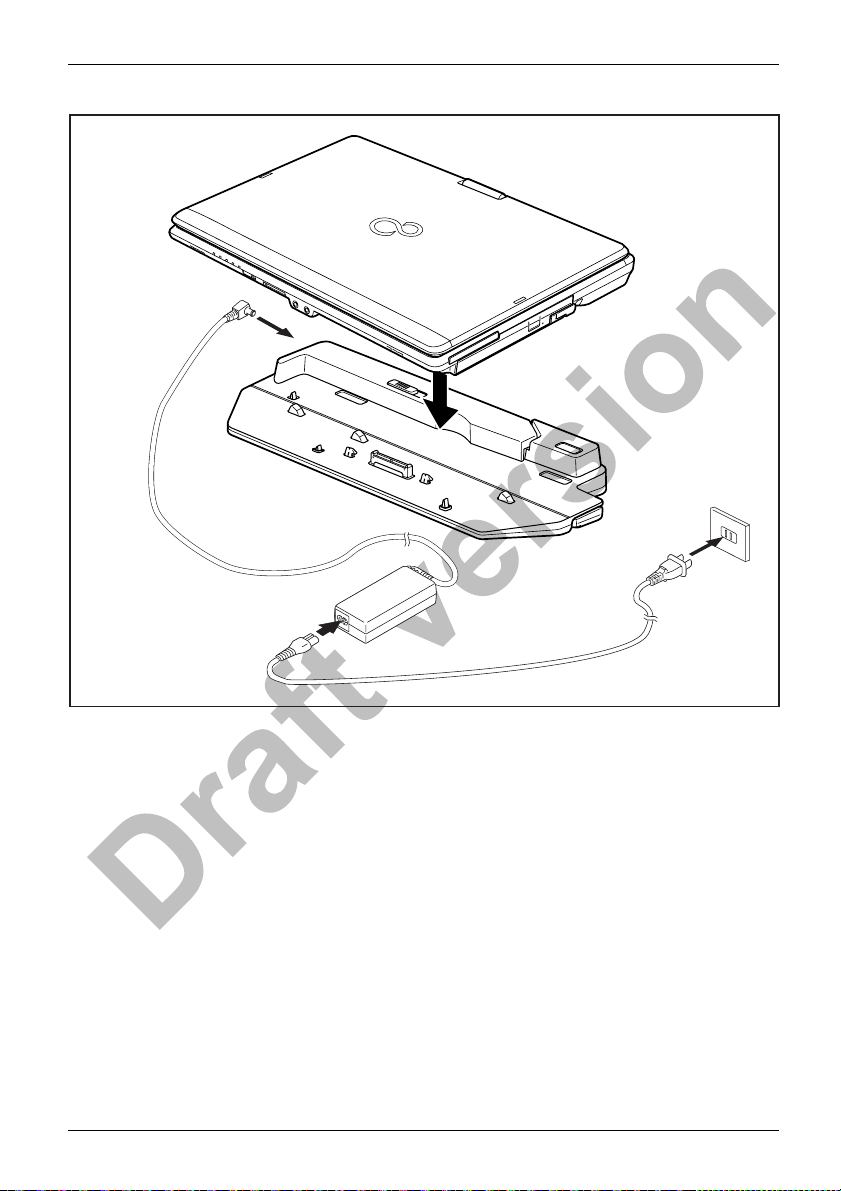

Connect the notebook to the po rt replicator .. . ......................................... 64
Switching on the notebook via the port replicator . ... . .................................. 66
Switchingoffnotebook via Port Replicator ............................................. 66

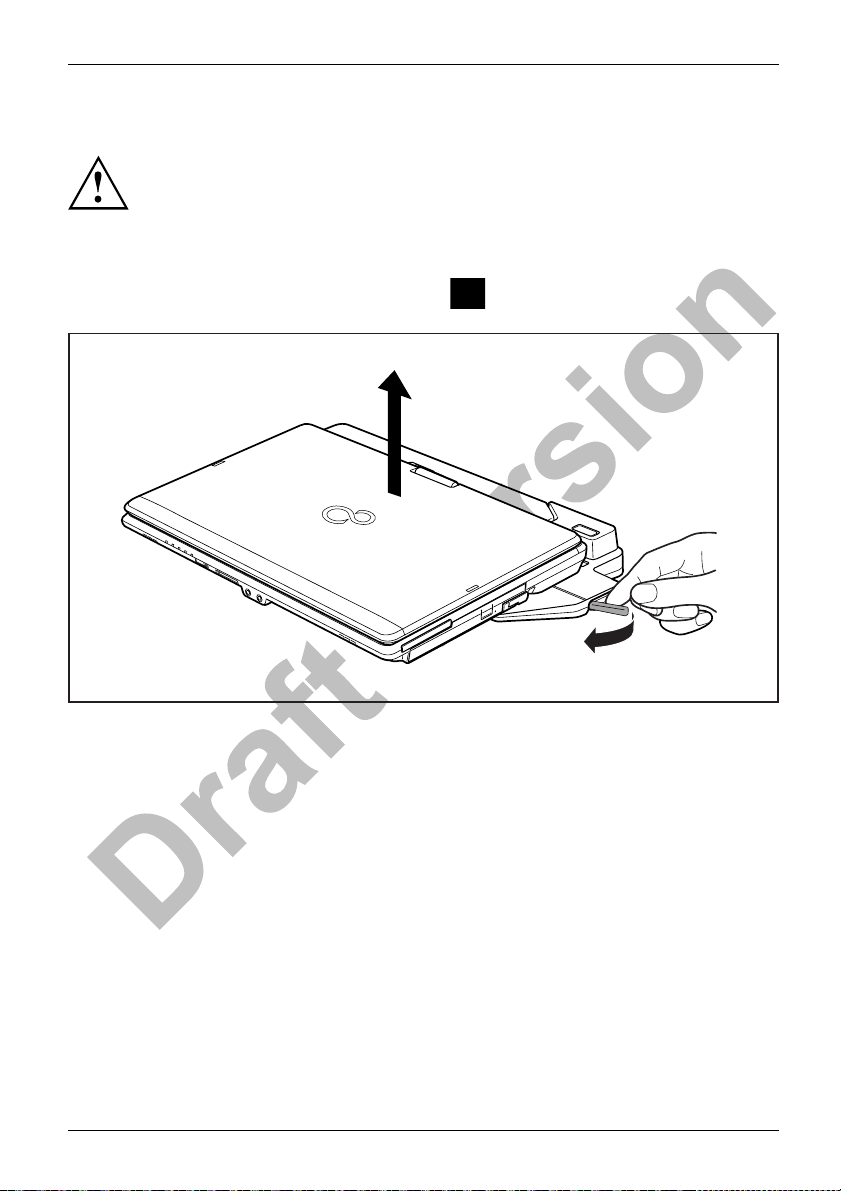

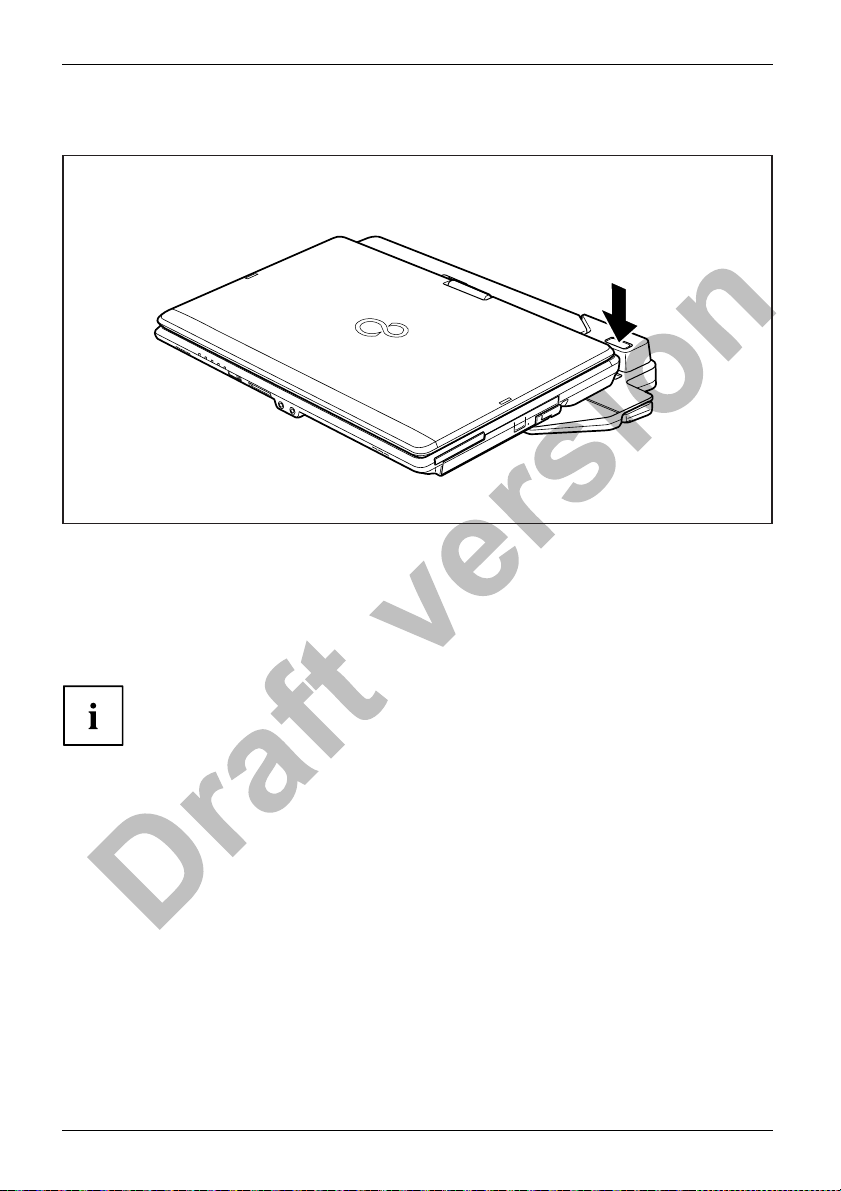

Disconnecting the notebook from the port replicator .................................... 67
Security functions ..................................................................... 68
Brief overviewofsecurity functions ....................................................... 68
Configuring the fingerprint sensor ........................................................ 69
Using the Security Lock ................................................................. 69
Configuring passwordprotection in BIOS Setup Utility ...................................... 70
Protecting BIOS Setup Utility (supervisor and user password) . .......................... 70
Password protection for booting of the operating system ............................... 71
Password protection for the hard disk ................................................. 72
Using the security function of thetablet keys .............................................. 73
Setting the Supervisor password . . . .................................................. 73
Setting theUserpassword ........................................................... 73
Entering passwords using the tablet buttons ........................................... 73
Trusted Platform Module (TPM) (device-dependent) . . ... .................................. 74
Enabling TPM ....................................................................... 74
Disabling TPM ...................................................................... 74
Connecting external devices ........................................................... 75
Connecting an external monitor . . ........................................................ 76
Connecting an external monitor to the DisplayPort . .................................... 77
4 Fujitsu
Contents
HDMI port .......................................................................... 78

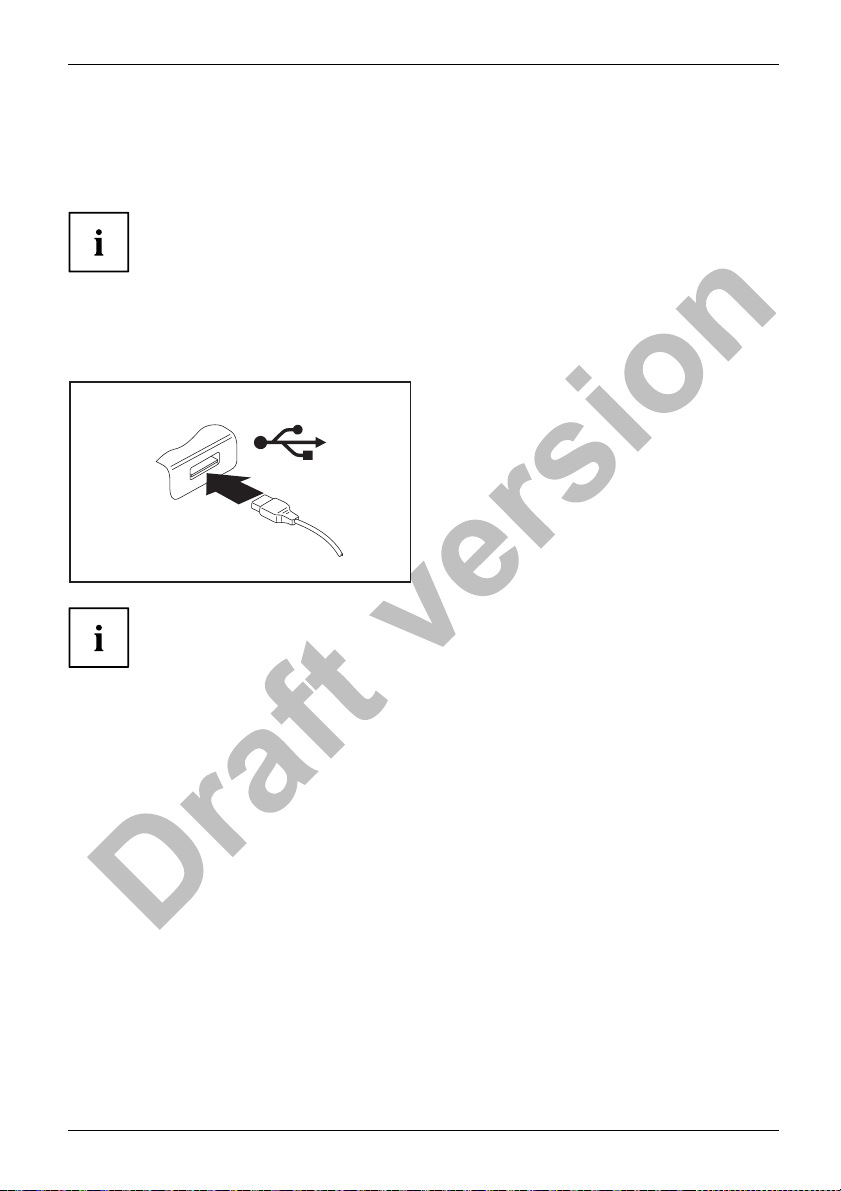

Connecting USB devices ... . ............................................................ 79
USB port with charging function (Anytime USB charge) ................................. 80
How to removeUSBdevices correctly ................................................ 80
Connecting externa l audio de vices ....................................................... 81
Microphone port/Line In . ............................................................. 81
Headphone port ... .................................................................. 81
Removing and installing components during servicing . . . .............................. 82
Notes on installing andremoving boards and components .................................. 82
Preparing to remove components ........................................................ 83
Installing and removing memory expansion . ............................................... 83
Removing acover ................................................................... 84
Removing memorymodules .......................................................... 84

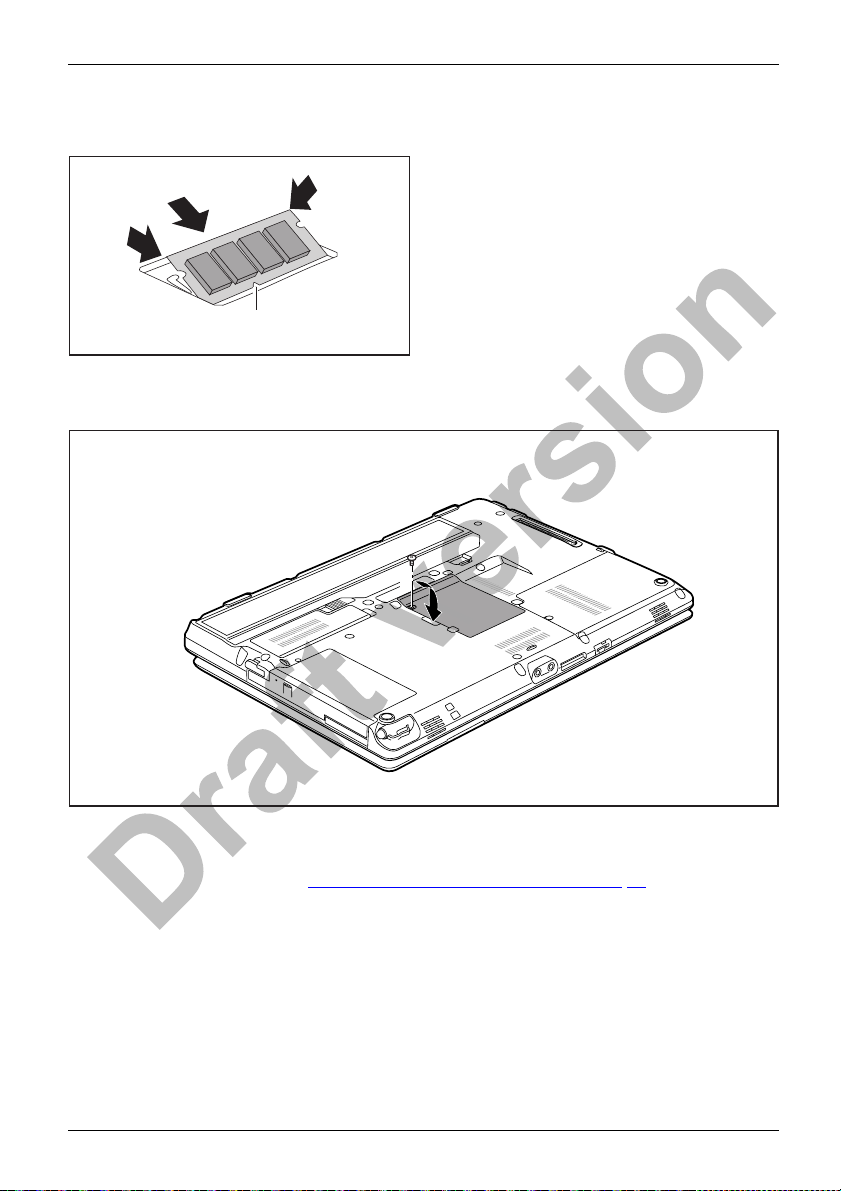

Installing amemorymodule .......................................................... 85
Attaching thecover .................................................................. 85
Removing and installing the hard disk .................................................... 86
Removing acover ................................................................... 86
Removing ahard disk ............................................................... 87
Installing aharddisk ................................................................. 88
Attaching thecover .................................................................. 89
Finishing component removal . ........................................................... 89
Settings in BIOS Setup Utility . . . ....................................................... 90
Starting theBIOSSetupUtility ........................................................... 90
Operating BIOSSetupUtility ............................................................. 90
Exiting BIOSSetupUtility ................................................................ 91
Exit Saving Changes - save changes and exit BIOS Setup Utility ....................... 91
Exit Discarding Changes – Discard changes and exit BIOS Setup Utility ... .............. 91
Load Setup Defaults – Copy Standa rd Entries . ........................................ 91
Discard Changes – Discard changes without exiting the BIOS Setup Utility . .............. 91
Save Changes - save changes without exiting the BIOS Setup Utility . . ... . .............. 91
Save Changes and Power Off ....................................................... 91
Troubleshooting and tips .............................................................. 92
Help if problems occur ................................................................... 92
The notebook’s date or time is incorrect ................................................... 93
Battery indicator does not illuminate . . .................................................... 93
When certain characters areentered on thekeyboard, only numerals arewritten ............. 93
The notebook’s LCD screen remains blank ... . ............................................ 93
The LCD screen is difficult to read ........................................................ 94
The externalmonitorremains blank ...................................................... 94
The externalmonitoris blankor the image isunstable ..................................... 94
The cursor does not correctly follow the pen movements . ... . . ............................. 95
Pen input notworking ................................................................... 95
The notebook cannot be started . . . ....................................................... 95
The notebook stops working ............................................................. 96
The printer does not print ... . ............................................................ 96
The radio connection to a network does not work . . ........................................ 96
The battery discharges tooquickly ........................................................ 97
Acoustic warnings ....................................................................... 97
Error messageson the screen ........................................................... 97
Technical data ......................................................................... 99
Fujitsu 5
Contents
Notebook . . ............................................................................. 99
Port Replicator (optional) ................................................................ 100
Rechargeable batt ery . . ................................................................. 101
Mains adapter for use with t he notebook and port replicator . ............................... 101
Manufacturer’s notes .................................................................. 102
Disposal andrecycling .................................................................. 102
Declarations ofConformity ............................................................... 102
CE marking ............................................................................ 102
Regulatory notices ...................................................................... 102
Regulatory information for notebooks without radio device .............................. 103
DOC (Industry CANADA) notices . . ................................................... 104
FCC regulatory information for notebooks with radio device . . . .......................... 106
Index .................................................................................. 108
6 Fujitsu
Innovative technology
Innovative technology
... and ergonomic design make your device a reliable and convenient companion.
The device boots very quickly, is ready for immediate use and offers a particularly
long operating time because of its high capacity battery.
With the user-friendly "BIOS Setup Utility" you can control your notebook’s hardware and better
protect your system against unauthorised access by using the powerful password properties.
Information on the connections and user components of your notebook
canbefoundin"
Further information
The Windows drivers for your device can be found on our Internet site.
The factory installation of your device does not support any other operating
system. Fujitsu Technology Solutions accepts no liability whatsoever
if any other operating system is used.
Software oriented components of these instructions refer to Microsoft products,
if they come within the scope of the delivery.
If you install oth er software products, pay attention to the operating
instructions of the manufacturer.
Ports and controls", Page 9.
Fujitsu 7
Innovative technology
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
these warnings could pose a risk to health, damage the device or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important informa
tion for the proper use of the device.
►
This font
This font
This font
"This font"
Key
This font
Indicates an activity that must be performed
Indicates a result
indicates data entered
the command line, e.g.
start a program (star
indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
indicates
• terms and texts used in a software interface, e.g.: Click on Save
• names of programs or files, e.g. Windows or setup.exe.
indicates
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "
• Names of CDs, DVDs and titles or designations for other materials,
e.g.: "CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
indicates a key on the keyboard, e.g:
indicates terms and texts that are emphasised or highlighted, e.g.: Do
not switch off the device
using the keyboard in a program dialogue or at
your password ( Name123) or a command used to
t.exe)
http://www.fujitsu.com/fts/"
F10
8 Fujitsu
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives yo u
an overview of the device’s indicators and connections. Please familiarise yourself with
these components before you start to work with the device.
Notebook open
1 2
3
5
4
12
13
6
7
8
11
9
14
6
18
17
16
15
14
1 = LCD screen
2 = WebCam (* optional)
3 = WebCam LED
4 = Fingerprint sensor
5 = Microphone
6 = Status indicators
7 = Windows button
8 = Tablet buttons
9 = ON/OFF switch
Fujitsu 9
10
5
10 = Ambient light sensor
11 = Keyboard
12 = Touchpad
13 = Touchpad buttons
14 = Loudspeakers
15 = Microphone jack
16 = Headphone port
17 = Memory c ard slot
18 = ON/OFF switch for wireless components
Ports and controls
Left panel
1 2 3
1 = DC input connector (DC IN)
2 = HDMI port
Rear
1 = Security Lock device
2 = VGA monitor port
3 = USB port with charging function (Anytime
USB charge, USB 3.0)
3 421
3 = USB ports (USB 2.0)
4 = LAN port
10 Fujitsu
Right-hand side
Ports and controls
1 43
1=Penslot
2 = ExpressCard slot
Bottom
7
2
3 = Module bay with opti
4 = Eject lever for module bay
1
2
3
cal drive
46
5
1 = Hard disk service compartment
2 = Memory service compartment
3 = Attachment eye for the pen cord
4 = Battery with SIM card slot under the battery
Fujitsu 11
5 = Battery charge status indicator
6 = Port for port replicator
7 = Ventilation slot cover
Important notes
Important notes
ImportantnotesNotes
Safety notes
SafetynotesNotes
This chapter contains essential safety information which must be followed
when working with your notebook. Other notes also provide useful information
which will help you with your n otebook.
Please follow the safety notes provided in the "Safety/Regulations" manual
as well as the safety notes given below.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "
Page 99 and "First-time setup of your device", Page 15 before preparing your
notebook for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the
section "
Pay attention to the additional safety notes for devices with radio components
provided in the "Safe ty/Regulations" manual.
Please refer to the notes in the chapter "
components during servicing", Page 82.
Cleaning the notebook", Page 14.
Technical data",
Removing and installing
This notebook
equipment. I
please conta
complies with the relevant safety regulations for data processing
f you have questio ns about using your notebook in a particular area,
ct your sales outlet or our Hotline/Service Desk.
Additional safety notes for devices with
radio components
Radiocomponent:WirelessLAN:Bluetooth,safetynotes
If a radio component (Wireless LAN, Bluetooth, UMTS/LTE) is incorporated in your notebook,
you must be sure to observe the following safety notes when using your notebook:
• Switch off the radio components when you are in an aircraft or driving in a car.
• Switch off the radio components when you are in a hospital, an operating room or near a medical
electronics system. The transmitted radio waves can impair the operation of medical devices.
• Switch off the r adio components when you let the device get near flammable
gases or into hazardous environments (e.g. petrol station, paintshops), as the
transmitted radio waves can cause an explosion or a fire.
For information on how to switch radio components on and off, see chapter
"
Switching the wireless components on and off", Page 60.
12 Fujitsu
Important notes
Energy saving
NotesEnergyEnergysaving
Switch the notebook off when it is not in use. Switch off external, connected devices if you
are not using them. If you use the energy saving functions, the notebook uses less energy.
You will then be able to work for longer before having to recharge the battery.
Energy efficiency is increased and the environmental impact is reduced.
You save money while protecting the environment.
Energy saving under Windows
► Make use of the power management features (see ""Using the power-management features",
Page 54").
Travelling with y ou
MobileoperationNotesTrans portationNotebook
Please observe the points listed below when travelling with your notebook.
r n otebook
Before you travel
► Back up important data stored on your hard disk.
NotebookTravel,notebook
► Switch off the radio component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorised third parties to receive data.
Information on activating data encryption is provided in the documentation
for your radio component.
► If you wish to use your notebook during a flight, first check with the flight
attendants if it is OK to do so.
When travelling in other countries
► If you are travelling abroad, check that the mains adapter can be opera ted with the
local mains voltage. If this is not the case, obtain the appropriate mains adapter for
your notebook. D o not use any other voltage converter!
► Check whether the local mains voltage and the power cable are compatible. If this is
not the case, buy a power cable that matches the local conditions.
► Enquire with the corresponding government office of the country you will be
travelling in as to whether you may operate th e radio component integrated in your
notebook there (see also "
CE marking", Page 102).
Fujitsu 13
Important notes
Notebook: transporting
Protect the notebook from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
► If your device has an optical drive, r emove all data media (e.g. CD, DVD) from the drives.
TransportationNotebook
► Switch the notebook off.
► Unplug the mains adapter and all external devices from the power socket.
► Disconnect the mains adapter cable and the data cables for all external devices.
► Close the LCD screen.
► To protect against damaging jolts and bumps, use a notebook carrying
case to transport your notebook.
Cleaning the notebo
ok
Do not clean any interior parts yourself; leave this job to a service technician.
Only use cleaning products designed for computers. Normal household
cleaners and polishes can damage the markings on the keyboa rd and the
device, the paintwork or the notebook itself.
Ensure that no liquid enters the notebook.
The LCD screen very sensitive to scratches. Only clean the display
surface with a very soft, slightly damp cloth.
► Switch the notebook off.
display
CleaningNotesNotebookKeyboardTouchpadLCDscreenCrystalView
► In order to prevent accidentially switching the device on, remove the power cable from the mains
adaptor and remove the battery (see "
The surface c
been moiste
an be cleaned with a dry cloth. If particularly dirty, use a cloth which has
ned in mild domestic detergent and then carefully wrung out.
Removing and installing the battery", Page 46).
To clean the keyboard and the touchpad, if available, you can use disinfectant wipes.
Ensure that no liquid enters the device.
14 Fujitsu
First-time setup of your device
First-time setup of your devic
First-timesetu pGettingstarted
On delivery, the battery can be found in the battery compartment or in the accessories kit.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your
device, please refer to the operating m anual for your device.
Unpacking and
► Unpack all the individual parts.
► Check your
Please read the chapter "Important notes", Page 12.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Beforeyouswitchonthedeviceforthefirst time, connect it to the mains voltage
using the mains adapter, see "
adapter must be connected during the entire installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process .
Mains adapter connecting", Page 16.Themains
checking the device
Should you discover any damage that occurred during transportation,
notify your local sales outlet immediately!
PackagingTransport
device for any visible damage which may have occurred during transportation.
e
You may ne
Fujitsu 15
ed the packaging in the future, if you need to transport your device.
First-time setup of your device
Selecting a location
SelectingalocationDeviceMainsadapter
Select a suitable location for the device before setting it up. Follow
the instructions below when doing so:
• Never place the device or the mains adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can block the air vents and cause overheating and damage.
• The underside of the device heats up during normal operation. Prolonged contact
with the skin may become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm away f rom the device and its
mains adapter to ensure adequate ventilation.
• Never cover the ventilation slots of the device.
• Do not expo se the device to extreme environmental conditions. Protect
the device from dust, humidity, and heat.
Mains adapter connecting
PreparingforoperationMainsadapter
Observe the safety notes in the enclosed "Safety/Regulations" manual.
The supplied power cable conforms to the requirements of the country in
which you purchased your device. Make sure that the power cable is approved
for use in the country in w hich you intend to use it.
► Connect the power cable (1) to the
mains adapter.
► Plug the mains cable (2) into a mains outlet.
► Connect the mains adapter cable (3) to
3
the DC jack (DC IN) of the device.
2
1
16 Fujitsu
First-time setup of your device
Switching on the device for the first time
Switchingonforthefirsttime
On devices with ON/OFF switch for wireless components: Slide the ON/OFF switch
for wireless comp onents to the ON position before switching on the device.
When you switch on the device for the first time, the supplied software is
installed and configured. Because this pro cedure must not be interrupted,
you should set aside enough time for it to be fully completed and connect
the device to the mains using the mains adapter.
During the installation process, DO NOT restart the device unless
you are requested to do so!
To make it easier to use y
is pre-installed on th
► Slide the ON/O FF switch (1) to the right to switch on th e notebook.
The ON/OFF switch returns automatically to its original position.
► During installation, follow the instructions on screen.
our device for the first time, the operating system
e hard disk.
1
If a Windows operating system is installed on your device, you will find more
information on the system and drivers, help programmes, updates, manuals etc. on
the device or on the Internet under "
Fujitsu 17
http://www.fujitsu.com/fts/support/".
Working with the notebook
Working with the notebook
Notebook,operationNotebook
This chapter describes the basics for opera ting your notebook. Please read the chapter
entitled "
devices such as a mouse and a printer to the notebook.
Status indicators
StatusindicatorsSymbols
The status indicators provide information about the status of the power supply,
the drives and the keyboard functions etc.
Connecting external devices", Page 75 for instructions on how to connect
Please refer to the notes in "Important notes", Page 12.
18 Fujitsu
Status displays Description
Power-on indicator
• Indicator is illuminated: The notebook is switched on.
• Indicator flashes: T he notebook is in sleep mode (Save-to-RAM).
• The indicator is not illuminated: The notebook is switched off or in
Save-to-Disk mode.
Battery charging indicator
The b attery charging indicator shows whether a battery is installed and being
charged.
Battery indicator
This description applies for both batteries.
The battery indicator shows the state of charge of the installed battery.
• The indicator is lit green: The battery is between 51 % and 100 %
charged.
• The indicator is lit orange: The battery is between 13 % and 50 %
charged.
• The indicator is lit red: T he battery is between 0 % and 12 % charged.
• The indicator flashes orange: The battery state of charge is being
checked (for four seconds after battery installation).
• The indicator flashes red: The battery is faulty.
• The indicator is not lit: There is no battery installed.
Note: if you use batteries with a capacity of 5800 mAh or 6200 mAh, you can
also check the charge status on the battery itself.
Note: You can also c heck the state of charge directly at the main battery.
Drive indicator
Indicator is illuminated: The hard disk drive or the CD/DVD in the optical drive
of the notebook is being accessed.
Num Lock indicator
Indicator is lit: The
keypad is activated. You can output the characters indicated on the upper
rightofthekeys.
Caps Lock
or is lit: The Caps Lock key has been pressed. All letters will be output
Indicat
as upper
printed
case letters. In the case of keys labelled several times, the character
on the upper left of the key will appear when that key is pressed.
Scroll Lock indicator
Indicator is lit: The key combination
that this key has varies between applications.
Lock Workstation indicator
The indicator is illuminated: The security functions of the Notebook have
locked your workstation.
indicator
Working with the notebook
Num
key has been pressed. The virtual numerical
Fn+Scr
has been pressed. The effect
Fujitsu 19
Working with the notebook
Opening the notebook
► Open the LCD screen.
1
20 Fujitsu
Working with the notebook
Switching on the notebook
Notebook:switchingonPower-onindicatorSuspend/Resumebutton
► Slide the ON/O FF switch (1) to the right to switch on th e notebook.
The ON/OFF switch returns automatically to its original position.
The ON/OFF switch (1) lights up whenever the system is switched on.
1
Programming the ON/OFF switch
You can pro
Operating system Menu
Windows 7
Fujitsu 21
gram the O N/OFF switch:
Start - (Settings) - Control Panel - System and
Security - Power Options
If you ha
do so, i
found i
ve assigned a password, you m ust enter this when requested to
n order to start the operating system. Detailed information can be
n the chapter "
Security functions", Page 68.
Working with the notebook
Different ways to use your notebook
During your daily work, you can use your notebook as a tablet PC or as a notebook, just as you wish.
Note the direction of rotation in the following description! No guarantee claims
can be met for damage caused by turning in the wrong direction.
You must n ote that the display cannot be turned completely on its own axis!
From notebook to Tablet PC
► Raise the
22 Fujitsu
LCD display into a vertical position.
Working with the notebook
► Hold the screen as low as possible on both sides. Turnthescreentotheleftorrightinthe dire ction
of the arrow. At first you will feel some slight resistance, then it will turn easily and without friction.
► Turn the display further until it has turned 180° and the hinge latches in.
Fujitsu 23
Working with the notebook
► Now fold the screen down until the back of the screen is flat on top of the keyboard.
The s creen is now secured in the tablet position.
Select displa
ientation
entation
ntation
Landscapeor
Portraitori
Displayorie
y orientation (portrait or landscape orientation)
You can choose to use either portrait or landscape orientation for the display. To switch
between portrait or landscape orientation, press the tablet button:
Windows 7
You can change these settings in the Fujitsu menu or under Start -(Settings -)
Control Panel - Hardware and Sound - Display - Settings.
Profiles for operating with various different screen modes can be selected via
the Fujitsu Tablet Control option in the Fujitsu menu. These profiles have preset
standard configurations that can be modified as desired.
These settings do not just affect the monitor settings on the Tablet PC, but
also any external monitors that may be connected.
24 Fujitsu
From Tablet PC to notebook
Working with the notebook
1
► Raise the LCD sc
Fujitsu 25
reen into a vertical position.
Working with the notebook
Note the direction of rotation in the following description! No guarantee claims
can be met for damage caused by turning in the wrong direction.
► hold the screen as near to the bottom as possible on both sides and turn the screen in the
direction indicated by the rotational direction indicator. It will turn easily and without resistance.
► Turn or move t
he display further until it has turned 180° and the hinge latches in.
Switching off the notebook
Notebook
► Close all applications and then shut down the operating system (please
see the "Operating System Manual").
► Slide the
The ON/OFF sw itch returns automatically to its original position.
26 Fujitsu
ON/OFF switch towards the right.
Working with the notebook
Closing the notebook
► Fold the LCD screen dow n onto the lower part of the notebook until you feel it lock into place.
Handwritin
Handwriting recognition under Windows 7 currently supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
Fujitsu 27
g recognition under Windows 7
Working with the notebook
LCD screen
LCDscreenNotes
High-quality TFT displays are installed in notebooks from Fujitsu Technology Solutions GmbH. For
technical reasons, TFT monitors are manufactured for a specific resolution. An op timal, clear
picture can only be ensured with the correct resolution intended for the relevant TFT monitor. A
monitor resolution which differs from the specification can result in an unclear picture.
The screen resolution of the LCD monitor of your notebook is optimally set at the factory.
The standard of production techniques today cannot guarantee an absolutely fault-free screen
display. A few isolated constant lit or unlit pixels (picture elements) may be present. The maximum
permitted number of pixels faults is stipulated in the international standard ISO 9241-3 (Class II).
Example:
A screen with a resolution of 1280 x 800 has 1280 x 800 = 1024000 pixels. Each pixel consists of
three subpixels (red, green and blue), so thereare about 3 million subpixelsin total. According to ISO
9241-3 (class II), a maximum of 2 light and 2 dark pixels and in addition 5 light or 10 dark subpixels
or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.
At a resolution of 1600 x 900 = 1440000 pixels, a maximum of 3 light and 3 dark pixels
and in addition 7 light or 14 dark subpixels are allowed to be defective.
Pixel
Subpixel
Cluster A cluster contains two or more defective pixels or
A pixel consists of
blue. A pixel is the
by complete funct
A subpixel is a se
within a pixel t
subpixels in a 5 x 5 pixel block.
3 subpixels, normally red, green and
smallest element that can be generated
ionality of the display.
parately addressable internal structure
hat enhances the pixel function.
Background l
TFT monitors
lighting ca
set the brig
Synchroni
For more i
under "Di
ighting
are operated with background lighting. The luminosity of the background
n decrease during the period of use of the notebook. However, you can
htness of your monitor individually.
sing the display on the LCD screen and an external monito r
nformation, please refer to the chapter "
splay output, switch between".
Key combinations", Page 40
Ambient Light Sensor
In the case of delivery with a Windows operating system, the screen brightness is regulated
by means of the ambient light sensor and depending on the particular light conditions. This
results in optimum readability and longer battery life at the same time.
Usin
You can execute commands as follows:
• using the stylus pen (supplied with your device).
• using your fingers
28 Fujitsu
g a device as a tablet PC
Working with the notebook
Using fingers
You can execute certain commands by using your finger tip on the touchscreen of your device.
Everything which you can select or activate using your finger tip can also
be se lected or activated using the stylus pen.
Calibrate the Dual Digitizer for finger-based operation of the device.
Please see the appropriate supplementary sheet for instructions on how to
calibrate your device to use Dual Digitizer Technology.
Please note: There are separate calibration programs available for calib rating
the stylus pen and for calibrating finger-based operation. In each case, use the
calibration tool described in the supplementary sheet. Do not use the calibration
tool for the stylus pen to calibrate finger-based operation.
Actions with one finger
Action Description
Selecting objects (click with the left mouse
button)
Starting programs (double-click with the left
mouse button)
Moving objects/windows (drag with left mouse
button pressed, Drag & Drop)
► With your finger, tap once brieflyonthe
object.
► With your finger, tap twice briefly in quick
succssion on the program icon.
► Place a finger directly on the object/window,
hold the finger pressed against the
touchscreen and move the desired
object/window.
Opening a context menu (click with the right
mouse button)
Moving the cursor
Fujitsu 29
► Touch the desired item once with you r finger
tip. Keep the finger tip pressed against the
touchscreen.
The context menu appears.
► Posit
ion one finger on the touchscreen and
the finger in the desired direction.
move
Working with the notebook
Actions with two fingers
Action Description
Scrolling
► Position two fingers on the touchscreen.
► Move your fingers upwards to scroll u p.
or
► Move your fingers downwards to scroll
down.
Rotating
► Position the thumb on the touchscreen,
then turn the picture clockwise o r
counter-clockwise using your index finger.
30 Fujitsu
Action Description
Increasing or decreasing the view
► Position two fingers on the touchscreen and
move them apart to increase the view.
or
► Position two fingers on the touchscreen and
move them together to decrease the view.
Blocking context-sensitive menus
► With two fingers, tap twice briefly in quick
succession on the touchscreen.
Working with the notebook
Fujitsu 31
Working with the notebook
Using the stylus pen
1 = pen tip
4
3
2
1
You can use the pen on your notebook as an electronic writing implement to select
items and to navigate through menu options and programs. Programs that support
handwriting recognition also allow you to write characters directly on the screen with
the pen. Yo u can also use the pen as a drawing tool.
The notebook pen is retained securely in the pen slot. This ensures that the pen cannot be
lost, regardless of whether you use the notebook as a Tablet PC or as a notebook, or transport
it while travelling. Always replace the pen in its slot when you are not using it.
The notebook is supplied with a pen cord which you can attach to the eyelets
on the pen and on the notebook.
2 = rocker button
3 = eyelet for pen cord
4 = eraser
Only use the pen provided with your notebook. Do not use substitute pen tips
that were not specially designed for your notebook. Replace the stylus tip if it
is worn. The warranty does not cover a scratched screen.
While writing, you should take care not to scratch th e surface of the
display (e.g. with a wristwatch or bracelet).
32 Fujitsu
Working with the notebook
The pen of your notebook is an electron ic instrument which can be damaged
if used incorrectly. Handle the pen with care.
The following list contains guidelines for proper pen handling:
• Do not gesture with the pen.
• Do not use the pen as a pointer.
• Never use the pen on any other surface than the screen of your notebook.
• Do not try to turn the thumb grip on the pen. The thumb grip is used to
place the pen in its slot and to take it out o f the slot.
• Never store the pen with the tip bearing the weight of the pen (e.g. with the tip down
in a pen holder). If the pen is stored with the tip pointing down, this may have
an adverse effect on the pen mechanism (particularly under high temperatures).
In this case the pen tip may react as though it is constantly being pressed down.
To avoid damage, the pen should be stored in the pen slot when not in use.
Thepencanbeinfluenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the pen down firmly.
The screen responds to entries made with the tip of the finger or the pen when the tip
of the finger or the pen is in direct contact with the screen.
You can use the pen to perform all the functions for which you would otherwise use a m ouse.
In addition, you can conveniently delete hand-written pen entries using the pen.
Handling Mouse Pen
Selecting menu
entries
Starting programs Double click with the left-hand mouse
Moving
objects/windows
Opening a context
menu
Moving the cursor
Click with the left-hand mouse button.
button.
Drag with the left-hand mouse button
held pressed.
Click with the right-hand mouse
button.
-
Touch the menu entry with the pen tip.
Briefly touch the program icon twice
with the pen tip.
Place the pen tip directly on the
object/window. Hold the pen tip
pressed against the screen. Move the
desired object/window.
Touch the desired element with the
pen and leave the pen on the element
for a moment.
Place the pen tip directly on the
screen.
Setting the pen
Operating system Menu
Windows 7
Fujitsu 33
Under Hardware and Sound – Pen and Input Devices in the Control Panel
you can change various settings for the pen (assignment and function of
the pen button).
Working with the notebook
Calibrating the pen
Before using the pen for the first time, you should calibrate it so that the cursor follows the
movements of the pen as accurately as possible. You should also always repeat the calibration
if the co-ordination between the pen and cursor movement deteriorates.
Operating system Menu
Windows 7
To calibrate, call up the Hardware and Sound / Tablet PC Settings function
in the Control Panel. You need to calibrate both portrait and landscape
formats.
Replacing the pen tip
With use, the pen tip may become worn or may pick up foreign particles that can scratch the screen.
A damaged or worn tip may not move freely, causing unpredictable results when using the pen.
Ifyourpenexhibits these problems, you should replace thepentip.Todothis, use the supplied tool(1).
► To remove the tip, position the tip in the gap
between the two ends of the tool supplied.
► Pinch the two ends of
together so that th
then pull it from th
► To replace the tip, retrieve one of the
new tips that were supplied your pen.
Insert the flat end of the tip into the
barrel and exerting gentle pressure, push
it in until it is firmly in place.
the supplied tool
etipisfirmly clasped,
e barrel.
1
If the tip is worn or damaged, discard it.
Installing a pen cord
You should attach the pen with a pen cord to prevent accidentally dropping or losing it.
► Attach the end of the pen cord with the smaller loop to your pen.
► Attach the end of the pen cord with the larger loop to your notebook.
34 Fujitsu
Using the device as a notebook
Touchpad and touchpad buttons
Keep the touchpad clean. Protect it from dirt, liq uids and grease.
TouchpadTouchpad
Do not use the touchpad if your fingers are dirty.
Do not rest heavy objects (e.g. books) on the touchpad or the touchpad buttons.
Working with the notebook
1
1 = Touchpad
2 = Touchpad buttons
2
The touchpad enables you to move the mouse pointer on the screen.
The touchpad buttons allow you to select and execute commands. They correspond
to the buttons on a conventional mouse.
You can use a key combination to disable the touchpad, to avoid accidentally moving
the pointer on the screen (see also "
Key combinations", Page 40).
Moving the pointer
► Move your fing
Touchpad
The pointer will move.
Selecting a
► Move the pointer to the item you wish to select.
Touchpad
► Tap the to
The item is selected.
er on the touchpad.
nitem
uchpad once or press the left button once.
Executi
► Move the pointer to the field you wish to select.
► Tap the
ng commands
hpad
Touc
The command is executed.
touchpad twice or press the left button twice.
Fujitsu 35
Working with the notebook
Dragging items
► Select the desired item.
Touchpad
► Press and hold t he left button and drag the item to the desired position
with the finger on the touchpad.
The item will be moved.
Switching the Touchpad on and off
You can switch the Touchpad on and off using a key combination,
see "
Key combinations", Page 40.
36 Fujitsu
Keyboard
KeyboardNumerickeypadNumerickeypadButtons
The keyboard of your notebook is subject to c ontinuou s wear through normal
use. The key markings are especially prone to wear. The key markings are
liable to wear away over the life of the notebook.
Working with the notebook
The keyboard has been desig
Some enhanced keyboard fun
The following descriptio
are described in the relev
The figure below shows how
The example applies when
The illustrations show
n of keys refers to Windows. Additional functions supported by the keys
ant manuals supplied with your application programs.
the Caps Lock key has not been activated.
=
+
0
=
0
ned to provide all the functions of an enhanced keyboard.
ctions are mapped with key combinations.
to access the different characters on keys with overlaid functions.
n below may differ from your actual device.
Num
}
}
=
0
=
}
0
+
=
0
}
}
Alt Gr
Fujitsu 37
Working with the notebook
Key Description
Backspace key
The Backspace key deletes the character to the left of the cursor.
BackspaceBackspace
Tab key
The Tab key moves the cursor to
Tabkey
the next tab stop.
Enter key (return)
The Enter key terminates
is executed when you pres
EnterkeyReturnEnterLinefeed
a command line. The command you have entered
s this k ey.
Caps Lock key
The Caps Lock key activates the Caps Lock mode, and the corresponding
icon is displayed in the Windows information area. In Caps Lock mode, all
of the characters you type appear in upper case. In the case of overlay
keys, the chara cter printed on the upper left of the key will appear when
that key is pressed. To cancel the Caps Lock function, simply press the
Caps Lock key again.
ShiftkeyCapsLock
Shift key
The Shift key ca
keys, the chara
keyispressed.
ShiftkeyShift
uses uppercase characters to appear. In the case of overlay
cter printed on the upper left of the key appears when that
Fn button
Fn
The
"
Key combina
Fnkey
key enabl
es the special functions indicated on overlay keys (see
tions", Page 40).
Cursor keys
The cursor
left, or ri
CursorkeysCursorcontrolkeys
keys move the cursor in the direction of the arrow, i.e. up, down,
ght.
Start key
The Start
Startkey
key opens the Windows Start menu.
Menu key
The Menu key invokes the menu for the marked item.
38 Fujitsu
Working with the notebook
Virtual numeric keypad
NumerickeypadVirtualnumerickeypadNumLock
To provide the convenience of a nu meric keypad, your keyboard is equipped with a virtual
numeric keypad. The special keys of the virtual numeric keypad are recognisable by the numbers
and symbols printed in the upper right corner of each key. If you have switched on the virtual
numeric keypad, you can output the characters shown on the upper right of the keys.
The keyboard layout shown below may differ f rom your actual device.
1 = Valid characters when the
Num
2 = Valid characters when the
key is not activated
r information about the status indicators can be found in chapter "
Furthe
is activate d
Status indicators", Page 18.
Num
Country and keyboard settings
If you want to change the country and keyboard settings, proceed as follows:
► Enter the settings by clicking Start – (Settings) – Control Panel – Time, Regional andLanguageOptions.
Fujitsu 39
Working with the notebook
Key combinations
The key combinations described below apply when using Microsoft Windows
operating systems. Some of the following key combinations may not function in
other operating systems or with certain device drivers.
Key combinations are entered as follows:
► Press the first key in the combination and keep it pressed.
► While holding the first key down, press the other key or keys in the combination.
Combination Description
Switching the loudspeakers on/off
This key combination switches the integrated loudsp eakers on and
off.
Fn+F3LoudspeakerL oudspeaker
Enable/disable touchpad
This key combination enables and disables the touchpad.
Fn+F4TouchpadTouchpadbuttonsTouchpad
Decrease screen bri
This key combinati
s
Fn+F6LCDscreenScreenbrightnes
Increase screen b
This key combina
ness
Fn+F7Screenbright
Decrease volum
This key combi
loudspeakers
Fn+F8Volume
Increase vol
This key com
loudspeake
Fn+F9Volume
on decreases the brightness of the screen.
rightness
tion increases the brightness of the screen.
e
nation reduces the volume of the internal
.
ume
bination increases the v olu m e of the internal
rs.
ghtness
40 Fujitsu
Combination Description
Toggle output screen
Fn+F10Toggleout put screen
Use this key combination to select which screen(s) is/are used for
display if an external monitor is connected.
Screen output is possible:
• only on the notebook’s LCD screen
• only on the external monitor
• on the notebook’s LCD screen and the external monitor at the
same time.
Press the key combination several times to switch through all
possible settings.
It is possible to display video on two screens simultaneously,
regardless of the type and number of external screens connected.
If you have connected two external monitors to the port replicator,
the following display outputs are possible:
• only on the notebook’s LCD screen
• only on the external monitor (analogue)
• at the same time on the LCD screen (digital)
• at the same time on the notebook’s LCD screen and on the
external monitor (analogue)
You cannot use the key combination to switch output at the same
time to both external monitors on the Port Replicator.
Ctrl
C
+
Halt current operation
This key combination can be used to halt an operation instantly
without clearing the keyboard buffer.
Back tab
This key combination moves the cursor back to the previous ta b
stop.
Shift+TabTabback
Working with the notebook
Fujitsu 41
Working with the notebook
Tablet buttons
Your notebook has six multifunctional tablet buttons. You can navigate on the screen with a
simple press of a button, call preset applications or ones that you have set yourself.
The tablet buttons have different uses in different modes.
In addition, you can still individually program some of the tablet buttons,
see "
Programming the tablet buttons", Page 43.
42 Fujitsu
Basic functions when the device has b ooted
Button Basic function
Windows button
This button corresponds to the function of the Windows Start key on a keyboard.
If the button is pressed in combination with the ON/OFF switch, the function
corresponds to the key combination
Decrease volume
This button reduces the volume of the built-in loudspeakers.
Increase volume
This button increases the volume of the built-in loudspeakers.
Rotation Lock
When you press this button, the orientation of the screen display changes from
portrait (vertical) to landscape (horizontal) or vice versa.
When you would like to use the Tablet PC as an eBook, for example, you would
use the portrait orientation.
When accessing spreadsheets, you would more typically use a landscape
orientation.
Windows 7:
This button locks and unlocks the automatic rotation of the display.
Button "A"
This button starts the Fujitsu Menu application. You can use this application to
change certain system settings.
The button is freely programmable.
Working with the notebook
Ctrl+Alt+Del
.
Button "B"
Use this button to s tar t the Windows Journal.
The button is freely programmable.
Programming the tablet buttons
You can program the tablet buttons to open a specific application or execute
a specific function whe n pressed.
Proceed as follows:
► In Control Panel, select the option to manage the settings for the tablet buttons and pen.
► Follow the instructions on the screen and program the tablet buttons as you require.
Fujitsu 43
Working with the notebook
Webcam
Webcam
Depending on the software used, you can use y our Webcam to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program w hich supports a webcam).
• When using the webcam the notebook support must not wobble.
• The webcam automatically adjusts itself to the current light level. For this reason
the LCD screen may flicker while the light level is adjusted.
Further information on using the webcam and on the additional settings
which are possible for yo ur webcam can be found in the help function
of the program which uses the webcam.
If you would like to perform a function test of your web cam, there is suitable test
software available at "
http://www.fujitsu.com/fts/support/index.html".
44 Fujitsu
Working with the notebook
Rechargeable battery
RechargeablebatteryBatteryLife,batteryRechargeablebatteryRechargeablebattery
When not plugged into a mains socket, the notebook runs on its bu ilt-in battery. You
can increase the life of the battery by caring fo r the battery properly. The average
battery life i s arou nd 500 charge/discharge cycles.
You can extend the battery life by taking advantage of the available energy saving functions.
Charging, caring for and maintaining the battery
BatteryBattery
The notebook battery can only be charged, when the ambient temperature
is between 5°C and max. 35°C.
You can charge the ba ttery b y con necting the noteboo k to the mains adapter
(see "
Mains adapter connecting", Page 16).
If the battery is running low you will hear a warning alarm. If you do not connect the mains adapter
within five minutes of the warning alarm described above, your notebook will automatically switch off.
monitoring the battery charging level
er
BatteryBatterystatusmet
Windows also has a "Battery status meter" in the taskbar for monitoring the battery capacity. When
you place the mouse pointer on the battery symbol, the system displays the battery status.
The battery capacity can be monitored using an indicator which shows the current state
of charge. Use the following menu to enable this feature:
Operating system Menu
Windows 7
Start – (Settings) – Control panel – Mobile PC –
Power options
Battery storage
rge,battery
acity,battery
BatteryBatterySelf-discha
Chargingcap
Keep the battery pack between 0°C and +30°C. The lower the temperature at which
the batteries are stored, the lower the rate of self-discharge.
If you will be storing batteries for a longer period (longer than two months),
the battery charge level should be approx. 30 %. To prevent exhaust ive
discharge which would permanently damage the battery, check the level
of charge of the battery a t regular intervals.
To be able to make use of the optimal charging capacity of the batteries, the battery
should be completely disch arged and then fully recharged.
If you do not use the batteries for long periods, remove them from the
notebook. Never store the batteries in the device.
Fujitsu 45
Working with the notebook
Removing and installing the battery
Only use recharge able batteries approved by Fujitsu Technology
Solutions for your notebook.
Never use force when fitting or removing a battery.
Make sure that no foreign bodies get into the battery connections.
Never store a battery for longer periods in the discharged state. This
can make it impossible to recharge.
Removing the battery
► Prepare for removal, se
e chapter "
Preparing to remove components", Page 83.
1
3
2
► Slide the release button (1) in direction of the arrow.
► Slide the release button (2) in direction of the arrow.
► Lift the battery out of the battery compartment (3).
46 Fujitsu
Working with the notebook
Inserting battery
3
2
1
► Place the battery on the lower edge of the battery compartment (1).
► Slide the battery into the battery compartment until you feel it engage (2).
► Slide the release button into its locked position (3).
► Complete the removal, see chapter "
Finishing component removal", Page 89.
Fujitsu 47
Working with the notebook
Batterychargestatusindicator
You can check the charge status directly on the battery itself.
11
a
► Press the key (1).
The LED (a) lights up in one of the following colours:
LED indicator
Green The battery is between 50 % and 1 00 %
Orange The battery is between 11 % and 49 % charged.
Red
LED not lit
State of charge
charged.
The battery is between 1 % and 10 % charged.
The battery is fully discharged.
48 Fujitsu
Working with the notebook
Module
ModulebayModules
The design of your notebook enables the flexible use of notebook batteries and drives. The
following modules can be operated in the module bay of your notebook:
• Second battery
• Optical drive
• Empty plug-in unit (save weight)
Only use modules designed for your notebook.
Do not use force when installing or removing the module.
Make sure that no foreign objects enter the module bay.
You can swap modules during operation. This means you do not
need to switch off the notebook.
To replace a module, simply click on the corresponding icon in the
task bar and then on Exit or Select - Exit.
The module can now be removed without any further actions being necessary.
Removing a module
1
2
ModuleDriveWeightSa ver
► Slide the release lever in the direction of the arrow (1).
► Now pull the module out of the module bay (2).
Fujitsu 49
Working with the notebook
Installing a module
► Place the module into the module bay so that the contacts enter first.
► Push the module into the module bay until you feel it locking into place.
Optical d rive
Opticaldrive
This product contains a light emitting diode, classification according to IEC 60825
1:2007: LASER CLASS 1, and must therefore not b e opened.
Handling data carriers
Handling
Observe the following guidelines when handling data carriers:
• Avoid touching the surface of a data carrier. Only handle data carriers by their edges.
• Always store data carriers in their cases. This will protect the data carrier against
being covered in dust, scratched or damaged in any other way.
• Protect your data carriers against dust, mechanical vibrations and direct sunlight.
• Avoid storing a data carrier in areas subject to high temperatures or humidity.
You may use both 8-cm and 12-cm data carriers in the optical drive.
When using a data carrier of lesser quality, vibrations and reading errors may occur.
50 Fujitsu
Working with the notebook
CD/DVD indicator
CD/DVDindicator
The CD/DVD indicator flashes when a data carrier is inserted. The indicator goes out when
the drive is ready for reading. The indicator l ights up when the drive is being accessed.
You may only remove the data carrier when the indicator is unlit.
If the CD /DVD indicator does not go out after a data carrier has been inserted, but
instead continues to flash, this means that the drive cannot access the data carrier.
Either the data carrier is damaged or dirty or you are using a data
carrier that the drive cannot read.
Inserting or removing a data carrier
InsertingRemoving
The notebook must be switched on.
► Push the insert/eject button (1).
The drive tray will open.
► Gently pull the drive tray (2) completely out.
2
1
► Place the data carrier in th e drive tray with
the printed side facing upwards.
or
► Remove a data carrier that has
been inserted.
► Push in the drive tray until you
feel it lock into place.
Fujitsu 51
Working with the notebook
Manual removal (emergency removal)
CD/DVD:ManualremovalofdatacarrierEmergencyremovalofdatacarrier
In the event of a power failure or damage to the drive, you can remove the data carrier manually.
► Switch your notebook off.
► Push a pen or a piece of wire (such as a
paperclip) firmly into the opening (1).
The drive tray is ejecte d. You can now pull
the drive tray (2) out of the drive.
2
1
Removing and fitting the dust removal cover
(ventilation slot cover)
In order to ensure optimum cooling of the components in your notebook, you
should periodically clean the ventilation slot of the heatsink.
This ensures optimum fan performance. You can achieve the best cleaning
results with a small hand-held vacuum cleaner.
If necessary, you can also use a dry brush to release dust from the ventilation slots.
Do not use any cleaning liquids! Ensure that no liquid enters the device.
To avoid overheating of the device, do not remove the ventilation slot
cover when the device is switched on.
► Prepare for
52 Fujitsu
removal, see chapter "
2
Preparing to remove components", Page 83.
► Press and hold the lock of the ventilation
slot cover (1) and remove it from its slot (2).
► Clean the d
1
ust chamber.
Working with the notebook
► Insert the ventilation slot cover into the
slot (1) at an angle as shown, and ensure
that you feel it click into place.
► Complete the removal, see chapter
"
Finishing component removal", Page 89.
1
Fujitsu 53
Working with the notebook
Using the power-management features
PowerPowerBattery
The notebook uses less power when the available power-management features are used. You
will then be able to work longer when using the battery before having to recharge it.
Power efficiency is increased and environmental pollution reduced. By
choosing the best power options, you can make significant savings and
at the same time help protect the environment.
When you close the LCD screen, depending on the setting in Windows, the
notebook automatically enters a power saving mode.
We recommend the following settings:
Function On external power On battery p ower
Turn off monitor After 10 minutes After 5 minutes
Turn off hard disk(s) After 15 minutes After 10 minutes
Energy saving (S3) After 20 m inutes After 15 minutes
Hibernate mode (S
4)
After 1 hour After 30 m inutes
► Select the power ma
nagement functions in your Control Panel.
► Select the Screen Saver in your Control Panel.
or
► Right-click on the desktop. Switch on the screen saver by clicking Personalization –
Change screen saver.
If you need further information about an option, you can get help with most
settings by pressing
F1
to open the Microsoft Help.
When the notebook is in power-saving mode, the following must be remembered:
During power saving mode, open files are held in the main memory
orinaswapfile on the hard disk.
Never turn off your notebook while it is in a power saving mode. If the built-in battery is
nearly empty, close the open files and do not go into power saving mode.
If you do not intend to use your notebook for a long period of time:
► Exit power saving mode if necessary via the mouse or keyboard or by switching on the
notebook.
► Close all opened programs and completely shut down the notebook.
54 Fujitsu
Memory cards
Slot
Your notebook is equipped with an integrated memory card reader.
Observe the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported format
The memory card reader supports the f ollowing format:
• Secure Digital (SD
Inserting the memory card
TM
card)
► Carefully slide the memory card into the
slot. The label should be facing upward. Do
not apply excessive force, as otherwise the
delicate contact surfaces could be damaged.
Memorycard
Depending on the particular type
used, the memory card may protrude
slightly from the slot.
Working with the notebook
Fujitsu 55
Working with the notebook
Removing the memory card
Memorycard
In order to protect your data, always follow the correct procedure
for removing the card outlined below.
You can stop the memory card via the corresponding icon in the ta sk bar:
► Left-click on the icon.
► Select the card you want to stop and remove.
► Press the Enter key.
Wait for the dialogue box which tells y ou that it is now safe to remove the memory card.
► On devices with card locking: Press
on the storage card (1).
Memorycard
The storage card is released and
can now be removed.
► Pull the storage card out of the slot (2).
1
2
ExpressCards
SlotExpressCard
AnExpressCardslotallowsanExpressCard/54tobeusedwiththecomputer.
Consult the documentation s upp lied by the ExpressCard’s manufacturer
and follow the instructions provided.
Never use force when installing or removing an ExpressCard.
Make sure that no foreign objects enter the ExpressCard slot.
56 Fujitsu
Inserting the card
Keep the placeholder for the slot in a safe place. When you remove the card again, you
must reinstall the p lace holder. This prevents foreign objects from getting into the slot.
Working with the notebook
► Press the edge of the placeholder (1)
to make the card placeholder protrude
from the notebook’s case.
► Pull the card placeholder out of the slot (2).
1
2
► Insert the c ard into the slot guide with
the connection conta cts first.
► Gently push the card into the slot until you
feel it click into place. Do not use any force.
Depending on the particular type used, the
card may protrude slightly from the slot.
Please see the documentation relating to the card for driver installation instructions.
Fujitsu 57
Working with the notebook
Removing the card
Always remove the card according to the rules described below, to
ensure that none of your data is lo st.
You can stop the ExpressCard using the corresponding symbol in the task bar:
► Click on the symbol for safe removal of hardware with the left mouse button.
► Select the ExpressCard you want to stop and remove.
► Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the ExpressCard.
► Press the edge of the card (1) so that the
card protrudes a little from the notebook.
► Pull the card out of the slot (2).
1
2
► Insert the card placeholder into the
slot guide.
► Gently slide the card placeh olde r into the
slot until you feel it click into place.
2
Loudspeakers and microphones
one
akers
dspeaker(subwoofer)
ontrol
Microph
Loudspe
Basslou
Volumec
ion on the exact position of the speakers an d microphone can be
Informat
found in
Please r
and also
58 Fujitsu
"
Ports and controls", Page 9.
efer to chapter "
Key combinations", Page 40 for information on setting the volume
enabling/disabling the loudspeakers using key combinations.
ttach an external microphone, the built-in m icrophon e is disabled.
If you a
When yo
Infor
in "
u connect headphones or external speakers, the built-in speakers are disabled.
mation on connecting headp hones and a microphone can be found
nnecting external devices", Page 75.
Co
Working with the notebook
1
1
SIM card
A SIM card (Subscriber Identity Module) is a chip card which is inserted in a mobile phone or
notebook and, together with an integrated UMTS/LTE module, en ables access to a mobile network.
When handling SIM cards, follow the instructions supplied by the provider.
Inserting t he SIM card
► Prepare for installation of theSIMcard, see chapter "Preparing toremove components", Page 83.
► Slide the SIM card into the slot (1)
until it is felt to engage, as shown in
the battery compartment.
► Complete the installation, see chapter "
Finishing component removal", Page 89.
Removing the SIM card
► Prepare for removal of the SIM card, see chapter "Preparing to remove components", Page 83.
► Press on the edge of the SIM card so that
it jumps up slightly out of the slot.
► Pull the SIM card out of the slot in the
direction of the arrow (1).
► Complete the removal, see chapter "
Fujitsu 59
Finishing component removal", Page 89.
Working with the notebook
Optional Wireless LAN / Bluetooth / UMTS /
LTE wireless components
The installation of radio components not approved by Fujitsu Technology Solutions
will invalidate the certifications issued for this device.
Depending on the device configuration you ordered, your device will be equipped
with Wireless LAN, Bluetooth and/or UMTS / LTE.
Switching the wireless components on and off
Before switching on
radio components mu
your device for the first time, the on/off switch for
st be in the "ON" position.
► Slide the ON/OFF s witc h into the "ON"
position to activate the radio components.
WirelessLANWirelessLANB l uetoothBlue tooth
or
► Slide the ON/OFF switch to the
"OFF" position to deactivate the
radio components.
If you switch off the radio components, the wireless LAN antenna and, when present,
the Bluetooth module and UMTS/LTE module will be switched off.
You can use the PlugfreeNetwork progra m to switch the installed radio
components on and off individually.
You can also deactivate the wireless components individually in the BIO S Setup.
For this to occur, you must either not have assigned a supervisor password or if a
supervisor password has been assigned, you must know this password.
Pay attention to the additional safety notes for devices with radio components
provided in the "Safe ty/Regulations" manual.
Details on using Wireless LAN can be found in the online help system
included in the Wireless LAN software.
You can find more information on how to use Bluetooth on the CD you
received with your Bluetooth software.
You can obtain more information on UMTS/LTE from your service provider.
60 Fujitsu
Working with the notebook
Setting up WLAN access
• Requirement: A WLAN must be available and you must have the
corresponding access information.
Information on config uring the WLAN access can be found in the
documentation for your operating system.
Access via UMTS / LTE
If you ordered an integrated UMTS / LTE module with your system, you can enjoy optimum
reception and maximum energy efficiency without awkward cables or antennas. The
optional UMTS / LTE module is ready for use straight away.
If you did not order a UMTS / LTE module, you can purchase the accessories for UMTS /
LTE reception from y our retailer or your Fujitsu Technology Solutions dealer.
You will find information on establishing the connection with the UMTS / LTE network
in the documentation for the hardware used.
Your device can connect to the Internet via UMTS / LTE. To do this, use one
of the following types of connection:
• Integrated UMTS / LTE module (availability dependent on your model variant)
• a USB dongle (a USB stick with your mobile phone provider’s SIM card)
• a mobile end-device (e.g. mobile phone with Bluetooth or cable connection)
• UMTS ExpressCard (fits into the ExpressCard slot on your device)
UMTS/LTE antenna
► To improve th
UMTS/LTE, fo
in the direc
UMTSUMTS
1
Fujitsu 61
e signal strength of the
ld out the UMTS/LTE antenna
tion of the arrow (1).
Working with the notebook
Ethernet and LAN
EthernetLAN
The internal network module of your notebook supports Ethernet LAN . You can use it to
establish a connection to a local network (LAN = Local Area Network).
► Connect the network cable to the LAN
port of the notebook (1).
► Connect the network cable to your
network connection (2).
1
2
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
Your Port Replic
Your Port Replicator is a device that enables you to quickly connect your notebook
to your peripherals, such as a monitor, printer etc.
The features offered by the Port Replicator include standard ports for
monitor, audio, mouse and keyboard.
You need only dock the notebook in order to use your peripheral devices.
62 Fujitsu
ator (optional)
Ports on the Port Replicator
PortReplicatorPorts
1
10
2
Working with the notebook
3
4
5
6
7
9
8
12
11
1 = ON/OFF switch
2 = USB ports (USB 3.0)
3=DVIport
4 = DisplayPort
5 = VGA monitor port
6 = LAN port
8 = Security Lock device
9 = DC input connector (DC IN )
10 = Adjusting lever of the Port Replicator
11 = Unlocking lever
12 = Connector on the Port Replicator for the
docking port on the bottom of the notebook
7 = Headphone port
Fujitsu 63
Working with the notebook
Setting up the port replicator
Select a suitable location for the port r eplicator before s etting it up.
Follow the instructions below when doing so:
• Never place the port replicator on a soft surface (e.g. carpeting, upholstered furniture, bed).
This can block the air vents of the notebook and cause overheating and damage.
• Place the port replicator on a stable, flat and non-slip surface. Please note that the
port replicator’s rubber feet may mark certain types of surface.
• Never place the port replicator and the mains adapter on a heat-sensitive surface.
• Do not expose the port replicator to extreme environmental conditions.
Protect the port replicator from dust, humidity and heat.
Connect the notebook to the port replicator
The Port Replicator supports various LIFEBOOK models. The adjusting
lever of the Port Replicator can be used to adapt the Port Replicator
to the size of the particular LIFEBOOK.
Before connecting the notebook to the port replicator, check if the setting
lever of the port replicator is in the right position. If necessary, adjust
the setting lever to the correct position.
► Disconnect the mains adapter ca ble from the DC socket (DC IN) of the notebook.
64 Fujitsu
Working with the notebook
1
3
2
► Position the notebook on the port replicator in such a way that the docking connector on the
underside of the notebook is aligned with the docking connector of the port replicator as shown.
► Press down
► Connect the mains adapter cab le to the DC jack (DC IN) of the port replicator (1).
► Connect t
► Plug the power cable into the mains socket (3).
Fujitsu 65
on the notebook’s rear corners so that it locks into position.
he power cable to the mains adapter (2).
Working with the notebook
Switching on the notebook via the port replicator
► Press the ON/OFF switch on the port replicator to switch the notebook on.
Switching off
► Close all applications and shut down your operating system (please refer
to the manual for the operating system).
If the notebook cannot be shut down properly, press the ON/OFF button
on the Port Replicator for approx. four seconds. The notebook will switch
off. Any unsaved data may however be lost.
66 Fujitsu
notebook via Port Replicator
Working with the notebook
Disconnecting the notebook from the port replicator
Problems may occur if the notebook is removed from the port replicato r
during operation. We recommend that you switch off the notebook beforehand
or use the Windows function Start – Undock.
Windows 7
Problems may occur if the notebook is removed from the port replicator during
operation. We recommend that you switch off the notebook beforehand or use
the Windows function Start (arrow icon)
2
► Pull the release button in the direction of the arrow (1).
► Pick up the notebook (2).
– Undock.
1
Fujitsu 67
Security functions
Security functions
Securityfunctions
Your notebook has several security features that you can use to secure your
system from unauthorised access.
This chapter explains how to use each function, and what the b enefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out and unable to access your data. Therefore,
please note the following information:
• Make regular backups to external data carriers such as extern al hard
drives, CDs, DVDs or Blu-ray Discs.
• Some security functio
of the passwords and ke
If you forget your passwords you will need to contact the our Service
Desk. Deletion or resetting of passwords is not c overed by your warranty
and a charge will be made for assistance.
Brief overview of s ecurity functions
Detailed information about the security equipment of your device can be found in
the "Professional Notebook" manual, on the "Drivers & Utilities" CD/DVD or on
the Internet at "
http://www.fujitsu.com/fts/support/index.html".
ns need you to choose passwords. Make a note
ep them in a safe place.
Security functions Type of protection
Security Lock
Fingerprint sensor (depending
on the device)
BIOS password protection Password protection for BIOS
Boot from removable media
Owner Information Overlay service desk or owner
Trusted Platform Modu le
(device dependent)
68 Fujitsu
Mechanical Fit and lock the Kensington
Biometric
Setup, operating system and
hard disk with supervisor and
user password. The passwords
consist of a maximum of eight
alphanumeric characters.
Prevents unauthorised booting
of an operating system from
external media (e.g. USB stick,
USB CD-ROM drive etc.).
information during the boot
process.
Identification and authentication
of the notebook
Preparation
Lock Cable (accessory).
Install the supplied fingerprint
software.
Specify at least one supervisor
password in the BIOS Setup
and activate the password
protection for the operating
system and hard disk as
desired.
In the BIOS Setup, go to the
Security menu and edit the
option Boot from Removable
Media.
In the BIOS Setup, go to the
Security menu and edit the
option Owner Information.
Define a supervisor password
in the BIOS Setup and enable
the TPM (Security Chip).
Security functions
Configuring the fingerprint sensor
FingerprintsensorFingerprintsensor
The fingerprint sensor can record an image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
► You must install the fingerp rint software
in order to be able to use the
fingerprint sensor (1).
1
Using the Security Lock
Your device comes with a Security Lock device for the Kensington Lock Cable. You can
use the Kensington Lock Cable, a sturdy steel cab le, to help protect your notebook from
theft. The Kensington Lock Cable is available as an accessory.
Fujitsu Technology Solutions recommends the use of a combination lock.
► Fit the Kensington Lock Cable on the
device on your notebook.
UsingtheKensingtonLockCableSecurityLockMechanicalbackupAnti-theftprotection
Attach another Kensington Lock Cable to your Port Replicator to p rotect
your Port Replicator from theft as well.
Fujitsu 69
Security functions
Configuring password protection in BIOS Setup Utility
Before using the various options for password protection in the BIOS Setup utility
to increase data security, please observe the following:
Make a note of the passwords and keep them in a safe place. If you forget your
supervisor password you will not be able to access your notebook. Passwords are
not covered by your warranty and a charge will be made for assistance.
Passwordprotection
Your password can be up to
No distinction is made be
Protecting BIOS Setup Utility (supervisor and user password)
If you have opened these operating instructions on the screen, we recommend that
you print out the following instructions. Because you cannot call the instructions
onto the screen while you are setting up the password.
BIOSSetupUtility
You prevent unauthorised use of the BIOS Setup Utility with both the supervisor an d the user
password. The supervisor password gives you access to all functions of the BIOS Setup
Utility, while the user password only provides some of the functions. You can only set a
user password if a supervisor password has already been assigned.
Please refer to the ""Settings in BIOS Setup Utility", Page 90 secti on for a
description of how to call up and operate the BIOS Setu p Utility.
eight characters long and contain letters and numbers.
tween uppercase and lowercase.
Setting supervisor and user password
► Start the BIOS Setup Utility and go to the Security menu.
► Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
► Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
► Enter the password again and press the Enter key.
Changes have been saved is a confirmation that the new password has been saved.
► To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
► In the Exit menu, select the option Save Changes & Exit.
► Select Yes and press the Enter key.
PasswordSupervisorpasswor dUserpassword
The notebook will be rebooted and the new password will c ome into effect. It will now be
necessary to first enter your supervisor or user password in order to open the BIOS Setup Utility.
Please note that the user password only provides access to a few of the BIOS settings.
70 Fujitsu
Security functions
Changing the supervisor or user password
You can only change the supervisor password when you have logged into the
BIOS Setup Utility with the supervisor password.
PasswordSupervisorpasswordUserpassword
► Call the BIOS Setup Utility and go to the Security menu.
► When changing the password, proceed exactly as for password assignment.
Removing passwords
To remove a password (without setting a ne w password) perform the following steps:
PasswordSupervisorpasswordUserpassword
► Start the BIO S Setup Utility and go to the Se curity menu.
► Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
You will be requested to enter a new password by the Enter New Password prompt.
► Press the Enter key twice.
► In the Exit menu, select the option Save Changes & Exit.
► Select Yes and press the Enter key.
The notebook will now reboot with the password removed.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting of the operating system
With the superv
section "
prevent booti
Operatingsystem
isor password y ou have set in the BIOS Setup Utility (see
ng supervisor and user password", Page 70), you can also
Setti
ng of the operating system.
Activating system protection
► Start the BIO S Setup Utility and go to the Se curity menu.
Operatingsystem
► Select the PasswordonBootoption and press the Enter key.
► Select the desired option (Disabled, First Boot or Every Boot) a nd press the Enter k ey
► Select the Save Changes & Exit option under Exit.
The notebook will reboot. Youwillbe prompted to enter your password (the supervisor password).
Deactivating system protection
► Start the BIO S Setup Utility and go to the Se curity menu.
Operatingsystem
► Select the PasswordonBootoption and press the Enter key.
► Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
► Select the Save Changes & Exit option under Exit.
The notebook will reboot. The system is no longer password-protected.
Fujitsu 71
Security functions
Password protection for the hard disk
Passwordprotection:
The had disk password prevents unauthorised access to the hard disk drives
and is checked internally each time the system is booted. The condition for this
is that you have assigned at least the supervisor password.
Activating hard disk protection
► Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired (see "
► Mark the Hard Disk Security fie ld and press the Enter key.
► In the Drive0 area mark the Set Master P assword field and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
► Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
► Enter the password again and press the Enter key.
Setup Notice: Changes h av e been saved is displayed to confirm that the
new password has been saved.
► To assign the password for the second hard disk (Drive1), go to the Drive1 area and
select the field Set Master Password, then proceed in exactly the same way as for
setting up the password for the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
► From the Exit menu, choose the option Exit Saving Changes.
► Press the Enter key and select Yes.
The notebook reboots and your hard disk is now protected with a password. T he system
will ask you to enter the password when the notebook is restarted again.
Security functions", Page 68).
Deactivating hard disk protection
To cancel a password without setting a new one, proceed as follows:
► Call up the BIOS Setup and select the Security menu.
► Mark the Hard Disk Security fie ld and press the Enter key.
► In the Drive0 area mark the Set Master P assword field and press the Enter key.
You will be initially requested to enter the old password by the Enter current Password prompt.
You will then be requested to enter a new password by the Enter new Password prompt.
► After entering the passw ord, press the Enter key three times.
► From the Exit menu, choose the option Exit Saving Changes.
► Press the Enter key and select Yes.
The notebook reboots, and password protection for the hard disk is cancelled.
► To cancel the password for the second hard disk (Drive1), go to the Drive1 area
and select the field Set Master Password, then proceed in exactly the same way as
for cancelling the password for the first hard disk (Drive0).
72 Fujitsu
Security functions
Using the security function of the tablet keys
If you have allotted a supervisor and/or user password in the form of tablet key combinations as
described below, you can use the tablet keys to enter this when you start your device.
Setting the Supervisor pas
► Select Start - Run.
► Enter the following at th
Panel Application\Sup
► Confirm with
► Follow the instructio
Enter
e command line: C:\Program Files\Fujitsu\Security
ervisor\FJSECS.EXE.
.
ns on the screen.
sword
Setting the User password
► Select Start - All Programs.
► Select Security Panel Application – Security Panel Application.
► Follow the instructions on the screen.
Entering passwords using the tablet buttons
The passwords to be entered via the tablet bu tt ons are usually composed of a combination of
button presses, e.g. button
► Enter your password using the buttons
► Confirm by pressing
The device will be unlocked.
2
+ button3followed by button1and the
1
to4.
ENT
.
ENT
button.
Fujitsu 73
Security functions
Trusted P latform Module (TPM) (device-dependent)
TPMTrustedPlatformModule
To use the TPM, you must activate the TPM in the BIOS Setup before the software
is installed. The condition for this is that you have assigned at least the sup ervisor
password (see "
Enabling TPM
• Requirement: You have assigned a supervisor password, see "Security functions", Page 68.
► Call up the BIOS Setup an
► Mark the TPM Security Chip Se ttin g field and press the Enter key.
► Select Enabled to acti
Once you have activated the TPM the Clear Security Chip option appears.
Select Clear Securit
all secret keys (e.g
etc.) generated by
Please note that yo
encrypted with th
► Select the Exit Sa
► Press the Enter key and select Yes.
The notebook wil
Disabling TPM
• Requirement: You have assigned a supervisor password, see "Security functions", Page 68.
► Call up the BIOS Setup and select the Security menu.
► Mark the TPM Security Chip Se ttin g field and press the Enter key.
► Select Disabled to deactivate the TPM.
► From the Exit menu, choose the option Exit Saving Changes.
► Press the Enter key and select Yes.
Your notebook will now restart and TPM will be disabled.
Security functions", Page 68).
d select the Security menu.
vate the T PM .
y Chip to delete the holder in the TPM. By clicking on Enabled,
. SRK - Storage Root Keys, AIK - Attestation Identity Keys
applications are deleted.
u will then no longer be able to access the data you have
e keys based on that holder.
ving Changes option in the Exit menu.
l restart, and TPM will be enabled after the reboot.
74 Fujitsu
Connecting external devices
Connecting external devices
Always refer to the safety information provided in "Important notes", Page 12 before
connecting or disconnecting any devices to or from your notebook.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
Follow the steps below in order, when connecting or disconnect ing
devices to your notebook:
With some devices such as USB devices, it is not necessary to switch off
the notebook and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with the external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting devices to the notebook
1. Turn off your notebook and all external devices.
2. Unplug your not
3. Connect the cables for your external devices following the instructions.
4. Plug all power
vices
DevicesPerip heralde
ebook and all devices from the mains sockets.
cables into the mains sockets.
Disconnecting devices from the notebook
1. Turn off your notebook and all external devices.
2. Unplug your
3. Disconnect the cables for your external devices following the instructions.
DevicesPerip heraldevices
notebook and a ll devices from the mains sockets.
Fujitsu 75
Connecting external devices
Connecting an external monitor
The Port R eplicator, available as an option for your notebook, offers
you a DVI port and a DisplayPort.
An analogue monitor is connected to the analogue VGA monitor port, a digital monitor to the
DVI-I monitor port of the port replicator. Screen output is limited to a maximum of two screens
at any one time (see "
MonitorVGAcon nectionsocketScreenportMonitorport
Key combinations", Page 40, section "Toggle output screen").
Digital DVI monit
or port
Analogue VGA monitor port
► Switch off the notebo ok and the external monitor.
► Plug the data cable of the external monitor into the monitor port.
► First s witch on the external monitor and then the notebook.
You can also switch back and forth between the external monitor and the notebook’s
LCD monitor, see chapter "
Key combinations", Page 40.
You can display the same picture on the external monitor and the
notebook LCD screen simultaneously.
76 Fujitsu
Connecting external devices
Connecting an external monitor to the DisplayPort
It is possible to connect a digital monitor to the DisplayPort on the p ort replicator.
Screen output is limited to a maximum of two screens at any one time (see "
combinations", Page 40, section "Toggle output screen").
Digital DisplayPort
► Switch off the notebook and the external monitor.
► Plug the data cable of the external monitor into the monitor port.
► First switch on the external monitor and then the notebook.
You can also switch between the external monitor and the LCD monitor of the
notebook, see chapter "
You can display the same picture o n the external monitor and the
notebook LCD monitor simultaneously.
Key combinations", Page 40.
Key
Fujitsu 77
Connecting external devices
HDMI port
HDMIport
The HDMI port on your notebook can be used to connect an external amplifier,
LCD TV or a plasma TV with an HDMI connection.
► Connect the da ta cable to the
external device.
► Connect the data cable to the HDMI
port of the notebook.
Some LCD televisions have only two loudspeaker connections and th erefore
cannot reproduce Dolby digital or DT S. In order to reproduce the sound, you
must go into Windows and adjust the sound settings.
Proceed as follows:
► Select Startsymbol – (Settings) – Control Panel – Hardware and So u nd – Soun d.
► Mark Realtek HDMI Output.
► Select Properties – Supported formats.
► Deactivate the settings DTS audio and Do lb y digital.
► Confirm the settings with OK.
78 Fujitsu
Connecting external devices
Connecting USB devices
USBports
On the USB ports, you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect
devices while your operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbit/s.
USB 2.0 has a data transfer rate of up to 480 Mbit/s.
USB 3.0 has a data trans
Additional informati
Device drivers
USB devices will be automatically recognised and installed by your operating system.
fer rate of up to 5 Gbit/s.
on can be found in the documentation for the U SB devices.
► Connect the data cable to the
external device.
► Connect the data cable to a USB
port of the notebook.
Fujitsu 79
Connecting external devices
USB port with charging function (Anytime USB charge)
USBchargingfunction
It is recommended that the notebook be operated with the power supply connected
whenever the USB port with charging function is in use, as this function will drain
the battery more quickly if an external USB device is being charged.
The power supply unit must already be connected when the notebook is
switched off, as otherwise the USB charging function will be disabled and
the connected USB devices will not be charged.
Some USB devices (e.g. mobile telephones) require a driver in order to utilise the
USB charging function. In this case the USB charging function will not work when the
notebook is switched off, as no drivers are active when the notebook is switched off.
You can use this
or a mobile phon
USB port to charge or supply power to a USB device (e.g. to charge a PDA
e or to connect a USB lamp), even if the notebook is switched off.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
► Left click on the icon to safely remove hardware, located in the taskbar.
► Select the device which you want to shut down and remove.
► Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the device.
80 Fujitsu
Connecting external devices
Connecting external audio devices
Microphone port/Line In
Audiodevices,connectingAudioportsM icrophone,connecting
The microphone port/Line In allows you to connect an external microphone, a MiniDisc
player, MP3 player, CD player or a tape deck to your notebook.
► Connect the audio cable to the
external device.
► Connect the audio cable t
port/Line In of the note
Headphone port
devices
hones
Connectingaudio
AudioportsC onne ctingheadp
You can connect headphones or external loudspeakers to your notebook via the headphone port.
► Connect the audio cable to the
external device.
► Connect the audio cable to the headphone
port of the notebook.
The internal loudspeakers are disabled.
o the microphone
book.
If you purchase a cable from a retailer, please note the following information:
The headphone port on your notebook is a "3.5 mm jack socket".
If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".
Fujitsu 81
Removing and installing components
during servicing
Removing and installing compo
nents
during servicing
Only q ualified technicians should repair your notebook. Unauthorised
opening or incorrect repair may greatly endanger the user (electric shock,
fire risk) and will invalidate your warranty.
Servicing
Components
After consulting the Hotline/Service Desk, you may remove and install the
components described in this chapter yourself.
If you remove and install components without consulting the Hotline/Service
Desk, then the warranty of your notebook will be voided.
Notes on installing and removing boards
and components
• Switch the notebook off and pull the power plug out of the mains socket.
• Always remove the battery.
• Take care when you use the locking mechanisms on the battery and any other component.
• Never use sharp objects such as screwdrivers, scissors or knives as leverage to remove covers.
NotesBoardESD
Boards with electrostatic sensitive devices (ESD) are marked with the label
shown.
When handling boards fitted with ESDs, you must always observe the following
points:
• You must always discharge static build up (e.g. by touching a grounded
object) before working.
• The equipment and tools you use m ust be free of static charges.
• Remove the power plug from the mains supply before inserting or removing
boards containing ESDs.
• Always hold boards with ESDs by their edges.
• Never touch pins or conductors on boards fitted with ESDs.
82 Fujitsu
Removing and installing components
during servicing
Preparing to remove components
If you are going to remove or change system components, prepare for the removal as follows:
Please observe the safety information in chapter "Important notes", Page 12.
Remove the power plug from the mains outlet !
► Switch the device off.
The device must not be in energy-saving mode !
► Close the LCD screen.
► Remove all the cables
from the device.
► Turn the device over and place it on a sta ble, flat and clean surface. If necessary, lay an
anti-slip cloth on this surface to prevent the device from being scratched.
(see "
► Remove the battery
Removing the battery", Page 46).
Installing a nd removing memory expansion
on
MemorymoduleMainmemoryRemovingmemorySystemexpansionSystemexpansi
If you are asked by the Hotline/Service Desk to remove and install the memory
expansion yourself, proceed as follows:
Please observe the safety information in chapter "Important notes", Page 12.
When installing/removing memory modules, the battery must be removed from
the notebook and the notebook must not be connected to the power supply,
see "
Preparing to remove components", Page 83.
Only use memory expansion modules that have been approved for your
notebook (see "
Technical data", Page 99).
Never use force when installing or removing a memory extension.
Make sure that foreign objects do not fall into the memory extension compartment.
You m ust open the service compartment to remove or install a memory module. On some devices,
opening the compartment may expose other components. These components should be removed
and replaced only by authorised specialists. Therefore, be sure to observe the following:
Individual components can become very hot during operation. Therefore, we
recommend that you wait one hour after switching off the notebook before removing
or installing memory modules. Otherwise, there is a risk of suffering burns!
As some components are exposed that are sensitive to static electricity, please take
note o f chapter "
Notes on installing and removing boards and components", Page 82.
Fujitsu 83
Removing and installing components
during servicing
Removing a cover
1
2
► Remove the screw (1).
► Pull off the cover from the notebook in the direction of the arrow (2).
Removing memory modules
► Carefully pu
clips outwar
MemoryexpansionMemorymodule
The memory module snaps upwards (2).
3
2
1
84 Fujitsu
1
► Pull the me
in the dire
sh the two mounting
ds (1).
mory module out of its slot
ction of the arrow (3).
Removing and installing components
Installing a memory module
2
1
2
a
Attaching the cover
during servicing
► Insert the memory module with the contacts
and the recess (a) facing the slot (1).
MemoryexpansionMemorymodule
► Carefully push the memory module
downwards until you feel it click
into place (2).
2
1
► Place the cover into position, following the direction of the arrow (1).
► Fasten the cover with the screw (2).
► Install the battery again (see "
► Turn the notebook the right way up again and place it on a flat surface.
► Reconnect the cables that w e re previously disconnected.
Fujitsu 85
Removing and installing the battery", Page 46).
Removing and installing components
during servicing
Removing and installing the har
Removing a cover
1
2
► Remove the screw (1).
Keep the screw in a safe place. If you are removing more than one component at
the same time, store the screws for the individual components separate from each
other. If you install the wrong screws, components may be da maged.
ddisk
3
► Slide the cover in direction of the arrow (2).
► Lift the cover off the notebook (3).
86 Fujitsu
Removing and installing components
during servicing
Removing a hard disk
2
1
► To release the hard disk from the contacts, pull it in the direction of the arrow ( 1).
► Remove the hard disk from the hard disk compartment (2).
Fujitsu 87
Removing and installing components
during servicing
Installing a h ard disk
2
1
► Place the hard disk into the hard disk compartment (1).
► Push the hard disk in the direction of the arrow (2) until the contacts of the hard disk engage.
88 Fujitsu
Removing and installing components
Attaching the cover
3
2
► Place the cover in the correct mounting position (1).
► Slide the cover in the direction of the arrow (2).
► Tighten the screw (3).
during servicing
1
Finishing component removal
After you have removed or changed the system components as you required, please
prepare your device for operation again as follows:
► Install the battery again (see "
► Turn the notebook the right way up again and place it on a flat surface.
► Reconnect the cables that you disconnected before.
Fujitsu 89
Inserting battery", Page 47).
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetup UtilityConfiguration,BIOSSetupUtilitySetupSystemc onfigurationHardwareconfiguration
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the notebook.
When it is delivered, the notebook is set to factory default settings. You can
change these settings in BIOS Setup Utility. A ny changes you make take effect as
soon as you s ave and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
About
System
Advanced
Security
Boot
Exit
Starting the BIOS Setup Utility
► Reboot the device (switch off/on or reboot the operating system).
ty
BIOSSetupUtili
The following or a similar display appears on the screen at start-up:
<F2> BIOS Setup <F12> Boot Menu
► Press the function key
► If a password has been assigned, enter the password and press the Enter key.
Displays information relating to the BIOS, processor and notebook
Advanced system settings
Configuration of va
rious hardware components, such as mouse, keyboard,
processor
Password settings and security functions
Configuration of the start-up sequence
Exits the BIOS Setup Utility
F2
.
If you have forgotten the password, contact your system administra tor
or contact our customer service centre.
OS Setup Utility starts.
The BI
Operating BIOS Setup Utility
BIOSSetupUtility
► Use the cursor keys
► Select the option you want to change with the cursor keys
► Press the Enter key.
► Press the
► For future reference, make a note of the changes you have made (for example, in this manual).
90 Fujitsu
Press theF1key to displayhelpontheoperation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the
F9
key you can load the default settings of the BIOS Setup Utility.
←
or→to select the menu you wish to access to make changes.
The menu is displayed on the screen.
↑
or↓.
ESC
key to exit the selected menu.
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need t o select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save ch
► Tosave the current menusettingsand exit the BIOS Setup Utility,selectExit SavingChanges and Yes.
The notebook is rebooted
and the new settings come into effect.
anges andexit BIOS Setup Utility
Exit Discarding Changes – Discard changes and
exit BIOS Setup Utility
► To discard the changes, select Exit Discarding Changes and Yes.
The settings in place when BIO S Setup Utility was called re m ain effective. BIOS
Setup Utility is terminated and the notebook is rebooted.
Load Setup Defaul
► To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Yes.
ts – Copy Standard Entries
Discard Changes – Discard changes without exiting
the BIOS Setup Utility
► To discard the changes you have made, select Discard Changes and Yes.
ThesettingsinplacewhenBIOS Se tup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
► If you want to exitBIOS Setup Utilitywith these settings, select Exit Saving Changes and Yes.
Save Chan
ges - save changes without exiting
the BIOS Setup Utility
► To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
► If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save Changes and Power Off
► To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
Fujitsu 91
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTipsFaultTroubleshooting
If a fault occurs, try to correct i t as described. If you fail to correct the problem, proceed as follows:
► Make a note of the steps and the c ircumstances that led to the fault. Also
► Switch the notebook off.
► Please contact th e Hotline/Service Desk.
Follow the safety notes in the "Safety/Regulations" manual when
connecting or disconnecting cables.
make a note of any error messages displayed.
You can find the telephone numbers in the service desk list. Please have
the following information ready when you call:
• The model name and serial number of the notebook. The serial number is
located on a sticker on the underside of the notebook.
• Notes ofanymessagesthatappearon the screen and informationona cou stic signals.
• Any changes you have made to the hardwa re or software since
receiving the notebook.
• Any changes you have made to the BIOS Setup settings since receiving the notebook.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our notebooks
means that con
in terms of we
configuratio
compared to a
games with i
been appro
losses or m
versions c
Help if pr
Should you encounter a problem with your computer that you cannot resolve yourself:
► Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
► For further clarification of the problem, contact the Service Desk for your country (see the
Service Desk list or visit the Internet at
"
http://support.ts.fujitsu.com/contact/servicedesk/ServiceDeskNumber_Int.asp"). When you
do this, please have ready the ID number and serial number of your system.
92 Fujitsu
oblems occur
have been designed primarily with mobile applications in mind. This
siderable effort has been made to optimise components and equipment
ight, space and energy requirements. Depending on the particular
n you have purchased, it is possible that functionality may be slightly reduced
desktop PC if you are running processor-intensive gaming software, e.g.
ntensive 3D graphics. Updating your hardware with drivers which have not
ved by Fujitsu Technology Solutions may result in performance losses, data
alfunction of the equipment. A list of approved drivers and current BIOS
an be downloaded from: "
http://support.ts.fujitsu.com/Download/Index.asp"
Troubleshooting and tips
The notebook’s date or time is in
SummertimeTime,daylight savingsTimenotcorrectTime notcorrectIncor rectdate/timeDateisincorrectBufferbattery,load
Cause Troubleshooting
Time and date are incorrect. ► With the BIOS-Setup-Utility,
If the time and date are still set incorrectly after
switching on the notebook.
date and time in the main menu.
► Please contact your sales out
Hotline/Service Desk.
correct
Battery indicator does not illuminate
Cause
The battery is not installed correctly.
The battery is fully discharged. ► Charge the battery.
When certain c
haracters are entered on the
Fault elimination
► Switch the notebook off.
► Check whethe r the batte
correctly in its comp
► Switch the notebook on.
or
► Install a charged battery.
or
► Connect the notebook to a mains outlet
using the mains adapter.
artment.
keyboard, only numerals are written
severysecond
Abeepsound
Cause Troubleshooting
The virtual n
activated,
see "
umeric keypad of your device is
Virtual numeric keypad", Page 39
► Press the
Num
key.
you can set the
let or our
ry is installed
The notebook’s LCD screen remains blank
LCDscreenLCDscreenistoodark
Cause Troubleshooting
Monitor is switched off.
External monitor or television set connected. ► Press the key combination to switch the
Fujitsu 93
► Press a key or touch the touchpad.
screen output, see "
Page 40.
Key combinations",
Troubleshooting and tips
The LCD screen is difficult to read
LCDscreenLCD screen
Cause Troubleshooting
Reflected glare ► Turn the notebook or alter the tilt of the LCD
screen.
► Increase the brightness of the screen.
The external monitor rem
Monitor
Cause Troubleshooting
Monitor is switched off. ► Switch the external monitor on.
Power saving has be en activated (monitor is
blank).
Brightness is set to dark.
Screen output is set to the notebook’s LCD
screen
The external moni
cable is not conn
tor’s power cable or data
ected properly.
ains blank
► Press any key to continue.
► Adjust the brightne
► Press the key combi
screen output, see
Page 40.
► Switch off the external monitor and the
notebook.
► Check whether the power cable is plugged
properly into the external monitor and into
the power socket.
► Check whether the data cable is properly
connected to the notebook and the external
monitor (if it is plugged in with a connector).
► Switch on the external monitor and the
notebook.
ss of the monitor.
nationtoswitchthe
"
Key combinations",
The external monitor is blank or the image is unstable
ScreenMonitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
► Terminate the application program in
Windows by pressing
fault persists after closing the program, use
the key combination for switching the screen
output (see "
switch over to the notebook’s LCD screen.
Change the following setting:
► Set the screen resolution: Set the screen
resolution as described in thedocumentation
foryouroperatingsystem.
► Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operating system.
Key combinations", Page 40)to
Alt+F4
.Ifthe
94 Fujitsu
Troubleshooting and tips
The cursor does not correctly follow the
pen movements
Cause
Pen incorrectly calibrated
Fault elimination
► Calibrate the pen as shown under Hardware
and Sound / Tablet PC Settings in the Control
Panel, see "
"
Calibrating the pen", Page 34.
Setting the pen", Page 33 and
Pen input not working
Cause
Incorrect driver installed.
Troubleshooting
► If your device is one which can only be
operated using the pen, install the driver for
the standard model.
or
► If your device is one which can be
operated using the pen and by finger,
install the driver for the "Dual Digitizer"
model.
The notebook ca
Notebook
Cause Troubleshooti
The battery is
The battery is dead.
The power adapter is not connected correctly.
Fujitsu 95
not installed correctly.
nnot be started
ng
► Check whethe r the battery is installed
correctly in its compartment.
► Switch the notebook on.
► Charge the battery.
or
► Insert a charged battery.
or
► Connect the mains adapter to the
notebook.
► Check whether the mains adapter is
connected correctly to the not ebook.
► Switch the notebook on.
Troubleshooting and tips
The notebook stops working
NotebookEnergysaving mode
Cause Troubleshooting
Notebook is in energy saving mo
An application programme has
malfunction.
de.
caused the
► Leave energy saving mode.
► Close the application program or restart
the notebook (by restarting the operating
system or switching the device off and back
on again).
The battery is de ad.
► Charge the battery.
or
► Insert a charged battery.
or
► Connect the mains adapt
er to the
notebook.
The printer does not print
rint
Printerdoesnotp
Cause Troubleshooting
The printer is not switched on. ► Make sure that the printer is switched
The printer is not connected correctly.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
on and ready for operation (refer to the
documentation supplied with the printer).
► Check that the data cable connecting
the notebook to the printer is properly
connected.
► Check that the data cable connecting
the notebook to the printer is properly
connected.
► Check whethe
loaded (ref
rthecorrectprinterdriveris
er to the printer documentation).
The radio connection to a network d oes not work
oconnectiontoanetworkdoes notwork
Theradi
Cause Troubleshooting
The wireless component is disabled.
The wireless component is enabled. Despite
this, the wireless connection to a network does
not work.
96 Fujitsu
► Switch the radio component on (see
"
Switching the wireless components on and
off", Page 60).
► Check whether the radio connection is
switched on via the software.
► Furthe
r information on using the radio
nent can be found in the help files.
compo
