Fujitsu Client Computing WB0105 Users Manual

Operating Manual

FUJITSU Tablet STYLISTIC Q Series

Model: MQ10A

System

Contact address in North America

FUJITSU AM

ERICA INC.

1250 East Arques Avenue, Sunnyvale,

CA 94085-3470, U.S.A.

e: 800 831 3183 or 408 746 6000

Telephon

http://solutions.us.fujitsu.com"

"http://solutions.us.fujitsu.com/contact"

Have a qu

estion? Email us at: "

AskFujitsu@us.fujitsu.com"

FPC65-7889-01

FUJITSU Tablet STYLISTIC Q508

Operating Manual

Declarations of conformity 7

Fujitsu Contact Information 8

Notational conventions 9

Ports and controls 10

Important notes 13

First-time setup of your device 18

WorkingwiththeTabletPC 22

Accessories for your Tablet PC (optional) 38

Security functions 55

Connecting external devices 60

Settings in BIOS Setup Utility 64

Troubleshooting and tips 67

Technical data 74

Manufacturer’s notes 80

Appendix 88

Index 100

Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited or its subsidiaries in the United States and other countries.

Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The ExpressCard word mark and logo are owned by the Personal Computer Memory Card International Association (PCMCIA) and any use of such marks by Fujitsu America, Incorporated is under license.

Google is a trademark or registered trademark of Google Incorporated. Bluetooth is a trademark of Bluetooth SIG, Inc., USA. Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe

Systems Incorporated in the United States and/or other countries. All other trademarks specified here are the property of their respective owners.

Contents

Declarations ofconformity ............................................................. 7

Fujitsu Contact Informatio

Notational conventions ................................................................ 9

Portsandcontrols ..................................................................... 10

Importantnotes ........................................................................ 13

Safety instructions ...................................................................... 13

Additional safety notes for devices with wireless components . . ............................. 14

Protectingthedisplayscreen ............................................................ 14

Energy saving .......................................................................... 14

Energy saving under Windows ....................................................... 14

Traveling withyour TabletPC ............................................................ 15

Beforeyou travel ................................................................... 15

Transportingthe TabletPC ........................................................... 16

Cleaning the TabletPC .................................................................. 17

FurtherinformationoncleaningtheTablet PC ......................................... 17

First-time setu

Unpacking and ch Choose a locatio Connecting th Switchingont

Installing Bo

WorkingwiththeTabletPC ............................................................ 22

Status indicators ........................................................................ 23

Switchingthe TabletPC on .............................................................. 24

ProgramingtheON/OFFbutton ...................................................... 24

Switchingthe TabletPC off .............................................................. 25

Handwriting recognition .................................................................. 25

Touchscreen ............................................................................ 26

Select displayorientation(portraitorlandscapeformat) .................................... 26

Touchcommands ....................................................................... 27

Calibrate the Digitizer for finger-based operation of the device. . ......................... 27

Usingthestylus ......................................................................... 28

Stylus location ...................................................................... 29

Adjusting thestylus .................................................................. 29

Replacing thestylus tip .............................................................. 30

Calibrating thestylus ................................................................ 30

Securingthestylus .................................................................. 31

Tablet buttons .......................................................................... 32

Webcam ............................................................................... 33

Rechargeablebattery ................................................................... 33

Chargingandmaintainingthebattery ................................................. 33

Usingthepower-savingfunctions ......................................................... 34

Memory cards .......................................................................... 34

Supported formats .................................................................. 34

Inserting thememory card ........................................................... 35

Removingthe memorycard .......................................................... 36

pof yourdevice .........................................................

eckingthe device ......................................................

n .......................................................................

e AC adapter . . ............................................................

he device for the first time ..................................................

nusApps ................................................................

n ............................................................

18 19 19 20 21

Fujitsu 3

Contents

Wireless LAN/Bluetooth wireless components ............................................. 36

Switching the wireless components on and off ......................................... 36

ConfiguringWLANaccess ........................................................... 37

FurtherinformationonWLAN and Bluetooth ........................................... 37

Ethernetand LAN (dockingcradleonly) ................................................... 37

Accessories for your Tablet PC (optional) . ............................................. 38

Your dockingcradle(optional) ............................................................ 39

Cradle components . ................................................................. 39

Settingupthecradle ................................................................ 40

Connecting the Tablet PC to the cradle . . ............................................. 40

Disconnecting the Tablet PC from the cradle . ......................................... 42

Keyboard cover (optional) . . ............................................................. 43

Components of the keyboard cover . .................................................. 43

Connecting the Tablet PC to the keyboard cover . . . . . .................................. 44

Disconnecting the Tablet PC from the keyboard cover . .. .............................. 45

Intermediary VESA Mount Plate (optional) . .. ............................................. 46

TPU cover with shoulder strap (optional) . ................................................. 47

Components of the TPU cover . . .. . . ................................................. 47

Insertingthe TabletPC intheprotective TPU cover .................................... 47

Connecting the Tablet PC/TPU cover to the keyboard cover . . .......................... 49

Connecting the Tablet PC/TPU cover unit to the docking cradle . . . . . .................... 52

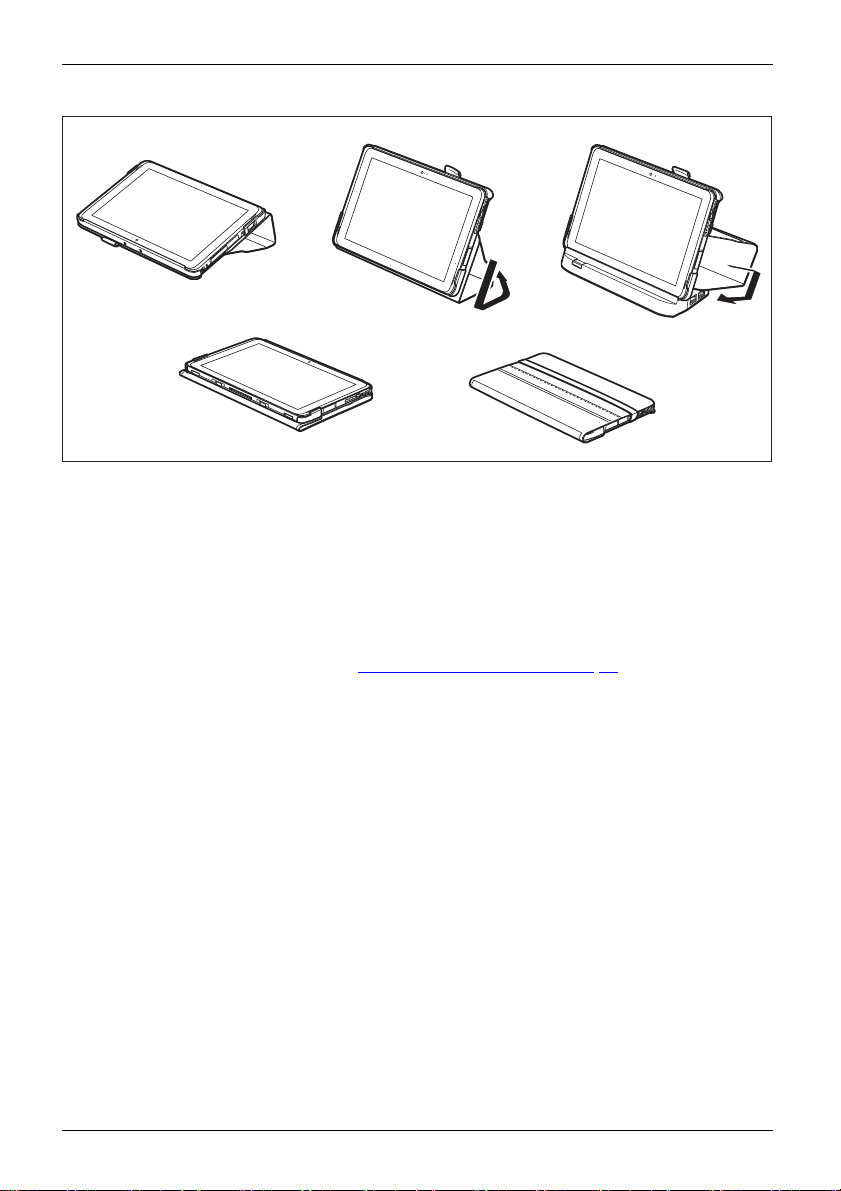

Foliocover (optional) .................................................................... 53

Adapter cables . . ....................................................................... 54

Security functions ..................................................................... 55

UsingtheSecurityLock(dockingcradle only) ............................................. 55

Configuring passwordprotectioninBIOS SetupUtility ...................................... 55

Protecting BIOS Setup Utility (supervisor password and user password) . ................ 56

Password protection for booting the operating system .................................. 58

Passwordprotection forthehard disk ..................................................... 59

Activatinghard disk protection ........................................................ 59

Deactivatinghard disk protection ..................................................... 59

Connecting external devices ........................................................... 60

MicroHDMI port .................................................................... 60

HDM

IPort (dockingcradleonly) ...................................................... 61

VGAmonitorport (dockingcradleonly) ............................................... 61

Connecting USB devices ................................................................ 62

Howto removeUSBdevicescorrectly ................................................ 62

Connecting external audio devices . . .. . . ................................................. 63

Connecting headphones or other audio output devices . . . .............................. 63

Connecting a microphone or other audio input devices . . . .............................. 63

Settings in BIOS Setup Utility . . ........................................................ 64

StartingtheBIOSSetup Utility ........................................................... 64

BIOS Setup Utility operation . ............................................................ 65

ExitingBIOSSetupUtility ................................................................ 66

Exit Saving Changes - save changes and exit BIOS Setup Utility . . . . ................... 66

Exit Discarding Changes - Reject changes and exit BIOS Setup Utility ................... 66

Load Setup Defaults– load defaultvalues ............................................. 66

Discard Changes - Discard Changes without exiting BIOS Setup Utility . . . ............... 66

Save Changes - save changes without exiting the BIOS Setup Utility . ................... 66

4 Fujitsu

Contents

Save changes and power off ........................................................ 66

Troubleshooting and tips .............................................................. 67

Executinga reset ....................................................................... 68

Forced shutdown .................................................................... 68

Execute a complete reset: Reset BIOS Setup to the standard values . . . . . ............... 68

Help ifproblems occur ................................................................... 68

RecoveringyourFactory Image .......................................................... 68

TheTablet PC’sdateor time isincorrect .................................................. 68

Battery charging indicator does not illuminate . ............................................ 69

TheTablet PC’stouchscreen remains dark ................................................ 69

The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 69

Theexternalmonitorremainsblank ...................................................... 70

Theexternalmonitorisblank ortheimageis unstable ..................................... 70

The cursor does not correctly follow the stylus movements . . . . ............................. 71

Stylus input not working ................................................................. 71

TheTablet PCdoes notstartafter switchon ............................................... 71

TheTablet PCstopsworking ............................................................. 71

The printer does not print . .. . . ........................................................... 72

The wireless connection to a network does not work . . ..................................... 72

Thebatterydischargestooquickly ........................................................ 72

Errormessagesonthescreen ........................................................... 73

Technical data ......................................................................... 74

Tablet PC .............................................................................. 74

Screen resolutionsforintegrated screenand externalscreens .............................. 75

WLAN specifications .................................................................... 76

Rechargeablebattery ................................................................... 77

AC adapter (36 W) for the Tablet PC only (without cradle) . . . . . ............................. 77

Dockingcradle(optional) ................................................................ 77

AC adapter (65 W) for the docking cradle (optional) . . .. . . ............................. 78

Keyboard cover(optional) ............................................................... 78

Intermediary VESA Mount Plate (optional) . .. . ............................................ 78

TPU cover with shoulder strap (optional) . . . . . . ............................................ 78

Folio cover (optional) . . .................................................................. 78

Adapter cables (optional) . . . . . ........................................................... 79

Manufacturer’snotes .................................................................. 80

Disposal and recycling .................................................................. 80

Recycling your battery ............................................................... 80

DOC(IndustryCANADA) Notices ........................................................ 81

UL Notice ........................................................................... 81

ENERGY STAR Compliance ............................................................. 82

FCCandIC RegulatoryInformation ...................................................... 83

Regulatory Notes and Statements . ................................................... 83

Canada, Industry Canada (IC) ........................................................... 86

Canadian Notice . . .................................................................. 86

Avis pour le Canada . . . . . ............................................................ 87

Appendix .............................................................................. 88

Before Using the Optional Wireless LAN . . .. . . ............................................ 88

WirelessLAN DevicesCoveredbythisDocument ...................................... 88

Characteristics oftheWLAN Device .................................................. 88

WirelessLAN Modes Using thisDevice ............................................... 89

Fujitsu 5

Contents

Deactivating/Disconnecting theWLAN Device ......................................... 91

Configuring the WirelessLAN ............................................................ 92

Connection to the network . . . ........................................................ 92

TroubleshootingtheWLAN ........................................................... 93

UsingtheBluetoothDevice .............................................................. 95

Image Backup and Recovery Procedures ................................................. 96

Windows 10 Procedures . ................................................................ 96

Creatinga recoverydrive ................................................................ 96

RecoveryoptionsinWindows 10 ......................................................... 96

Downloading driver updates . ............................................................ 99

Index .................................................................................. 100

6 Fujitsu

Declarations of conformity

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Address:

Telephone: Declares that product:

This device complies with Part 15 of the FCC rules. Operations are subject to the

following two conditions: (1) This device may not cause harmful interference. (2) This

device must accept any interference received, including interference that may cause

undesired operation.Model ref. of certification: MQ10A

Declarationsofconformity

This device complies with Part 15 of the FCC Rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation.

Fujitsu America, Inc. 1250 E. Arques Avenue Sunnyvale, CA 94085 (408) 746-6000 Base Model Configuration: STYLISTIC Q508 Tablet PC Complies with Part 15 of the FCC Rules.

1=Dec

Fujitsu 7

laration of conformity

Fujitsu Contact Information

Service and Support

You can contact Fujitsu Service and Support in the following ways:

• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)

• Website: "

Fujitsu Shopping Online

Please go to "

Maintaining Latest Conf guration

To ensure that you always have the most current driver updates related to your system, occasionally access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available from the Fujitsu Support site. FSDM will allow you to view a list of the most current drivers, utilities and applications to determine whether you have the latest versions. If you have a Windows operating system, you will need to go to the Support Site to download the FSDM Utility: "

Limited Warranty

Your STYLISTIC Tablet PC is backed by a Fujitsu International Limited Warranty. Check the Limited Warranty Terms and Conditions Booklet that came with your Tablet PC.

http://solutions.us.fujitsu.com/www/content/support/contact/index.php"

Before you place the call, have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

http://www.shopfujitsu.com/store/ ".

http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".

8 Fujitsu

Notational conventions

Pay particular attention to text marked with this symbol. Failure to observe this warning will endanger your life, will damage the device or lead to loss of data. The warranty will be invalidated if the device becomes defective through failure to observe these warnings.

Indicates important information which is required to use the device properly.

Notational conventions

►



This style

"This style" indicates

Key

This styl

indicates an activity that must be performed indicates a result

indicates data entered using the keyboard in a program dialogue or at the command line, e.g. your password (Name123)oracommandusedto start a program (start.exe)

indicates information that is displayed on the screen by a program, e.g.:

Installation is complete.

indicates

• terms and texts used in a software interface, e.g.: Click on Save.

• names of program

• Cross-references to another section, e.g. "Safety information"

• cross-references to an external so information, go to "http://solutions.us.fujitsu.com/"

• names of CDs, DVDs and titles or designations of other materials, e.g.: "CD/DVD Drivers & Utilities"

indicates indicate

switch of

sorfiles, e.g. Windows or setup.exe.

urce, e.g. a web address: For more

a key on the keyboard, e.g:

s terms and text that are emphasized or highlighted, e.g.: Do not

f the device

F10

Fujitsu 9

Ports and controls

This chapter presents the individual hardware components of your device. It gives an overview of the indicators and connections of the device. Please familiarize yourself with these items before you start to work with the device.

Front

1 = Touchscreen 2 = Front webcam 3 = Ambient light sensor 4 = Webcam status LED (blue) 5 = Battery 6 = Speakers (internal, not visible)

charging indicator

7 = Mechanical mount for keyboard

8 = Docking port 9 = Power-on indicator

cover / cradle

10 Fujitsu

Left-hand side

Ports and controls

2 3 4 5 6 71

1 = Tether eyelet 2 = Combined headphones and microphone

port (audio combo jack) 3 = USB 3.0 port (protected by cover) 4 = microHDMI port (protected by cover)

Right side

1 = Stylus garage 2 = Tether eyelet

5 = microSD card slot (protected by cover) 6 = Battery charging indicator (orange) 7 = DC input connector (DC IN)

(protected by cover)

1 2

Fujitsu 11

Ports and controls

Rear

1 = Dual microphones 2 = Webcam status LED 3 = Rear webcam 4 = Webcam ﬂash 5 = Shortcut button

6 = Volume +/7 = On/off button 8 = Fingerprint sensor 9 = Pen tether 10 = Pen garage

12 Fujitsu

Important notes

ImportantnotesNotes

This chapter contains essential safety information which must be followed when working with your Tablet PC. The other notes provide useful information about your Tablet PC.

Safety instructions

SafetyinformationInformation,

Please observe the following safety information. Please pay special attention to the sections in the manual marked with the symbol on

the left. When connecting and disconnecting cables, observe the relevant notes in this operating

manual. Read the information on the ambient conditions in the "Technical data", Page 74

chapter and the "First-time setup of your device", Page 18 chapter before preparing your tablet PC for use and switching it on for the first time.

When cleaning the device, please observe the relevant notes in the section "Cleaning

the tablet PC", Page 17.

Please refer to the notes in the chapter "Removing and installing components during

servicing", Page 77.

When handling this device, you will come into contact with lead, a chemical which in California is held to be a possible cause of birth defects and other damage to fertility.

Wash your hands after using the device. Do not place objects or apply heavy pressure on your computer Do not apply too much force to the display corners Do not rotate display with excessive force Do not pick up or hold the computer by display only Do not shake or bump the display Avoid excessive vibration and shocks Avoid excess force when tapping or writing on the screen Do not block the air vents Do not leave the computer turned on when enclosed in a briefcase or backpack In the event you drop your tablet PC or damage the housing in any way, immediately

turn off power and disconnect the power plug. Failure to do so could result in a short circuit, smoke, and/or fire. Contact Fujitsu Service and Support to learn how to get the computer repaired.

This Tablet PC complies with the relevant safety regulations for data processing equipment. If you have any questions about setting up your tablet PC in the intended environment, please contact your sales outlet or our Hotline/Service Desk.

Important notes

Fujitsu 13

Important notes

Additional safety notes for devices with wireless components

WirelesscomponentsWirelessLANBluetooth,Safetynotes

If a wireless component (Wireless LAN, Bluetooth) is integrated in your Tablet PC, you must be sure to observe the following safety precautions when using your Tablet PC:

• Switch off the wireless components when you are in an aircraft or driving in a car.

• Switch off the wireless components when you are in a hospital, an operating room or near a medical electronics system. The transmitted radio waves can impair the operation of medical devices.

• Switch off the wireless components, when you let the device get near flammable gases or into hazardous environments (e.g. gas station, paint stores), as the transmitted radio waves can cause an explosion or a fire.

For further information on how to switch the wireless components on and off, refer to section "

Switching the wireless components on and off", Page 36.

Protecting the display screen

Do not pour liquid items on the top o

During normal u can become embe warranty does

s on the system or wash it with a heavily soaked cloth. Do not place

f the monitor in order to prevent it from being damaged.

se of the device, small particles from the environment

dded in the stylus tip and scratch the screen. The

not cover a scratched screen.

CAUTION: Do Not Lift or hold the computer by display/LCD panel. It can damage LCD panel due to excessive flex. Always lift/carry computer by holding the keyboard base with both hands

Energy savin

NotesEnergyPowersavin

If you will not be using your Tablet PC, switch it off. Switch off any connected external devices when they are not in use. If you use the energy-saving functions, the Tablet PC uses less power. If you do this, you will be able to work longer with the Tablet PC before having to recharge the battery.

The energy efficiency is increased and environmental pollution is reduced. You save money and help protect the environment.

Energy saving under Windows

► Make use of the available energy-saving functions as described in chapter

Using the power-saving functions", Page 34.

14 Fujitsu

Traveling with your Tablet PC

MobileoperationNotesTranspo rtati onTabletPC

Please follow the instructions below when traveling with your Tablet PC.

Before you travel

► Back up the important data of your internal storage.

TabletTraveling,tablet

► Switch off the wireless c

connection, it is also po

omponent for data security reasons. With data trafficviaawireless

ssible for unauthorized third parties to receive data.

Important notes

Information on activat for your wireless compo

ing data encryption is provided in the documentation

nent.

► If you want to use your Tablet PC during a flight, ask the flight attendants to see if it is safe to use it.

When traveling in other countries

► If you are traveling abroad, check that the AC adapter can be operated with the

local AC voltage. If this is not the case, obtain the appropriate AC adapter for your Tablet PC. Do not use any other converter!

► Check whether the local AC voltage and the AC cable are compatible. If this is not

the case, buy an AC cable that suits the local conditions.

► Enquire with the appropriate government office of the country you will be travelling in as to

whether you may operate the wireless component integrated in your Tablet PC there.

► Take the necessary travel adapters with you when traveling abroad. Check in the following

table for which travel adapters you will need, or ask your travel organizer.

Power connection Travel destination

United States, Canada, Mexico, parts of Latin America, Japan, Korea, Philippines, Taiwan

Russia and the Commonwealth of Independent States (CIS), much of Europe, parts of Latin America, the Middle East, parts of Africa, Hong Kong, India, much of south-east Asia

United Kingdom, Ireland, Malaya, Singapore, parts of Africa

China, Australia, New Zealand

Fujitsu 15

Important notes

Transporting the Tablet PC

Protect the Tablet PC from severe shocks and extreme temperatures (e.g. direct sunlight in a car).

• Do not transport your Tablet PC while it is turned on.

• Carry your Tablet PC with you while traveling. Do not check it in as baggage.

• Never put your Tablet PC through a metal detector. Have it hand-inspected by security personnel. You can however put your Tablet PC through a properly tuned X-ray machine. To avoid problems, place it close to the entrance of the machine and remove it as soon as possible or have it hand-inspected by security personnel. Security officials may require you to turn your Tablet PC on. So make sure you have a charged battery on hand for this.

► Switch the Tablet PC off ► Unplug the AC plug of the AC adapter and all external devices from the power outlets. ► Disconnect the AC ad ► To protect against damaging jolts and bumps, use a suitable Tablet PC

carrying case to transport your Tablet PC.

apter cable and the data cables for all external devices.

16 Fujitsu

Important notes

Cleaning the Tablet PC

• Do not clean any interior parts yourself; leave this job to a service technician.

• Only use detergents designed for computers. Normal household cleaners and polishes can damage the labels on the keyboard and the Tablet PC, the paintwork or the Tablet PC itself.

• Never use ammonia, acidic, or alkaline cleaners or organic chemicals such as paint thinner, acetone or kerosene. It may damage surface finishes and the coating of the LCD screen.

• Use of incorrect cleaners can result in optical impairment of the LCD and / or damage to the computer. Always refer to the cleaner manufacturer’s guidelines and material safety data sheets for proper handling and use of the products.

• Never use compressed air for cleaning your computer.

• Be very careful to avoid any liquid entering the ports or slots as this can damage the unit.

Further information on cleaning the Tablet PC

The touchscreen is very sensitive to scratches! Only clean the display surface with a very soft, slightly damp cloth.

► Switch the Tablet PC off.

ReinigungHinweiseTabletPCTas t at u rTouchpadTouchscreen

► To prevent the device from being switched on unintentionally, remove the AC

plug of the AC adapter from the power outlet.

► The surfaces may be cleaned with a dry cloth. If particularly dirty, use a cloth which has

been moistened in mild domestic detergent and then carefully wrung out.

If the Tablet PC is exposed to water or other liquids, liquid can penetrate the Tablet PC and cause a malfunction. Do not continue to use the Tablet PC. Switch it off and contact our hotline / service desk (see enclosed list of service desks or visit our website at:."

Fujitsu 17

http://www.fujitsu.com/us/support/").

First-time setup of your device

First-time setup of your devic

First-timesetu pGettingstarted

The battery must be charged if you want to operate your device using the battery. When used on the move, the built-in battery provides the device with the necessary power. You

can increase the operating time by using the available energy-saving functions. For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet

PC, please refer to the operating manual for your device.

Unpacking and c

► Unpack all the individual parts. ► Check your d

Please read the chapter "Important notes", Page 13. If your device is equipped with a Windows operating system, the necessary

hardware drivers and supplied software are already pre-installed. Beforeswitchingitonforthefirst time, connect the device to the AC voltage using

the AC adapter, see " remain connected during the whole of the installation process.

A system test is performed when your device is first switched on. Various messages can appear. The display may remain dark for a short time or may flicker.

Please follow the instructions on the screen. NEVER switch off your device during the first-time setup process.

Connecting the AC adapter", Page 19. The AC adapter must

hecking the device

If you find that damage has occurred during transport, please notify your local sales outlet immediately!

PackagingTransport

evice for any visible damage which may have occurred during transportation.

You may nee you need t

18 Fujitsu

d to reuse the packaging in the future, for example if

o ship your device.

Choosealocation

ChoosealocationSetupACadapter

Choose a suitable location for the device before setting it up. In doing so, please follow these instructions:

• Never place the device or the AC adapter on a heat-sensitive surface. The surface could be damaged as a result.

• Never place the device on a soft surface (e.g. carpeting, upholstered furniture, bed). This can result in damage caused by overheating.

• The back of the device heats up during normal operation. Prolonged contact with skin can become unpleasant or even result in burns.

• Place the device on a stable, flat, non-slippery surface. Please note that the rubber feet of the device may mark certain types of delicate surfaces.

• Keep other objects at least 100 mm / 4 inches away from the device and its AC adapter to ensure adequate ventilation.

• Do not expose the device to extreme environmental conditions. Protect the device against dust, humidity and heat.

Connecting the AC adapter

MakingreadytouseACadapter

Observe the safety notes in the Safety section of this User's The supplied AC c

you purchased yo use in the count

able conforms to the requirements of the country in which

ur device. Make sure that the AC cable is approved for

ry in which you intend to use it.

First-time setup of your device

Guide.

► Connect the AC cable (1) to the AC adapter. ► Plug the AC cable (2) into a power outlet. ► Connect the AC adapter cable (3) to the

DC jack (DC IN) of the device.

Fujitsu 19

First-time setup of your device

Switching on the device for the f rst time

Switchingonforthefirsttime

To make it easier to use your device for the first time, the operating system is pre-installed on the hard disk.

► Press the ON/OFF button (2) for about one second to switch the device on.

The power-on indicator (1) lights up whenever the system is switched on.



► During the installation process, follow the on-screen instructions.

You c an find information and help on the Windows operating system functions on the Internet at "

20 Fujitsu

http://windows.microsoft.com".

First-time setup of your device

Installing Bonus Apps

BonusApps

The Fujitsu Bonu s Apps utility can be accessed via the Start menu. ► In the Start menu, click on Fujitsu Extras.

► Double-click on the Application folder. ► Double-click on the shortcut Fujitsu BonusApps. ► In the dialog box User Account Control by clicking Yes confirm you wish to enter Fujitsu Bonus Apps. ► Select the applications you wish to install by selecting the checkbox adjacent to your selection.

► Click Select All if you would like to install all available applications. Applications that are already installed appear in grey, those that are



available for installation appear in blue.

► To confirm your selection, click Install.

Note that in some cases (depending upon which application was selected for installation) after installation completes, the system will prompt you to reboot.

There are also cases in which if multiple applications are selected to install but one of them needs a reboot, the system will reboot and continue installing the rest of the selected applications.

Fujitsu 21

Working with the Tablet PC

Tablet,operationTablet

This chapter describes the basics for operating your Tablet PC. You can find instructions on how to connect external devices (e.g. mouse, flash storage) to the Tablet PC in the chapter "

Connecting external devices", Page 60.

Please refer to the notes in the chapter "Important notes", Page 13.

22 Fujitsu

Working with the Tablet PC

Status indicators

StatusindicatorsSymbols

The status indicators (1, 2, 3, 4) provide information about the statuses of the power supply and the rechargeable battery and the webcam.

No. Status indicatorDescription

1 Battery charg

Please note: I state of charg will not be st is less than 9

ing indicator

f the AC adapter is connected when the

e of the battery is more than 95 %, charging

arted. When the state of charge of the battery

5 %, the battery will be charged to 100 % as

soon as the AC

• The indicat battery is

charging.

• The indicator is not lit up: The battery is not charging (the battery is already fully charged or the AC adapter is not connected).

2, 3

Webcam status LED (for front and rear webcam)

• The indicator lights up blue: The webcam is switched on while the Tablet PC is switched on.

• The indicator is not lit up: The webcam is switched off.

4 Power-on indicator

• The indicator lights up white: The Tablet PC is switched on or in sleep mode.

• The indicator is not lit up: The Tablet PC is switched off.

adapter is connected.

or lights up orange: The rechargeable

Fujitsu 23

Working with the Tablet PC

Switching the Tablet PC on

Tablet:SwitchingonPower-onPower-onindicatorSuspend/Resumebutton

► Press the ON/OFF button (2) for about one second to switch the device on. Refer to chapter

Switching on the device for the first time", Page 20 for more information.

The power-on indicator (1) lights up whenever the system is switched on.



Programing the ON/OFF button

You can program the ON/OFF button:

Operating system Menu

Windows 10

Windows 10 Start - Control Panel - (Search Control Panel -) Power Options -Choose what the ON/OFF button does

If you have assigned a password, you must enter this when requested to do so, in order to start the operating system. Detailed information can be found in the chapter "

24 Fujitsu

Security functions", Page 55.

Working with the Tablet PC

Switching the Tablet PC off

Back up your data and close all applications before you switch off your device. Otherwise data might be lost.

► Shut down the operating system correctly. ► If the Tablet PC does not switch itself off automatically, press the ON/OFF

button for approx. five seconds.

Notebook

► A forced shutdown (reset) button is located on the left side of the system located next to the

USB 3.0 port. To achieve the same effect as removing the battery, press the reset button.

Handwriting recogn

For detailed information on handwriting recognition, see the documentation for your operating system. At present, handwriting recognition on Windows supports the following languages: English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,

Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish, Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.

On Windows you can set the required language under Control P anel – Time, Language and Region – Language..

ition

Fujitsu 25

Working with the Tablet PC

Touchscreen

CAUTION: Do not lift or hold the computer by display/LCD panel. It can damage the LCD panel due to excessive flex. Always lift/carry computer by holding the keyboard base with both hands .

Background lighting

LCD screens are operated with background lighting. The luminosity of the background lighting can decrease can set the brightness of your screen yourself.

Ambient light sensor

If your Tablet PC was shipped with the Windows operating system, the screen brightness is regulated by means of the ambient light sensor and depending on the respective light conditions. This results in optimum readability and longer battery life at the same time.

If your Tablet PC was shipped with Windows 10, the adaptive brightness setting is activated. To change the ambient light sensor settings, select Control Panel - System and Security - Power Options

- Change plan settings - Change advanced power settings - Display - Enable adaptive brightness.

Synchronizing the display on the touchscreen and an external monitor

In Windows 10 you can proceed as follows to set the output type:

over the period of use of the Tablet PC. However, you

► Look for the keyword "project". Swipe your finger across the screen starting from the

right-hand edge.

► Select All settings... ► Look for the keyword "project". ► Select the required function.

Select display

orientation (portrait or

landscape format)

You can choose should autom

26 Fujitsu

to use either portrait or landscape for the display, and the screen orientation

atically adjust to the orientation of the tablet PC.

You can change these

- Windows Mobility Center / Rotate screen.

In the settings there are profiles saved for operation with different screen orientations. These profiles have preset standard configurations that can be modified as desired

These settings do not just affect the screen settings on the Tablet PC, but also on external monitors that are connected.

settings underControl Panel - Hardware and Sound

Working with the Tablet PC

Touch commands

You can execute certain commands by using your finger tip on the touchscreen of your device.

Alternatively, everything which you can select or activate using your finger tip can also be selected or activated using the stylus.

Calibrate the Digitizer for f nger-based operation of the device.

You must calibrate your Tablet PC with your fingers before first usage, so that it recognises your fingertips as accurately as possible.

As soon as you notice that the accuracy is deteriorating, you must recalibrate the device. Please note: There are separate calibration programs available for calibrating the

stylus (device dependent) and for calibrating finger-based operation. Do not use the calibration tool for the stylus to calibrate finger-based operation.

Operating system Menu

Windows 10

To calibrate, run the Hardware and Sound / Tablet PC Settings function in the Control Panel. You need to calibrate both portrait and landscape formats.

Fujitsu 27

Working with the Tablet PC

Using the stylus

Stylus

You can use the stylus on your Tablet PC as an electronic writing tool, to select menu items and to navigate through the programs. Programs that support handwriting recognition also allow you to write directly on the screen with the stylus. You can also use the stylus as a drawing tool.

The Tablet PC is supplied with a stylus tether which you can attach to the eyelets on the stylus and on the Tablet PC.

Use only the stylus that was provided with your Tablet PC. Do not use any other pointed object as a substitute, that was not specially designed for your Tablet PC. Replace the stylus tip if it is worn. The warranty does not cover a scratched screen.

While writing, take care that you do not scratch the surface of the display (e.g. with a wristwatch or bracelet).

1 = stylus tip 2 = stylus button (right mouse button) 3 = eyelet for stylus tether

The stylus of th if used imprope

Our recommend

• Do not gestur

e Tablet PC is an electronic instrument that can be damaged rly. Handle the stylus with care.

ations for proper handling of the stylus are as follows:

e with the stylus.

• Do not use the stylus as a pointer.

• Do not use th

e stylus on surfaces other than the screen of the Tablet PC.

• Do not try to turn the grip of the stylus. The grip is used to put the stylus into its slot and to take it out of its slot.

• Never stor containe adverse e this cas avoid da

e the stylus with its weight on the tip (e.g. with the tip down in a stylus

r). If the stylus is stored with the tip pointing down, this may have an

ffect on the stylus mechanism (particularly under high temperatures). In

e the stylus tip may react as though it is constantly being pressed down. To

mage, the stylus should be stored in the stylus slot when not in use.

The stylus can be influenced by electromagnetic fields (cursor quivers or jumps). There may be a few areas on the screen where the cursor quivers slightly in spite of pressing the stylus down firmly.

28 Fujitsu

+ 76 hidden pages
