Fujitsu Client Computing WL0019, WB0080, GOBI2 User Manual



User’s Guide

Learn how to use

your Fujitsu LifeBook T900 Tablet PC

Fujitsu America, Inc. has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited.

Intel, Intel Core, Centrino, and Intel Centrino Pro are trademarks or registered trademarks of Intel Corporation or its subsidiaries in  the United States and other countries.

Microsoft, Windows, Windows Vista, and OneNote are either registered trademarks or trademarks of Microsoft Corporation in the  United States and/or other countries.

PCMCIA is a trademark of the Personal Computer Memory Card International Association.

Bluetooth is a trademark of Bluetooth SIG, Inc., USA.

OmniPass is a trademark of Softex, Inc.

PowerDirector, PowerDVD, MakeDisc, and YouCam are trademarks of CyberLink Corp.

Roxio is a trademark of Sonic Solutions.

Wacom is a registered trademark of Wacom Company Limited.

Adobe, Acrobat, and Acrobat Reader are either a registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and other countries.

All other trademarks mentioned herein are the property of their respective owners.

WARNING

HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE S

TATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

ASH HANDS AFTER HANDLING.

No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FJ-3801-01ENZ0-00

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu America, Incorporated

Address: 1250 E. Arques Avenue,

Sunnyvale, CA 94085

Telephone: (408) 746-6000

Declares that product: Base Model Configuration:

LifeBook T900 Tablet PC

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received,  including interference that may cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

AC adapter output polarity:

This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a current of

4.22 A (80 W).

When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• CAUTION - HOT SURFACE: The bottom of this notebook computer can become hot when used for long periods of time. When using

this notebook, take caution to limit long term or continuous use while resting it on exposed skin, such as the lap.

• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a

swimming pool.

• Avoid using a modem during an electrical storm. There may be a remote risk of electric shock from lightning.

• Do not use a modem to report a gas leak in the vicinity of the leak.

• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local

codes for possible special disposal instructions.

• To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

• For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of the

coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service provider.

SAVE THESE INSTRUCTIONS

For Authorized Repair Technicians Only

DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY

WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.

OR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND

RATING FUSE.

Recycling your battery

Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly.

Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by recycling old batteries at no cost to you.

RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go to www.RBRC.org

If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/) and search for a convenient disposal location.

Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future generations.

* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or

www.fujitsu.ca/products/notebooks in Canada.

** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with

Fujitsu.

or call 1-800-822-8837.

Contents

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 1 Getting to Know Your LifeBook

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Locating the Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Left-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Back Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

External Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Battery Charging Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Battery Level Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Opening the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the System as a Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Adjusting Display Panel Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Touchpad/Active Digitizer/Touchscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . 41

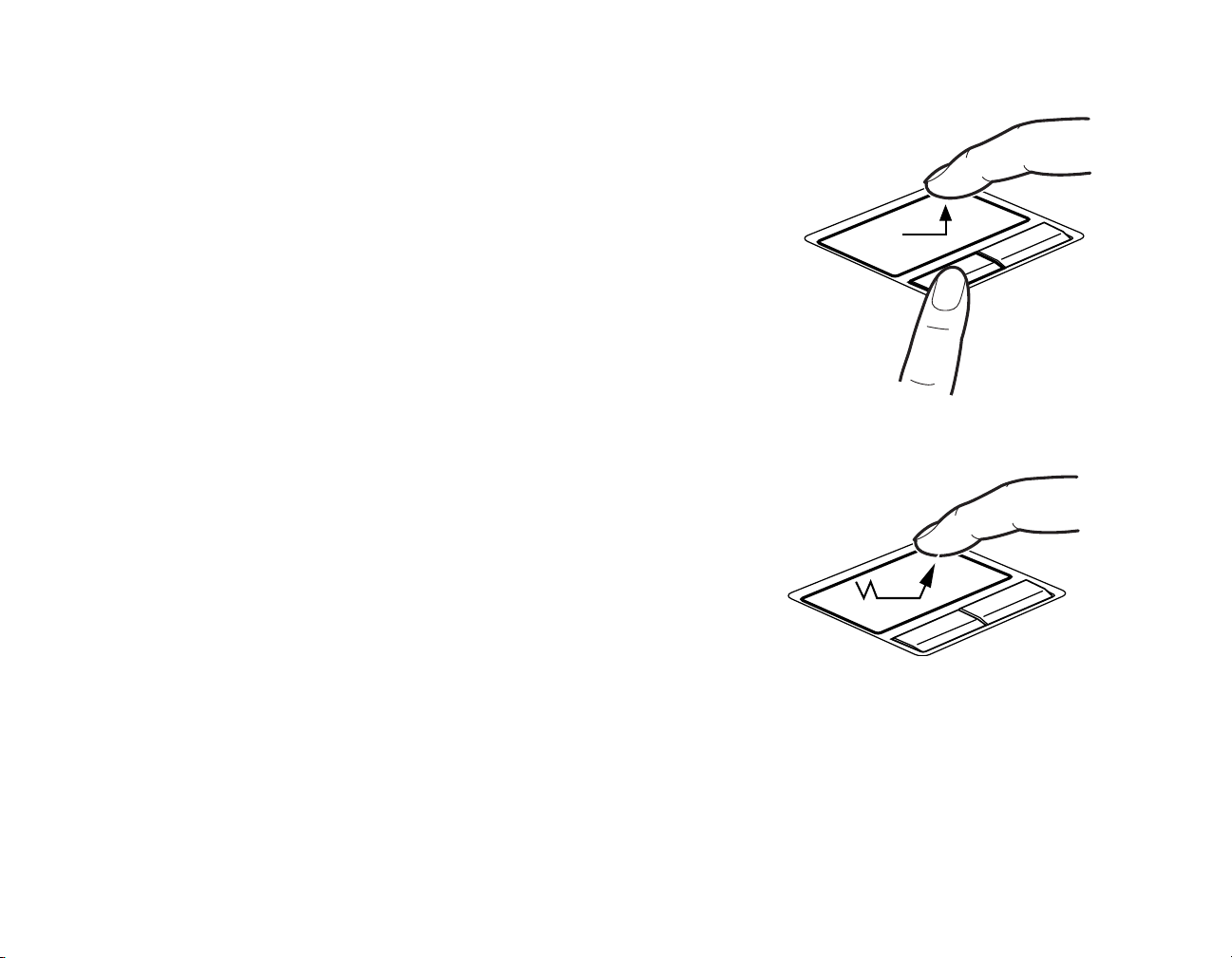

Using the Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Active Digitizer Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Using the Optional Capacitive Touchscreen . . . . . . . . . . . . . . . . . . . . . . . 50

Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Controlling the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Modular Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Removing and Installing Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . 54

LifeBook Security/Tablet PC Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Security Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Pre-logon button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Post-logon button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Changing Tablet PC Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Setting up LifeBook Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Using Your LifeBook Security Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Uninstalling/Re-installing the Security Panel Application. . . . . . . . . . . . . 64

Chapter 2 Getting Started with Your LifeBook

Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Starting Your LifeBook Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Hard Disk Drive Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Starting Windows the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Registering Your LifeBook Tablet PC with Fujitsu. . . . . . . . . . . . . . . . . . 73

Installing ClickMe!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Fujitsu Driver Update Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Power/Suspend/Resume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Hibernation (Save-to-Disk) Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Restarting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

ENERGY STAR® Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Chapter 3 User-Installable Features

Lithium ion Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Recharging the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Memory Stick/Secure Digital Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Installing Memory Stick/SD Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Removing A Memory Stick/SD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Installing PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Installing Memory Upgrade Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Removing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Checking the Memory Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Internal LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Modem (RJ-11) Jack*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Port Replicator Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

IEEE 1394 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Microphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Chapter 4 Troubleshooting Your LifeBook

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Restoring Your Pre-installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Re-installing Individual Drivers and Applications . . . . . . . . . . . . . . . . . . . 117

Restoring the Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Automatically Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . 121

Chapter 5 Care and Maintenance

Caring for your LifeBook Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Cleaning your LifeBook Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Storing your LifeBook Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Traveling with your LifeBook Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . 128

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Chapter 6 System Specifications

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Digitizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Mass Storage Device Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Modular Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Popular Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Glossary/Regulatory

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Appendix A: WLAN User’s Guide

Before Using the Optional Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Wireless LAN Device Covered by this Document. . . . . . . . . . . . . . . . . . . 169

Characteristics of the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Wireless LAN Modes Using this Device . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Deactivating/Disconnecting the WLAN Device . . . . . . . . . . . . . . . . . . . . 172

Deactivation Using the Wireless On/Off Switch . . . . . . . . . . . . . . . . . . . . 173

Disconnection Using the Icon in the Taskbar. . . . . . . . . . . . . . . . . . . . . . . 173

Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Configuring the WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Using the Bluetooth Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

What is Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 179

Appendix B: Fingerprint Sensor Device

Introducing the Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . . . . . 181

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Configuring OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

OmniPass Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Preface

About This Guide

The LifeBook T900 Tablet PC from Fujitsu America is a powerful convertible computer. It can be used either as a standard notebook using keyboard input, or in tablet configuration using pen input. It is powered by a fast, Intel® Core™ 2 Duo processor, has a built-in color display with either an active digitizer or optional dual digitizer, and brings the computing power of desktop personal computers (PCs) to a portable and versatile environment.

This manual explains how to operate your LifeBook T900 Tablet PC’s hardware and pre-installed system software.

Conventions Used in the Guide

Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].

Pages with additional information about a specific topic are cross-referenced within the text. For example: (“See Installation Procedure on page 43”.) Note that all cross-references are linked to the referenced items, so by clicking the link, you will automatically go to the referenced item or page.

On-screen menu items appear in bold. Example: “Click Fujitsu Menu, and select your choice”.

THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF

THE SUBJECT MATERIAL.

HE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR COMPUTER, OR TO THE INTEGRITY OF YOUR FILES. PLEASE READ ALL CAUTION INFORMATION CAREFULLY.

HE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR

T L

IFEBOOK TABLET PC, OR YOUR FILES. PLEASE READ ALL WARNING INFORMATION CAREFULLY.

Fujitsu Contact Information

Service and Support

You can contact Fujitsu Service and Support in the following ways:

• Toll free: 1-800-8Fujitsu (1-800-838-5487)

• Website: http://www.computers.us.fujitsu.com/support

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

- About This Guide

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

Fujitsu Shopping Online

You can go directly to the online by going to the website at: www.shopfujitsu.com.

YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.

Limited Warranty

Your LifeBook T900 Tablet PC is backed by a Fujitsu International Limited Warranty. Check the service kit that came with your Tablet PC for the Limited Warranty period and terms and conditions.

- About This Guide

Chapter 1

Getting to Know Your LifeBook

Overview

This section describes the components of your Fujitsu LifeBook T900 Tablet PC. We strongly recommend that you read it before using your Tablet PC – even if you are already familiar with notebook computers.

Figure 1. Fujitsu LifeBook T900 Tablet PC

Locating the Controls and Connectors

Connectors and peripheral interfaces on the LifeBook T900 Tablet PC and the optional port replicator allow you to connect a variety of devices. Specific locations are illustrated in Figures 2 through 6. The table below provides a short description of each icon on the LifeBook T900 Tablet PC and/or optional port replicator. Each of the icons is either molded into or printed on the Tablet PC or port replicator chassis.

Connection Table t PC

Purpose

Icon

DC in connector Connect an external power source such as the AC adapter or auto/airline

adapter.

SD Card/ Memory Stick Slot

Smart Card Slot A dedicated Smart Card slot allows you to insert a Smart Card on which

USB Port Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the 

PCMCIA  Card slot

Microphone Jack Connect an external microphone. The internal microphone is disabled

Headphone Jack Connect stereo headphones or powered external speakers. The internal

The Secure Digital (SD) card/Memory Stick slot allows you to insert a flash memory card for data storage. Flash memory cards allow you to transfer data to and from a variety of different digital devices.

you can store such data as medical information or electronic “cash”.

Tab l et P C.

Insert Type I or Type II PC Cards.

when you plug in an external microphone.

speaker is disabled when you plug in external headphones or powered speakers.

- Locating the Controls and Connectors

Connection Tablet PC

Purpose

Icon

Dock port Connect the Tablet PC port replicator or other approved docking device.

Refer to documentation accompanying the dock for more information.

Security lock slot The security slot allows you to secure the Tablet PC using compatible

locking devices.

Suspend/  Resume button

The Suspend/Resume button allows you to suspend Tablet PC activity without powering off, resume your Tablet PC from suspend mode, and power on the system when it has been shut down from Windows.

Local Area Network (LAN)

The LAN (RJ-45) jack is used to connect the internal 10/100/1000* BaseT/Tx Ethernet to a Local Area Network (LAN) in your office or home, or broadband devices such as a cable modem, DSL, or satellite Internet.

*1000 Mbps, commonly referred to as Gigabit Ethernet.

Wireless LAN/ Bluetooth/WWAN

The WLAN/Bluetooth/WWAN switch allows you to turn power to the optional wireless devices on and off.

On-Off Switch

Modem Connect a telephone line to the internal modem using a standard RJ-11

telephone plug.

External Video port

Digital Video Interface

The external video port allows you to connect an external monitor or LCD projector to your computer.

The DVI-D port on the optional port replicator allows you to connect a flatpanel LCD monitor or television that is equipped with a DVI-D port for ultracrisp digital images and graphics.

IEEE1394 port

The IEEE 1394 jack allows you to connect IEEE 1394 (Firewire) devices such as digital video cameras and external hard drives to your Tablet PC.

- Locating the Controls and Connectors

Display Panel

Status

Keyboard

LifeBook Security/

Power/Suspend/

Tablet PC Buttons

Resume Switch

Touchpad

Indicator Panel

Right Button

Scroll Sensor

Built-in

Microphones

Fingerprint Sensor

Left Button

Status

Indicator Panel

Wireless LAN/Bluetooth/WWAN On/Off Switch

Scroll Sensor (for Tablet Mode)

Cursor Control

Optional Web Cam

Display Latch

Figure 2. LifeBook Tablet PC with display open

- Locating the Controls and Connectors

Top Components

The following is a brief description of your LifeBook Tablet PC’s top components.

Display Panel

The display panel is a color LED panel with backlighting for the display of text and graphics. There are two different displays available: an active digitizer that is used with a stylus, and a dual digitizer that can be used with either a stylus or your fingers.

LifeBook Security/Tablet PC Buttons

The LifeBook Security/Tablet PC Buttons provide password security for your system, as well as one-touch application launch capability. See “LifeBook Security/Tablet PC Buttons” on page 55.

Power/Suspend/Resume Switch

The Power/Suspend/Resume button allows you to suspend Tablet PC activity without powering off, resume your LifeBook Tablet PC from sleep mode, and power on your Tablet PC when it has been shut down from Windows. See “Power/Suspend/Resume Button” on page 75.

Status Indicator Panels

The Status Indicator Panels display symbols that correspond to specific components of your Tablet PC. Status indicators are located in two locations: on the front edge of the system (system status indicators) and below the application buttons (button status indicators). See “Status Indicator Panel” on page 30.

Keyboard

A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 38.

Wireless LAN/Bluetooth/Wireless WAN On/Off Switch

The wireless LAN/Bluetooth/WWAN on/off switch is used to turn on and off the optional wireless devices. Switching the device off when not in use will help to extend battery life. See “Activating the WLAN Device” on page 173. Note that there is no wireless WAN available for systems with the optional dual digitizer.

- Locating the Controls and Connectors

Scroll Sensors

The scroll sensors are used to navigate through pages quickly and easily. Note that there is one on the touchpad (for use when the system is in notebook mode), and one below the display (for use when the system is in tablet mode).

Right Button

This button acts the same as the right button on a mouse.

Left Button

This button acts the same as the left button on a mouse.

Touchpad Cursor Control

The touchpad cursor control offers an additional method for moving the cursor. See “Touchpad/Active Digitizer/Touchscreen” on page 41.

Dual Built-in Microphones

The built-in microphones allows you to record voice and annotations.

Fingerprint Sensor

The fingerprint sensor device allows you to log onto your system and password-protected websites and applications by swiping your finger over the sensor. See “Introducing the Fingerprint Sensor Device” on page 181.

Web Camera

The optional 1.3 megapixel web cam can be used to take pictures of yourself to send over the internet

- Locating the Controls and Connectors

Figure 3. LifeBook Tablet PC left-side panel

Air Vents

PC Card Slot

Smart Card Slot

PC Card

Eject Button

DC Power Jack Microphone

Headphone Jack

USB 2.0 Port

IEEE 1394 Jack

Pen Garage

Memory Stick/ SD Card SlotJack

Pen tether Attachment Point

Left-Side Panel Components

The following is a brief description of your LifeBook Tablet PC’s left-side components.

Air Vents

The air vents are used to cool the system to prevent overheating.

TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL

AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC

CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

O NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

- Locating the Controls and Connectors

Headphone Jack

The headphone jack allows you to connect headphones. See “Headphone Jack” on page 98.

USB 2.0 Ports

The USB 2.0 ports (one on the left side, two on the rear) allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 96.

PC Card Slot

The PC Card Slot allows you to install a Type I or Type II PC Card. See “PC Cards” on page 87.

PC Card Eject Button

The PC Card eject button is used for removing a PC Card from the slot.

Pen Garage

The pen garage is used to store the pen (also called a “stylus”) when not in use.The pen is used as the interface with the active digitizer display.

Pen Tether Attachment Point

The pen tether attachment point is designed to securely hold a pen tether to prevent loss of the pen. See “Installing a Pen Tether” on page 51 for additional information.

Smart Card Slot

A dedicated Smart Card slot is provided on your Tablet PC. Smart Cards are the same size and shape as a credit card, but they contain embedded integrated circuits. See “Smart Card Reader” on page 89. To use the embedded Smart Card Reader, you must purchase optional third-party software for installation.

- Locating the Controls and Connectors

Memory Stick/SD Card Slot

The Memory Stick/SD card slot allows you to install a Memory Stick or a Secure Digital (SD) card for data storage. This architecture allows you to transfer data from a variety of different digital devices. See “Installing Memory Stick/SD Cards” on page 86.

IEEE 1394 (4-pin) Jack

The 4-pin 1394 jack is used to connect between your Tablet PC and an IEEE 1394 peripheral such as a digital video camera for fast file transfer. See “IEEE 1394 Port” on page 97.

Microphone Jack

The microphone jack allows you to connect an external mono microphone. See “Microphone Jack” on page 98.

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your LifeBook Tablet PC and charge the internal Lithium ion battery.

- Locating the Controls and Connectors

Figure 4. LifeBook Tablet PC right-side panel

Anti-Theft Lock Slot

Modular Bay

Right-Side Panel Components

The following is a brief description of your LifeBook Tablet PC’s right-side components.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

Modular Bay

The Modular Bay can accommodate one of the following devices. See “Modular Bay Devices” on page 53.

• Modular DVD/CD-RW combo drive

• Modular Dual-Layer Multi-Format DVD Writer

• Modular DVD-ROM drive

• Modular 2nd hard disk drive

• Modular Lithium ion battery

• Weight Saver

- Locating the Controls and Connectors

Figure 5. LifeBook Tablet PC back panel

Gigabit LAN

USB 2.0 Port

Air Vents

External

Anti-Theft Lock Slot

Modem (RJ-11) Jack*

(RJ-45) Jack

Video Port

USB 2.0 Port

* Modem is on non-WWAN models only

Back Panel Components

Following is a brief description of your LifeBook Tablet PC’s back panel components.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

Modem (RJ-11) Telephone Jack

The Modem (RJ-11) jack is for attaching a telephone line to the internal multinational 56K modem. (There is no modem on systems with WWAN device.) See “Modem (RJ-11) Jack*” on page 95.

THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT THE

INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR YOUR ENTIRE TABLET PC. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS.

MODEM.

OME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT BEFORE YOU CONNECT YOUR

- Locating the Controls and Connectors

THE INTERNAL MULTINATIONAL MODEM IS DESIGNED TO THE ITU-T V.90/V.92 STANDARD. ITS MAXIMUM

SPEED OF 53000 BPS IS THE HIGHEST ALLOWED BY FCC, AND ITS ACTUAL CONNECTION RATE DEPENDS ON THE LINE CONDITIONS. THE MAXIMUM SPEED IS 33600 BPS AT UPLOAD, IN ACCORDANCE WITH FCC REGULATIONS.

OR ADDITIONAL INFORMATION ABOUT THE MODEM, REFER TO THE FUJITSU WEBSITE AT:

HTTP://SOLUTIONS.US.FUJITSU.COM/.

USB 2.0 Ports

The USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12Mbps. See “Universal Serial Bus Ports” on page 96.

Air Vents

The air vents allow air to circulate through the system to cool down the components.

O PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

Gigabit LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection. See “Internal LAN (RJ-45) Jack” on page 94.

External Video Port

The external monitor port allows you to connect an external monitor or LCD projector. See “External Video Port” on page 98.

- Locating the Controls and Connectors

Bottom Components

Memory Upgrade

Lithium ion

Port Replicator

Battery Bay

Air Vents

Battery Latch

Connector

Compartment

Modular Bay Release Latch

Dust Filter

The following is a brief description of your LifeBook Tablet PC’s bottom panel components.

Battery Latches

The battery latches are used to secure the Lithium ion battery in the battery bay.

Lithium ion Battery Bay

The battery bay contains the internal Lithium ion battery. It can be opened for the removal of the battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion battery.

Figure 6. LifeBook Tablet PC bottom panel

See “Lithium ion Battery” on page 80.

- Locating the Controls and Connectors

Air Vents

The air vents allow air to circulate through the system to cool down the components.

TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO

KEEP ALL AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

Modular Bay Release Latch

The modular bay release latch is used to release the modular bay device from the modular bay.

Memory Upgrade Compartment

Your Tablet PC comes with high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3 1066 MHz SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of your Tablet PC, thus improving overall performance. See “Memory Upgrade Module” on page 90. Under normal circumstances, it should not be necessary to open this compartment.

Port Replicator Connector

This connector allows you to connect the optional Port Replicator to your Tablet PC.

Dust Filter

The dust filter is used to help remove dust and dirt fin your system. See “Cleaning the dust filter” on page 126.

- Locating the Controls and Connectors

Figure 7. Status Indicator Panel

Optical/Hard Drive Access

NumLk

CapsLk

ScrLk

Battery 1 Level

Battery 2 Level

Batt. 1 Charging

Batt. 2 Charging

Power

External Power

Security

Status Indicator Panel

The Status Indicator Panel displays symbols and associated LEDs that correspond to specific components of your Tablet PC. These symbols tell you how each of those components is operating.(Figure 7)

• The Power indicator symbol shows whether your system is operational. It has several different

states, each of which tells you what mode your Tablet PC is in at that time.

• Steady On: This means that there is power to your Tablet PC and that it is ready for use.

• Flashing: This means that your Tablet PC is in Sleep mode.

Power Indicator

- Status Indicator Panel

• Steady Off: This means that your system is either in Hibernate mode, or that your Tablet PC has

been turned off.

If you are charging your battery, the Power indicator symbol will remain on even if your LifeBook Tablet PC is shut off. Even if the system was shut down from Windows, the Power indicator symbol will remain on if you have an adapter connected

External Power Indicator

The external power indicator shows whether your tablet is operating from the AC adapter, the auto/airline adapter or the batteries. This icon has two different states that can tell you what power source your LifeBook Tablet PC is using.

• On: This means that either of the adapters are currently in use.

• Off: Power is only coming from the batteries, and you do not have an adapter connected.

Hard Drive/Optical Drive Access Indicator

The Hard Drive/Optical Drive Access indicator shows whether your internal hard drive or optical drive are being accessed is being accessed.

Battery Charging Indicators

The Battery Charging and Battery Level indicators state whether the Lithium ion battery (Battery 1) or the optional modular battery (Battery 2) are installed and charging.

Battery Level Indicator

The Battery Level indicators display the charge level of the indicated battery pack, as follows:

• Blue, solid: Battery is between 50% and 100% charged.

• Orange, solid: Battery is between 13% and 49% charged.

- Status Indicator Panel

• Red, solid: Battery is between 0% and 12% charged.

• Orange, blinking: Blinks during battery status measurement (Four seconds after the battery is

installed).

• Red, blinking: There is a problem with the battery.

• Off: There is no battery installed.

• If the battery pack is installed while the power is turned off, the battery level indicator will display

the charge level for five seconds after it blinks orange.

• If the AC adapter is not connected or the battery pack is not fully charged when the computer is

switched to sleep mode, the indicator will blink. The LED blinks at the rate of one second on/five seconds off.

• Batteries subjected to shocks, vibration or extreme temperatures can be permanently

damaged.

• A shorted battery is damaged and must be replaced.

Security Indicator

The Security Indicator flashes (if a password was set) when the system resumes from Off or Sleep modes. You must enter the password that was set in the Security Panel before your system will resume operation.

NumLk Indicator

The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.

CapsLock Indicator

The CapsLock indicator states that your keyboard is set to type in all capital letters.

ScrLk Indicator

The ScrLk indicator states that your scroll lock is active.

- Status Indicator Panel

Display Panel

Your LifeBook T900 Tablet PC contains an LED display panel that is backlit for easier viewing in bright environments. The convertible design of your Tablet PC allows you to open the display fully, rotate it in either direction 180 degrees, and lay it face up on the keyboard. This allows you to use the system as a tablet, much as you would a pad of paper.

Opening the Display Panel

Lift the display backwards, being careful not to touch the screen with your fingers, until it is at a comfortable viewing angle. (Figure 8)

Figure 8. Opening the Display Panel

- Display Panel

Using the System as a Tablet

Top latch

Bottom latch

Display Side

If you would like to use the system as a tablet, perform the following steps.

• The display can be rotated in either direction, but when returning the system to notebook mode,

be sure to turn it back to its original position (i.e., the reverse of how you turned it when you opened it. Turning the display in the incorrect direction could cause hinge damage.

• In the following step, be sure to position the display perpendicular to the keyboard, otherwise

the keyboard or display cover could get scratched.

1 Press the latch button and lift the display until it is perpendicular to the keyboard. (Figure 10). 2 When the display is perpendicular to the keyboard, rotate it 180 degrees in either direction (Figure 11) so that

it is facing backwards.

3 Holding the top edge of the display panel, pull it forward until it is lying nearly atop the keyboard.

4 Push the latch towards the display (See “A” in

Figure disappears, and the bottom latch appears (See “B” in Figure lay the display flush against the system so that the latch engages. You can now use your system as a tablet.

5 Lay the display flush against the system so

that the latch engages. You can now use your system as a tablet.

9). The latch will pivot so the top latch

9). Holding the latch down,

(Figure 12)

Figure 9. Latching/unlatching

To return the system to notebook configuration, repeat steps 3 and 2.

- Display Panel

Figure 10. Fully Open Display

Landscape Orientation

2nd Portrait Orientation

Portrait

Orientation

Non-functional Orientation

Figure 11. Rotating Display

Figure 12. Tablet Mode

Holding the Tablet PC

Your computer can be used in tablet configuration in three different orientations (Figure 12).

• Portrait Orientation: Hold the system with the display positioned vertically with the latch on the

left.

• 2nd Portrait Orientation: Hold the system with the display positioned vertically with the latch on

the right.

• Landscape Orientation: Hold the system with the display positioned horizontally with the latch on

the top.

Note: Holding the system horizontally with the latch at the bottom is not a functional orientation.

- Display Panel

Adjusting Display Panel Brightness

Once you have turned on your Tablet PC, you may want to adjust the brightness level of the screen to a more comfortable viewing level. There are three ways to adjust the brightness: keyboard, power management utility, and Fujitsu Menu.

Using Keyboard to Adjust Brightness

Adjusting the brightness using the keyboard changes the system setting (i.e., the settings you make via the function keys automatically changes the brightness settings in the system’s Pen and Tablet Settings).

• [Fn+F6]: Pressing repeatedly will lower the brightness of your display.

• [Fn+F7]: Pressing repeatedly will increase the brightness of the display.

Using Power Management to Adjust Brightness

Windows XP/Vista:

To adjust brightness with the power management utility in Windows Vista or Windows XP:

Click Start -> Control Panel. If you are not in Classic View, select it in the left panel. Double-click the Windows Mobility Center icon, then double-click the icon adjacent to Display brightness. Set the screen brightness sliders for On battery and Plugged in scenarios.

Windows 7:

To adjust brightness with the power management utility in Windows 7:

Click Start -> Control Panel. In View by:, select one of the icon views. Select Display, then click Adjust brightness in the left pane. Drag the Screen brightness: slider to the left or right, depending upon your preference.

- Display Panel

Using the Fujitsu Menu to Adjust Brightness

To adjust brightness using the Fujitsu menu, click on the Fujitsu Menu icon in the system tray in the lower right corner of the screen. (You can also open the Fujitsu menu by clicking the [Fn] button twice in succession.) Double-click Windows Mobility Center, then double-click the icon adjacent to Display brightness. Set the screen brightness sliders for On battery and Plugged in scenarios.

IF USING AC POWER, YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. IF USING

BATTERY POWER, YOUR BRIGHTNESS SETTINGS IS SET TO APPROXIMATELY MID-LEVEL BY DEFAULT.

HE HIGHER THE BRIGHTNESS LEVEL, THE MORE POWER THE TABLET PC WILL CONSUME AND THE FASTER YOUR BATTERIES WILL DISCHARGE. FOR MAXIMUM BATTERY LIFE, MAKE SURE THAT THE BRIGHTNESS IS SET AS LOW AS POSSIBLE.

- Display Panel

Keyboard

Fn Key

Start Key

Function Keys

Numeric Keypad

Application Key

Cursor Keys

(surrounded by heavy line)

Figure 13. Keyboard

Using the Keyboard

Your Fujitsu LifeBook Tablet PC has an integral 84-key keyboard. The keys perform all the standard functions of a 101-key keyboard, including the Windows keys and other special function keys. This section describes the following keys (Figure 13):

• Numeric keypad: Your Tablet PC allows certain keys to serve dual purposes, both as standard

characters and as numeric and mathematical keys. The ability to toggle between the standard character and numerical keys is controlled through the [NumLk] key.

- Keyboard

• Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to

the right, left, up, or down within windows, applications and documents.

• Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to

produce special actions that vary depending on what program is running.

• Windows keys: These keys work with your Windows operating system and function the same as

the onscreen Start menu button, or the right button on your pointing device.

Numeric Keypad

Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys. NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to indicate their secondary functions.

Windows Keys

Your LifeBook Tablet PC has two Windows keys, consisting of a Start key and an Application key. The Start key displays the Start menu. This button functions the same as your onscreen Start menu button. The Application key functions the same as your right mouse button and displays shortcut menus for the selected item. (Please refer to your Windows Help and Support documentation in the Start menu for additional information regarding the Windows keys.)

Cursor Keys

The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down, left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the next item up, down, left, or right).

- Keyboard

Function Keys

Your LifeBook Tablet PC has 12 function keys, F1 through F12. Functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

• The [Fn] key provides extended functions for the Tablet PC and is always used in conjunction with

another key.

• [Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.

• [Fn+F4]: Pressing [F4] while holding [Fn] will toggle the Quick Point feature on and off. Note that

the [Fn+F4] combination only works if Manual Setting is selected in the BIOS. (See “BIOS Setup Utility” on page 71)

• [Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.

• [Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.

• [Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your LifeBook

Tablet PC.

• [Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LifeBook

Tablet PC.

• [Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send

your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, external monitor only, and both built-in display panel and external monitor.

- Keyboard

Touchpad/Active Digitizer/Touchscreen

Left Button

Right Button

Quick Point Control

Scroll Sensor

Figure 14. Touchpad pointing device

Using the Touchpad

The touchpad is built into your LifeBook Tablet PC. It is used to control the movement of the cursor to select items on your display panel. The touchpad is composed of a cursor control below the center of the keyboard, two buttons below it, and a scroll sensor on the right edge of the cursor control. The left button functions the same as a left mouse button while the right button has the same function as a right mouse button. When used with the cursor control, the scroll sensor allows you to scroll up and down a screen. The actual functionality of the buttons may vary depending on the application that is being used.

- Touchpad/Active Digitizer/Touchscreen

Clicking

Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the touchpad once.

Figure 16. Clicking with Touchpad

Figure 15. Clicking with button

- Touchpad/Active Digitizer/Touchscreen

Figure 17. Right-clicking with button

Double-Clicking

Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and immediately release it. You can also perform the double-click operation by tapping lightly on the Touchpad twice.

Figure 18. Double-clicking with button

Figure 19. Double-clicking with Touchpad

• IF THE INTERVAL BETWEEN CLICKS IS TOO LONG, THE DOUBLE-CLICK WILL NOT BE EXECUTED.

• PARAMETERS FOR THE QUICK POINT CAN BE ADJUSTED FROM THE MOUSE DIALOG BOX LOCATED IN

THE WINDOWS CONTROL PANEL.

- Touchpad/Active Digitizer/Touchscreen

Dragging

Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the Touchpad. First, tap the Touchpad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the Touchpad, and then release your finger.

Figure 20. Dragging with button

- Touchpad/Active Digitizer/Touchscreen

Figure 21. Dragging with Touchpad

Scrolling

Using the scrolling strip allows you to navigate through a document quickly without using the window’s scroll bars. This is particularly useful when you are navigating through on-line pages. To scroll, slide your finger up and down the scroll strip on the right side of the cursor control pad. Note that when you are working in tablet mode, a second scroll strip is located adjacent to the display.

Figure 22. Scrolling with the Scroll Strip

Touchpad Control Adjustment

The Windows Control Panel allows you to customize your touchpad with selections made from within the Mouse Properties dialog box. There are three aspects of operation which you can adjust:

• Buttons: This tab lets you set up the buttons for right or left handed operation, in addition to setting

up the time interval allowed between clicks in double-clicking.

• Pointers: This tab lets you set up the scheme for the cursor depending on its functionality.

• Pointer Options: This tab lets you set up a relation between the speed of your finger motion and

the speed of the cursor. It also allows you to enable a Pointer Trail for the cursor arrow.

- Touchpad/Active Digitizer/Touchscreen

Active Digitizer Display

NOTE: Depending upon your system configuration, in addition to the active digitizer, you may also have a capacitive touch panel that responds to finger touch and gestures. (This configuration is called a “Dual Digitizer”.) For more information about the touchscreen, refer to “Using the Optional Capacitive Touchscreen” on page 50.

The integrated active digitizer allows you to use the included stylus as a pointing device. You can use the stylus to click, double-click, drag items and icons, write text, or to draw like a pen or pencil in applications that support this behavior, such as drawing or painting programs. See your application documentation for details.

• DO NOT USE EXCESSIVE FORCE WHEN TAPPING OR WRITING ON THE SCREEN WITH THE STYLUS.

XCESSIVE FORCE COULD RESULT IN DAMAGE TO THE LED AND/OR ACTIVE DIGITIZER.

• TO PURCHASE ADDITIONAL OR REPLACEMENT STYLUSES, VISIT FUJITSU’S ACCESSORIES WEBSITE AT:

WWW.SHOPFUJITSU.COM.

Figure 23. Using the Active Digitizer Display

- Touchpad/Active Digitizer/Touchscreen

Clicking on Active Digitizer Display

To left-click, touch the object you wish to select and then lift the stylus tip immediately.

Figure 24. Clicking on the Active Digitizer Display

Figure 25. Right-clicking Active Digitizer

Right-Clicking on Active Digitizer

Right-click can be accomplished by holding the front of the toggle button down while tapping on the screen. To change the settings for the right-click feature, go to Start -> Control Panel -> Pen and Input Devices. In the Pen Options tab, select “Press and Hold” then click the [Settings] button.

- Touchpad/Active Digitizer/Touchscreen

Double-Clicking

To double-click, touch the item twice, and then immediately remove the stylus tip.

Dragging

Dragging means moving an item with the stylus by touching the screen, moving and then lifting the stylus. To drag, touch the Active Digitizer Display with your stylus on the item you wish to move. While continuing to touch the screen with the stylus, drag the item to its new location by moving the stylus across the screen, and then lifting the stylus to release it.

Figure 26. Double-clicking the Display

- Touchpad/Active Digitizer/Touchscreen

Figure 27. Dragging on the Display

Calibrating the Active Digitizer Display

In order to ensure accurate tracking between the stylus and cursor, you must run the Calibration Utility before you use the system for the first time, or after you change the display resolution.

• THE FIRST TIME YOU PERFORM A CALIBRATION, THE SYSTEM DISPLAY SHOULD BE IN LANDSCAPE

MODE. SUBSEQUENT CALIBRATIONS CAN BE PERFORMED IN LANDSCAPE OR PORTRAIT MODE.

• THE FIRST TIME YOU CALIBRATE, THERE WILL BE 16 CALIBRATION POINTS; SUBSEQUENT CALIBRATIONS

WILL REQUIRE ONLY FOUR CALIBRATION POINTS.

To run the calibration utility:

1 Go to Start -> Control Panel. (On Windows Vista systems, If you are not in Classic View, select “Switch to

Classic View” in the left panel.)

2 Double-click the Tablet PC Settings icon and select the General tab 3 Click the [Calibrate] button. 4 Adjust the display of your Tablet PC to a comfortable angle and find the (+) symbol in the upper-left corner of

the display.

DO NOT USE EXCESSIVE FORCE WHEN TAPPING ON THE SCREEN DURING CALIBRATION. USE OF

EXCESSIVE FORCE COULD RESULT IN DAMAGE TO THE LED AND/OR TOUCH PANEL.

5 Using the stylus, firmly touch the screen directly on the (+) symbol. Lift the stylus from the screen and the target

will move to a different location on the screen.

6 Repeat step 4 until you have selected all of the (+) symbols. 7 Once you have selected all the symbols, press the [OK] button. 8 Touch the stylus to various points on the screen to verify that the screen is correctly calibrated. If you are not

satisfied with the screen’s calibration, press the [Calibrate]) button to begin again.

- Touchpad/Active Digitizer/Touchscreen

Using the Optional Capacitive Touchscreen

Certain configurations of this Tablet PC have an optional dual digitizer that allows you to use either the stylus or your finger(s) as a pointing device. This type of display also allows you to use “gestures” to perform such actions as scroll, zoom, and rotate.

• GESTURE SUPPORT IS DETERMINED BY THE APPLICATION IN USE.

• THE STYLUS TAKES PRECEDENCE OVER FINGER TOUCH. IF THE STYLUS IS WITHIN ACTIVE RANGE OF

THE SCREEN, FINGER TOUCH WILL BE DISABLED.

• WHEN ONE FINGER IS USED ON THE TOUCHSCREEN, IT BEHAVES IN THE SAME MANNER AS A STYLUS.

Right-clicking the touchscreen

To perform a right-click action using two fingers, press the first finger at the location you want to perform a right-click, then quickly tap and release the second finger on the screen.

Gesture Mode 

To initiate gesture mode, two fingers must touch the screen within one 10th of a second of each other. If the second finger touches the screen after one 10th of a second has elapsed, the second finger is ignored. Gesture mode ends when both fingers are removed from the screen. Note that if a gesture can’t be recognized, no action is taken. In that case, remove both fingers from the screen and try again.

Scrolling Gesture

To scroll through long documents or on a web page, place both fingers on the screen (one finger quickly followed by the second) and move them in parallel in the same direction; if only one finger moves, no scrolling will occur. You can scroll vertically or horizontally, depending upon the direction of the gesture.

Zoom Gesture

The zoom gesture is especially helpful when viewing pictures. To zoom in, place two fingers on the item you want to enlarge (one finger quickly followed by the second), then spread them away from each other. To zoom out, place two fingers on the item you want to reduce (one finger quickly followed by the second), then move them towards each other.

- Touchpad/Active Digitizer/Touchscreen

Rotate Gesture

To change the orientation of an object on the screen, place two fingers on the image you want to rotate (one finger quickly followed by the second), then move them in opposite directions (as if you were turning a knob). The direction the item turns is dependant upon the direction you move your fingers.

Installing a Pen Tether

To prevent dropping or losing your pen, you should attach it to your system using the pen tether that is included with the system.

To attach the pen tether to your Tablet PC, perform the following steps:

1 Attach the end of the pen tether with the smaller loop

to your pen. To do so, push the end of the tether through the hole in the pen, then thread the opposite end of the tether through the loop.

2 Attach the end of the pen tether with the larger loop to

the attachment point on your tablet. To do so, insert the end of the pen tether through the attachment point, then feed the pen through the large loop in the tether.

Figure 28. Installing a Pen Tether

- Touchpad/Active Digitizer/Touchscreen

Volume Control

Your Fujitsu LifeBook Tablet PC has multiple volume controls which interact with each other.

Controlling the Volume

The volume can be controlled in several different ways:

• Volume can be changed or muted from within the Volume Control in the system tray.

• Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding

[Fn] will decrease the volume of your Tablet PC. Pressing [F9] repeatedly while holding [Fn] will increase the volume of your Tablet PC.

• Volume can be changed by opening the Control Panel and selecting Windows Mobility Center.

From there, you can either mute or adjust the sound in the Volume area.

• Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio,

repeat the [Fn+F3] procedure.

ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF

YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL, THE HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE THE EXTERNAL VOLUME CONTROL SETTING.

• Volume can be controlled by many volume controls that are set within individual applications.

• Certain external audio devices you might connect to your system may have hardware volume

controls.

Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources. We recommend that you experiment with the various volume controls to discover the optimal sound level.

- Volume Control

Modular Bay Devices

Modular Bay

Your Fujitsu LifeBook Tablet PC contains a Modular Bay. The Modular Bay can house an optical drive, a Lithium ion battery, a modular second hard disk drive and a weight saver.

Your Modular Bay will have one of the following devices installed.

• Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and

audio DVD/CDs and record to DVD, CD, and DVD-RAM discs.

• Modular DVD/CD-RW combo drive: This allows you to access movies, software, and audio

DVD/CDs as well as to write to CDs.

• Modular DVD-ROM drive: This allows you to access software, data, video, or audio discs.

• Modular Lithium ion battery: This is a rechargeable battery that can be used to power your

LifeBook Tablet PC when an adapter is not connected.

• Modular hard drive: This allows you to increase the storage capacity of your Tablet PC.

• Weight Saver: This is used to fill the bay when no device is needed.

Figure 29. Modular Bay

YOU SHOULD NEVER LEAVE YOUR MODULAR BAY EMPTY WHEN THE TABLET PC IS IN OPERATION. IF

LEFT EMPTY, DUST OR FOREIGN MATTER MAY ACCUMULATE INSIDE THE TABLET PC.

- Modular Bay Devices

Removing and Installing Modular Devices

Modular Bay Release Latch

There are two ways to remove and install modular devices in the Modular Bay:

• Cold-swapping: swapping devices while your LifeBook Tablet PC is powered off.

• Hot-swapping: swapping devices while your system is active using the Safely Remove Hardware

icon from your system tray.

Cold-swapping

To cold-swap modular devices in your Modular Bay follow these easy steps:

1 Close any open files. 2 Shut down your LifeBook Tablet PC. 3 Turn the system upside down and press the Modular

Bay release latch in the direction shown in Figure

30.

4 While holding the latch, slide your device out until it

is clear of the bay. This will require light force.

5 Slide the device you are installing into your Tablet

PC until it clicks into place.

6 It is now safe to turn your Tablet PC back on. 7 You can now access and use the device.

Figure 30. Removing/Installing Modular Bay Device

Your Tablet PC will automatically detect the device and activate it within your system. The drive letters associated with the device will be created and listed under My Computer and Windows Explorer.

Hot-swapping

Hot-swapping is provided through the Safely Remove Hardware utility. The icon for the utility appears in the system tray. Click on the icon and follow the on-screen instructions.

- Modular Bay Devices

Figure 31. LifeBook T900 Tablet PC Security/Tablet PC Buttons

ENT

LifeBook Security/Tablet PC Buttons

A unique feature of your LifeBook T900 Tablet PC is the array of Security and Tablet PC buttons. These buttons allow you to secure your Tablet PC from unauthorized use and to launch specific applications and functions with the touch of a button.

Security Button Functions

If the security system is activated, upon starting your Tablet PC or resuming from Sleep, Hibernate, or shutdown mode, the security system will require you to enter a password code using the security buttons. After you enter the correct password, your system will resume operation.

The five security/Tablet PC buttons are located on the bottom right-hand side of the display when it is configured to be used as a notebook.

All five buttons are used when implementing security functions. Four of the buttons are used to enter the password, and the fifth is used as an Enter button. See Table 1 for information about each of the Security buttons.

- LifeBook Security/Tablet PC Buttons

Button Icon System State Security Panel Function

System is pre-boot or resuming from suspend

Table 1. Security Panel Button Functions

Security Button 1

Security Button 2

Security Button 3

Security Button 4

Security Enter Button

Pre-logon button functions

All five buttons can be used before logging on to Windows (i.e., when the Windows logon screen is displayed). Three of the buttons have secondary functions. See Table 2 for information about the prelogon functions.

When you press the [Page Down] button when the system is pre-logon, each press of the button will act as if you had pressed the [Tab] key.

When you press the [Fn] button then press and release the [Page Down] button, each press of the button will act as if you had pressed the [Shift]+[Tab] key combination.

When you press the [Page Up] button when the system is pre-logon, each press of the button will act as if you had pressed the [Enter] key.

- LifeBook Security/Tablet PC Buttons

Button

Icon

System State Tablet PC Function

Secondary Functions

(Fn + Button)

System is prelogon (Windows logon screen is displayed)

Table 2. Pre-logon Tablet PC Button Functions

Rotate screen None

Used to invoke  secondary function

Ctl+Alt+Del Button None

None

When you press the [Fn] button then press and release the [Page Up] button, each press of the button will act as if you had pressed the [Escape] key.

Screen Rotation

The screen rotation feature would normally be used when the system is configured as a tablet. When you would like to use the tablet as an eBook, for example, you would use the portrait orientation; when accessing spreadsheets or using the system as a notebook, you would more typically use landscape orientation.

When the system is changed to tablet configuration, the orientation automatically changes to portrait mode by default.

- LifeBook Security/Tablet PC Buttons

THE SCREEN ORIENTATION DEFAULT CAN BE CHANGED BY GOING TO THE CONTROL PANEL AND

DOUBLE-CLICKING ON THE FUJITSU TABLET CONTROLS ICON AND SELECTING THE DESIRED SETTINGS IN THE DISPLAY PROPERTIES. AFTER CHANGING THE SETTINGS, SAVE THEM IN FUJITSU TABLET

ONTROLS.

When you press the [Screen Rotation] button when the system is in pre-boot, the system screen orientation changes from portrait (vertical) to landscape (horizontal) or from landscape to portrait.

Function / Fujitsu Menu Utility Button

The [Function] button works in conjunction with the other application buttons to provide additional functionality for the buttons. Refer to specific details above.

Post-logon button functions

All five buttons can be used after logging on to Windows. Four of the buttons have secondary functions. See Table 3 for information about each of the post-logon functions.

Page Down / Application A Button

When you press the [Page Down] button when the system is running, each press of the button will scroll the screen down one frame. This allows you to navigate quickly through large documents.

When you press the [Fn] button then press and release the [Page Down/Application A] button, you will automatically start whichever program is assigned to the button. The default application for this button is Calculator. See “Changing Tablet PC Button Functions” on page 60 to select a different application for this button.

Page Up / Application B Button

When you press the [Page Up] button when the system is running, each press of the button will scroll the screen up one frame. This allows you to navigate quickly through large documents.

- LifeBook Security/Tablet PC Buttons

When you press the [Fn] button then press and release the [Page Up/Application B] button, you will automatically start whichever program is assigned to the button. The default application for this button is Microsoft Journal. See “Changing Tablet PC Button Functions” on page 60 to select a different application for this button.

Button Icon System State

System is postlogon (Windows desktop is displayed)

Primary Tablet PC  Function

Page Down User-defined Application A

Page Up User-Defined Application B

Screen Rotation

Secondary  Function Selection

Ctl+Alt+Del Button None

Table 3. Post-logon Tablet PC Button Functions

Secondary Functions (Fn + Button)

(Default = Calculator)

(Default = MS Journal)

Display Switching:

1. LED only

2. CRT only

3. Dual Display Fujitsu Menu Utility

Screen Rotation /Display Switching Button

The screen rotation feature would normally be used only when the system is configured as a tablet. When you would like to use the tablet as an eBook, for example, you would use the portrait orientation; when accessing spreadsheets or using the system as a notebook, you would more typically use landscape orientation.

When the system is changed to tablet configuration, the orientation automatically changes to portrait mode by default.

- LifeBook Security/Tablet PC Buttons

HE SCREEN ORIENTATION DEFAULT CAN BE CHANGED BY GOING TO THE CONTROL PANEL AND DOUBLE-CLICKING ON THE TABLET PC SETTINGS ICON AND SELECTING THE DESIRED SETTINGS IN THE DISPLAY TAB. AFTER CHANGING THE SETTINGS, SAVE THEM IN FUJITSU TABLET CONTROLS.

When you press the [Screen Rotation /Display Switching] button, the system screen orientation changes from portrait (vertical) to landscape (horizontal) or from landscape to portrait.

Pressing the [Fn] button while pressing the [Screen Rotation] button will switch the display output in the following order: built-in display only, external display only, dual display.

Function / Fujitsu Menu Utility Button

The [Function] button works in conjunction with the other application buttons to provide additional functionality for the buttons. Refer to specific details above.

Pressing the [Fn] button twice in succession causes the Fujitsu Menu Utility to appear on your screen, allowing you to modify certain system settings.

Ctl+Alt+Del Button

Pressing and holding the [Ctl-Alt-Del] button for up to 8 seconds launches the Logon screen or the Windows Task Manager.

Changing Tablet PC Button Functions

The Application A and B buttons can be changed to launch a program or perform an action you select. By default, the Application A button launches the Calculator, and the Application B button launches MS Journal.

To launch different applications or cause the Application A or B buttons to perform a specific action:

1 Double-click on the Tablet PC Settings icon in the Control Panel.

- LifeBook Security/Tablet PC Buttons

2 Select the Buttons tab and select the button you would like to change from the list. 3 Click [Change] and open the drop down list in the Press: field. 4 Select the action you would like the button to perform. If you want to launch a program, click on Start a

Program, then browse to the location of the program.

5 Click [OK], then click [OK] again. The buttons will now perform the actions you have assigned to them.

Setting up LifeBook Security Panel

When you receive your Tablet PC, the security panel application is pre-installed without any passwords. The following sections provide detailed information on your security panel, how to set, change or remove passwords.

Numbered Buttons

Use these buttons to enter your password.

Enter Button

After entering the button strokes, push this button to enter the password into the Tablet PC.

Passwords

The user and supervisor password may be set on this Tablet PC. A supervisor password is typically the same for all tablets and notebooks in a work group, office, or company to allow for system management. Individual computers in a group environment should not use a common password. A password consists of one to five button strokes plus the enter button. A valid stroke consists of pushing one or up to four buttons simultaneously.

The following are valid button strokes:

• Pushing [4] by itself

• Pushing [2] and [3] at the same time

• Pushing [1], [2], and [4] at the same time

• Pushing [1], [2], [3], and [4] at the same time

- LifeBook Security/Tablet PC Buttons

The following are valid passwords. The numbers within braces ({ }) are button strokes using more than one button.

• {[2]+[3]}, [1], [Enter]

• [4], [enter]

• {[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]

Setting Passwords

When shipped from the factory, no passwords are set. You have a choice of having no password or setting a supervisor and user password. You must set the supervisor password before the user password.

• THE PURPOSE OF SUPERVISOR PASSWORD IS TO BE ABLE TO BYPASS THE USER PASSWORD IN CASE THE USER

PASSWORD IS FORGOTTEN. THE SUPERVISOR PASSWORD ALONE WILL NOT LOCK THE SYSTEM.

• YOU MUST SET THE SUPERVISOR AND USER PASSWORDS FOR THE SECURITY PANEL TO WORK.

Setting Supervisor Password

You must have set a supervisor password before setting any user passwords. The supervisor password can bypass the user password.

1 Go to the Start menu. 2 Click on Run. 3 Type in: C:\Program Files\Fujitsu\Security Panel Application\Supervisor\ FJSECS.EXE, then press [Enter] 4 Follow the on-screen instructions to set the Supervisor password.

Setting User Password

1 Go to the Start menu. 2 Click on All Programs. 3 Click on Security Panel Application -> Security Panel Application. 4 Follow the on-screen instructions to set the user password.

- LifeBook Security/Tablet PC Buttons

YOU MAY CHANGE OR REMOVE THE SUPERVISOR OR USER PASSWORD BY REPEATING THE STEPS

DEFINED ABOVE.

Using Your LifeBook Security Panel

The security lock feature is in effect both when the system resumes from Off, Sleep, or Hibernation state. You always need to push the Security Panel buttons to input the user password. Your system will not begin the boot sequence until you enter your supervisor/user password.

From Off State

1 Turn on your system. 2 When the Security Indicator flashes, enter the password and press Enter button (e.g., if the password is 22222,

first press Button 2 five times, then press the Enter button). The Tablet PC will boot to normal operation.

From Sleep/Hibernation State

1 Press your Suspend/Resume button. 2 When the Security Indicator flashes, enter the password and press Enter button.The Tablet PC should resume

normal operation.

Incorrect Password Entry

If an invalid supervisor or user password is entered three times in succession, the system will “beep” for about one minute. If a valid password is entered within a minute (while system beeps), the beeping will stop and the Tablet PC will resume normal operation. If no password is entered or an invalid password is entered while the system beeps, the system will return to its previous locked state (sleep or off) and the Security Indicator will go off. To reactivate the Tablet PC after a password failure, you must press the Suspend/Resume button, then enter a correct password.

- LifeBook Security/Tablet PC Buttons

REMEMBER THE USER PASSWORD YOU SPECIFIED ON THE SECURITY PANEL APPLICATION. IF YOU

FORGET THE PASSWORD YOU WILL NOT BE ABLE TO USE YOUR COMPUTER. THE SUPERVISOR PASSWORD CAN OVERRIDE THE USER PASSWORD.

Precautions

Opening and Closing the Cover

By default, closing the cover automatically places your system into Sleep mode.

To change the default when the cover is closed:

1 Open the system Control Panel and select Power Options. In Windows Vista, if the display is in Category view,

click Change battery settings under the Mobile PC category (or Performance and Maintenance category in Windows XP). If it is in Classic view, click Power Options.

2 Click Choose what closing the lid does in the left pane. 3 Select the desired action for When I close the lid, then click the [Save changes] button.

Low Battery Operations

If your Tablet PC has a low battery, pushing the suspend/resume button only turns on the Security Indicator. Your Tablet PC does not unlock, the Security Indicator turns off after one minute. To resume normal operation, first attach a power supply to the Tablet PC. Then you may unlock the Tablet PC.

Uninstalling/Re-installing the Security Panel Application

You have two options when uninstalling the security panel application:

• Remove passwords and uninstall the security panel application software. This will disable all

security features.

• Uninstall the security panel application with password still active. This will not allow any changes

to the password.

- LifeBook Security/Tablet PC Buttons

Uninstalling the Security Panel Application Software

Remove passwords when User wants no password protection whatsoever and doesn’t want to give anybody the utility to set a password on their computer. In this case, if passwords (supervisor, user, or both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords, follow same procedure in SETTING PASSWORD CODES except this time, select REMOVE, enter current password then click Next. When asked to confirm select Ye s .

Removing Security Panel Application with Passwords Still Active

Using this feature will not allow any changes to the password.

REMOVING THE APPLICATIONS DOES NOT REMOVE THE PASSWORD. IT SIMPLY REMOVES THE ABILITY

TO CHANGE/ADD/REMOVE PASSWORDS. TO CHANGE YOUR PASSWORD YOU MUST REINSTALL THE APPLICATION.

User:

1 Go to Start -> Control Panel. 2 Open Programs and Features in the Control Panel. 3 Select Security Panel for User in the list, and click Uninstall/Change. 4 When User Account Control box appears, click Continue.

Supervisor:

1 Go to Start -> Control Panel. 2 Open Add or Remove Programs Properties in the Control Panel. 3 Select the Security Panel for Supervisor in the list, and click Uninstall/Change. 4 When User Account Control box appears, click Continue.

- LifeBook Security/Tablet PC Buttons

Reinstalling the Security Panel Application

To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The Utilities\Security Panel Application folder contains two separate folders: Supervisor and User. The setup files for supervisor and user security applications are contained in those folders.

1 Go to the Utilities\Security Panel Application\ Supervisor folder on the CD and double-click the setup.exe

file. The Installing Security Panel Application window will appear. Follow the instructions on the screen.

2 Go to the Utilities\Security Panel Application\User folder on the CD and double-click the setup.exe file. The

Installing Security Panel Application window will appear. Follow the instructions on the screen.

Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on page 62.

If you forget both passwords, please contact Fujitsu America Service and Support at 1-800-8FUJITSU (1800-838-5487). Fujitsu America charges a service fee for unlocking a password-restricted Tablet PC. When calling please have a valid credit card and provide proof of ownership. You will then be given instructions on where to ship your Tablet PC.

- LifeBook Security/Tablet PC Buttons

Chapter 2

Getting Started with Your LifeBook

Power Sources

Your Fujitsu LifeBook Tablet PC has three possible power sources: a primary Lithium ion battery, an AC adapter or an optional Auto/Airline adapter.

Connecting the Power Adapters

The AC adapter or optional Auto/Airline adapter provides power for operating your Tablet PC and charging the batteries.

Connecting the AC Adapter

1 Plug the DC output cable into the DC power jack of your LifeBook Tablet PC. 2 Plug the AC adapter into an AC electrical outlet.

Connecting the Optional Auto/Airline Adapter

1 Plug the DC output cable into the DC power jack on your Tablet PC. 2 Plug the Auto/Airline adapter into the cigarette lighter of an automobile, or, 3 Plug the Auto/Airline adapter into the DC power jack on an airplane seat.

DC Power Jack

AC Adapter

Power/Suspend/Resume Switch

Figure 32. Connecting the AC Adapter

Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power

1 Be sure that you have at least one charged battery installed. 2 Remove the AC adapter or the Auto/Airline adapter.

THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT

EITHER THE AC ADAPTER OR THE AUTO/AIRLINE ADAPTER TO USE YOUR TABLET PC.

- Power Sources

Starting Your LifeBook Tablet PC

Power On

Power/Suspend/Resume Button

The Power/Suspend/Resume button is used to turn on your LifeBook Tablet PC from its off state. Once you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your LifeBook Tablet PC.

WHEN YOU TURN ON YOUR LIFEBOOK TABLET PC BE SURE YOU HAVE A POWER SOURCE. THIS MEANS

THAT AT LEAST ONE BATTERY IS INSTALLED AND CHARGED, OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS CONNECTED AND HAS POWER.

To turn on your LifeBook Tablet PC from its off state, slide the Power/Suspend/Resume switch, located above the keyboard to the right. When you are done working you can either leave your Tablet PC in Suspend mode, you can turn it off. See “Sleep Mode” on page 75 and “Powering Off” on page 78

O NOT CARRY YOUR LIFEBOOK TABLET PC AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS

OR VIBRATION, AS YOU RISK DAMAGING YOUR TABLET PC.

When you power on your LifeBook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your LifeBook Tablet PC will emit an audio warning and/or an error message will be displayed. See “Power On Self Test Messages” on page 113. Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings.

After satisfactory completion of the POST, your Tablet PC will load your operating system.

- Starting Your LifeBook Tablet PC

NEVER TURN OFF YOUR LIFEBOOK TABLET PC DURING THE POWER ON SELF TEST (POST) OR IT WILL

CAUSE AN ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR LIFEBOOK TABLET PC ON THE NEXT TIME. See “Power On Self Test Messages” on page 113.

Boot Sequence

The procedure for starting-up your Tablet PC is termed the Bootup sequence and involves your Tablet PC’s BIOS. When your LifeBook Tablet PC is first turned on, the main system memory is empty, and it needs to find instructions to start up your Tablet PC. This information is in the BIOS program. Each time you power up or restart your Tablet PC, it goes through a boot sequence which displays a Fujitsu logo until your operating system is loaded. During booting, your Tablet PC is performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.

The boot sequence is executed when:

• You turn on the power to your LifeBook Tablet PC.

• You restart your Tablet PC from the Windows Shut Down dialog box.

• The software initiates a system restart. Example: When you install a new application.

Hard Disk Drive Passwords

To provide additional security for your data, you can assign passwords to your hard disk drive(s). This feature is managed in the system BIOS Setup Utility. See BIOS Setup Utility below for information about accessing the utility.

EMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK

PASSWORDS, FUJITSU WILL NOT BE ABLE TO RESET IT. YOU MAY LOSE DATA AND HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE.

- Starting Your LifeBook Tablet PC

BIOS Setup Utility

The BIOS Setup Utility is a program that sets up the operating environment for your LifeBook Tablet PC. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS’ environment to operate your Tablet PC.

The BIOS Setup Utility configures:

• Device control feature parameters, such as changing I/O addresses and boot devices.

• System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following (or use the TrustedCore Menu, as detailed in the next section):

1 Turn on or restart your LifeBook Tablet PC. 2 To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open

the main menu of the BIOS Setup Utility with the current settings displayed.

3 Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter

the current settings.

Using the TrustedCore Menu

When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left mouse or touchpad button; the TrustedCore Menu will appear.

The TrustedCore Menu provides shortcuts to the following menus and information screens:

• BIOS Setup

• Diagnostic Screen

• Boot Menu

• Patent Information

• System Information

• Continue Booting

- Starting Your LifeBook Tablet PC

Clicking on any of the fields will invoke the screen, information, or action described.

The Boot Menu can also be invoked by pressing the [F12] key when the Fujitsu logo appears on the screen.

BIOS Guide

A guide to your Tablet PC’s BIOS is available online. Please visit our service and support website at http://www.computers.us.fujitsu.com/support, then select User’s Guides under Online Support. Select your Product, Series, and Model, then click [Go]. Under the Manuals tab, select the BIOS Guide.

Booting the System

We strongly recommend that you not attach any external devices until you have gone through the initial power on sequence.

When you turn on your Tablet PC for the first time, it will display a Fujitsu logo on the screen. If you do nothing the system will load the operating system, and then the Windows Welcome will begin.

Starting Windows the first time

THE FIRST TIME YOU INITIALIZE YOUR WINDOWS SYSTEM, THE SCREEN WILL BE BLANK FOR

APPROXIMATELY TWO MINUTES. THIS IS NORMAL. AFTER INITIALIZATION, A “SET UP WINDOWS” DIALOG

BOX WILL APPEAR.

MPORTANT: DURING THE SETUP PROCEDURE, DO NOT DISCONNECT THE POWER SUPPLY, PRESS ANY

BUTTONS, OR USE ANY PERIPHERAL DEVICES SUCH AS A MOUSE, KEYBOARD, OR REMOTE CONTROL.

In order to ensure that you receive the most benefits from the Windows operating system, it should be registered the first time you use it.

1 First of all, you will need to select your language. 2 Next you will be prompted to enter your country and area. 3 You will be prompted to enter your user name and computer name. 4 Enter a Password and you will be given a chance to select an icon for your account.

- Starting Your LifeBook Tablet PC

5 Read and accept the End User License Agreements (EULAs).

• IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENTS YOU WILL BE ASKED TO REVIEW THE

LICENSE AGREEMENTS FOR INFORMATION ON RETURNING WINDOWS OR TO SHUT DOWN YOUR

IFEBOOK TABLET PC.

• YOU CANNOT USE YOUR TABLET PC UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENTS. IF YOU

STOP THE PROCESS YOUR TABLET PC WILL RETURN TO THE BEGINNING OF THE WINDOWS WELCOME

ROCESS, EVEN IF YOU SHUT YOUR TABLET PC DOWN AND START IT UP AGAIN.

6 You will next see windows for Security Center settings and Time and Date settings. 7 If you have a wireless LAN device in your system, a window for wireless LAN settings now appears. 8 The "Thank you" screen follows and an offer for free Norton Internet Security is extended. Following are several

screens while Windows checks the system performance.

9 Windows will then boot up for the first time. As noted above, the first time you initialize your system, the screen

will be blank for approximately two minutes. This is normal. During this period, do not disconnect the power supply, press any buttons, or use any peripheral devices such as mouse, keyboard, or remote control.

Registering Windows with Microsoft

1 After Windows has booted up for the first time, click on Register Windows Online and follow the instructions that

appear to register your copy of Windows.

Registering Your LifeBook Tablet PC with Fujitsu

You can register your LifeBook by going to our website at: http://solutions.us.fujitsu.com/

You will need to be set up with an Internet Service Provider (ISP) to register online.

- Starting Your LifeBook Tablet PC



ClickMe!

Installing ClickMe!

BEFORE INSTALLING THE CLICKME! UTILITY, BE SURE THE WIRELESS LAN SWITCH IS TURNED ON.

The first time you boot up your system, you will see a “Primary Settings for the PC” window. This window explains the installations which will be performed by the Click Me! utility. If you click [Execute], ClickMe! will begin installing. If after clicking the button you receive a “User Account Control” window, you will be asked for your permission to continue. Click [Continue] to continue. If you cancel the operation, the ClickMe! icon will appear on your desktop for later installation.

HERE MAY BE SOME THIRD-PARTY APPLICATIONS THAT DO NOT GET INSTALLED USING THE CLICKME!

UTILITY. FOR MORE INFORMATION, REFER TO YOUR GETTING STARTED GUIDE.

Fujitsu Driver Update Utility

Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can choose to automatically or manually go to the Fujitsu site to check for new updates for your system. For more information about the FDU utility, refer to “Automatically Downloading Driver Updates” on page 121.

- Starting Your LifeBook Tablet PC

Power Management

Your Fujitsu LifeBook Tablet PC has many options and features for conserving battery power. Some of these features are automatic and need no user intervention. However, others depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your Tablet PC may be controlled from settings made in your operating system, prebundled power management application, or from settings made in BIOS setup utility.

Besides the options available for conserving battery power, there are also some things that you can do to prevent your battery from running down as quickly. For example, you can create an appropriate power saving profile, put your Tablet PC into Sleep mode when it is not performing an operation, and you can limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off between performance and power savings.

Power/Suspend/Resume Button

When your Tablet PC is active, the Power/Suspend/Resume button can be used to manually put the Tablet PC into Sleep mode. Push the Power/Suspend/Resume button when the Tablet PC is active, but not actively accessing anything, and immediately release the button.

If your Tablet PC is suspended, pushing the Power/Suspend/Resume button returns your Tablet PC to active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the indicator is visible and not flashing, your Tablet PC is fully operational. If the indicator is visible and flashing, your Tablet PC is in Sleep mode. If the indicator is not visible, the power is off or your Tablet PC is in Hibernation mode.

Sleep Mode

Sleep mode in Windows saves the contents of your system memory during periods of inactivity by maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other internal components except those necessary to maintain system memory and for restarting.

Your Tablet PC can be put in sleep mode by:

- Power Management

• Pressing the Power/Suspend/Resume button when your system is turned on.

• Selecting “Sleep” after clicking [Start] then clicking the small arrow at the bottom right of the

window.

• Timing out from lack of activity.

• Allowing the battery to reach the Dead Battery Warning condition.

Your Tablet PC’s system memory typically stores the file on which you are working, open application information, and any other data required to support operations in progress. When you resume operation from Sleep mode, your Tablet PC will return to the point where it left off. You must use the Power/Suspend/Resume button to resume operation, and there must be an adequate power source available, or your Tablet PC will not resume.

■

IF RUNNING YOUR TABLET PC ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO

DISCHARGE WHILE YOUR TABLET PC IS IN SLEEP MODE, THOUGH NOT AS QUICKLY AS WHEN FULLY OPERATIONAL.

■

DISABLING THE POWER/SUSPEND/RESUME BUTTON PREVENTS IT FROM BEING USED TO PUT THE T

ABLET PC INTO SLEEP OR HIBERNATION (SAVE-TO-DISK) MODE. THE BUTTON RESUME FUNCTION

CANNOT BE DISABLED.

■

THE SLEEP OR HIBERNATION MODE SHOULD NOT BE USED WITH CERTAIN PC CARDS. CHECK YOUR PC C

ARD DOCUMENTATION FOR MORE INFORMATION. WHEN PC CARDS OR EXTERNAL DEVICES ARE IN USE, HIBERNATION MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION, BECAUSE ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RESTARTS.

■

IF YOUR TABLET PC IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER THE SLEEP OR HIBER-

NATION MODE, CHANGES TO OPEN FILES ARE NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS KEPT ACTIVE DURING SLEEP MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE DURING HIBERNATION MODE.

HE MAIN ADVANTAGE OF USING HIBERNATION IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR DATA. THIS IS PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR TABLET PC IN A SUSPENDED STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.

- Power Management

Hibernation (Save-to-Disk) Feature

The Hibernation feature saves the contents of your Tablet PC’s system memory to the hard drive as a part of the Suspend/Resume mode. You can enable or disable this feature.

Enable or Disable the Hibernation Feature

The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:

1 From the Start menu, select Control Panel, then select the Power Options icon. 2 Select “Choose what the power button does” or “Choose what closing the lid does”, then make your selections

(Do Nothing, Sleep, Hibernate, or Shut Down).

Windows Power Management

The Power Options icon located in the Windows Control Panel allows you to configure some of the power management settings. For example, you can use the Power Options to set the timeout values for turning off the display and hard disks whether you are running the Tablet PC on battery power or one of the adapters.

Restarting the System

If your system is on and you need to restart it, be sure that you use the following procedure.

1 Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand

pane.

2 Select Restart from the list.

TURNING OFF YOUR LIFEBOOK TABLET PC WITHOUT EXITING WINDOWS OR TURNING ON YOUR TABLET PC

WITHIN 10 SECONDS OF THE SYSTEM BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START

THE NEXT TIME.

- Power Management

Powering Off

Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off the power while accessing a disk there is a risk of data loss. To ensure that your Tablet PC shuts down without error, use the Windows shut down procedure.

BE SURE TO CLOSE ALL FILES, EXIT ALL APPLICATIONS, AND SHUT DOWN YOUR OPERATING SYSTEM

PRIOR TO TURNING OFF THE POWER. IF FILES ARE OPEN WHEN YOU TURN THE POWER OFF, YOU WILL LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.

Using the correct procedure to shut down from Windows allows your Tablet PC to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is:

1 Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand

pane.

2 Select Shut Down from the list.

If you are going to store your Tablet PC for a month or more, see Care and Maintenance Section.

- Power Management

Chapter 3

User-Installable Features

Lithium ion Battery

Your LifeBook Tablet PC has a Lithium ion battery that provides power for operating your Tablet PC when no external power source is available. The battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become shorter if it is used under the following conditions:

• When used at temperatures that exceed a low of 5°C or a high of 35°C (41° to 95° F). Extreme

temperatures not only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside its operating temperature range.

• When using a high current device such as a modem, external optical drive, or the hard drive, using

the AC adapter will conserve your battery life.

DO NOT LEAVE A FAULTY BATTERY IN YOUR TABLET PC. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL A

UTO/AIRLINE ADAPTER, ANOTHER BATTERY OR YOUR TABLET PC ITSELF. IT MAY ALSO PREVENT

OPERATION OF YOUR TABLET PC BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY.

• ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS, FEATURES, POWER

MANAGEMENT SETTINGS, BATTERY CONDITION AND OTHER CUSTOMER PREFERENCES. OPTICAL DRIVE OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE. THE BATTERY CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS RUNNING LOW QUICKLY, YOU SHOULD REPLACE IT WITH A NEW ONE.

• UNDER FEDERAL, STATE, OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING

THEM IN THE TRASH. PLEASE TAKE CARE OF OUR ENVIRONMENT AND DISPOSE OF BATTERIES PROPERLY. CHECK WITH YOUR LOCAL GOVERNMENT AUTHORITY FOR DETAILS REGARDING RECYCLING OR DISPOSING OF OLD BATTERIES. IF YOU CANNOT FIND THIS INFORMATION ELSEWHERE, CONTACT YOUR SUPPORT REPRESENTATIVE AT 1-800-8FUJITSU (1-800-838-5487)

Recharging the Batteries

If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator located on the Status Indicator panel. The indicator changes as the battery level changes.

The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery make sure the battery that needs to be charged is installed in your LifeBook Tablet PC and connect the AC or Auto/Airline adapter.

AKE SURE THAT THE PERCENTAGE CHARGE IS INDICATED BY THE BATTERY CHARGING INDICATOR ON

THE STATUS INDICATOR PANEL.

There is no memory effect on the Lithium ion battery therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your Tablet PC is in use while the battery is charging. If you want to charge the battery more quickly, put your Tablet PC into Sleep mode, or turn it off while the adapter is charging the battery. (See Power Management on page 75 for more

information on Sleep mode and shutdown procedure)

- Lithium ion Battery

USING HEAVY CURRENT DEVICES OR FREQUENT EXTERNAL OPTICAL DRIVE ACCESSES MAY PREVENT

CHARGING COMPLETELY.

Low Battery State

When the battery is running low, a low battery notification message will appear. If you do not respond to the low battery message, the batteries will continue to discharge until they are too low to operate. When this happens, your Tablet PC will go into Sleep mode. There is no guarantee that your data will be saved once the Tablet PC reaches this point.

■

ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE

DATA AND PUT YOUR LIFEBOOK TABLET PC INTO SLEEP MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. YOU SHOULD PROVIDE A CHARGED BATTERY, AN AC POWER ADAPTER, OR

UTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.

■

WHEN YOU ARE IN SLEEP MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IF

YOU REMOVE ALL POWER SOURCES WHILE YOUR LIFEBOOK TABLET PC IS IN SLEEP MODE, ANY DATA THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.

Dead Battery Suspend mode shows on the Status indicator just like the normal Sleep mode. Once your Tablet PC goes into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power either from an adapter, or a charged battery. Once you have provided power, you will need to press the Power/Suspend/Resume button to resume operation.

In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored. Once you provide power, you can continue to use your Tablet PC while an adapter is charging the battery.

- Lithium ion Battery

Shorted Batteries

The Status Indicator panel indicator associated with the Battery Level indicator displays the operating level available in that battery. If this display shows a flashing red LED, it means the battery is damaged and must be replaced so it does not damage other parts of your LifeBook Tablet PC.

Replacing the Battery

With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not charged. There are two ways to swap batteries, cold-swapping and hot-swapping:

Cold-swapping Batteries

To cold-swap batteries in your battery bay, follow these easy steps (Figure 33):

1 Have a charged battery ready to install. 2 Shut down your Tablet PC and disconnect the AC adapter. 3 While pushing the battery bay release latches towards each other, slide the battery out of the bay. 4 Insert a new battery into the bay, and press it in firmly so that the latches click into place. 5 Plug in the AC adapter and turn the power on.

Hot-swapping Batteries

To hot-swap batteries in your battery bay follow these easy steps:

E SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE

BATTERY PRESENT TO SUPPORT THE SYSTEM WHILE THE BATTERY IS BEING REPLACED. IF YOU DO NOT USE AN AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.

1 Plug an AC Adapter into the system and connect it to a power outlet.

- Lithium ion Battery

2 Follow steps 3 through 5 in “Cold Swapping Batteries”.

Battery Bay Release Latches

Battery Pack

Figure 33. Removing a Battery

IF THE LITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED, YOU MAY NOT BE ABLE TO USE YOUR T

ABLET PC OR CHARGE YOUR BATTERY.

- Lithium ion Battery

Figure 34. Installing a Memory Stick or SD Card

Memory Stick

SD Card

Memory Stick/Secure Digital Cards

Your LifeBook Tablet PC supports Memory Sticks and Secure Digital (SD) cards, on which you can store and transfer data to and from a variety of digital devices. These cards use flash memory architecture, which means they don’t need a power source to retain data.

Memory Stick is a flash memory technology that allows you to record, transfer and share digital content, such as digital pictures, movies, music, voice, and computer data and applications.

Secure Digital (SD) Cards are very similar to Memory Sticks. Like Memory Sticks, SD Cards allow portable storage among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs. SD Cards transfer data quickly, with low battery consumption. Like the memory stick, it uses flash memory architecture.

- Memory Stick/Secure Digital Cards

Installing Memory Stick/SD Cards

Memory Stick and SD Cards are installed in the Memory Stick/SD Card slot. To install a Memory Stick or SD Card, follow these steps:

INSTALLING OR REMOVING A MEMORY STICK OR SD CARD DURING YOUR LIFEBOOK TABLET PC’S

SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK TABLET PC.

O NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS

YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK TABLET PC, OR BOTH.

1 See your specific card manual for instructions on the installation of your card. Some cards may require that your

Tablet PC is off while installing them.

2 Make sure there is no card currently in the slot. If there is, see Removing a Memory Stick/SD Card. 3 Insert your card into the slot with the product label facing up. 4 Push the card firmly into the slot until it is seated in the connector.

Removing A Memory Stick/SD Card

To remove a Memory Stick or SD Card, follow these easy steps:

EE YOUR CARD MANUAL FOR SPECIFIC INSTRUCTIONS ON THE REMOVAL OF YOUR CARD. SOME CARDS MAY REQUIRE YOUR LIFEBOOK TABLET PC TO BE IN SLEEP MODE OR OFF WHILE REMOVING THEM.

1 Select Safely Remove Hardware from the System Tray. Highlight the card in the list, then click [Stop]. 2 Push the Memory Stick or SD Card in until it unlatches. It will then eject from the slot for removal.

- Memory Stick/Secure Digital Cards

PC Cards

Eject Button

PC Card Slot

PC Card

Figure 35. Installing/Removing PC Card

Your LifeBook Tablet PC supports Type I and Type II PC Cards which can perform a variety of functions depending on which type of card you install.

Some available PC Cards:

• Gigabit Ethernet Local area network (LAN) cards

• Wireless WAN (WWAN) cards

• S-ATA II cards

• IEEE802.11n WLAN cards

• Other PC Cards that conform to PCMCIA 2.1 or CardBus standards

For further information, refer to the instructions supplied with your card(s).

- PC Cards

Installing PC Cards

To install a PC Card in the PC Card slot, follow these steps:

• INSTALLING OR REMOVING A PC CARD DURING YOUR LIFEBOOK TABLET PC’S SHUTDOWN OR BOOTUP

PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK TABLET PC.

• DO NOT INSERT A PC CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE

CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK TABLET PC, OR BOTH.

OU MAY BE REQUIRED TO LOG ON AS AN ADMINISTRATOR OR MEMBER OF THE ADMINISTRATOR’S

ROUP TO COMPLETE THIS PROCEDURE. IF THE COMPUTER IS CONNECTED TO A NETWORK, NETWORK POLICY SETTINGS MAY ALSO PREVENT YOU FROM COMPLETING THIS PROCEDURE.

1 See your PC Card manual for instructions on the installation of your card. Some cards may require that your

Tablet PC is off while installing them.

2 Make sure there is no PC Card currently in the slot. If there is, see Removing PC Cards. 3 If the eject button is extended, press it until it clicks. 4 Insert the card into the slot with the label facing up. 5 Push the card firmly into the slot until it is seated in the connector.

Removing PC Cards

See your PC Card manual for specific instructions on removing your card. Some cards may require your Tablet PC to be in Sleep Mode or Off during removal.

• WINDOWS HAS A SHUTDOWN PROCEDURE FOR PC CARDS THAT MUST BE FOLLOWED BEFORE

REMOVING A CARD. (REVIEW YOUR OPERATING SYSTEM MANUAL FOR THE CORRECT PROCEDURE.) IT IS GOOD PRACTICE TO REMOVE DEVICES USING SAFELY REMOVE HARDWARE IN THE SYSTEM TRAY.

• IF THE DIALOG BOX STATES THAT THE DEVICE CANNOT BE REMOVED, YOU MUST SAVE ALL OF YOUR

OPEN FILES, CLOSE ANY OPEN APPLICATIONS AND SHUT DOWN YOUR TABLET PC.

- PC Cards

1 Unlock the card from the slot by pressing the eject button associated with the slot in which the card is located.

Smart Card Slot

When pressed, the button will pop out.

2 Firmly press the button again until it is flush with the Tablet PC. This will eject the card slightly out of the slot

allowing you to remove the card.

F THE PC CARD HAS AN EXTERNAL CONNECTOR AND CABLE, DO NOT PULL THE CABLE WHEN

REMOVING THE CARD.

Smart Card Reader

A dedicated Smart Card Reader is provided on your Tablet PC. Smart Cards are the same size and shape as credit cards, but they contain embedded integrated circuits. The chip can hold a variety of information, and provides you with many possible options, such as allowing you to make secure purchases, pay for phone calls, store security information, and provide personal identification and information.

In order to use the Smart Card Reader, you must purchase optional Smart Card third-party software.

Figure 36. Smart Card Slot

- PC Cards

Memory Upgrade Module

Your Fujitsu LifeBook Tablet PC comes with a minimum of 1GB of high speed Double Data Rate Synchronous Dynamic RAM (DDR3-1066 SDRAM) factory installed. To increase your Tablet PC’s memory capacity, you may install an additional memory upgrade module. The memory upgrade must be a dual-in-line (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only from the Fujitsu web store at www.shopfujitsu.com.

• DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE

ONES SPECIFICALLY SHOWN IN THE DIRECTIONS FOR INSTALLING AND REMOVING THE MEMORY UPGRADE MODULE.

• THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE

(ESD). T

• BEFORE HANDLING A MEMORY MODULE, TOUCH A GROUNDED METAL OBJECT TO DISCHARGE

STATIC ELECTRICITY BUILT UP IN YOUR BODY.

• WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO

TOUCH ANY CONTACTS OR CHIPS. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.

• BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES.

VEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP STATES, DATA COULD BE LOST OR THE MEMORY

COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.

O MINIMIZE RISK TO THE MODULE, OBSERVE THE FOLLOWING PRECAUTIONS:

Installing Memory Upgrade Modules

1 Turn off power to your Tablet PC, remove any power adapter (AC or auto/airline). Remove the battery. 2 Make sure that all the connector covers are closed. 3 Turn the Tablet PC bottom side up, and remove the screws from the memory upgrade module compartment. 4 Slide the cover towards the battery compartment slightly, then lift it and remove it (Figure 37). 5 Remove the memory upgrade module from the static guarded sleeve. 6 Align the memory upgrade module with the part side up. Align the connector edge of the memory upgrade

module with the connector slot in the compartment.

- Memory Upgrade Module

(Figure 38)

Figure 37. Opening Memory Compartment Figure 38. Installing a Second Memory Module

7 Insert the memory upgrade module at a 45° angle. Press the connector edge of the module firmly down and

into the connector until it lodges under the retaining clip. You’ll hear a click when it is properly in place.

8 Replace the cover and reinstall the screws.

THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE FROM YOUR TABLET PC. O

NCE IT IS INSTALLED, YOU CAN LEAVE IT IN PLACE UNLESS YOU WANT TO CHANGE SYSTEM MEMORY CAPACITY.

- Memory Upgrade Module

Removing a Memory Upgrade Module

1 Perform steps 1 through 4 of Installing a

Memory Upgrade Module.

2 Pull the clips sideways away from each side of

the memory upgrade module at the same time.

3 While holding the clips out, remove the module

by lifting it up and pulling it away from your Tab l et P C.

4 Store the memory upgrade module in a static

guarded sleeve.

5 Replace the cover and reinstall the screws.

Figure 39. Removing a Memory Module

Checking the Memory Capacity

Once you have changed the system memory capacity by replacing the installed module with a larger one, be sure to check that your Tablet PC has recognized the change.

• If you are in Control Panel Home view, check the memory capacity by clicking [Start] -> Control

Panel -> System and Maintenance -> System. The amount of memory is displayed next to “Memory

- RAM:”

• If you are in Classic view, check the memory capacity by clicking [Start] -> Control Panel ->

System. The amount of memory is displayed next to “Memory - RAM:”

- Memory Upgrade Module

There may be a variation between the actual memory size and what is displayed. This is possible if your system is configured with an integrated Intel Graphics Media Accelerator which dynamically allocates system memory to accelerate graphics performance.

IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS

PROPERLY INSTALLED. (IF THE MODULE IS PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 100.

- Memory Upgrade Module

Device Ports

Your Fujitsu LifeBook Tablet PC and the optional Port Replicator come equipped with multiple ports to which you can connect external devices including: disk drives, keyboards, printers, etc.

Internal LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for a Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection. You may need to configure your Tablet PC to work with your particular network. (Please refer to your network administrator for information on your network configuration.) To connect the LAN cable follow these easy steps:

1 Align the connector with the port

2 Push the connector into the port until it

3 Plug the other end of the cable into a

opening.

is seated.

LAN outlet.

- Device Ports

Figure 40. Connecting the LAN

Modem (RJ-11) Jack*

The modem (RJ-11) jack is used for an internal modem. To connect the telephone cable follow these easy steps:

1 Align the connector with the jack opening. 2 Push the connector into the jack until it is

seated.

3 Plug the other end of the telephone cable into a

telephone outlet.

* Note that the modem device is present

only in non-WWAN models

THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT

THE INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR YOUR ENTIRE LIFEBOOK T900 SERIES TABLET PC. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT BEFORE YOU CONNECT YOUR MODEM.

• THE INTERNAL MODEM IS DESIGNED TO THE ITU V.90 STANDARD. ITS MAXIMUM SPEED OF 53000

BPS IS THE HIGHEST ALLOWED BY FCC, AND ITS ACTUAL CONNECTION RATE DEPENDS ON THE LINE CONDITIONS. THE MAXIMUM SPEED IS 33600 BPS AT UPLOAD.

• THE INTERNAL MODEM ON ALL LIFEBOOK T900 SERIES TABLET PC’S FROM FUJITSU AMERICA ARE

CERTIFIED FOR USE IN THE UNITED STATES AND CANADA.

Figure 41. Connecting a Modem

- Device Ports

Port Replicator Connector

The port replicator connector is used for the connection of your Tablet PC to an optional port replicator. In order to connect your Tablet PC to this device, follow the instructions that came with your port replicator.

Universal Serial Bus Ports

The Universal Serial Bus 2.0 ports (USB) allow you to connect USB devices such as external game pads, pointing devices, keyboards and/or speakers. There are three USB 2.0 ports on your Tablet PC: one on the left side and two on the rear..



In order to connect a USB device follow these steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is

seated.

Figure 42. Connecting a USB Device

DUE TO THE ONGOING CHANGES IN USB TECHNOLOGY AND STANDARDS, NOT ALL USB DEVICES

AND/OR DRIVERS ARE GUARANTEED TO WORK.

- Device Ports

IEEE 1394 Port

The 4-pin 1394 port allows you to connect digital devices that are compliant with IEEE 1394 standard. The IEEE 1394 standard is easy to use, connect, and disconnect. This port can allow up to 400 Mbps transfer rate. A third-party application may be required to operate your device with the 1394 port.

THE 1394 PORT USED IN THIS SYSTEM USES A FOUR-PIN CONFIGURATION. IF YOU INTEND TO

INTERFACE WITH DEVICES WHICH USE A SIX-PIN CONFIGURATION, YOU WILL NEED TO PURCHASE AN ADAPTER.



In order to connect a 1394 device, follow these steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is

seated.

- Device Ports

Figure 43. Connecting an IEEE1394 Device

Headphone Jack

The headphone jack allows you to connect headphones or powered external speakers to your Tablet PC. Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect headphones or speakers follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

Microphone Jack

The microphone jack allows you to connect an external microphone. Your microphone must be equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your Tablet PC. In order to connect a microphone follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

External Video Port

The external video port allows you to connect an external monitor or LCD projector. In order to connect an external video device, follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. 3 Tighten the two hold-down screws, located on each end of the connector.

PRESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND

YOUR DISPLAY VIDEO. EACH TIME YOU PRESS THE KEY COMBINATION, YOU WILL STEP TO THE NEXT CHOICE, STARTING WITH THE BUILT-IN DISPLAY PANEL ONLY, MOVING TO THE EXTERNAL MONITOR ONLY, FINALLY MOVING TO BOTH THE BUILT-IN DISPLAY PANEL AND AN EXTERNAL MONITOR.

- Device Ports

Figure 44. Connecting an External Video Device

- Device Ports

Chapter 4

Troubleshooting Your LifeBook

Troubleshooting

There may be occasions when you encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices that can be solved by replacing the device. The information in this section helps you isolate and resolve some of these straightforward issues and identify failures that require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1 Turn off your LifeBook Tablet PC. 2 Make sure the AC adapter is plugged into your Tablet PC and to an active AC power source. 3 Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the

slot, thus eliminating it as a possible cause of failure.

4 Make sure that any devices connected to the external connectors are plugged in properly. You can also

disconnect such devices, thus eliminating them as possible causes of failure.

5 Turn on your Tablet PC. Make sure it has been off at least 10 seconds before you turn it back on. 6 Go through the boot sequence.

100

Fujitsu Client Computing WL0019, WB0080, GOBI2 User Manual
